Model Whirlpool RM280PXBB3 – Common Parts & Diagrams
03 - MAGNETRON AND AIR FLOW
01 - CABINET

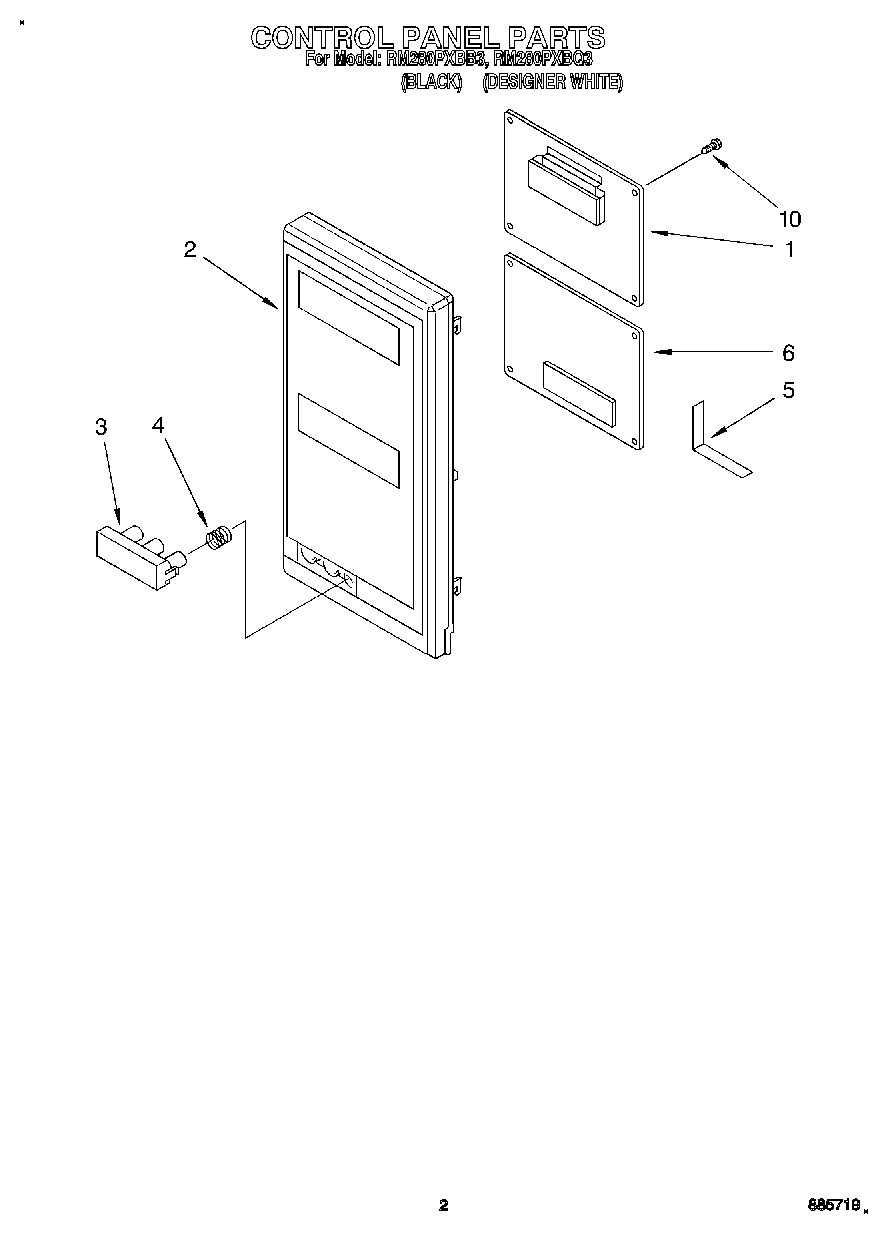

02 - CONTROL PANEL, LITERATURE

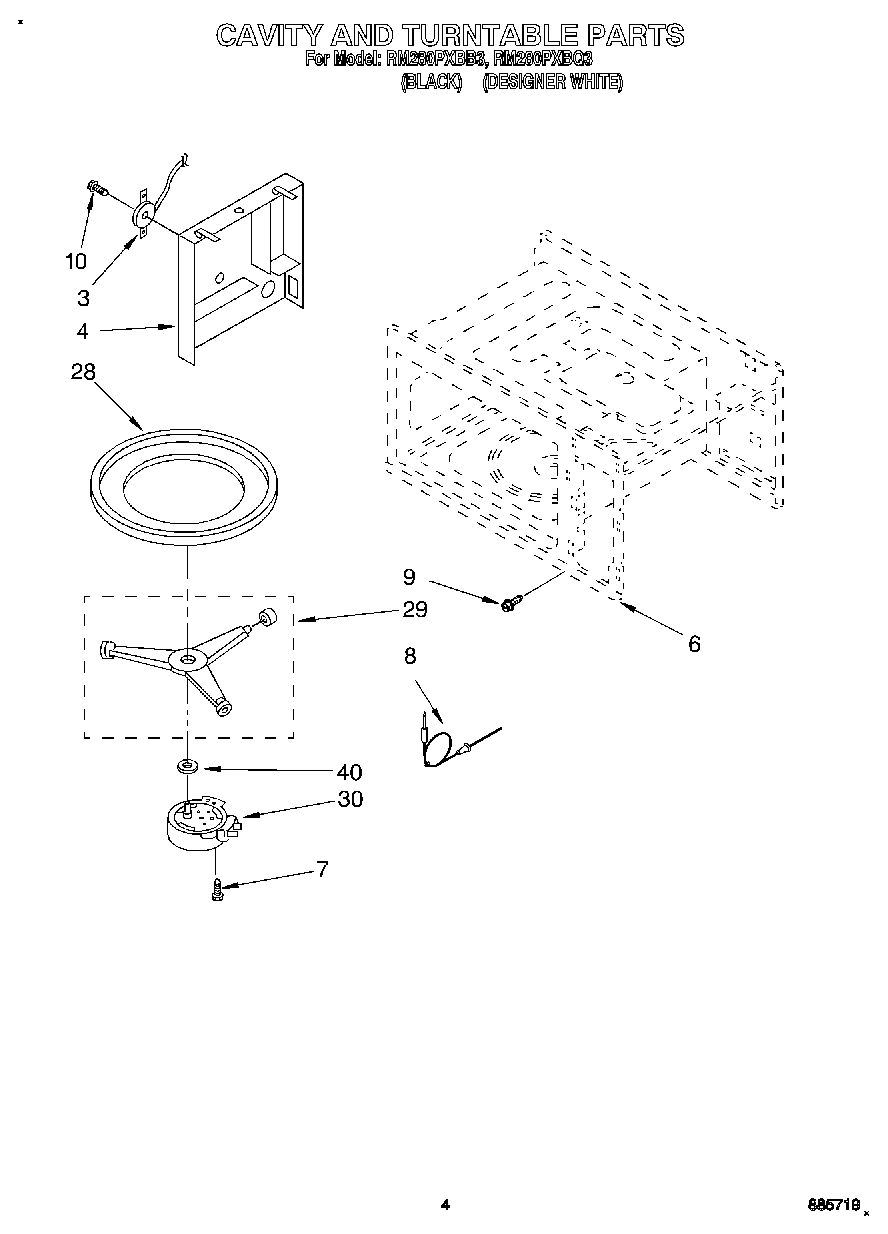

04 - CAVITY AND TURNTABLE

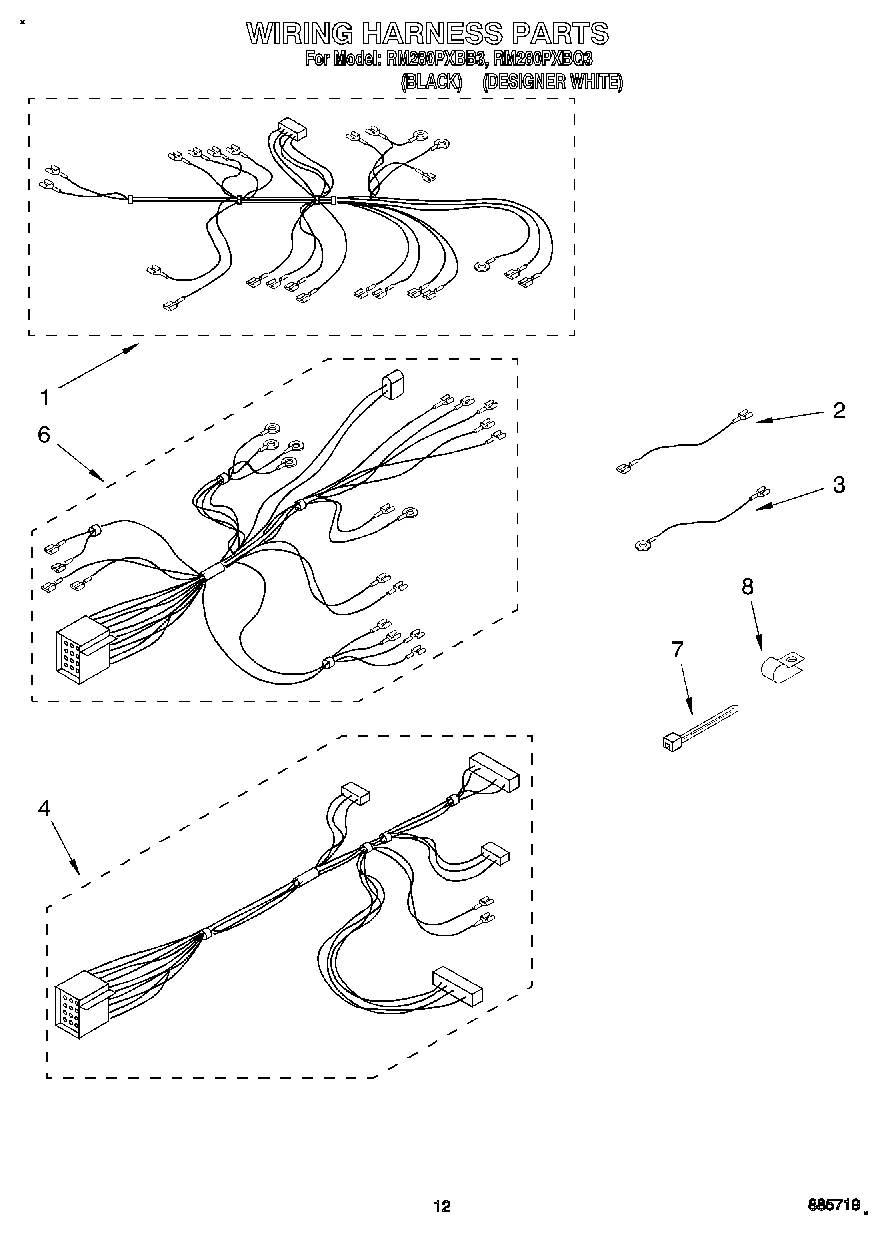

09 - WIRING HARNESS

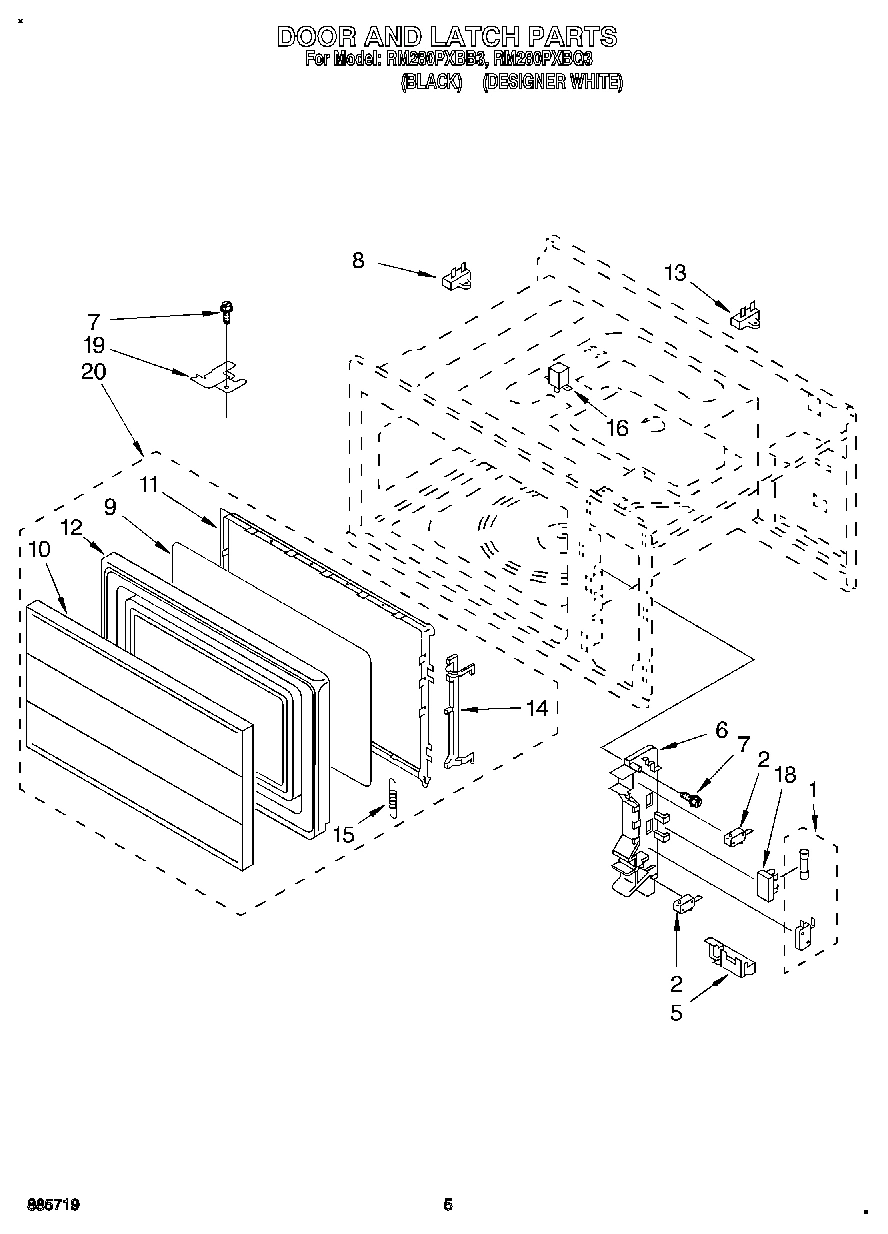

05 - DOOR AND LATCH

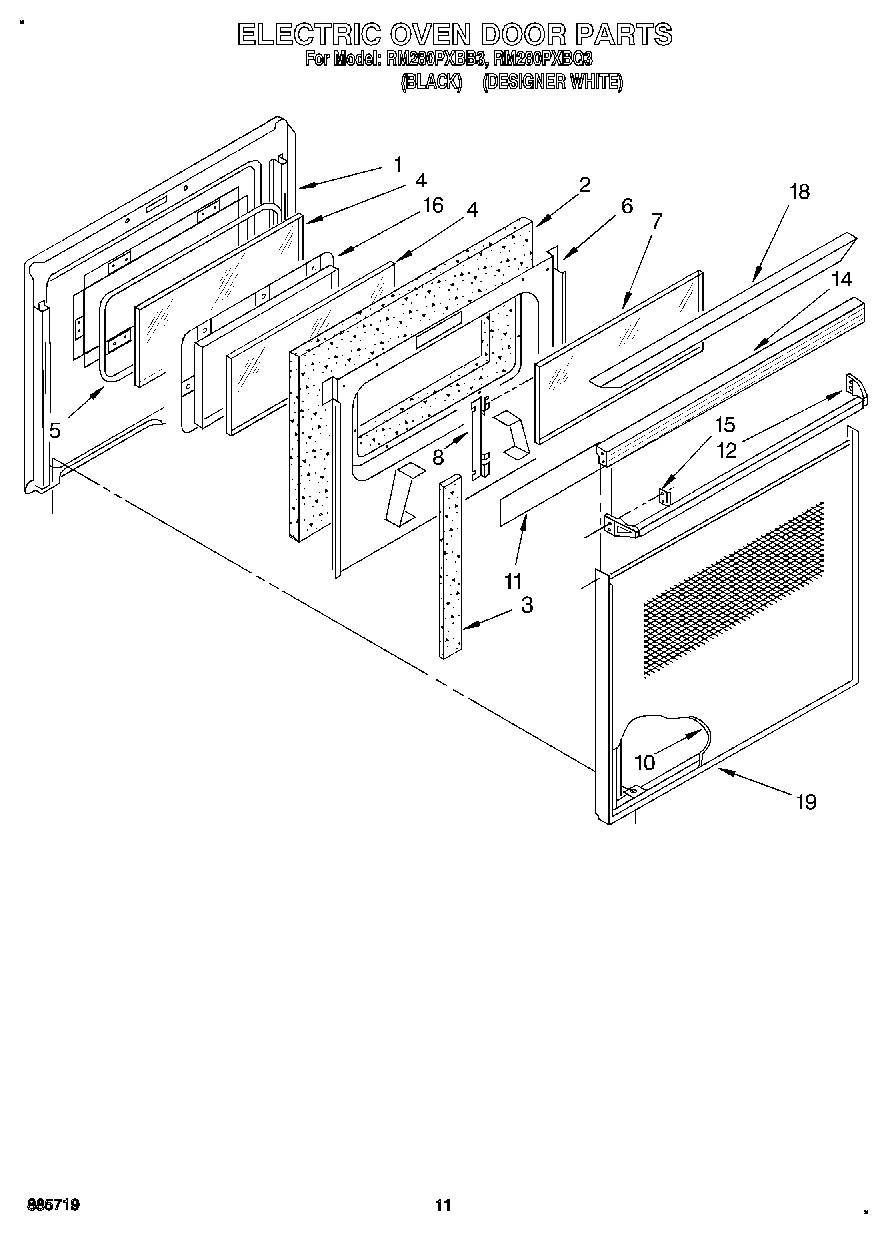

08 - ELECTRIC OVEN

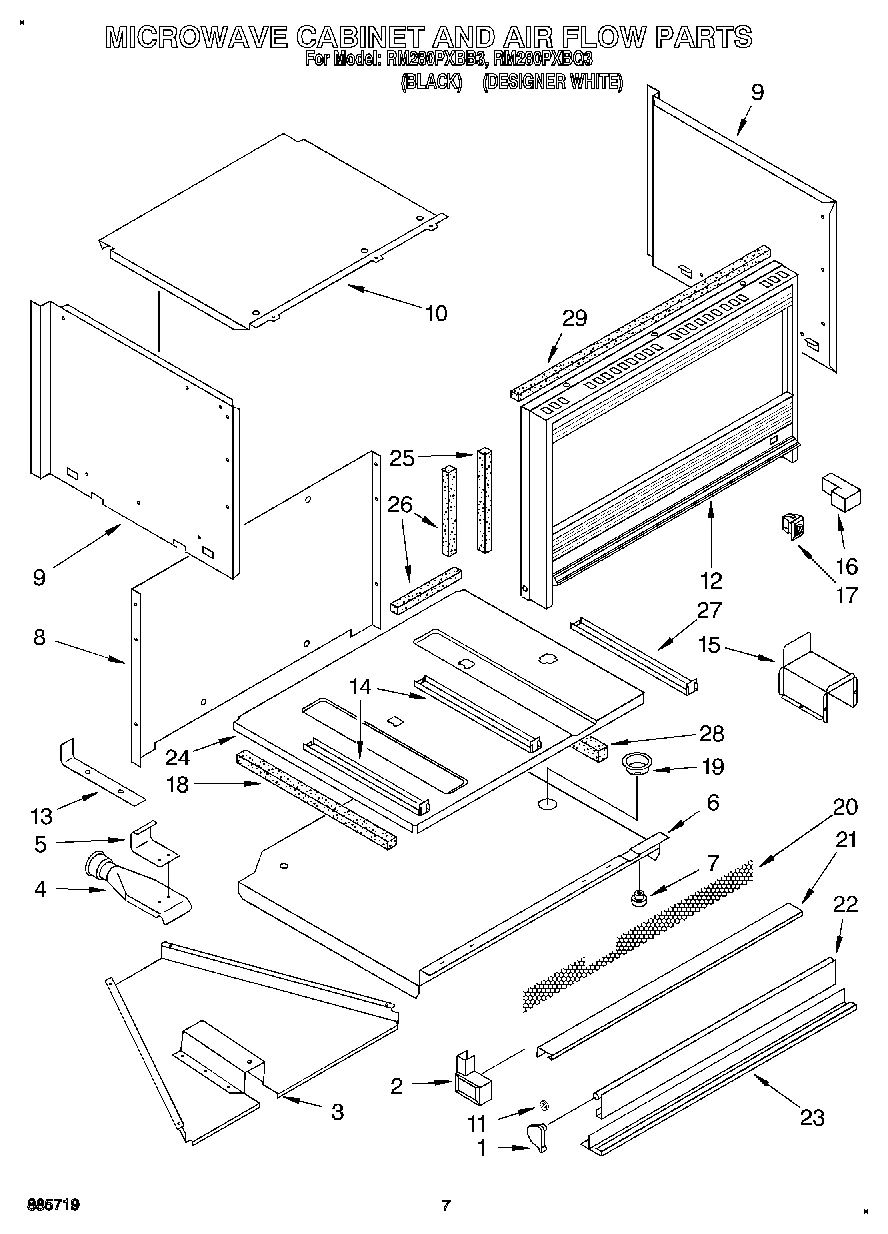

06 - MICROWAVE CABINET AND AIR FLOW

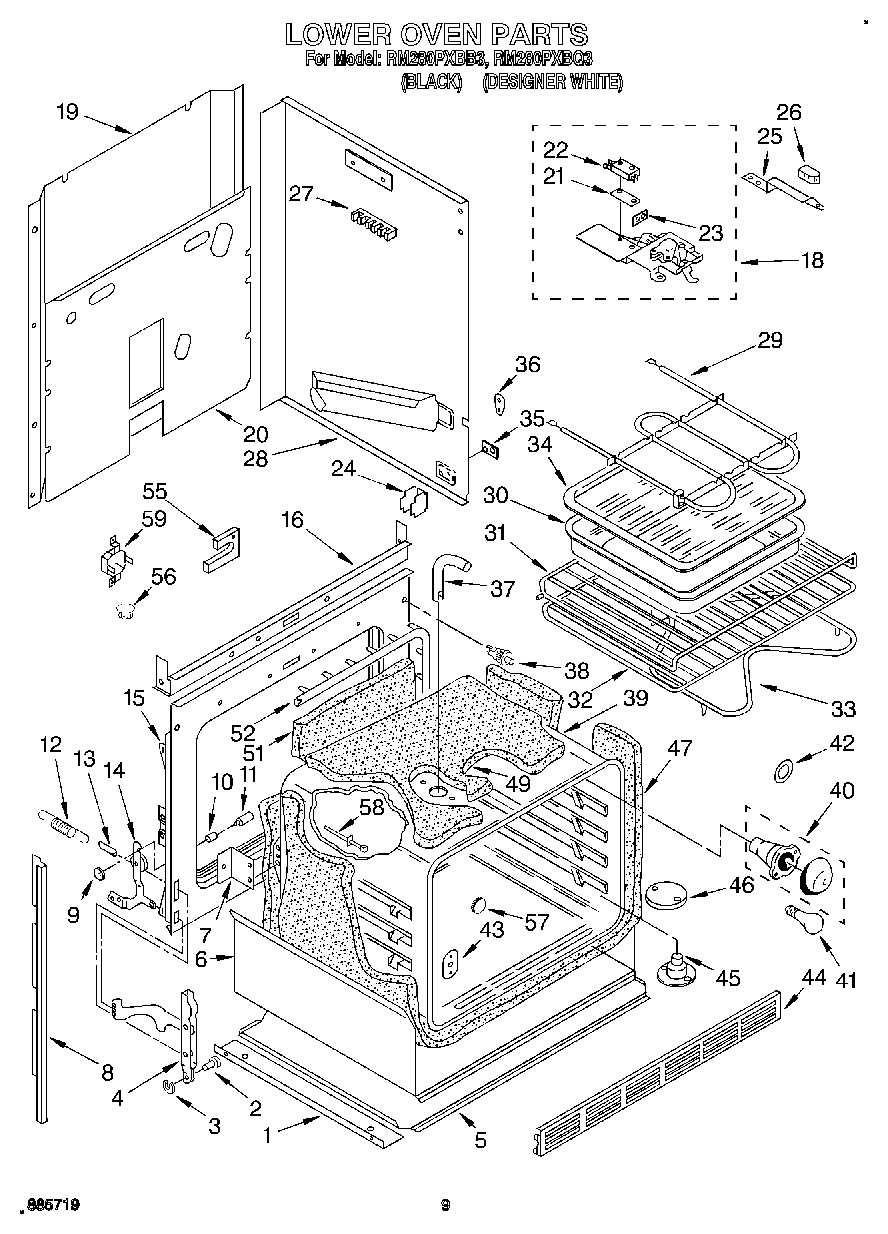

07 - LOWER OVEN
Common parts from model Whirlpool RM280PXBB3
Installation Instructions WPL LIT3184431 Contact Us For Availability
Tech Sheet WPL LIT3184432 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT3188191 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT3188192 Contact Us For Availability
M/W Cookbook WPL LIT4357920 Contact Us For Availability
1
Switch and Fuse Assy. WPL 4365543 Contact Us For Availability
1
Microcomputer WPL 4313045 Contact Us For Availability
1
Harness, Wiring Main (Microwave) WPL 4313035 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
End Trim (L.H. White) WPL 3148471 Contact Us For Availability
1
End Trim (R.H. White) WPL 3148472 Contact Us For Availability
1
End Trim (L.H. Black) WPL 3148697 Contact Us For Availability
1
End Trim (R.H. Black) WPL 3148698 Contact Us For Availability
1
Angle, Support (2) WPL 311592 Contact Us For Availability
2
Control Panel (Black) WPL 4313046 Contact Us For Availability
2
Control Panel (White) WPL 4313050 Contact Us For Availability
2
H.V. Wire WPL 4313679 Contact Us For Availability
2
Insulation, Door WPL 3147951 Contact Us For Availability
2
End Cap (LH, Black Model) WPL 3149268 Contact Us For Availability
2
End Cap (RH, Black Model) WPL 3149269 Contact Us For Availability
2
End Cap (White Model, L.H.) WPL 3188741 Contact Us For Availability
2
End Cap (White Model, R.H.) WPL 3188742 Contact Us For Availability
3
Push Button (White) WPL 4365565 Contact Us For Availability
3
Push Button (Black) WPL 4365564 Contact Us For Availability
3
Sensor WPL 4365549 Contact Us For Availability
3
Wire, Ground WPL 4365546 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Box Air WPL 3170178 Contact Us For Availability
3
Ring, Retainer (2) WPL 307594 Contact Us For Availability
4
Channel Arm (2) WPL 3185664 Contact Us For Availability
4
Duct, Sensor WPL 4365557 Contact Us For Availability
4
Harness, Wiring Control (Microwave) WPL 3187525 Contact Us For Availability
4
Vent Tube WPL 312696 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
5
Screw WPL 4365530 Contact Us For Availability
5
Strap, Ground WPL 4313036 Contact Us For Availability
5
Latch Lever WPL 4313042 Contact Us For Availability
5
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
5
Support, Vent Tube WPL 3187423 Contact Us For Availability
5
Cover, Bottom WPL 3185945 Contact Us For Availability
6
Rectifier WPL 4313671 Contact Us For Availability
6
Control, Electronic WPL 3184943 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI123516A Contact Us For Availability
6
Harness, Oven (Main) WPL 3187526 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
6
Retainer, WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 4173601 Contact Us For Availability
6
Support Plate WPL 3147494 Contact Us For Availability
6
Insulation Tray WPL 3185944 Contact Us For Availability
7
Outer Cabinet (Black) WPL 4313037 Contact Us For Availability
7
Outer Cabinet (White) WPL 4313038 Contact Us For Availability
7
Glass, Clear WPL 3169202 Contact Us For Availability
7
Snap Bushing WPL 309552 Contact Us For Availability
7
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
8
Screw WPL 4174811 Contact Us For Availability
8
Base Plate, Left Side WPL 4365552 Contact Us For Availability
8
Probe, Temperature WPL 4365550 Contact Us For Availability
8
Screw WPL 4174826 Contact Us For Availability
8
Fuse, Temperature WPL 4313051 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188720 Contact Us For Availability
8
Cover, Rear WPL 3186981 Contact Us For Availability
8
Side Trim (L.H. Black) WPL 3149236 Contact Us For Availability
8
Side Trim (R.H. Black) WPL 3149237 Contact Us For Availability
8
Side Trim (White Model, R.H.) WPL 3187906 Contact Us For Availability
8
Side Trim (White Model, LH) WPL 3187912 Contact Us For Availability
9
Screw WPL 4313665 Contact Us For Availability
9
Screw (Black) WPL 4365570 Contact Us For Availability
9
Screw (White) WPL 4365571 Contact Us For Availability
9
Seal, Door (Not a Serviceable Part) WPL ARI123517A Contact Us For Availability
9
Side Panel, R.H. WPL 3186982 Contact Us For Availability
9
Side Panel, L.H. WPL 3186984 Contact Us For Availability
9
Pushnut (2) WPL 308306 Contact Us For Availability
10
Screw WPL 4313632 Contact Us For Availability
10
Screw WPL 4174757 Contact Us For Availability
10
Screen, Door (Black) WPL 4365568 Contact Us For Availability
10
Screen, Door (White) WPL 4365569 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188053 Contact Us For Availability
10
Glass, Panel (Black) WPL 3188054 Contact Us For Availability
10
Screw WPL 307748 Contact Us For Availability
10
Panel, Top WPL 3186983 Contact Us For Availability
10
Snubber, Door (2) WPL 309111 Contact Us For Availability
11
Screw WPL 4313663 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
11
Choke Cover (White) WPL 4313699 Contact Us For Availability
11
Choke Cover (Black) WPL 4313700 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
11
Washer WPL 3148905 Contact Us For Availability
11
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
12
Handle, Door (White) WPL 3187941 Contact Us For Availability
12
Handle, Door (Black) WPL 3187940 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
12
Frame, Door (Not Serviceable) WPL ARI123518A Contact Us For Availability
12
Trim, Outside (Black Model) WPL 3184764 Contact Us For Availability
12
Trim, Outside (White Model) WPL 3188345 Contact Us For Availability
13
Base Plate, Right Side WPL 4365551 Contact Us For Availability
13
Fuse, Temperature WPL 4313674 Contact Us For Availability
13
Brace, M/W WPL 3187369 Contact Us For Availability
14
Latch, Door (Black) WPL 4313652 Contact Us For Availability
14
Latch, Door (White) WPL 4313653 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Screw (4)) WPL 3149253 Contact Us For Availability
14
Top, Door (White) WPL 3149355 Contact Us For Availability
14
Rail, Chassis WPL 3179972 Contact Us For Availability
14
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
14
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
15
Baffle, M/W Back WPL 3187288 Contact Us For Availability
15
Front Frame WPL 3186975 Contact Us For Availability
16
Washer WPL 4365501 Contact Us For Availability
16
Screw WPL 4174756 Contact Us For Availability
16
Connector, Slipping WPL 4174898 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Seal, Foam WPL 3187143 Contact Us For Availability
16
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
17
Switch, Rocker (Black) WPL 3182717 Contact Us For Availability
17
Switch, Rocker (White) WPL 3182718 Contact Us For Availability
18
Screw WPL 4313034 Contact Us For Availability
18
Holder, Fuse WPL 4365542 Contact Us For Availability
18
Top, Cap WPL 3181367 Contact Us For Availability
18
Latch Assembly WPL 3183801 Contact Us For Availability
19
Screw WPL 4357320 Contact Us For Availability
19
Hinge, Upper WPL 4313039 Contact Us For Availability
19
Frame, Glass Panel (Black Model) WPL 3171530 Contact Us For Availability
19
Frame, Glass Panel (White Model) WPL 3187920 Contact Us For Availability
19
Bushing, Snap WPL 3147647 Contact Us For Availability
19
Cover, Rear WPL 3185960 Contact Us For Availability
20
Door, Complete (Black) WPL 4313061 Contact Us For Availability
20
Door, Complete (White) WPL 4313075 Contact Us For Availability
20
Trim, Oven Vent WPL 3187410 Contact Us For Availability
20
Panel, Back WPL 3182052 Contact Us For Availability
21
Screw WPL 4313661 Contact Us For Availability
21
Trim, Top (Black) WPL 3148678 Contact Us For Availability
21
Trim, Top (White Model) WPL 3188350 Contact Us For Availability
21
Insulator, Switch WPL 309245 Contact Us For Availability
22
Door, Vent (Black) WPL 3148617 Contact Us For Availability
22
Door, Vent (White) WPL 3187989 Contact Us For Availability
22
Safety Switch WPL 3178671 Contact Us For Availability
22
Screw, 6-32 x 7/8 (2) WPL 98106 Contact Us For Availability
23
Duct, Exhaust WPL 4313040 Contact Us For Availability
23
Screw WPL 342043 Contact Us For Availability
23
Trim, Bottom WPL 3148618 Contact Us For Availability
23
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
23
Terminal, Shield WPL 313035 Contact Us For Availability
24
Seal, Duct WPL 4313044 Contact Us For Availability
24
Screw WPL 4313053 Contact Us For Availability
24
Panel, Support WPL 3147501 Contact Us For Availability
24
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
25
Seal, Foam WPL 3187306 Contact Us For Availability
25
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
25
Latch, Handle WPL 310825 Contact Us For Availability
26
Seal, Foam WPL 3187305 Contact Us For Availability
26
Screw, 8 x 1/4 WPL 3183294 Contact Us For Availability
26
Knob, Latch Handle WPL 3184039 Contact Us For Availability
27
Rail, M/W WPL 3179973 Contact Us For Availability
27
Screw (2) WPL 308043 Contact Us For Availability
27
Screw WPL 3147001 Contact Us For Availability
28
Tray, Glass WPL 4313690 Contact Us For Availability
28
Seal, Foam WPL 3187142 Contact Us For Availability
28
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
28
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
29
Support, Turntable WPL 4365526 Contact Us For Availability
29
Seal, Foam WPL 3147590 Contact Us For Availability
29
Screw WPL 3180022 Contact Us For Availability
30
Motor, Turntable WPL 4357340 Contact Us For Availability
31
Rack, Oven Offset WPL 3185640 Contact Us For Availability
32
Rack, Oven WPL 3185641 Contact Us For Availability
35
WPL 310659 WPL 310659 Contact Us For Availability
36
WPL 3150532 WPL 3150532 Contact Us For Availability
36
WPL 3183005 WPL 3183005 Contact Us For Availability
37
WPL 312697 WPL 312697 Contact Us For Availability
38
WPL 310345 WPL 310345 Contact Us For Availability
39
WPL 311056 WPL 311056 Contact Us For Availability
39
WPL 3182032 WPL 3182032 Contact Us For Availability
40
Gasket, Turntable WPL 4313642 Contact Us For Availability
43
WPL 3184208 WPL 3184208 Contact Us For Availability
44
WPL 309029 WPL 309029 Contact Us For Availability
44
WPL 310668 WPL 310668 Contact Us For Availability
44
WPL 3149359 WPL 3149359 Contact Us For Availability
45
WPL 3186684 WPL 3186684 Contact Us For Availability
46
WPL 310662 WPL 310662 Contact Us For Availability
47
WPL 310433 WPL 310433 Contact Us For Availability
49
WPL 3149328 WPL 3149328 Contact Us For Availability
51
WPL 310435 WPL 310435 Contact Us For Availability
52
WPL 3185197 WPL 3185197 Contact Us For Availability
55
WPL 309080 WPL 309080 Contact Us For Availability
55
WPL 3149142 WPL 3149142 Contact Us For Availability
56
WPL 3182814 WPL 3182814 Contact Us For Availability
57
WPL 3185086 WPL 3185086 Contact Us For Availability
58
WPL 3148440 WPL 3148440 Contact Us For Availability
58
WPL 3179117 WPL 3179117 Contact Us For Availability
59
WPL 3149653 WPL 3149653 Contact Us For Availability
× ![]()
