Model Whirlpool REE33000 – Common Parts & Diagrams

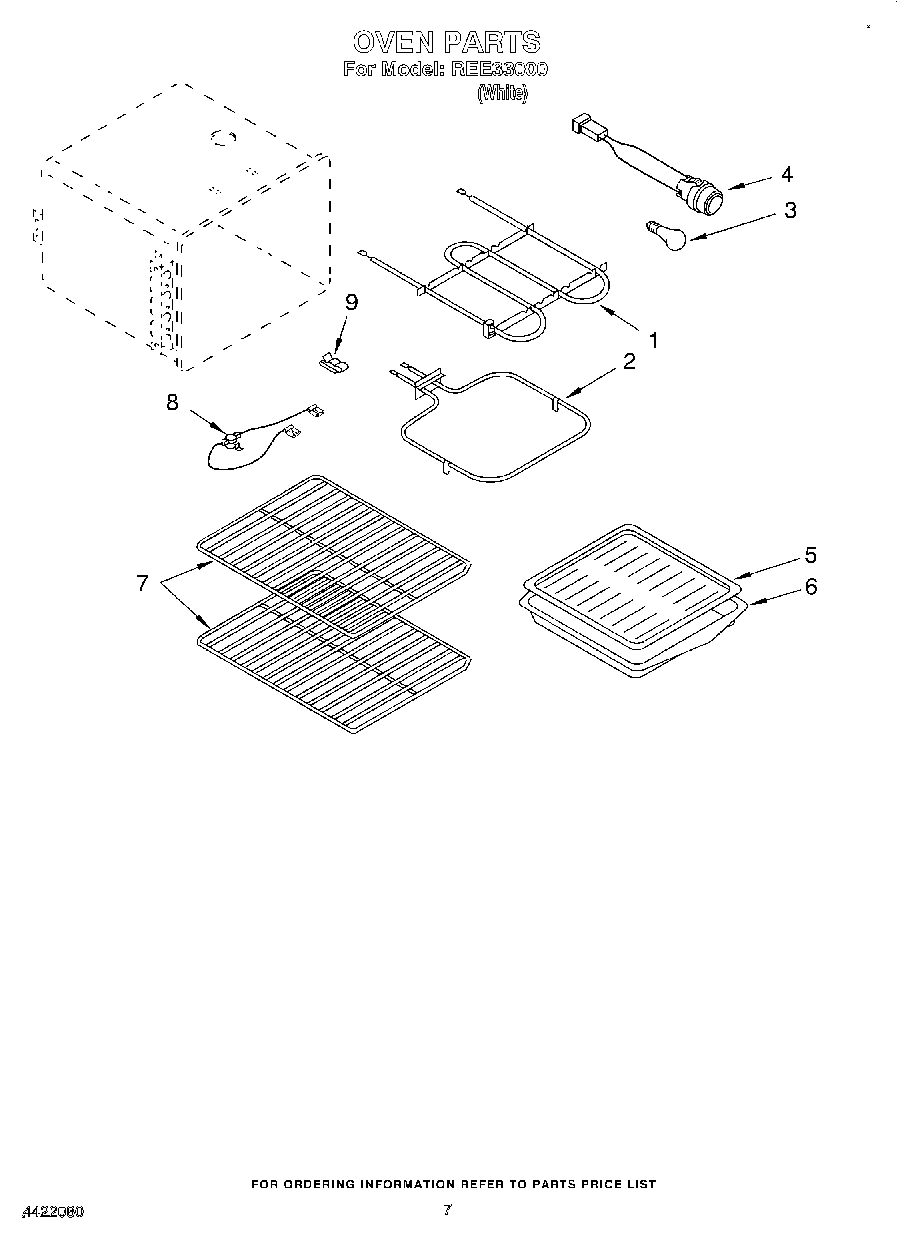

05 - OVEN, LIT/OPTIONAL

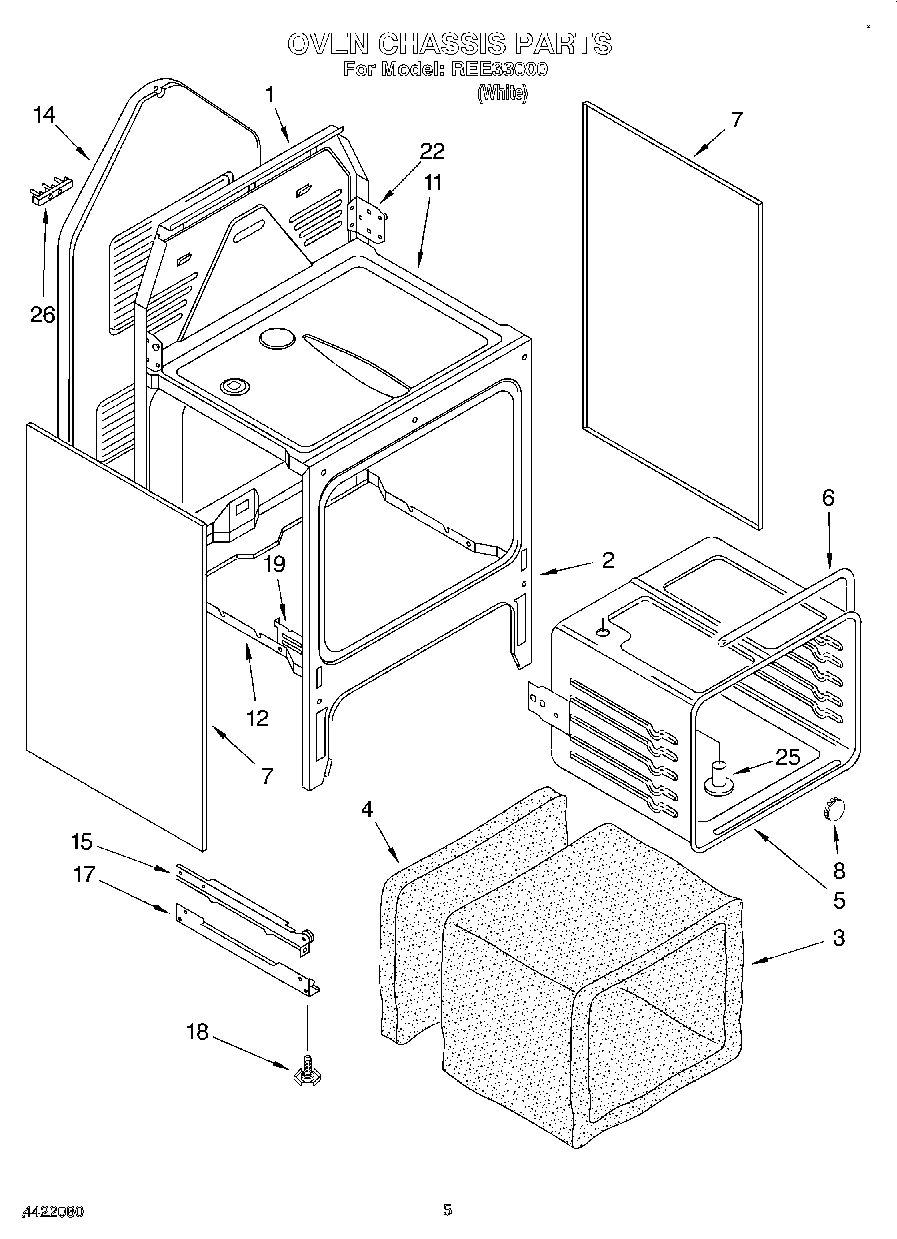

04 - OVEN CHASSIS

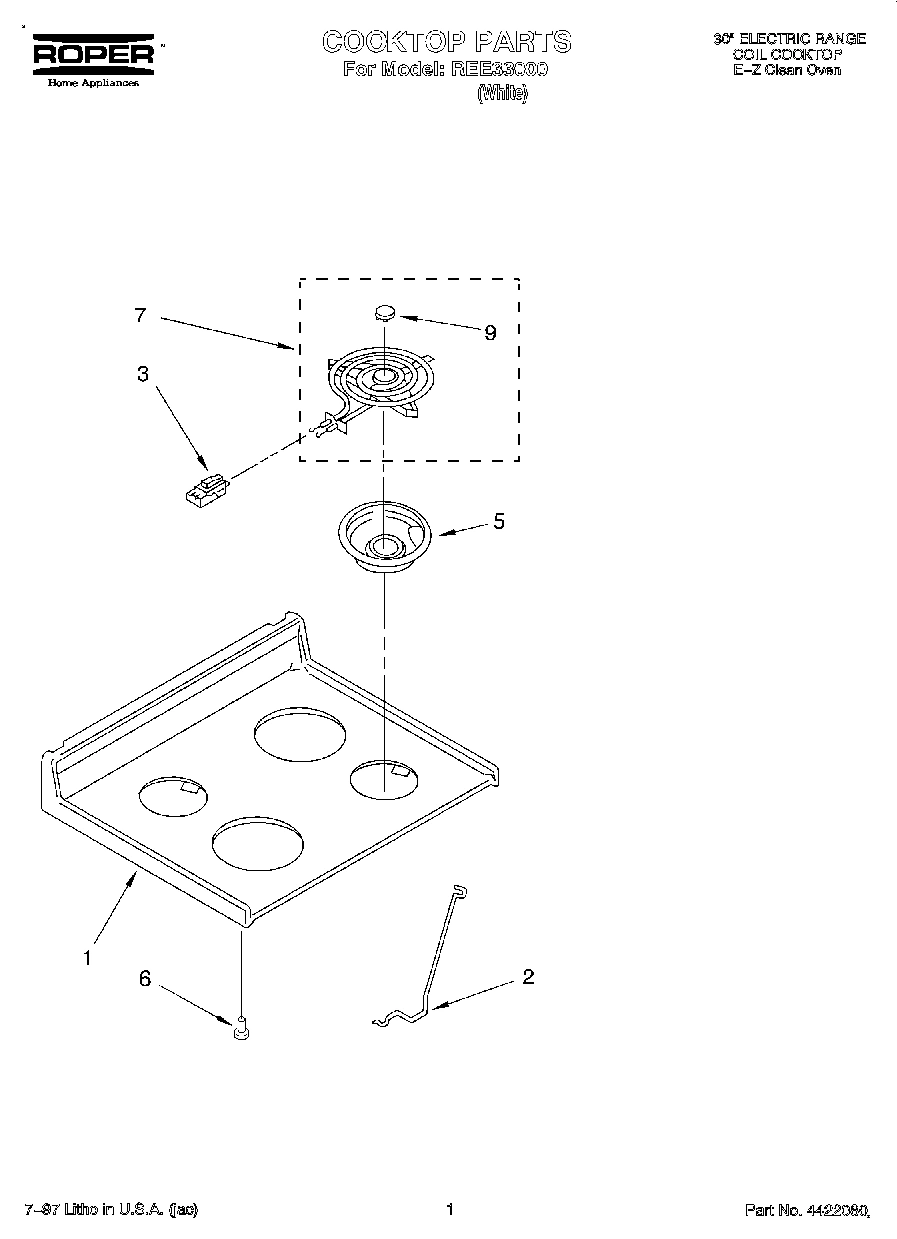

01 - COOKTOP

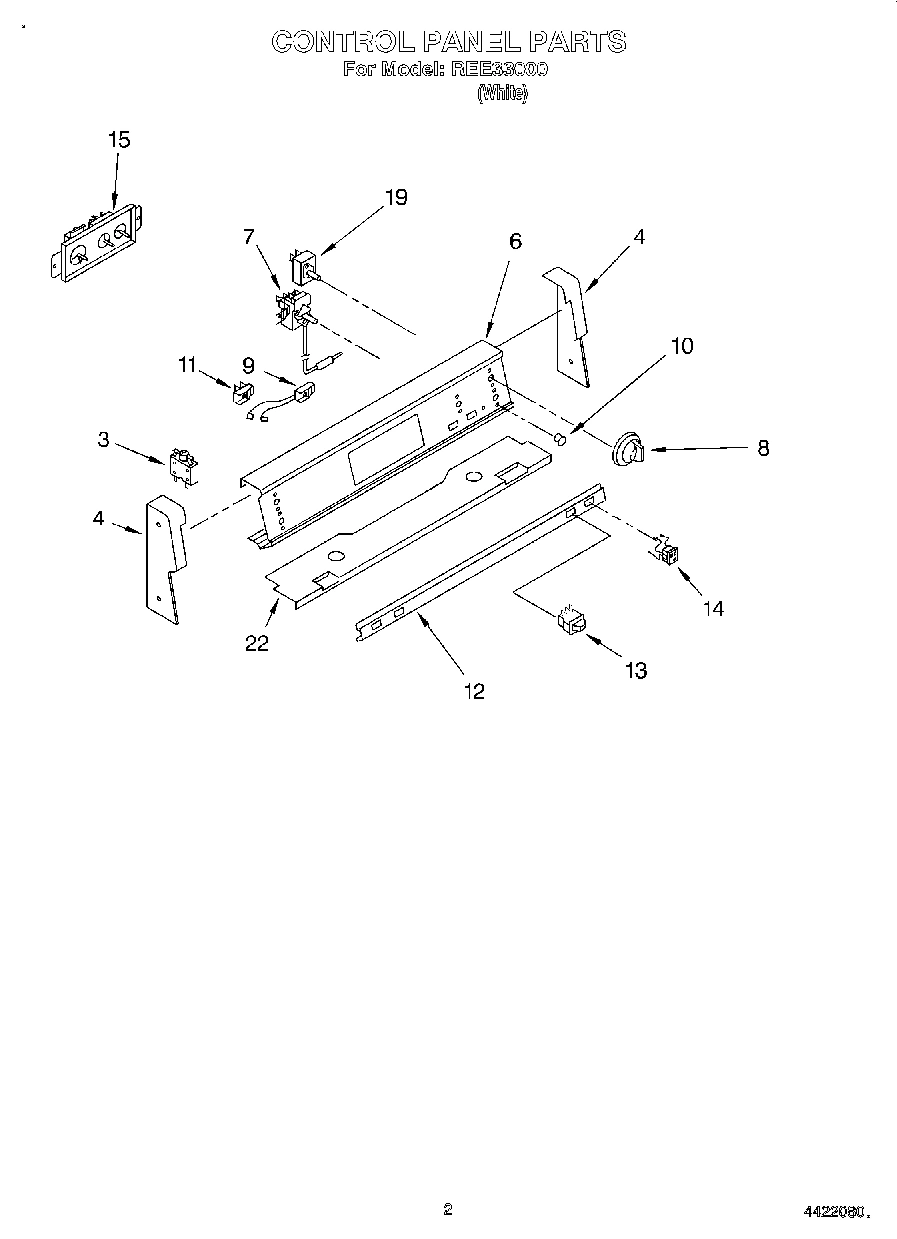

02 - CONTROL PANEL

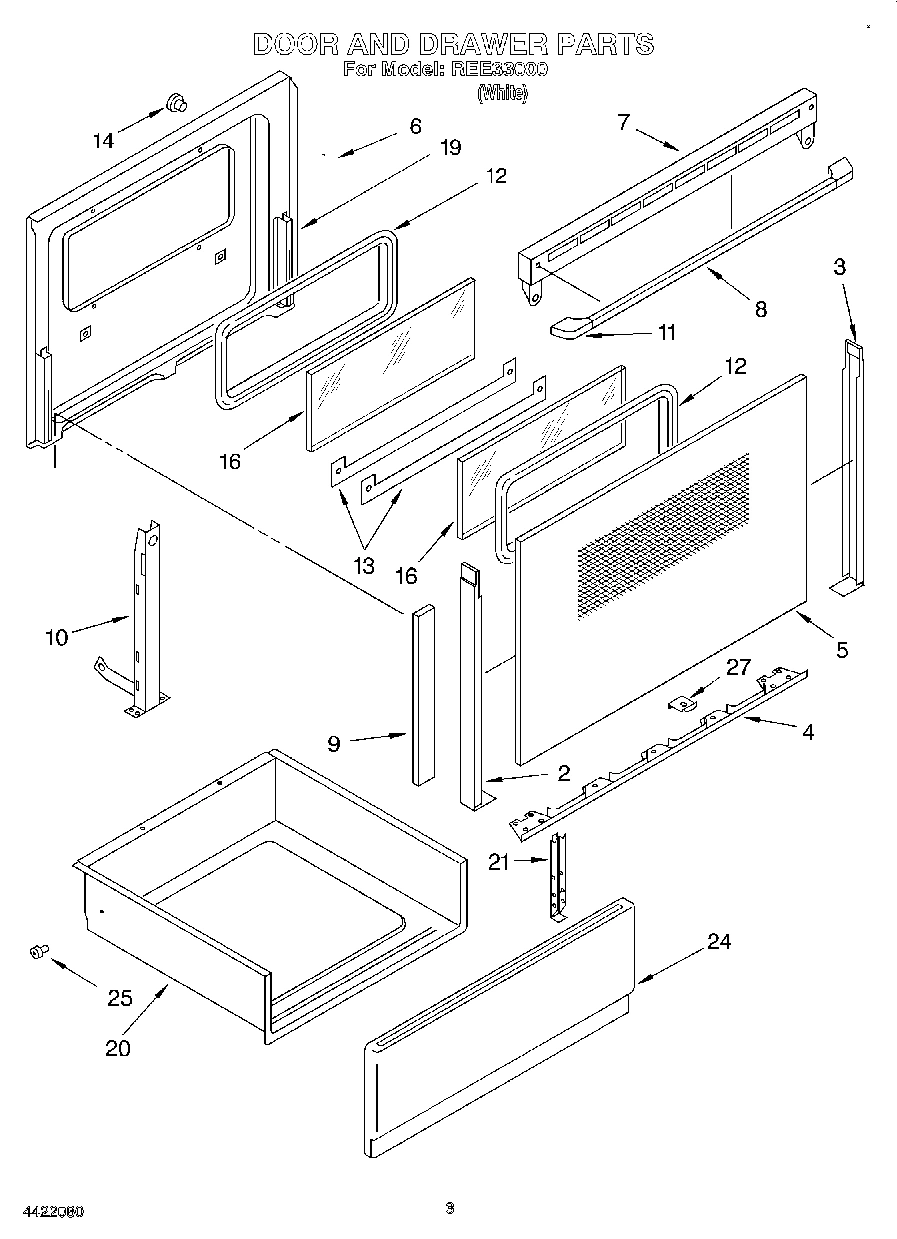

03 - DOOR AND DRAWER
Common parts from model Whirlpool REE33000
WPL 241430 WPL 241430 Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Cooktop, Coil (White) WPL 9750160GW Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Screw, Elements (4) 8-32 x 3/8 WPL 9781509 Contact Us For Availability
2
Chassis, Front WPL 9750477GM Contact Us For Availability
2
Rod, Support (2) WPL 9751538 Contact Us For Availability
2
Trim, Door-Left WPL 9750631PB Contact Us For Availability
3
Insulation, Wrap WPL 9750392 Contact Us For Availability
3
Receptacle Clip WPL 9781324 Contact Us For Availability
3
Breaker, 15 Amp WPL 3191072 Contact Us For Availability
3
Trim, Door-Right WPL 9750632PB Contact Us For Availability
4
Light Assembly WPL 9750962 Contact Us For Availability
4
Insulation, Rear WPL 9750388 Contact Us For Availability
4
End Cap (Left) WPL 9752416FB Contact Us For Availability
4
End Cap (Right) WPL 9752417FB Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PB Contact Us For Availability
5
Oven Liner WPL 9781294GM Contact Us For Availability
5
Glass, Door Front (Black) WPL 3191135 Contact Us For Availability
6
Gasket, Oven WPL 9750691 Contact Us For Availability
6
Panel, Control WPL 9752479 Contact Us For Availability
6
Screw, (2) 8 x 3/8 WPL 9780852 Contact Us For Availability
6
Retainer, Door (2) WPL 9750676 Contact Us For Availability
7
Rack, Standard WPL 9750498 Contact Us For Availability
7
Oven , Side Panel (White, L or R) WPL 9750148PW Contact Us For Availability
7
Element, Surface (Coil, 8`` LF-RR) WPL 3191024 Contact Us For Availability
7
Thermostat WPL 9750401 Contact Us For Availability
7
Vent, Door WPL 9781166GB Contact Us For Availability
7
Gasket, Door Vent WPL 9781450 Contact Us For Availability
7
Seal, Door (2) WPL 9781490 Contact Us For Availability
8
Screw, (1) 8 x 1/4 WPL 9780271 Contact Us For Availability
8
Button, Plug WPL 9780578 Contact Us For Availability
8
Knobs, Control (5) WPL 9750272FB Contact Us For Availability
8
Screw (2) WPL 9780266 Contact Us For Availability
8
Handle, Door WPL 9751690PB Contact Us For Availability
9
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
9
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
9
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
9
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
9
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
9
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
9
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
9
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
9
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
9
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
9
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
9
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
9
Grease WPL 261582 Contact Us For Availability
9
Coffee WPL 261886 Contact Us For Availability
9
New Avocado WPL 261888 Contact Us For Availability
9
Harvest Gold WPL 261890 Contact Us For Availability
9
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
9
Toast WPL 285365 Contact Us For Availability
9
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
9
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
9
Platinum (Uncut) WPL 285368 Contact Us For Availability
9
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
9
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
9
WPL 978883 WPL 978883 Contact Us For Availability
9
Medallion, (4) WPL 4211952 Contact Us For Availability
9
Light, Indicator (Oven) WPL 9780801 Contact Us For Availability
9
Gasket, Door Glass (4) WPL 9781449 Contact Us For Availability
10
Hinge, Door R or L WPL 9750235 Contact Us For Availability
11
Light, Indicator (2) (Burners) WPL 313102 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
End Cap, Handle (R or L) WPL 9752030FB Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Trim Strip WPL 9752442PB Contact Us For Availability
12
Gasket, glass WPL 9750685 Contact Us For Availability
13
Switch, Oven Light WPL 3191100FB Contact Us For Availability
13
Retainer, Glass WPL 9750894 Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
14
Outlet, Untimed WPL 9751480FB Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Timer WPL 9751121 Contact Us For Availability
16
Glass, Inner-Outer WPL 9750686 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
19
Hinge, Receiver (R or L) WPL 9750149 Contact Us For Availability
19
Infinite Switch (Screw (2)) WPL 9780268 Contact Us For Availability
19
Liner, Door WPL 9780671GM Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Screw (4) WPL 9780272 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Base, Console WPL 9752439 Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9750391 Contact Us For Availability
26
Screw (2) WPL 98884 Contact Us For Availability
27
Spacer, Door WPL 9781502 Contact Us For Availability
× ![]()
