Model Whirlpool RC8900XMH0 – Common Parts & Diagrams
03 - VENTILATION

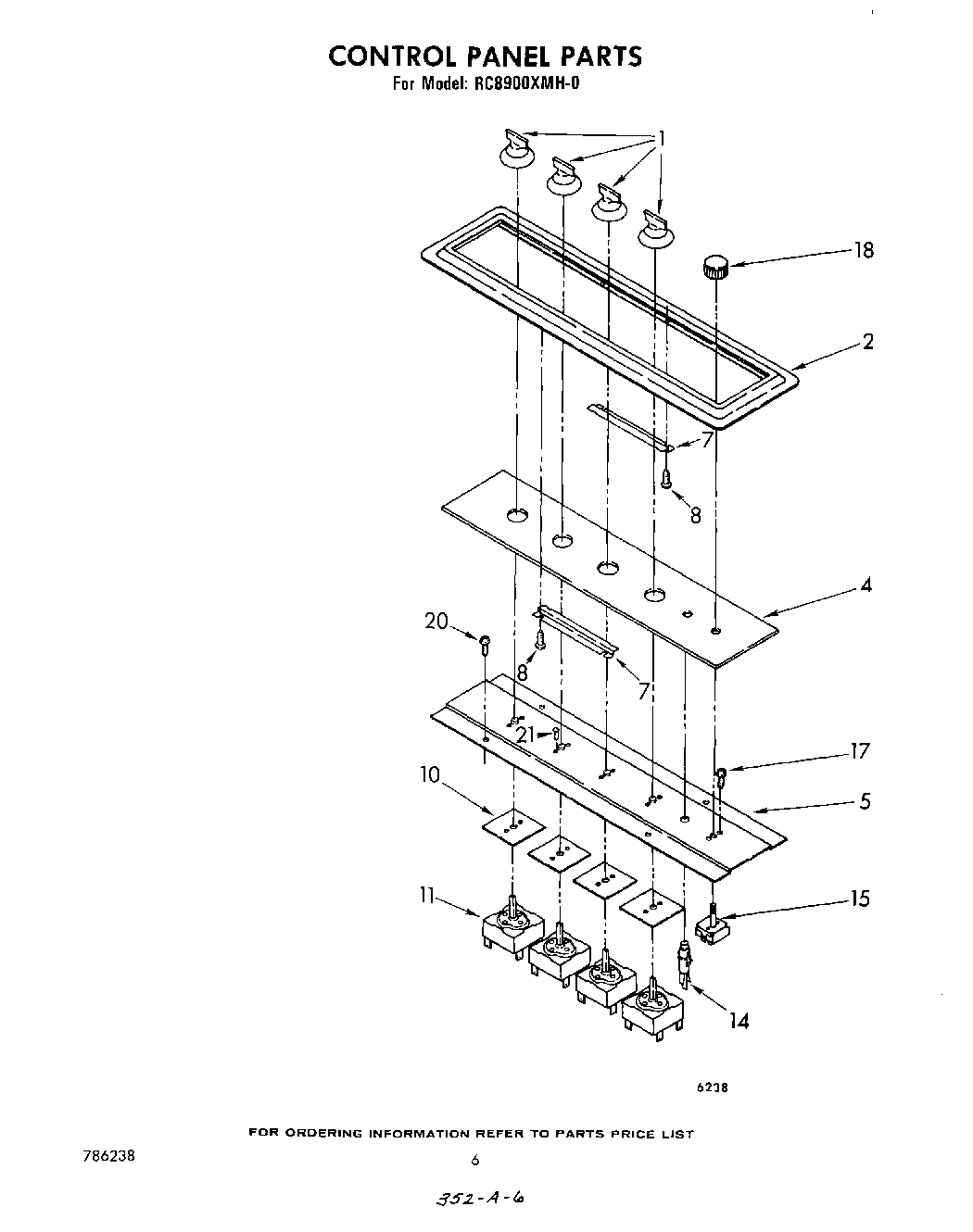

05 - CONTROL PANEL

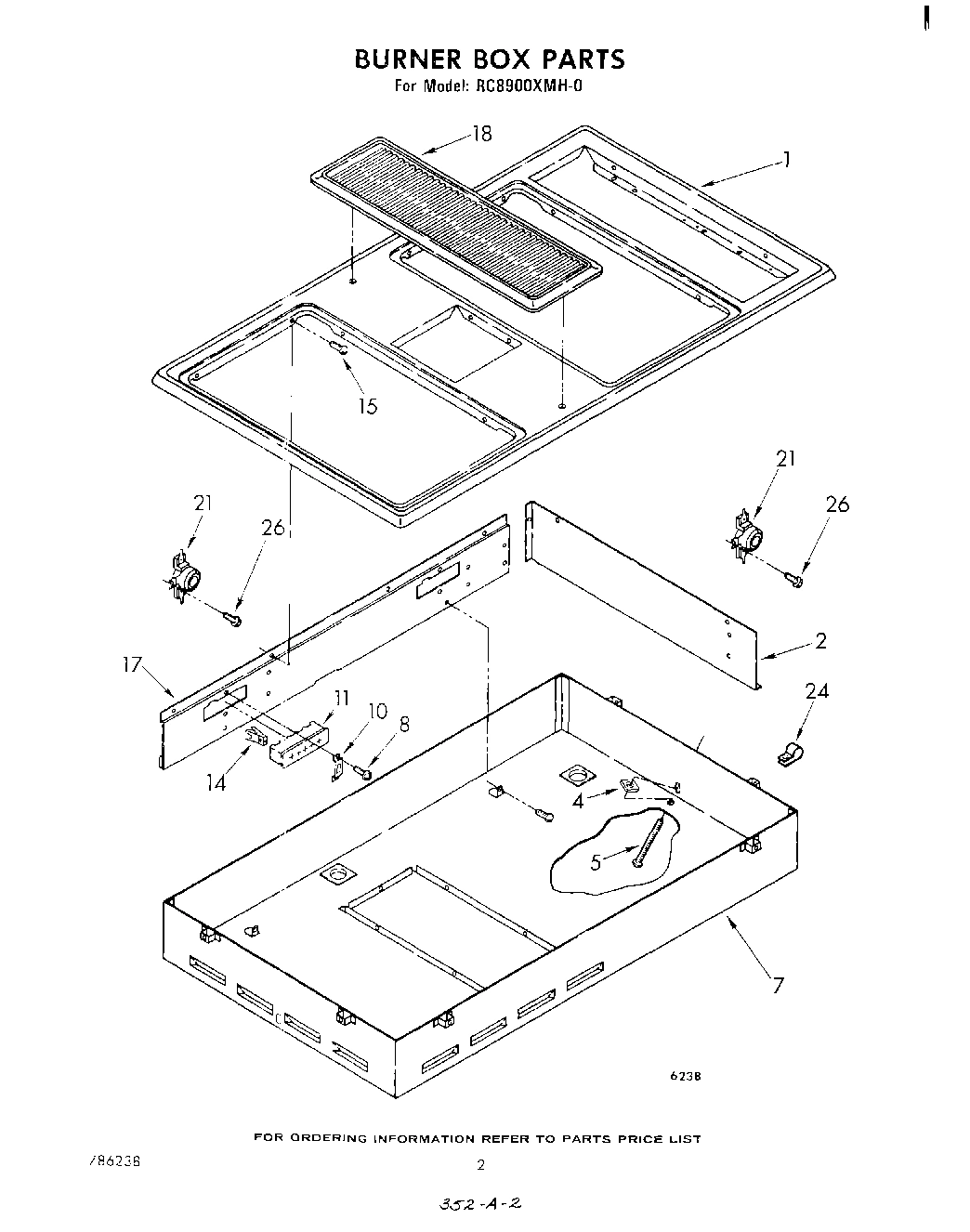

02 - BURNER BOX, LITERATURE AND OPTIONAL

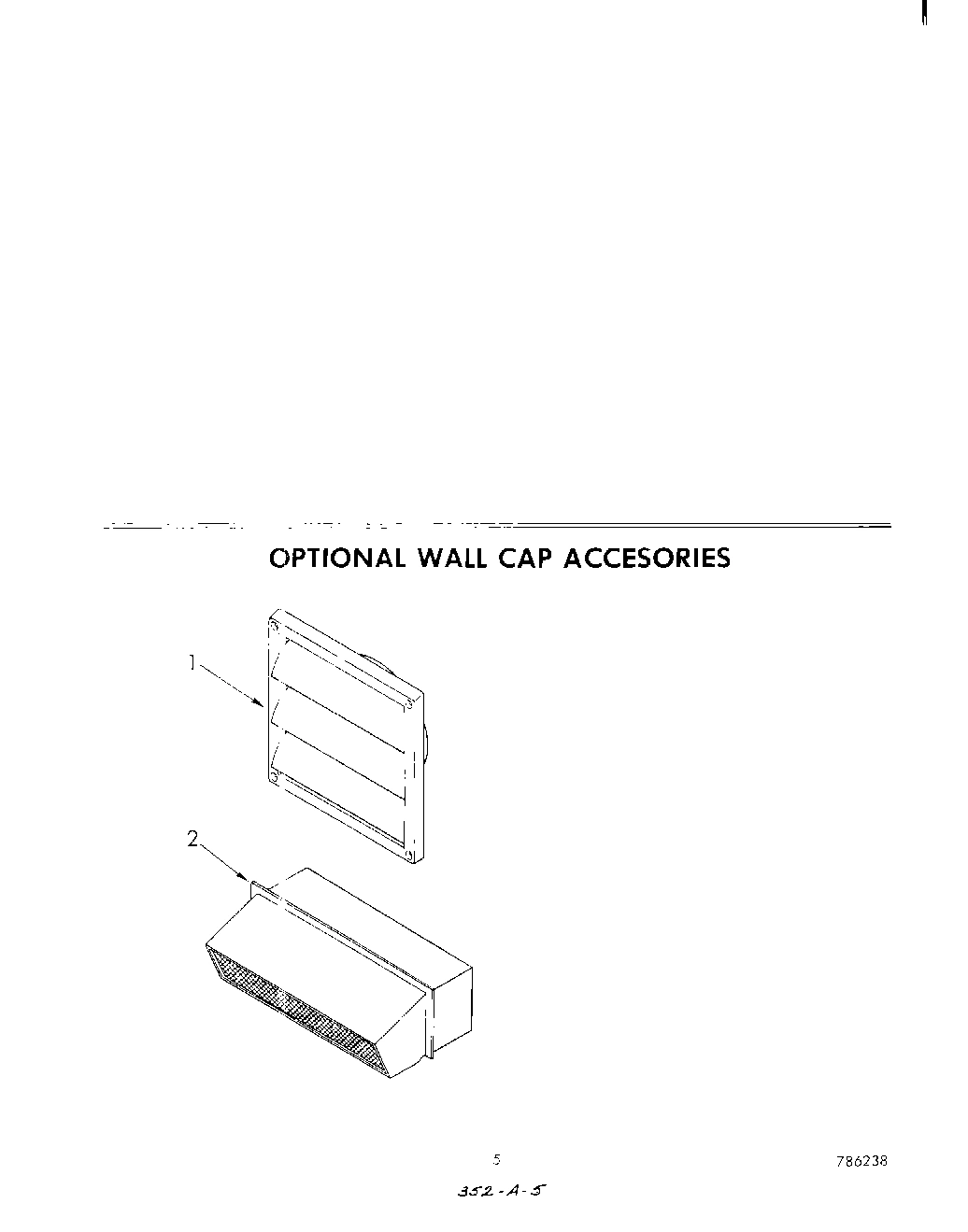

04 - WALL CAP ACCESSORIES

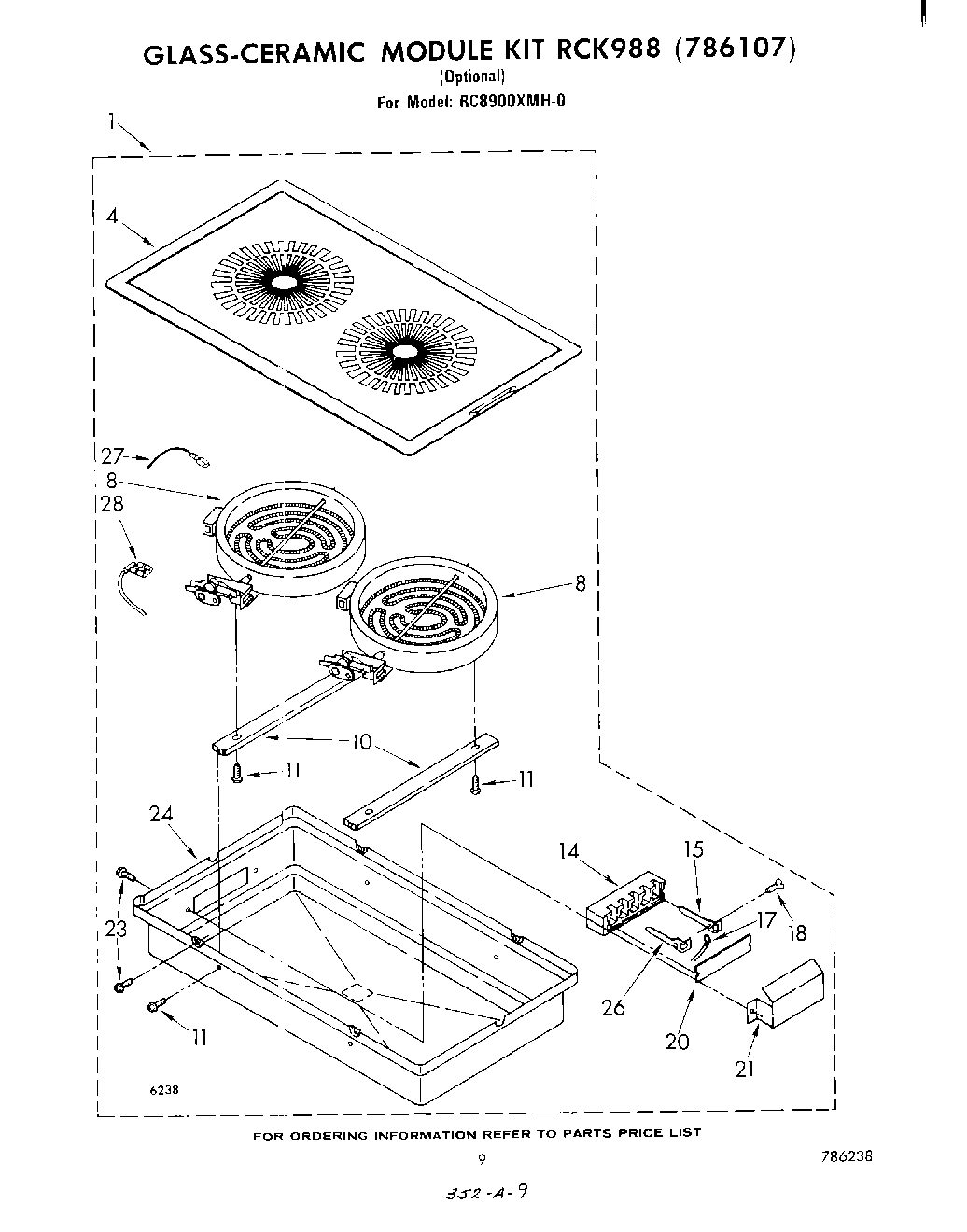

08 - GLASS CERAMIC RCK988

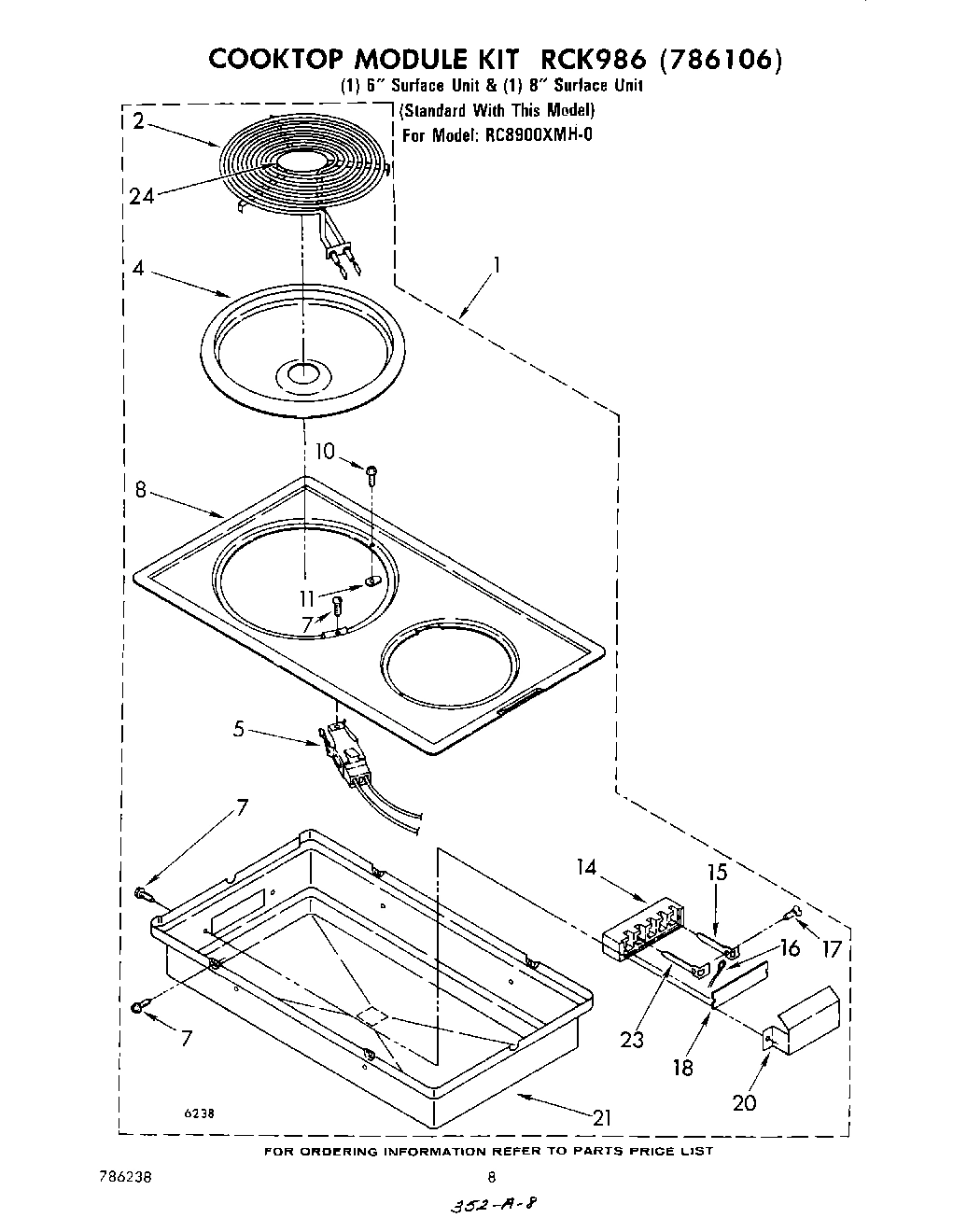

07 - COOKTOP RCK986

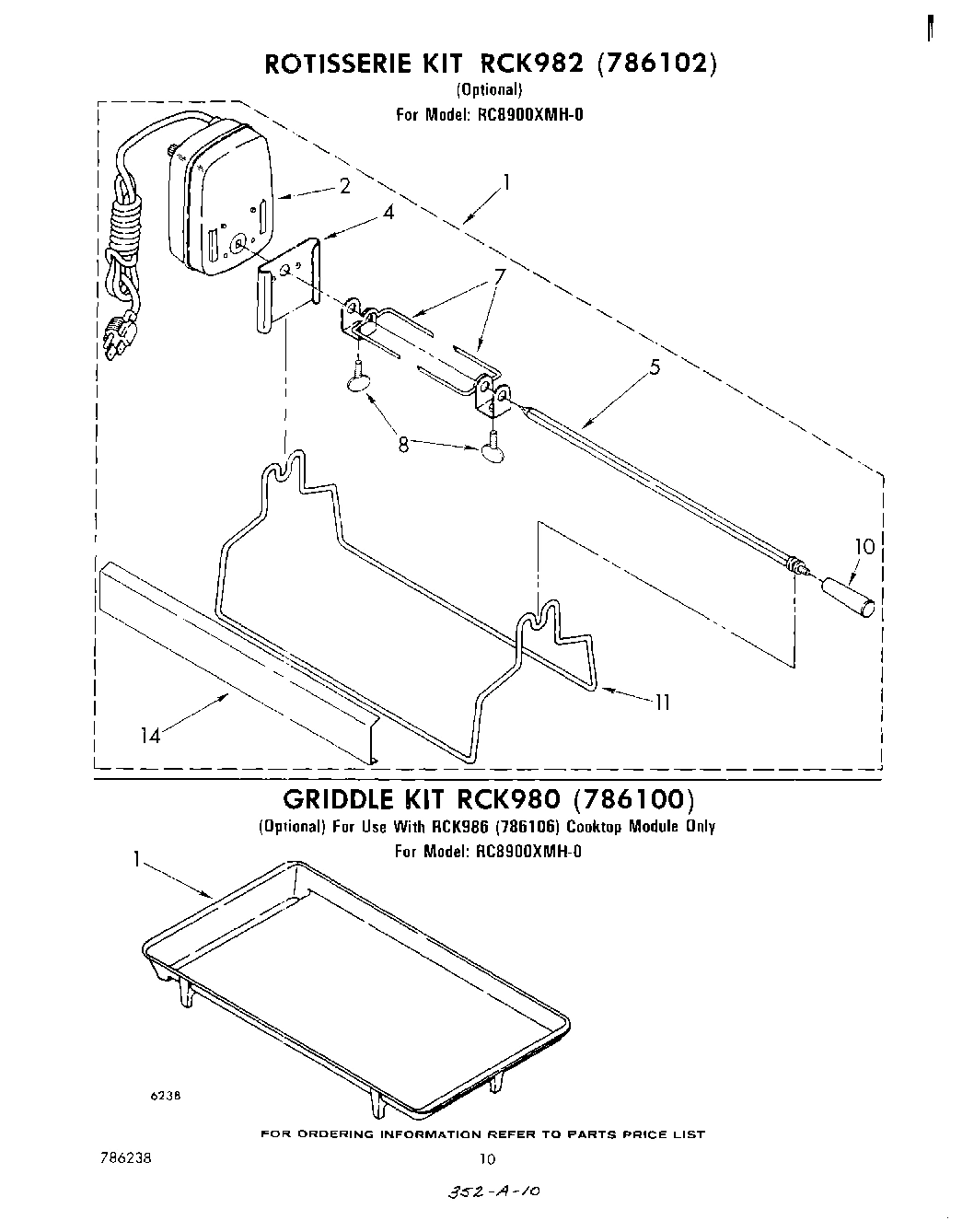

09 - ROTISSERIE RCK982, GRIDDLE RCK980

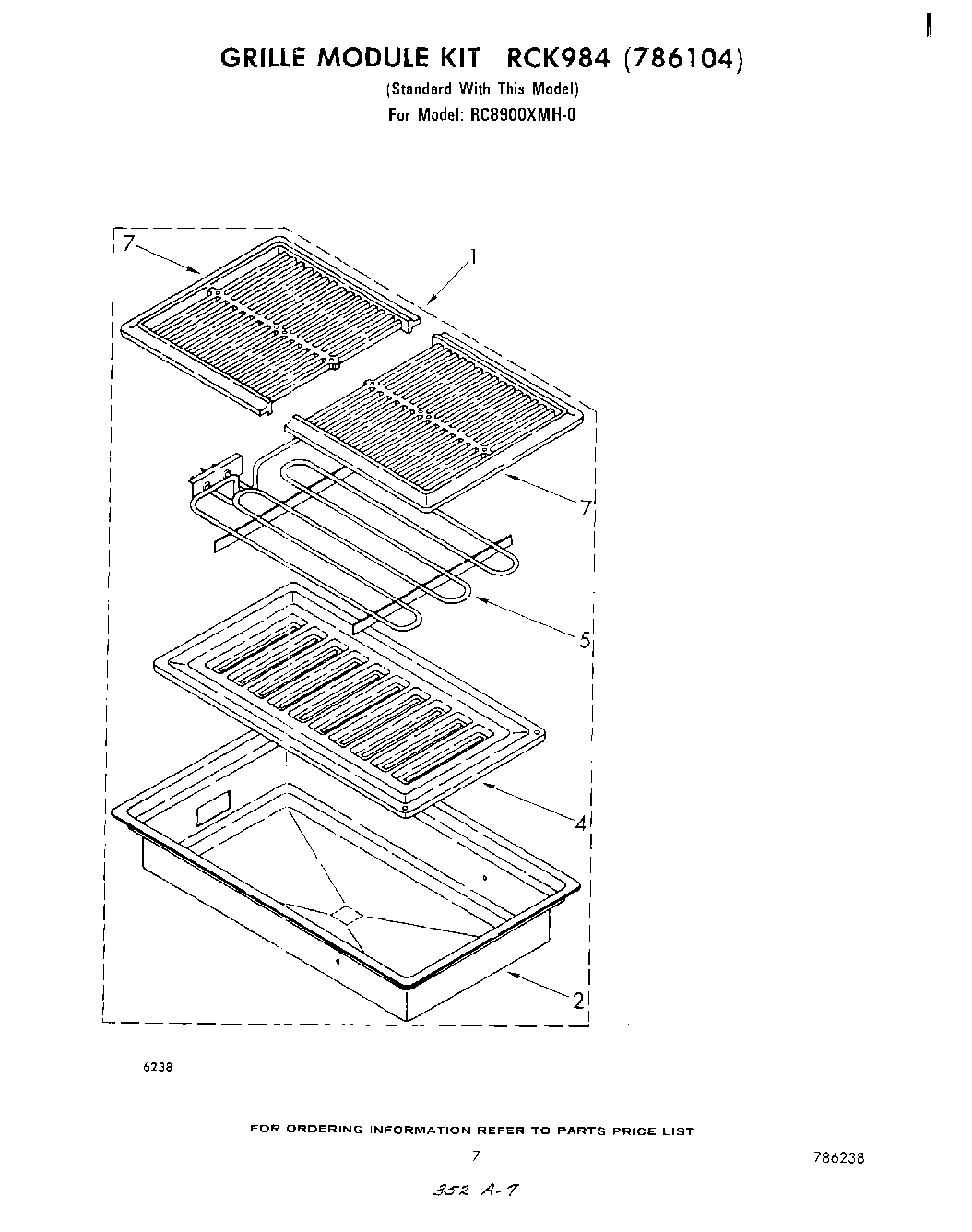

06 - GRILLE RCK984
Common parts from model Whirlpool RC8900XMH0
Guide, Use & Care WPL LIT786108 Contact Us For Availability
Instructions, Installation WPL LIT786202 Contact Us For Availability
Vent Installation Instructions WPL LIT786203 Contact Us For Availability
List, Repair Parts WPL LIT786238 Contact Us For Availability
1
Knob (4) WPL 330012 Contact Us For Availability
1
Top, Main WPL 786192 Contact Us For Availability
1
6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability
1
Kit, Smooth Top Module (Complete) WPL 786107 Contact Us For Availability
1
Kit, Cooktop Module (Complete) WPL 786106 Contact Us For Availability
1
Kit, Griddle (Complete) WPL 786100 Contact Us For Availability
1
Kit, Rotisserie (Complete) WPL 786102 Contact Us For Availability
1
Kit, Grille Module (Complete) WPL 786104 Contact Us For Availability
2
Trim, Control Panel WPL 786187 Contact Us For Availability
2
Sheild, Switch WPL 786137 Contact Us For Availability
2
3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability
2
Motor, Rotisserie 60 Hz. WPL 786165 Contact Us For Availability
2
Pan, Grille WPL 786169 Contact Us For Availability
4
Glass, Control Panel WPL 786240 Contact Us For Availability
4
Nut (2) WPL 786222 Contact Us For Availability
4
Glass Top & Frame WPL 786172 Contact Us For Availability
4
Bracket, Motor Mounting WPL 786166 Contact Us For Availability
4
Grid, Pan WPL 786168 Contact Us For Availability
5
Scroll, Fan WPL 786154 Contact Us For Availability
5
Bracket, Switch Mounting WPL 786188 Contact Us For Availability
5
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
5
Spit, Rotisserie WPL 786164 Contact Us For Availability
5
Element, Grille (240V) WPL 786170 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Box, Burner WPL 786193 Contact Us For Availability
7
Skewer (2) WPL 786163 Contact Us For Availability
7
Grille (2) WPL 786167 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
8
Screw, 4-40F x 1/4 Phillips Head (4) WPL 786226 Contact Us For Availability
8
Element, Surface (240V) (2) WPL 786175 Contact Us For Availability
8
Top, Module WPL 786184 Contact Us For Availability
8
Screw, Thumb (2) WPL 786162 Contact Us For Availability
10
Plate, Motor Mounting WPL 786153 Contact Us For Availability
10
Basket, Switch (4) WPL 786189 Contact Us For Availability
10
Bracket, Plug Block Mounting (2) WPL 786194 Contact Us For Availability
10
Bracket, Element Mounting (2) WPL 786174 Contact Us For Availability
10
Screw, 6-32D x 1/2 Phillips Pan Head WPL 786228 Contact Us For Availability
10
Handle, Rotisserie WPL 786161 Contact Us For Availability
11
Grommet, Motor Mounting (8) WPL 786234 Contact Us For Availability
11
Plug Block (2) WPL 786196 Contact Us For Availability
11
Nut WPL 786213 Contact Us For Availability
11
Rack, Rotisserie WPL 786159 Contact Us For Availability
14
Light, Indicator WPL 786195 Contact Us For Availability
14
Contact, Element (10) WPL 786214 Contact Us For Availability
14
Plug Block, Module WPL 786176 Contact Us For Availability
14
Shield, Heat (2) WPL 786243 Contact Us For Availability
15
Switch, Fan WPL 786190 Contact Us For Availability
15
Washer (4) WPL 786229 Contact Us For Availability
15
Spade, Ground WPL 786177 Contact Us For Availability
16
Wire, Ground (Green) WPL 786252 Contact Us For Availability
17
Nut, Hex (4) WPL 786256 Contact Us For Availability
17
Screw, 8-32 X 3/16 Phillips Pan Head (5) WPL 786231 Contact Us For Availability
17
Baffle, Plug Block WPL 786197 Contact Us For Availability
18
Motor, 60 Hz. WPL 786152 Contact Us For Availability
18
Knob, Fan WPL 786236 Contact Us For Availability
18
Cover, Vent WPL 786198 Contact Us For Availability
18
Insulator WPL 786179 Contact Us For Availability
20
Cover, Motor WPL 786151 Contact Us For Availability
20
Bracket, Plug Block Mounting WPL 786181 Contact Us For Availability
21
Switch, Limit (2) WPL 786246 Contact Us For Availability
21
Pan, Module Element WPL 786180 Contact Us For Availability
23
Screw, 8-32F x 3/8 Hex Head WPL 786232 Contact Us For Availability
23
Contact, Spade (4) WPL 786178 Contact Us For Availability
24
Orifice WPL 786157 Contact Us For Availability
24
Clip, Wire WPL 786216 Contact Us For Availability
24
Medallion WPL 309195 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
26
16 Oz. Cooktop Conditioner WPL W10355051 No Longer Available
26
Screw, 6-32 x 3/16 Phillips Pan Head (4) WPL 786245 Contact Us For Availability
26
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
26
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
26
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
26
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
26
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
26
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
26
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
26
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
26
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
26
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
26
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
26
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
26
11 Oz. Cooktop Cleaner WPL 261961 Contact Us For Availability
27
Wire, Electrical (Contains 1 Brown & 1 Red) ( WPL 786254 Contact Us For Availability
28
Wire, Jumper (Brown) (2) WPL 786251 Contact Us For Availability
× ![]()
