Model Whirlpool RBS305PDB6 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
02 - OVEN DOOR

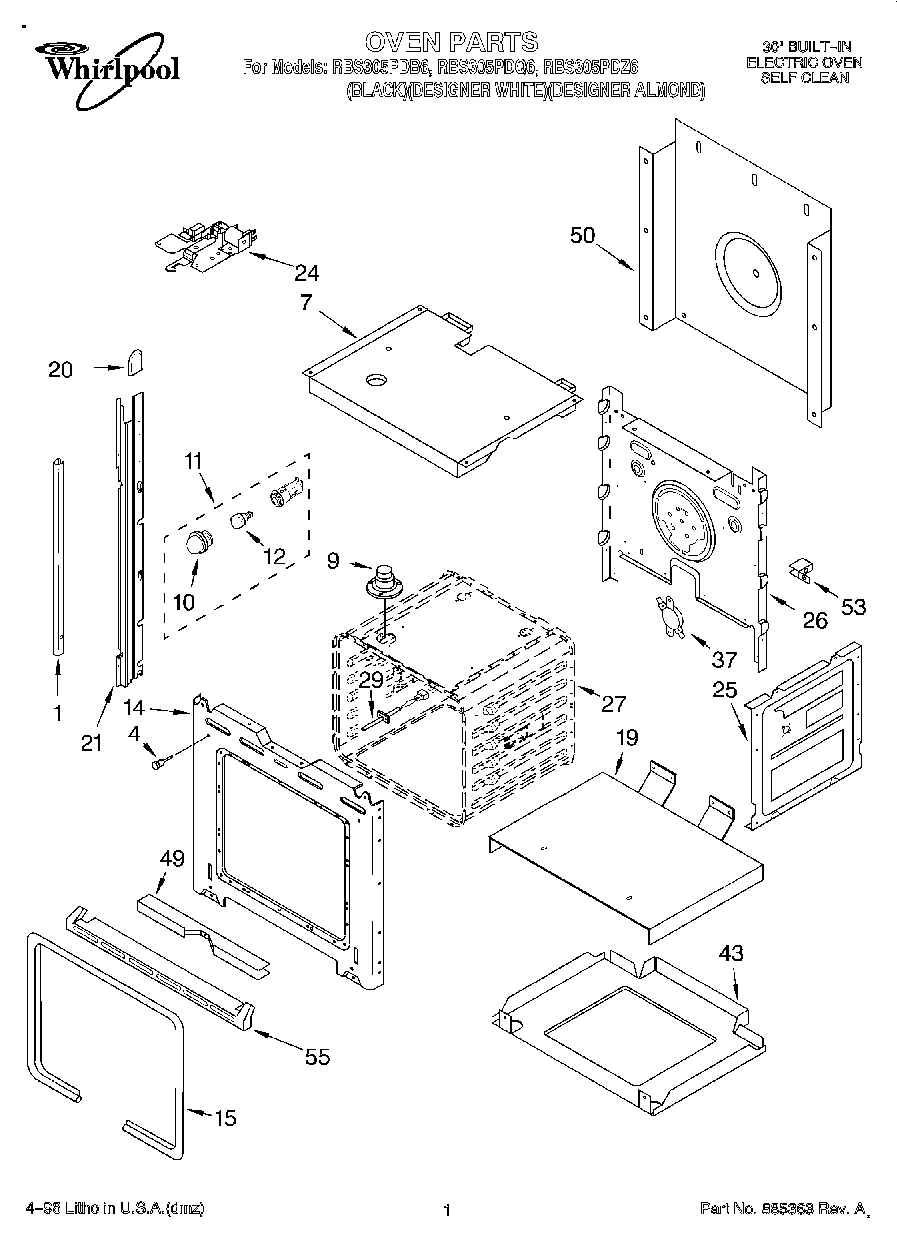

01 - OVEN

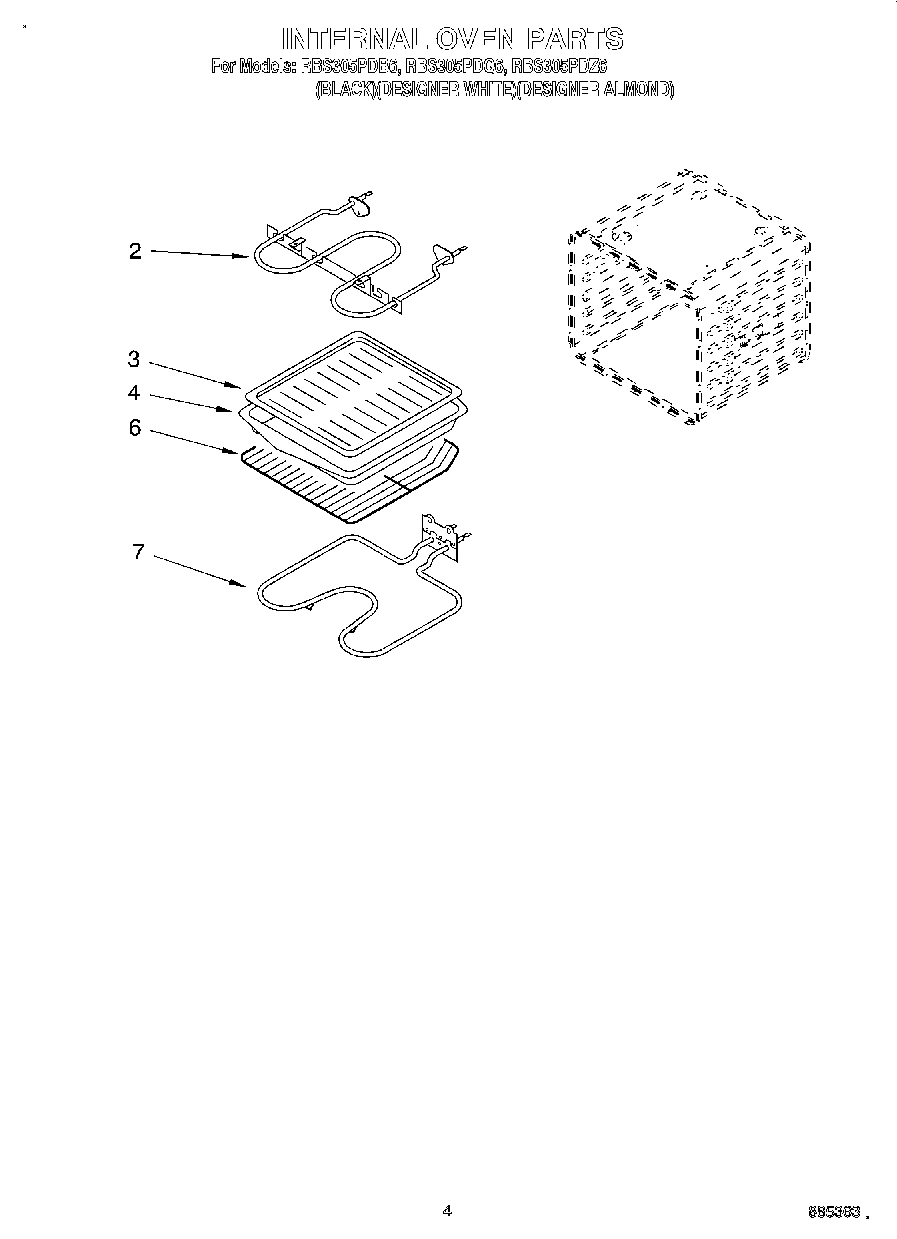

03 - INTERNAL OVEN

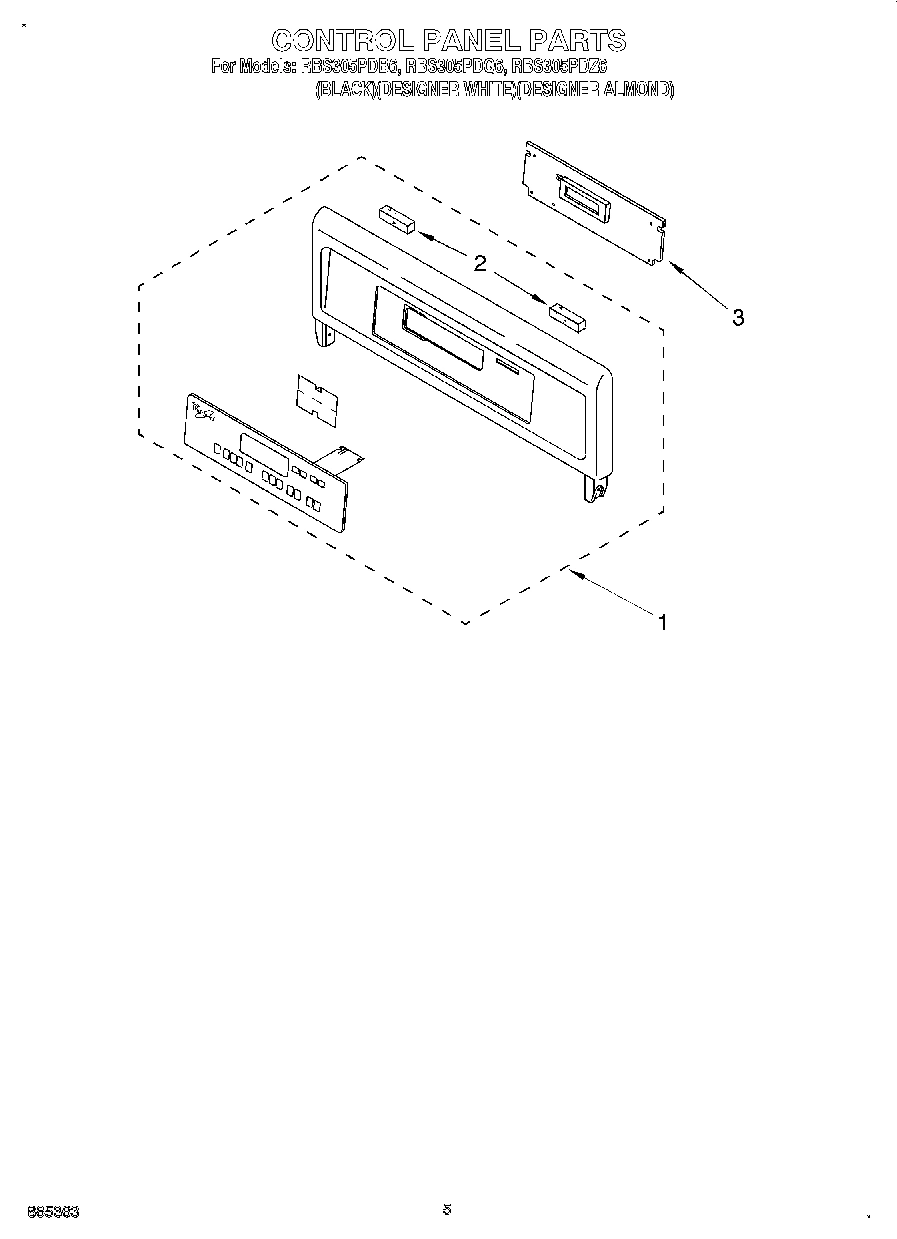

04 - CONTROL PANEL, LITERATURE

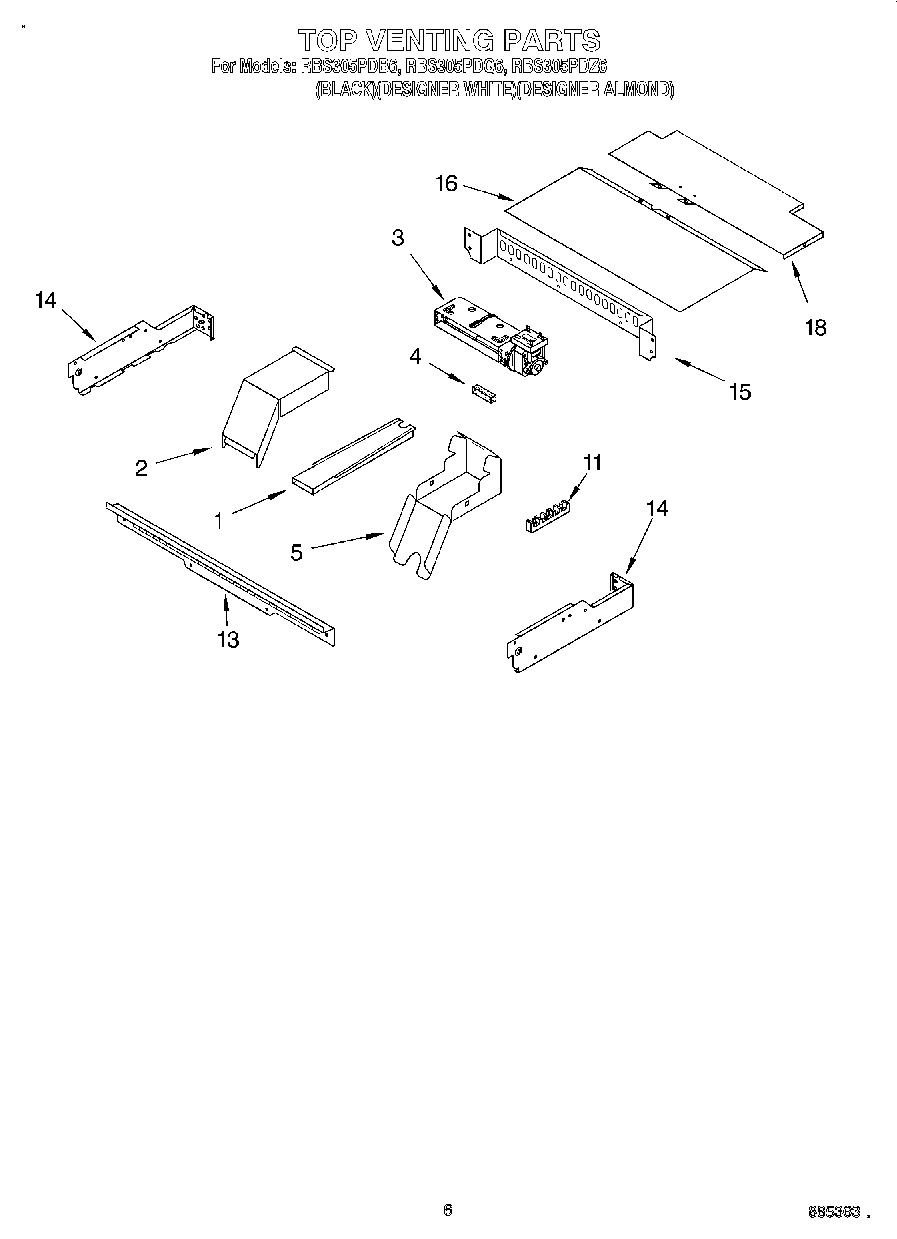

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool RBS305PDB6 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452021 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451339 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451340 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451341 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Microcomputer WPL 4452240 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Spacer, Harness WPL 4452222 Contact Us For Availability
18
Harness, Wire (Main) WPL 4454918 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
24
Micro Switch N.C. WPL 4451422 Contact Us For Availability
24
Microswitch WPL 4451426 Contact Us For Availability
24
Solenoid WPL 4451663 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451546 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI121005A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
55
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
55
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
55
Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability
55
Insulation, Back WPL 4450365 Contact Us For Availability
× ![]()
