Model Whirlpool RBD305PDB1 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

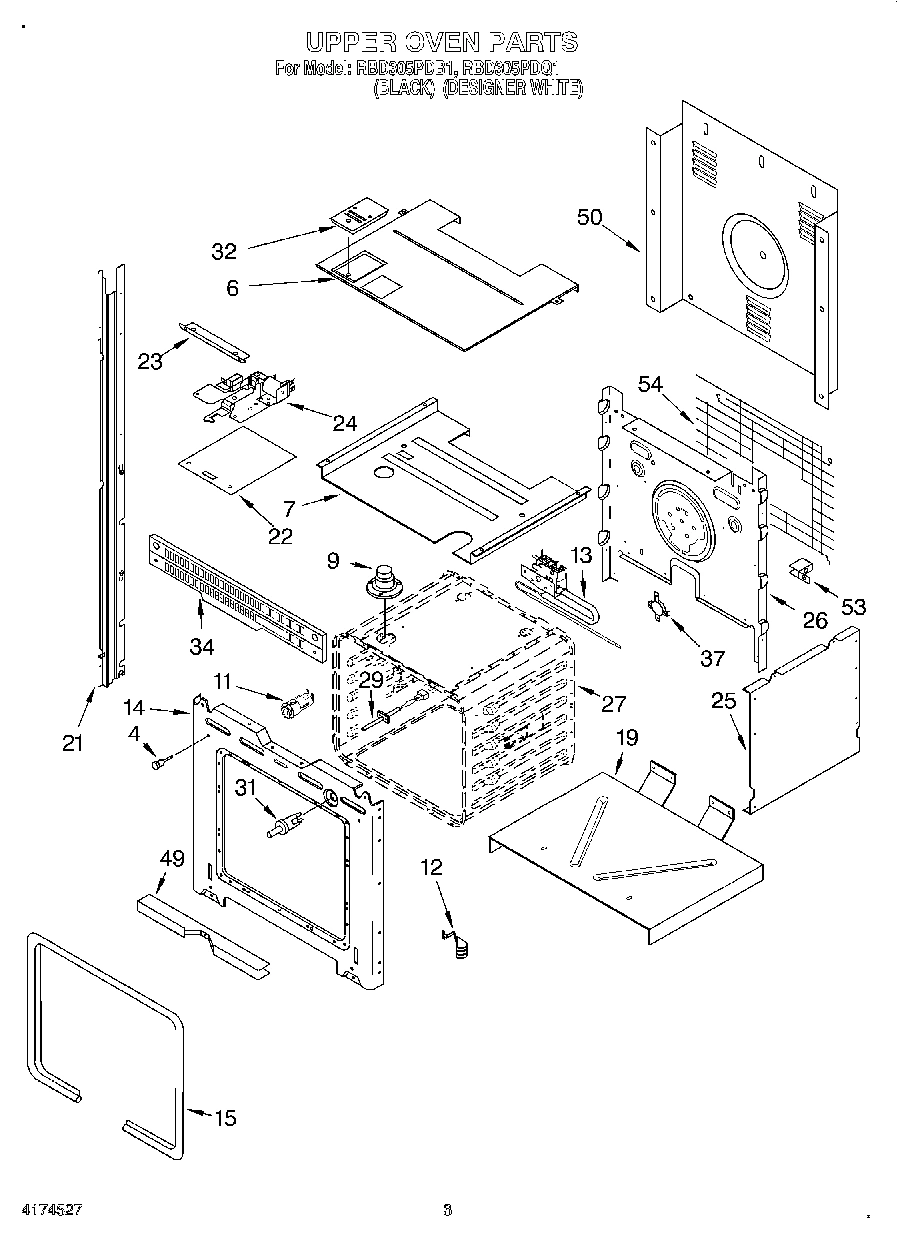

02 - UPPER OVEN

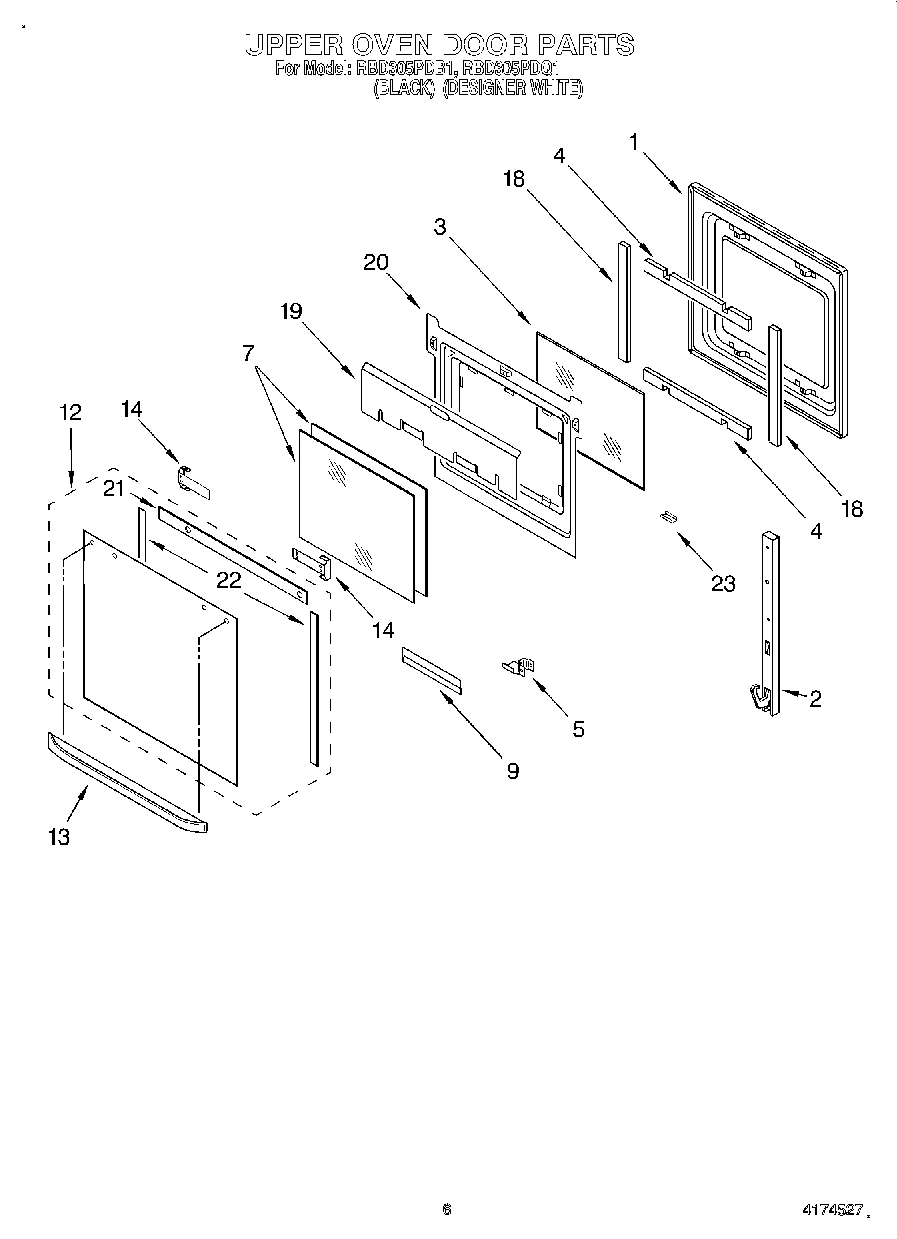

04 - UPPER OVEN DOOR

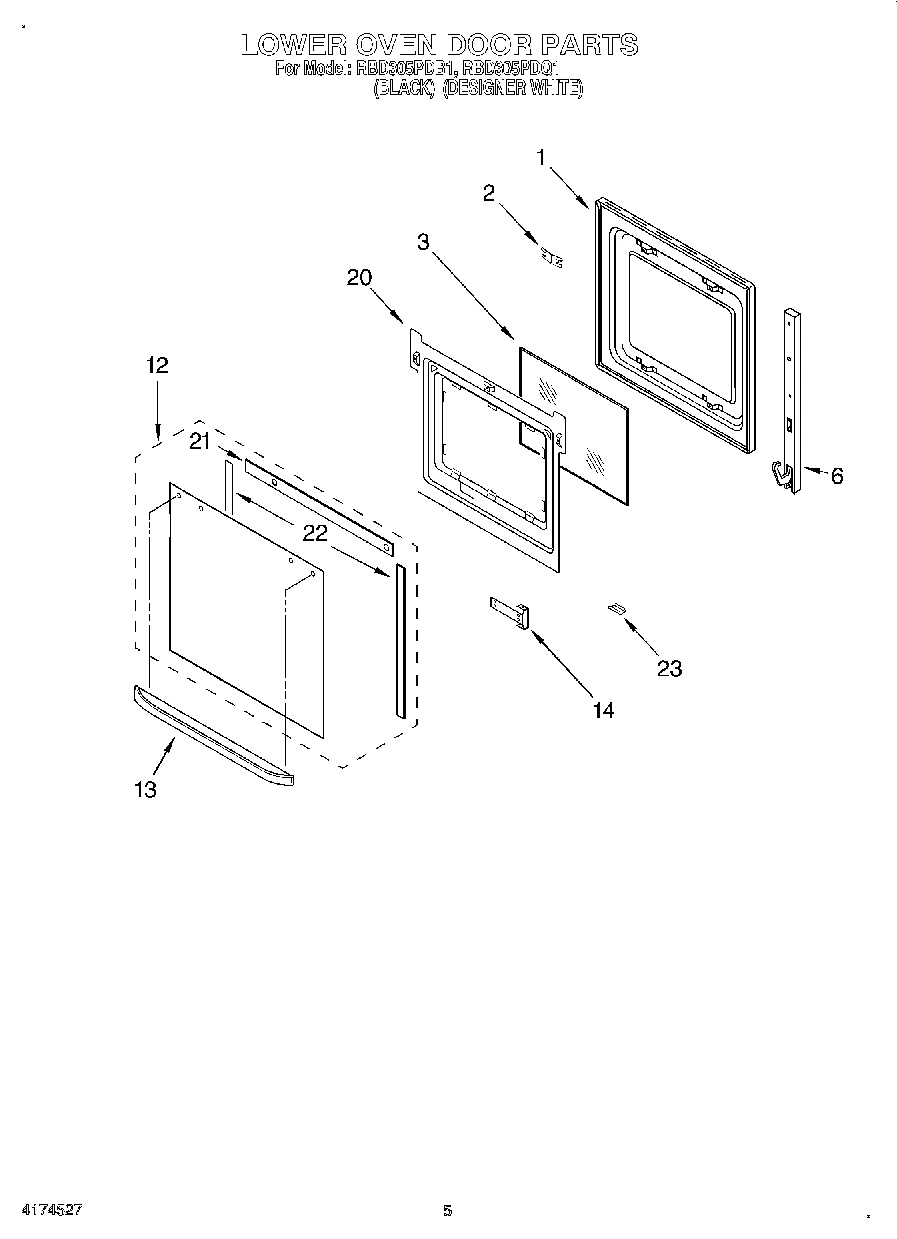

03 - LOWER OVEN DOOR

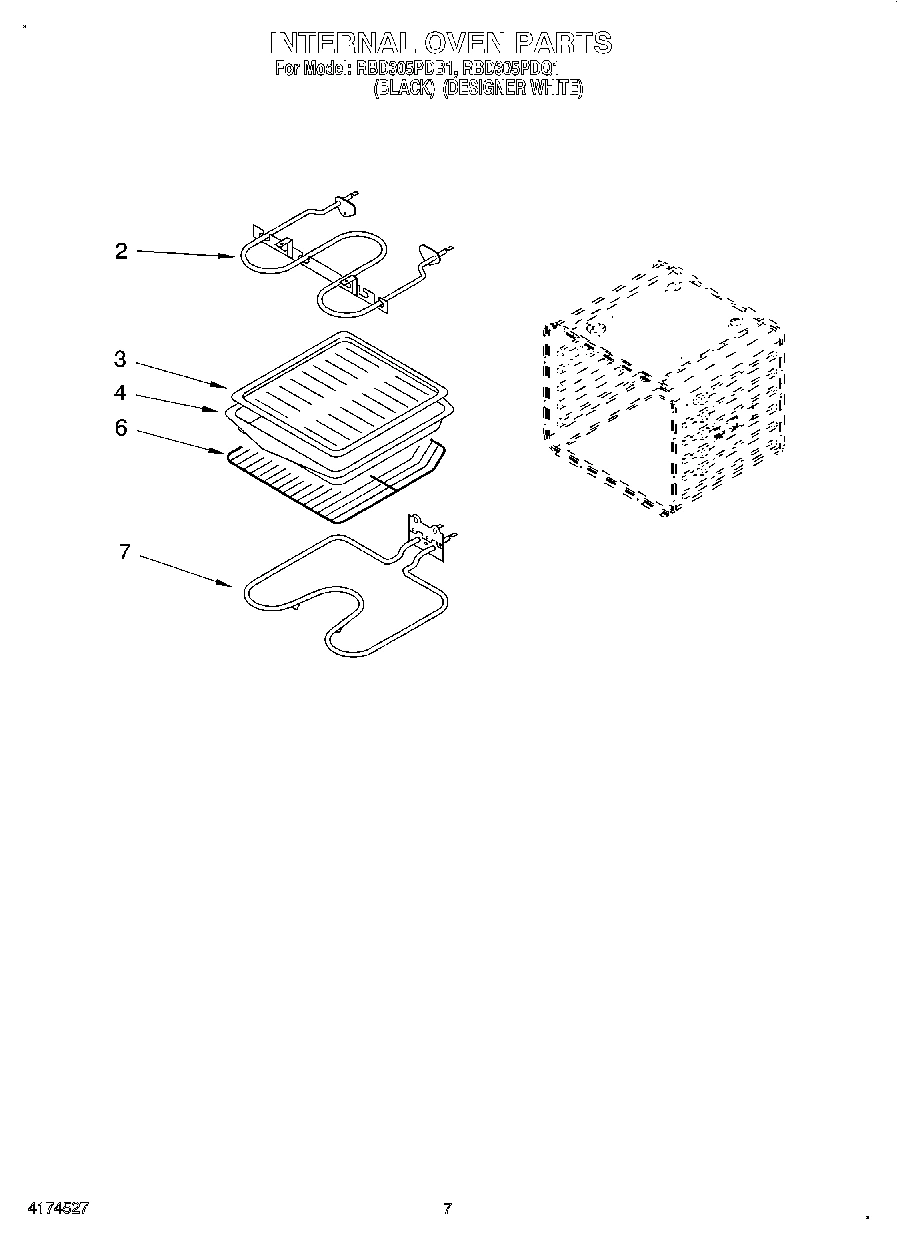

05 - INTERNAL OVEN

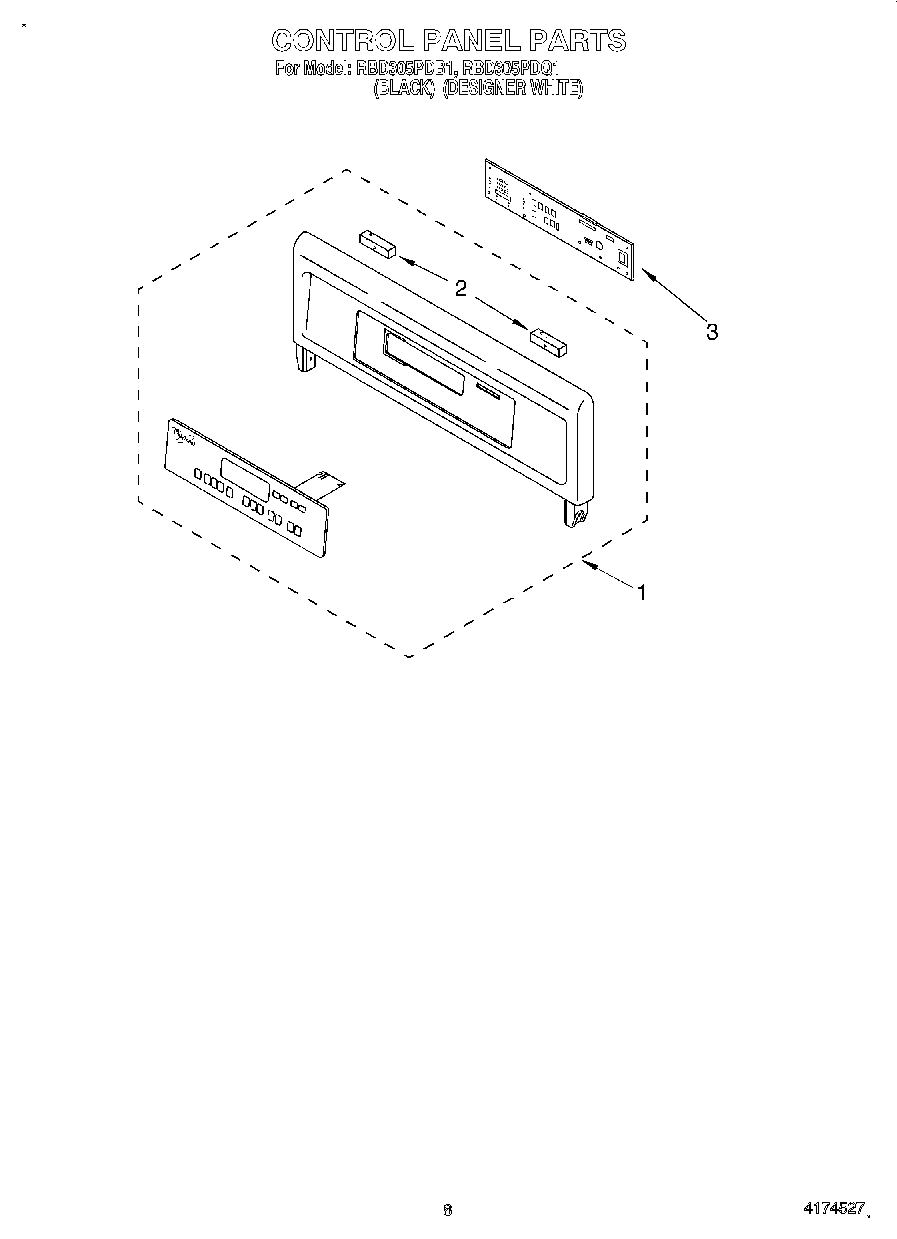

06 - CONTROL PANEL, LITERATURE

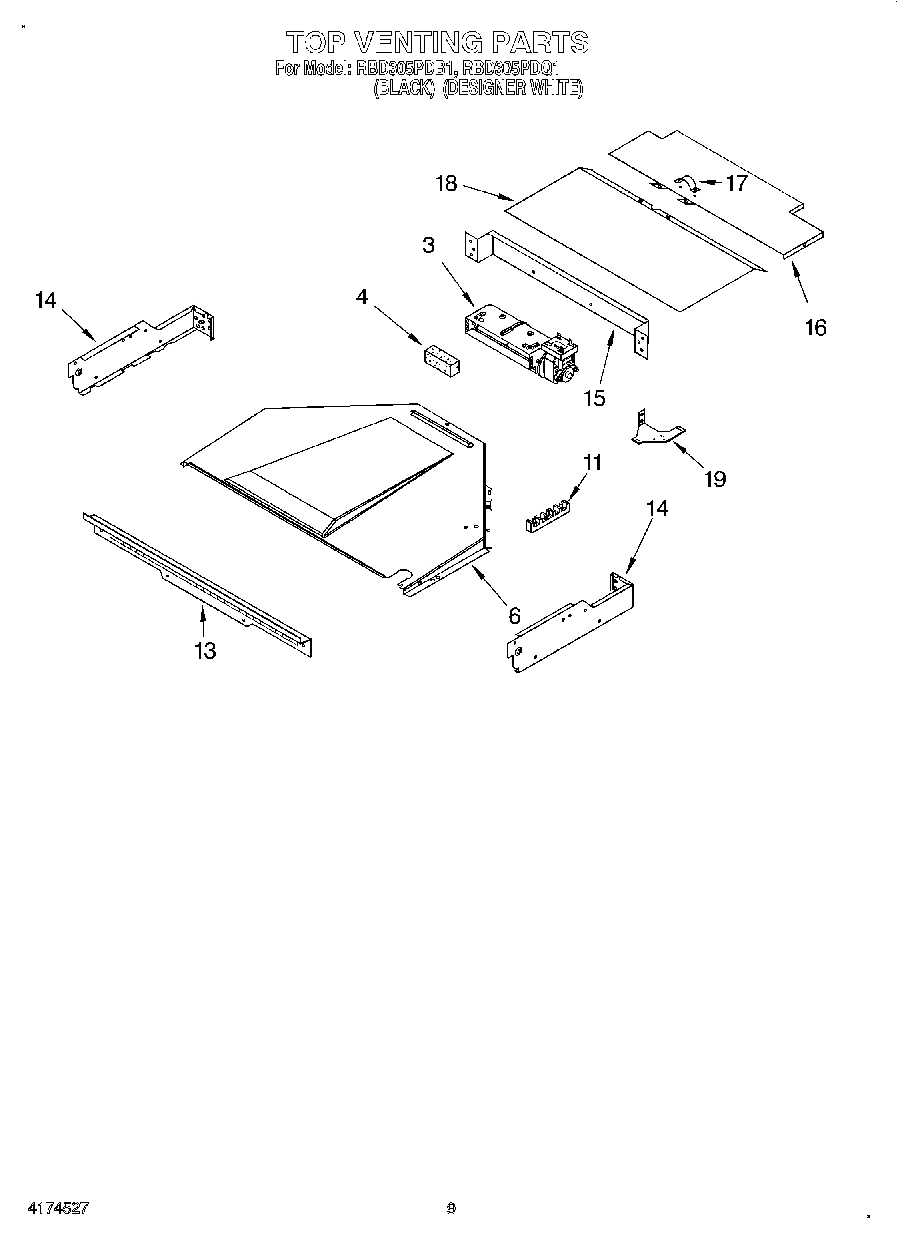

07 - TOP VENTING, OPTIONAL

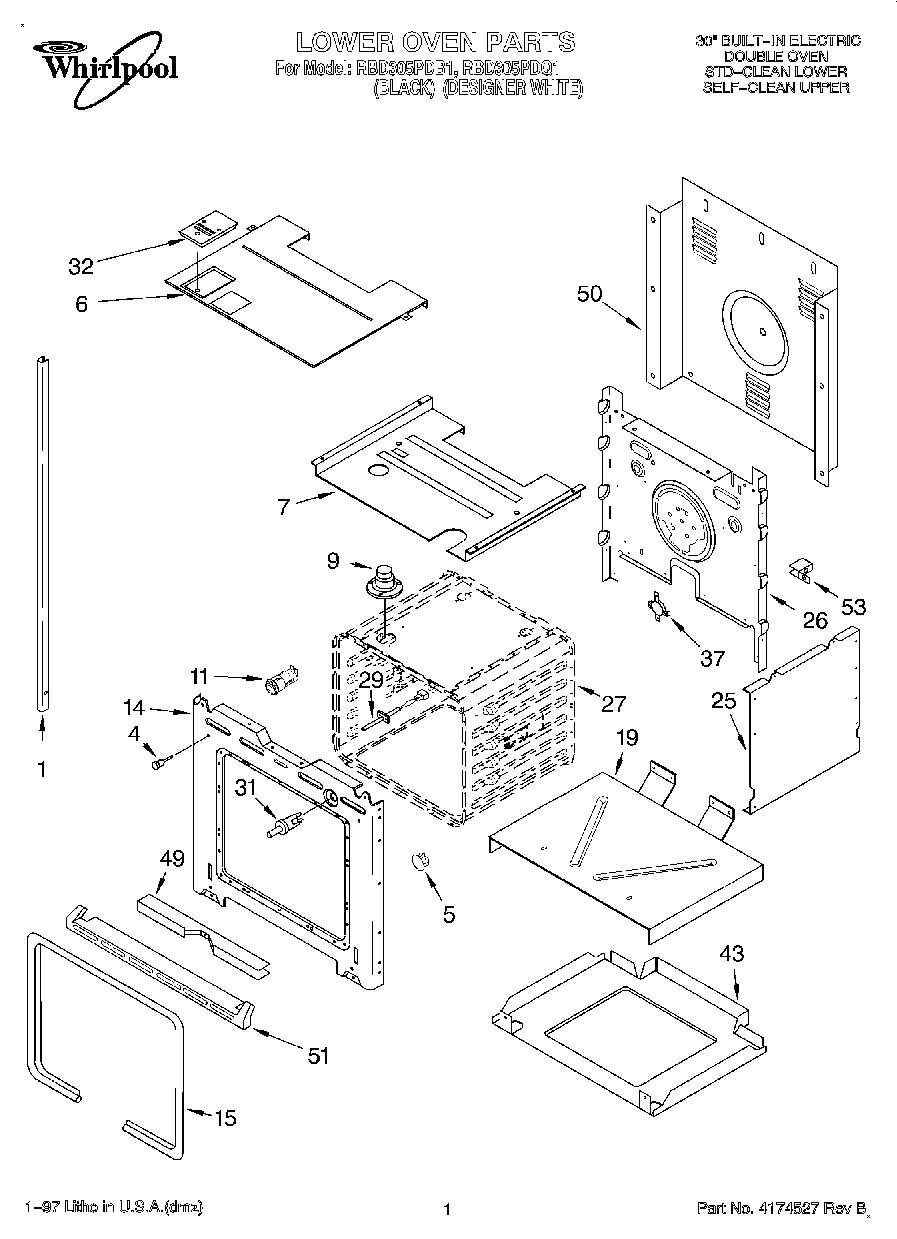

01 - LOWER OVEN

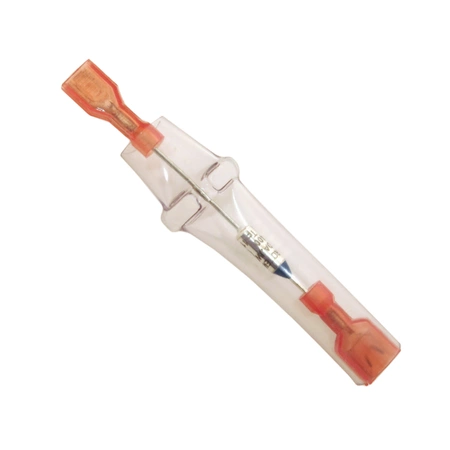

Common parts from model Whirlpool RBD305PDB1 BUILT-IN ELECTRIC DOUBLE OVEN
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4450941 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451313 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451314 Contact Us For Availability
1
Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
1
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
1
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
2
Screw WPL 4449899 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Microcomputer WPL 4448876 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
4
Foam, Block WPL 3182384 Contact Us For Availability
5
Plug, Button WPL 4448982 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
6
Divider, Vent WPL 4450537 Contact Us For Availability
7
Partition WPL 4451166 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450692 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Frame, Front WPL 4450417 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
15
Gasket, Door WPL 4450493 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Harness, Wire STD (Door Switch) WPL 4450298 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4450753 Contact Us For Availability
19
Harness, Wire (Main) WPL 4450944 Contact Us For Availability
19
Harness, Wire S/C (Door Switch) WPL 4450951 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
19
Support, Insulation WPL 4450542 Contact Us For Availability
20
Retainer, Glass WPL 4450423 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Chassis WPL 4451169 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI120220A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4450527 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450365 Contact Us For Availability
× ![]()
