Model Whirlpool RBD275PDQ12 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

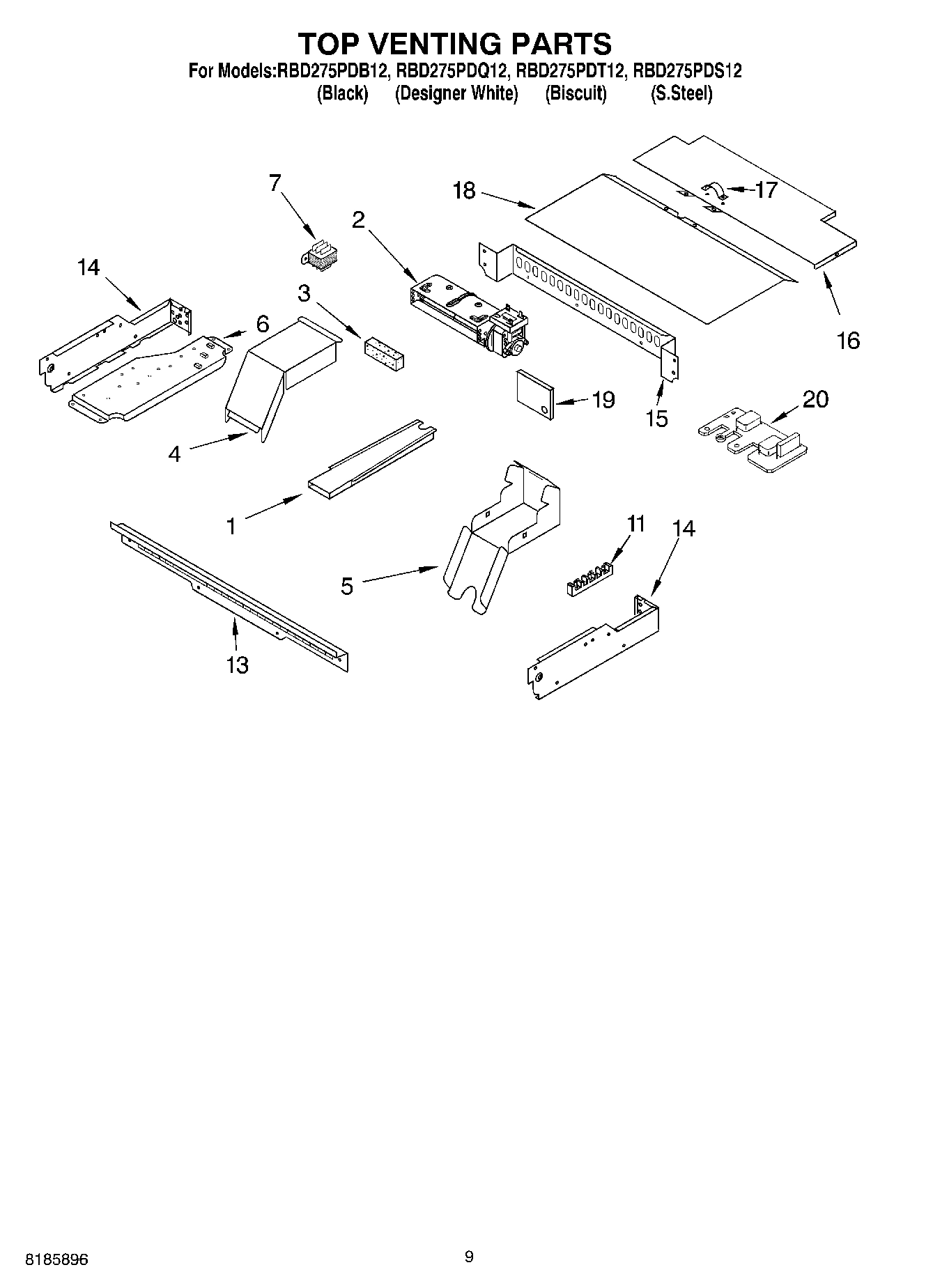

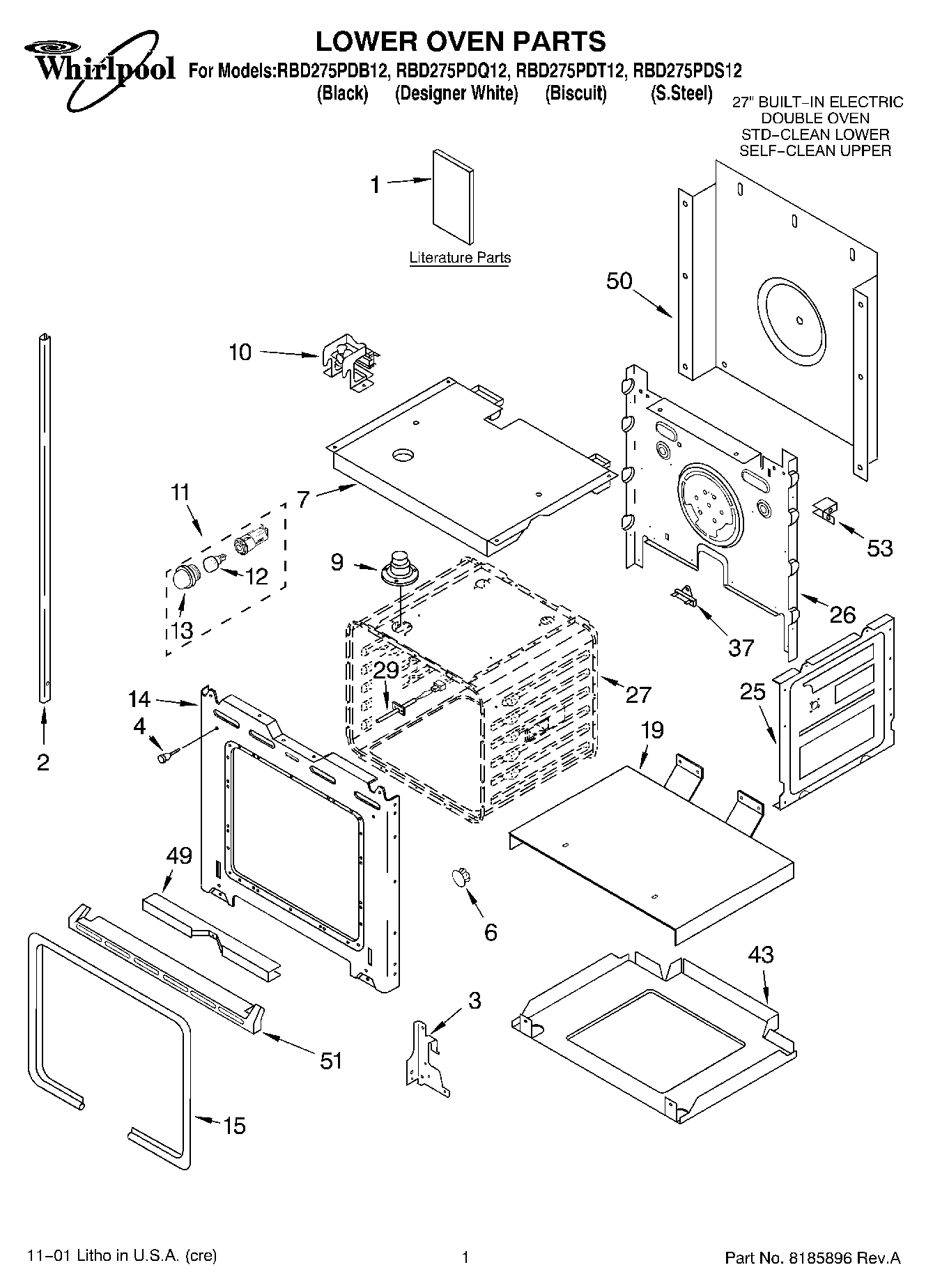

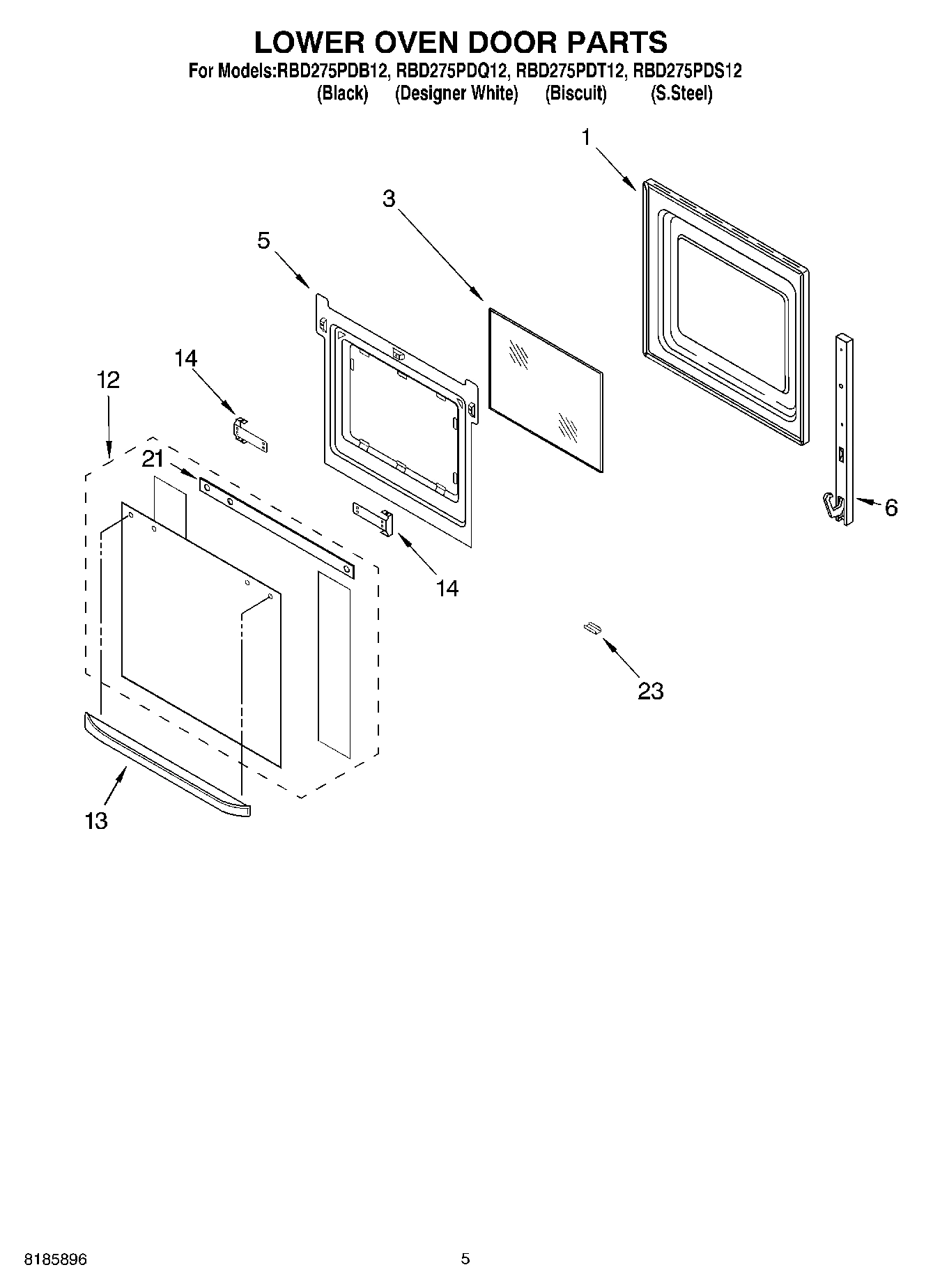

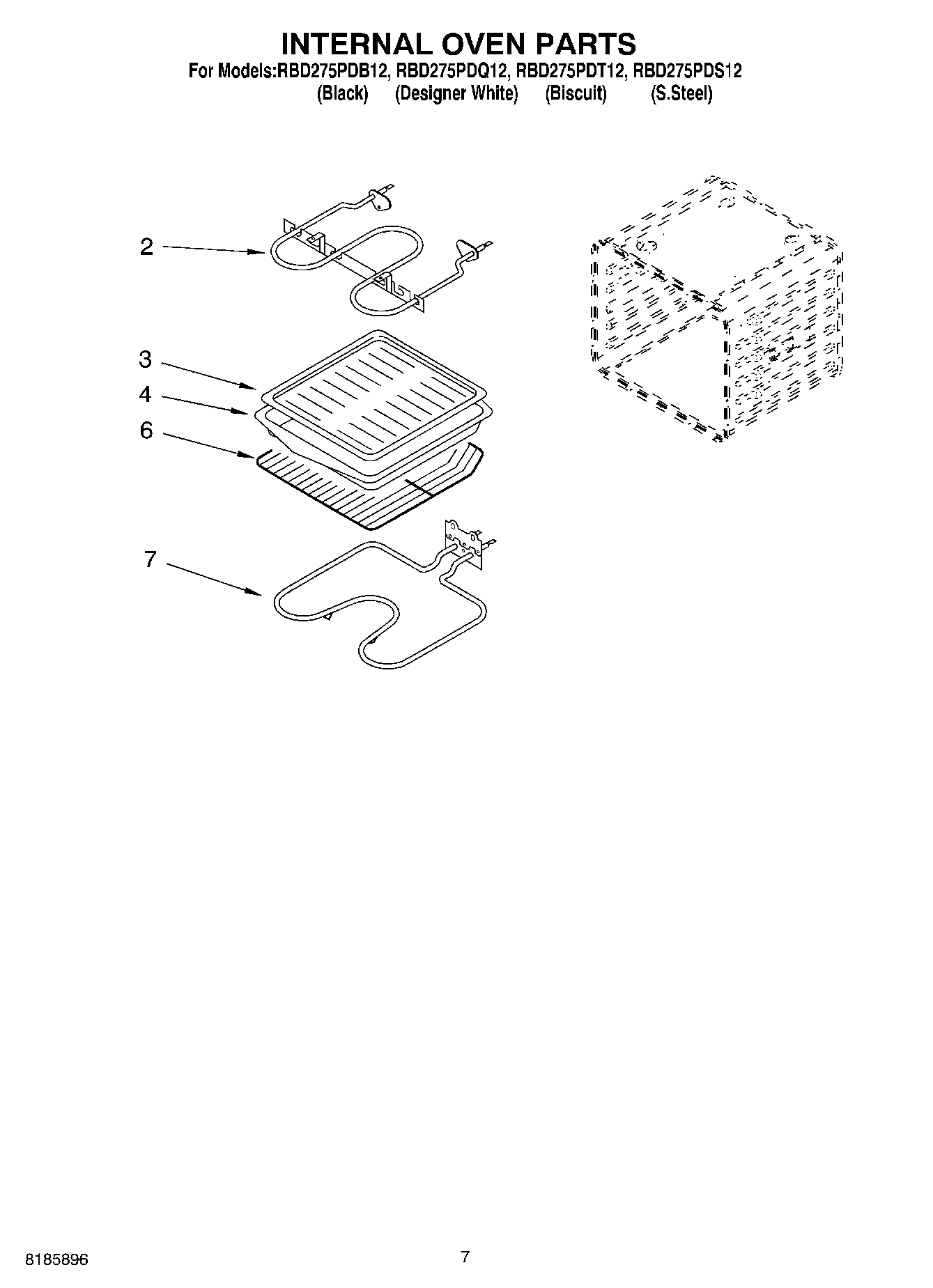

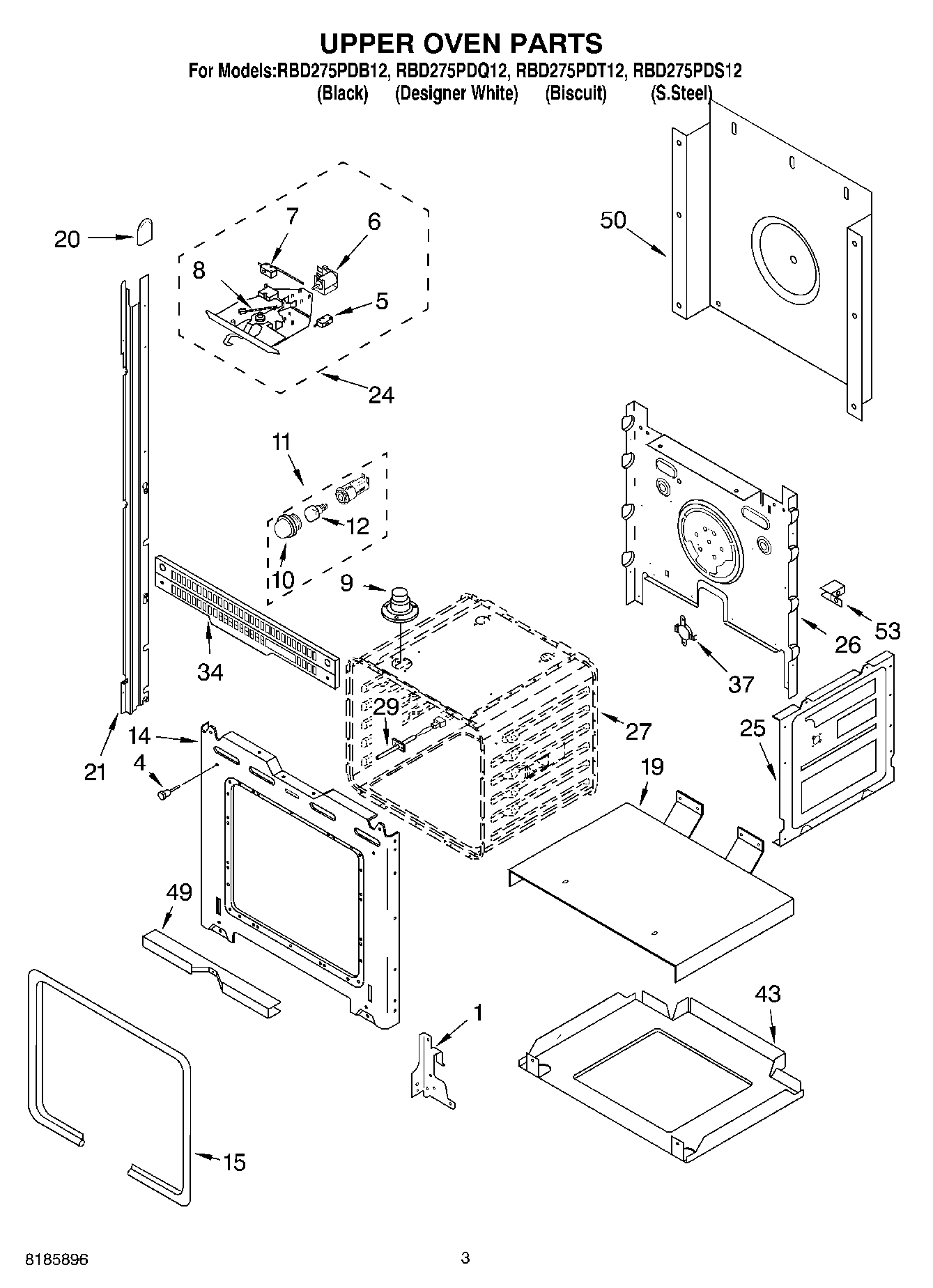

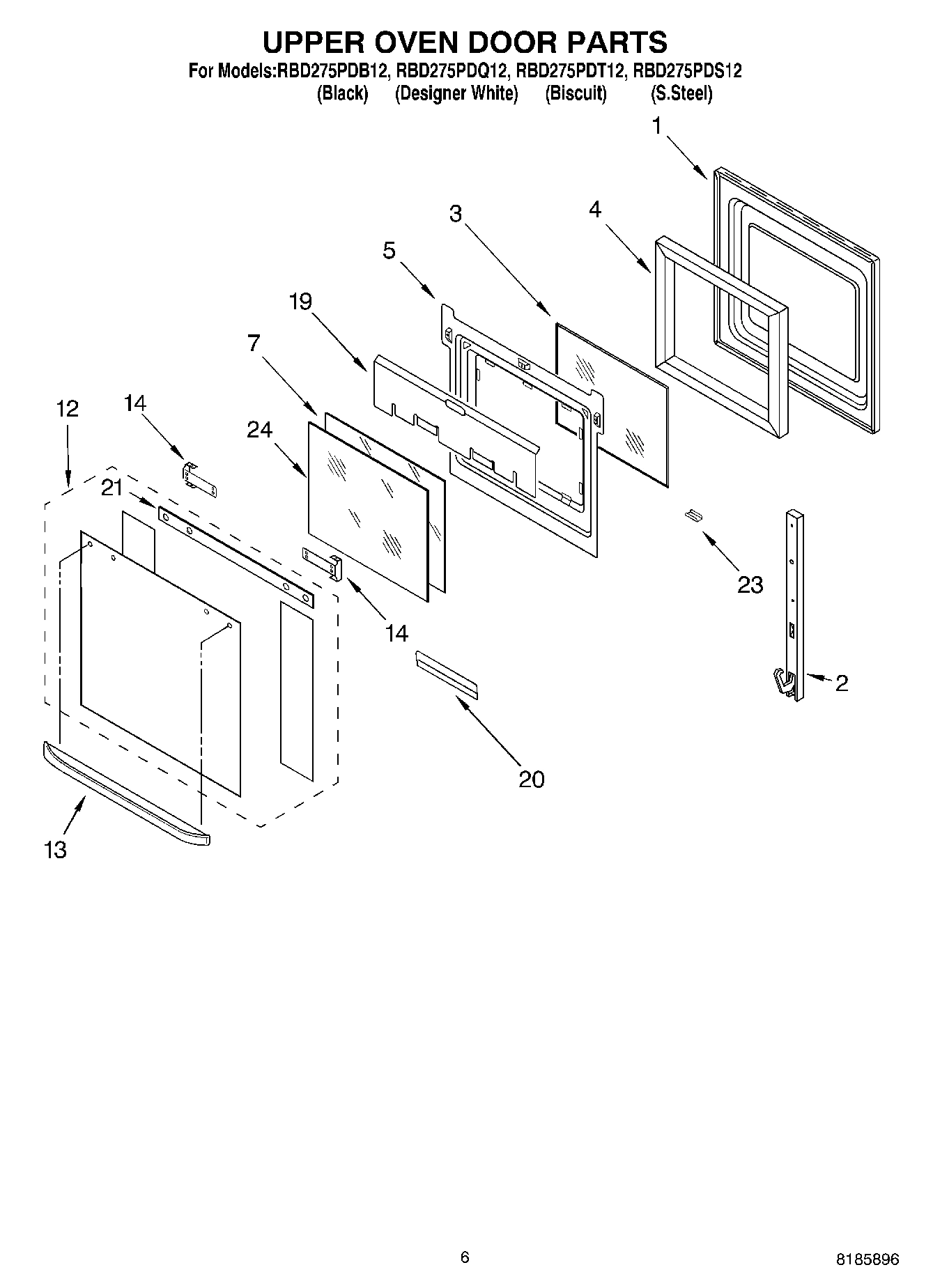

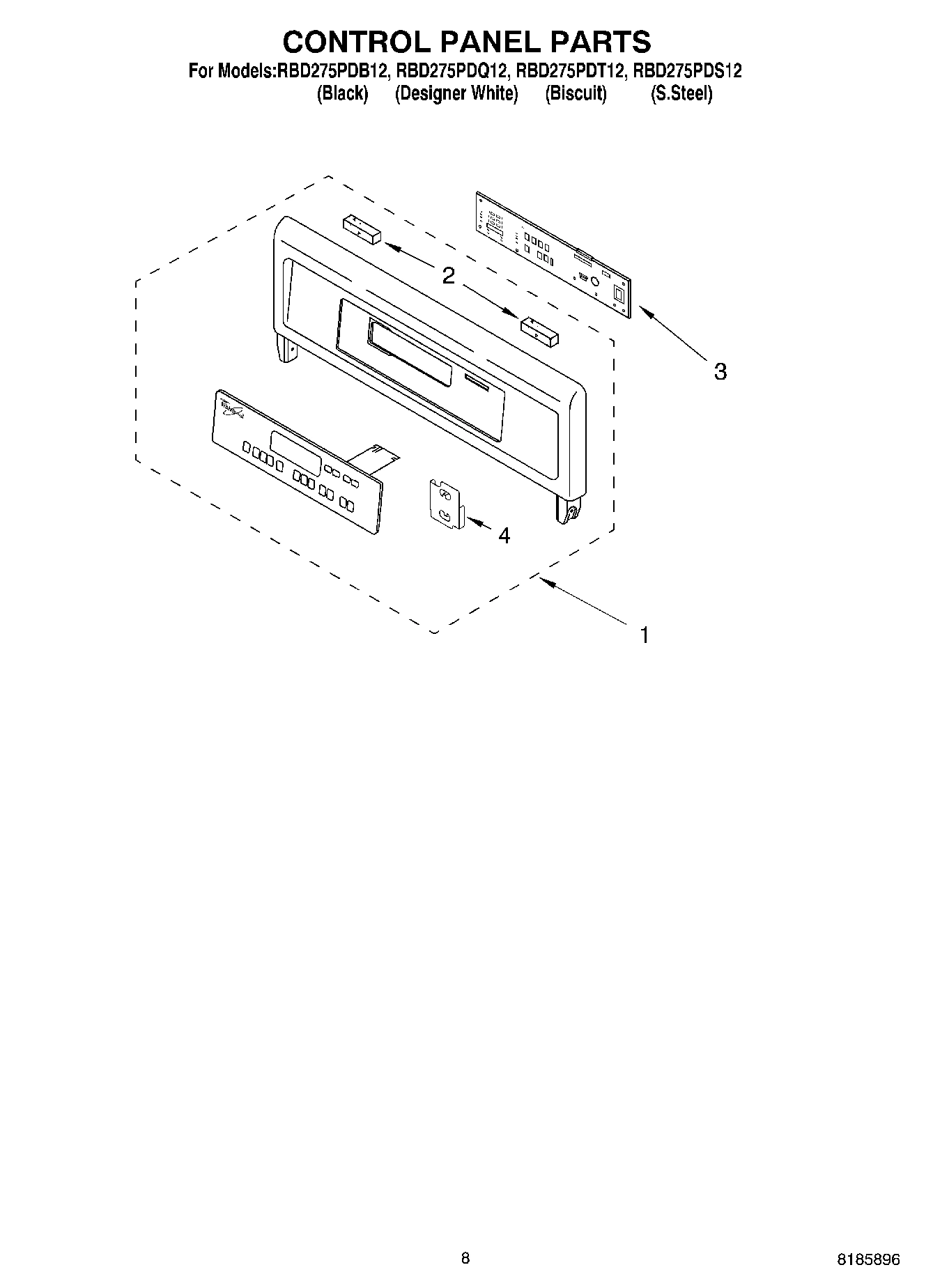

Control Panel Assy. W/Membrane Switch (Black WPL 8300429 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 8300430 Contact Us For Availability

1

Door Liner WPL 4455617 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Biscui WPL 8300531 Contact Us For Availability

2

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $22.55

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $113.99

2

Blower 60MM WPL 4455334 Contact Us For Availability

2

Gasket, Control Panel WPL 4451033 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $4.82

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $82.61

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $82.61

3

Microcomputer WPL 4452890 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Insulator, Membrane Switch WPL 3192690 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

5

Switch, Micro WPL 4452312 Contact Us For Availability

5

Retainer, Glass WPL 8300777 Contact Us For Availability

6

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

6

WP9760563 Whirlpool Door Hinge Backorder WPL WP9760563 $63.71

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Hinge, Door (R.Side (L.Brown)) WPL 8300565 Contact Us For Availability

6

Hinge, Door (L.Side (L.Brown)) WPL 8300566 Contact Us For Availability

6

Hinge, Door (L.Side (Grey)) WPL 8300781 Contact Us For Availability

6

Plate, Mounting WPL 4451789 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $126.08

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $55.99

7

Transformer, Control WPL 8300642 Contact Us For Availability

10

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

11

Screw WPL 3400080 Contact Us For Availability

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $58.99

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

Door Glass Assy (Biscuit) WPL 8300257 Contact Us For Availability

Door Glass, Assy (S.Steel Model) WPL 8300994 Contact Us For Availability

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

Lens, Light WPL 4452165 Contact Us For Availability

Door Handle (Black Model) WPL 4448405 Contact Us For Availability

Door Handle (White Model) WPL 4448406 Contact Us For Availability

Door Handle (Biscuit Model) WPL 8300255 Contact Us For Availability

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

15

Gasket, Door WPL 4450492 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

18

Cover, Top Front WPL 4452366 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

19

Plate, Mounting Fan WPL 4454943 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.46

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $103.99

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Retainer, Glass WPL 4451668 Contact Us For Availability

Conduit, Double WPL 4450953 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455739 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

21

Seal, Door Top WPL 8300819 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

23

Retainer, Clip (Biscuit Model) WPL 4452119 Contact Us For Availability

24

Latch Assy WPL 4451896 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $94.56

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI119953A Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

37

WP4451354 Whirlpool Thermal Fuse Assembly In Stock WPL WP4451354 $30.95

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

Trim, Bottom (Biscuit Model) WPL 4452414 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

Insulation, Wrap WPL 4449315 Contact Us For Availability

Support, Bracket WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability
