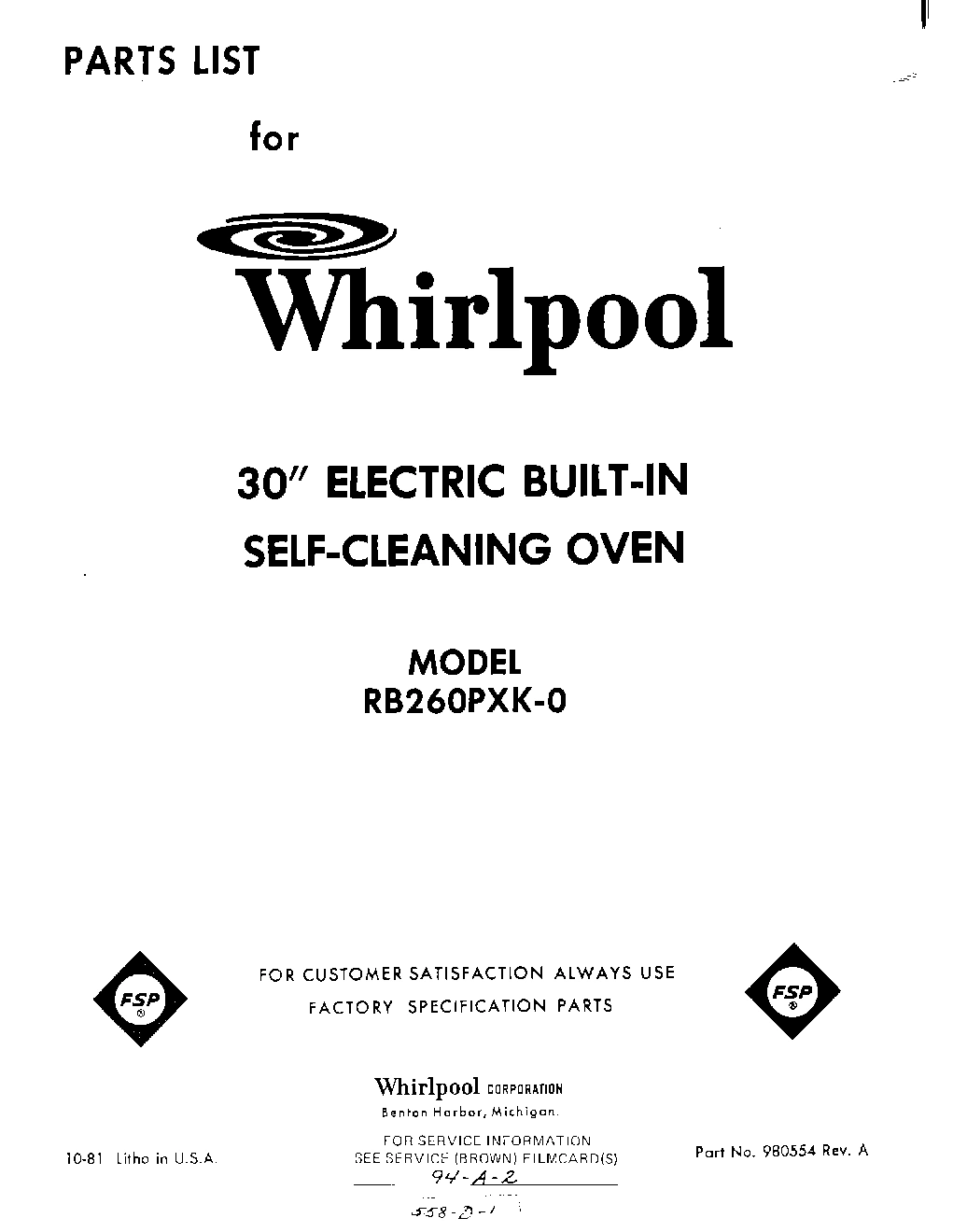

Model Whirlpool RB260PXK0 – Common Parts & Diagrams
04 - SECTION
03 - SECTION
01 - SECTION
02 - SECTION

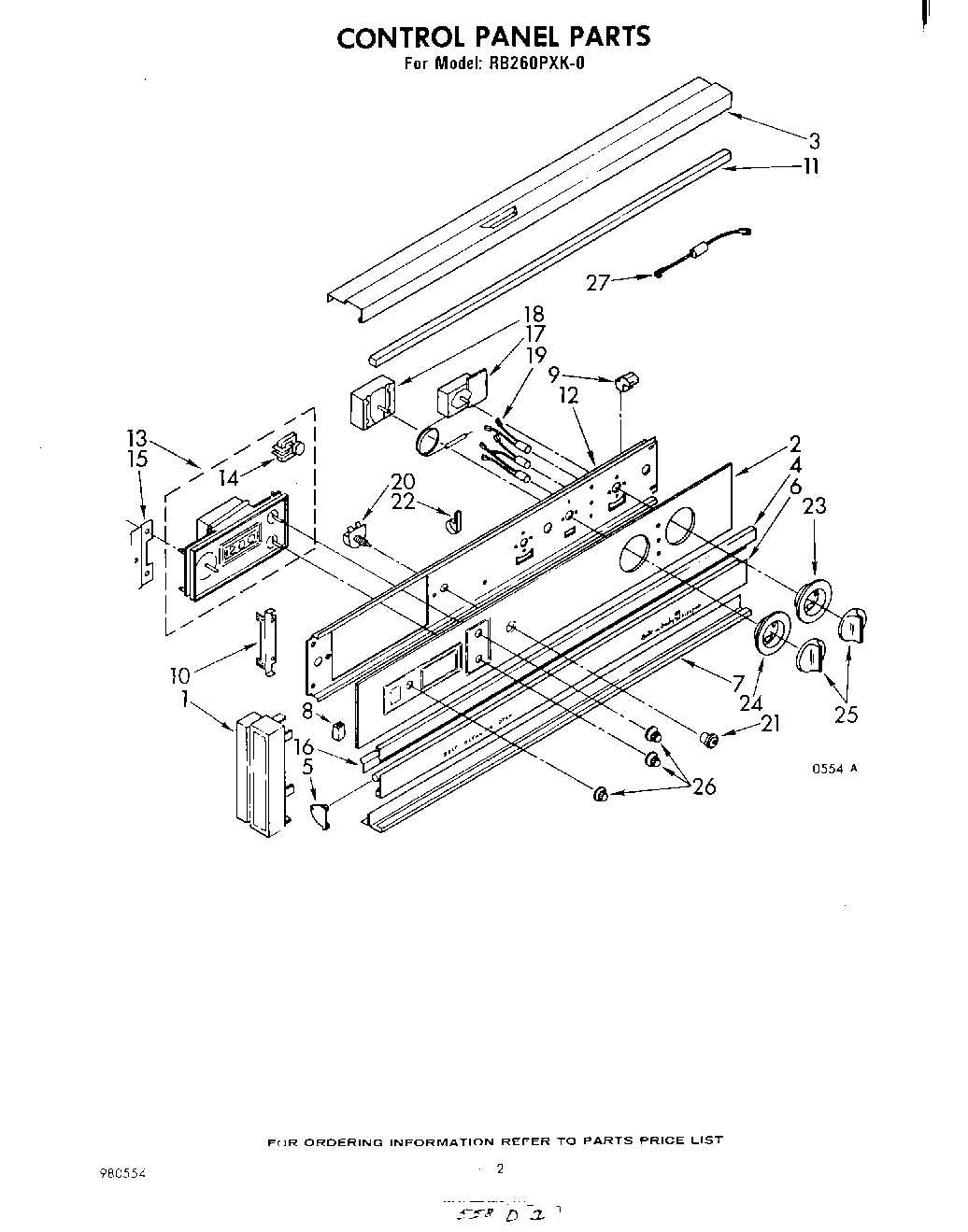

Common parts from model Whirlpool RB260PXK0
1
Frame, Front WPL 328747 Contact Us For Availability
1
End Cap (L.H.) WPL 310828 Contact Us For Availability
1
End Cap (R.H.) WPL 310829 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Control Panel, Glass WPL 310822 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top WPL 310824 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center WPL 311188 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
6
Door, Vent WPL 311192 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 311190 Contact Us For Availability
8
Channel, Rubber (2) WPL 310842 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Screw WPL 98520 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
12
Handle, Oven Door WPL 311573 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 310727 Contact Us For Availability
13
Baffle, Heat WPL 309056 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
palnut, timer 10-32 WPL 308846 Contact Us For Availability
13
Timer, Digital (Included No.14) WPL 310325 Contact Us For Availability
14
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
14
Frame, Door WPL 310427 Contact Us For Availability
14
Motor, Timer WPL 308594 Contact Us For Availability
15
Seal, Fiberglass WPL 311904 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Bracket, Timer (2) WPL 310721 Contact Us For Availability
16
clip, glass (10) WPL 310706 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Seal WPL 255893 Contact Us For Availability
17
Channel Arm (2) WPL 328803 Contact Us For Availability
17
Thermostat, Oven WPL 310017 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
20
Nut, Hex 3/8 WPL 255912 Contact Us For Availability
20
Switch, Oven Light WPL 308829 Contact Us For Availability
21
Bezel, Switch WPL 308784 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Panel, Inner WPL 327898 Contact Us For Availability
23
Tube, Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (3) WPL 309553 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability
27
Resistor & Terminal Assembly WPL 328891 Contact Us For Availability
27
Terminal WPL 98655 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
30
Clip (2) WPL 311506 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
33
Retainer, Glass (2) WPL 309843 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 328585 Contact Us For Availability
34
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
34
TOUCH-UP SELF-CLEAN (1 OZ.) Self-Clean (1/2 P WPL 242757 Contact Us For Availability
34
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
34
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
34
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
34
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
34
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
34
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
34
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
34
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
34
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
34
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
34
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
34
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
34
Grease WPL 261582 Contact Us For Availability
34
Rotisserie Kit WPL 261881 Contact Us For Availability
34
Book, Cooking Guide WPL 308500 Contact Us For Availability
34
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
34
Guide, Use & Care WPL 311415 Contact Us For Availability
34
Installation Instruct WPL 311434 Contact Us For Availability
34
WPL 311948 WPL 311948 Contact Us For Availability
34
WPL 980554 WPL 980554 Contact Us For Availability
34
Safety Swi WPL 308185 Contact Us For Availability
34
WPL 98106 WPL 98106 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
36
WPL 310100 WPL 310100 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 310643 WPL 310643 Contact Us For Availability
41
WPL 311585 WPL 311585 Contact Us For Availability
46
WPL 310719 WPL 310719 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311011 WPL 311011 Contact Us For Availability
59
WPL 310973 WPL 310973 Contact Us For Availability
60
WPL 308674 WPL 308674 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
× ![]()
