Model Whirlpool RB2000XVW0 – Common Parts & Diagrams

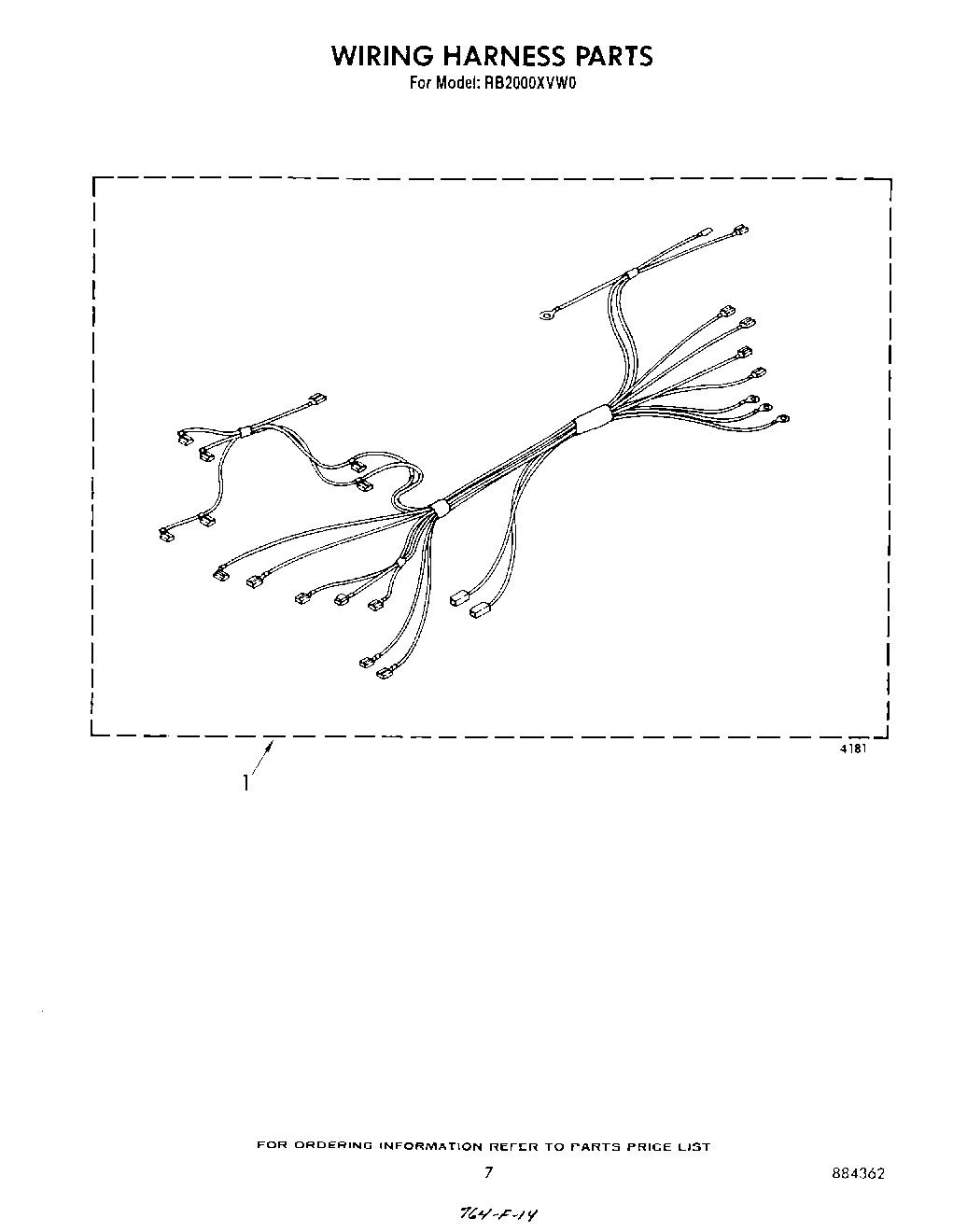

05 - WIRING HARNESS

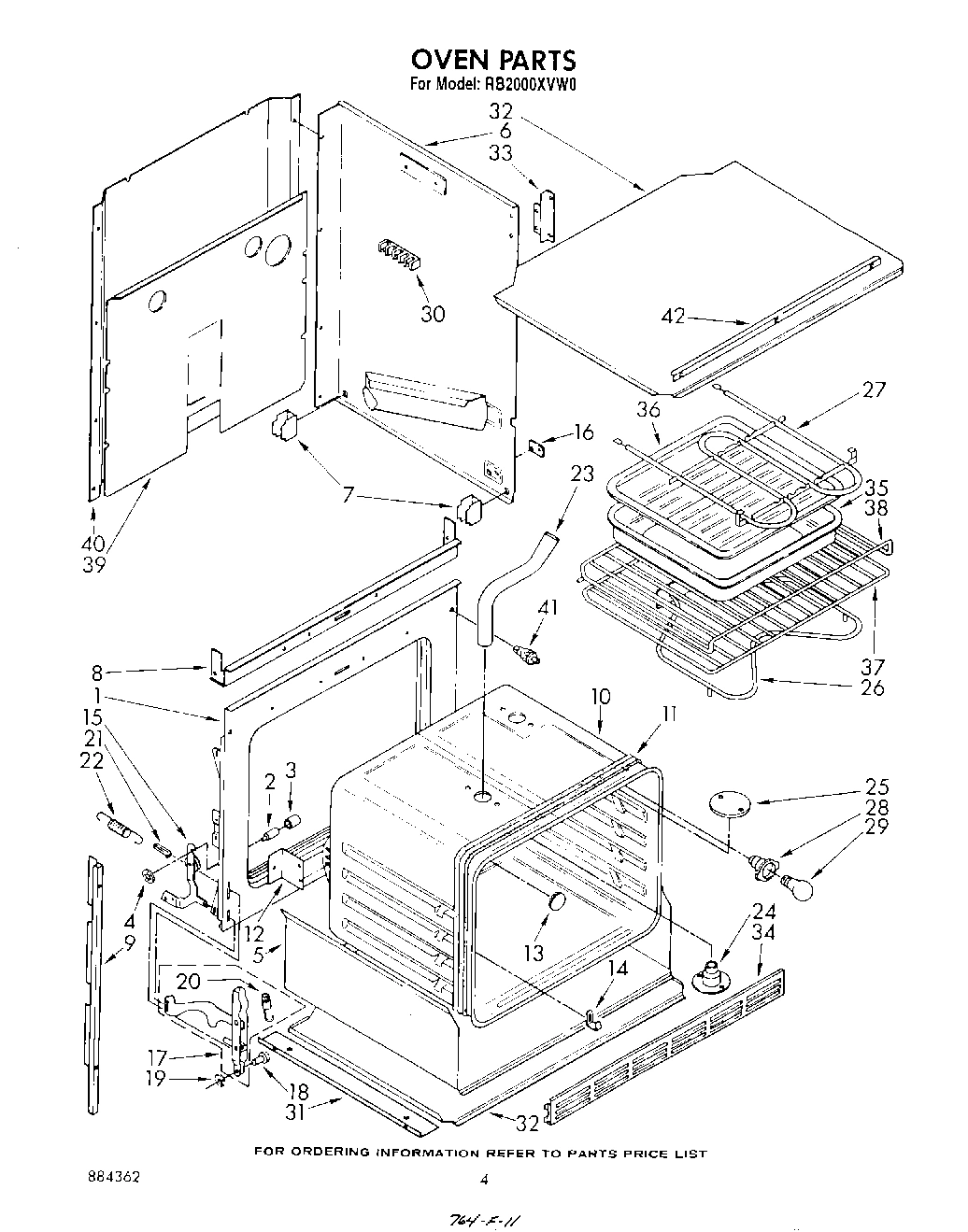

03 - OVEN

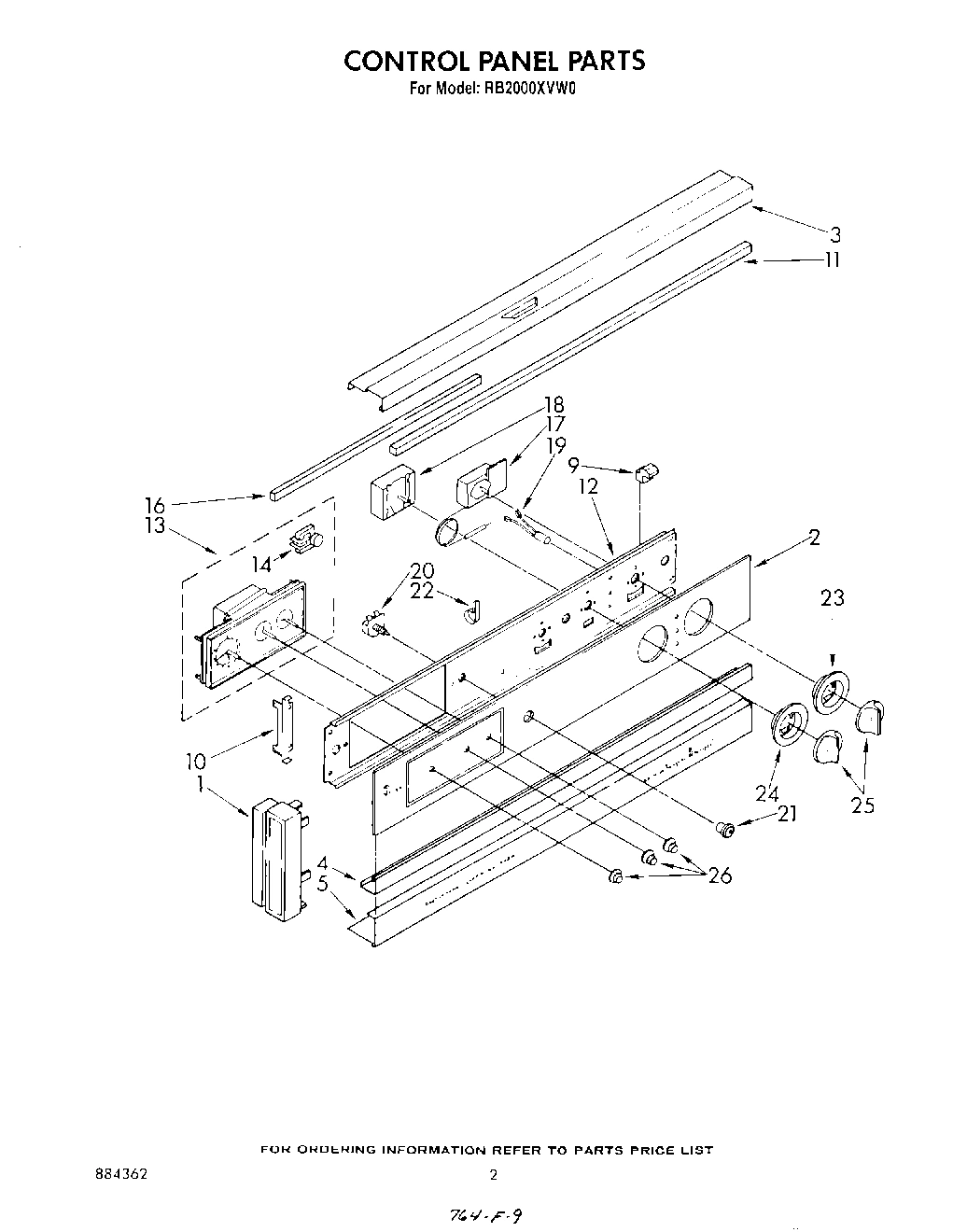

02 - CONTROL PANEL , LITERATURE AND OPTIONAL

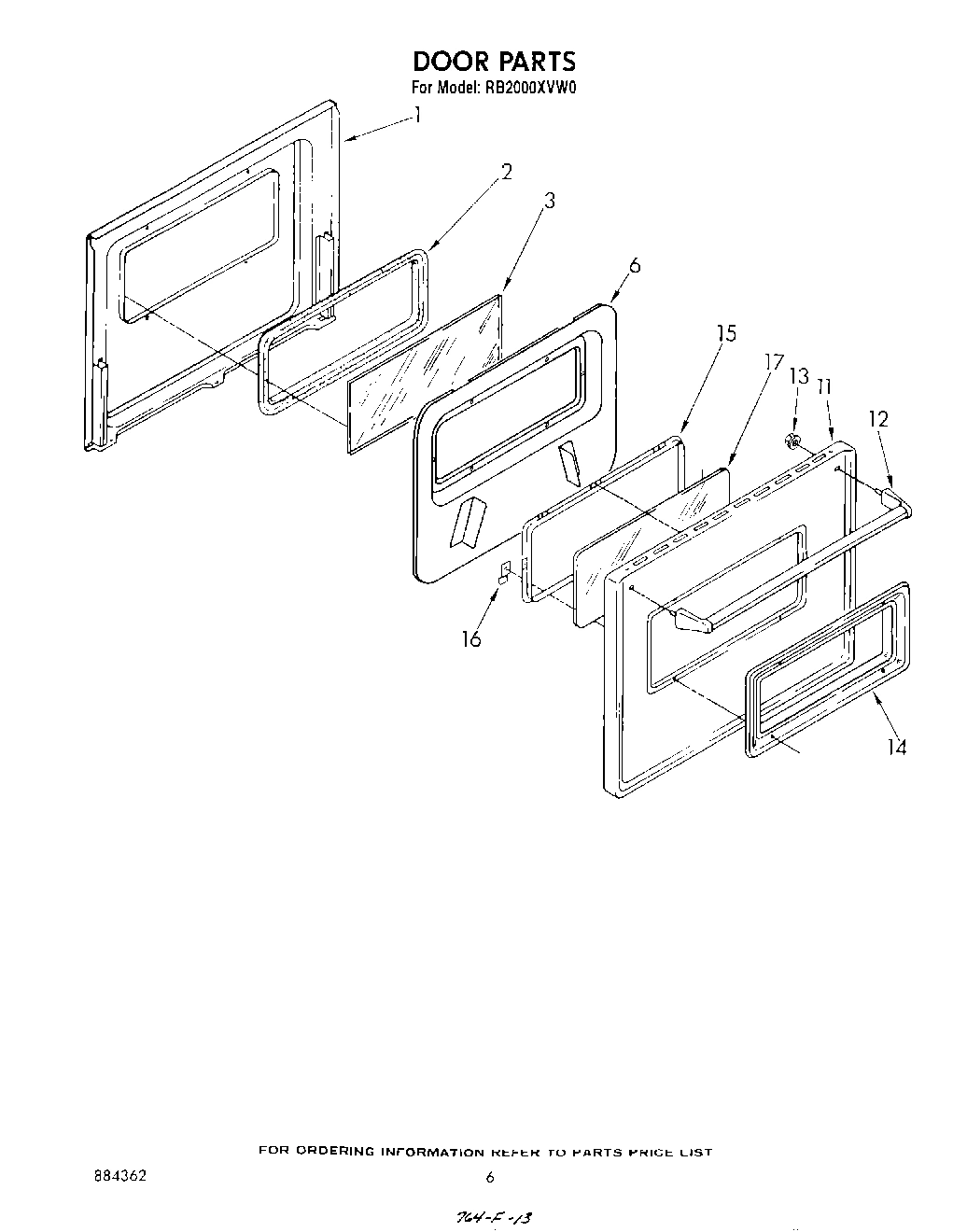

04 - DOOR
Common parts from model Whirlpool RB2000XVW0
WPL 487384 WPL 487384 Contact Us For Availability
WPL LIT311434 WPL LIT311434 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148314 WPL LIT3148314 Contact Us For Availability
WPL LIT884362 WPL LIT884362 Contact Us For Availability
1
End Cap. L.H. WPL 3148621 Contact Us For Availability
1
End Cap (R.H.) WPL 3148622 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3170708 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Glass, Control Panel WPL 3148632 Contact Us For Availability
3
Rail, Top WPL 3148624 Contact Us For Availability
3
Glass, Inner WPL 3148179 Contact Us For Availability
4
Trim, Center WPL 3148627 Contact Us For Availability
4
Insulation, Door WPL 3147951 Contact Us For Availability
5
screw (2) WPL 342043 Contact Us For Availability
5
Rail, Bottom WPL 3148629 Contact Us For Availability
6
Screw, 8 x 5/16 (6) WPL 3148443 Contact Us For Availability
6
Retainer, Insulation WPL 3148287 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3148635 Contact Us For Availability
10
Screw WPL 98520 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Seal, Backguard WPL 311263 Contact Us For Availability
11
Panel, Oven Door (White) WPL 307888 Contact Us For Availability
11
Panel, Oven Door (Almond) WPL 307896 Contact Us For Availability
12
Handle, Oven Door WPL 311563 Contact Us For Availability
12
Bracket, Oven Mounting WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 313314 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Timer, Automatic WPL 3148053 Contact Us For Availability
14
Motor, Timer WPL 309822 Contact Us For Availability
14
Screw (2) WPL 309133 Contact Us For Availability
14
Window, Frame WPL 309173 Contact Us For Availability
15
Glass Retainer WPL 307792 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
16
Clip (2) WPL 307731 Contact Us For Availability
17
Channel Arm (2) WPL 329714 Contact Us For Availability
17
Thermostat, Oven (Alt.) WPL 310861 Contact Us For Availability
17
Thermostat, Oven (Alt.) WPL 311495 Contact Us For Availability
17
Thermostat, Oven WPL 660564 Contact Us For Availability
17
Glass, Outer WPL 307732 Contact Us For Availability
17
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
18
Selector Switch WPL 310866 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light, Indicator Oven WPL 311802 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Lockwasher WPL 312796 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
23
Vent Extension WPL 310836 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
26
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
26
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
26
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
26
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
26
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
26
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
26
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
26
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
26
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
26
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
26
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
26
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
26
Rotisserie Kit WPL 242985 Contact Us For Availability
26
WPL 261582 WPL 261582 Contact Us For Availability
26
WPL 261810 WPL 261810 Contact Us For Availability
26
WPL 313311 WPL 313311 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
31
Angle, Support (2) WPL 311592 Contact Us For Availability
32
Top & Bottom Cover (2) WPL 310458 Contact Us For Availability
33
Bracket, Control Panel Mounting (2) WPL 310719 Contact Us For Availability
34
WPL 309029 WPL 309029 Contact Us For Availability
34
WPL 310668 WPL 310668 Contact Us For Availability
37
WPL 308173 WPL 308173 Contact Us For Availability
38
WPL 308172 WPL 308172 Contact Us For Availability
39
WPL 310459 WPL 310459 Contact Us For Availability
40
WPL 311011 WPL 311011 Contact Us For Availability
41
WPL 310345 WPL 310345 Contact Us For Availability
42
WPL 312029 WPL 312029 Contact Us For Availability
× ![]()
