Model Whirlpool RB1300XKW1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
06 - WIRING HARNESS
04 - CONTROL PANEL , LITERATURE AND OPTIONAL

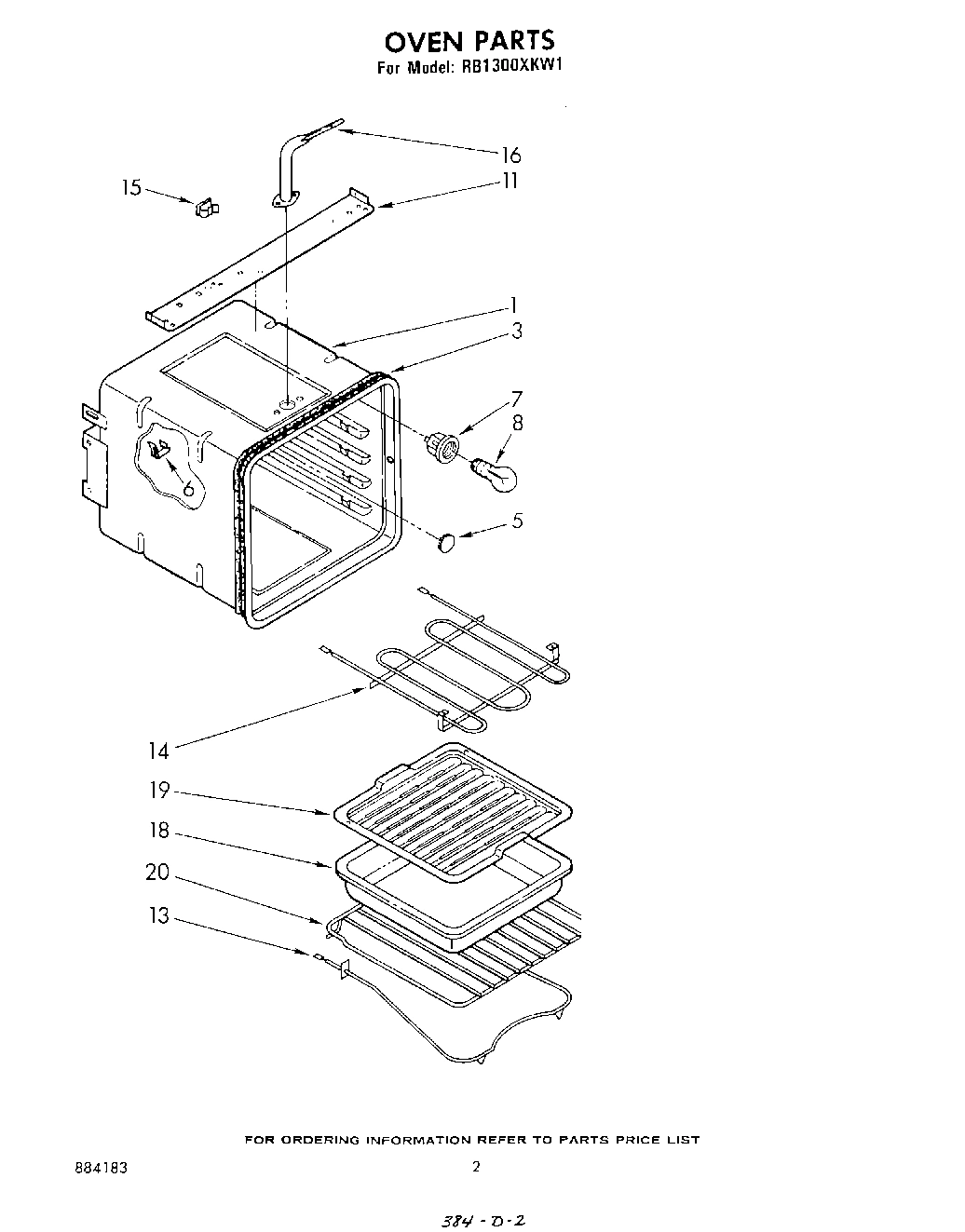

02 - OVEN

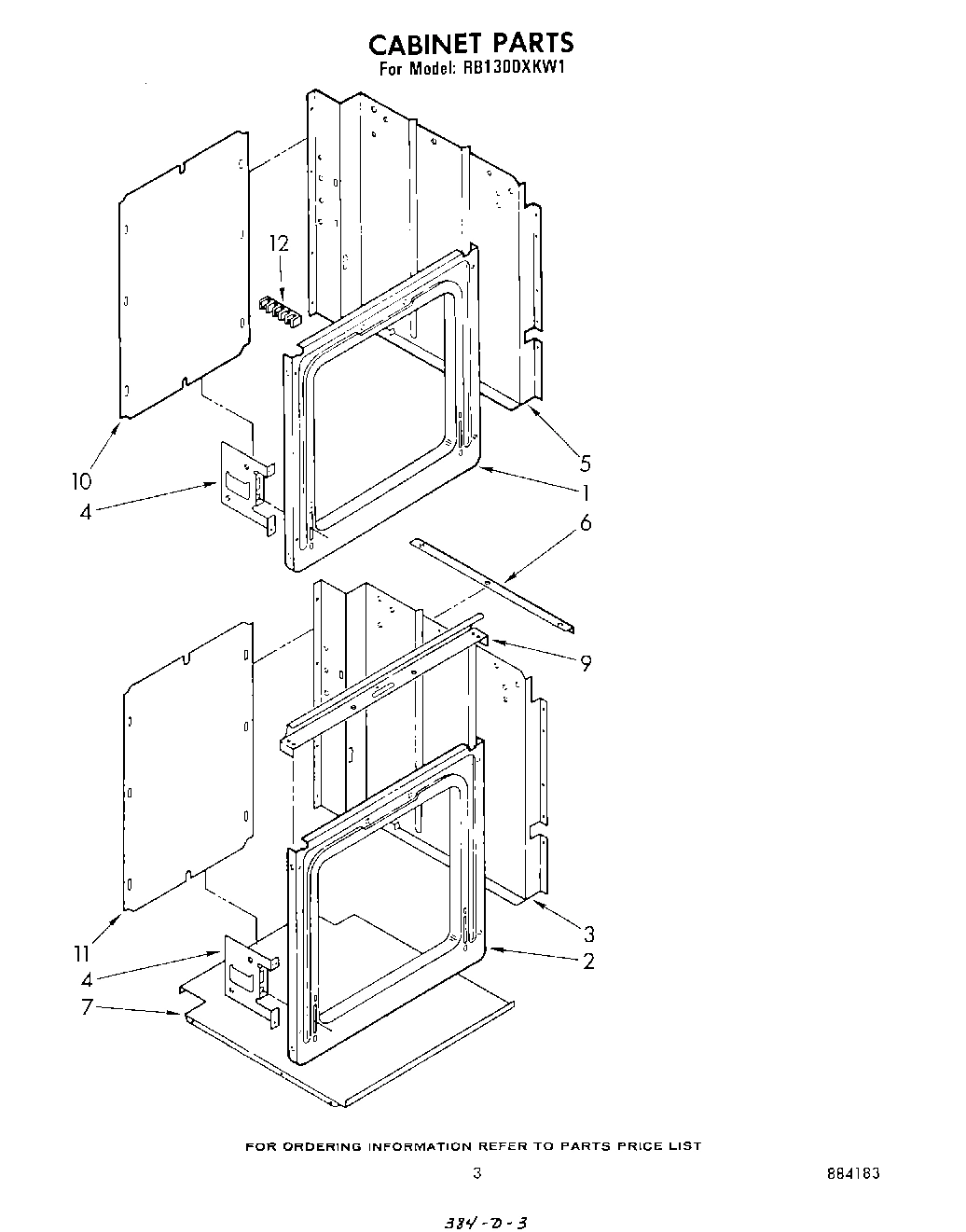

03 - CABINET

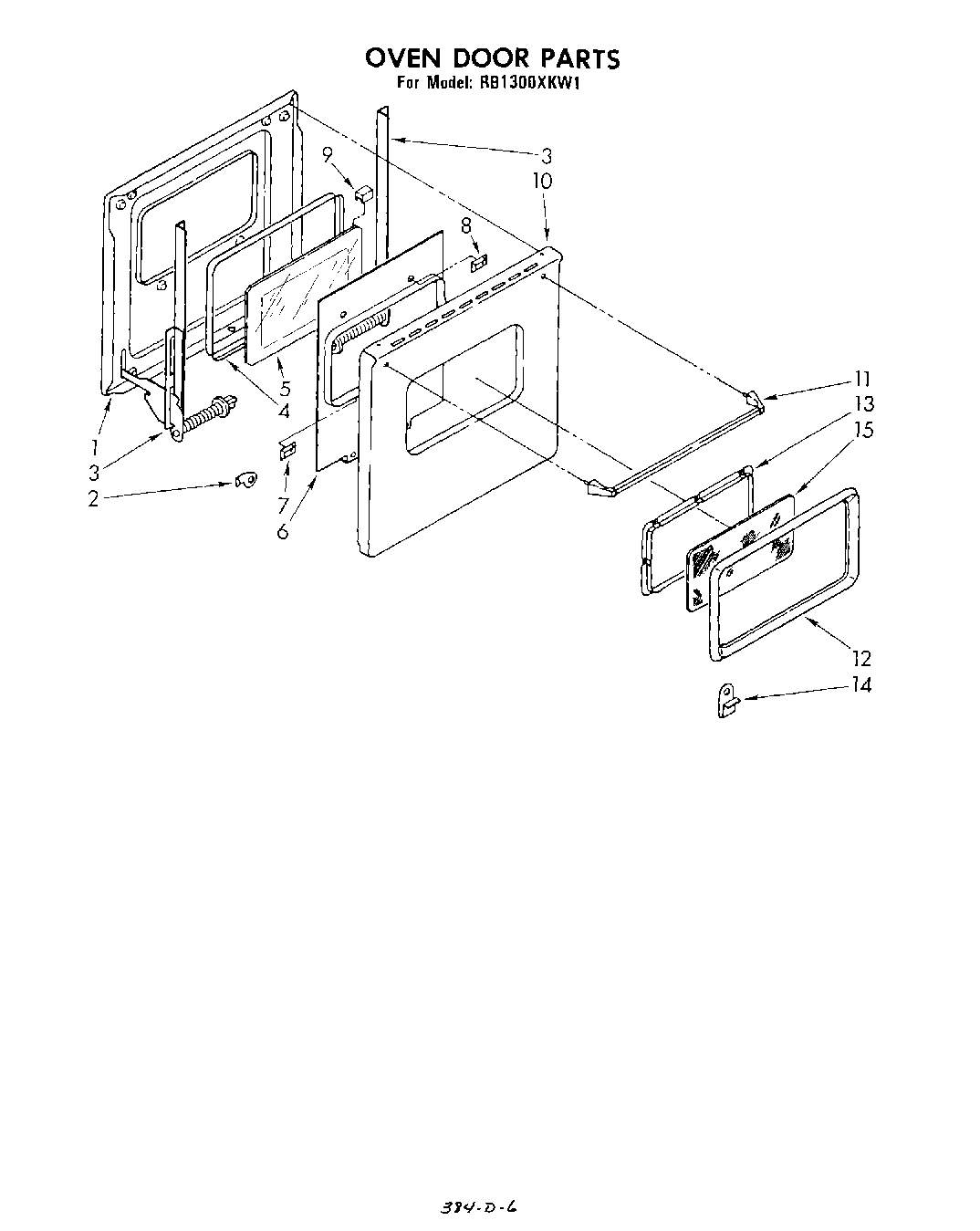

05 - OVEN DOOR
Common parts from model Whirlpool RB1300XKW1 BUILT-IN ELECTRIC SINGLE OVEN
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
1
Screw (8) WPL 311056 Contact Us For Availability
1
Oven (24`` Continuous Clean) WPL 328083 Contact Us For Availability
1
Frame, Front (Upper Oven) WPL 329042 Contact Us For Availability
1
Washer, Fiber WPL 229364 Contact Us For Availability
1
Liner, Door WPL 328116 Contact Us For Availability
2
Frame, Front (Lower Oven) WPL 329044 Contact Us For Availability
2
Stop, Door (Right Hand) WPL 252138 Contact Us For Availability
2
Door Stop (L.H. Replacement Kit) WPL 252139 Contact Us For Availability
3
Seal, Oven WPL 252412 Contact Us For Availability
3
Side Wrapper (2) WPL 311919 Contact Us For Availability
3
Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability
3
Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability
3
Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability
4
Hinge Plate (2) WPL 257807 Contact Us For Availability
4
Screw (4) WPL 342043 Contact Us For Availability
4
Seal, Window WPL 307852 Contact Us For Availability
5
Channel, Rubber WPL 310842 Contact Us For Availability
5
Plug Button WPL 257314 Contact Us For Availability
5
Wrapper Side (R.H.) WPL 255383 Contact Us For Availability
5
Wrapper Side (L.H.) WPL 258111 Contact Us For Availability
5
Glass, Inner 24`` WPL 258989 Contact Us For Availability
6
Panel, Control Glass WPL 313881 Contact Us For Availability
6
Support Angle (2) WPL 255095 Contact Us For Availability
6
Baffle, Insulation WPL 307721 Contact Us For Availability
7
Retainer, Glass (4) WPL 310823 Contact Us For Availability
7
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
7
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
7
Socket, Oven Light WPL 660556 Contact Us For Availability
7
Cover (Bottom) WPL 252687 Contact Us For Availability
7
Cover (Top) WPL 312004 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 311372 Contact Us For Availability
8
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
8
Spacer, Baffle (2) WPL 258990 Contact Us For Availability
9
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
9
Screw, 8-18 x 5/8 (2) WPL 312604 Contact Us For Availability
9
Control Bracket WPL 313317 Contact Us For Availability
9
Vent Hood (24``) WPL 327759 Contact Us For Availability
9
Channel, Rubber WPL 312783 Contact Us For Availability
10
Panel, Oven Door (Screw, 10A x 3/8 (2)) WPL 254217 Contact Us For Availability
10
Thermostat (Alt.) WPL 310862 Contact Us For Availability
10
Thermostat (Alt.) WPL 311496 Contact Us For Availability
10
Thermostat WPL 660565 Contact Us For Availability
10
Rear Cover (Double Oven) WPL 257977 Contact Us For Availability
10
Panel, Oven Door (Almond) WPL 311658 Contact Us For Availability
10
Panel, Oven Door (Harvest Gold) WPL 311661 Contact Us For Availability
10
Panel, Oven Door (White) WPL 311662 Contact Us For Availability
10
Panel, Oven Door (Toast) WPL 313173 Contact Us For Availability
10
Panel, Oven Door (Platinum) WPL 313174 Contact Us For Availability
11
Indicator Light (250V) WPL 308753 Contact Us For Availability
11
Baffle, Top Insulation WPL 255575 Contact Us For Availability
11
Cover, Rear WPL 257975 Contact Us For Availability
11
Nut, Snap-In (2) WPL 258093 Contact Us For Availability
11
Handle, Oven Door WPL 311565 Contact Us For Availability
12
Selector Switch (4 Position) WPL 310866 Contact Us For Availability
12
Frame, Window WPL 311663 Contact Us For Availability
13
Thermostat, Oven (Lower) WPL 311480 Contact Us For Availability
13
Retainer, Glass WPL 307793 Contact Us For Availability
14
Screw (2) WPL 311491 Contact Us For Availability
14
Bracket, Thermostat WPL 311492 Contact Us For Availability
14
Clip, Frame (2) WPL 307731 Contact Us For Availability
15
Switch, Oven Light WPL 312581 Contact Us For Availability
15
Lockwasher WPL 312796 Contact Us For Availability
15
Tube Clip (2) WPL 313570 Contact Us For Availability
15
Screw, 8-A x 5/8 (2) WPL 309133 Contact Us For Availability
15
Glass, Outer 24`` WPL 307733 Contact Us For Availability
15
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
16
Timer, Automatic (Includes Illus. 17) WPL 312802 Contact Us For Availability
16
Vent Tube (Lower Oven) WPL 258743 Contact Us For Availability
16
Vent Tube (Upper Oven) WPL 311382 Contact Us For Availability
17
Motor, Timer WPL 309822 Contact Us For Availability
18
Seal, Backguard WPL 313316 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311071 Contact Us For Availability
20
Rack, Oven (3) WPL 254426 Contact Us For Availability
22
Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability
24
Escutcheon Thermostat (Lower) WPL 311072 Contact Us For Availability
26
Bezel Switch WPL 313030 Contact Us For Availability
27
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
27
WPL 799344 WPL 799344 Contact Us For Availability
27
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
27
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
27
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
27
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
27
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
27
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
27
Wire (14 WPL 242825 Contact Us For Availability
27
WPL 242826 WPL 242826 Contact Us For Availability
27
WPL 242828 WPL 242828 Contact Us For Availability
27
WPL 242829 WPL 242829 Contact Us For Availability
27
WPL 242830 WPL 242830 Contact Us For Availability
27
WPL 242832 WPL 242832 Contact Us For Availability
27
WPL 261582 WPL 261582 Contact Us For Availability
27
WPL 261810 WPL 261810 Contact Us For Availability
27
WPL 261886 WPL 261886 Contact Us For Availability
27
WPL 261887 WPL 261887 Contact Us For Availability
27
WPL 261888 WPL 261888 Contact Us For Availability
27
WPL 261889 WPL 261889 Contact Us For Availability
27
WPL 261890 WPL 261890 Contact Us For Availability
27
WPL 261891 WPL 261891 Contact Us For Availability
27
WPL 313311 WPL 313311 Contact Us For Availability
27
WPL 72108 WPL 72108 Contact Us For Availability
27
WPL 799832 WPL 799832 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
