Model Whirlpool RB100PXV3 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
05 - WIRING HARNESS

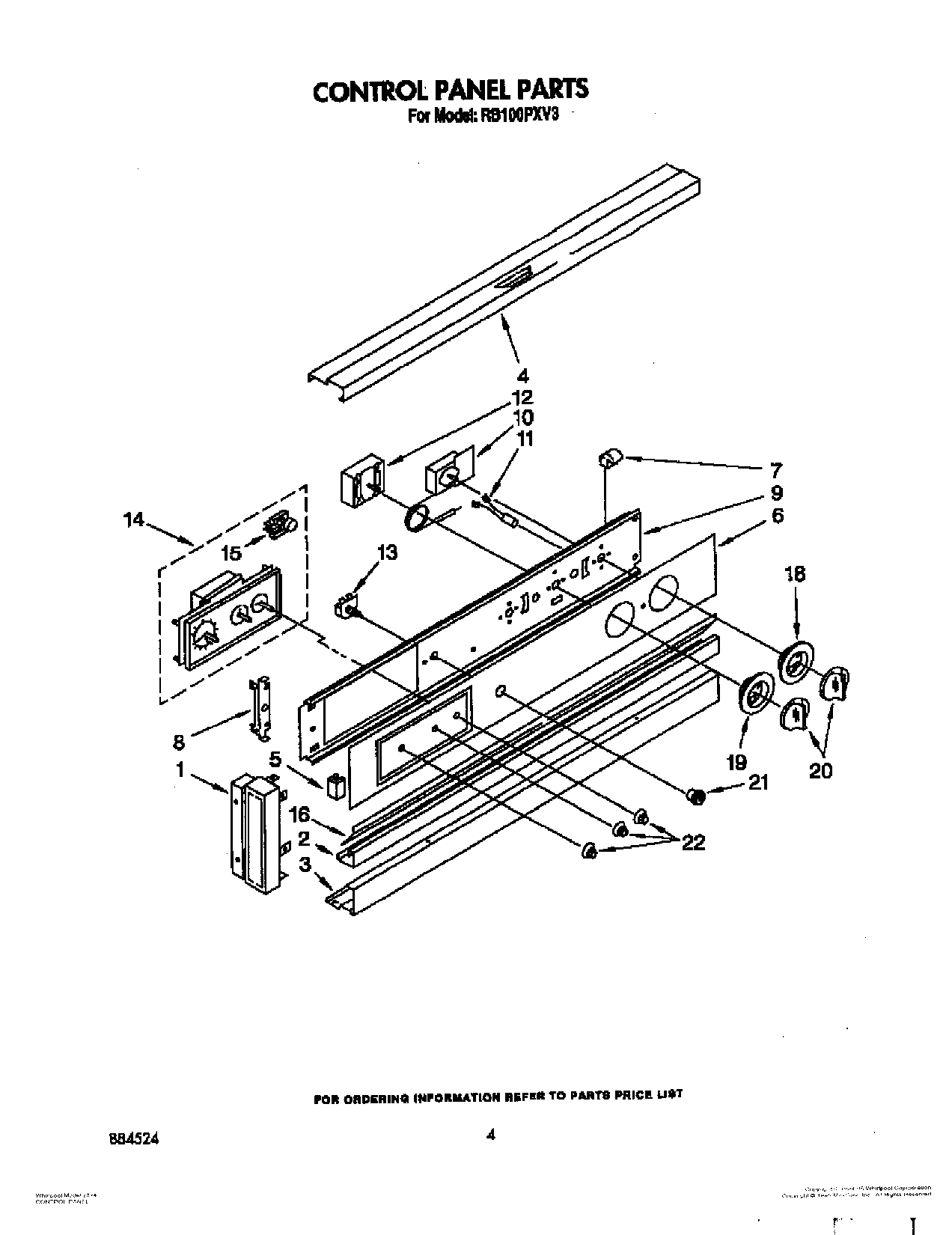

03 - CONTROL PANEL, LIT/OPTIONAL

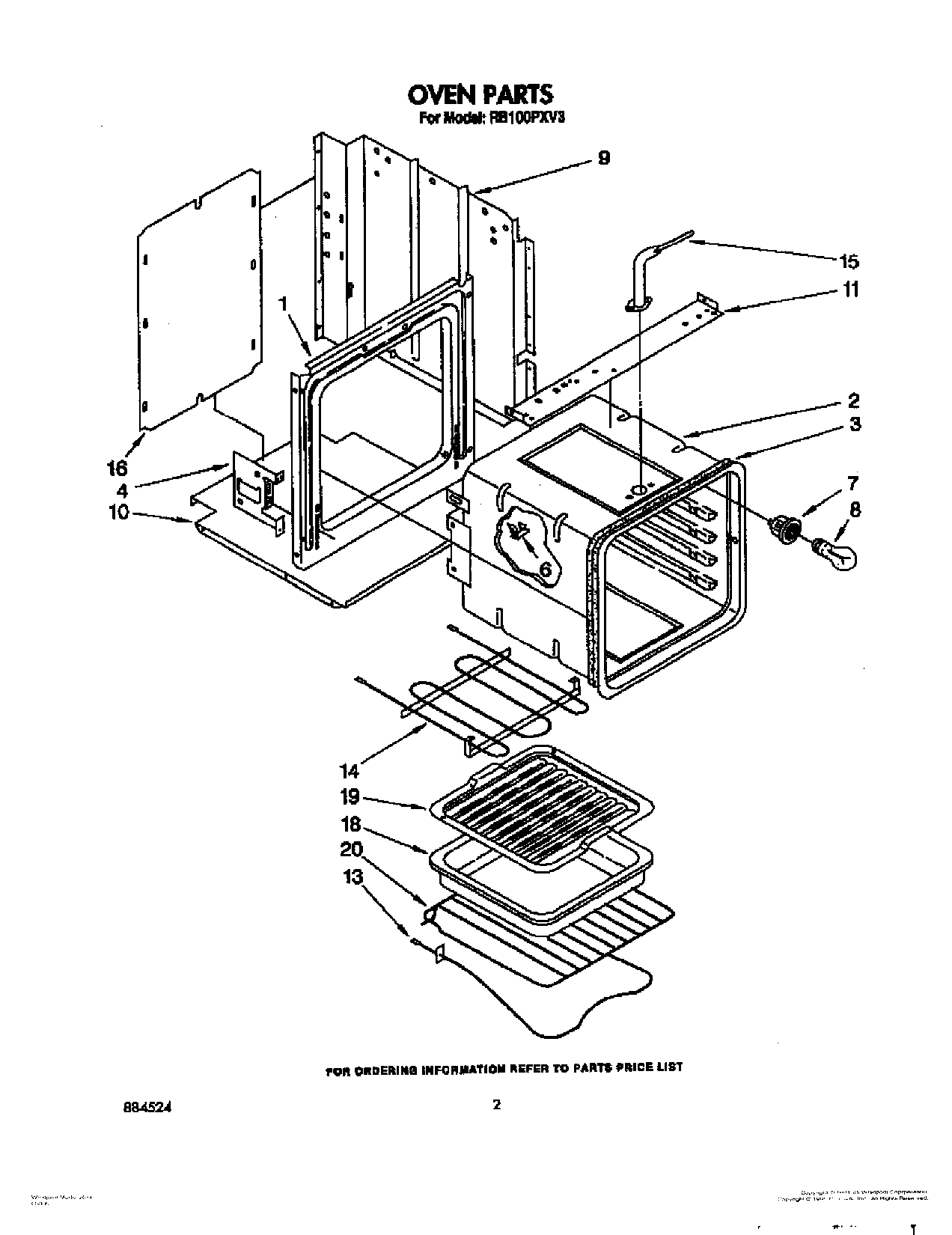

02 - OVEN

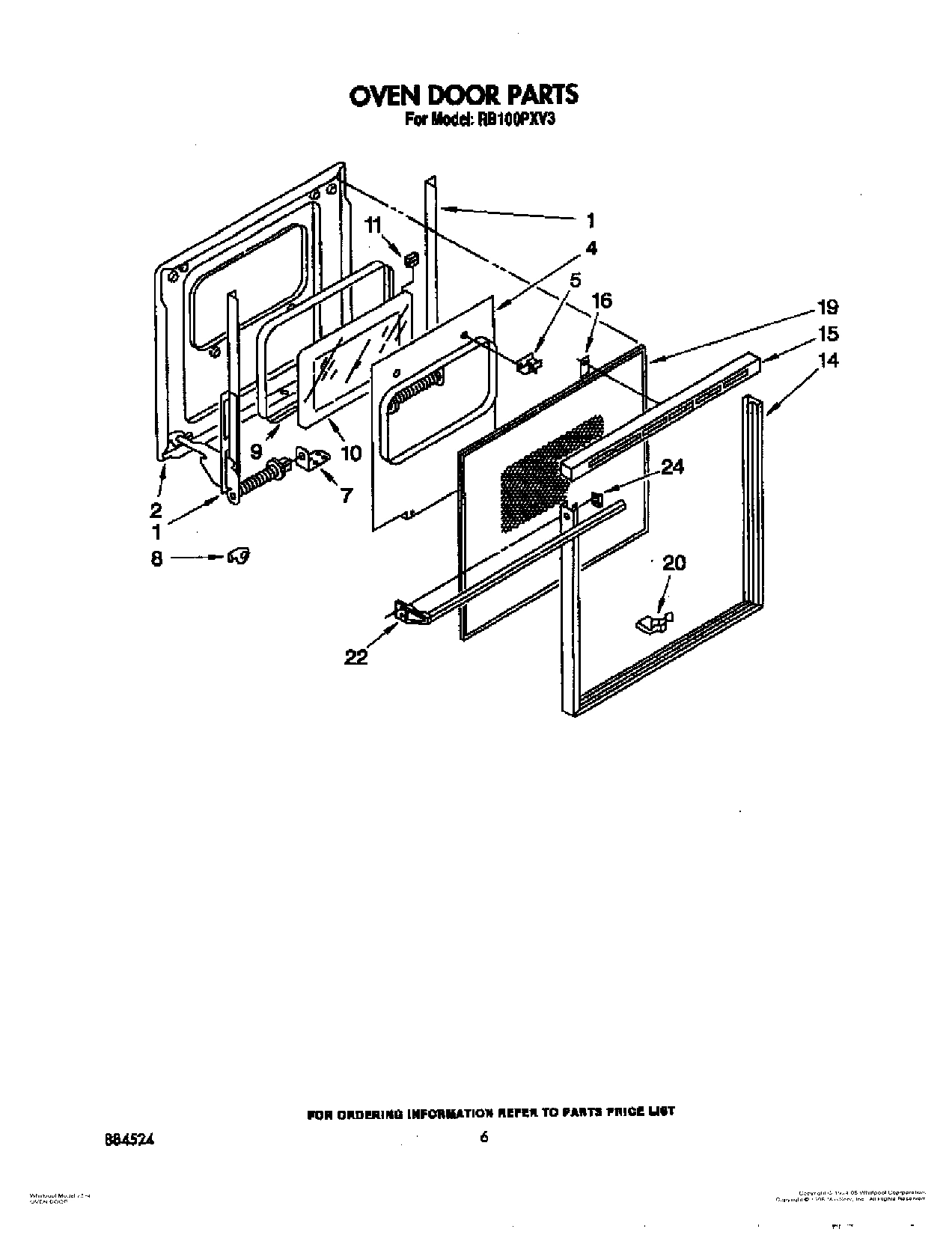

04 - OVEN DOOR
Common parts from model Whirlpool RB100PXV3 BUILT-IN ELECTRIC SINGLE OVEN
1
Frame, Front WPL 329045 Contact Us For Availability
1
Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability
1
Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability
1
Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability
2
Oven (24`` Standard) WPL 3172540 Contact Us For Availability
2
Nut, Snap-In (2) WPL 258093 Contact Us For Availability
2
Liner, Door 24`` WPL 3172551 Contact Us For Availability
3
Seal, Oven WPL 309107 Contact Us For Availability
3
Clip, Retainer (2) WPL 252893 Contact Us For Availability
4
Hinge Plate (2) WPL 257807 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 342043 Contact Us For Availability
4
Baffle WPL 258991 Contact Us For Availability
5
Spacer (4) WPL 258990 Contact Us For Availability
7
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
7
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
7
Socket, Oven Light WPL 660556 Contact Us For Availability
7
Support, Torsion Bar (2) WPL 258921 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 311372 Contact Us For Availability
8
Stop, Door (Washer, Fibre) WPL 229364 Contact Us For Availability
8
Stop, Door (Right Hand) WPL 252138 Contact Us For Availability
8
Stop, Door (Left Hand) WPL 252139 Contact Us For Availability
9
Control Bracket WPL 313317 Contact Us For Availability
9
Screw, 8A x 5/8 (6) WPL 309133 Contact Us For Availability
9
Side Wrapper (2) WPL 3149820 Contact Us For Availability
9
Seal, Window WPL 307852 Contact Us For Availability
10
Thermostat (Alt.) WPL 310862 Contact Us For Availability
10
Thermostat (Alt.) WPL 311496 Contact Us For Availability
10
Thermostat WPL 660565 Contact Us For Availability
10
Cover (Bottom) WPL 252687 Contact Us For Availability
10
Cover (Top) WPL 312004 Contact Us For Availability
10
Glass, Inner WPL 258989 Contact Us For Availability
11
Indicator Light (250V) WPL 311802 Contact Us For Availability
11
Baffle, Top Insulation WPL 255575 Contact Us For Availability
11
Bumper (4) WPL 312783 Contact Us For Availability
12
Selector Switch (4 Position) WPL 310866 Contact Us For Availability
13
Switch, Oven Light WPL 312581 Contact Us For Availability
13
Lockwasher WPL 312796 Contact Us For Availability
14
Timer, Automatic (Includes Illus. 15) WPL 3148053 Contact Us For Availability
14
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
14
Frame, Door WPL 311459 Contact Us For Availability
15
Motor, Timer WPL 309822 Contact Us For Availability
15
Vent, Built-In Oven WPL 311382 Contact Us For Availability
15
Top, Door Frame WPL 311460 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
16
Cover, Rear WPL 257975 Contact Us For Availability
16
Hold-Down, Glass WPL 310705 Contact Us For Availability
18
Escutcheon, Thermostat, Oven WPL 311071 Contact Us For Availability
19
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
19
Glass, Outer WPL 311589 Contact Us For Availability
20
Screw (2) WPL 254217 Contact Us For Availability
20
Screw (8) WPL 311056 Contact Us For Availability
20
Rack, Oven (2) WPL 254426 Contact Us For Availability
20
Clip, Glass (7) WPL 310706 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
12 Ga. 150~c (Wire, White 14 Ga. 150~c) WPL 242826 Contact Us For Availability
22
12 Ga. 150~c (Wire, Red 12 Ga. 150~c) WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
12 Ga. WPL 242832 Contact Us For Availability
22
WPL 261582 WPL 261582 Contact Us For Availability
22
WPL 261810 WPL 261810 Contact Us For Availability
22
WPL 261886 WPL 261886 Contact Us For Availability
22
WPL 261887 WPL 261887 Contact Us For Availability
22
WPL 261888 WPL 261888 Contact Us For Availability
22
WPL 261889 WPL 261889 Contact Us For Availability
22
WPL 261890 WPL 261890 Contact Us For Availability
22
WPL 261891 WPL 261891 Contact Us For Availability
22
WPL 313311 WPL 313311 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Handle, Door WPL 312725 Contact Us For Availability
24
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
24
Clip (2) WPL 311506 Contact Us For Availability
× ![]()
