Model Whirlpool RB1000XVN0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

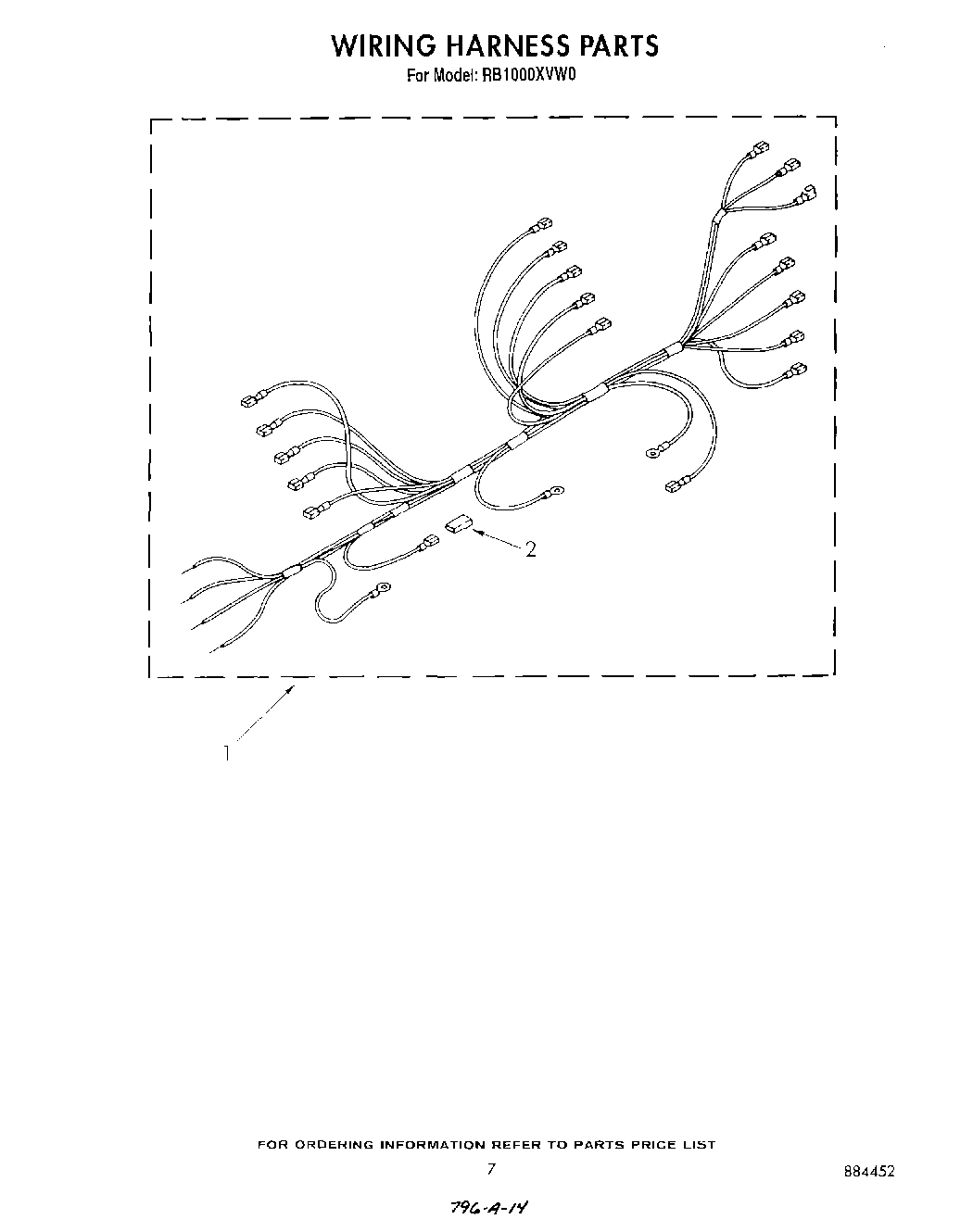

05 - WIRING HARNESS

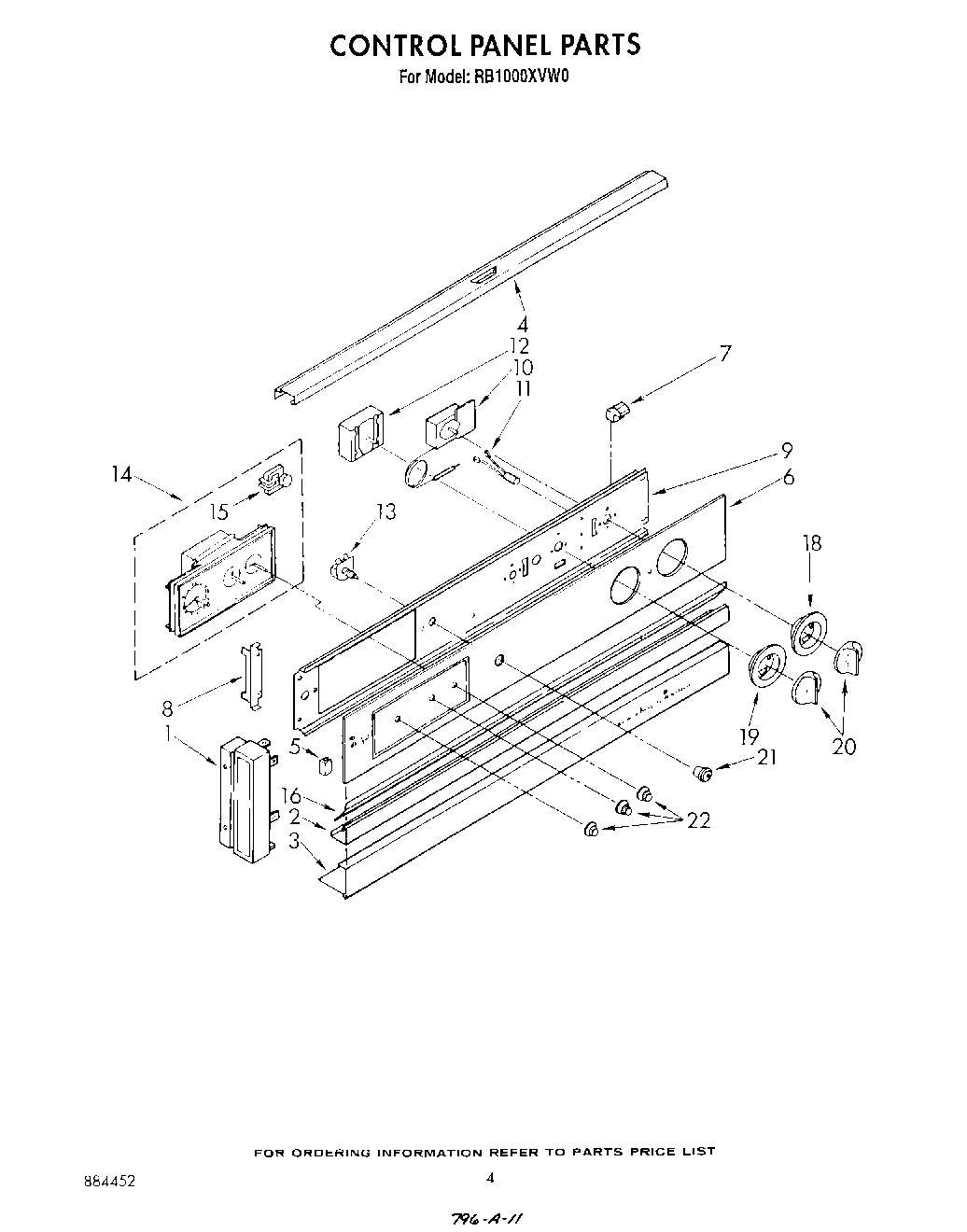

03 - CONTROL PANEL , LITERATURE AND OPTIONAL

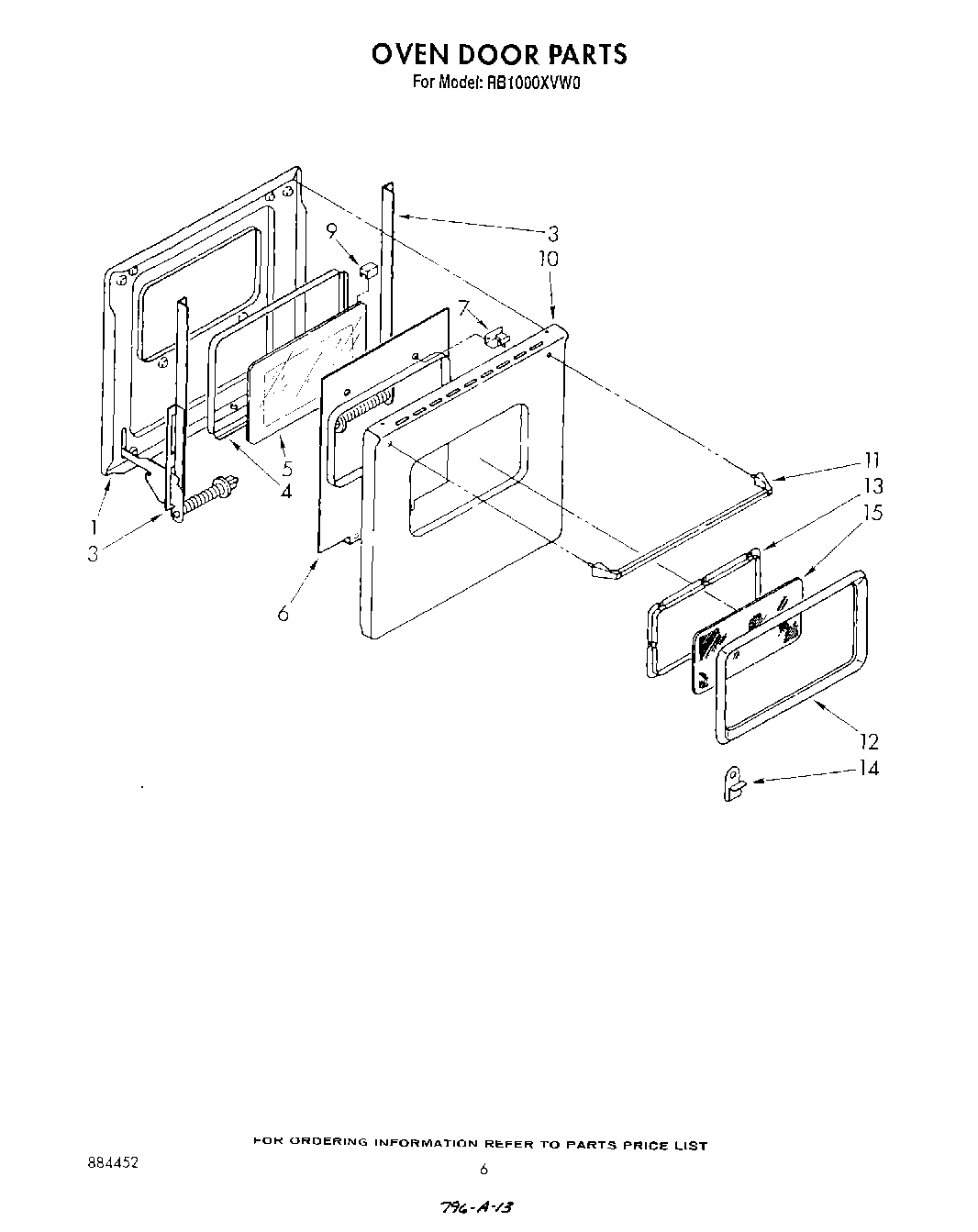

04 - OVEN DOOR

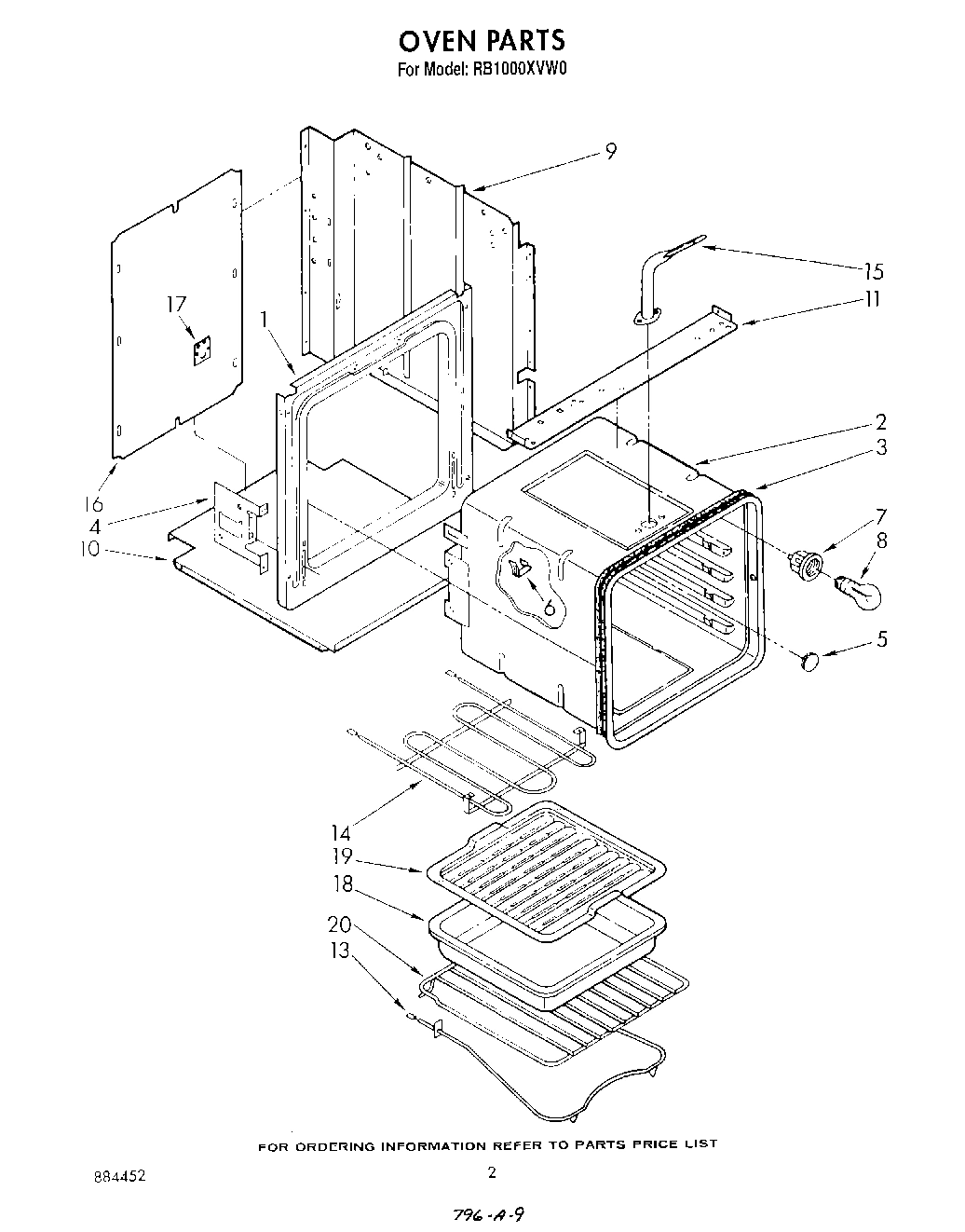

02 - OVEN
Common parts from model Whirlpool RB1000XVN0 BUILT-IN ELECTRIC SINGLE OVEN
1
Liner, Door 24`` WPL 328086 Contact Us For Availability
1
Front Frame WPL 329040 Contact Us For Availability
2
Screw (8) WPL 311056 Contact Us For Availability
2
Oven (24`` Standard) WPL 328082 Contact Us For Availability
3
Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability
3
Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability
3
Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability
3
Seal, Oven WPL 252412 Contact Us For Availability
3
Clip (2) WPL 252893 Contact Us For Availability
4
Seal, Window WPL 307852 Contact Us For Availability
4
Hinge Plate (2) WPL 257807 Contact Us For Availability
4
Screw (4) WPL 342043 Contact Us For Availability
5
Glass, Inner 24`` WPL 258989 Contact Us For Availability
5
Plug Button WPL 257314 Contact Us For Availability
6
Baffle, Insulation WPL 307721 Contact Us For Availability
7
Screw, 10A x 1/2 (4) WPL 307748 Contact Us For Availability
7
Spacer (4) WPL 3170094 Contact Us For Availability
7
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
7
Socket, Oven Light 307856 (Alt.) 310208 (Alt. WPL 660556 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 311372 Contact Us For Availability
9
Control Bracket WPL 313317 Contact Us For Availability
9
Channel, Rubber (4) WPL 312783 Contact Us For Availability
9
Side Wrapper (2) WPL 3147849 Contact Us For Availability
10
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
10
Thermostat 310862 (Alt.) 311496 (Alt.) WPL 660565 Contact Us For Availability
10
Panel, Oven Door (Almond) WPL 311658 Contact Us For Availability
10
Panel, Oven Door (White) WPL 311662 Contact Us For Availability
10
Cover (Bottom) WPL 252687 Contact Us For Availability
10
Cover (Top) WPL 312004 Contact Us For Availability
11
Indicator Light (250V) WPL 311802 Contact Us For Availability
11
Nut, Snap-In (2) WPL 258093 Contact Us For Availability
11
Handle, Oven Door WPL 311567 Contact Us For Availability
11
Baffle, Top Insulation WPL 255575 Contact Us For Availability
12
Selector Switch (4 Position) WPL 310866 Contact Us For Availability
12
Frame, Window WPL 3149276 Contact Us For Availability
13
Switch, Oven Light WPL 312581 Contact Us For Availability
13
Lockwasher WPL 312796 Contact Us For Availability
13
Retainer, Glass WPL 307793 Contact Us For Availability
14
Timer, Automatic (Includes Illus. 15) WPL 3148053 Contact Us For Availability
14
Clip, Frame (2) WPL 307731 Contact Us For Availability
14
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
15
Motor, Timer WPL 309822 Contact Us For Availability
15
Glass, Outer WPL 307733 Contact Us For Availability
15
Screw, 8-A x 5/8 (2) WPL 309133 Contact Us For Availability
15
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
15
Vent, Built-In Oven WPL 311382 Contact Us For Availability
16
Seal, Backguard WPL 313316 Contact Us For Availability
16
Cover, Rear WPL 257975 Contact Us For Availability
17
Plate, Service WPL 252978 Contact Us For Availability
18
Escutcheon, Thermostat WPL 311071 Contact Us For Availability
19
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
20
Rack, Oven (2) WPL 254426 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150 oC WPL 242826 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150 oC WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200 oC WPL 242832 Contact Us For Availability
22
WPL 261582 WPL 261582 Contact Us For Availability
22
WPL 261810 WPL 261810 Contact Us For Availability
22
WPL 261886 WPL 261886 Contact Us For Availability
22
WPL 261887 WPL 261887 Contact Us For Availability
22
WPL 261888 WPL 261888 Contact Us For Availability
22
WPL 261889 WPL 261889 Contact Us For Availability
22
WPL 261890 WPL 261890 Contact Us For Availability
22
WPL 261891 WPL 261891 Contact Us For Availability
22
WPL 285365 WPL 285365 Contact Us For Availability
22
WPL 285366 WPL 285366 Contact Us For Availability
22
WPL 285367 WPL 285367 Contact Us For Availability
22
WPL 285368 WPL 285368 Contact Us For Availability
22
WPL 313311 WPL 313311 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 72112 WPL 72112 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
