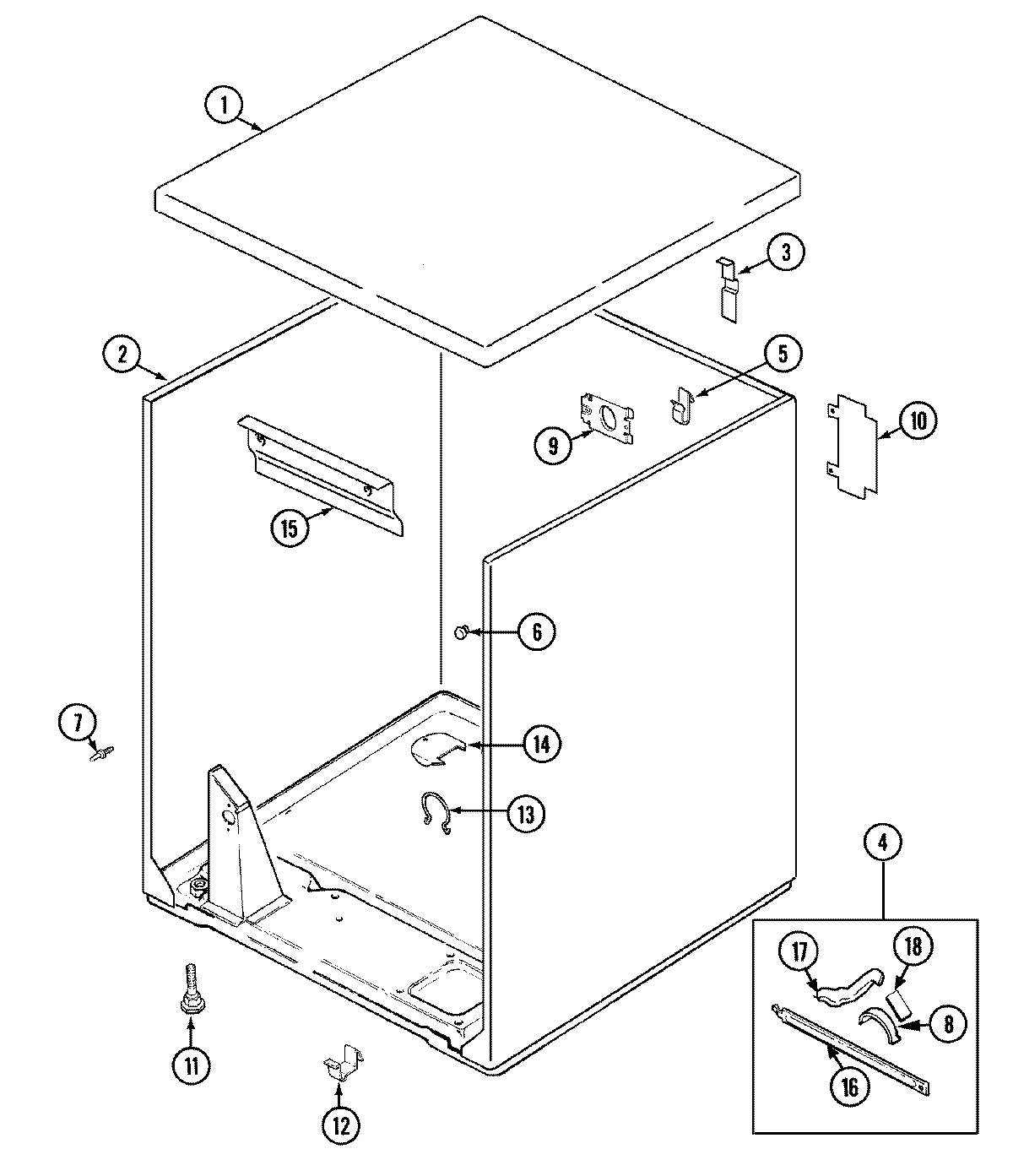

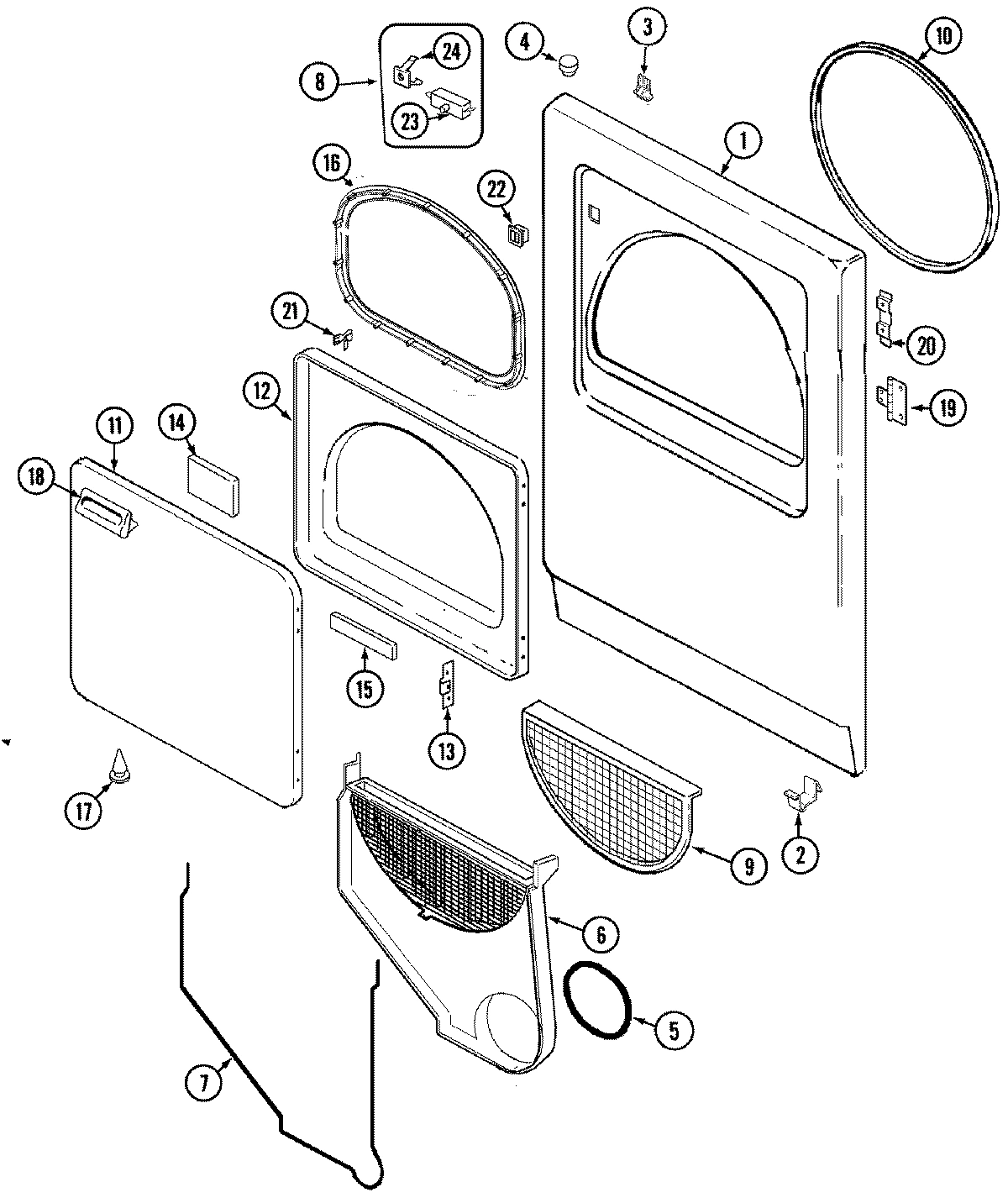

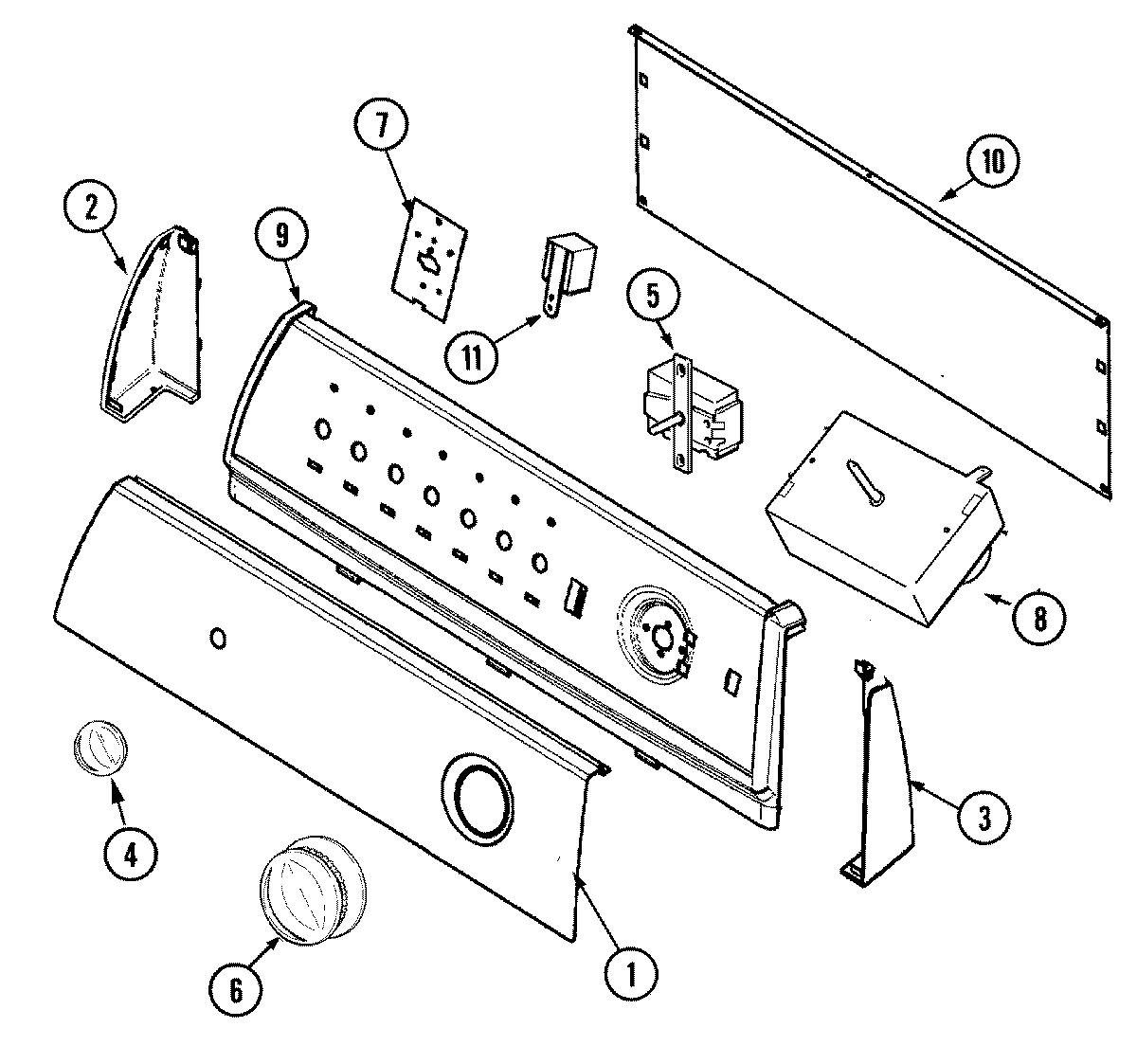

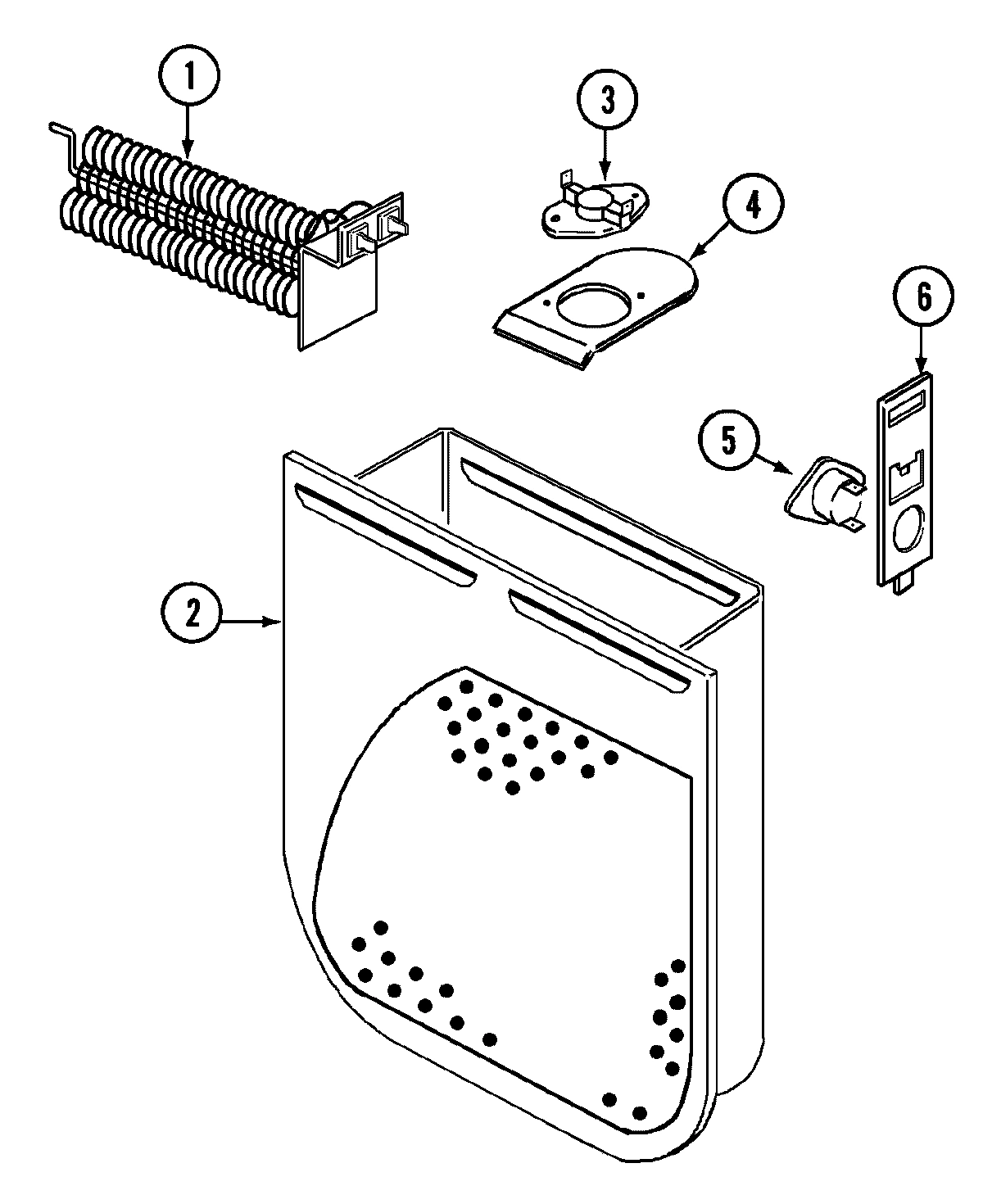

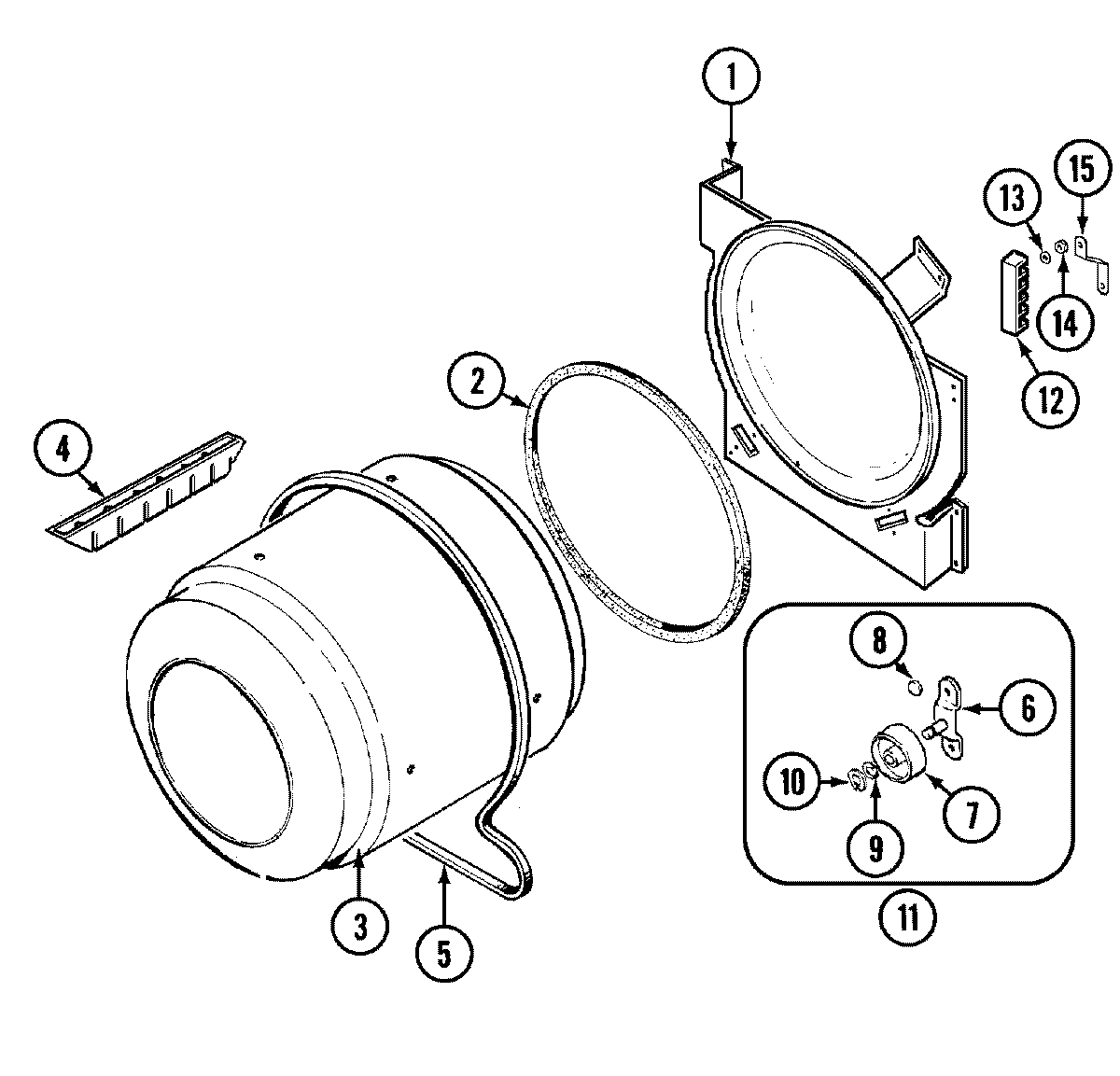

Model Whirlpool PYET244AYW ELECTRIC DRYER – Common Parts &amp; Diagrams

1

SCREW WPL 257741 Contact Us For Availability

1

SCREW, 6-32 HEX WASHER HEAD WPL 31001580 Contact Us For Availability

1

BULKHEAD WITH SEAL WPL 31001581 Contact Us For Availability

1

COVER, LENS HOLE WPL 31001775 Contact Us For Availability

1

PANEL, CONTROL WPL 534325 Contact Us For Availability

1

SCREW WPL 257863 Contact Us For Availability

1

MANUAL, SRVC DRYER-NO REFUND WPL 16008334 Contact Us For Availability

1

MANUAL, USE & CARE WPL 534343 Contact Us For Availability

1

PANEL, FRONT (WHT) WPL 31001771 Contact Us For Availability

1

DAMPER, CABINET WPL 31001220 Contact Us For Availability

1

TOP, CABINET (WHT) WPL 31001423 Contact Us For Availability

2

ENDCAP (WHT-LT) WPL 21001519 Contact Us For Availability

2

HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability

2

LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability

2

HARNESS, WIRE WPL 31001489 Contact Us For Availability

2

LEAD ASSEMBLY (BUZZER) WPL 31001559 Contact Us For Availability

2

HARNESS, WIRING WPL 534449 Contact Us For Availability

2

CABINET & BASE ASM (WHT) WPL 532559 Contact Us For Availability

3

LOCK, TOP WPL 31001526 Contact Us For Availability

3

CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability

3

ENDCAP (WHT-RT) WPL 21001523 Contact Us For Availability

3

SCREW WPL 253092 Contact Us For Availability

3

SCREW WPL 253083 Contact Us For Availability

3

THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability

3

PAD, HINGE WPL 354128 Contact Us For Availability

3

HINGE, CABINET TOP WPL 635712 Contact Us For Availability

4

12002126 Whirlpool Dryer Reinforcement Brace Backorder WPL 12002126 $101.73

4

SCREW WPL 257759 Contact Us For Availability

4

BAFFLE, WHITE WPL 531249 Contact Us For Availability

4

KNOB, SELECTOR (WHT) WPL 21001954 Contact Us For Availability

4

SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability

4

BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability

5

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.93

5

SEAL, BLOWER/COLLECTOR DUCT WPL 31001541 Contact Us For Availability

5

SWITCH, TEMPERATURE WPL 31001348 Contact Us For Availability

5

SWITCH, TEMPERATURE WPL 534394 Contact Us For Availability

5

FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability

5

WIRE KIT (HERRIN LAUNDRY) WPL 12002417 Contact Us For Availability

5

CLIP, WIRING WPL 253034 Contact Us For Availability

6

12001324 Whirlpool Collector Duct Backorder WPL 12001324 $140.27

6

WP37001184 Whirlpool Timer Knob Backorder WPL WP37001184 $42.04

6

SPRING, IDLER WPL 31001465 Contact Us For Availability

6

SCREW WPL 257101 Contact Us For Availability

6

SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability

6

BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability

6

BUMPER, CABINET WPL 332653 Contact Us For Availability

7

DUCT, EXHAUST WPL 530134 Contact Us For Availability

7

ROLLER (REAR) WPL 31001096 Contact Us For Availability

7

SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability

7

SEAL WPL 530204 Contact Us For Availability

7

POST, LOCATING WPL 21001829 Contact Us For Availability

8

WP31001470 Whirlpool Glide Assembly Backorder WPL WP31001470 $51.84

8

HOUSING, BLOWER WPL 531801 Contact Us For Availability

8

SPACER WPL 257813 Contact Us For Availability

8

RESISTOR ASM (DOMESTIC/TIMER) WPL 31001484 Contact Us For Availability

8

TIMER WPL 531810 Contact Us For Availability

8

SWITCH, DOOR WPL 31001732 Contact Us For Availability

9

WASHER WPL 257814 Contact Us For Availability

9

FRAME, CONTROL PANEL (WHT) WPL 21002005 Contact Us For Availability

9

FILTER, LINT WPL 530918 Contact Us For Availability

9

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

9

SUPPORT, POWER CORD WPL 530135 Contact Us For Availability

W11497304 Whirlpool Blower Wheel In Stock WPL W11497304 $69.75

WP31001747 Whirlpool Seal Assembly Backorder WPL WP31001747 $26.73

RING, RETAINING WPL 257854 Contact Us For Availability

COVER, TERMINAL WPL 530284 Contact Us For Availability

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

SCREW WPL 257857 Contact Us For Availability

CLAMP WPL 257823 Contact Us For Availability

ROLLER WPL LA1008 Contact Us For Availability

BUZZER ASSY. WPL 531639 Contact Us For Availability

SCREW, 8-18X3/8 TYAB BUT WPL 257752 Contact Us For Availability

PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability

LEG, LEVELING WPL 635519 Contact Us For Availability

RING, RETAINING WPL 257855 Contact Us For Availability

SCREW WPL 257952 Contact Us For Availability

BLOCK, TERMINAL WPL 531518 Contact Us For Availability

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.46

SCREW WPL 257807 Contact Us For Availability

COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability

WASHER, FLAT WPL 253122 Contact Us For Availability

CLIP, HINGE WPL 530119 Contact Us For Availability

WP31001192 Whirlpool Thermostat Backorder WPL WP31001192 $95.93

SCREW WPL 252134 Contact Us For Availability

THERMOSTAT, CONTROL WPL 31001088 Contact Us For Availability

SCREW WPL 257733 Contact Us For Availability

NUT (No.10-32) WPL 250027 Contact Us For Availability

DOOR PAD WPL 531490 Contact Us For Availability

SHIELD, WIRING WPL 531921 Contact Us For Availability

SCREW, SEMS WPL 253457 Contact Us For Availability

STRAP, GROUND WPL 530965 Contact Us For Availability

DOOR PAD WPL 531491 Contact Us For Availability

SHIELD, HEAT WPL 530133 Contact Us For Availability

16

WP31001529 Whirlpool Door Seal Backorder WPL WP31001529 $89.17

16

BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability

17

LA-1006 Whirlpool Dryer Right Hand Glide Kit In Stock WPL LA-1006 $11.87

17

WP31001469 Whirlpool Glide Assembly Backorder WPL WP31001469 $53.48

17

PLUG BUTTON WPL 257889 Contact Us For Availability

18

WP31001356 Whirlpool Glide Pad Backorder WPL WP31001356 $61.93

18

SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability

18

HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability

19

SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability

19

HINGE, DRYER DOOR WPL 531492 Contact Us For Availability

20

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

20

SCREW WPL 257963 Contact Us For Availability

20

TWIN NUT WPL 530121 Contact Us For Availability

21

STRIKE, DOOR WPL 532364 Contact Us For Availability

22

GUIDE, VANE INLET WPL 531026 Contact Us For Availability

22

CATCH, DOOR WPL 530187 Contact Us For Availability

23

SWITCH, DOOR WPL 530147 Contact Us For Availability

24

WP31001319 Whirlpool Clip Backorder WPL WP31001319 $0.49

25

WASHER WPL 257815 Contact Us For Availability

26

PUSHNUT WPL 257957 Contact Us For Availability

27

WP31001344 Whirlpool Idler Pulley In Stock WPL WP31001344 $30.94

28

ARM, IDLER (LOCKING) WPL 31001711 Contact Us For Availability

NI

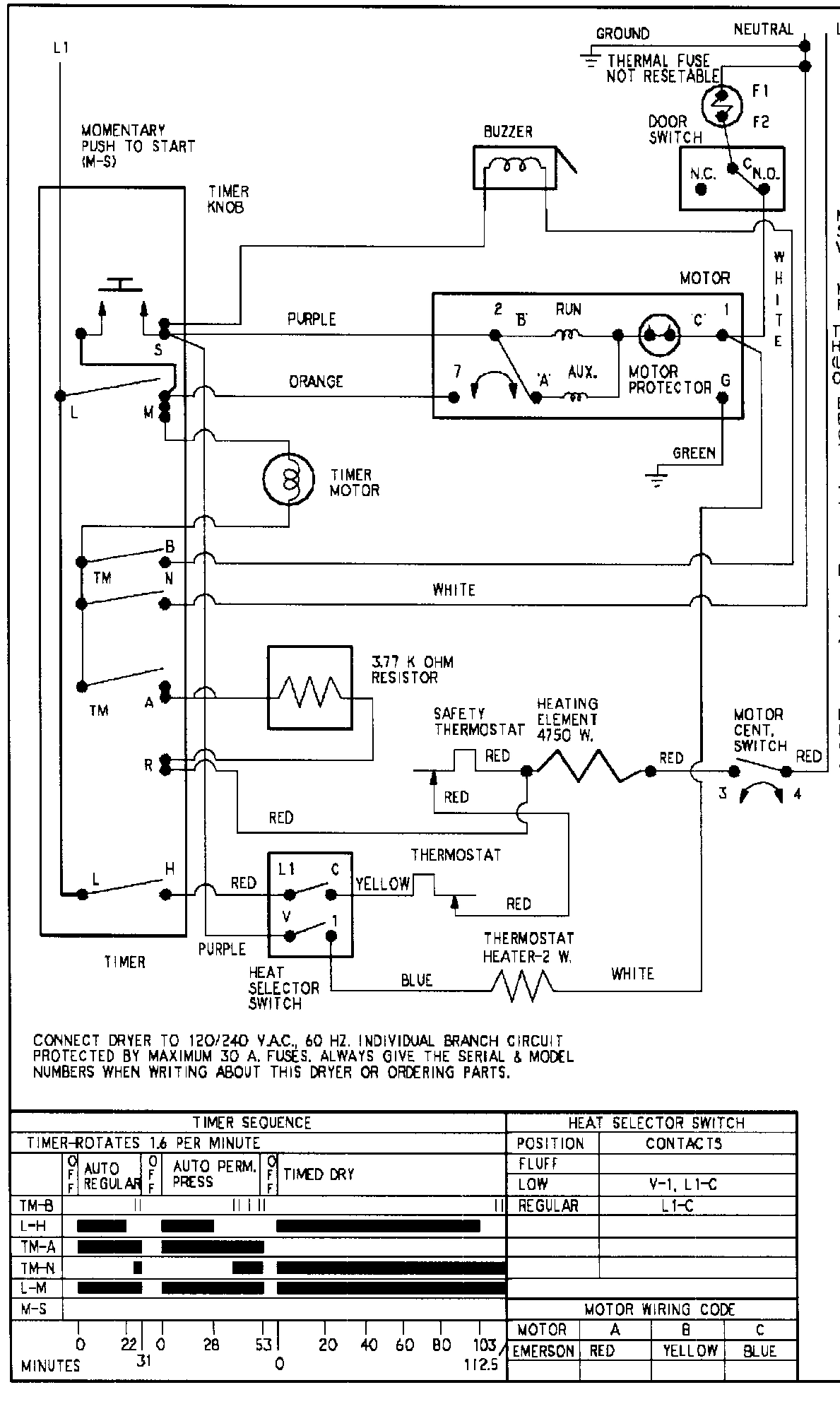

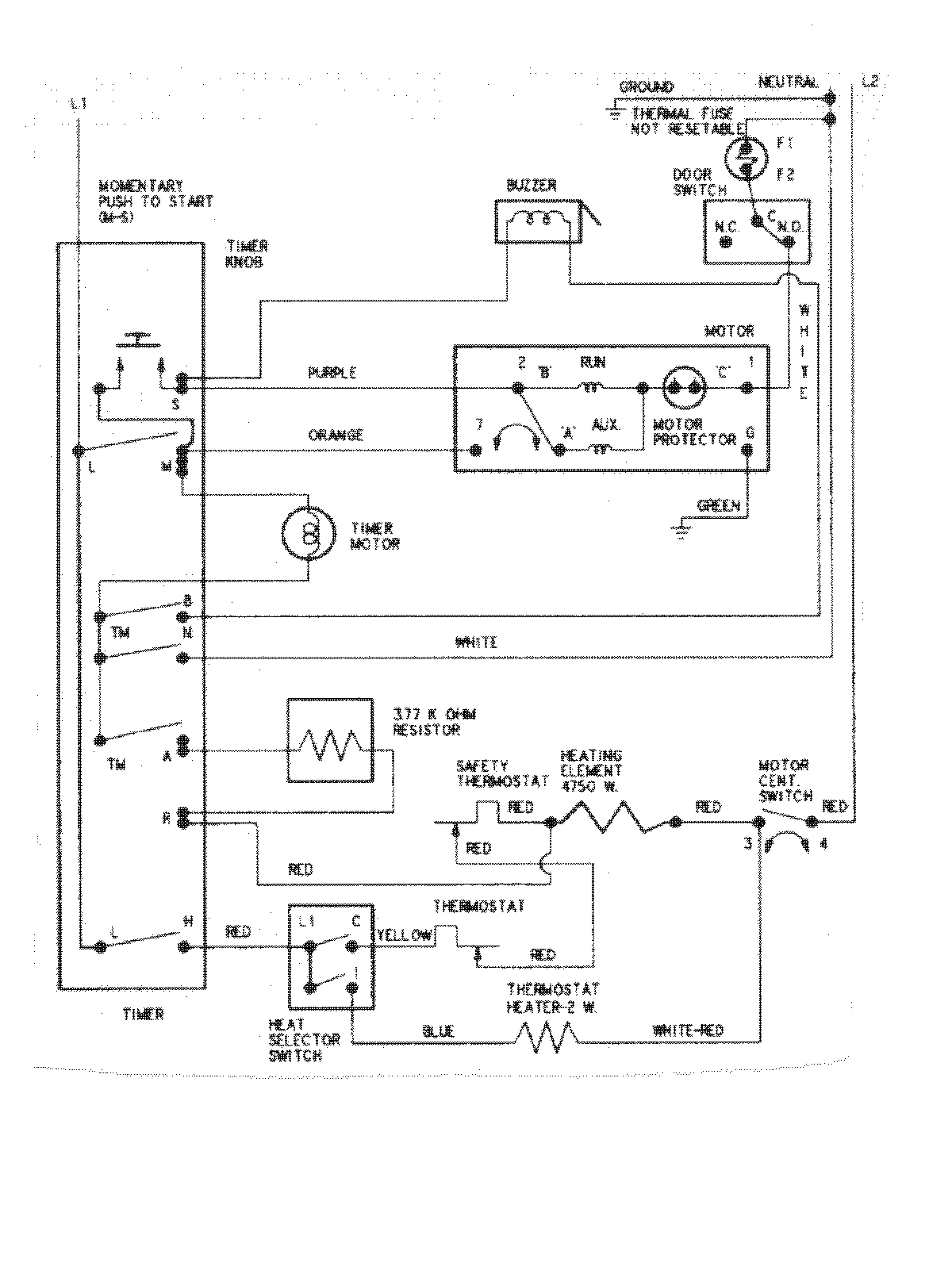

WIRING INFORMATION WPL 15003592 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002633 Contact Us For Availability
