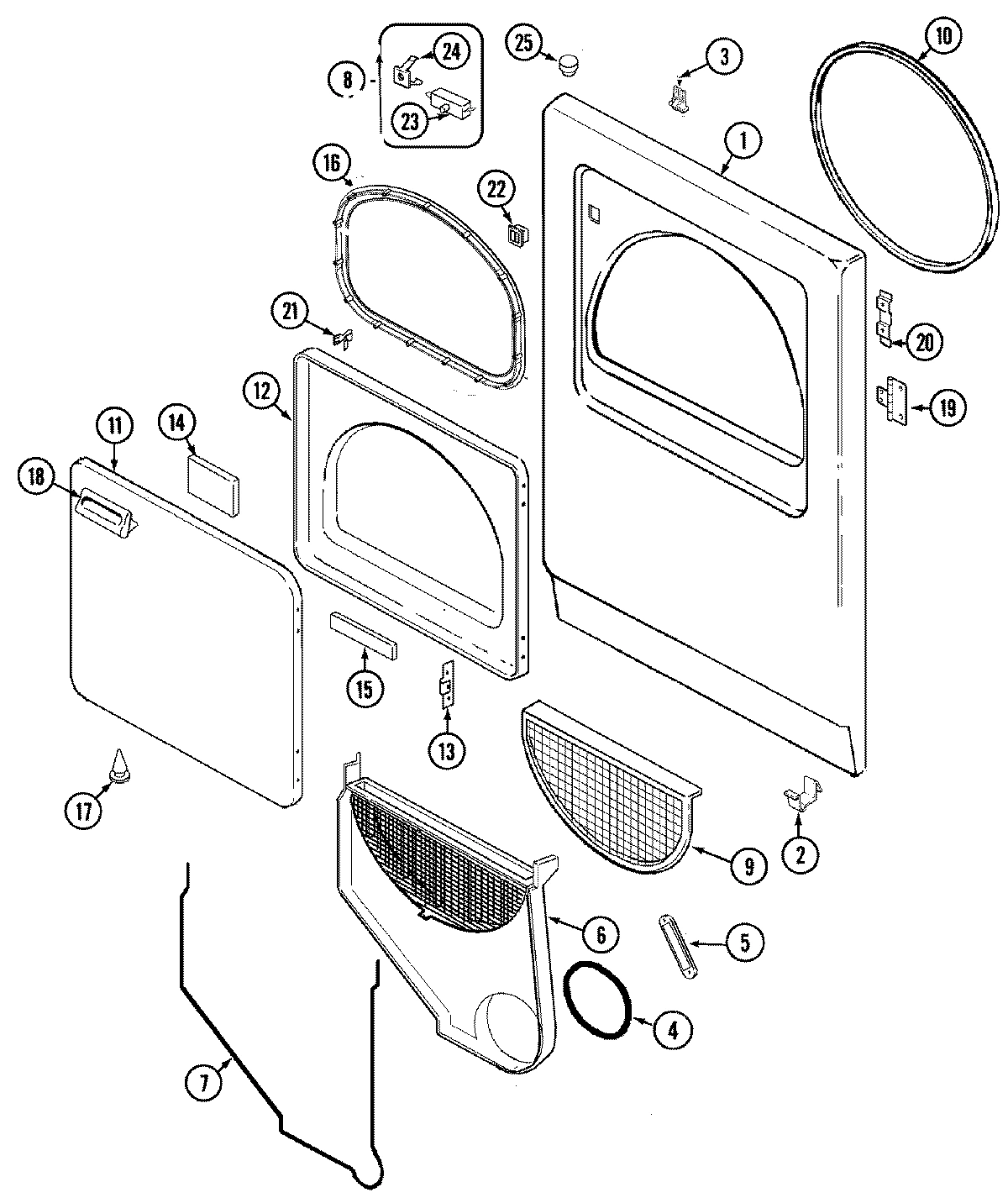

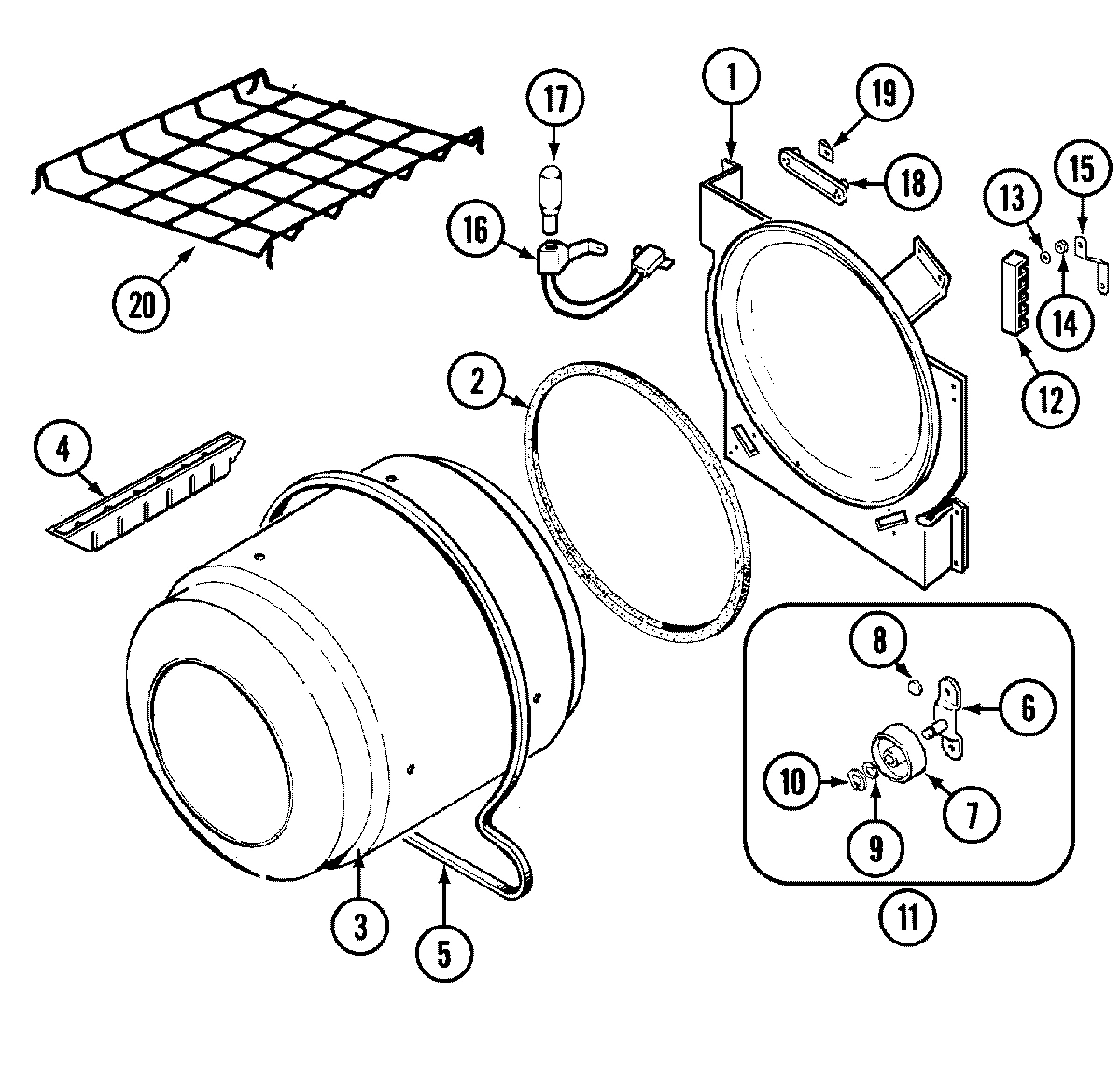

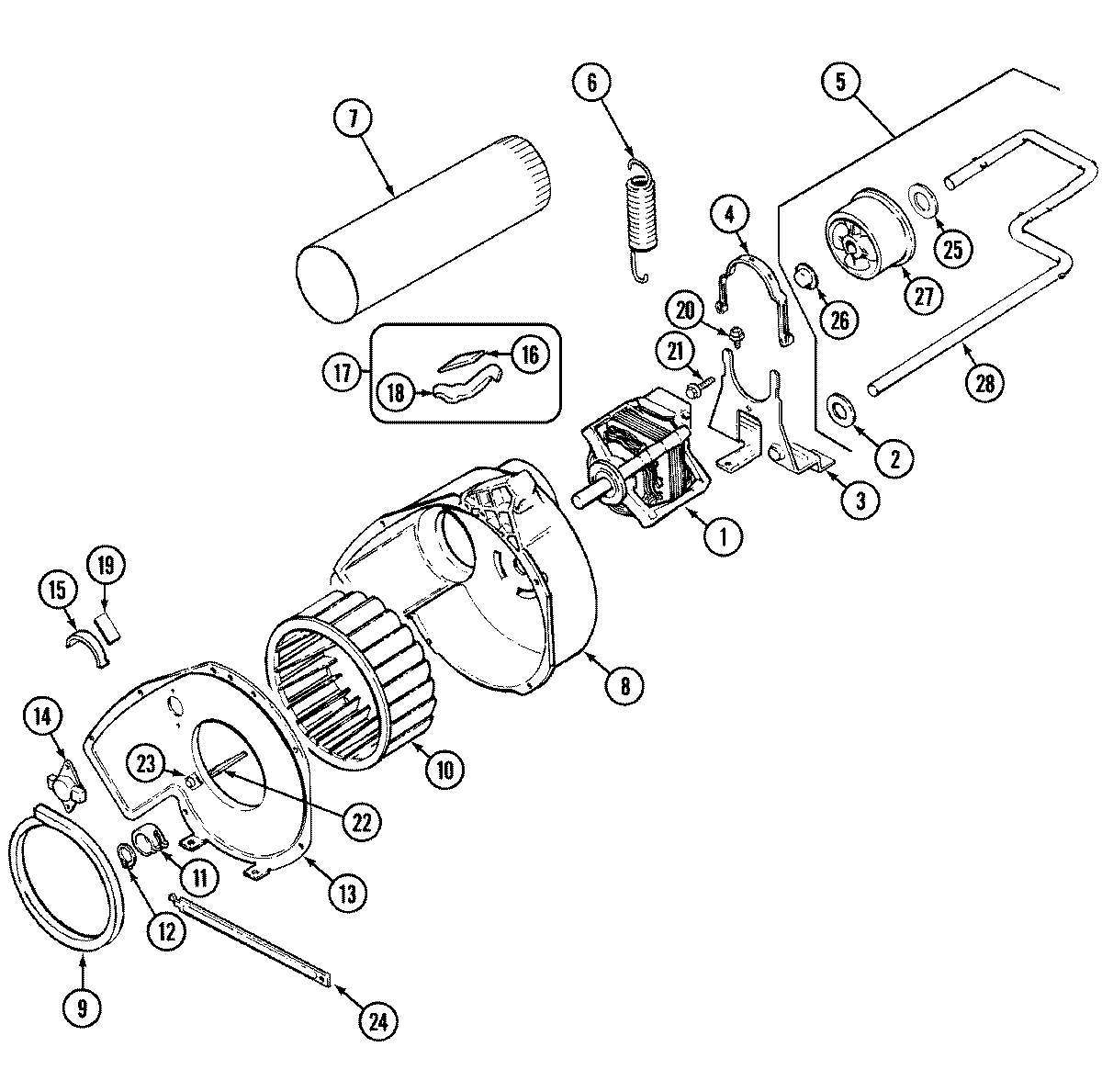

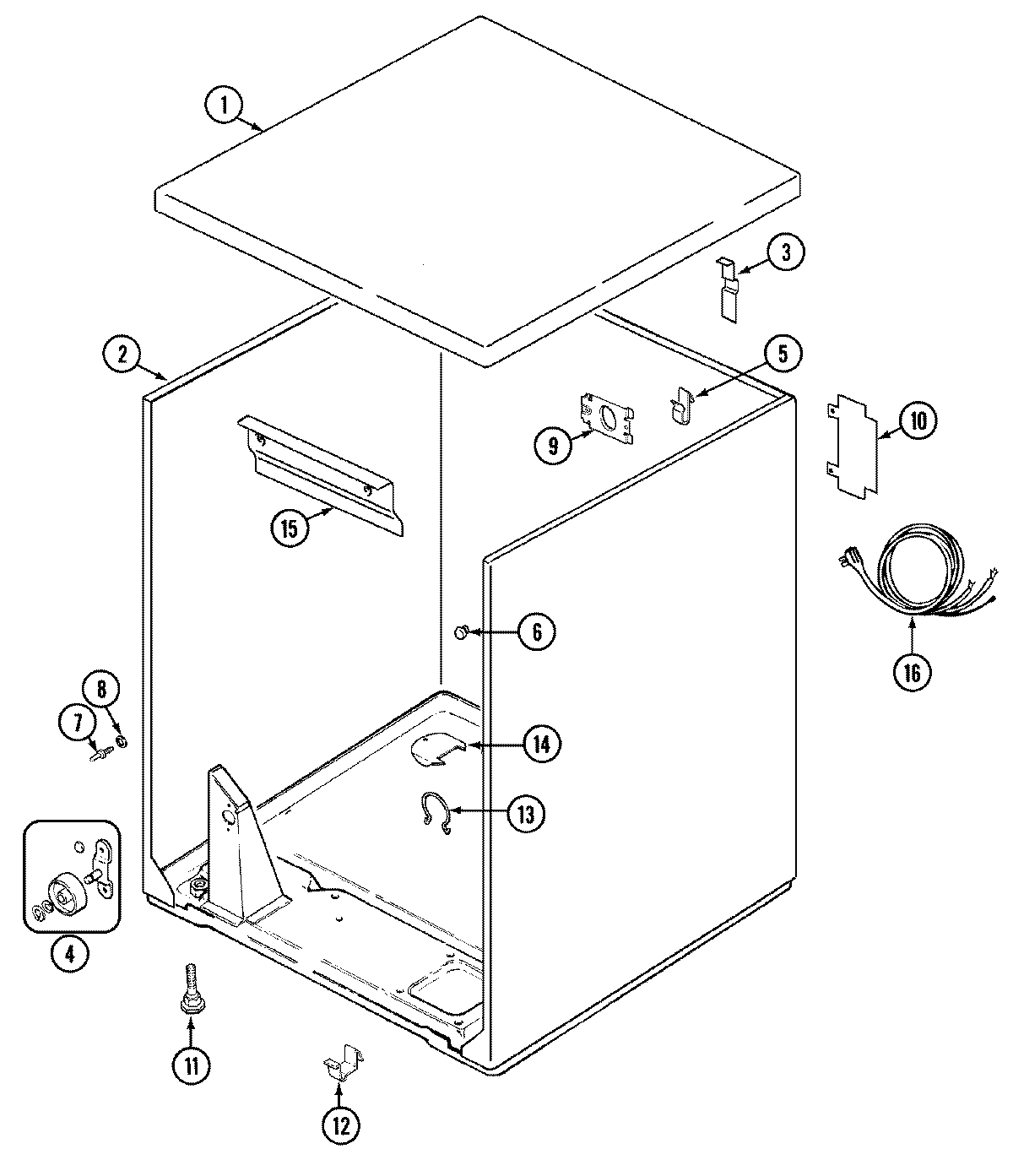

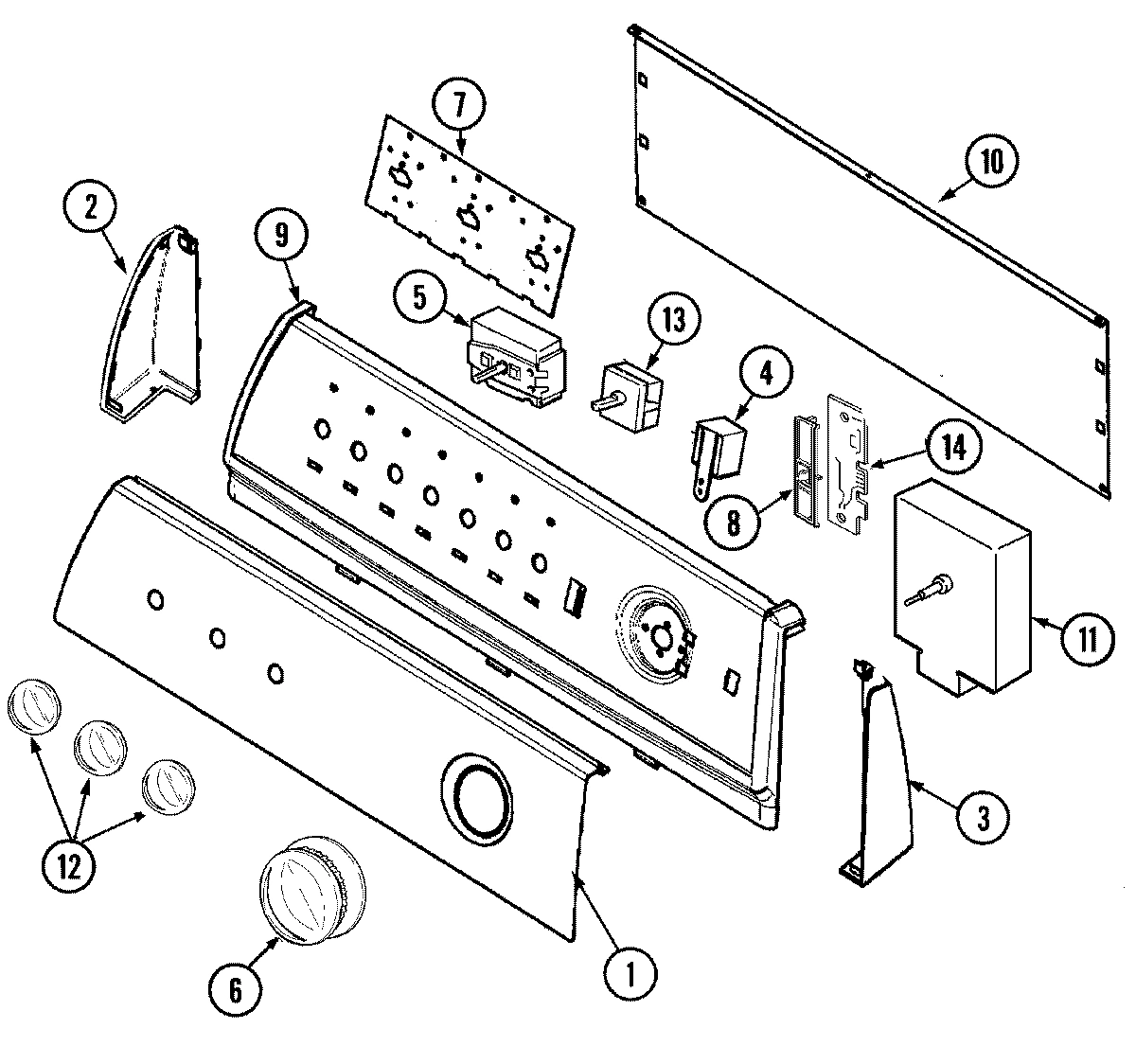

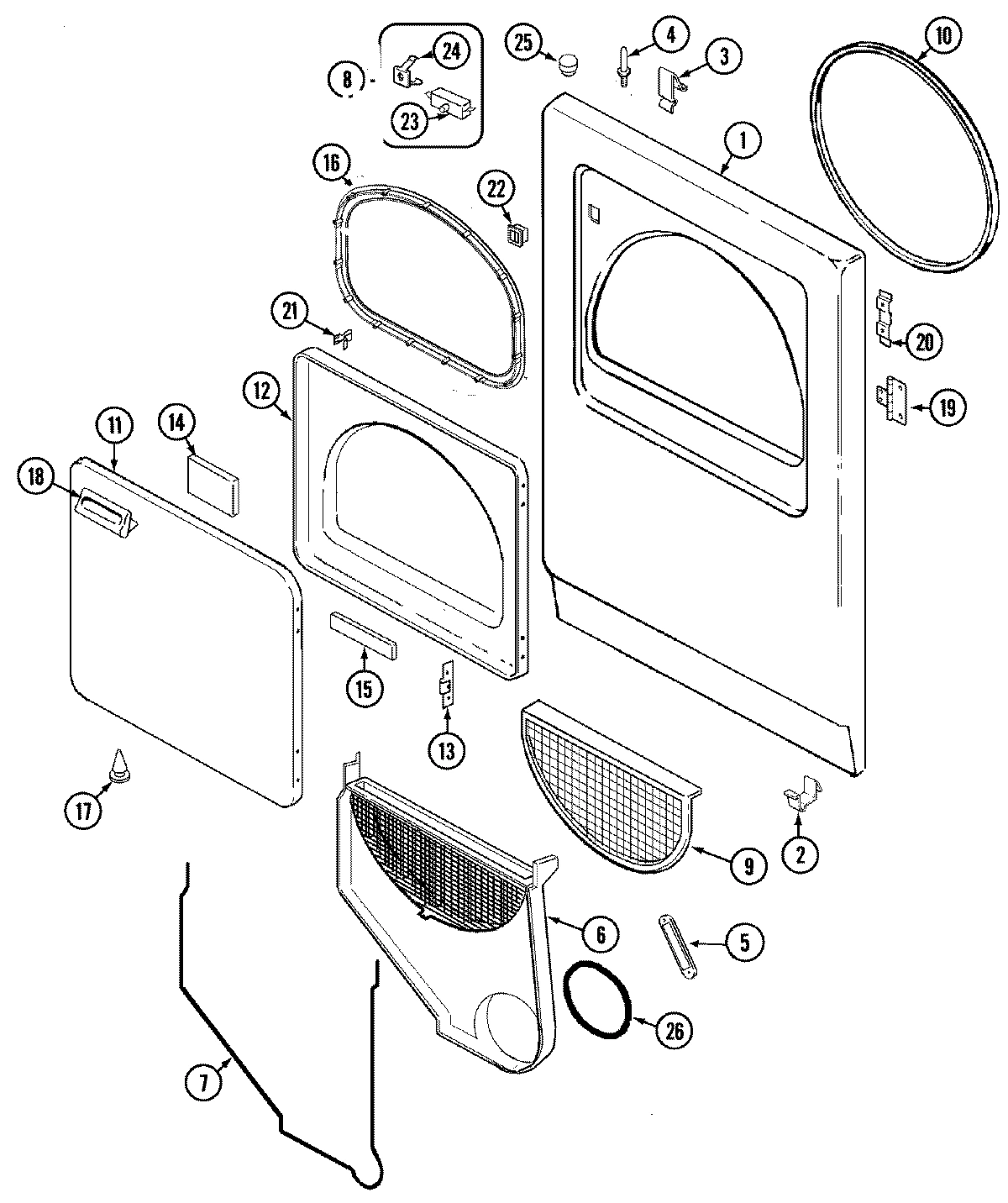

Model Whirlpool PYE4557AYW ELECTRIC DRYER – Common Parts &amp; Diagrams

1

SCREW WPL 257733 Contact Us For Availability

1

DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 31001524 Contact Us For Availability

1

PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability

1

SCREW WPL 257863 Contact Us For Availability

1

SVC MAN, RPL 16008334 WPL 16023116 Contact Us For Availability

1

MANUAL, USE & CARE WPL 31001515 Contact Us For Availability

1

DAMPER, CABINET WPL 31001220 Contact Us For Availability

1

TOP, CABINET (WHT) WPL 31001423 Contact Us For Availability

1

REINFORMENT, TOP WPL 31001527 Contact Us For Availability

2

ENDCAP (WHT-LT) WPL 21001519 Contact Us For Availability

2

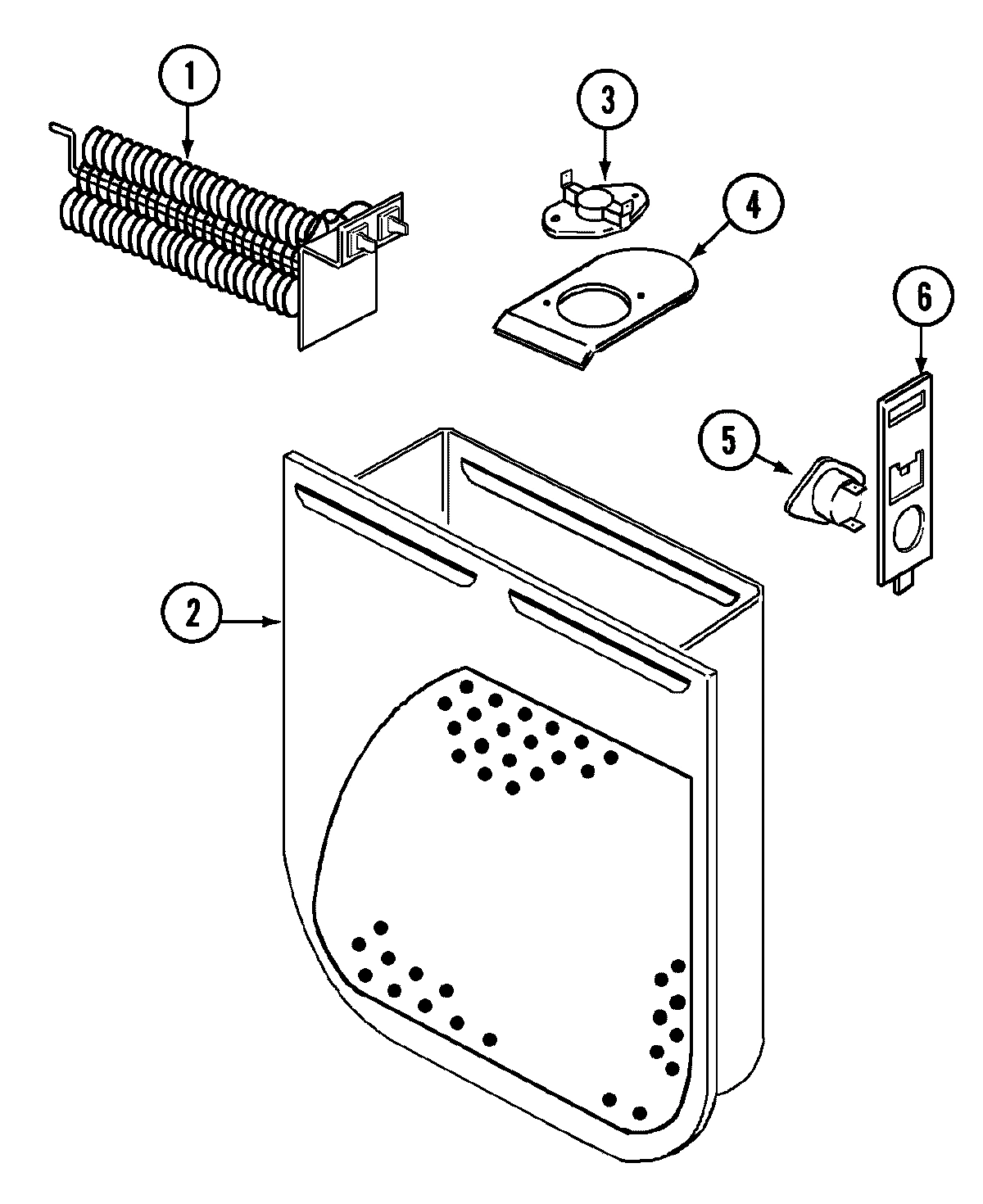

HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability

2

HARNESS, WIRE WPL 31001508 Contact Us For Availability

2

CABINET & BASE ASM (WHT) WPL 532559 Contact Us For Availability

3

LOCK, TOP WPL 31001526 Contact Us For Availability

3

CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability

3

ENDCAP (WHT-RT) WPL 21001523 Contact Us For Availability

3

SCREW WPL 253092 Contact Us For Availability

3

SCREW WPL 253083 Contact Us For Availability

3

THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability

3

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

3

HINGE, CABINET TOP WPL 635712 Contact Us For Availability

4

12002126 Whirlpool Dryer Reinforcement Brace Backorder WPL 12002126 $101.73

4

SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability

4

SCREW WPL 257759 Contact Us For Availability

4

BAFFLE (WHT) WPL Y02100002 Contact Us For Availability

4

ROLLER WPL LA1008 Contact Us For Availability

4

BUZZER WPL 31001397 Contact Us For Availability

4

SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability

4

BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability

4

KIT, SIDE VENT WPL 12001928 Contact Us For Availability

5

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.85

5

IDLER ASSY. WPL 532287 Contact Us For Availability

5

SWITCH, TEMP. (4-POS.) WPL 31001398 Contact Us For Availability

5

RESISTOR ASM TEMPERATURE WPL 31001483 Contact Us For Availability

5

SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability

5

FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability

5

WIRE KIT (HERRIN LAUNDRY) WPL 12002417 Contact Us For Availability

5

CLIP, WIRING WPL 253034 Contact Us For Availability

6

WP37001184 Whirlpool Timer Knob Backorder WPL WP37001184 $42.04

6

SPRING, IDLER WPL 31001465 Contact Us For Availability

6

SCREW WPL 257101 Contact Us For Availability

6

SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability

6

BUMPER, CABINET WPL 332653 Contact Us For Availability

6

BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability

7

DUCT, EXHAUST WPL 530134 Contact Us For Availability

7

ROLLER (REAR) WPL 31001096 Contact Us For Availability

7

SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability

7

SEAL WPL 530204 Contact Us For Availability

7

PIN, LOCATOR WPL 530643 Contact Us For Availability

8

HOUSING, BLOWER WPL 531801 Contact Us For Availability

8

SPACER WPL 257813 Contact Us For Availability

8

BRACKET, CIRCUIT BOARD WPL 31001507 Contact Us For Availability

8

SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability

8

NUT, LOCATOR PIN WPL 250224 Contact Us For Availability

8

SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability

9

WASHER WPL 257814 Contact Us For Availability

9

FRAME, CONTROL PANEL (WHT) WPL 21001604 Contact Us For Availability

9

FILTER, LINT WPL 530918 Contact Us For Availability

W11497304 Whirlpool Blower Wheel In Stock WPL W11497304 $69.75

SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability

RING, RETAINING WPL 257854 Contact Us For Availability

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

SCREW WPL 257857 Contact Us For Availability

COVER, TERMINAL WPL 530284 Contact Us For Availability

WP31001513 Whirlpool Timer Backorder WPL WP31001513 $232.26

CLAMP WPL 257823 Contact Us For Availability

SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability

PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability

SCREW, 8-18X3/8 TYAB BUT WPL 257752 Contact Us For Availability

LEG, LEVELING WPL 635519 Contact Us For Availability

RING, RETAINING WPL 257855 Contact Us For Availability

SCREW WPL 257952 Contact Us For Availability

BLOCK, TERMINAL WPL 531518 Contact Us For Availability

KNOB, SELECTOR (WHT) WPL 21001525 Contact Us For Availability

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability

WASHER, FLAT WPL 253122 Contact Us For Availability

SWITCH, TWO POSITION ROTARY WPL 31001190 Contact Us For Availability

CLIP, HINGE WPL 530119 Contact Us For Availability

CLIP, WIRING WPL 257027 Contact Us For Availability

WP31001192 Whirlpool Thermostat Backorder WPL WP31001192 $95.93

WP33001212 Whirlpool Electronic Control Board Backorder WPL WP33001212 $229.02

SCREW WPL 252134 Contact Us For Availability

NUT (No.10-32) WPL 250027 Contact Us For Availability

DOOR PAD WPL 531490 Contact Us For Availability

DAMPER, SOUND PAD WPL 21001281 Contact Us For Availability

SCREW WPL 257741 Contact Us For Availability

SHIELD, WIRING WPL 531921 Contact Us For Availability

WP31001470 Whirlpool Glide Assembly Backorder WPL WP31001470 $51.84

SCREW, SEMS WPL 253457 Contact Us For Availability

STRAP, GROUND WPL 530965 Contact Us For Availability

DOOR PAD WPL 531491 Contact Us For Availability

SHIELD, HEAT WPL 530133 Contact Us For Availability

16

BLADE-FAN WPL 531580 Contact Us For Availability

16

DOOR SEAL WPL 530648 Contact Us For Availability

17

LA-1006 Whirlpool Dryer Right Hand Glide Kit In Stock WPL LA-1006 $11.87

17

CYL LIGHT BULB WPL 530570 Contact Us For Availability

17

PLUG BUTTON WPL 257889 Contact Us For Availability

WP31001469 Whirlpool Glide Assembly Backorder WPL WP31001469 $53.48

LENS, BULB WPL 530174 Contact Us For Availability

SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability

HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability

WP31001356 Whirlpool Glide Pad Backorder WPL WP31001356 $61.93

CLIP, PUSH-ON WPL 253562 Contact Us For Availability

SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability

HINGE, DRYER DOOR WPL 531492 Contact Us For Availability

20

SCREW WPL 257963 Contact Us For Availability

20

RACK, DRYING WPL 21001495 Contact Us For Availability

20

TWIN NUT WPL 530121 Contact Us For Availability

21

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

21

STRIKE, DOOR WPL 532364 Contact Us For Availability

22

GUIDE, VANE INLET WPL 531026 Contact Us For Availability

22

CATCH, DOOR WPL 530187 Contact Us For Availability

23

SWITCH, DOOR WPL 530147 Contact Us For Availability

23

SWITCH, DOOR WPL 530148 Contact Us For Availability

24

BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability

24

CLIP, SWITCH WPL 635990 Contact Us For Availability

25

WASHER WPL 257815 Contact Us For Availability

26

12001324 Whirlpool Collector Duct Backorder WPL 12001324 $140.27

26

PUSHNUT WPL 257957 Contact Us For Availability

27

WP31001344 Whirlpool Idler Pulley In Stock WPL WP31001344 $30.94

28

ARM, IDLER WPL 532250 Contact Us For Availability

NI

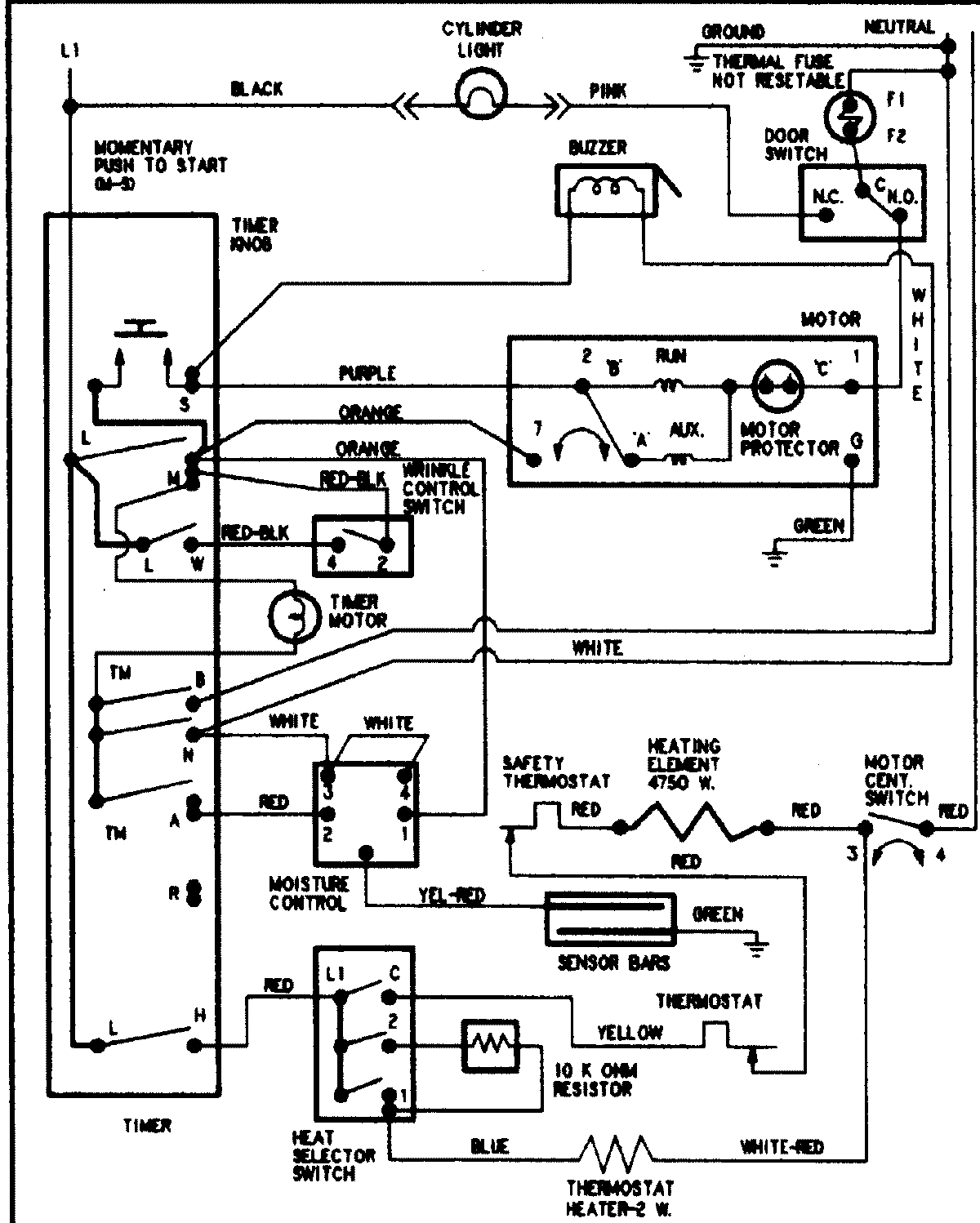

WIRING INFORMATION WPL 15002904 Contact Us For Availability
