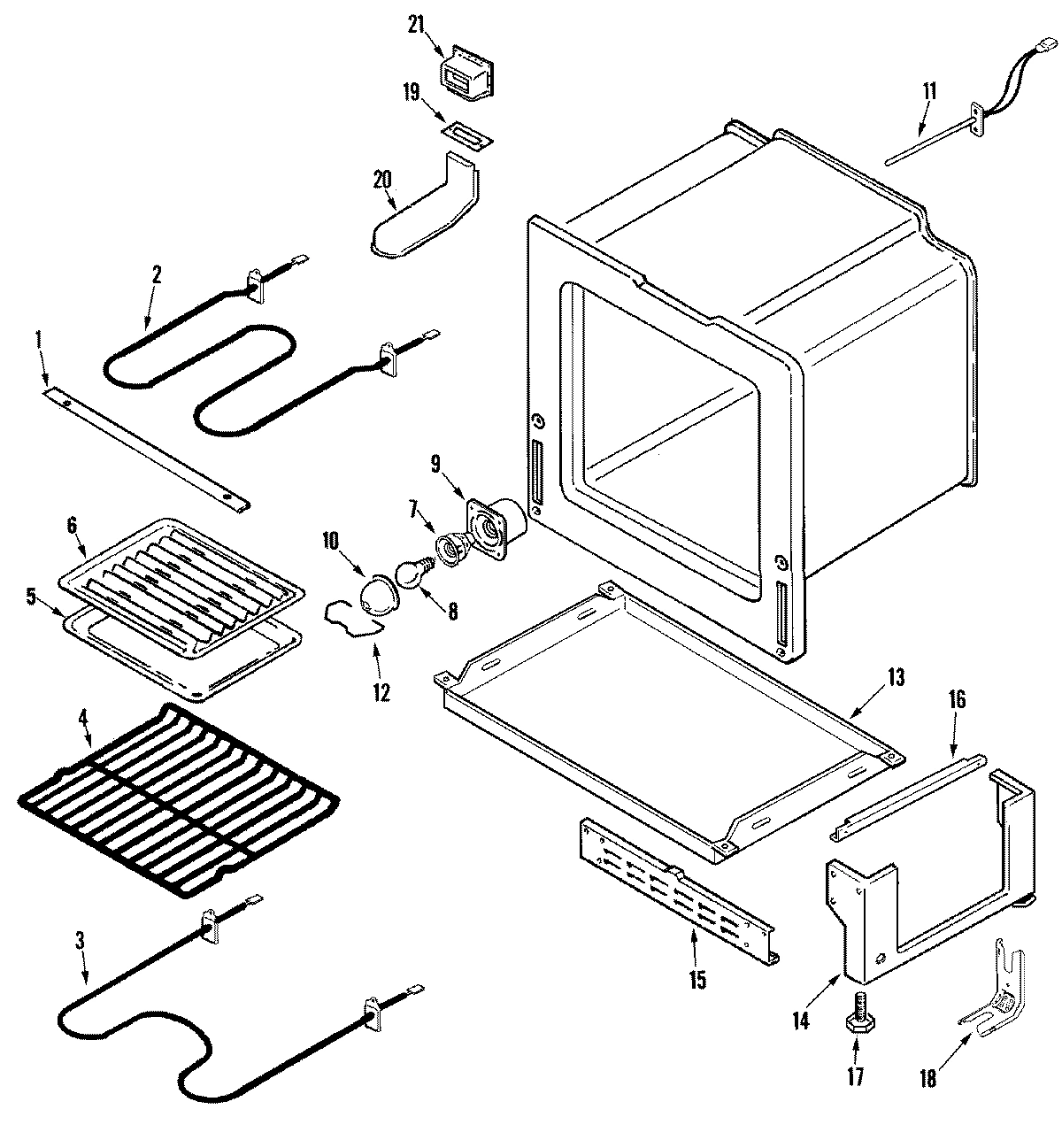

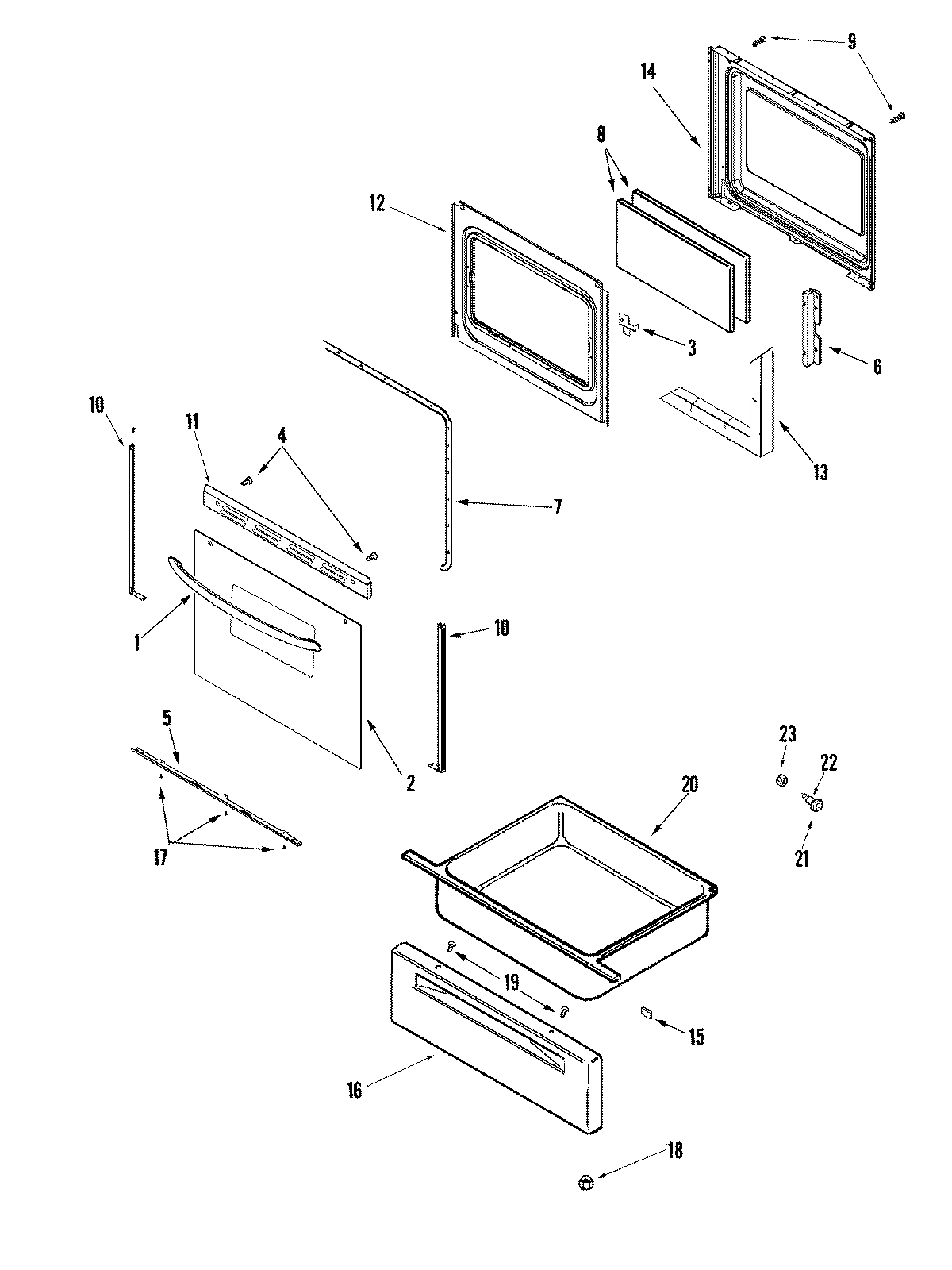

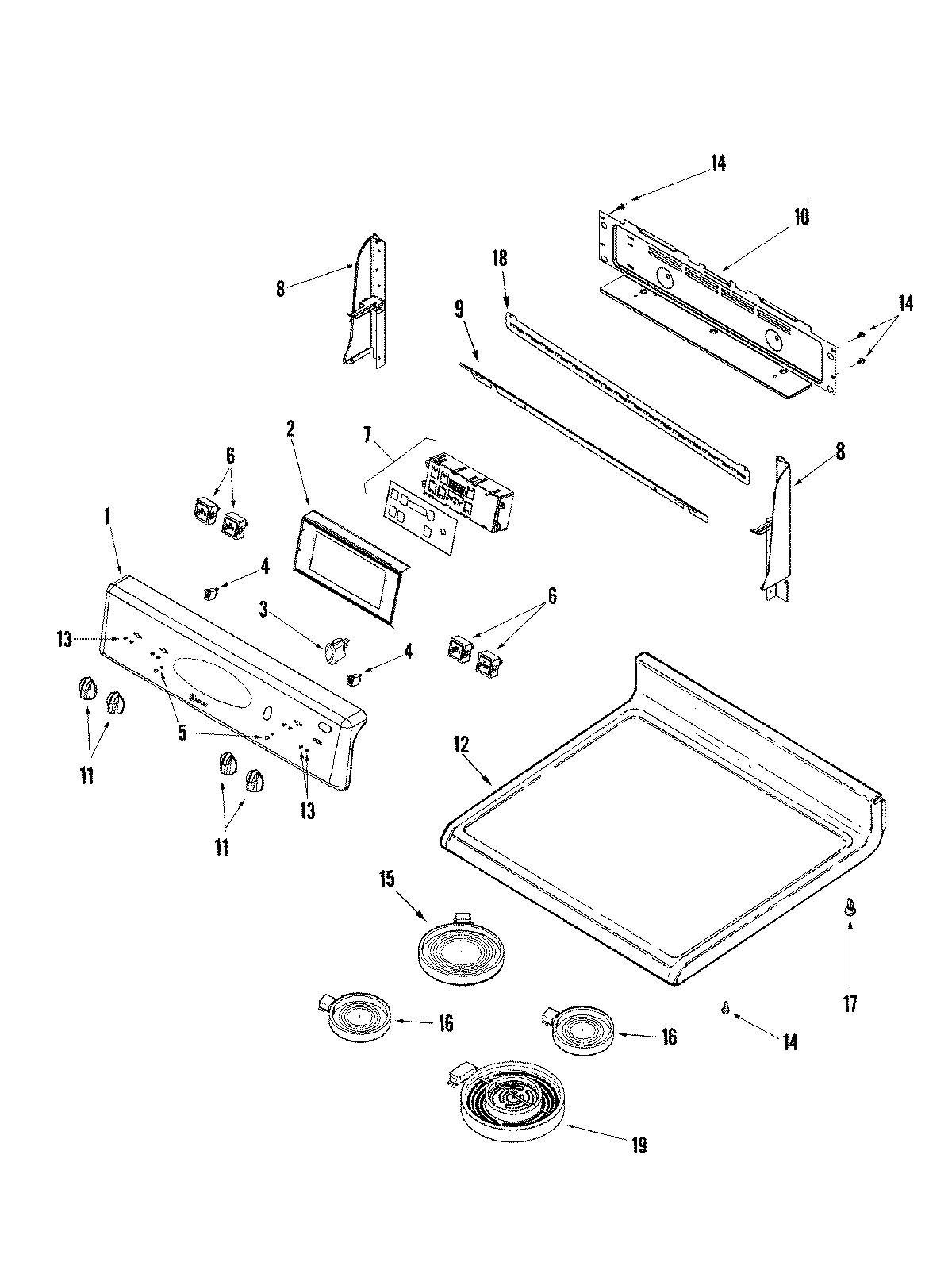

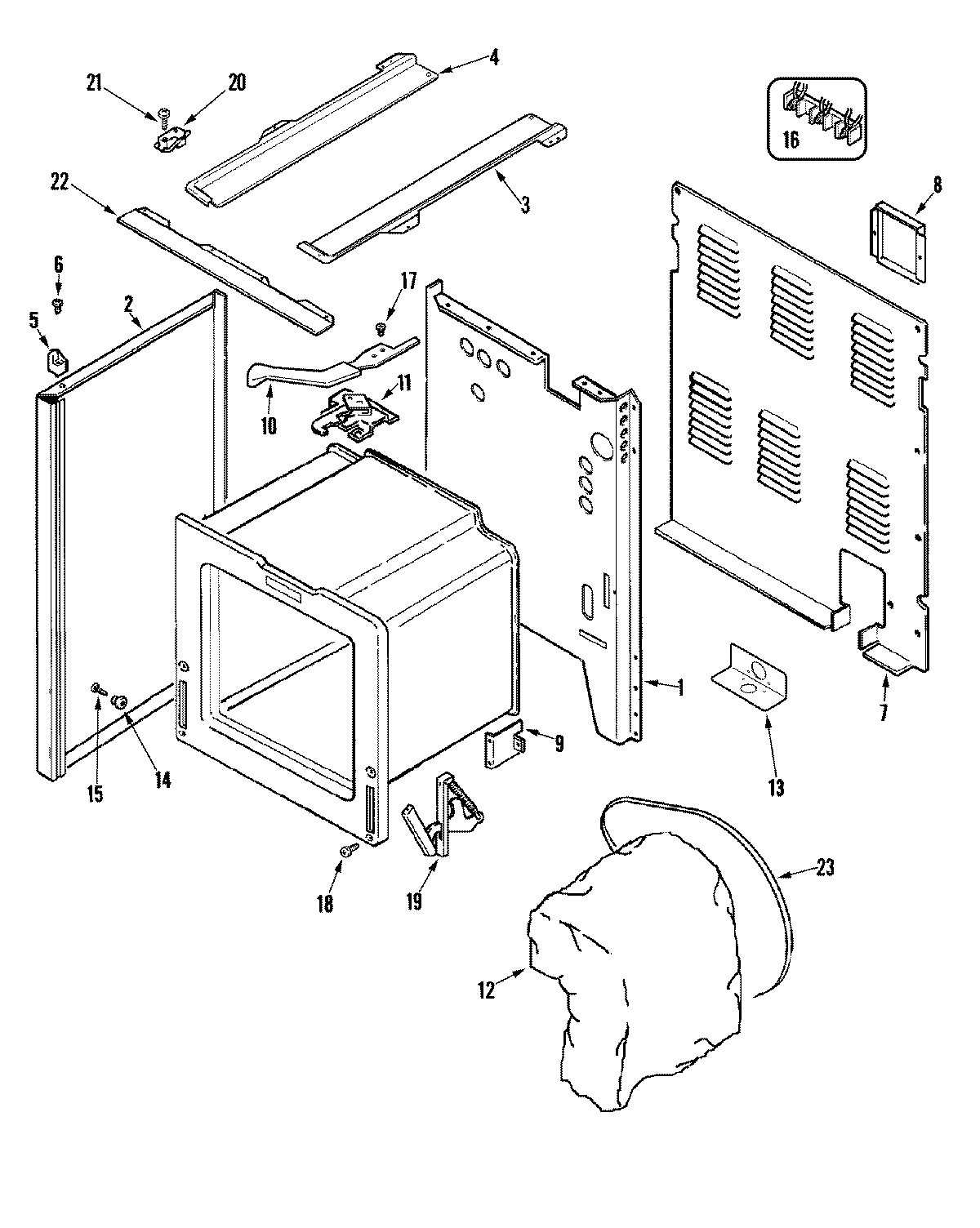

Model Whirlpool PER5720LAW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

1

BACK, MAIN (ELEC) WPL 74009677 Contact Us For Availability

1

HANDLE, DOOR (BSQ) WPL 74011107 Contact Us For Availability

1

HARNESS, DUAL CERAN TOP WPL 74009763 Contact Us For Availability

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

2

HARNESS, MAIN WPL 74009740 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

2

INSULATION, FOIL BACK WPL 74003146 Contact Us For Availability

2

GLASS, DOOR (OUTER-WHT) WPL 74009727 Contact Us For Availability

3

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $14.02

3

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $14.02

3

WP74010226 Whirlpool RO Switch Backorder WPL WP74010226 $70.94

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

3

HARNESS, INFINITE (LT) WPL 74009741 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

4

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

4

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

4

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

HARNESS, DUAL INFINITE WPL 74009762 Contact Us For Availability

5

WP3807F708-71 Whirlpool Support In Stock WPL WP3807F708-71 $112.09

5

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability

6

WP74003122 Whirlpool Infinite Switch Assembly In Stock WPL WP74003122 $81.47

6

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

6

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

6

NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

6

RETAINER, GLASS WPL 74001844 Contact Us For Availability

6

COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability

7

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.61

7

CLOCK W/OVERLAY (WHT) WPL 74009758 Contact Us For Availability

7

HOUSING, BULB WPL 74003388 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability

7

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

8

SUPPORT, BACKGUARD (WHT-LT) WPL 74009669 Contact Us For Availability

8

SUPPORT, BACKGUARD (WHT-RT) WPL 74009672 Contact Us For Availability

8

BULB-OVEN WPL 7407P10360 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

GLASS, INNER WPL 74003320 Contact Us For Availability

8

MANUAL, USE & CARE WPL 8113P42360 Contact Us For Availability

8

MANUAL, USE & CARE WPL 8113P58660 Contact Us For Availability

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

9

SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability

9

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability

WP3608F116-71 Whirlpool Door Trim Backorder WPL WP3608F116-71 $88.79

WP3608F117-71 Whirlpool Door Trim Backorder WPL WP3608F117-71 $88.63

COVER, BACKGUARD WIRE WPL 74009335 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability

TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability

SVC MAN, RANGE, ELECT WPL 16023528 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

KNOB (WHT) WPL 74009188 Contact Us For Availability

LATCH, DOOR LOCK WPL 74009710 Contact Us For Availability

SCREW WPL 7101P35660 Contact Us For Availability

ASSY., MAIN TOP (WHT) WPL 74009756 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability

BAFFLE, OVEN DOOR WPL 74009528 Contact Us For Availability

13

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

13

SCREW WPL 7101P30960 Contact Us For Availability

13

INSULATION, DOOR WPL 74001842 Contact Us For Availability

14

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

14

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

14

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

W10823715 Whirlpool Radiant Surface Element In Stock WPL W10823715 $138.93

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

SHIELD, WIRE WPL 74009708 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

W10823709 Whirlpool Range Dual Radiant Surfac In Stock WPL W10823709 $147.51

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

GASKET, VENT WPL 74003285 Contact Us For Availability

20

SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability

20

DRAWER, STORAGE WPL 74008337 Contact Us For Availability

21

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

21

EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability

21

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

22

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

23

NUT WPL 7103P08260 Contact Us For Availability

NI

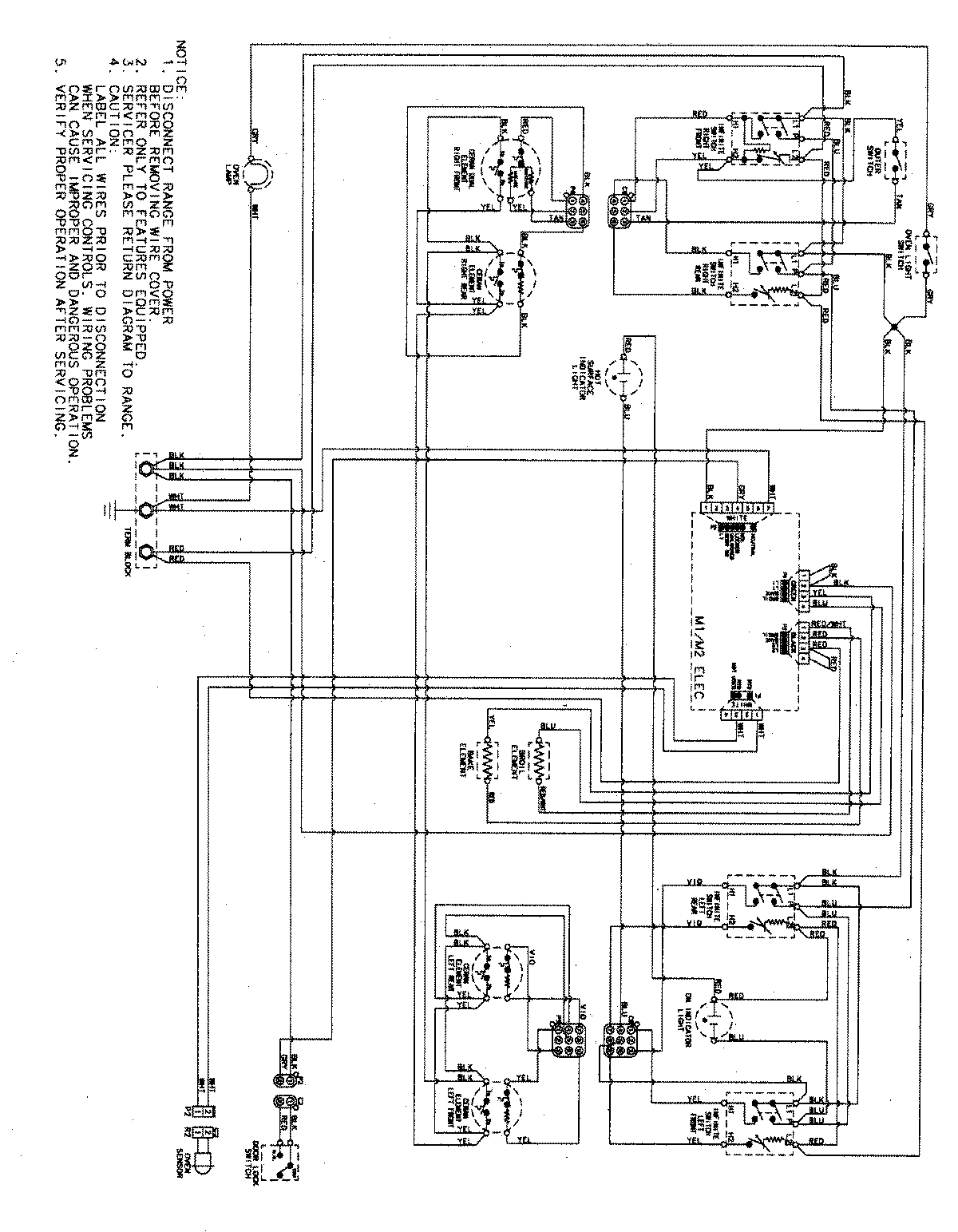

WIRING INFORMATION WPL 15003514 Contact Us For Availability
