Model Whirlpool PER3724ACB ELECTRIC RANGE – Common Parts & Diagrams

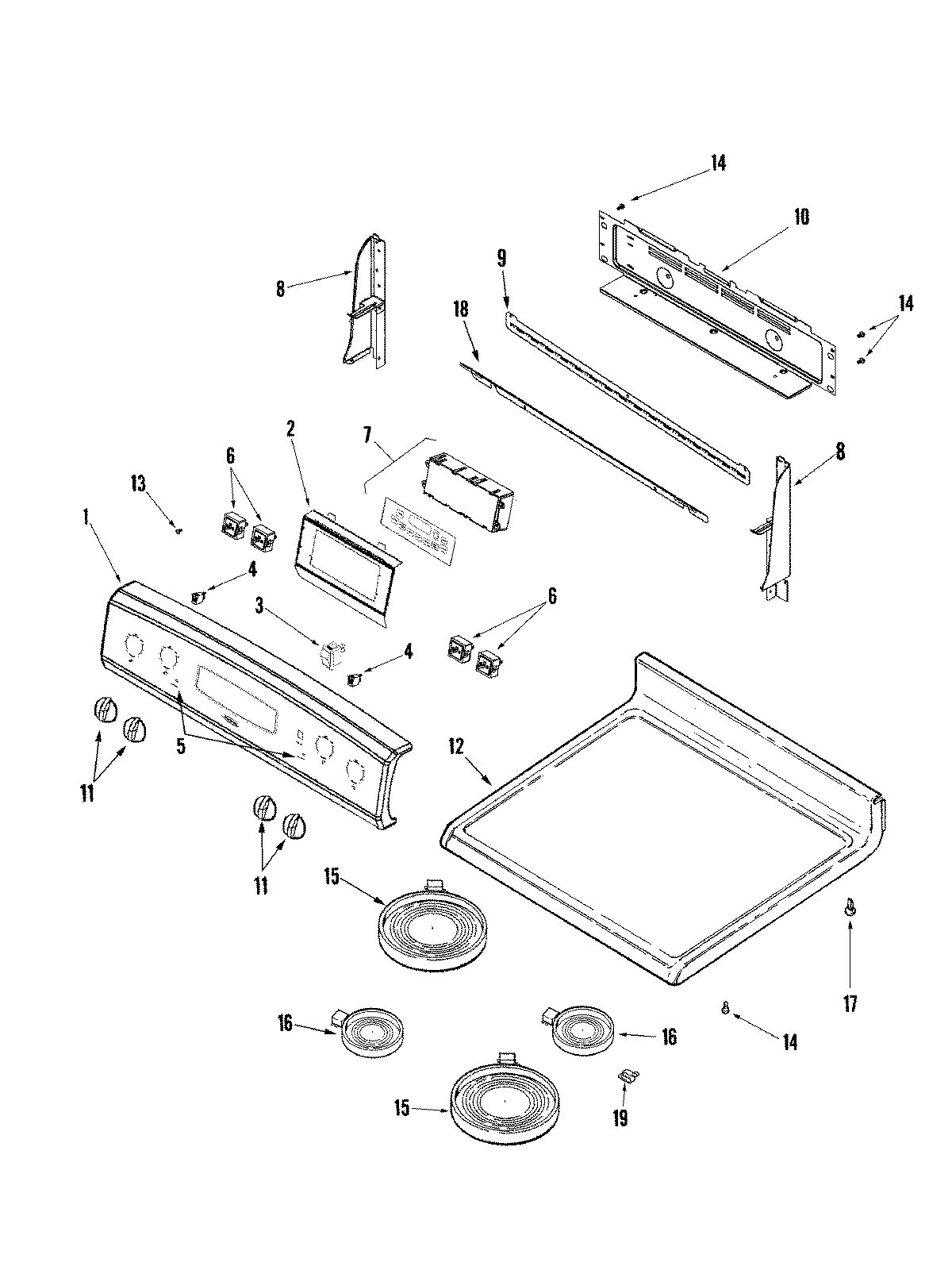

02 - CONTROL PANEL/TOP ASSEMBLY

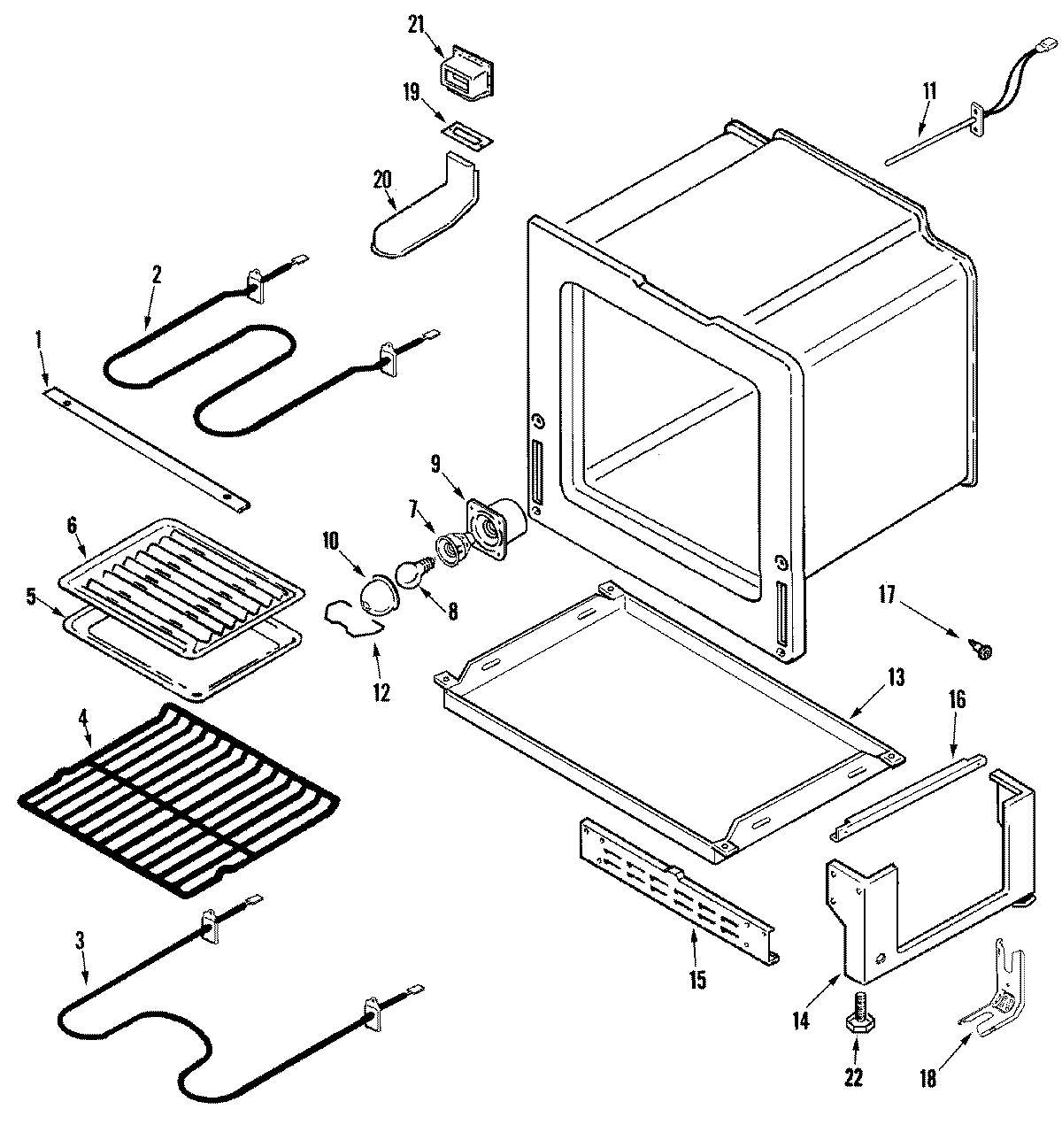

04 - OVEN/BASE
05 - SUPPLEMENTAL INFORMATION

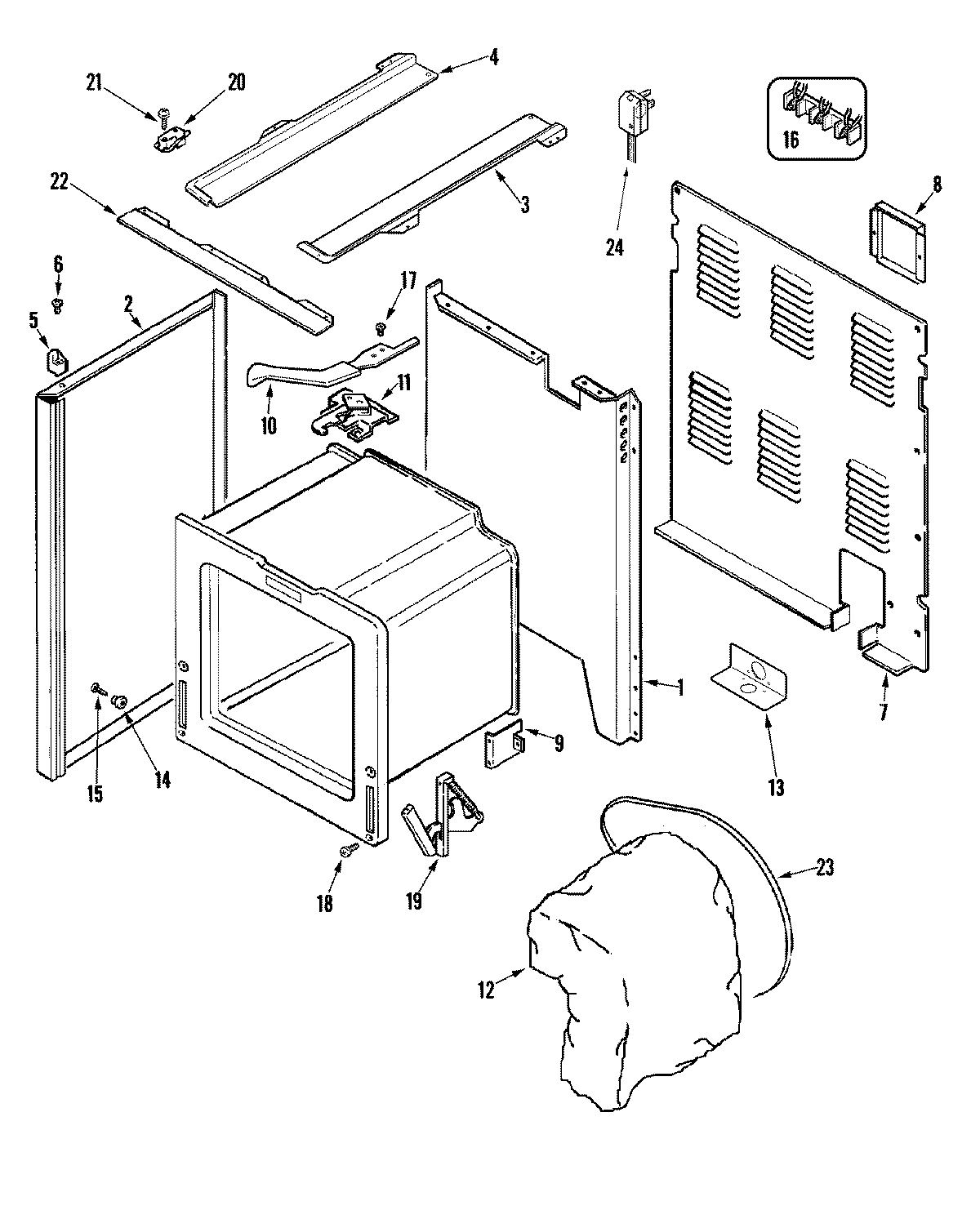

01 - BODY

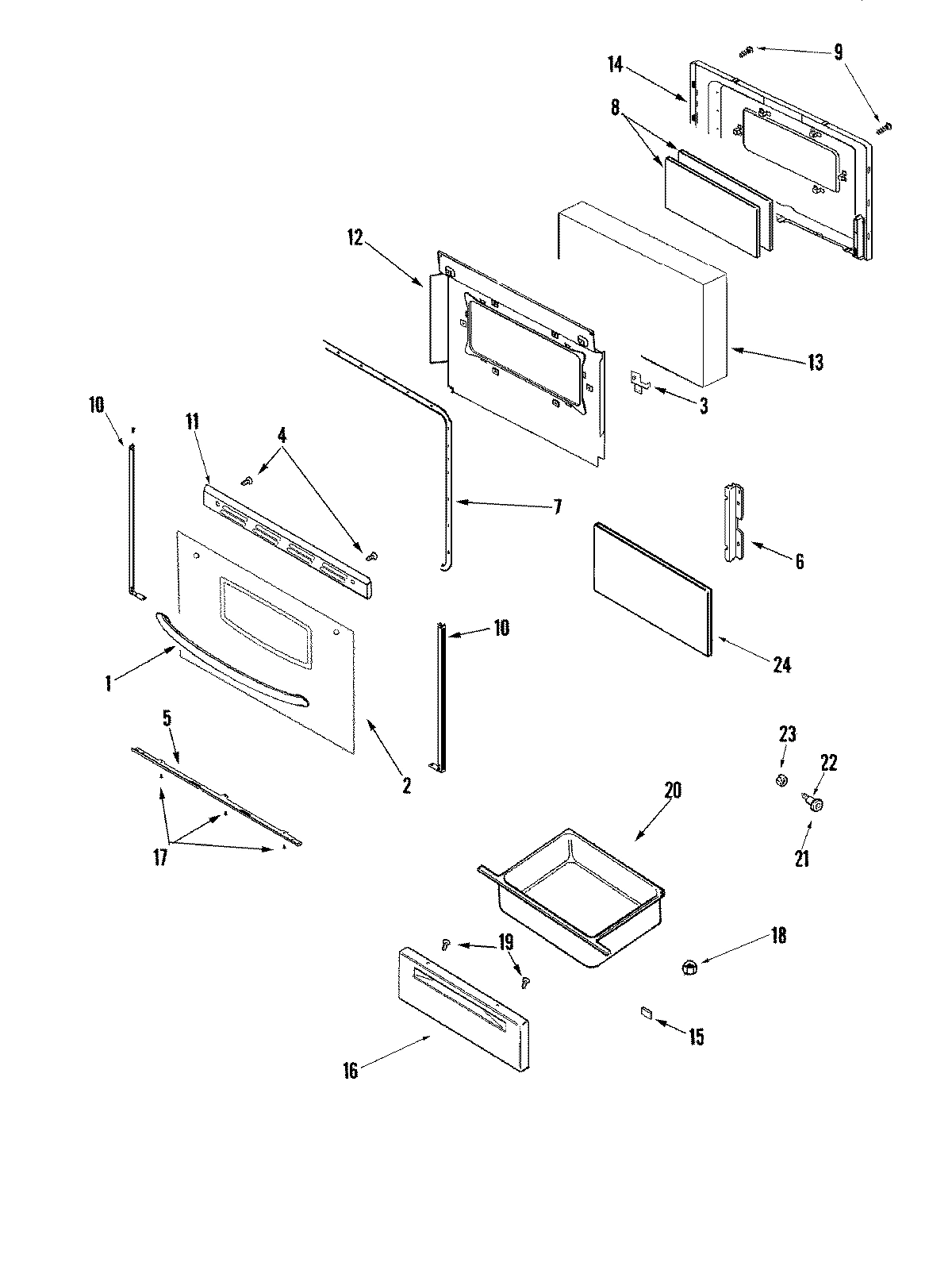

03 - DOOR/DRAWER

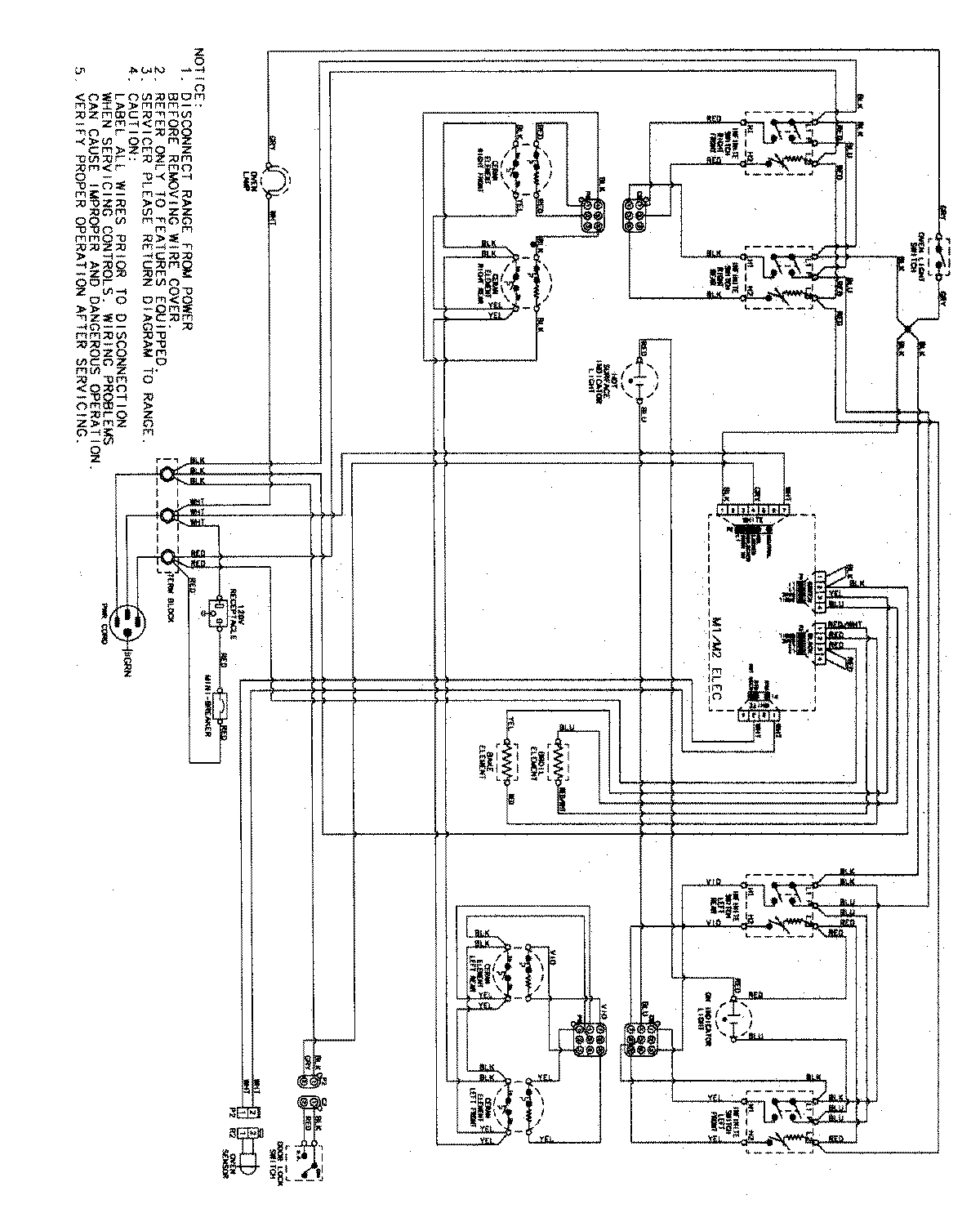

06 - WIRING INFORMATION

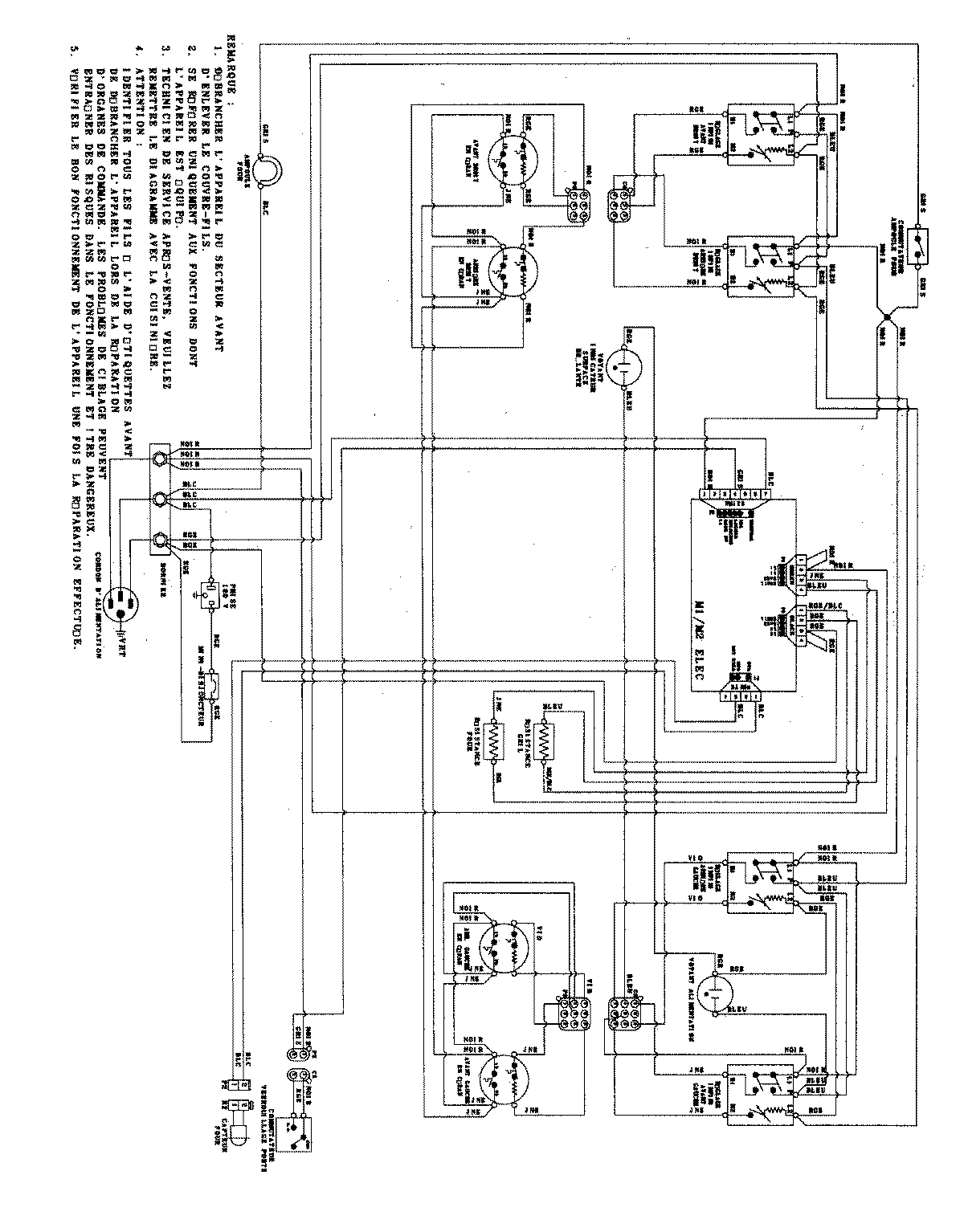

07 - WIRING INFORMATON (FRC)
Common parts from model Whirlpool PER3724ACB ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
1
HARNESS, TOP WPL 74010374 Contact Us For Availability
1
BACK, MAIN (ELEC) WPL 74009677 Contact Us For Availability
1
HANDLE, DOOR (BLK) WPL 74010338 Contact Us For Availability
1
WIRING INFORMATION (FRC) WPL 15003614 Contact Us For Availability
2
HARNESS, MAIN WPL 74010952 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability
2
TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability
2
GLASS, DOOR (OUTER-BLK) WPL 74010345 Contact Us For Availability
3
HARNESS, INFINITE (LT) WPL 74009741 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
4
HARNESS, INFINITE (RT) WPL 74009742 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
4
WASHER (1``) WPL 74001521 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SUPPORT, GLASS (BLK) WPL 74009686 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
MANUAL, USE & CARE WPL 8113P44760 Contact Us For Availability
6
MANUAL, USE & CARE WPL 8113P55760 Contact Us For Availability
6
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
6
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
CLOCK W/OVERLAY (BLK) WPL 74010985 Contact Us For Availability
7
HOUSING, BULB WPL 74003388 Contact Us For Availability
7
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability
7
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
SUPPORT, BACKGUARD (RT-BLK) WPL 74010201 Contact Us For Availability
8
SUPPORT, BACKGUARD (LT-BLK) WPL 74010202 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, ACCESS WPL 74010256 Contact Us For Availability
8
GLASS, INNER WPL 74003320 Contact Us For Availability
9
SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability
9
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
9
SVC MAN, RANGE, ELECT WPL 16023528 Contact Us For Availability
9
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
10
COVER, REAR WIRE (UPR) WPL 74009943 Contact Us For Availability
10
COVER, BULB WPL 74003389 Contact Us For Availability
10
TECH SHT, RANGE, ELECT WPL 16026484 Contact Us For Availability
10
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
10
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
11
KNOB (BLK) WPL 74010332 Contact Us For Availability
11
LATCH, DOOR LOCK WPL 74009710 Contact Us For Availability
11
SCREW WPL 7101P35660 Contact Us For Availability
11
TRIM, DOOR TOP (BLK) WPL 74010239 Contact Us For Availability
12
TOP, MAIN (BLK) WPL 74010352 Contact Us For Availability
12
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability
12
BAFFLE, OVEN DOOR WPL 74009528 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
13
RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability
13
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
13
INSULATION, DOOR WPL 74001842 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
LINING, OVEN DOOR WPL 74004972 Contact Us For Availability
15
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
15
SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability
16
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 74009685 Contact Us For Availability
17
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
17
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SHIELD, WIRE WPL 74009978 Contact Us For Availability
18
SCREW WPL 7101P35260 Contact Us For Availability
18
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
18
NUT, LOCK WPL 7103P13960 Contact Us For Availability
19
GASKET, VENT WPL 74003285 Contact Us For Availability
20
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
20
SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability
20
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
21
EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability
21
BRACKET, VENT EXTENSION WPL 74009988 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
22
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
22
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
23
STRAP, INSULATION WPL 74003385 Contact Us For Availability
23
NUT WPL 7103P08260 Contact Us For Availability
24
CORD, POWER WPL 7402P05060 Contact Us For Availability
24
GLASS, INNER WPL 74002002 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003613 Contact Us For Availability
× ![]()
