Model Whirlpool NAV8800AWW WASHER – Common Parts &amp; Diagrams

1

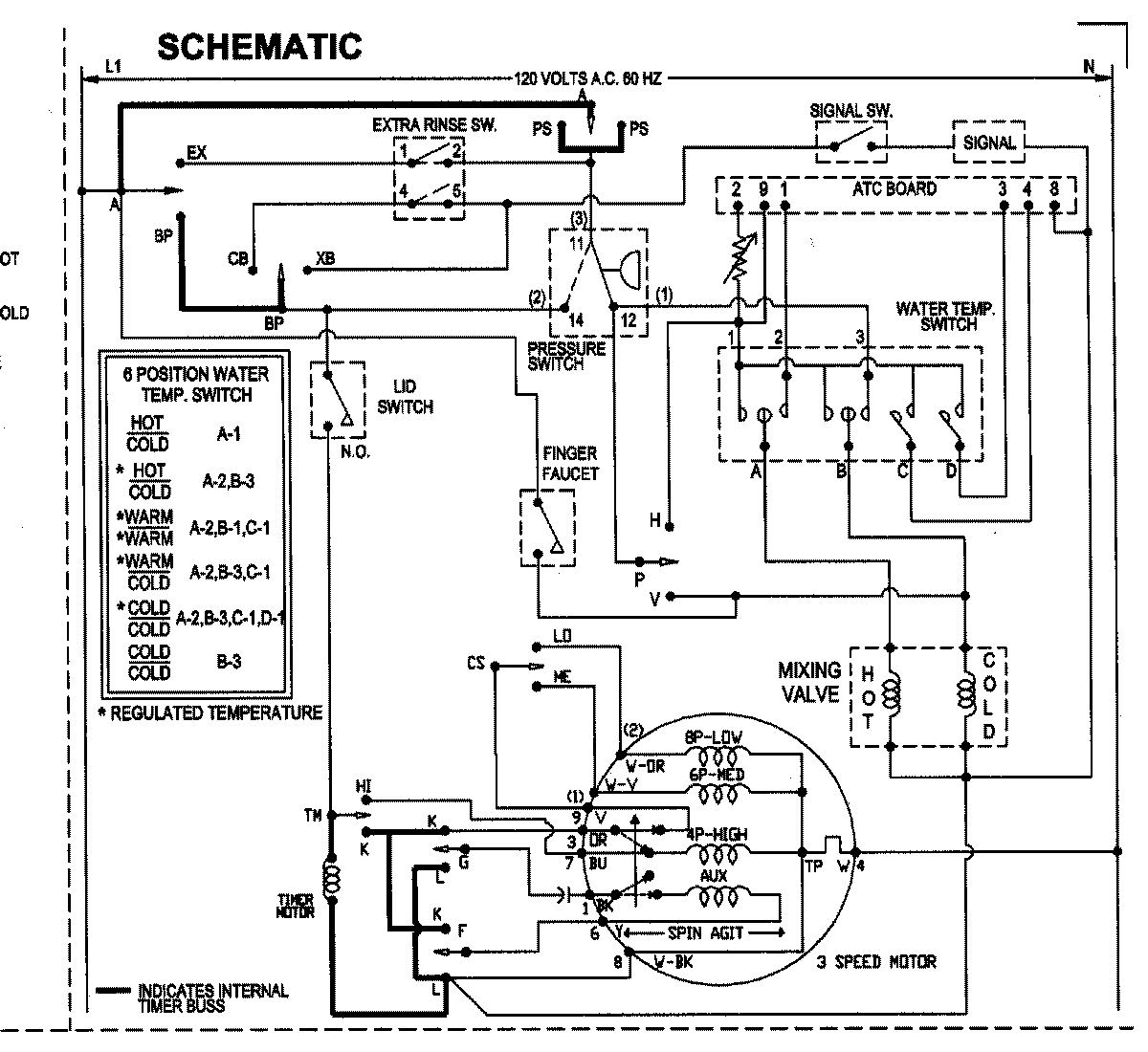

WIRING INFORMAITON WPL 15003257 Contact Us For Availability

1

MANUAL, USE & CARE WPL 27001098 Contact Us For Availability

1

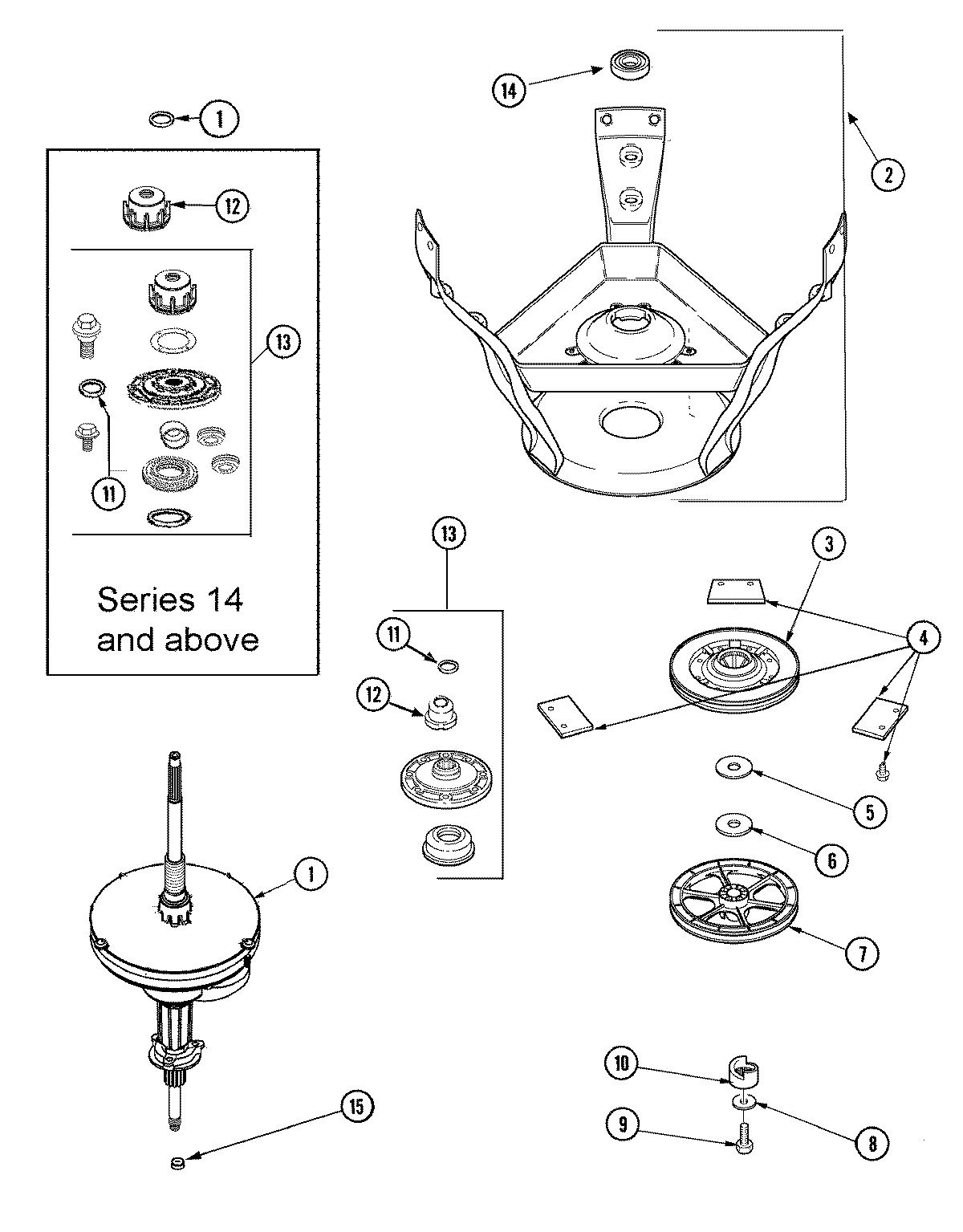

TRANSMISSION ASM (710 RPM) WPL 27001039 Contact Us For Availability

1

DISPENSER, FABRIC (GRAY) WPL 27001097 Contact Us For Availability

1

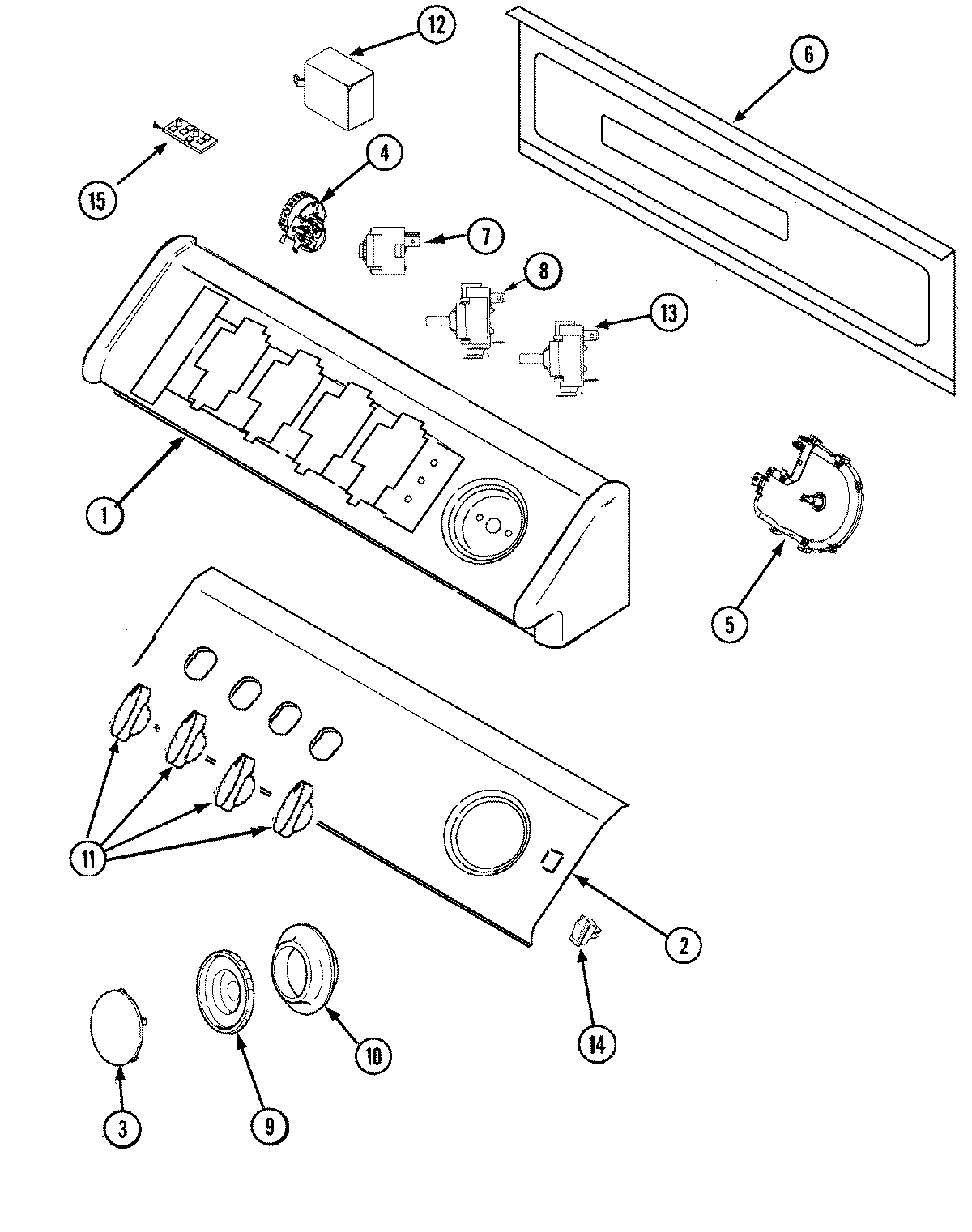

CONSOLE (GRAY) WPL 27001085 Contact Us For Availability

1

SHIELD, MOTOR WPL 40112301 Contact Us For Availability

1

LID (WHT W/INSTRUCTIONS) WPL 27001093 Contact Us For Availability

1

MEDALLION WPL 27001129 Contact Us For Availability

2

WP22004042 Whirlpool Agitator Backorder WPL WP22004042 $197.44

2

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

2

WP4312464 Whirlpool Refrigerator Screw Backorder WPL WP4312464 $4.82

2

GUIDE, ENERGY WPL 27001180 Contact Us For Availability

2

ASSEMBLY, MILK STOOL & BEARING WPL 27001030 Contact Us For Availability

2

FACIA GROUND WIRE ASSEMBLY WPL 27001050 Contact Us For Availability

2

FACIA, GRAPHIC PANEL WPL 27001105 Contact Us For Availability

2

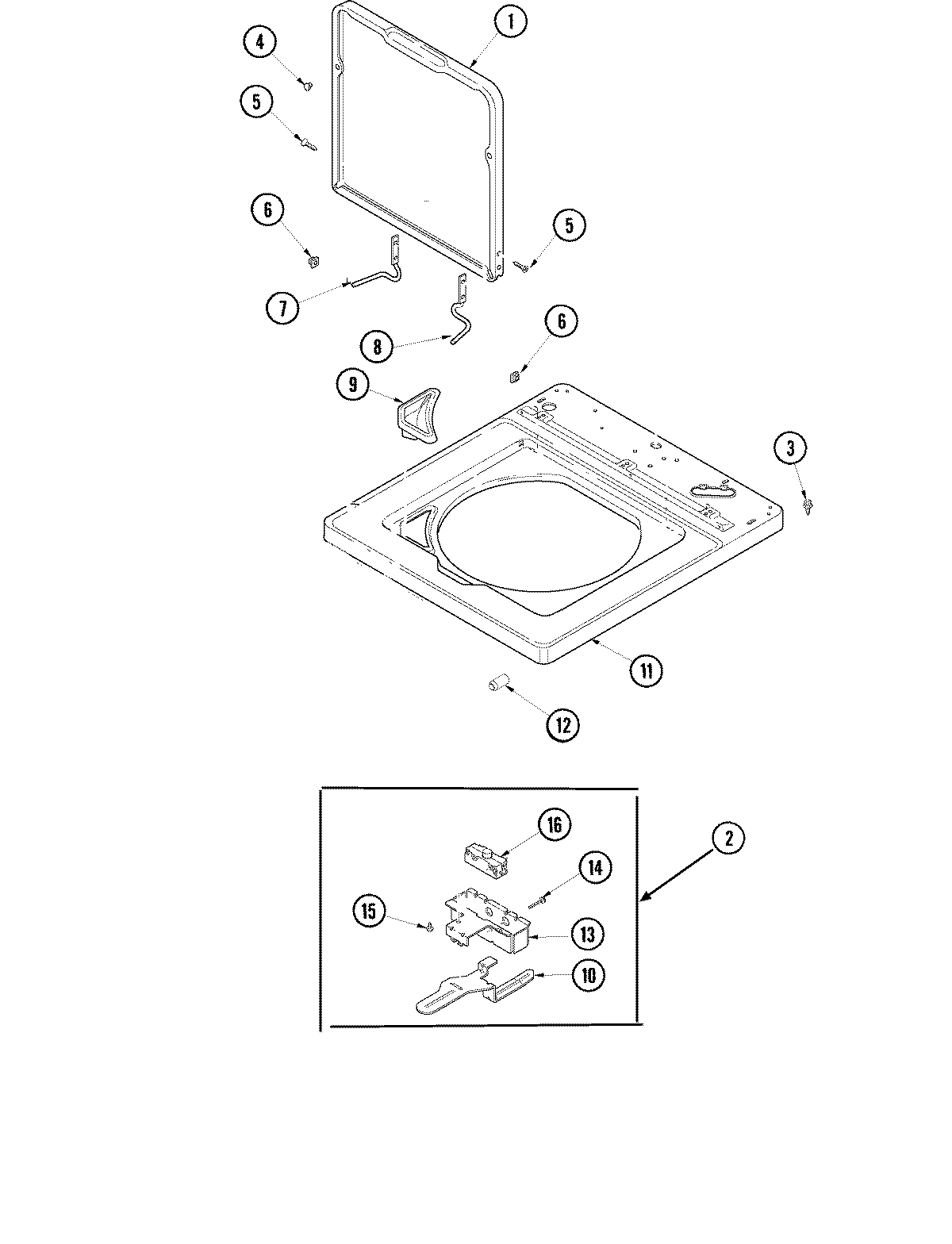

LID SWITCH ASSEMBLY WPL 40034901 Contact Us For Availability

2

LOCATOR, PANEL WPL 505187 Contact Us For Availability

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

HARNESS, WIRING WPL 27001109 Contact Us For Availability

3

BRAKE ASSEMBLY WPL 40003103 Contact Us For Availability

3

COVER, OUTER TUB W GASKET WPL 27001195 Contact Us For Availability

3

KNOB, CAP (WHT) WPL 27001087 Contact Us For Availability

3

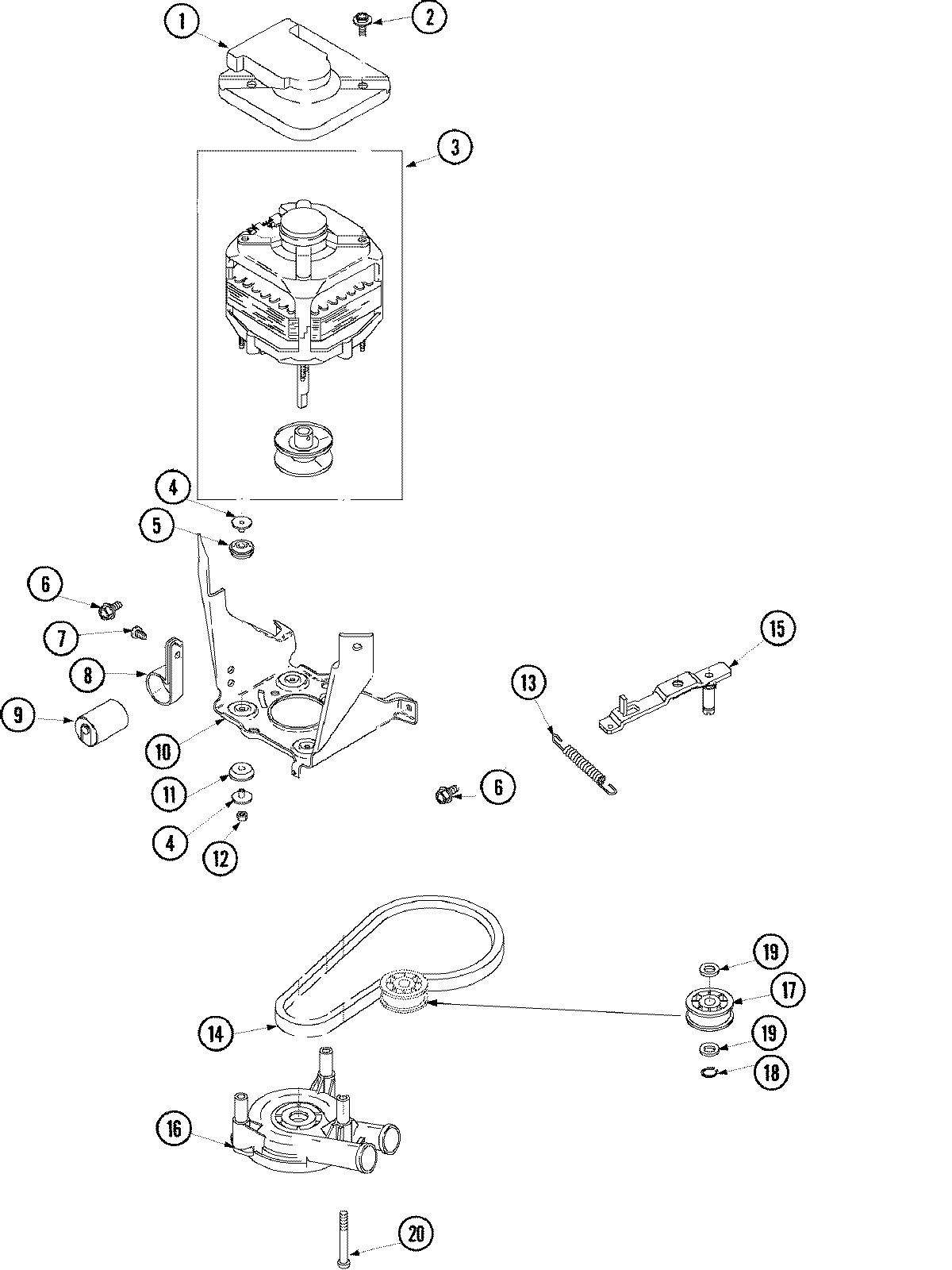

MOTOR (3 SP) WPL 27001068 Contact Us For Availability

4

KIT, BRAKE PAD WPL R0000014 No Longer Available

4

WP26594P Whirlpool Grease Filter Backorder WPL WP26594P $58.59

4

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

4

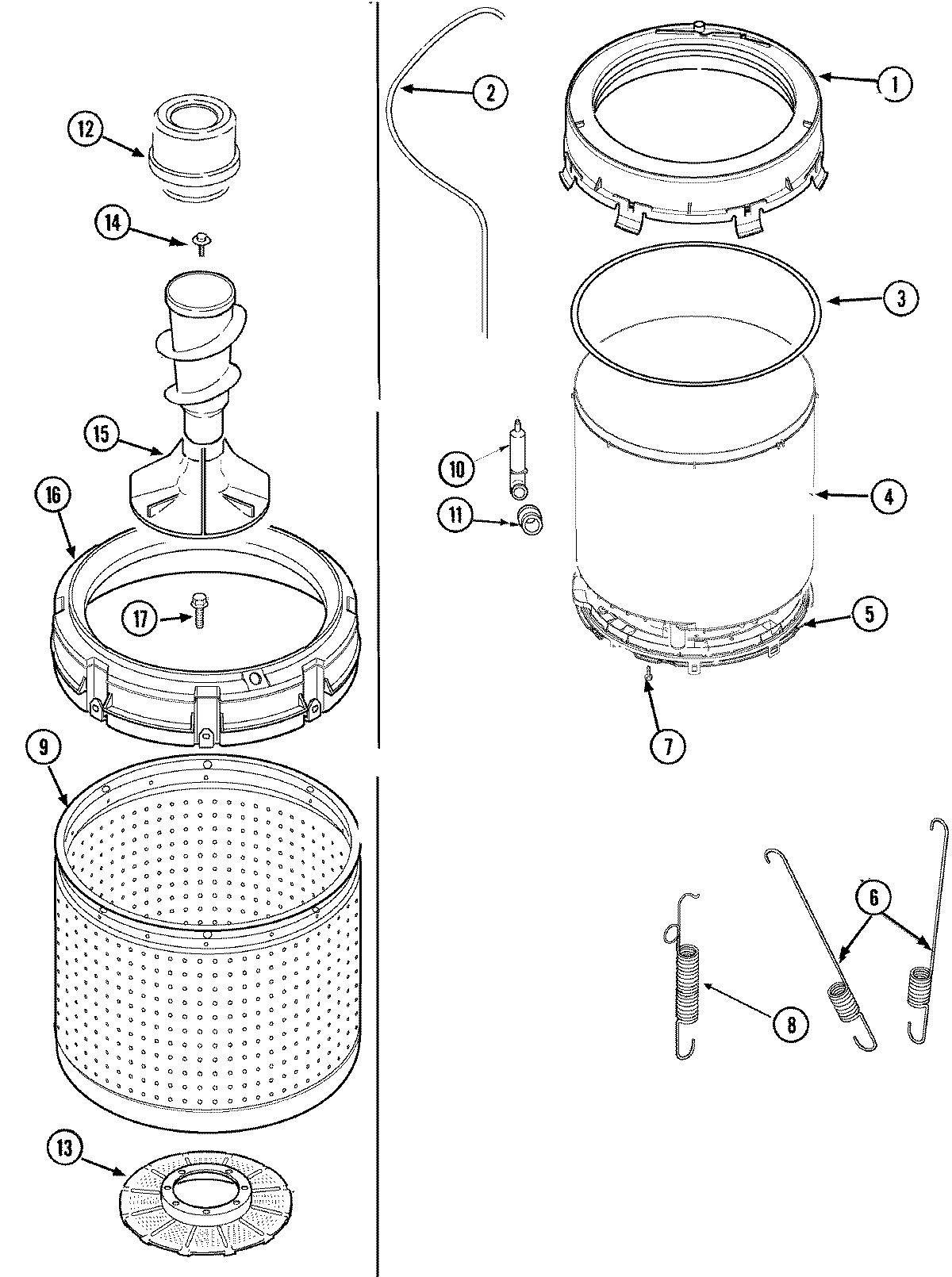

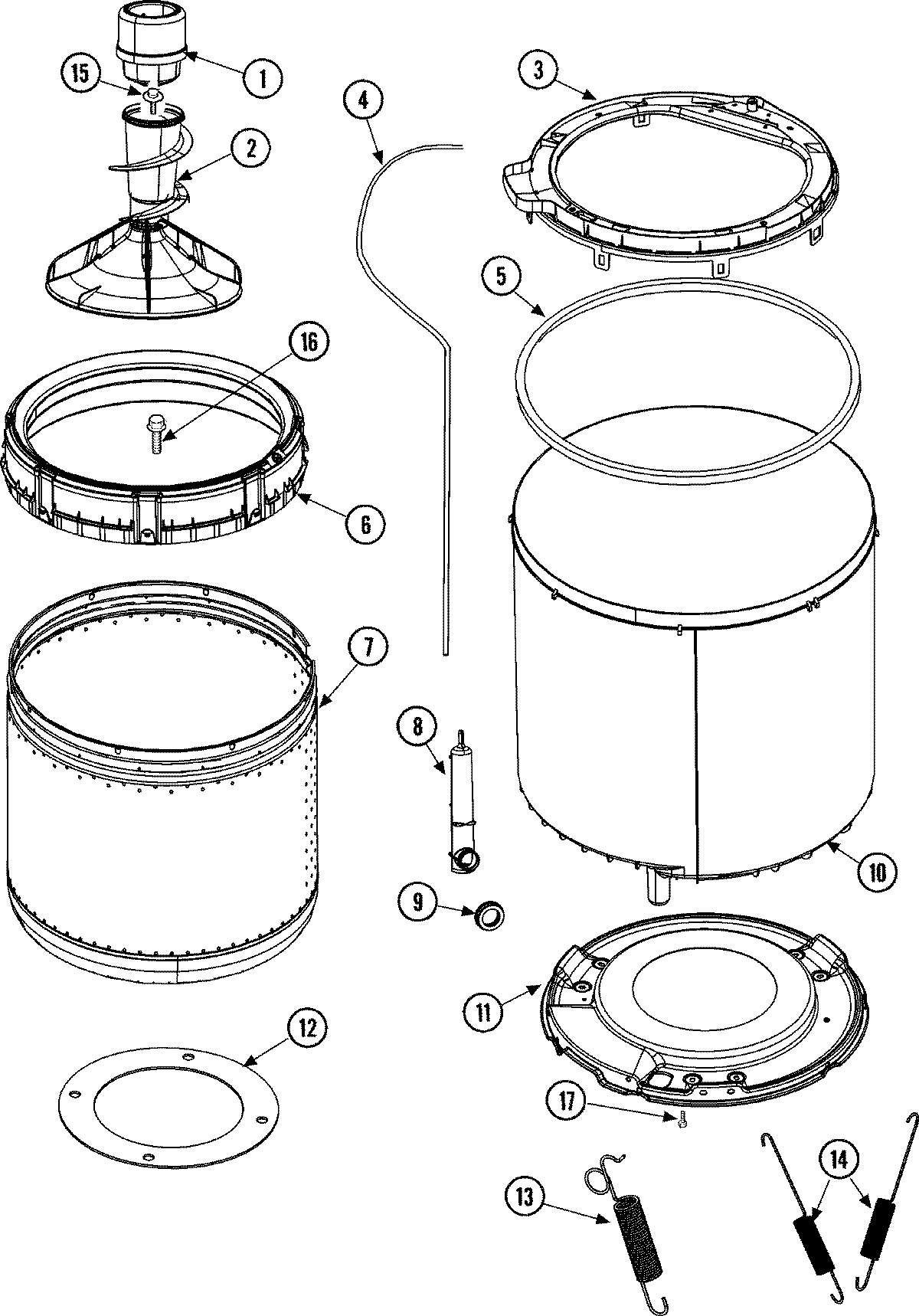

TUB, PLASTIC OUTER WPL 40111001P Contact Us For Availability

4

MNL, SVC TOP LOAD WSHR WPL RS3100007 Contact Us For Availability

4

SWITCH, PRESSURE WPL 27001047 Contact Us For Availability

4

SWITCH, PRESSURE WPL 27001127 Contact Us For Availability

4

POST, ISOLATOR WPL 40053701 Contact Us For Availability

4

BUMPER WPL 40038001 Contact Us For Availability

5

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

5

CORD, POWER WPL 40098701 Contact Us For Availability

5

WASHER, 2 ODX.63 ID WPL 40065701 Contact Us For Availability

5

SEAL, TUB COVER WPL 27001130 Contact Us For Availability

5

TIMER WPL 27001106 Contact Us For Availability

5

MOUNT, MOTOR UPPER WPL 40053801 Contact Us For Availability

5

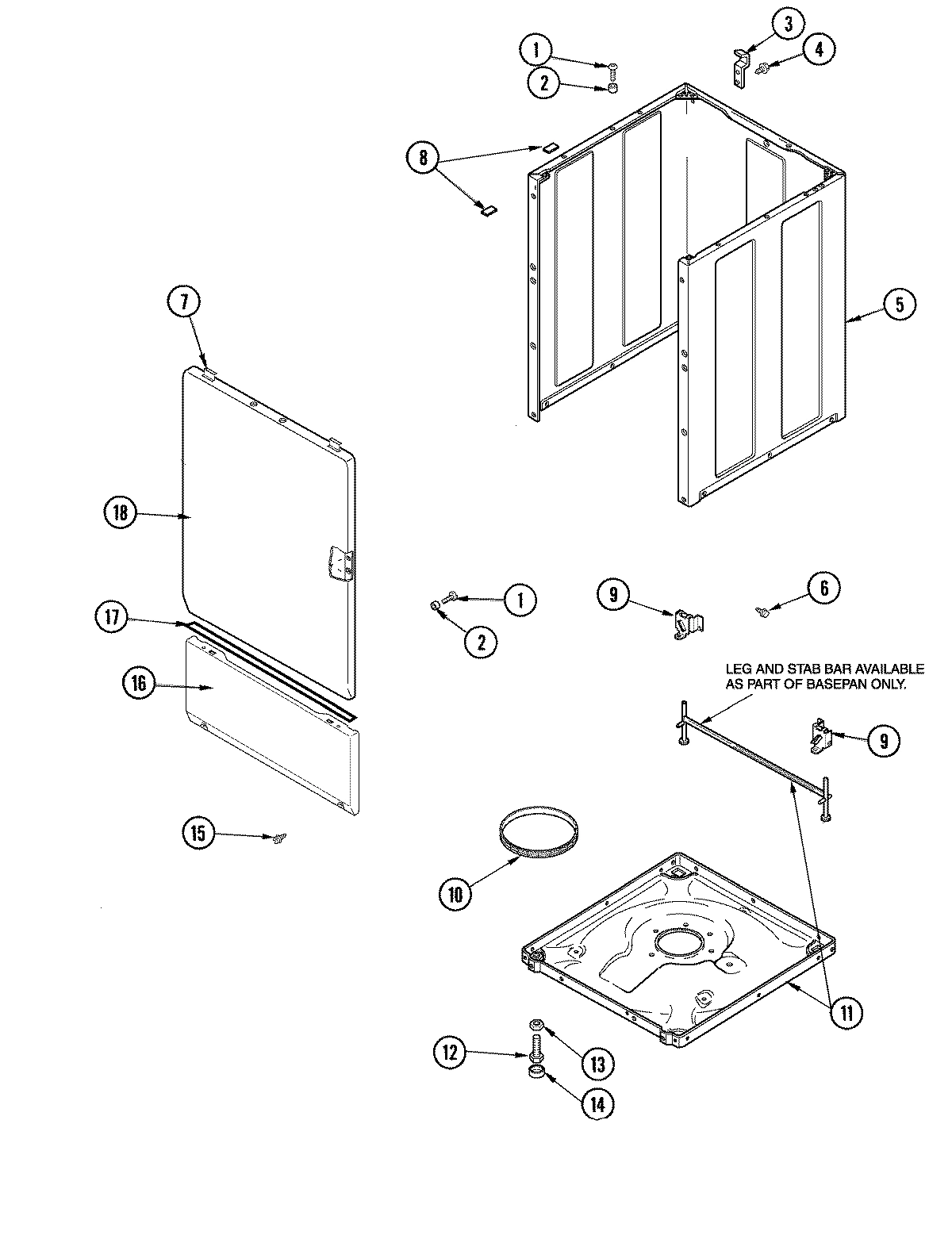

CABINET, DRYER & WASHER (WHT) WPL 40076402WP Contact Us For Availability

6

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

6

WASHER, FLAT WPL 40063201 Contact Us For Availability

6

SPRING, TALL TUB WPL 27001026 Contact Us For Availability

6

BALANCE RING WPL 27001052 Contact Us For Availability

6

BACK PANEL, HOOD/CONSOLE WPL 27001051 Contact Us For Availability

6

BUSHING, HINGE WPL 40008201 Contact Us For Availability

7

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

7

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

7

PULLEY, SPIN/AGIT (710 RPM) WPL 40047102 Contact Us For Availability

7

SWITCH, ROTARY (2 POS) WPL 22001794 Contact Us For Availability

7

HINGE, LID LEFT STOP WPL 40094002 Contact Us For Availability

7

TUB, SS INNER W/O L/F HOLES -S WPL Y2201200 Contact Us For Availability

8

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

8

WASHER WPL 40041501 Contact Us For Availability

8

ASSEMBLY, PRESSURE BULB WPL 40008501 Contact Us For Availability

8

SWITCH, TEMPERATURE (6 POS) WPL 27001059 Contact Us For Availability

8

HINGE, LID RIGHT PASS WPL 40094101 Contact Us For Availability

8

PAD, BUMPER WPL Y56128 Contact Us For Availability

9

WP22003993 Whirlpool Timer Knob Backorder WPL WP22003993 $16.21

9

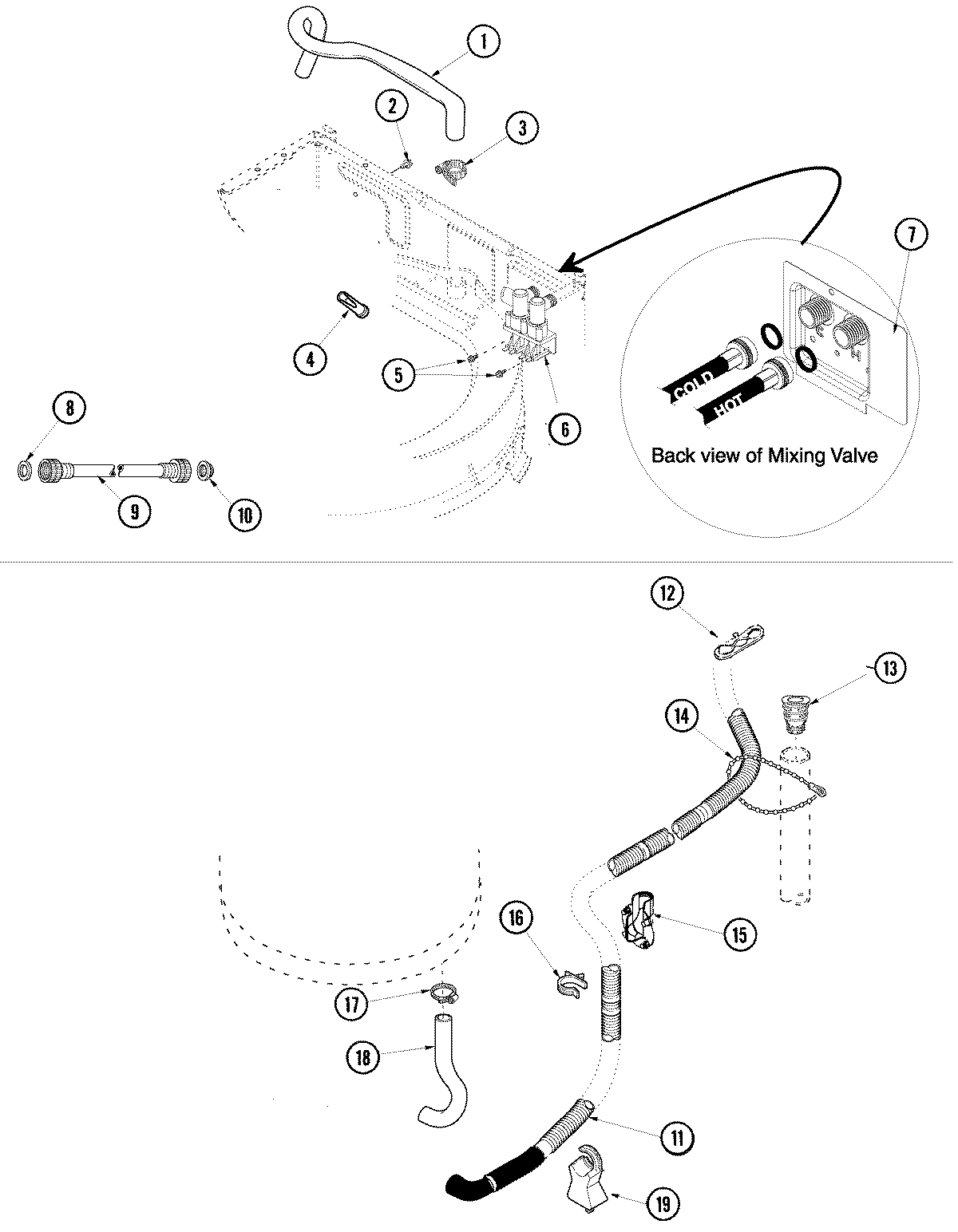

HOSE, 4` INLET WPL 337891 Contact Us For Availability

9

HOSE, INLET WPL 350874 Contact Us For Availability

9

SCREW, 1/4-20X5/8 HEX WPL 40063401 Contact Us For Availability

9

ASSEMBLY, WASH TUB S.S WPL 40000801 Contact Us For Availability

9

GROMMET WPL 40037801 Contact Us For Availability

9

CAPACITOR WPL 40084501 Contact Us For Availability

9

DISPENSER, BLEACH (GRAY) WPL 27001094 Contact Us For Availability

9

BRACKET, SELF LEVELING WPL 40031501 Contact Us For Availability

RING, FRICTION WPL 40037401 Contact Us For Availability

HELIX, PLASTIC WPL 40047402 Contact Us For Availability

PIN, LOCKING WPL 22002997 Contact Us For Availability

SKIRT, TIMER KNOB WPL 27001092 Contact Us For Availability

BRACKET,MOTOR MOUNT WPL 40015502 Contact Us For Availability

ARM, LID SWITCH WPL 40009701 Contact Us For Availability

WP40053901 Whirlpool Hose Drain In Stock WPL WP40053901 $37.04

``O`` RING WPL 257941 Contact Us For Availability

BOTTOM, OUTER TUB WPL 27001067 Contact Us For Availability

KNOB, SELECTOR (BLUE-GRAY) WPL 27001091 Contact Us For Availability

SCREW,5/16-18 X .50 WPL 40128701 Contact Us For Availability

MOUNT, MOTOR LOWER WPL 40054301 Contact Us For Availability

PANEL, TOP (WHT) WPL 27001044 Contact Us For Availability

BOTTOM, OUTER TUB WPL 40001102 Contact Us For Availability

SEAL-HEAD WPL 40015401 Contact Us For Availability

BASE & LEVELING ASSEMBLY WPL 27001084 Contact Us For Availability

22003428 Whirlpool Adjustable Leg (with Nut) In Stock WPL 22003428 $8.94

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

RETAINER, DRAIN HOSE WPL 22003814 Contact Us For Availability

SEAL NUT ASSEMBLY WPL 21001533 Contact Us For Availability

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

CAP, HINGE WPL 40102101 Contact Us For Availability

GASKET, FOAM WPL 27001222 Contact Us For Availability

40008101 Whirlpool Adapter Backorder WPL 40008101 $61.79

WP210385 Whirlpool Lock Nut Backorder WPL WP210385 $4.82

WP40004201P Whirlpool Main Bearing In Stock WPL WP40004201P $76.02

SEAL REPAIR KIT WPL 12002223 Contact Us For Availability

TRIPLE LIP SEAL/BEARING KIT WPL Y2200460 Contact Us For Availability

SPRING, COUNTERWEIGHT WPL 27001025 Contact Us For Availability

FILTER, LINT WPL 40008001 Contact Us For Availability

SWITCH, ROTARY (2 POS) WPL 27001103 Contact Us For Availability

SPRING, IDLER LEVER WPL 40061401 Contact Us For Availability

HOLDER, LID SWITCH WPL 40009801 Contact Us For Availability

WP27001006 Whirlpool Drive Belt In Stock WPL WP27001006 $35.16

WP40004001 Whirlpool Bearing Backorder WPL WP40004001 $72.51

STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability

SWITCH, MOMENTARY ROCKER (WHT) WPL 22003981 Contact Us For Availability

SCREW, TAPPING No.6B-20 WPL 40040701 Contact Us For Availability

SPRING, TALL TUB WPL Y37001124 Contact Us For Availability

FOOT, RUBBER WPL 40016001 Contact Us For Availability

RELIEF, STRAIN DRAIN WPL 40058501 Contact Us For Availability

SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability

SCREW, AGITATOR RETENTION WPL 258004 Contact Us For Availability

BOARD, ATC 3 POINT WPL 40131001 Contact Us For Availability

IDLER LEVER ASSEMBLY WPL 27001028 Contact Us For Availability

SCREW, No.12BX1/2 WPL 40034101 Contact Us For Availability

WPW10116787 Whirlpool Screw Backorder WPL WPW10116787 $13.89

CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability

PUMP ASSEMBLY WPL 27001036 Contact Us For Availability

SWITCH, LID WPL 27001095 Contact Us For Availability

PANEL, ACCESS (GRAY) WPL 37001074 Contact Us For Availability

WP3400527 Whirlpool Refrigerator Screw In Stock WPL WP3400527 $6.02

WP40045001 Whirlpool Idler Pulley In Stock WPL WP40045001 $41.98

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

SCREW, 1/4-15X3/4 HEX WPL 40064301 Contact Us For Availability

SCREW, 1/4-20 WPL 40038901 Contact Us For Availability

TAPE, FOAM WPL 40083101 Contact Us For Availability

18

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

18

PANEL, FRONT (WHT) WPL 40035401WP Contact Us For Availability

19

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

19

STAND, HOSE WPL 40044901 Contact Us For Availability

20

SCREW, 10-16X1.75 WPL 40063701 Contact Us For Availability
