Model Whirlpool NAV3330EWW WASHER – Common Parts & Diagrams

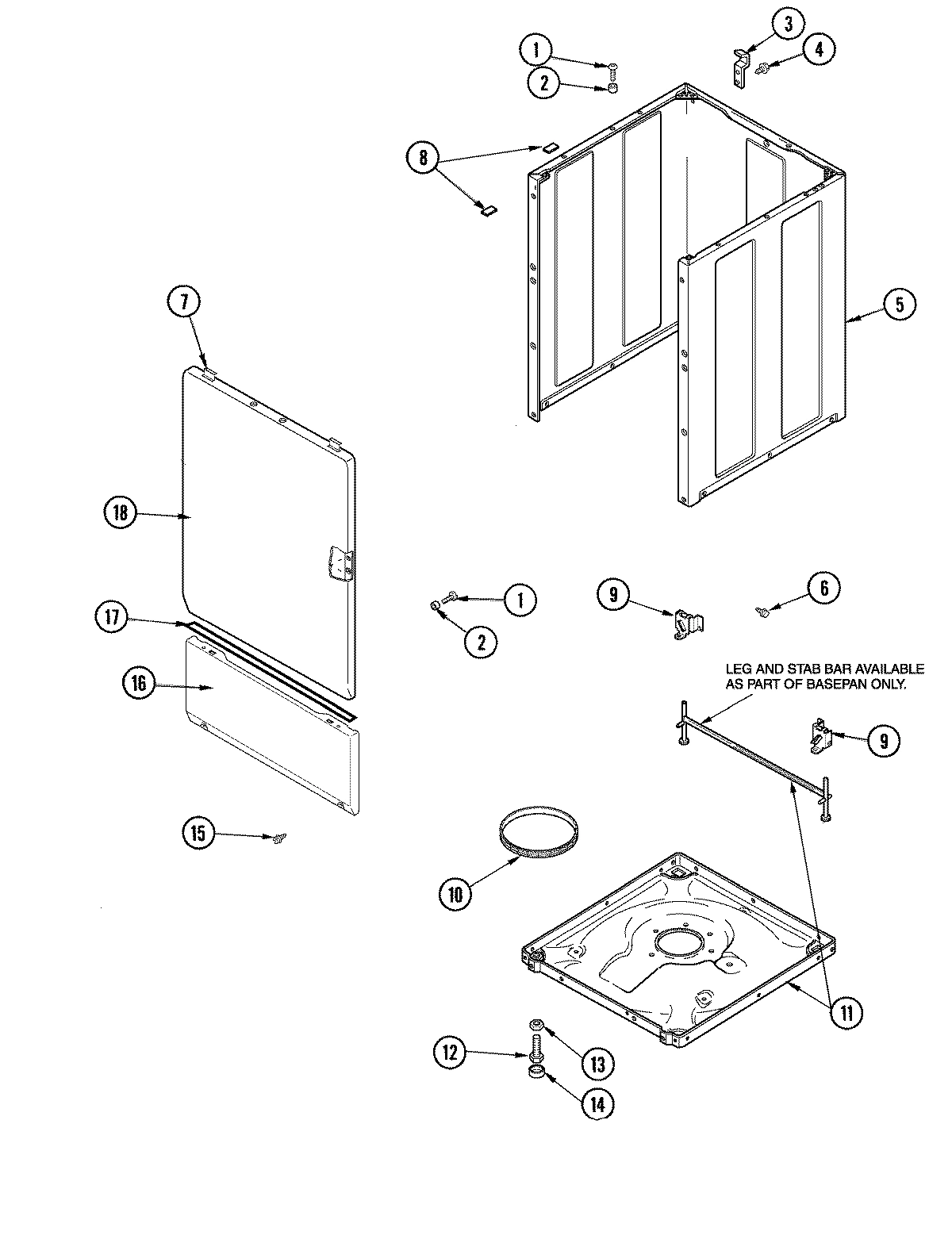

01 - CABINET & BASE
03 - MIXING VALVE AND HOSES
10 - WIRING INFORMATION
04 - MOTOR, PUMP AND IDLER ASSEMBLY
05 - SUPPLEMENTAL INFORMATION
06 - TOP AND DOOR SWITCH
07 - TRANSMISSION & BRAKE
08 - TUB, INNER & OUTER (SERIES 12)
02 - CONTROL PANEL
09 - TUBS
Common parts from model Whirlpool NAV3330EWW WASHER
1
HOSE, MIXING VALVE TO TUB WPL 27001145 Contact Us For Availability
1
SHIELD, MOTOR WPL 40112301 Contact Us For Availability
1
GUIDE, ENERGY WPL 27001205 Contact Us For Availability
1
MNL, SVC TOP LOAD WSHR WPL RS3100007 Contact Us For Availability
1
MANUAL, USE & CARE WPL Y2201045 Contact Us For Availability
1
LID (WHT W/INSTRUCTIONS) WPL 27001093 Contact Us For Availability
1
TRANSMISSION ASM (710 RPM) WPL 27001039 Contact Us For Availability
1
COVER, OUTER TUB W/GASKET WPL 27001132 Contact Us For Availability
1
CONSOLE (GRAY) WPL 27001085 Contact Us For Availability
2
HARNESS, WIRING WPL Y2201022 Contact Us For Availability
2
LID SWITCH ASSEMBLY WPL 40034901 Contact Us For Availability
2
ASSEMBLY, MILK STOOL & BEARING WPL 27001030 Contact Us For Availability
2
FACIA GROUND WIRE ASSEMBLY WPL 27001050 Contact Us For Availability
2
FACIA WPL 27001207 Contact Us For Availability
3
HINGE, TOP WPL 500003 Contact Us For Availability
3
CLAMP WPL 257867 Contact Us For Availability
3
2 SPEED MOTOR WPL 27001055 Contact Us For Availability
3
BRAKE ASSEMBLY WPL 40003103 Contact Us For Availability
3
SEAL, TUB COVER WPL 27001131 Contact Us For Availability
3
KNOB, CAP (WHT) WPL 27001087 Contact Us For Availability
4
KIT, BRAKE PAD WPL R0000014 No Longer Available
4
FLUME ASSEMBLY /WATER DIVERTER WPL 21001760 Contact Us For Availability
4
POST, ISOLATOR WPL 40053701 Contact Us For Availability
4
BUMPER WPL 40038001 Contact Us For Availability
4
TUB, PLASTIC OUTER WPL 27001147 Contact Us For Availability
4
SWITCH, PRESSURE WPL 27001203 Contact Us For Availability
5
MOUNT, MOTOR UPPER WPL 40053801 Contact Us For Availability
5
WASHER, 2 ODX.63 ID WPL 40065701 Contact Us For Availability
5
BOTTOM, OUTER TUB WPL 27001067 Contact Us For Availability
5
TIMER WPL 27001088 Contact Us For Availability
6
VALVE,MIXING-E2 WPL 40107001 Contact Us For Availability
6
BUSHING, HINGE WPL 40008201 Contact Us For Availability
6
WASHER, FLAT WPL 40063201 Contact Us For Availability
6
BACK PANEL, HOOD/CONSOLE WPL 27001051 Contact Us For Availability
6
SPRING, TALL TUB WPL 27001026 Contact Us For Availability
7
PLATE, MIXING VALUE WPL 40098801 Contact Us For Availability
7
BRACKET,MOTOR MOUNT WPL 40015502 Contact Us For Availability
7
HINGE, LID LEFT STOP WPL 40094002 Contact Us For Availability
7
PULLEY, SPIN/AGIT (710 RPM) WPL 40047102 Contact Us For Availability
7
TUB, PLASTIC INNER WPL 27001221 Contact Us For Availability
7
SCREW, 1/4-15X3/4 HEX WPL 40064301 Contact Us For Availability
7
SWITCH, ROTARY (2 POS) WPL 22001794 Contact Us For Availability
8
SPRING, COUNTERWEIGHT WPL Y2201244 Contact Us For Availability
8
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
8
MOUNT, MOTOR LOWER WPL 40054301 Contact Us For Availability
8
HINGE, LID RIGHT PASS WPL 40094101 Contact Us For Availability
8
WASHER WPL 40041501 Contact Us For Availability
8
SWITCH, TEMPERATURE (4 POS) WPL 27001197 Contact Us For Availability
9
HOSE, 4` INLET WPL 337891 Contact Us For Availability
9
HOSE, INLET WPL 350874 Contact Us For Availability
9
DISPENSER, BLEACH (GRAY) WPL 27001094 Contact Us For Availability
9
SCREW, 1/4-20X5/8 HEX WPL 40063401 Contact Us For Availability
9
TUB, PLASTIC INNER WPL 27001150 Contact Us For Availability
10
RING, FRICTION WPL 40037401 Contact Us For Availability
10
SPRING, IDLER LEVER WPL 40061401 Contact Us For Availability
10
ARM, LID SWITCH WPL 40009701 Contact Us For Availability
10
HELIX, PLASTIC WPL 40047402 Contact Us For Availability
10
ASSEMBLY, PRESSURE BULB WPL 40008501 Contact Us For Availability
10
OUTER TUB, PLASTIC (LARGE) WPL 27001227 Contact Us For Availability
10
PIN, LOCKING WPL 22002997 Contact Us For Availability
10
SKIRT, TIMER KNOB WPL 27001092 Contact Us For Availability
11
DRAIN HOSE EXTENSION ACCESSORY WPL 12001585 Contact Us For Availability
11
BASE & LEVELING ASSEMBLY WPL 27001084 Contact Us For Availability
11
CLIP, WIRE WPL 40082801 Contact Us For Availability
11
PANEL, TOP (WHT W/L BRACKET) WPL 27001144 Contact Us For Availability
11
``O`` RING WPL 257941 Contact Us For Availability
11
GROMMET WPL 40037801 Contact Us For Availability
11
BOTTOM, OUTER TUB WPL 40001102 Contact Us For Availability
11
SEAL-HEAD WPL 40015401 Contact Us For Availability
11
SCREW,5/16-18 X .50 WPL 40128701 Contact Us For Availability
11
KNOB, SELECTOR (BLUE-GRAY) WPL 27001091 Contact Us For Availability
12
RETAINER, DRAIN HOSE WPL 22003814 Contact Us For Availability
12
IDLER LEVER ASSEMBLY WPL 27001028 Contact Us For Availability
12
CAP, HINGE WPL 40102101 Contact Us For Availability
12
SEAL NUT ASSEMBLY WPL 21001533 Contact Us For Availability
12
DISPENSER, FABRIC (GRAY) WPL 27001097 Contact Us For Availability
12
GASKET, FOAM WPL 27001222 Contact Us For Availability
12
SWITCH, MOMENTARY ROCKER (WHT) WPL 22003981 Contact Us For Availability
13
SCREW, 10-16X1.75 WPL 40063701 Contact Us For Availability
13
HOLDER, LID SWITCH WPL 40009801 Contact Us For Availability
13
TRIPLE LIP SEAL/BEARING KIT WPL 12002140 Contact Us For Availability
13
SEAL REPAIR KIT WPL 12002223 Contact Us For Availability
13
CONTROL, ATC BOARD WPL 27001208 Contact Us For Availability
13
FILTER, LINT WPL 27001148 Contact Us For Availability
14
FOOT, RUBBER WPL 40016001 Contact Us For Availability
14
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
14
PUMP ASSEMBLY WPL 27001036 Contact Us For Availability
14
CORD, POWER (LEAD-IN) WPL 27001142 Contact Us For Availability
14
SCREW, TAPPING No.6B-20 WPL 40040701 Contact Us For Availability
14
SPRING, TALL TUB WPL Y37001124 Contact Us For Availability
14
SCREW, AGITATOR RETENTION WPL 258004 Contact Us For Availability
15
RELIEF, STRAIN DRAIN WPL 40058501 Contact Us For Availability
15
SCREW, No.12BX1/2 WPL 40034101 Contact Us For Availability
15
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
16
PANEL, ACCESS (GRAY) WPL 37001074 Contact Us For Availability
16
CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability
16
SWITCH, LID WPL 27001095 Contact Us For Availability
16
BALANCE RING ASSEMBLY WPL 27001149 Contact Us For Availability
17
TAPE, FOAM WPL 40083101 Contact Us For Availability
17
WASHER, WAVE WPL Y504082 Contact Us For Availability
18
PANEL, FRONT (WHT) WPL 40035401WP Contact Us For Availability
18
WASHER WPL 40054701 Contact Us For Availability
19
STAND, HOSE WPL 40044901 Contact Us For Availability
19
SCREW, 1/4-20 WPL 40038901 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003504 Contact Us For Availability
× ![]()
