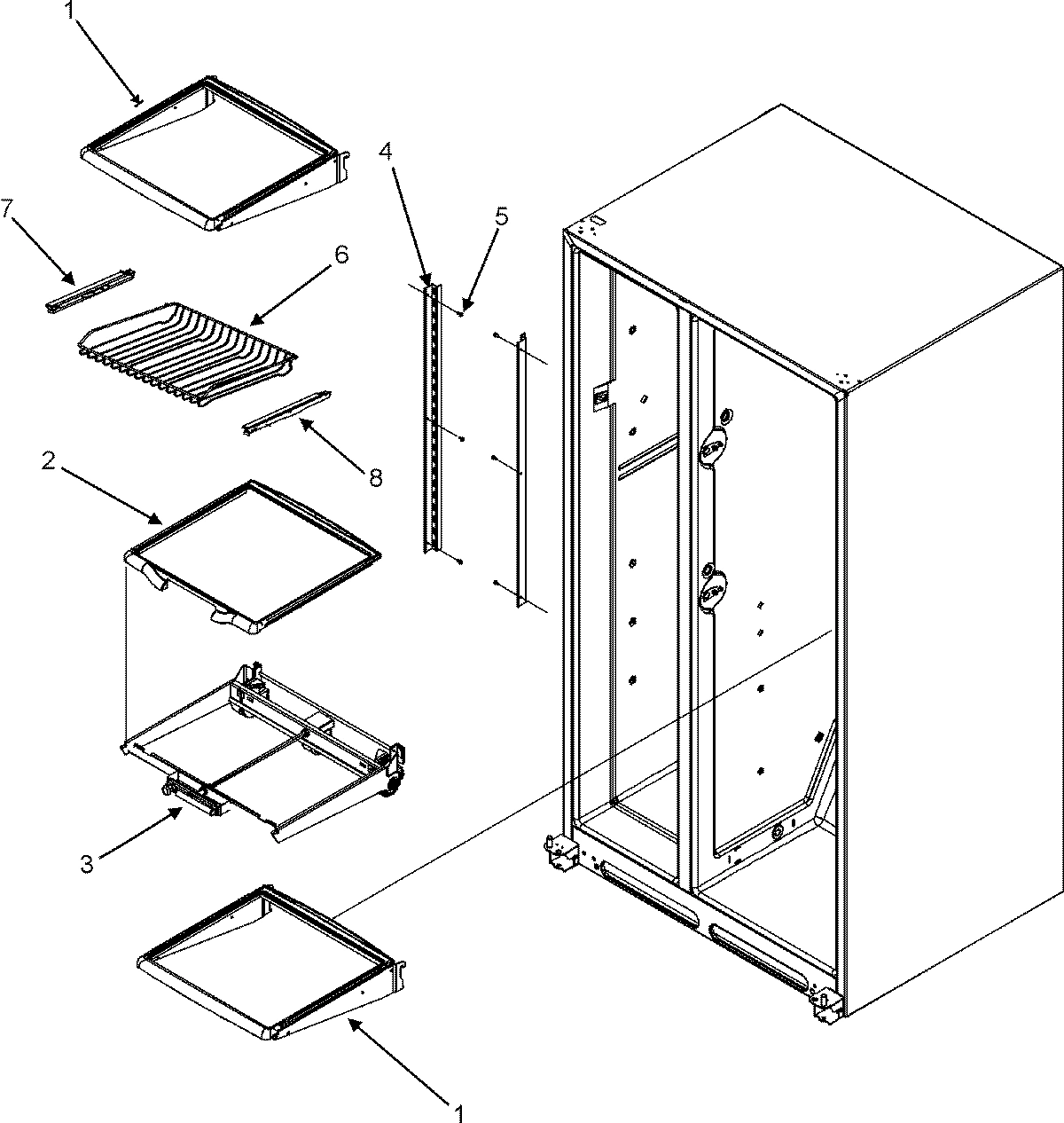

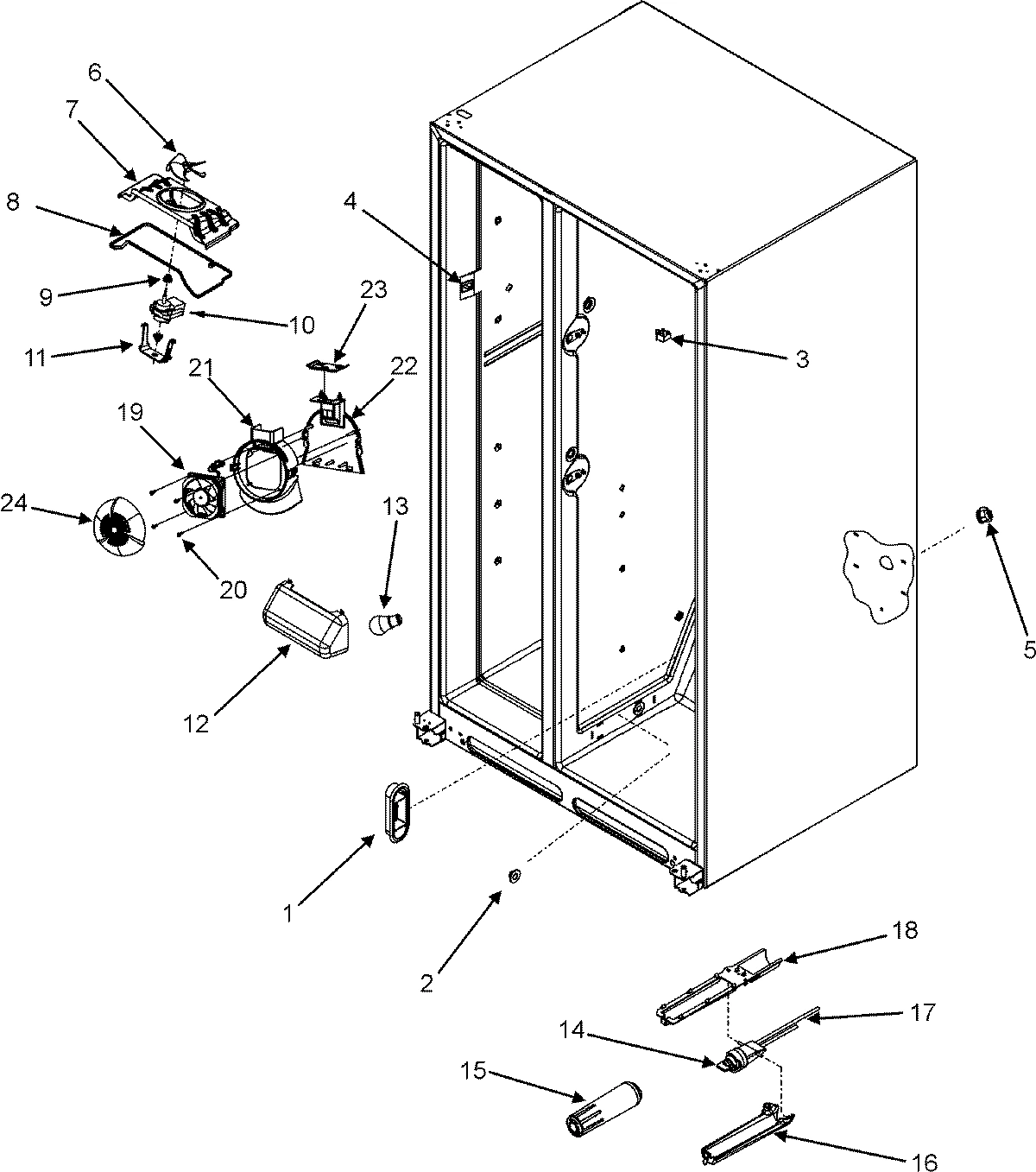

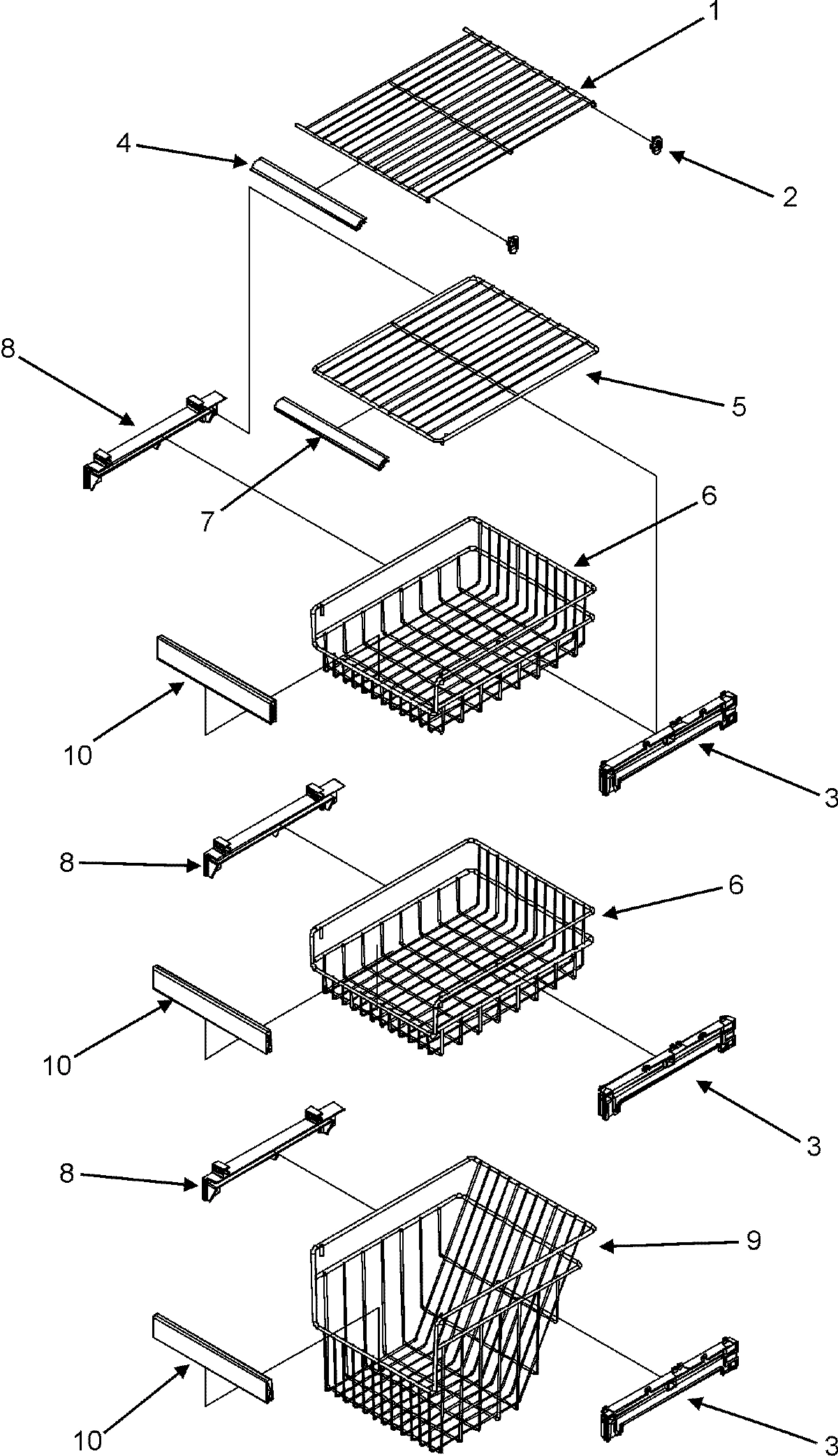

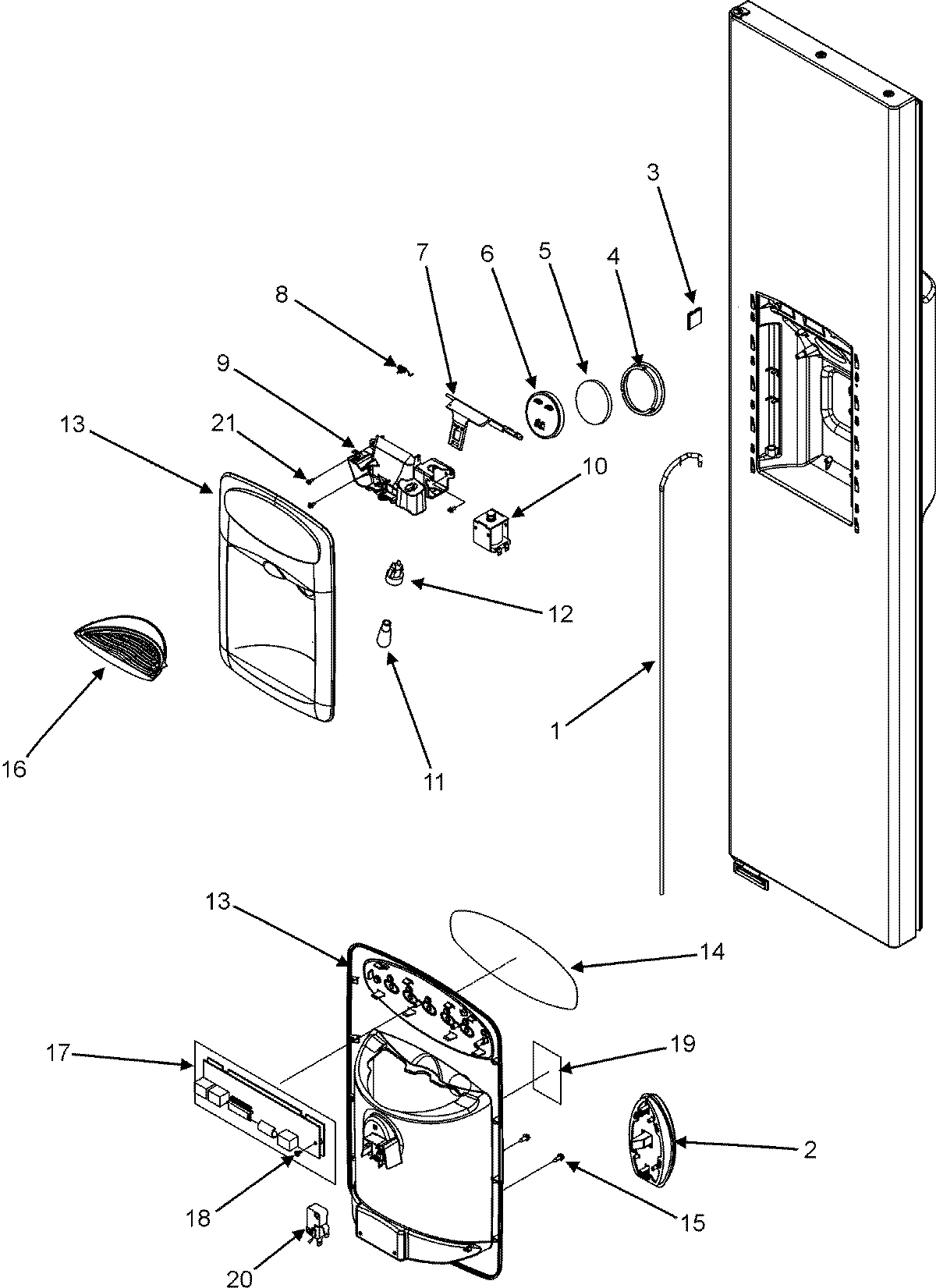

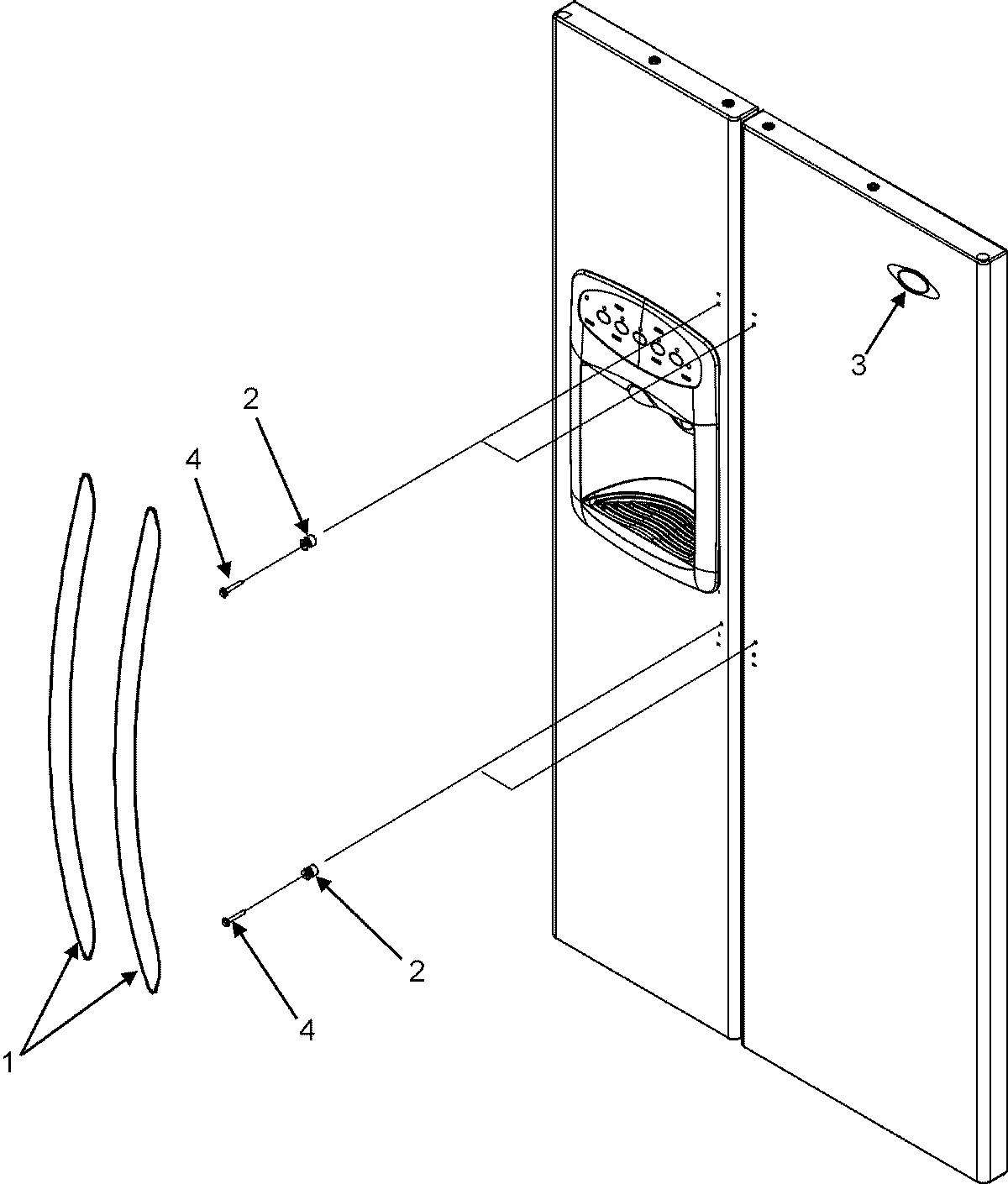

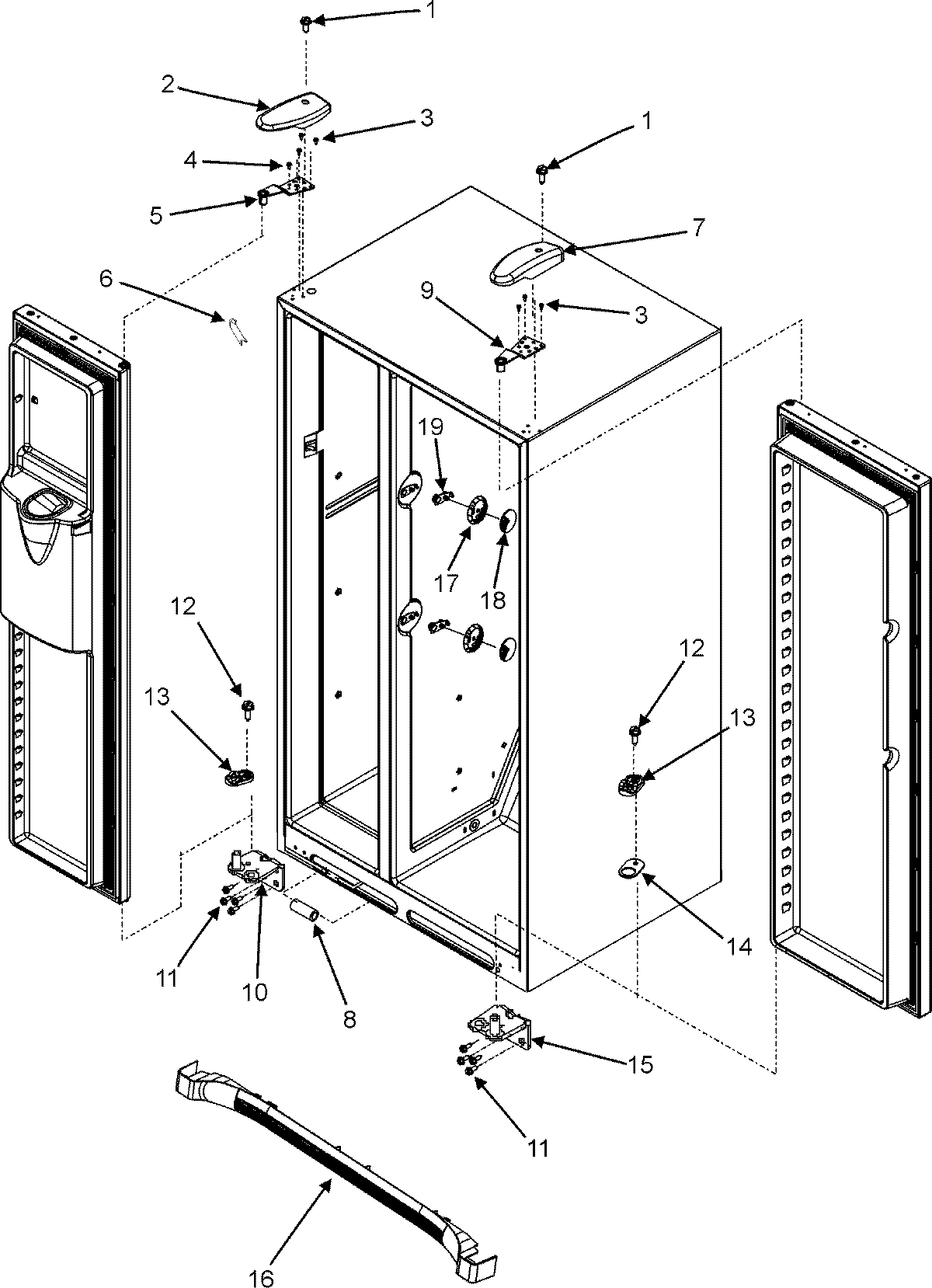

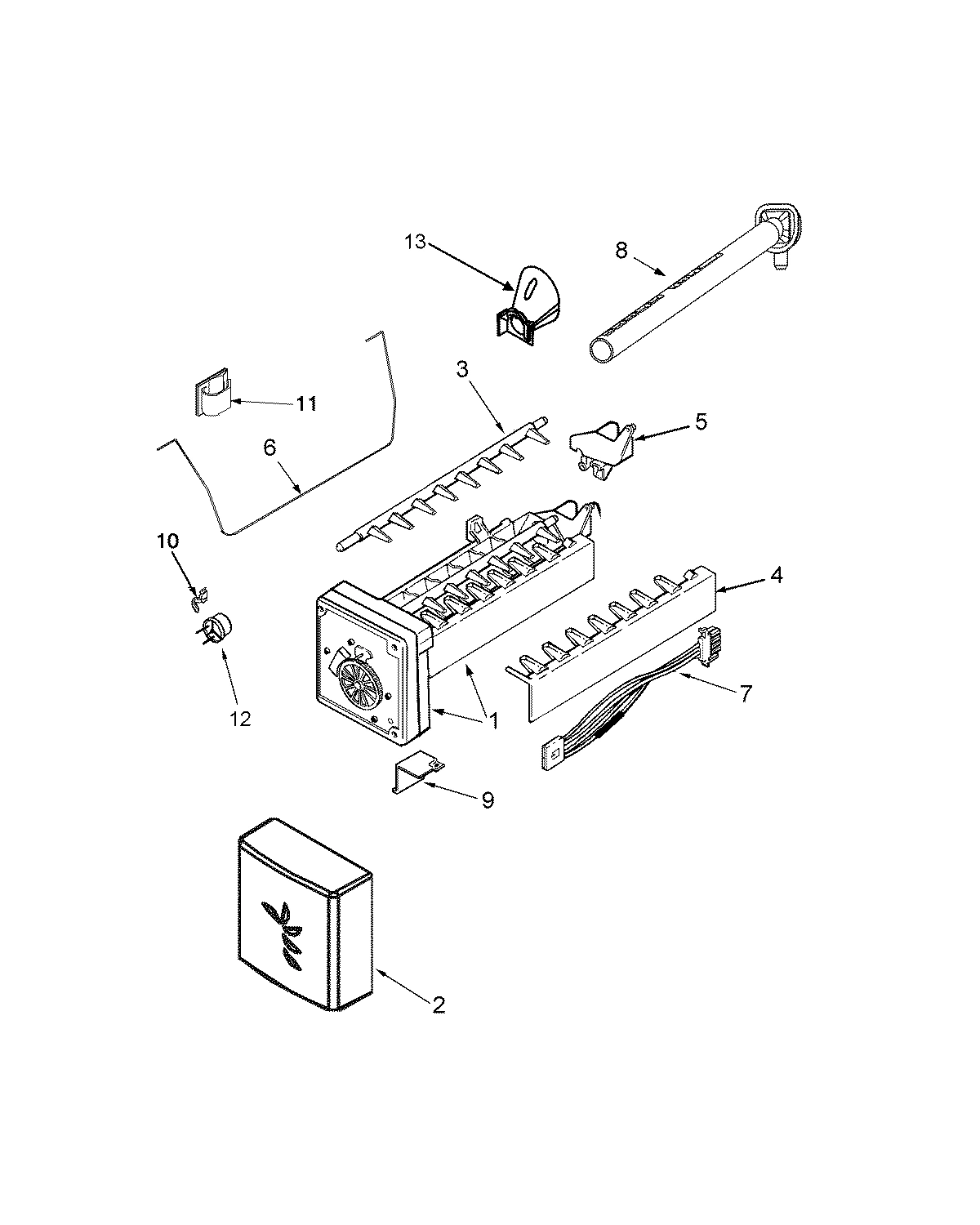

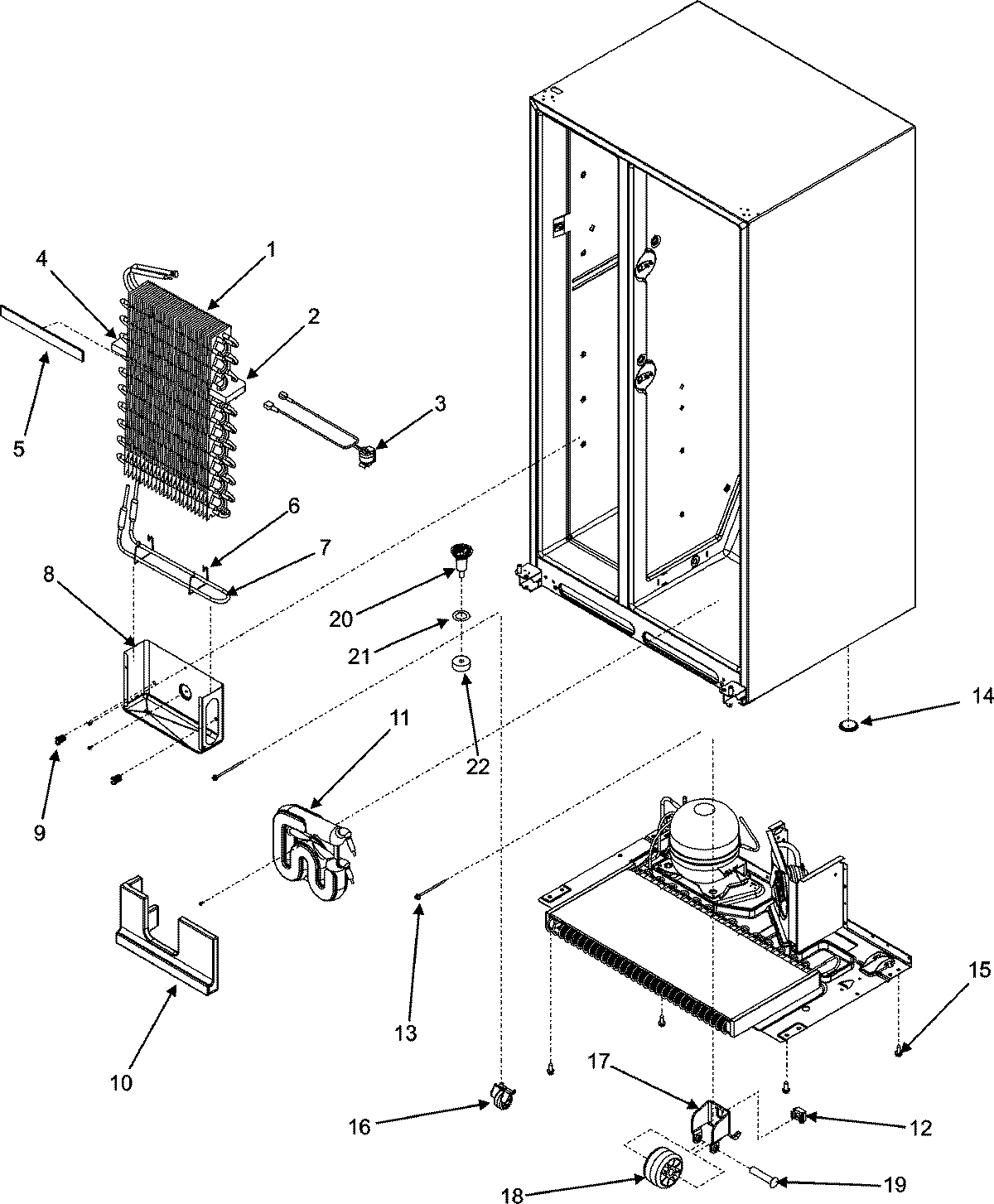

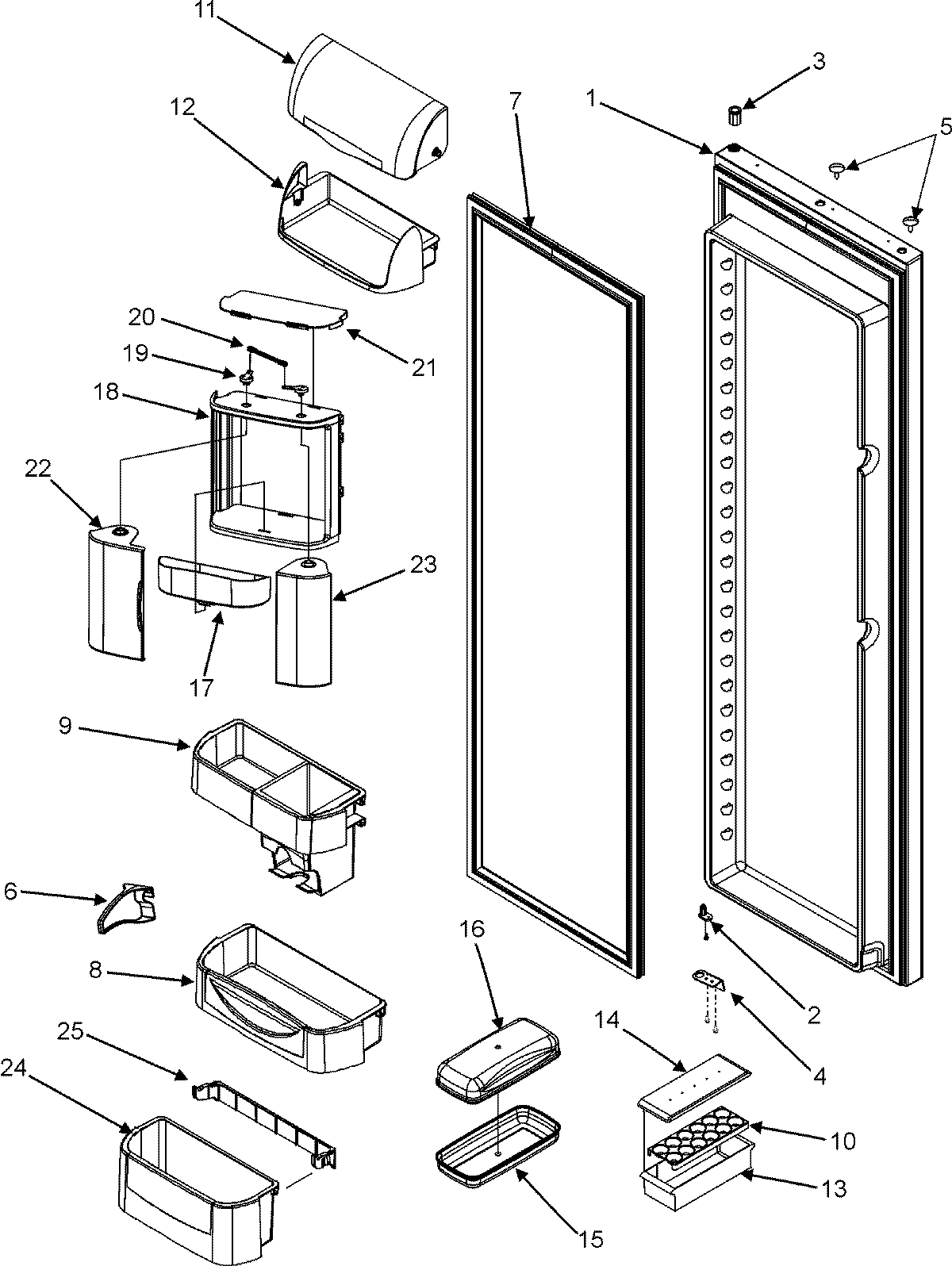

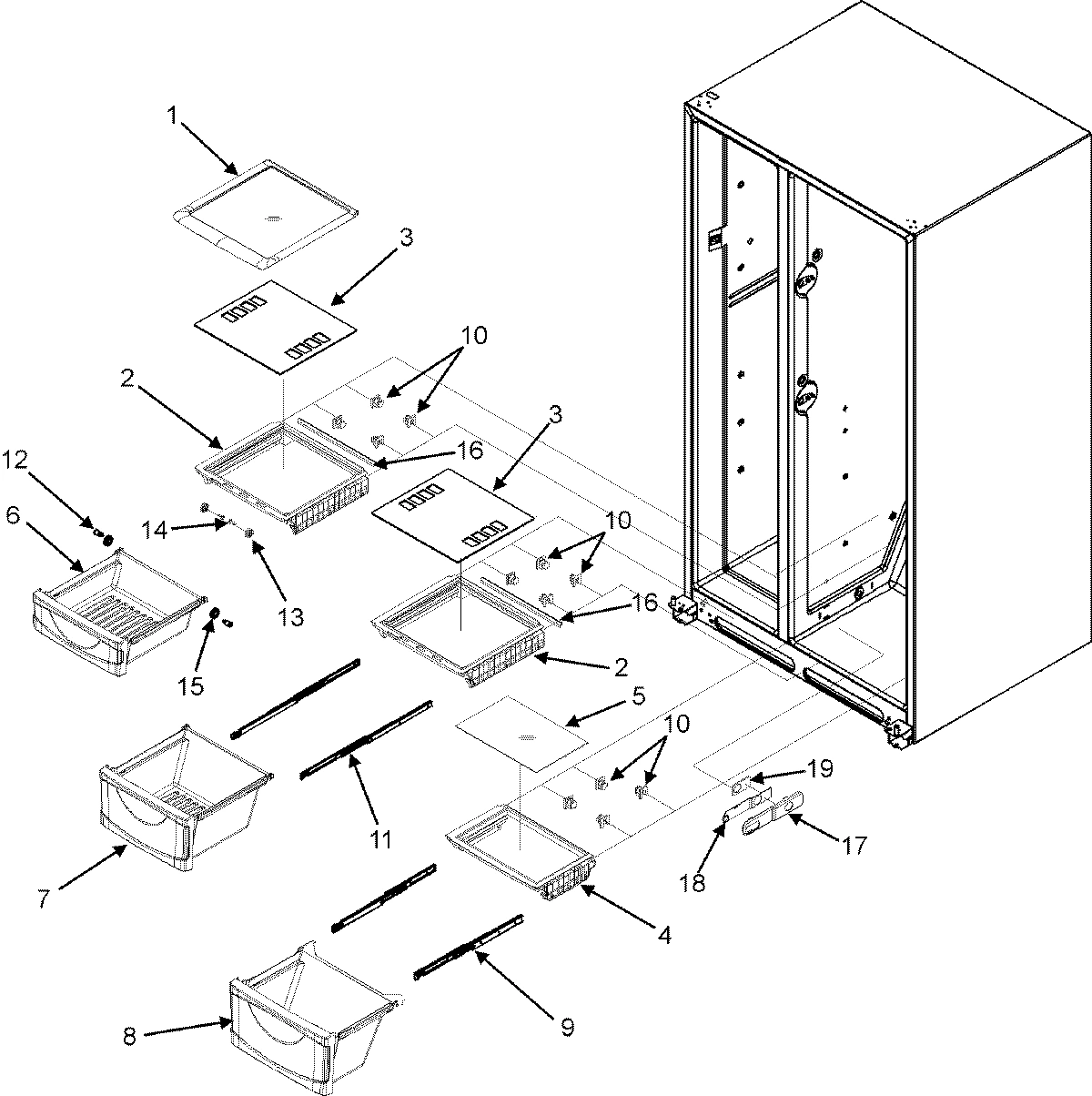

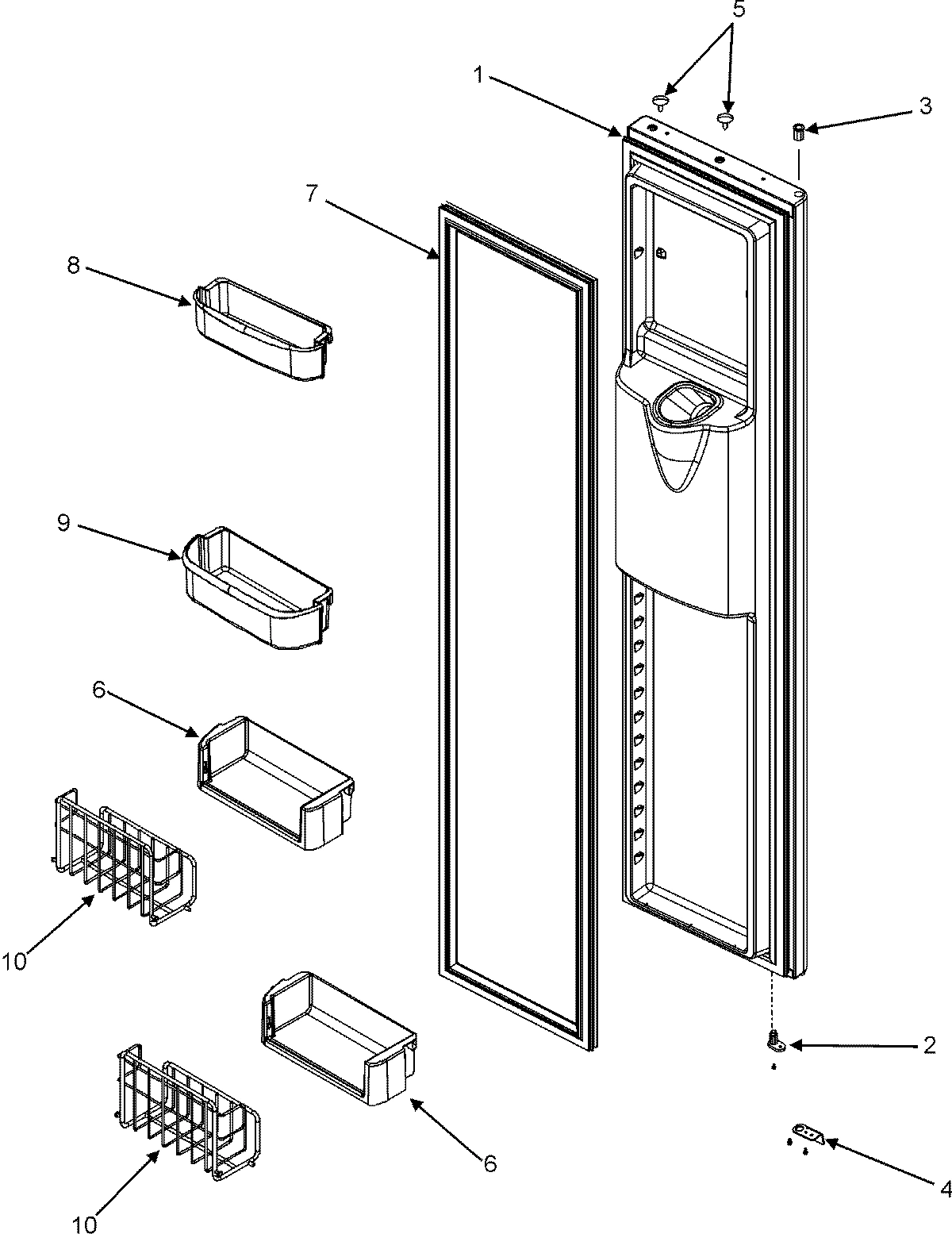

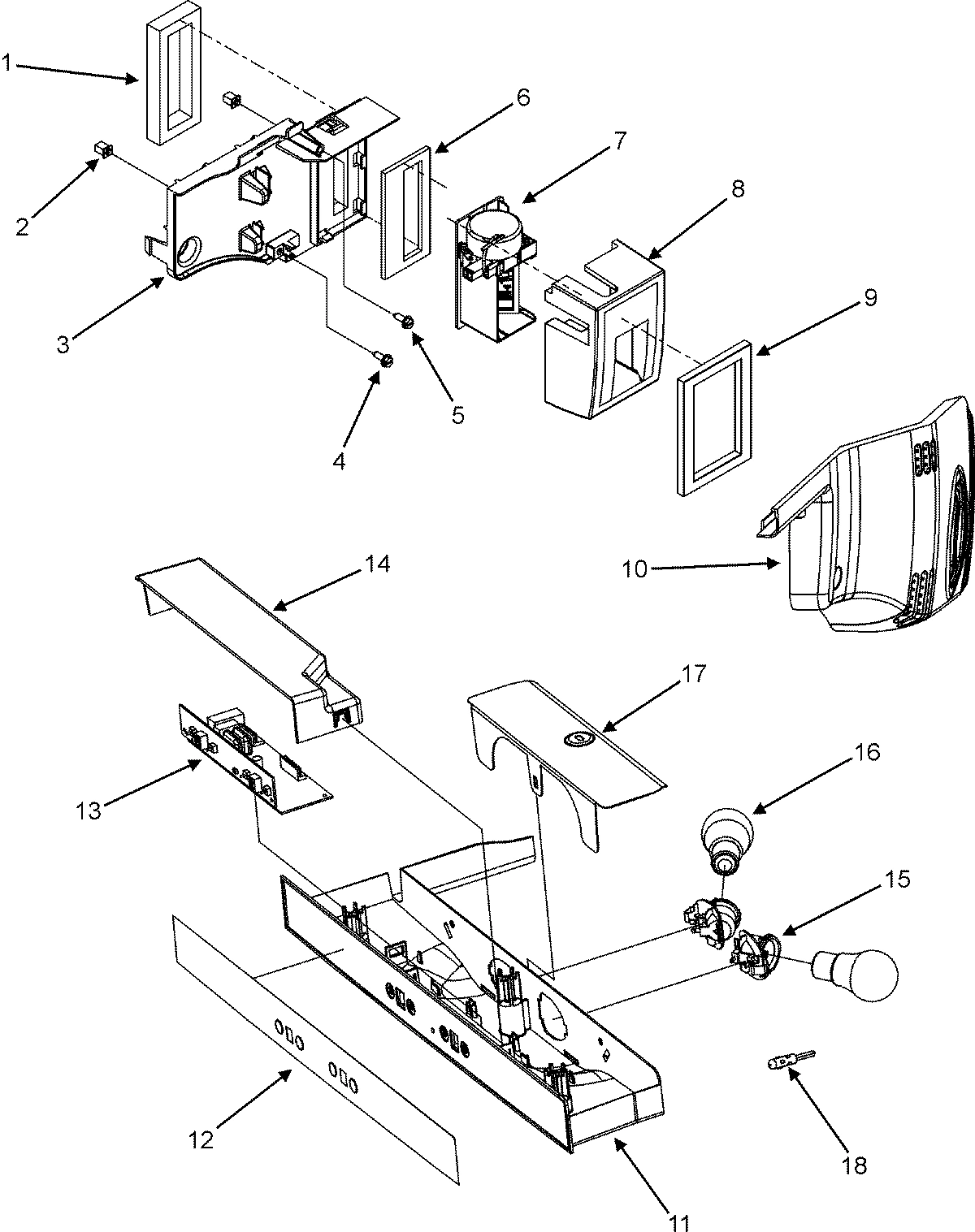

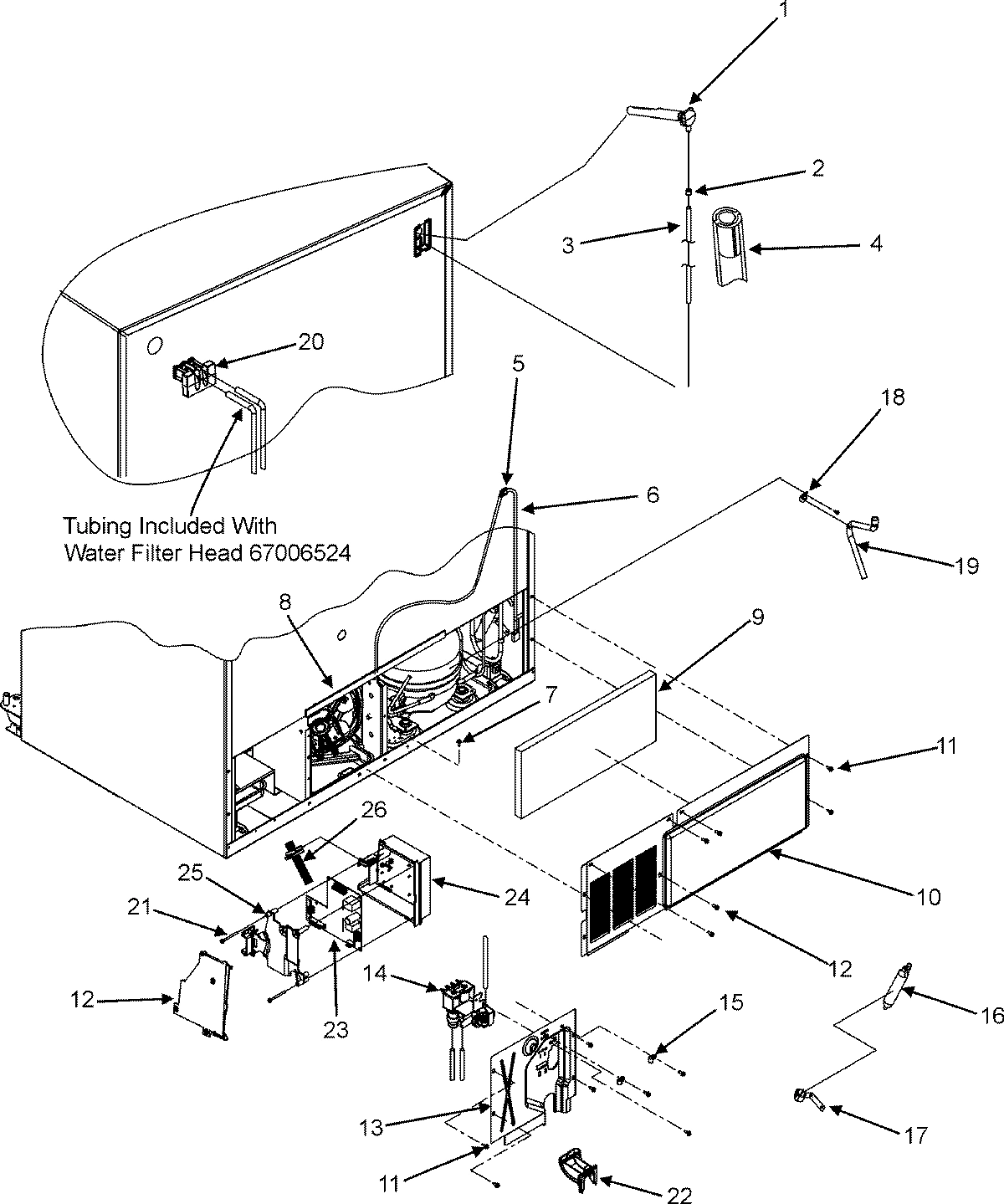

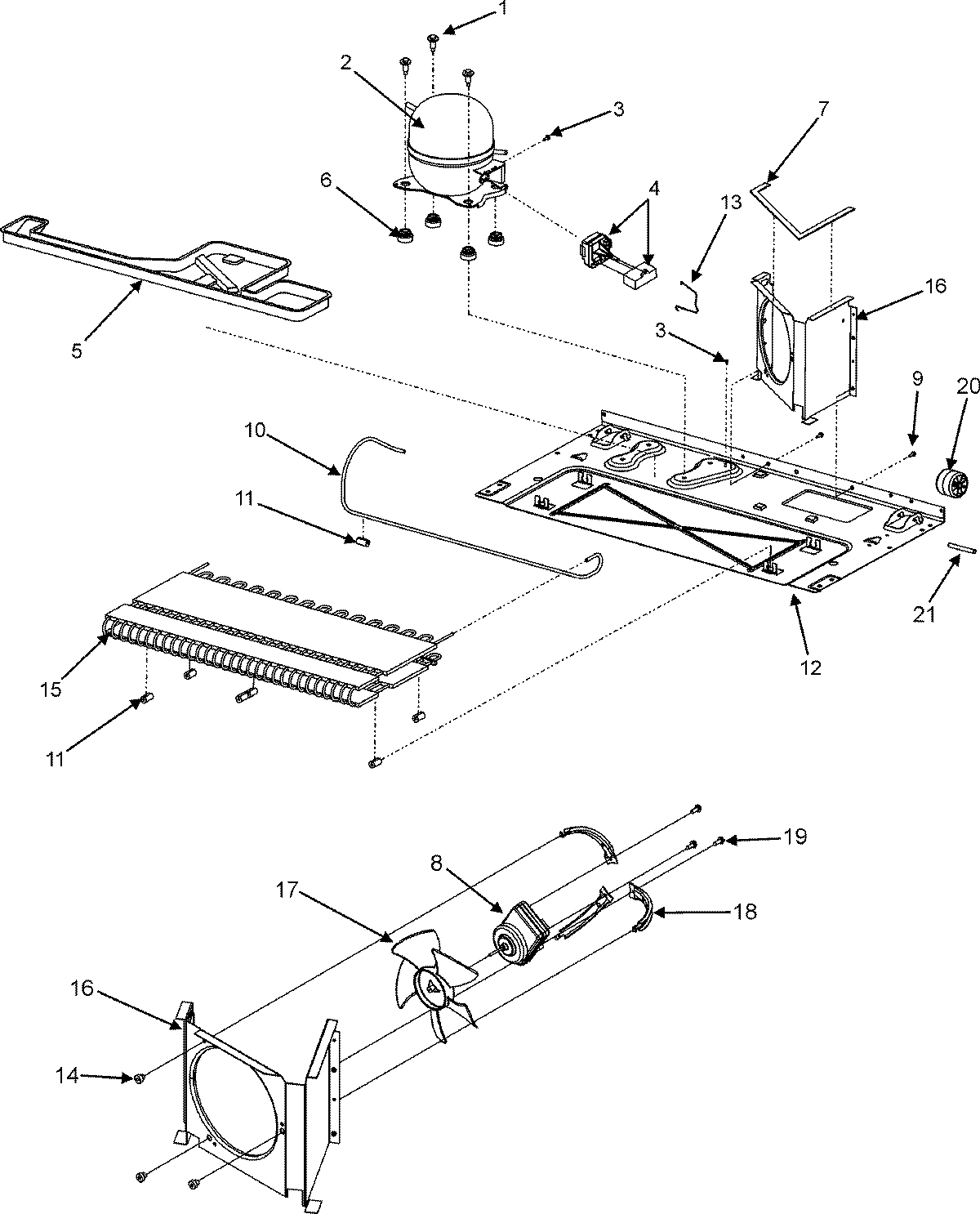

Model Whirlpool MSD2660KGB REFRIGERATOR – Common Parts &amp; Diagrams

1

67004938 Whirlpool Refrigerator Waterline Ass Backorder WPL 67004938 $96.29

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

1

WP67005959 Whirlpool Refrigerator Ice Bucket Backorder WPL WP67005959 $181.58

1

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

1

EVAP KIT (SXS) WPL 12001940 Contact Us For Availability

1

DOOR ASSY., FRZ. FOAM (BLK) WPL 67006539 Contact Us For Availability

1

SHELF, GLIDE WPL 67004242 Contact Us For Availability

1

SHELF, CRISPER TOP WPL 67004130 Contact Us For Availability

1

DOOR ASSY., REF. FOAM (BLK) WPL 67006537 Contact Us For Availability

1

SHELF, UPR FRZ. WPL 67004354 Contact Us For Availability

1

MANUAL, USE & CARE WPL 12842123 Contact Us For Availability

1

GASKET, DAMPER WPL 67004031 Contact Us For Availability

1

GRILLE, RETURN AIR WPL 12634801 Contact Us For Availability

2

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

2

WP67004531 Whirlpool Refrigerator Frame Backorder WPL WP67004531 $139.91

2

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.15

2

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

2

CLOSURE, DOOR (BLK) WPL 67006134 Contact Us For Availability

2

SHELF, ELEVATOR WPL 67004243 Contact Us For Availability

2

BLOCK, AIR COIL (RT) WPL 12590102 Contact Us For Availability

2

COVER, TOP HINGE (LT-BLK) WPL 67003912 Contact Us For Availability

2

CLOSURE, DOOR (BLK) WPL 67006677 Contact Us For Availability

2

SUPPORT, FRZ SHELF WPL C8973801 Contact Us For Availability

2

TECH SHT, SXS WPL 16026985 Contact Us For Availability

2

PLUG, AIR TUNNEL WPL 67005933 Contact Us For Availability

2

ACTR PAD FRAME ASSY. (BLK) WPL 12598902B Contact Us For Availability

2

ASSY, IM ARM/WIRE WPL 12671401 Contact Us For Availability

3

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $49.78

3

W11291138 Whirlpool Refrigerator Door Switch In Stock WPL W11291138 $25.73

3

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

3

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

3

AGITATOR, ICE WPL 10114401 Contact Us For Availability

3

THERMOSTAT, DEFROST WPL 67005363 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 12395501B Contact Us For Availability

3

FRAME ASSY., ELEVATOR SHELFx WPL 67005650 Contact Us For Availability

3

BARRIER, CRISPER SHELF WPL 67004484 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 67004976 Contact Us For Availability

3

RAIL, BASKET (RT) WPL 67006576 Contact Us For Availability

3

TAG, ENERGY WPL 12853484 Contact Us For Availability

3

BRACKET, ELEC CONTROL WPL 67004447 Contact Us For Availability

3

CLIP, CORD WPL M0104102 Contact Us For Availability

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

4

W11214483 Whirlpool Refrigerator Screw Backorder WPL W11214483 $8.89

4

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

4

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

4

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

4

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

STOP, DOOR (BLK) WPL 67006518 Contact Us For Availability

4

SCREW WPL 67006672 Contact Us For Availability

4

RAIL, SHELF ADJ WPL 67003838 Contact Us For Availability

4

FRAME, MEAT SHELF WPL 67004247 Contact Us For Availability

4

BLOCK, AIR COIL (LT) WPL 12590101 Contact Us For Availability

4

STOP, DOOR (BLK) WPL 67006516 Contact Us For Availability

4

TRIM, FRZ SHELF WPL 67004181 Contact Us For Availability

4

SVC MAN, SXS WPL 16025628 Contact Us For Availability

4

SEAL, ICE CHUTE WPL 12665101 Contact Us For Availability

5

67005375 Whirlpool Refrigerator Glide, Freeze Backorder WPL 67005375 $218.74

5

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

5

INLET, WATER WPL 951001 Contact Us For Availability

5

PLUG, BUTTON (BLK) WPL M0311604 Contact Us For Availability

5

PAN, DRAIN WPL 67004848 Contact Us For Availability

5

GLASS, MEAT SHELF WPL 67004132 Contact Us For Availability

5

GASKET, FOAM WPL 67002226 Contact Us For Availability

5

HINGE, TOP (LT-BLK) WPL 67005831 Contact Us For Availability

5

SHELF, LWR FRZ. WPL 67004690 Contact Us For Availability

5

SCREW WPL M0216539 Contact Us For Availability

5

INSUL, CHUTE DOORxx WPL 12563401 Contact Us For Availability

6

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

6

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $8.89

6

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

6

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

6

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $26.20

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

6

IM ARM/WIRE ASSY WPL 12671401Q Contact Us For Availability

6

FRAME, TILT BASKET WPL 67004475 Contact Us For Availability

6

RACK, CAN WPL 12565901 Contact Us For Availability

6

PAN, SM CRISPER WPL 67005819 Contact Us For Availability

6

SNUGGER, DOOR SHELF WPL 67004564 Contact Us For Availability

6

BASKET, SM FZ WPL 67005151 Contact Us For Availability

6

GASKET, DAMPER WPL 12582801 Contact Us For Availability

7

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

7

W10133491 Whirlpool Refrigerator Gasket Backorder WPL W10133491 $231.22

7

W10840101 Whirlpool Refrigerator FIP Gasket Backorder WPL W10840101 $231.26

7

WP67004188 Whirlpool Heater Defrost Assembly In Stock WPL WP67004188 $86.65

7

WP67006249 Whirlpool Refrigerator Damper In Stock WPL WP67006249 $274.95

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

7

WPW10146386 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10146386 $95.20

7

GLIDE, CAN RACK (RT) WPL 12579601 Contact Us For Availability

7

PAN, LG CRISPER WPL 67005815 Contact Us For Availability

7

COVER, TOP HINGE (RT-BLK) WPL 67003913 Contact Us For Availability

7

TRIM, BASKET/SHELF WPL 12314101 Contact Us For Availability

7

SHROUD, EVAP WPL 67004253 Contact Us For Availability

7

HINGE, ICE CHUTE WPL 67004119 Contact Us For Availability

7

GLIDE, FRZ. (RT) WPL 67004323 Contact Us For Availability

8

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

8

WP12565502 Whirlpool Refrigerator Spring Backorder WPL WP12565502 $5.99

8

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

8

WP67003576 Whirlpool Refrigerator Fill Tube E Backorder WPL WP67003576 $41.48

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

8

BUCKET, UPR FZ DR WPL 67004772 Contact Us For Availability

8

GLIDE, CAN RACK (LT) WPL 12579602 Contact Us For Availability

8

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

8

PAN, MEAT WPL 67005752 Contact Us For Availability

8

TRAY, EVAP DRIP WPL 12558101WD Contact Us For Availability

8

BUCKET ASSY., REF. DOOR WPL 67004229 Contact Us For Availability

8

RAIL, BASKET (LT) WPL 67006188 Contact Us For Availability

8

INSUL, DAMPER WPL 67006522 Contact Us For Availability

8

GASKET WPL 67001508 Contact Us For Availability

8

GASKET, MC BACK WPL B5759649 Contact Us For Availability

8

BACK, INNER FZ WPL 67005554 Contact Us For Availability

9

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

9

WP67006534 Whirlpool Refrigerator Ice Cube Ch Backorder WPL WP67006534 $87.30

9

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

BUCKET, LWR FZ DR WPL 12557501 Contact Us For Availability

9

GLIDE, MEAT FRAME (W/BUMPER) WPL 67005898 Contact Us For Availability

9

CLIP, EVAPORATOR WPL 10623003 Contact Us For Availability

9

DISPENSER ASSY., CAN WPL 67007025 Contact Us For Availability

9

BASKET, LOWER FZ WPL 67004463 Contact Us For Availability

9

GROMMET, SCREW WPL M0580205 Contact Us For Availability

9

GASKET, CONTROL COVER WPL 67006495 Contact Us For Availability

9

COVER, SUPPLY AIR WPL 12583101 Contact Us For Availability

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $7.14

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $90.37

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

COVER, MC BACK WPL 67006101 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

BASKET, TILT OUT WPL 67005630 Contact Us For Availability

BLOCK, WATER TANK WPL 67004309 Contact Us For Availability

HINGE, BOTTOM (LT-BLK) WPL 67006685 Contact Us For Availability

TRAY, EGG WPL 10436506 Contact Us For Availability

TRIM, FZ BASKET WPL 67004252 Contact Us For Availability

COVER, ELEC CONTROL WPL 67004400 Contact Us For Availability

SOLENOID WPL 12575401 Contact Us For Availability

DUCT, QUICK ICE 26 WPL 67003578 Contact Us For Availability

67005620 Whirlpool Refrigerator Glide CRI Backorder WPL 67005620 $227.37

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.85

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

HOUSING, CONTROL WPL 67005478 Contact Us For Availability

SCREW WPL 67006491 Contact Us For Availability

SCREW WPL M0213128 Contact Us For Availability

KIT, WATER TANK WPL R0131625 Contact Us For Availability

DOOR, DAIRY WPL 67001325 Contact Us For Availability

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

WP67003226 Whirlpool Motor Auger Backorder WPL WP67003226 $244.40

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

PAN, BASE WPL 67005889 Contact Us For Availability

PIN, ROLLER WPL 67004174 Contact Us For Availability

TRAY, DAIRY WPL 67002304 Contact Us For Availability

OVERLAY WPL 67005553 Contact Us For Availability

SHIELD, CRISPER LIGHT WPL 67001507 Contact Us For Availability

SOCKET, LIGHT WPL 12617501 Contact Us For Availability

COVER, HV BOX WPL 67005421 Contact Us For Availability

HARNESS, AUGER MOTOR WPL 67005555 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

STRAP, BALE WPL 12576801 Contact Us For Availability

ROLLER, CRISPER WPL 67004169 Contact Us For Availability

CLOSURE, DOOR (BLK) WPL 67006493 Contact Us For Availability

BIN, UTILITY WPL 10423131 Contact Us For Availability

FACADE (BLK) WPL 67005353 Contact Us For Availability

COVER, WATER VALVE WPL 67004098 Contact Us For Availability

COVER, AUGER MOTOR WPL 12561701 Contact Us For Availability

67006692 Whirlpool Refrigerator Screw Backorder WPL 67006692 $6.84

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

WP67005716 Whirlpool Refrigerator Shim Backorder WPL WP67005716 $4.82

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $140.78

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

LID, UTILITY WPL 10436404 Contact Us For Availability

COVER, CONTROL BOARD WPL 67004750 Contact Us For Availability

PLUG, BYPASS WPL 67003146 Contact Us For Availability

KEYBOARD, 6B MEMBRANE (BLK) WPL 67005165 Contact Us For Availability

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $36.01

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $65.34

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $7.06

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $240.21

BLOCK-EPS COND WPL 67002235 Contact Us For Availability

ROLLER, PAN WPL 67004133 Contact Us For Availability

SCREW WPL 67006573 Contact Us For Availability

HINGE, BOTTOM (RT-BLK) WPL 67006686 Contact Us For Availability

TRAY, BUTTER WPL 67004404 Contact Us For Availability

SCREW WPL 67006682 Contact Us For Availability

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $63.55

WP67006687 Whirlpool Refrigerator Front Grill In Stock WPL WP67006687 $53.21

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

WPM0223101 Whirlpool Refrigerator Nut Backorder WPL WPM0223101 $4.82

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

SEAL, CRISPER FRAME (REAR) WPL 67004249 Contact Us For Availability

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

LID, BUTTER TRAY WPL 67004405 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $102.41

WPW10204681 Whirlpool Refrigerator Electronic Backorder WPL WPW10204681 $268.02

HOUSING, TEMP. CONTROL WPL 67004175 Contact Us For Availability

CONTROL, CHILLER WPL 67002225 Contact Us For Availability

TRAY, CHILLER WPL 67002296 Contact Us For Availability

REFLECTOR, LIGHT WPL 67005038 Contact Us For Availability

CLIP, DRIER WPL 10547002 Contact Us For Availability

SHIELD, FZ LIGHT WPL 67004433 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.52

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

SLIDE, TEMP. CONTROL WPL 67004176 Contact Us For Availability

GRILLE, CHILLER CONTROL WPL 67006837 Contact Us For Availability

FRAME, LARGE CHILLER WPL 67002294 Contact Us For Availability

PLATE, FILTER BACKING WPL 12688503 Contact Us For Availability

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

GASKET, TEMP. CONTROL WPL 67004177 Contact Us For Availability

RIVET WPL M1205302 Contact Us For Availability

CLIP, CHILLER CONTROL WPL 67002827 Contact Us For Availability

LINKAGE, CHILLER WPL 67002293 Contact Us For Availability

PLUG, BUTTON WPL 67002417 Contact Us For Availability

FAN, CONVECTION WPL 67005358 Contact Us For Availability

LABEL, DISPENSER WPL 67006684 Contact Us For Availability

TUBE, DRAIN WPL 12580401 Contact Us For Availability

COVER, EVAP WPL 67004192 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WP12575502 Whirlpool Refrigerator Switch Backorder WPL WP12575502 $45.81

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

FUNNEL, DRAIN WPL 12456901 Contact Us For Availability

LINKAGE, CTR CHILLER WPL 67002292 Contact Us For Availability

HARNESS, CONTROL WPL 67006548 Contact Us For Availability

SCREW WPL M0254706 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

COVER, CHILLER WPL 67002291 Contact Us For Availability

SHROUD, CONVECTION WPL 67005359 Contact Us For Availability

SCREW WPL 67006550 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $8.23

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

HARNESS, MC WPL 67005435 Contact Us For Availability

DOOR, LARGE CHILLER (LT) WPL 67006834 Contact Us For Availability

MOUNT, CONVECTION WPL 12888702 Contact Us For Availability

SHIELD, FZ LIGHT WPL 67004135 Contact Us For Availability

23

DOOR, LARGE CHILLER (RT) WPL 67002297 Contact Us For Availability

23

SPACER, CONVECTION WPL 67005361 Contact Us For Availability

23

BOARD, HV CONTROL x WPL 67006202 Contact Us For Availability

HEATER/HARNESS, FRZ WPL 67005939 Contact Us For Availability

BUCKET ASSY., TILT OUT WPL 67004603 Contact Us For Availability

COVER, CONVECTION WPL 67005362 Contact Us For Availability

BOX, HV CONTROL WPL 67004969 Contact Us For Availability

25

BRACKET, TILT OUT WPL 67004378 Contact Us For Availability

25

SPACER, HV BOX WPL 67005418 Contact Us For Availability

26

HARNESS, HV BOARD WPL 67005436 Contact Us For Availability

27

TRACK, WATERLINE WPL 67004102 Contact Us For Availability

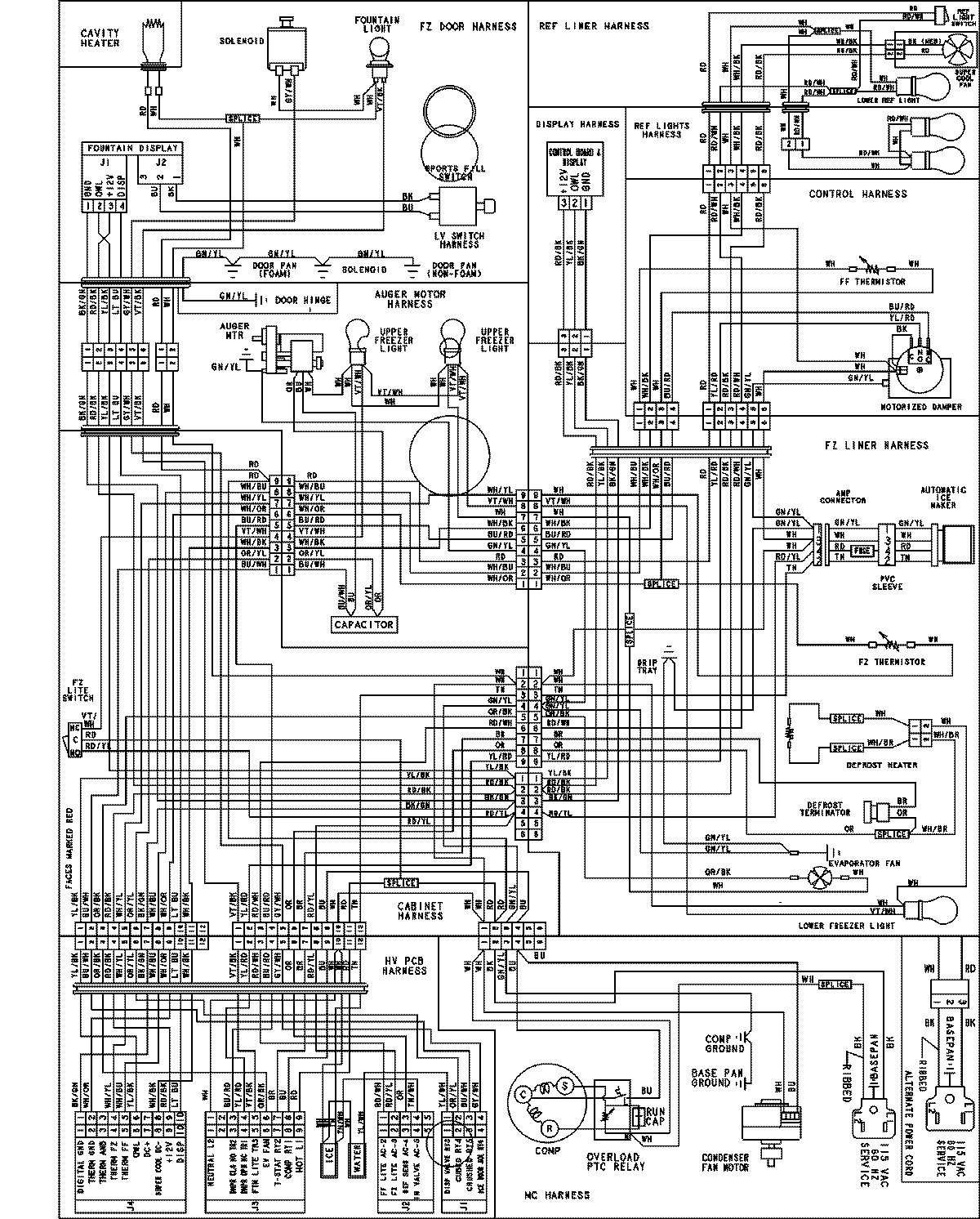

NI

WIRING INFORMATION WPL 15003911 Contact Us For Availability
