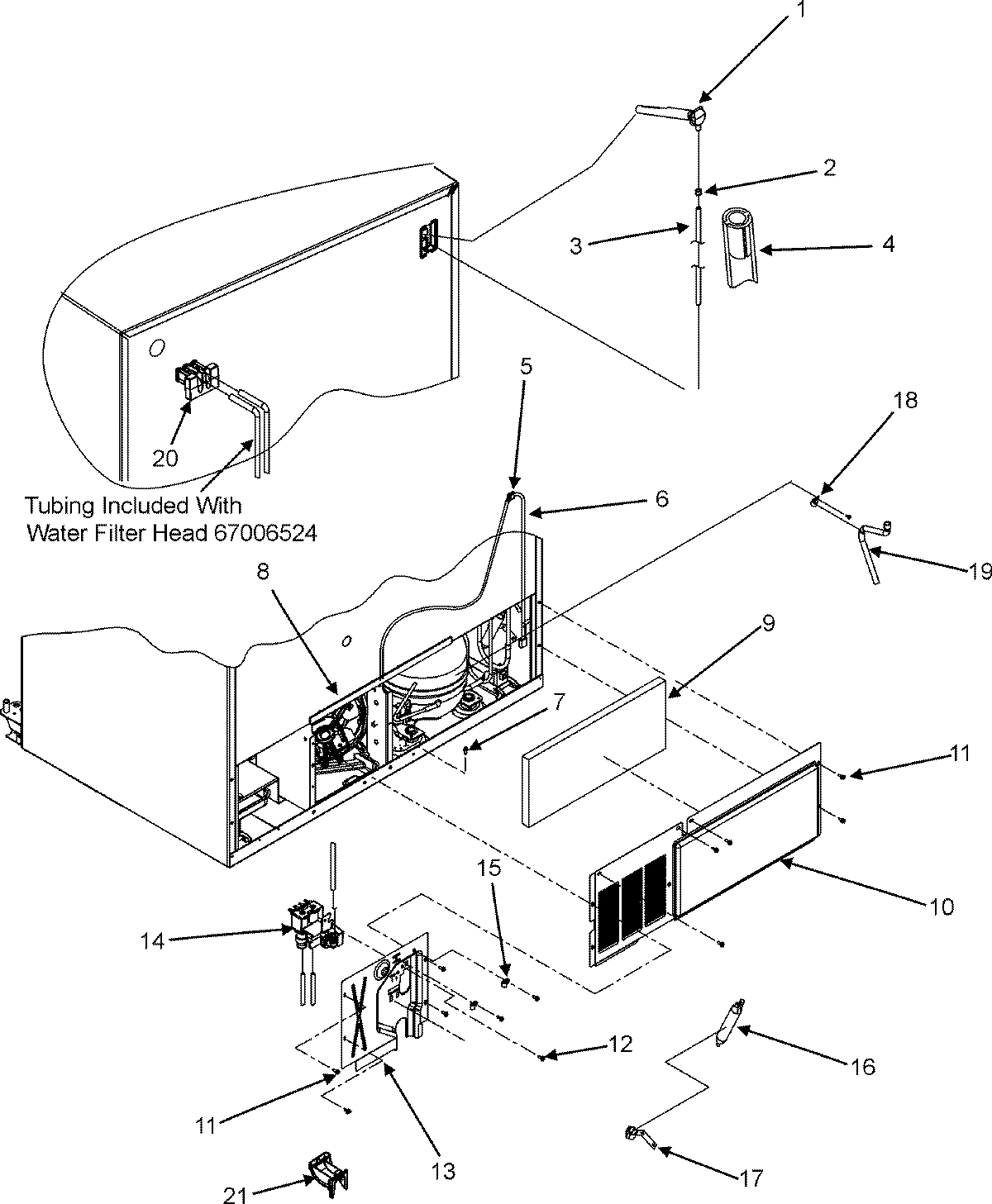

Model Maytag MSD2651KES REFRIGERATOR – Common Parts &amp; Diagrams

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $125.99

1

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

1

W11690159 Whirlpool Handle Backorder WPL W11690159 $97.40

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $63.44

1

WP67005959 Whirlpool Refrigerator Ice Bucket In Stock WPL WP67005959 $169.99

1

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

1

MAY 67004130 MAY 67004130 Contact Us For Availability

1

MAY 12634801 MAY 12634801 Contact Us For Availability

1

MAY M0211019 MAY M0211019 Contact Us For Availability

1

MAY 67006745 MAY 67006745 Contact Us For Availability

1

MAY 67004354 MAY 67004354 Contact Us For Availability

1

MAY 67006538 MAY 67006538 Contact Us For Availability

1

MAY 67004348 MAY 67004348 Contact Us For Availability

1

MAY 12842123 MAY 12842123 Contact Us For Availability

2

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.57

2

ACTR PAD FRAME ASSY. (BLK) MAY 12598902B Contact Us For Availability

2

MAY 67004140 MAY 67004140 Contact Us For Availability

2

MAY 67005934 MAY 67005934 Contact Us For Availability

2

BLOCK, AIR COIL (RT) MAY 12590102 Contact Us For Availability

2

MAY 12671401 MAY 12671401 Contact Us For Availability

2

COVER, ICE MAKER MAY 12582501 Contact Us For Availability

2

CLOSURE, DOOR (BLK) MAY 67006677 Contact Us For Availability

2

SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability

2

MAY 67003912 MAY 67003912 Contact Us For Availability

2

MAY D7749401 MAY D7749401 Contact Us For Availability

2

CLOSURE, DOOR (BLK) MAY 67006134 Contact Us For Availability

2

MAY 67003839 MAY 67003839 Contact Us For Availability

2

MAY 16025628 MAY 16025628 Contact Us For Availability

3

W11291138 Whirlpool Refrigerator Door Switch In Stock WPL W11291138 $17.77

3

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

3

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

3

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

3

WP67004757 Whirlpool Refrigerator Thermostat In Stock WPL WP67004757 $84.99

3

MAY M0104102 MAY M0104102 Contact Us For Availability

3

MAY 67004246 MAY 67004246 Contact Us For Availability

3

SCREW, SM MAY 67006400 Contact Us For Availability

3

BUSHING, DOOR (BLK) MAY 12395501B Contact Us For Availability

3

MAY 67004356 MAY 67004356 Contact Us For Availability

3

MAY 10114401 MAY 10114401 Contact Us For Availability

3

MAY 67004976 MAY 67004976 Contact Us For Availability

3

MAY 12853489 MAY 12853489 Contact Us For Availability

4

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $46.53

4

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

4

MAY 12665101 MAY 12665101 Contact Us For Availability

4

MAY 67004247 MAY 67004247 Contact Us For Availability

4

SWITCH, LIGHT MAY 12466103 Contact Us For Availability

4

BLOCK, AIR COIL (LT) MAY 12590101 Contact Us For Availability

4

MAY 67006518 MAY 67006518 Contact Us For Availability

4

SCREW MAY 67006672 Contact Us For Availability

4

MAY 12015002 MAY 12015002 Contact Us For Availability

4

MAY 67006487 MAY 67006487 Contact Us For Availability

4

BAR, CRSH ICE BUCKET MAY 10113801 Contact Us For Availability

4

MAY 67006516 MAY 67006516 Contact Us For Availability

5

67005375 Whirlpool Refrigerator Glide, Freeze Backorder WPL 67005375 $204.42

5

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

5

MAY 67004132 MAY 67004132 Contact Us For Availability

5

MAY 67002226 MAY 67002226 Contact Us For Availability

5

MAY 12563401 MAY 12563401 Contact Us For Availability

5

MAY M0311607 MAY M0311607 Contact Us For Availability

5

MAY 67004690 MAY 67004690 Contact Us For Availability

5

MAY 67005831 MAY 67005831 Contact Us For Availability

5

SCREW, HEX HEAD MAY 67006508 Contact Us For Availability

6

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

6

W10133491 Whirlpool Refrigerator Gasket Backorder WPL W10133491 $216.09

6

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

6

WP12562701 Whirlpool Dispenser Door Backorder WPL WP12562701 $4.82

6

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $26.20

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

6

MAY 67004349 MAY 67004349 Contact Us For Availability

6

MAY 67005684 MAY 67005684 Contact Us For Availability

6

SCREW MAY 67006529 Contact Us For Availability

6

SCREW, SM MAY 67006425 Contact Us For Availability

6

MAY 10941102 MAY 10941102 Contact Us For Availability

6

MAY 12671401Q MAY 12671401Q Contact Us For Availability

6

MAY 67002304 MAY 67002304 Contact Us For Availability

7

W10840101 Whirlpool Refrigerator FIP Gasket Backorder WPL W10840101 $216.13

7

WP67004188 Whirlpool Heater Defrost Assembly In Stock WPL WP67004188 $122.99

7

WPW10146386 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10146386 $88.98

7

MAY 67004119 MAY 67004119 Contact Us For Availability

7

MAY 67002271 MAY 67002271 Contact Us For Availability

7

MAY 67004350 MAY 67004350 Contact Us For Availability

7

MAY 67004253 MAY 67004253 Contact Us For Availability

7

GLIDE, FRZ. (RT) MAY 67004323 Contact Us For Availability

7

BUCKET, UPR FZ DR MAY 67004772 Contact Us For Availability

7

MAY 12596501 MAY 12596501 Contact Us For Availability

7

MAY 67003913 MAY 67003913 Contact Us For Availability

8

WP12565502 Whirlpool Refrigerator Spring Backorder WPL WP12565502 $5.99

8

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.58

8

WP67003576 Whirlpool Refrigerator Fill Tube E Backorder WPL WP67003576 $38.77

8

MAY 10115001 MAY 10115001 Contact Us For Availability

8

MAY 67004110 MAY 67004110 Contact Us For Availability

8

MAY 67004351 MAY 67004351 Contact Us For Availability

8

MAY 67001508 MAY 67001508 Contact Us For Availability

8

TRAY, EVAP DRIP MAY 12558101WD Contact Us For Availability

8

SCREW MAY 67006838 Contact Us For Availability

8

MAY 67003577 MAY 67003577 Contact Us For Availability

8

MAY 12557501 MAY 12557501 Contact Us For Availability

8

MAY 67004355 MAY 67004355 Contact Us For Availability

9

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $14.02

9

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

9

WP67006534 Whirlpool Refrigerator Ice Cube Ch Backorder WPL WP67006534 $81.59

9

SLIDE, CONTROL (WHT) MAY 67004885 Contact Us For Availability

9

MAY 10623003 MAY 10623003 Contact Us For Availability

9

MAY 12583101 MAY 12583101 Contact Us For Availability

9

GROMMET, SCREW MAY M0580205 Contact Us For Availability

9

MAY 67005832 MAY 67005832 Contact Us For Availability

9

MAY M1200108 MAY M1200108 Contact Us For Availability

9

BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability

9

MAY 95108-1 MAY 95108-1 Contact Us For Availability

9

MAY 67001325 MAY 67001325 Contact Us For Availability

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $9.99

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $53.88

MAY 67004309 MAY 67004309 Contact Us For Availability

MAY 12575401 MAY 12575401 Contact Us For Availability

MAY 67003578 MAY 67003578 Contact Us For Availability

MAY 67006685 MAY 67006685 Contact Us For Availability

MAY 10114101 MAY 10114101 Contact Us For Availability

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $9.99

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

WPM0223101 Whirlpool Refrigerator Nut Backorder WPL WPM0223101 $4.82

MAY 12624901 MAY 12624901 Contact Us For Availability

GASKET, TEMP. CONTROL MAY 67004177 Contact Us For Availability

CLIP, EVAP MOTOR MAY 67005633 Contact Us For Availability

MAY 67003504 MAY 67003504 Contact Us For Availability

CAPACITOR MAY C8931612 Contact Us For Availability

MAY 67006491 MAY 67006491 Contact Us For Availability

W11227239-includeCORE Whirlpool W11227239 Ref Backorder WPL W11227239-includeCORE $296.69

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WP67003226 Whirlpool Motor Auger In Stock WPL WP67003226 $228.86

SLIDE, TEMP. CONTROL MAY 67004176 Contact Us For Availability

SHIELD, CRISPER LIGHT MAY 67001507 Contact Us For Availability

MAY M0286708 MAY M0286708 Contact Us For Availability

MAY 12617501 MAY 12617501 Contact Us For Availability

SCREW, TC MAY 67006530 Contact Us For Availability

MAY 67006840 MAY 67006840 Contact Us For Availability

MAY 67006492 MAY 67006492 Contact Us For Availability

MAY 10113901 MAY 10113901 Contact Us For Availability

MAY 95093-1 MAY 95093-1 Contact Us For Availability

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

WP67004531 Whirlpool Refrigerator Frame Backorder WPL WP67004531 $130.76

WP67005335 Whirlpool Refrigerator Temperature In Stock WPL WP67005335 $100.80

MAY 12576801 MAY 12576801 Contact Us For Availability

MAY 67006752 MAY 67006752 Contact Us For Availability

MAY 12561701 MAY 12561701 Contact Us For Availability

CLOSURE, DOOR (BLK) MAY 67006493 Contact Us For Availability

MAY 10275201 MAY 10275201 Contact Us For Availability

MAY 67005603 MAY 67005603 Contact Us For Availability

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

WP67004151 Whirlpool Overlay In Stock WPL WP67004151 $62.60

WP67005716 Whirlpool Refrigerator Shim Backorder WPL WP67005716 $4.82

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $193.99

GROMMET, BRACKET MAY 61004743 Contact Us For Availability

MAY 67004249 MAY 67004249 Contact Us For Availability

MAY 67003146 MAY 67003146 Contact Us For Availability

MAY 10114601 MAY 10114601 Contact Us For Availability

MAY 10244904 MAY 10244904 Contact Us For Availability

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $37.84

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $224.49

MAY 67004158 MAY 67004158 Contact Us For Availability

HOUSING, TEMP. CONTROL MAY 67004175 Contact Us For Availability

FILTER, WATER SINGLE MAY 67003591 Contact Us For Availability

MAY 67006573 MAY 67006573 Contact Us For Availability

SCREW MAY 67006682 Contact Us For Availability

DRIVER (ICE MAKER) MAY 10114901 Contact Us For Availability

MAY 67006686 MAY 67006686 Contact Us For Availability

BLADE, ROTATING MAY 10114501 Contact Us For Availability

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $77.90

WP67006687 Whirlpool Refrigerator Front Grill In Stock WPL WP67006687 $67.99

WPY67003722 Whirlpool Refrigerator Sump Tray Backorder WPL WPY67003722 $93.91

MAY 12627302 MAY 12627302 Contact Us For Availability

MAY M0231426 MAY M0231426 Contact Us For Availability

ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability

WASHER, WAVED MAY 10275101 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $34.51

WP12945106 Whirlpool Refrigerator Electronic Backorder WPL WP12945106 $151.77

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $127.99

MAY 12581101 MAY 12581101 Contact Us For Availability

SHIELD, FZ LIGHT MAY 67004433 Contact Us For Availability

WASHER STEPPED MAY 10114301 Contact Us For Availability

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.49

MAY 12688503 MAY 12688503 Contact Us For Availability

WHEEL, CRSH ICE MAY 67002052 Contact Us For Availability

MAY 12581102 MAY 12581102 Contact Us For Availability

SCREW MAY 67006683 Contact Us For Availability

WP12740302 Whirlpool Refrigerator Crusher Mec In Stock WPL WP12740302 $402.67

MAY 67005813 MAY 67005813 Contact Us For Availability

MAY 67006415 MAY 67006415 Contact Us For Availability

MAY M1205302 MAY M1205302 Contact Us For Availability

MAY 67006684 MAY 67006684 Contact Us For Availability

MAY 67004192 MAY 67004192 Contact Us For Availability

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $43.98

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

MAY 67004241 MAY 67004241 Contact Us For Availability

MAY Y12570701 MAY Y12570701 Contact Us For Availability

MAY 12456901 MAY 12456901 Contact Us For Availability

MAY 67004255 MAY 67004255 Contact Us For Availability

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

BULB, LIGHT (40 WATT) MAY 67003568 Contact Us For Availability

SEAL, O RING MAY M0500703 Contact Us For Availability

MAY 67004256 MAY 67004256 Contact Us For Availability

22

GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability

22

SHIELD, FZ LIGHT MAY 67004135 Contact Us For Availability

23

MAY 67005038 MAY 67005038 Contact Us For Availability

23

MAY 67006839 MAY 67006839 Contact Us For Availability

24

MAY 67004185 MAY 67004185 Contact Us For Availability

25

MAY 67005936 MAY 67005936 Contact Us For Availability

26

MAY 67004154 MAY 67004154 Contact Us For Availability

27

MAY 67006714 MAY 67006714 Contact Us For Availability

NI

MAY 15003928 MAY 15003928 Contact Us For Availability
