Model Whirlpool MRR1000W ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

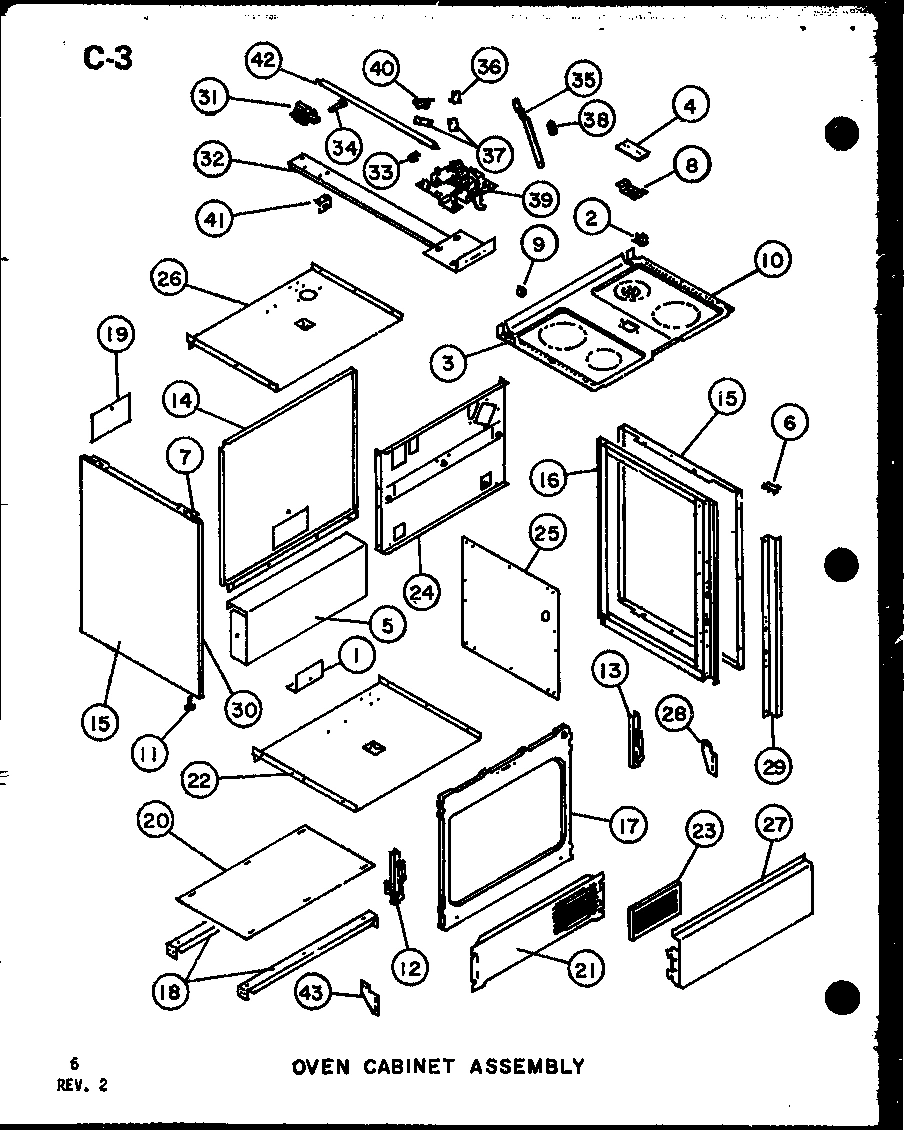

02 - Page 2

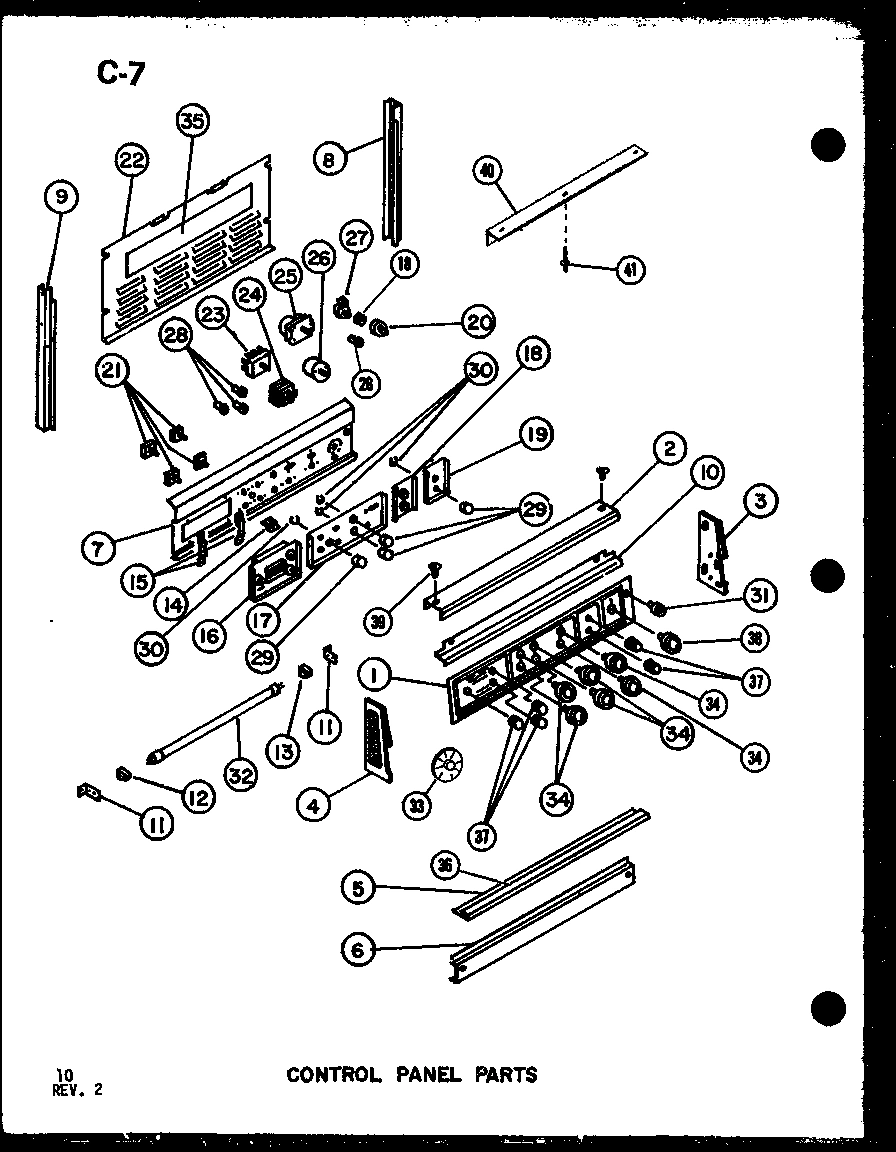

04 - Page 4

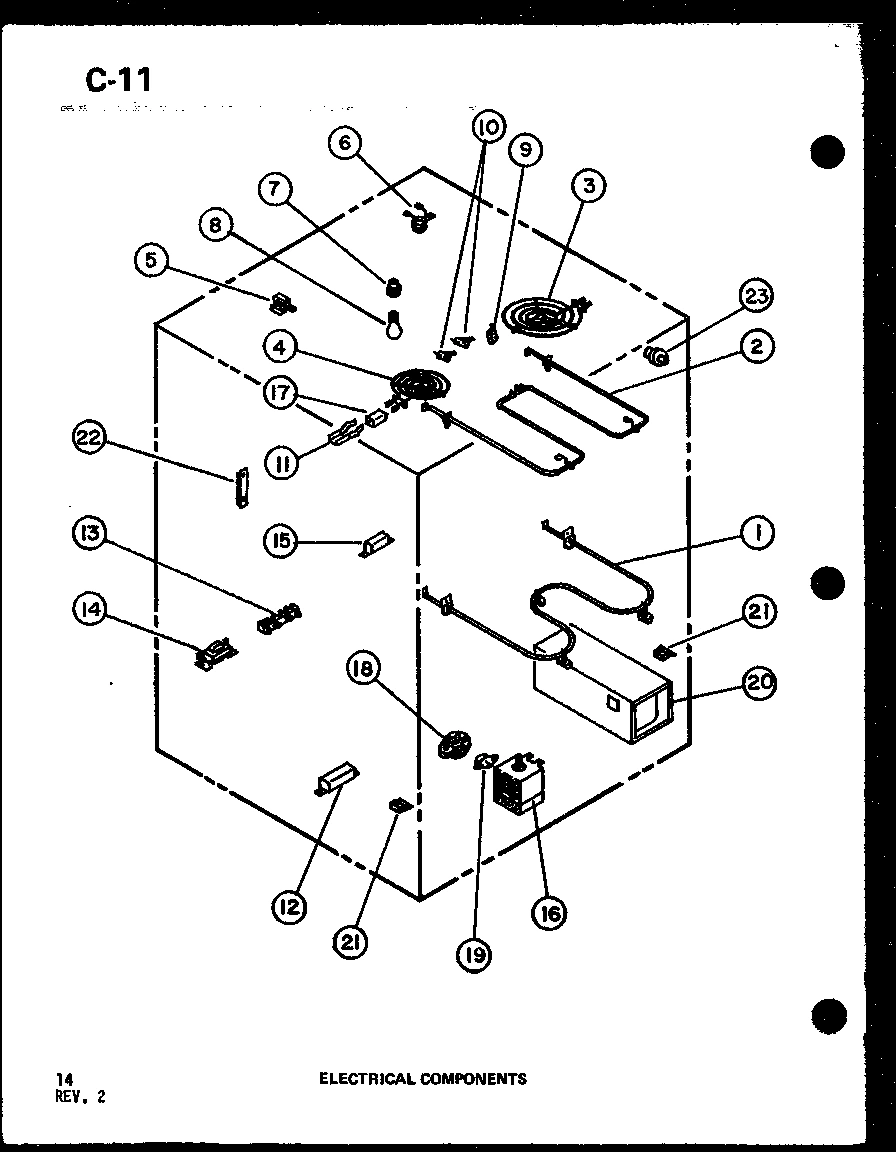

06 - Page 6

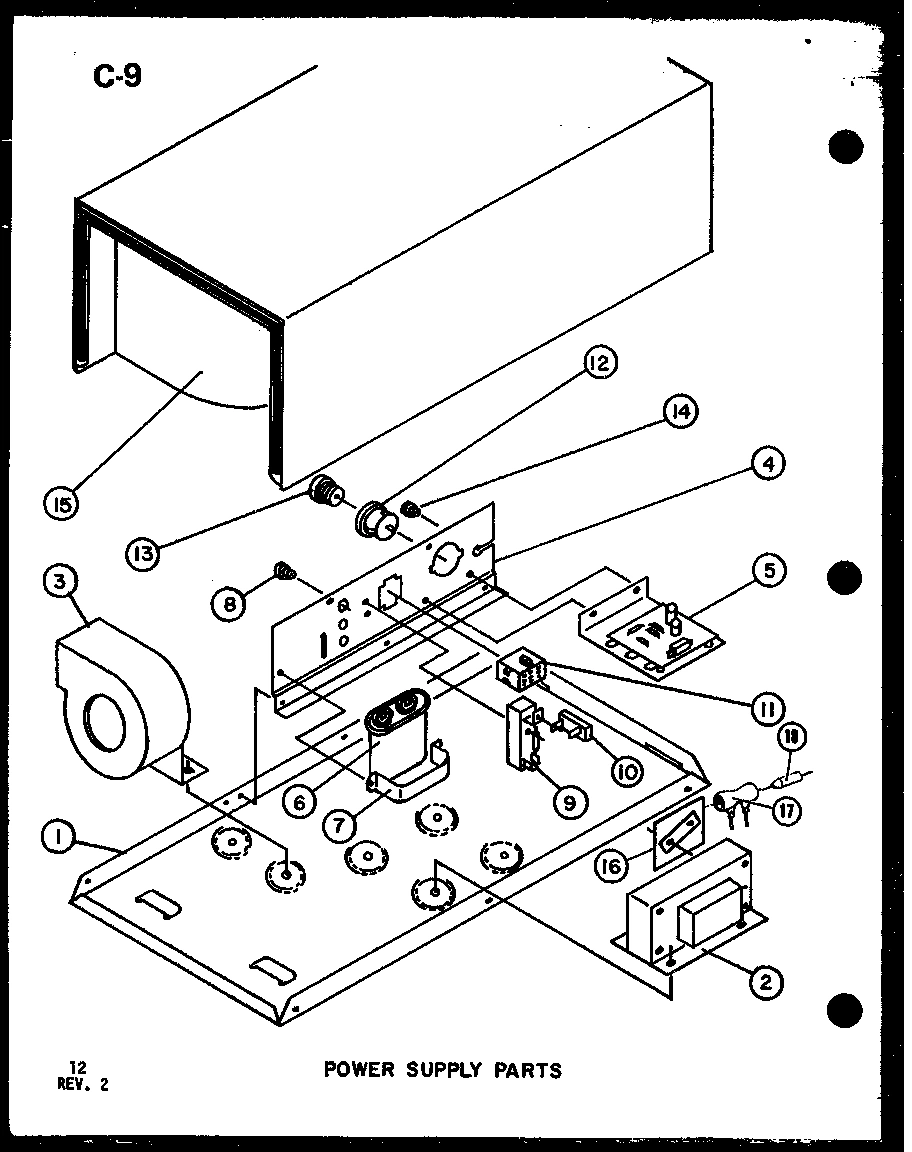

05 - Page 5

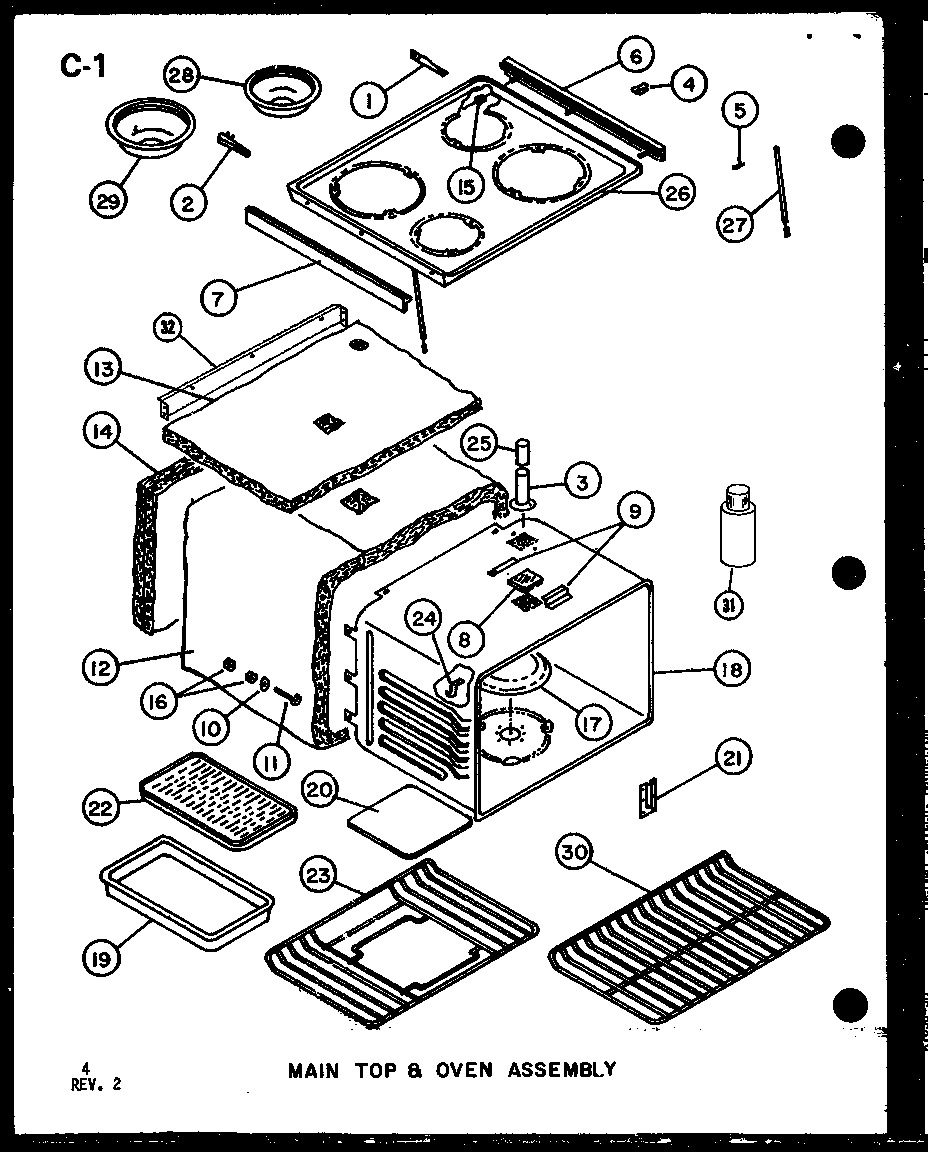

01 - Page 1

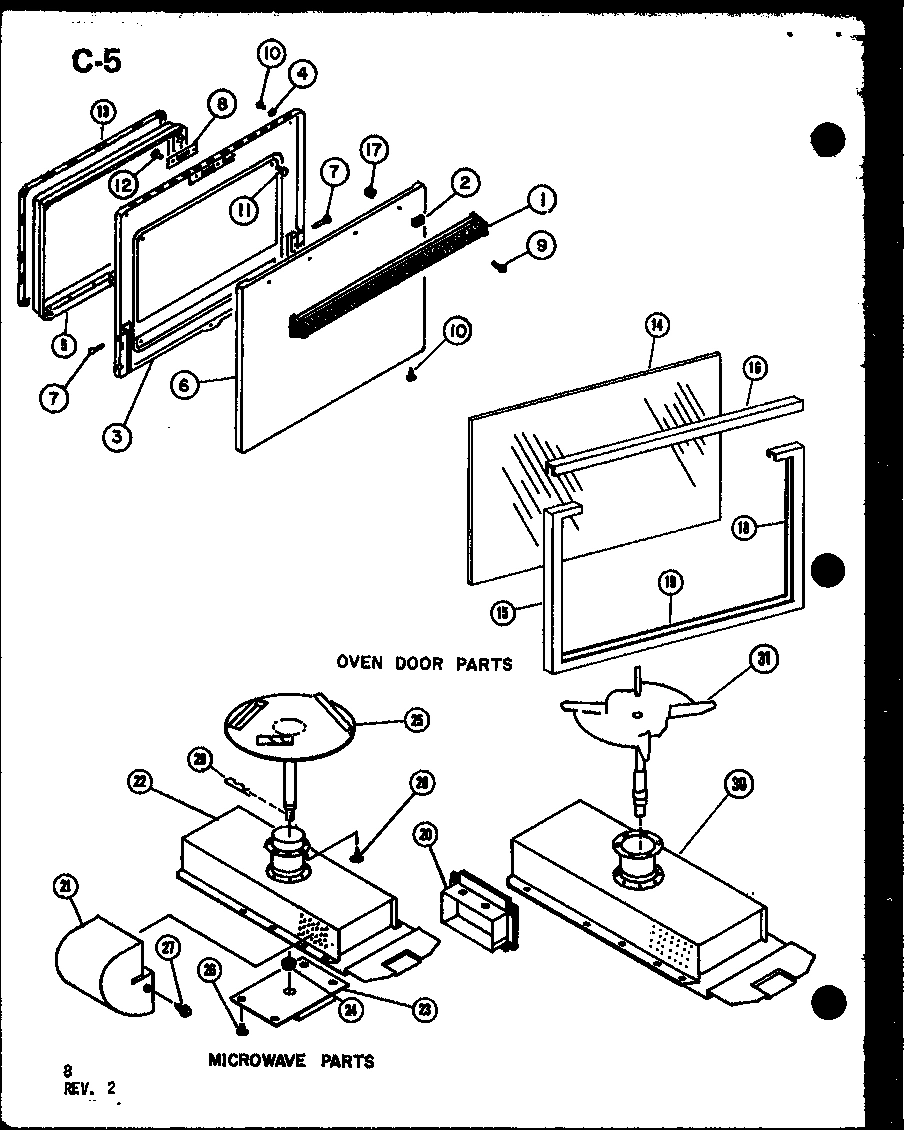

03 - Page 3
Common parts from model Whirlpool MRR1000W ELECTRIC WALL OVEN/MICROWAVE COMBO
1
ANGLE, TERMINAL BLOCK WPL R0178750 Contact Us For Availability
1
GLASS-CONTROL PNL WPL R0183065 Contact Us For Availability
1
BAKE ELEMENT WPL R0167114 Contact Us For Availability
1
BASE-POWER SUPPLY WPL R0178982 Contact Us For Availability
1
BRACKET ASSEMBLY WPL R0179010 Contact Us For Availability
1
HANDLE, OVEN DOOR WPL R0179055 Contact Us For Availability
2
BRACKET WPL R0179014 Contact Us For Availability
2
TRIM, TOP WPL R0176013 Contact Us For Availability
2
BROIL ELEMENT WPL R0167115 Contact Us For Availability
2
TRANSFORMER, HIGH VOLT WPL R0167107 Contact Us For Availability
2
BRACKET ASSEMBLY WPL R0179011 Contact Us For Availability
2
SPACER DOOR HANDLE WPL R0178839 Contact Us For Availability
3
BRACKET WPL R0179015 Contact Us For Availability
3
END CAP, R.H. WPL R0178992 Contact Us For Availability
3
MOTOR, BLOWER WPL R0156024 Contact Us For Availability
3
TUBE, OVEN VENT WPL R0174046 Contact Us For Availability
3
OVEN DOOR BACKER, GRAY WPL R0194022 Contact Us For Availability
4
COVER PLATE, OVEN LAMP WPL R0183058 Contact Us For Availability
4
END CAP, L.H. WPL R0178993 Contact Us For Availability
4
PANEL, POWER SUPPLY WPL R0178983 Contact Us For Availability
4
WIRE CLAMP WPL R0191039 Contact Us For Availability
4
WASHER WPL R0190023 Contact Us For Availability
5
PANEL, LOWER REAR WPL R0194021 Contact Us For Availability
5
SOLENOID, LATCH WPL R0179031 Contact Us For Availability
5
CENTER TRIM WPL R0176014 Contact Us For Availability
5
CONTROL, VARIABLE POWER WPL R0167108 Contact Us For Availability
5
PIN, SUPPORT ROD WPL R0191063 Contact Us For Availability
5
SUB BACKER, OVEN DOOR WPL R0194023 Contact Us For Availability
6
TRIM, CAP, R.H. WPL R0178751 Contact Us For Availability
6
PANEL-LOWER WPL R0176015 Contact Us For Availability
6
ELEMENT WPL R0167087 Contact Us For Availability
6
CAPACITOR WPL R0160030 Contact Us For Availability
6
TRIM, MAIN TOP, R.H. WPL R0178987 Contact Us For Availability
6
OVEN DOOR PNL., BLACK GLASS WPL R0178838 Contact Us For Availability
7
TRIM, CAP, L.H. WPL R0178752 Contact Us For Availability
7
USSE 0066234 WPL R0176016 Contact Us For Availability
7
HOUSING, OVEN LIGHT WPL R0167116 Contact Us For Availability
7
BRKT-CAPCITOR WPL R0178985 Contact Us For Availability
7
TRIM-MAIN TOP LH WPL R0178988 Contact Us For Availability
7
RIVET WPL R0191052 Contact Us For Availability
8
HOUSING, OVEN LIGHT WPL R0183059 Contact Us For Availability
8
SUPPORT WPL R0194030 Contact Us For Availability
8
BUSHING, TERMINAL WPL R0181097 Contact Us For Availability
8
LENS, OVEN LIGHT WPL R0183055 Contact Us For Availability
8
PLATE, DOOR LATCH WPL R0178835 Contact Us For Availability
9
CLIP, WIRE CABLE WPL R0191041 Contact Us For Availability
9
SWITCH, LATCH SOLENOID WPL R0163032 Contact Us For Availability
9
SUPPORT CHANNEL, L.H. WPL R0194031 Contact Us For Availability
9
TERMINAL BLOCK - POWER SUPPLY WPL R0167109 Contact Us For Availability
9
CLIP, LENS WPL R0191064 Contact Us For Availability
9
SCREW, No.8-32X1`` WPL R0188022 Contact Us For Availability
10
DRIP BAFFLE, DARK COPPER WPL R0194011 Contact Us For Availability
10
DRIP BAFFLE G WPL R0194012 Contact Us For Availability
10
DRIP BAFFLE, SNOW WHITE WPL R0194013 Contact Us For Availability
10
DRIP BAFFLE, ALMOND WPL R0194014 Contact Us For Availability
10
DRIP BAFFLE, AVOCADO WPL R0194015 Contact Us For Availability
10
DRIP BAFFLE, GRAY WPL R0199236 Contact Us For Availability
10
SWITCH, CLEAN, PRIMARY INTERL WPL R0163033 Contact Us For Availability
10
SEAL, BACKGUARD WPL R0182057 Contact Us For Availability
10
KIT, DIODE WPL R0167110 Contact Us For Availability
10
WASHER WPL R0190021 Contact Us For Availability
11
LEG, LEVELING WPL R0183035 Contact Us For Availability
11
SUPPORT, LAMP SOCKET WPL R0194032 Contact Us For Availability
11
MOUNTING BRKT. PLUG BLOCK WPL R0191054 Contact Us For Availability
11
CONNECTOR, 9 PIN WPL R0181098 Contact Us For Availability
11
HOOK BOLT WPL R0191036 Contact Us For Availability
11
SCREW, SUB-BACKER WPL R0187009 Contact Us For Availability
12
OVEN HINGE, L.H. WPL R0179053 Contact Us For Availability
12
RELAY, OVEN WPL R0159014 Contact Us For Availability
12
FUSE HOLDER WPL R0167111 Contact Us For Availability
12
SCREW WPL R0196033 Contact Us For Availability
12
POP RIVET WPL R0191061 Contact Us For Availability
13
KIT, DOOR HINGE(RH-SS) WPL R0179054 Contact Us For Availability
13
SOCKET, FLOURESCENT LAMP WPL R0167106 Contact Us For Availability
13
FUSE, 15 AMP WPL R0167112 Contact Us For Availability
13
INSULATION, TANK TOP WPL R0196034 Contact Us For Availability
13
GASKET, OVEN DOOR WPL R0183061 Contact Us For Availability
14
OVEN BACK PANEL WPL R0178758 Contact Us For Availability
14
BRACKET, TRIM SUPPORT WPL R0194033 Contact Us For Availability
14
BALLAST WPL R0167090 Contact Us For Availability
14
BUSHING WPL R0181099 Contact Us For Availability
14
INSULATION,WRAPPER WPL R0196020 Contact Us For Availability
14
PANEL-GLASS WPL R0183062 Contact Us For Availability
15
PANEL, SIDE RT (COFFEE) WPL R0194006 Contact Us For Availability
15
MAIN END, GOLD WPL R0194007 Contact Us For Availability
15
PANEL, SIDE RT (WHT) WPL R0194008 Contact Us For Availability
15
PANEL, SIDE RT (ALM) WPL R0194009 Contact Us For Availability
15
PANEL, SIDE RT (AVOCADO) WPL R0194010 Contact Us For Availability
15
PLATE, CLOCK MOUNTING WPL R0194034 Contact Us For Availability
15
PANEL-TIMER WPL R0178994 Contact Us For Availability
15
RELAY, LOCK WPL R0159023 Contact Us For Availability
15
NUT WPL R0189025 Contact Us For Availability
15
TRIM, FRAME WPL R0178991 Contact Us For Availability
16
FRAME, MAIN END PANEL WPL R0194024 Contact Us For Availability
16
CLOCK, DIGITAL WPL R0168010 Contact Us For Availability
16
MAGNETRON WPL C8761701 Contact Us For Availability
16
TERMINAL BOARD WPL R0167113 Contact Us For Availability
16
HEX NUT No.10-32 NICKEL WPL R0189012 Contact Us For Availability
16
TRIM, HANDLE WPL R0178841 Contact Us For Availability
17
PANEL-CONTROL WPL R0194035 Contact Us For Availability
17
RESISTOR A WPL M0305009 Contact Us For Availability
17
STIRRER COVER WPL R0183056 Contact Us For Availability
18
BRACKET, SUPPORT, POWER SUPPLY WPL R0194025 Contact Us For Availability
18
NUT WPL R0189026 Contact Us For Availability
18
MOTOR, STIRRER 30RPM WPL R0156025 Contact Us For Availability
18
FUSE WPL M0308102 Contact Us For Availability
18
OVEN CAVITY, GRAY WPL R0199235 Contact Us For Availability
18
BUMPER, GLASS CUSHION, LEFT AN WPL R0183063 Contact Us For Availability
19
PLATE, ACCESS WPL R0178765 Contact Us For Availability
19
OVERLOAD, THERMAL WPL R0163038 Contact Us For Availability
19
BUNPER, GLASS CUSHION, BOTTOM WPL R0183064 Contact Us For Availability
20
GUIDE, POWER SUPPLY WPL R0194026 Contact Us For Availability
20
SWITCH, FLUORESCENT LIGHT WPL R0163034 Contact Us For Availability
20
CERAMIC COOKING PLATE WPL R0183057 Contact Us For Availability
20
AIR INLET DUCT ASSEMBLY WPL R0176010 Contact Us For Availability
21
SHIELD-PS WPL R0194027 Contact Us For Availability
21
SWITCH, INFINITE WPL R0163018 Contact Us For Availability
21
SWITCH,DR. INTERLOCK WPL R0163037 Contact Us For Availability
21
CHOKE, HEAT CONTROL CAPILLARY WPL R0178996 Contact Us For Availability
21
AIR DUCT WPL R0176011 Contact Us For Availability
22
INSULATION RETAINER - BOTTOM WPL R0194028 Contact Us For Availability
22
PLATE-REAR COVER WPL R0178995 Contact Us For Availability
22
TERMINAL BLOCK, NEUTRAL WPL R0167118 Contact Us For Availability
23
FILTER, POWER SUPPLY WPL R0183060 Contact Us For Availability
23
THERMOSTAT, OVEN WPL R0161011 Contact Us For Availability
23
SWITCH, OVEN LIGHT WPL R0163017 Contact Us For Availability
23
OVEN RACK, MICROWAVE WPL R0180039 Contact Us For Availability
23
MOTOR MOUNT WPL R0178998 Contact Us For Availability
24
INSULATION RETAINER, BACK WPL R0178767 Contact Us For Availability
24
SELECTOR SWITCH WPL R0199233 Contact Us For Availability
24
BRACKET, THERMOSTAT BULB WPL R0179012 Contact Us For Availability
24
BEARING, DRIVE SHAFT WPL R0178999 Contact Us For Availability
25
SHIELD SLIDE WPL R0178768 Contact Us For Availability
25
TIMER, MICROWAVE WPL R0168011 Contact Us For Availability
25
SHIELD-VENT TUBE WPL R0174045 Contact Us For Availability
26
INSULATION RETAINER, TOP WPL R0178986 Contact Us For Availability
26
TIMER, DELAY, 30 MIN. WPL R0168012 Contact Us For Availability
26
MAIN TOP C WPL R0194001 Contact Us For Availability
26
MAIN TOP, GOLD WPL R0194002 Contact Us For Availability
26
MAIN TOP, SNOW WHITE WPL R0194003 Contact Us For Availability
26
MAIN TOP, ALMOND WPL R0194004 Contact Us For Availability
26
MAIN TOP, AVOCADO WPL R0194005 Contact Us For Availability
26
SCREW, MOTOR MOUNT WPL R0187008 Contact Us For Availability
27
x$x DECORATOR PANEL WPL A4423801 Contact Us For Availability
27
LOWER COVER PANEL, DARK COPPER WPL R0194016 Contact Us For Availability
27
ACCESS PANEL, GOLD WPL R0194017 Contact Us For Availability
27
ACCESS PANEL, SNOW WHITE WPL R0194018 Contact Us For Availability
27
ACCESS PANEL, ALMOND WPL R0194019 Contact Us For Availability
27
LOWER COVER PANEL, AVOCADO WPL R0194020 Contact Us For Availability
27
SWITCH, VARIABLE POWER SELECTO WPL R0163036 Contact Us For Availability
27
SUPPORT, MAINTOP WPL R0178739 Contact Us For Availability
27
SCREW-AIR DUCT WPL R0186016 Contact Us For Availability
28
BRACKET, INTERLOCK MOUNTING WPL R0178997 Contact Us For Availability
28
LIGHT, INDICATOR WPL R0165011 Contact Us For Availability
29
TRIM, FRONT, R.H. WPL R0178989 Contact Us For Availability
29
LENS, RED WPL R0181086 Contact Us For Availability
29
RETAINER CLIP, STIRRER WPL R0191062 Contact Us For Availability
30
TRIM, FRONT, L.H. WPL R0178990 Contact Us For Availability
30
CONTROL BOX WPL R0191060 Contact Us For Availability
30
WAVE GUIDE WPL R0199210 Contact Us For Availability
31
BEZEL-LIGHT SWITCH WPL R0181087 Contact Us For Availability
31
TOUCH UP KIT, OVEN LINER REPAI WPL R0157287 Contact Us For Availability
31
STIRRER WPL R0199209 Contact Us For Availability
32
CHANNEL ASSEMBLY, LATCH MOUNTI WPL R0194029 Contact Us For Availability
32
MOUNTING CHANNEL WPL R0199234 Contact Us For Availability
33
RETAINER RING WPL R0178777 Contact Us For Availability
33
DISC-TOP EL WPL R0181091 Contact Us For Availability
33
DISC-OVEN STAT WPL R0181092 Contact Us For Availability
33
DISC-SELECT SWITCH WPL R0181093 Contact Us For Availability
33
CONTROL DISC, 35 MIN. TIMER WPL R0181094 Contact Us For Availability
33
DISC-DELAY TIMER WPL R0181095 Contact Us For Availability
33
DISC-POWER SELECT WPL R0181096 Contact Us For Availability
34
COTTER PIN WPL R0191046 Contact Us For Availability
34
KNOB-CONTROL WPL R0181088 Contact Us For Availability
35
LATCH ARM BLACK WPL R0179020 Contact Us For Availability
35
INSULATION, BACKGUARD WPL R0196035 Contact Us For Availability
36
GASKET (PER FOOT) WPL R0195012 Contact Us For Availability
37
INSULATION WPL R0196021 Contact Us For Availability
37
KNOB, DUAL TIMER WPL R0181089 Contact Us For Availability
38
KNOB, LATCH - BLACK WPL R0181085 Contact Us For Availability
38
KNOB-POWER SELECT WPL R0181090 Contact Us For Availability
39
LATCH ASSY WPL R0179021 Contact Us For Availability
39
SCREW No.23, No.6X5/16 PH FL. HD. WPL R0187016 Contact Us For Availability
40
AIR BAFFLE WPL R0199237 Contact Us For Availability
41
WPL R0179022 WPL R0179022 Contact Us For Availability
41
POP RIVET WPL R0199238 Contact Us For Availability
42
WPL R0179023 WPL R0179023 Contact Us For Availability
43
WPL R0194036 WPL R0194036 Contact Us For Availability
× ![]()
Login and Registration Form
