Model Whirlpool MH9180XLB1 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

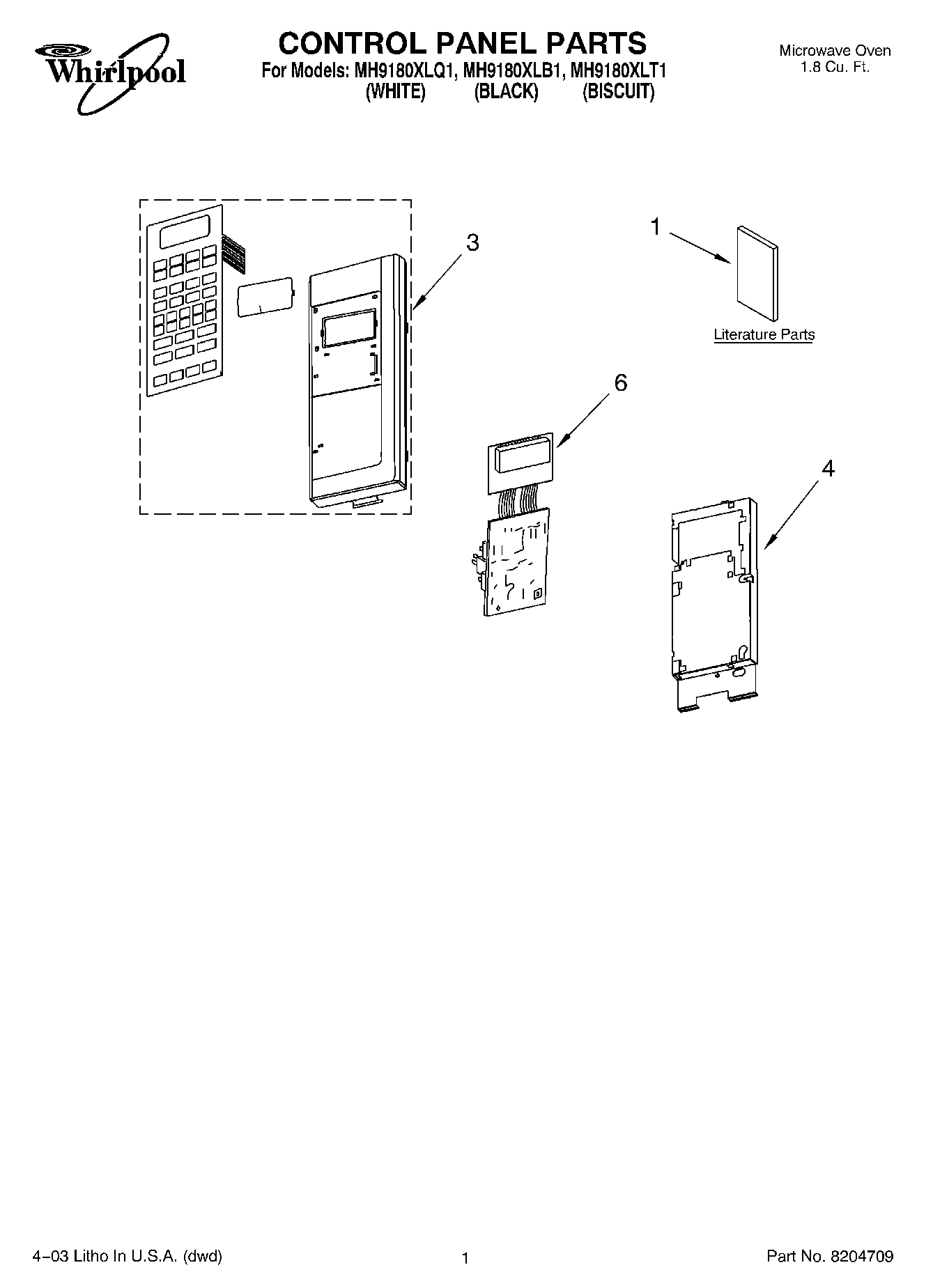

01 - CONTROL PANEL PARTS

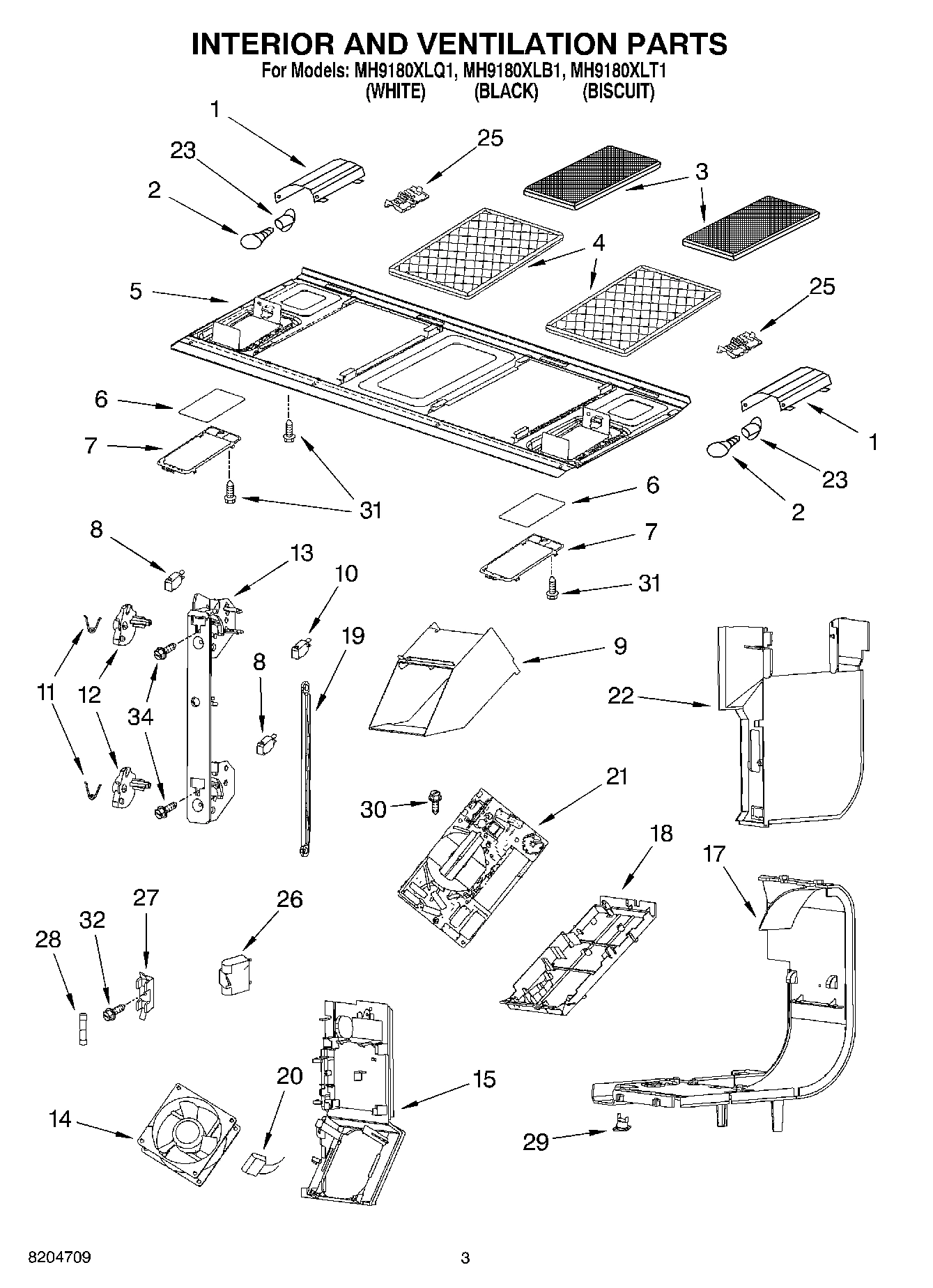

03 - INTERIOR AND VENTILATION PARTS

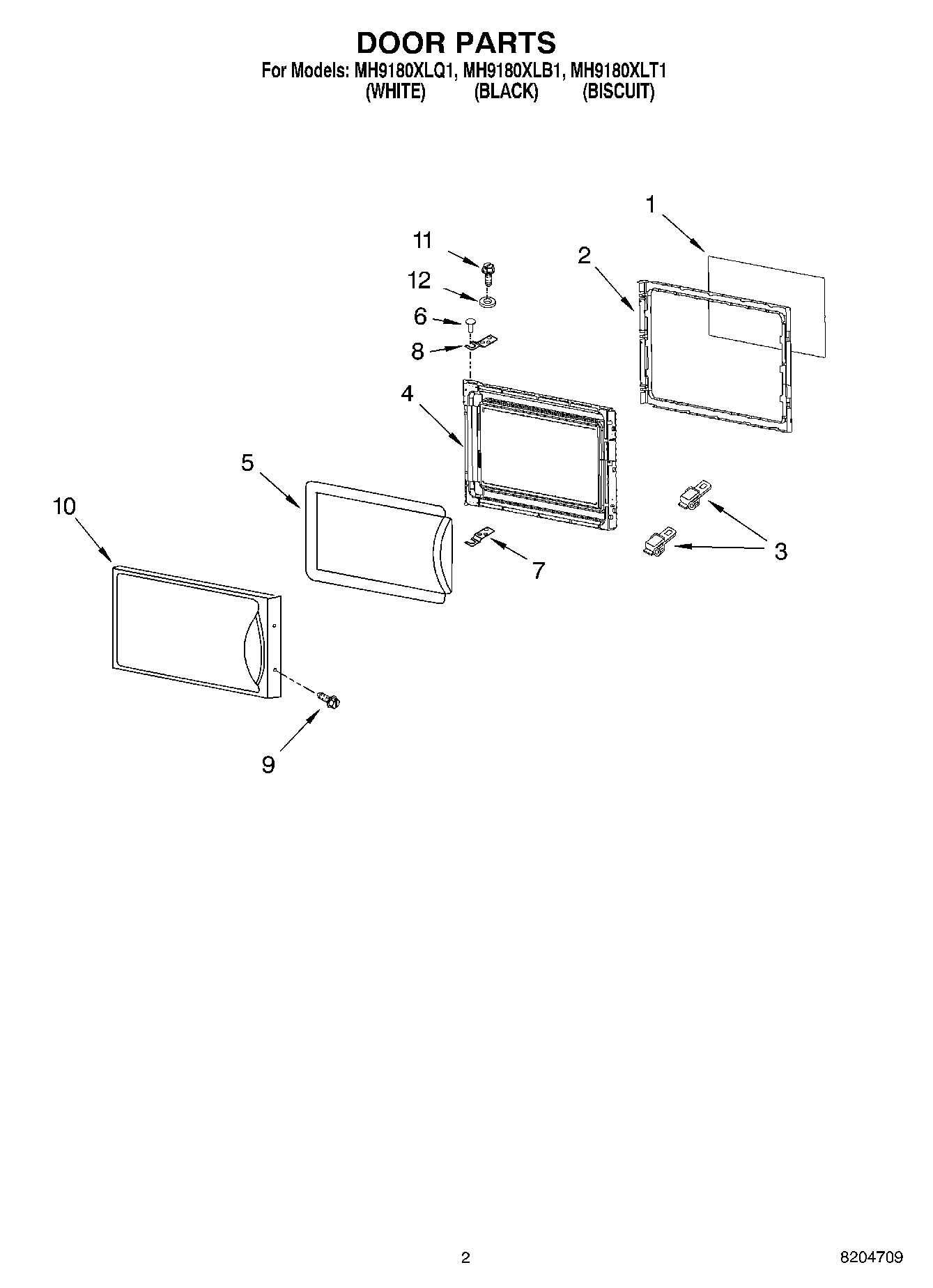

02 - DOOR PARTS

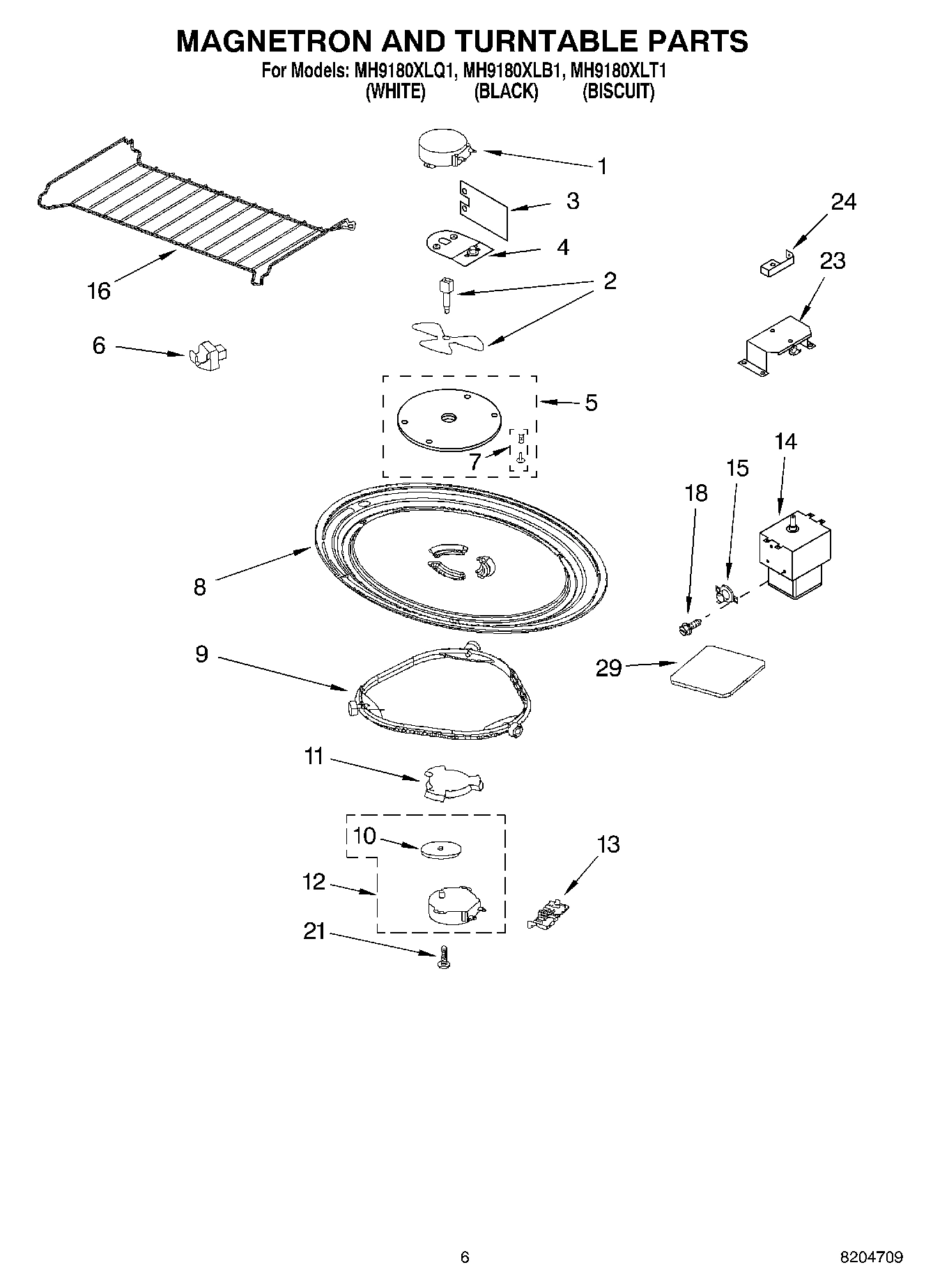

05 - MAGNETRON AND TURNTABLE PARTS

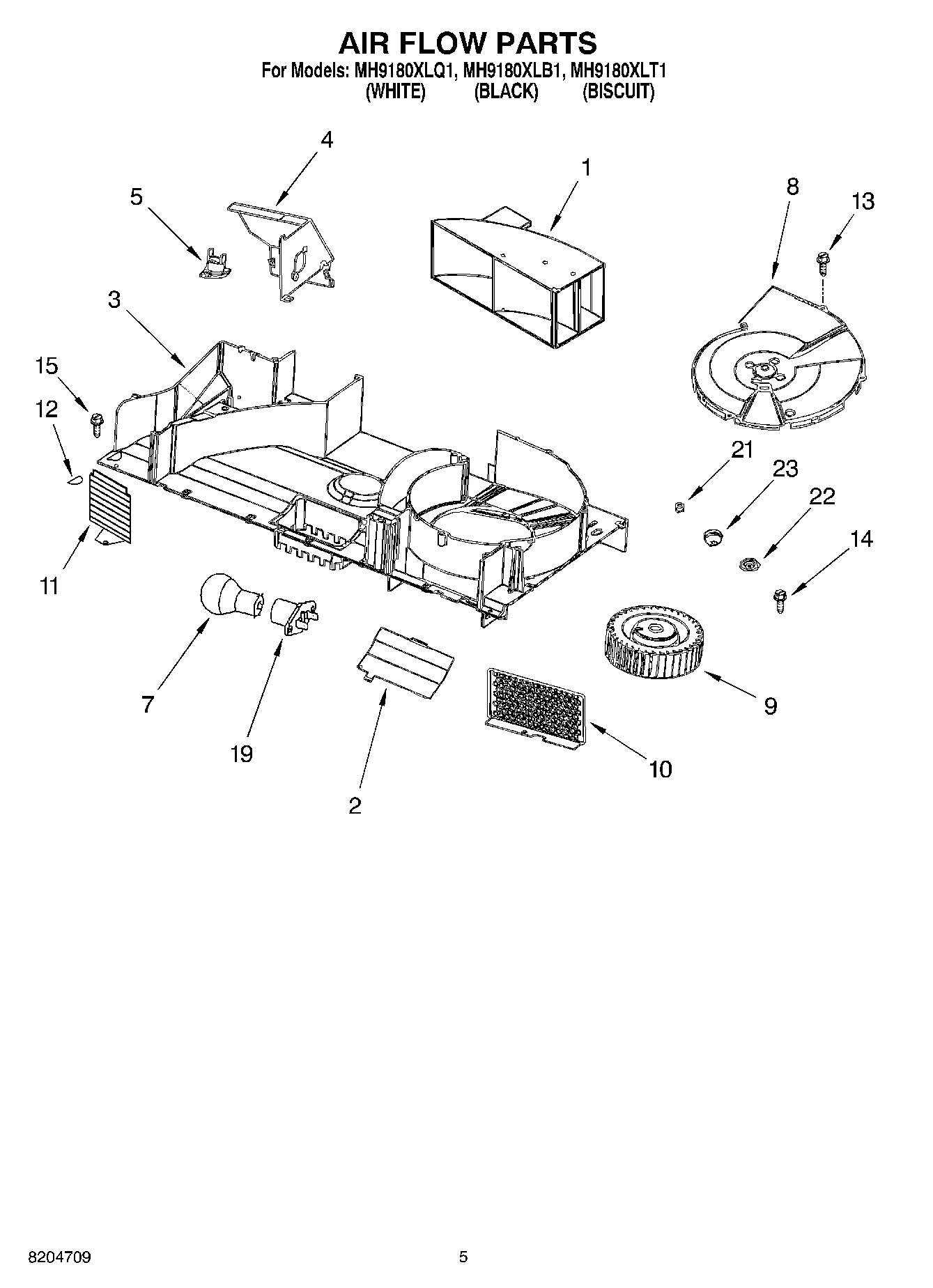

04 - AIR FLOW PARTS

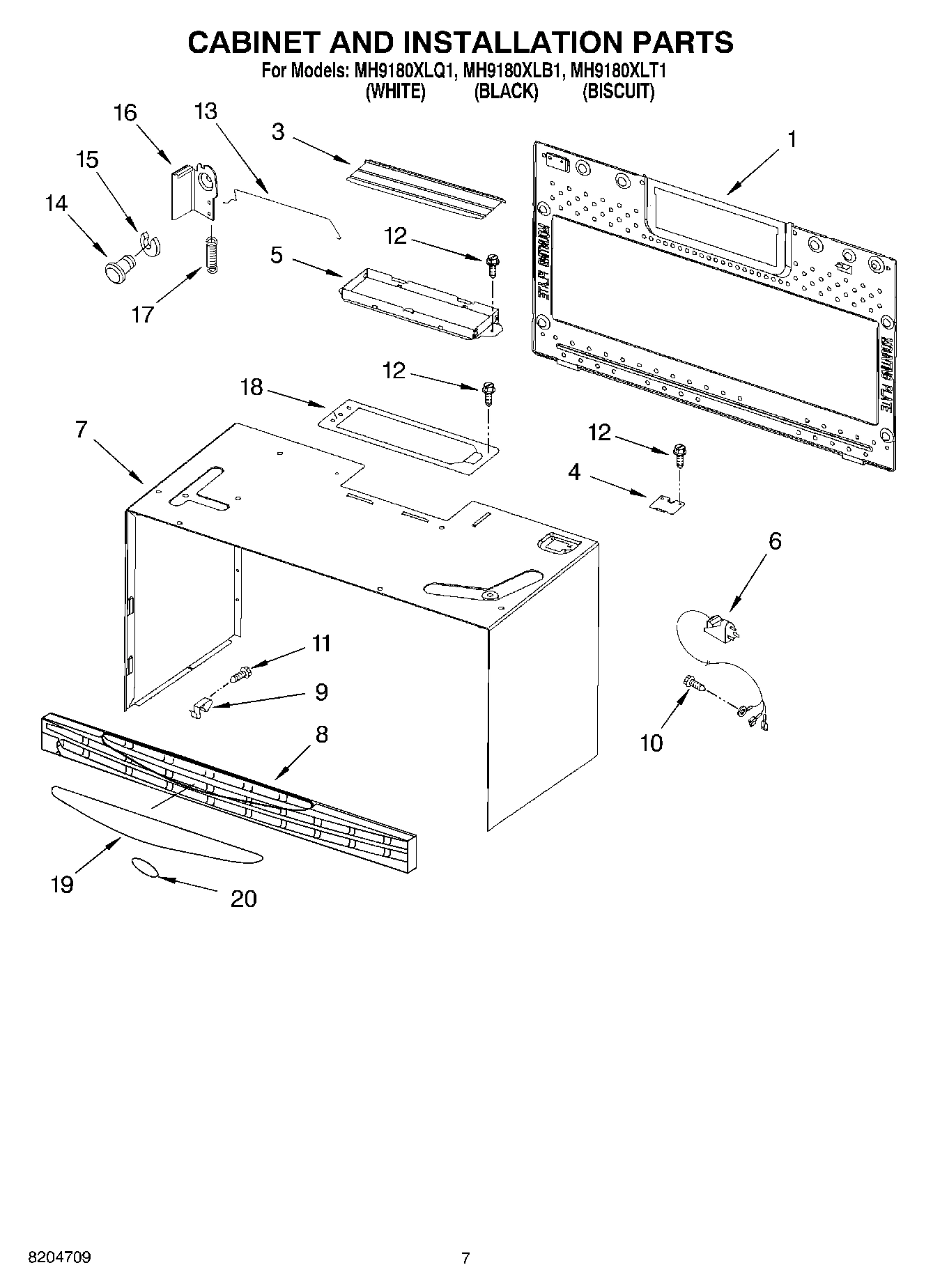

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool MH9180XLB1 Microwave Oven 1.8 Cu. Ft.
1
Film, Back Included with 4 WPL ARI118302A Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Plate, Mounting WPL 8184106 Contact Us For Availability
2
Frame, Inner WPL 8184921 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
2
Cover, Lamp WPL 8184885 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8184239 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8184241 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8184242 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Bracket, Thermostat WPL 8204673 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI118303A Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184477 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Microcomputer WPL 8184252 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Lower Hinge WPL 8204678 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer (White) WPL 8184899 Contact Us For Availability
7
Case, Outer (Black) WPL 8184900 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184901 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Upper Hinge WPL 8204679 Contact Us For Availability
8
Cover, Motor WPL 8184884 Contact Us For Availability
8
Grille, Vent (White) WPL 8184671 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184672 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184673 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8184677 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8184679 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8184769 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
SHIELD WPL 8204675 Contact Us For Availability
12
Cover WPL 8204676 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Fan, DC 12 V WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8184926 Contact Us For Availability
19
Plate, Grille (White) WPL 8185073 Contact Us For Availability
19
Plate, Grille (Black) WPL 8185074 Contact Us For Availability
19
Plate, Grille (Biscuit) WPL 8185075 Contact Us For Availability
20
Installation, Hardware WPL 8169659 Contact Us For Availability
20
Template, Upper WPL 8183985 Contact Us For Availability
20
Template, Wall WPL 8183987 Contact Us For Availability
20
Plate, Name WPL 8204710 Contact Us For Availability
20
Miscellaneous WPL ARI118304A Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
29
Foil, Lamp WPL 8184203 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
× ![]()
