Model Whirlpool MH9180XLB0 MICROWAVE – Common Parts & Diagrams
03 - INTERIOR AND VENTILATION

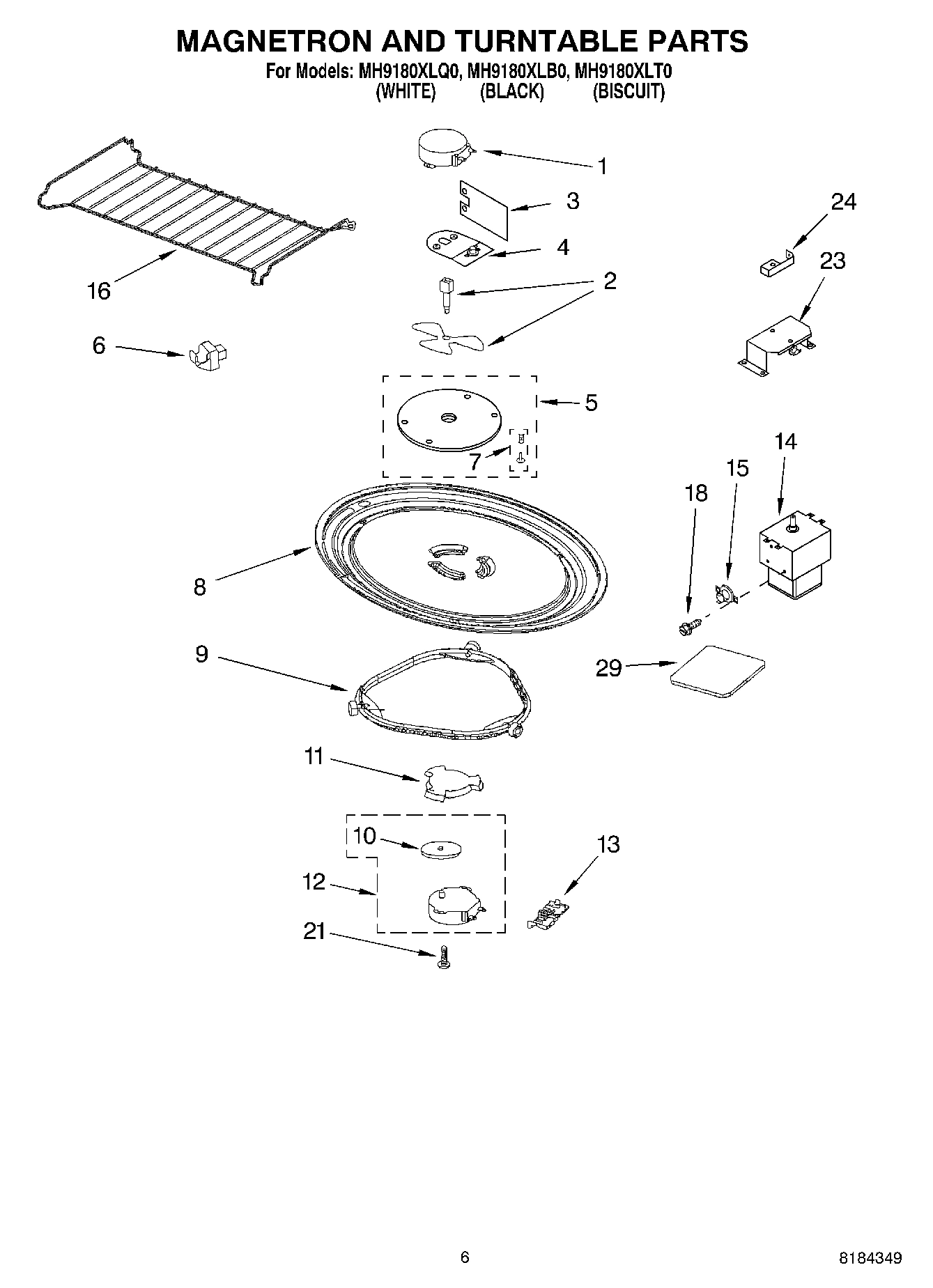

05 - MAGNETRON AND TURNTABLE

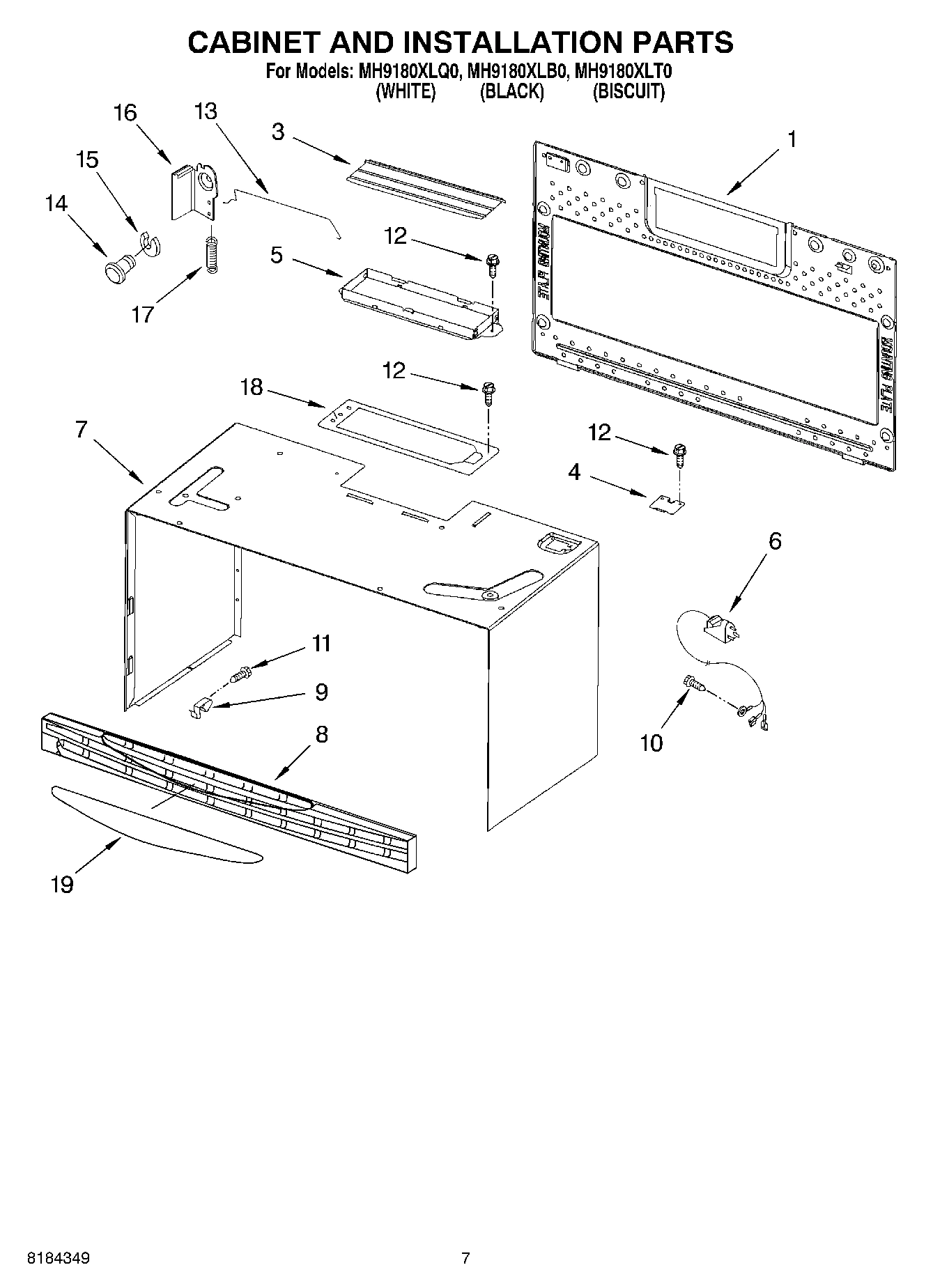

06 - CABINET AND INSTALLATION

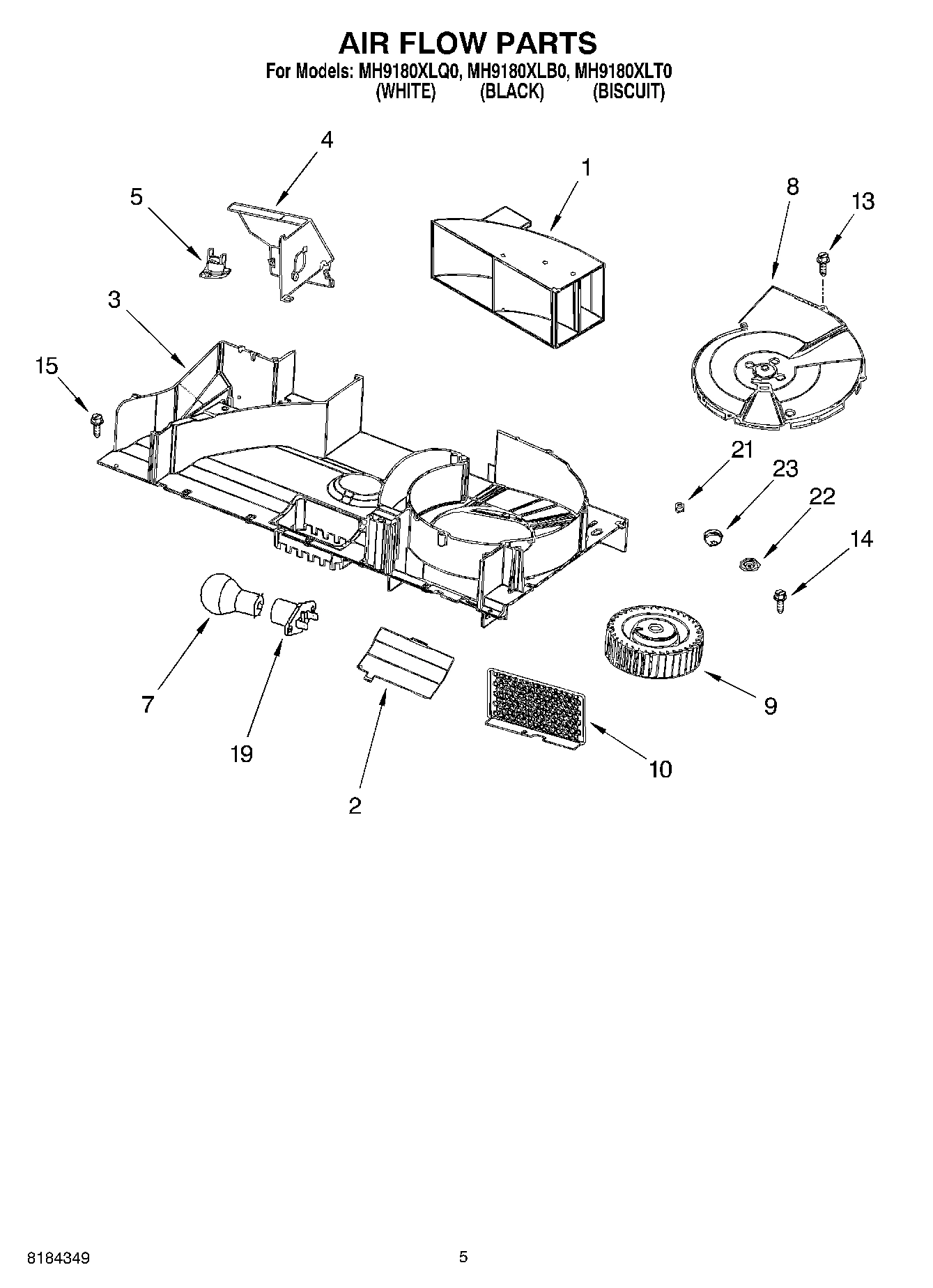

04 - AIR FLOW

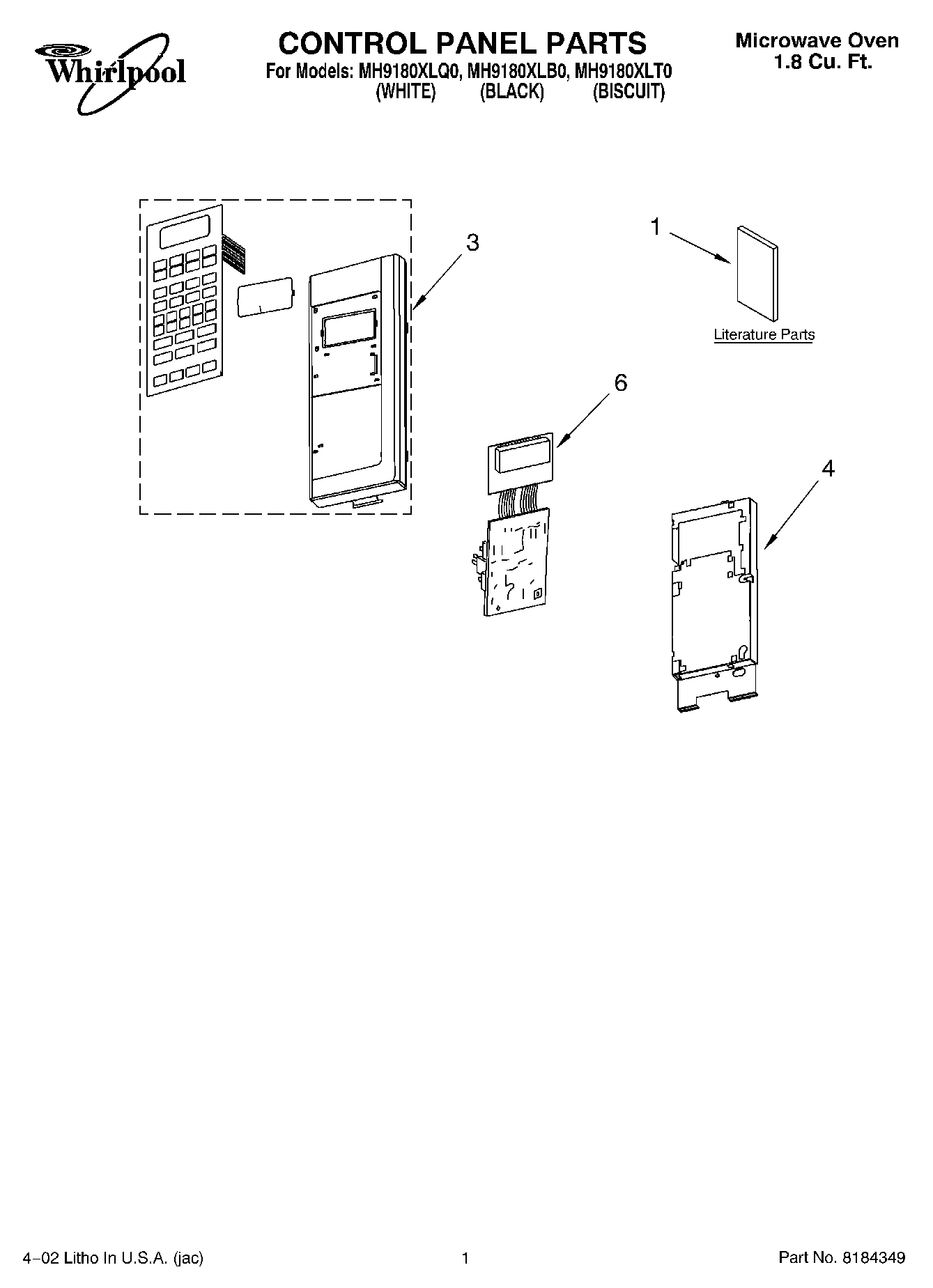

01 - CONTROL PANEL, LITERATURE

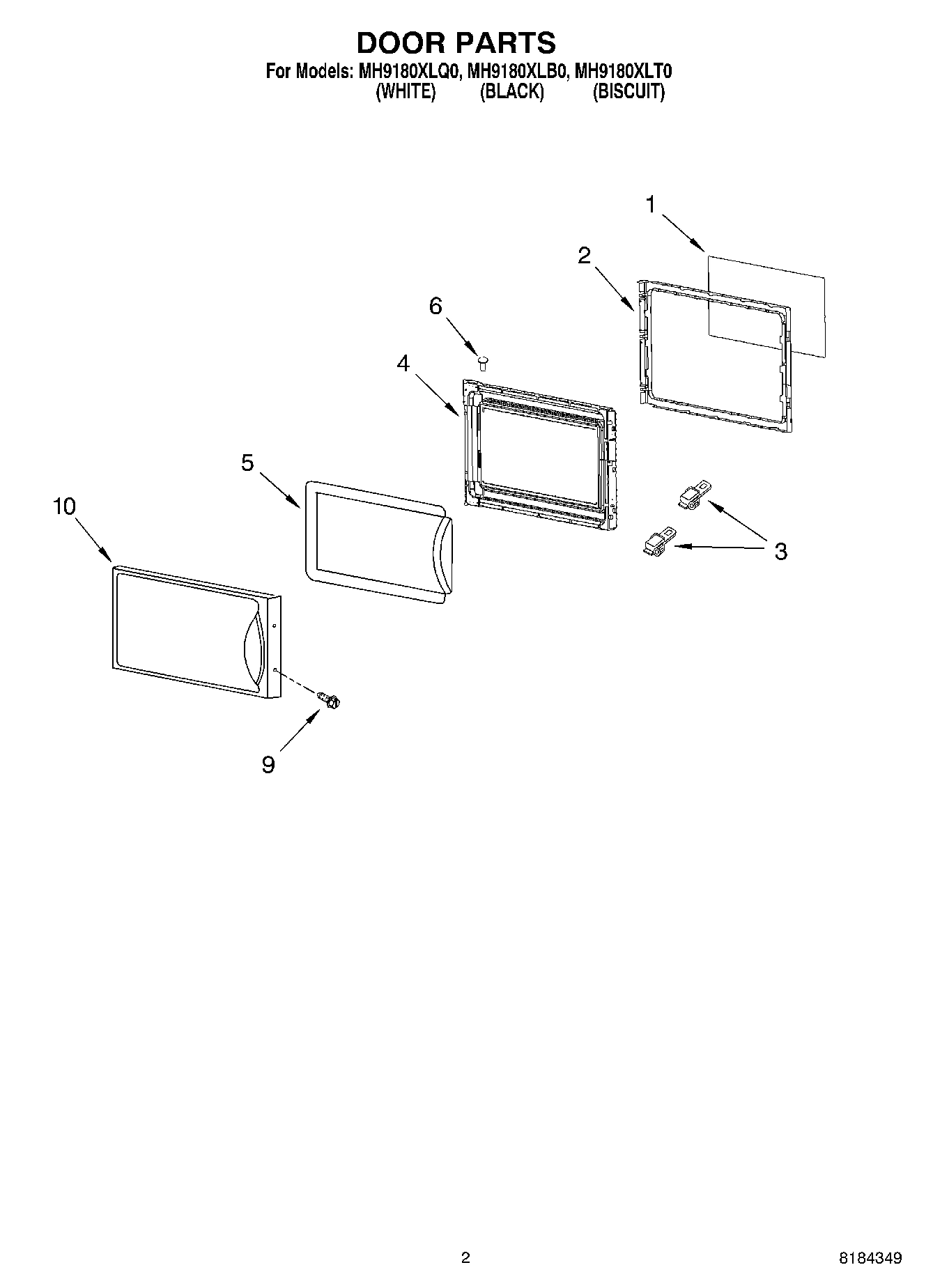

02 - DOOR
Common parts from model Whirlpool MH9180XLB0 MICROWAVE
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Plate, Mounting WPL 8184106 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Literature (U & C Guide) WPL LIT8183958 Contact Us For Availability
1
Literature (Cook Guide Label) WPL LIT8183963 Contact Us For Availability
1
Literature (Instructn, Install) WPL LIT8184059 Contact Us For Availability
1
Literature (Tech Sheet) WPL LIT8184634 Contact Us For Availability
1
Film, Back Included with No.4 WPL ARI118300A Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
2
Cover, Lamp WPL 8184191 Contact Us For Availability
2
Frame, Inner WPL 8184111 Contact Us For Availability
3
Duct, Air WPL 8184114 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184249 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184250 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184251 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Lid, Power Cord WPL 8184195 Contact Us For Availability
4
Bracket, Thermostat WPL 8184136 Contact Us For Availability
4
Bracket, Control WPL 8184131 Contact Us For Availability
4
Body Asy, Door Includes No.1 (White) WPL 8184239 Contact Us For Availability
4
Body Asy, Door Includes No.1 (Biscuit) WPL 8184241 Contact Us For Availability
4
Body Asy, Door Includes No.1 (Black) WPL 8184242 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184477 Contact Us For Availability
5
Glass, Outer Plast Included with No.10 WPL ARI118301A Contact Us For Availability
6
Microcomputer WPL 8184252 Contact Us For Availability
6
Cord, Power WPL 8184101 Contact Us For Availability
6
Pivot, Door WPL 8184134 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer (White) WPL 8184159 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184161 Contact Us For Availability
7
Case, Outer (Black) WPL 8184162 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (White) WPL 8184671 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184672 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184673 Contact Us For Availability
8
Cover, Motor WPL 8184133 Contact Us For Availability
9
Motor, Fan-Assy WPL 8183992 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
10
Frame Asy, Outer Includes No.5 (White) WPL 8184677 Contact Us For Availability
10
Frame Asy, Outer Includes No.5 (Black) WPL 8184679 Contact Us For Availability
10
Frame Asy, Outer Includes No.5 (Biscuit) WPL 8184769 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
19
Plate, Grille (Installation, Hardware) WPL 8169659 Contact Us For Availability
19
Plate, Grille (Template, Upper) WPL 8183985 Contact Us For Availability
19
Plate, Grille (Template, Wall) WPL 8183987 Contact Us For Availability
19
Plate, Grille (White) WPL 8184770 Contact Us For Availability
19
Plate, Grille (Biscuit Miscellaneous) WPL 8184771 Contact Us For Availability
19
Plate, Grille (Black) WPL 8184772 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
29
Foil, Lamp WPL 8184203 Contact Us For Availability
× ![]()
