Model Whirlpool MH6140XFQ0 MICROWAVE – Common Parts & Diagrams

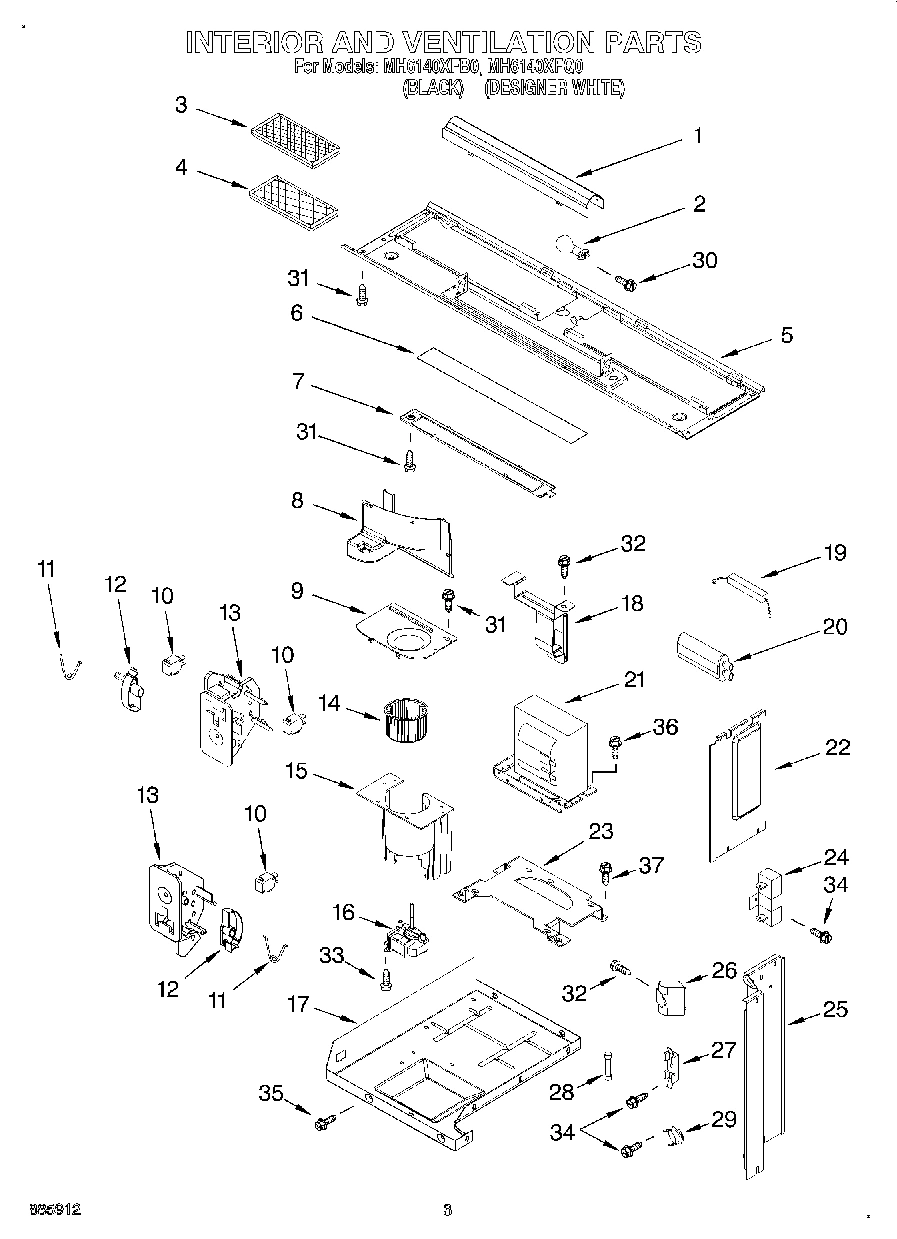

03 - INTERIOR AND VENTILATION

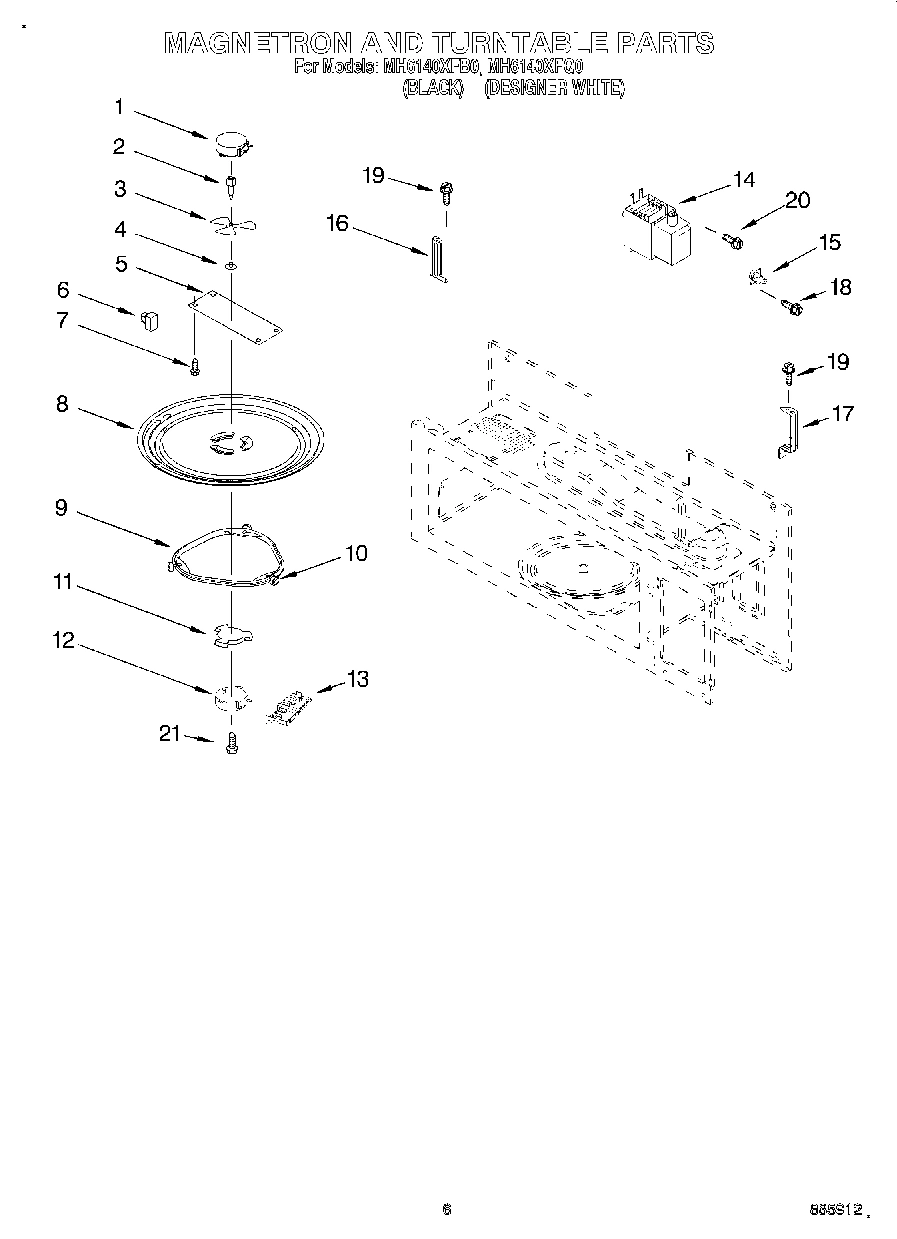

05 - MAGNETRON AND TURNTABLE

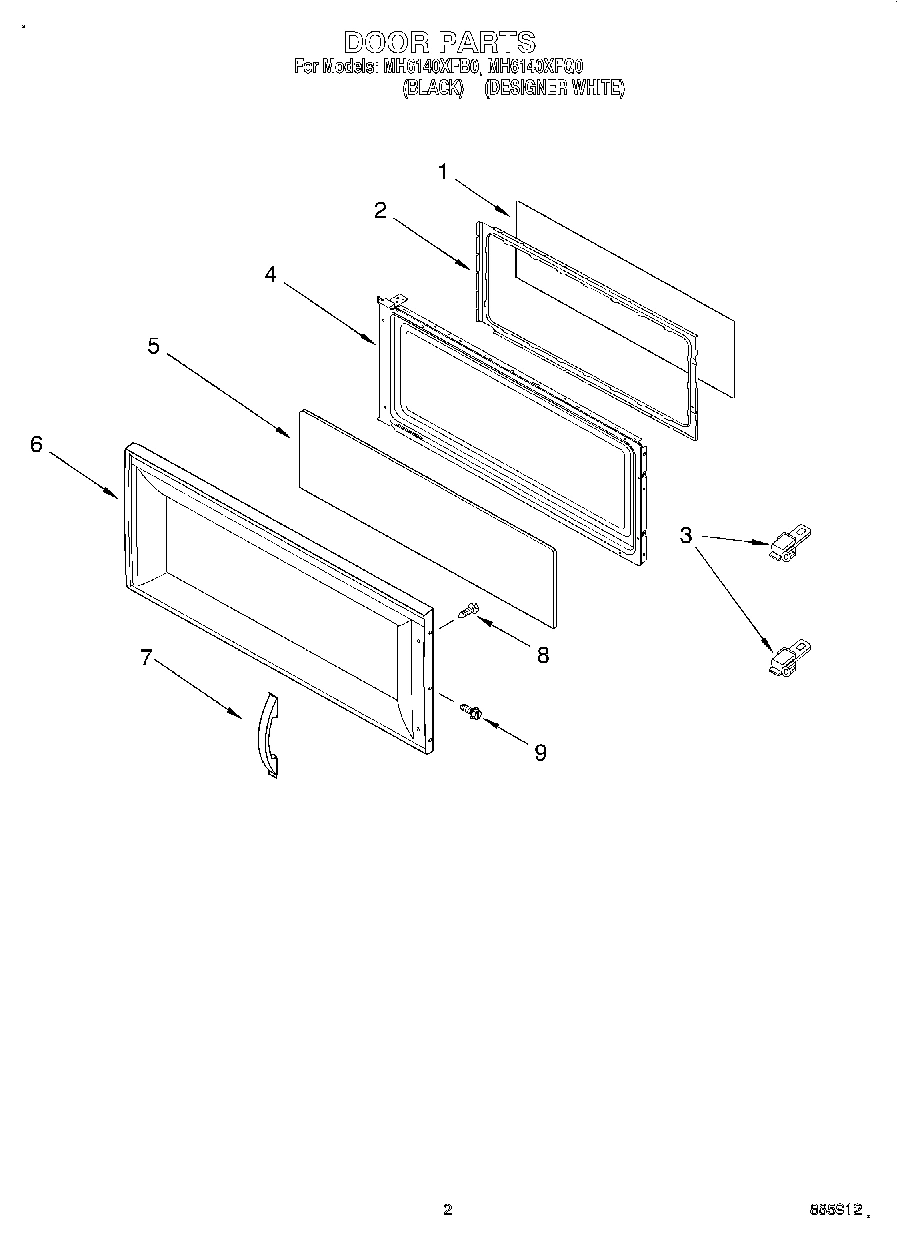

02 - DOOR

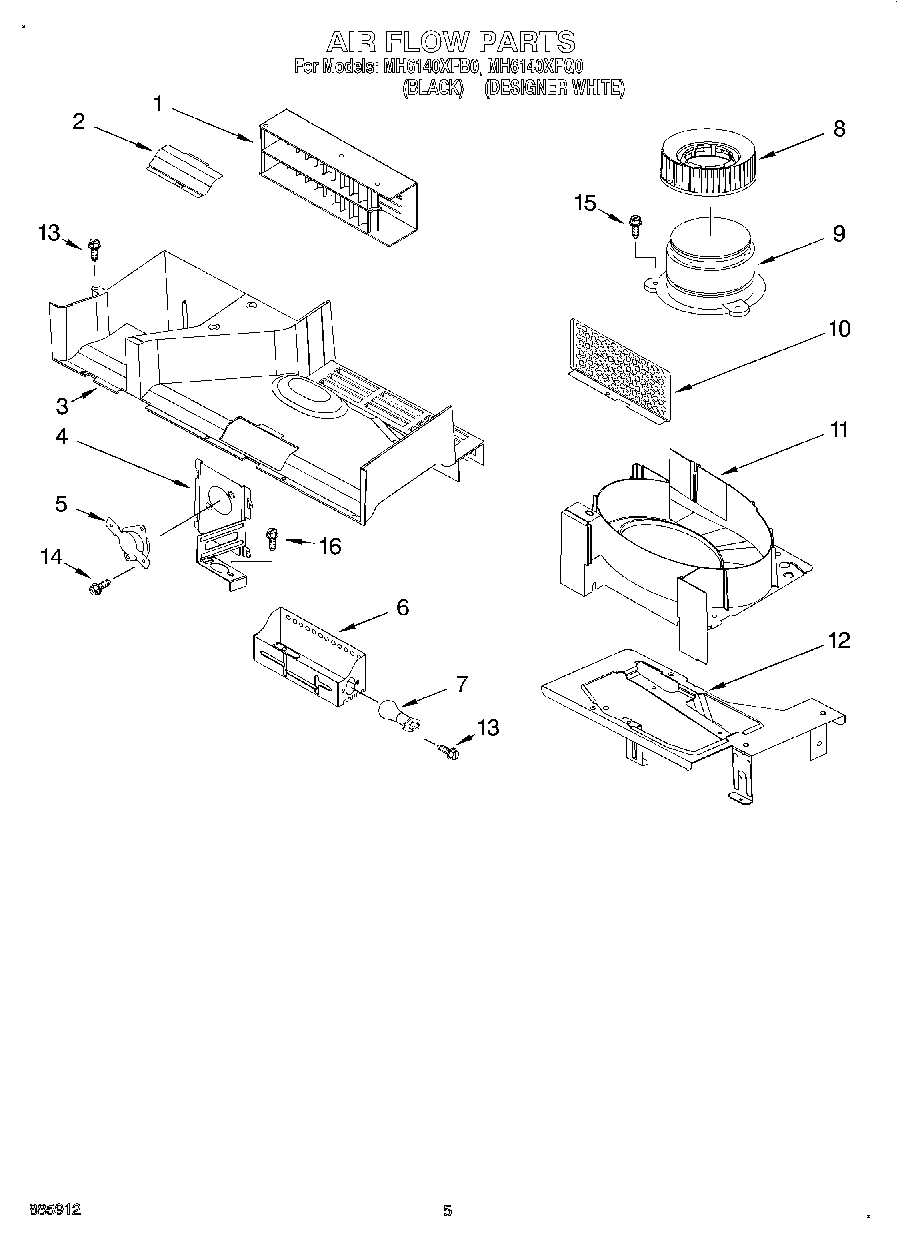

04 - AIRFLOW

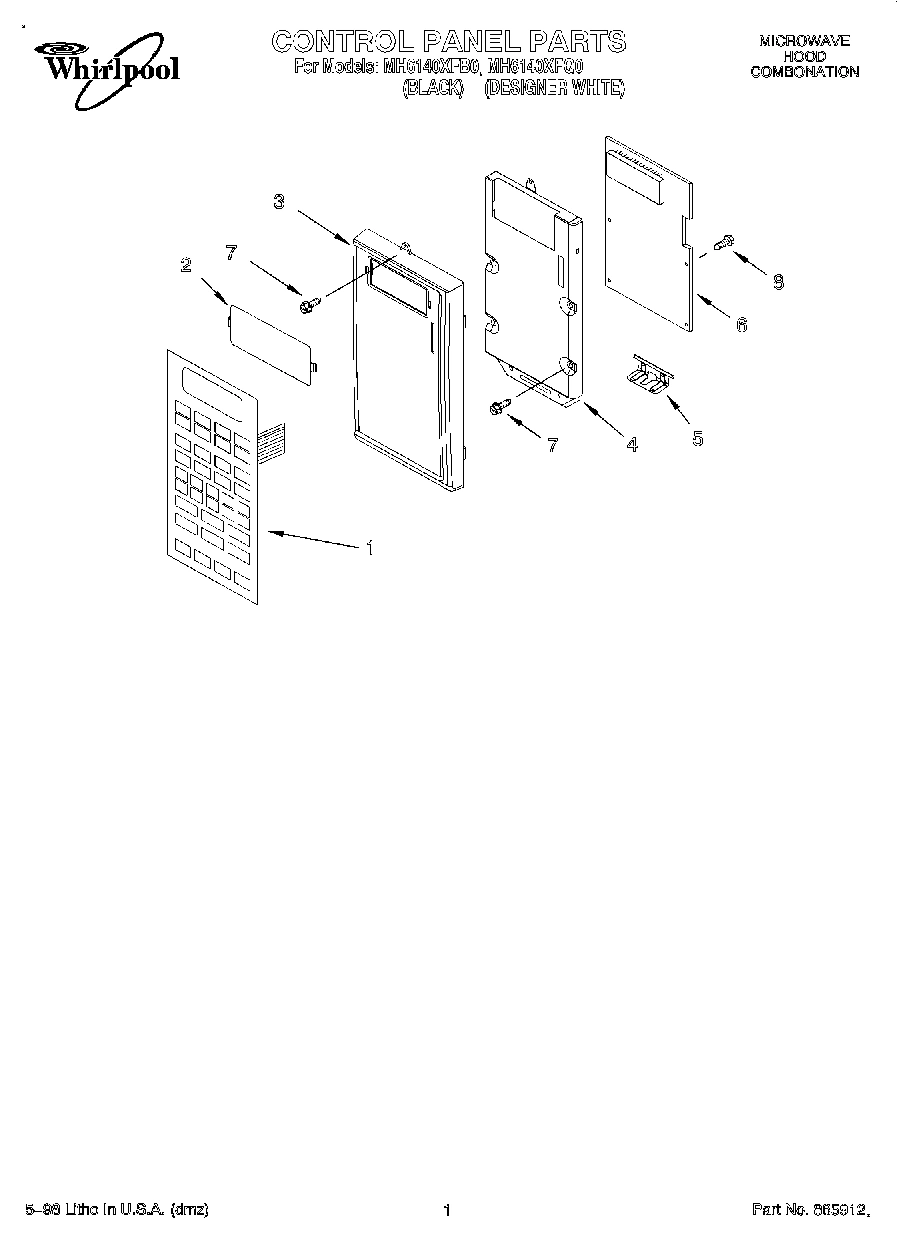

01 - CONTROL PANEL, LITERATURE

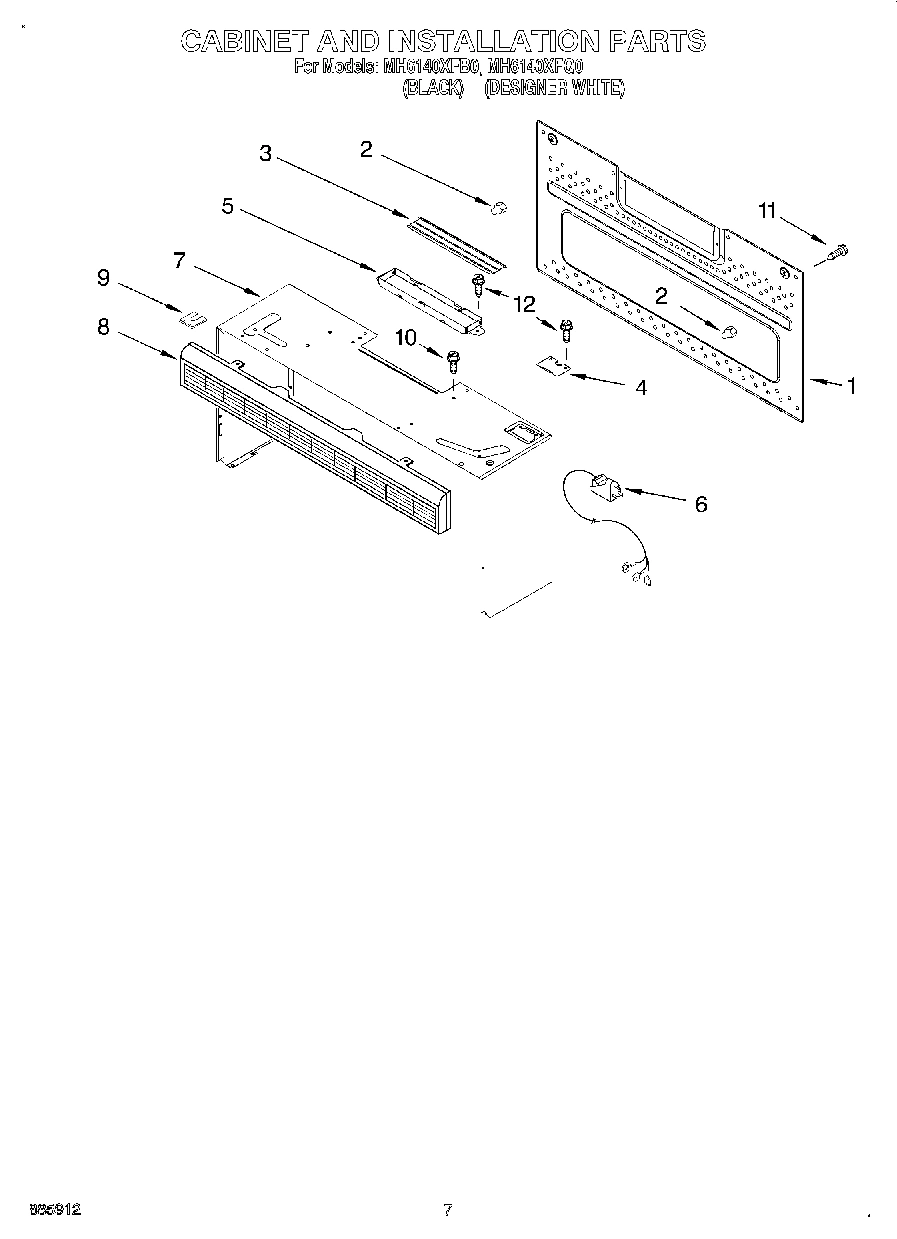

06 - CABINET AND INSTALLATION
Common parts from model Whirlpool MH6140XFQ0 MICROWAVE
Guide, Use & Care WPL LIT4393451 Contact Us For Availability
Cooking Guide (Label) WPL LIT4393452 Contact Us For Availability
Instructions, Installation WPL LIT4393764 Contact Us For Availability
Tech Sheet WPL LIT4393911 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 4393807 Contact Us For Availability
1
Switch, Membrane (White) WPL 4393903 Contact Us For Availability
1
Switch, Membrane (Black) WPL 4393904 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
2
Frame, Inner WPL 4393721 Contact Us For Availability
2
Reflector, Air WPL 4393677 Contact Us For Availability
2
Lens WPL 4393905 Contact Us For Availability
2
Stud, Ball WPL 4393771 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
3
Duct, Air WPL 4393915 Contact Us For Availability
3
Panel, Control (White) WPL 4393772 Contact Us For Availability
3
Panel, Control (Black) WPL 4393784 Contact Us For Availability
4
Guide, Stirrer WPL 4393749 Contact Us For Availability
4
Body, Door (White) WPL 4393722 Contact Us For Availability
4
Body, Door (Black) WPL 4393723 Contact Us For Availability
4
Bracket, Thermostat WPL 4393679 Contact Us For Availability
4
Bracket, Control WPL 4393906 Contact Us For Availability
4
Lid, Power Cord WPL 4393714 Contact Us For Availability
5
Glass, Outer (Black) WPL 4393725 Contact Us For Availability
5
Cover, Inlet WPL 4393750 Contact Us For Availability
5
Thermostat Open temp: 329~ Fahrenheit Close t WPL 4393325 Contact Us For Availability
5
Glass, Outer (White) WPL 4393770 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Cover, Hole (4) WPL 4393798 Contact Us For Availability
6
Housing, Lamp WPL 4393680 Contact Us For Availability
6
PCB Assembly WPL 4393908 Contact Us For Availability
6
Cord, Power WPL 4393793 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
7
Case, Outer (White) WPL 4393717 Contact Us For Availability
7
Case, Outer (Black) WPL 4393718 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393833 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Wheel, Fan WPL 4393682 Contact Us For Availability
9
Motor, Fan WPL 4393789 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Shield WPL 4393683 Contact Us For Availability
11
Screw WPL 4393839 Contact Us For Availability
11
Housing, Fan WPL 4393684 Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
12
Bracket, Fan WPL 4393869 Contact Us For Availability
12
Filler Kit (Black) WPL 4158311 Contact Us For Availability
12
Filler Kit (White) WPL 4158439 Contact Us For Availability
12
Filler Kit (Almond) WPL 4378403 Contact Us For Availability
12
Installation, Hardware WPL 4393757 Contact Us For Availability
13
Screw WPL 4393827 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 4393698 Contact Us For Availability
15
Housing, Fan WPL 4393699 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Motor, Fan WPL 4393700 Contact Us For Availability
16
Holder, Connector (L) WPL 4393797 Contact Us For Availability
17
Chassis WPL 4393701 Contact Us For Availability
17
Holder, Connector (R) WPL 4393686 Contact Us For Availability
18
Holder, Capacitor WPL 4393702 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
21
Transformer, H.V. WPL 4393809 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
23
Bracket, Transformer WPL 4393706 Contact Us For Availability
24
Resistor, Ceramic WPL 4393707 Contact Us For Availability
25
Plate, Side (L) WPL 4393708 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 4393538 Contact Us For Availability
29
Thermostat Open temp: 113~ Fahrenheit Close t WPL 4393710 Contact Us For Availability
35
Screw WPL 4393448 Contact Us For Availability
× ![]()
