Model Whirlpool MH3185XPT2 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

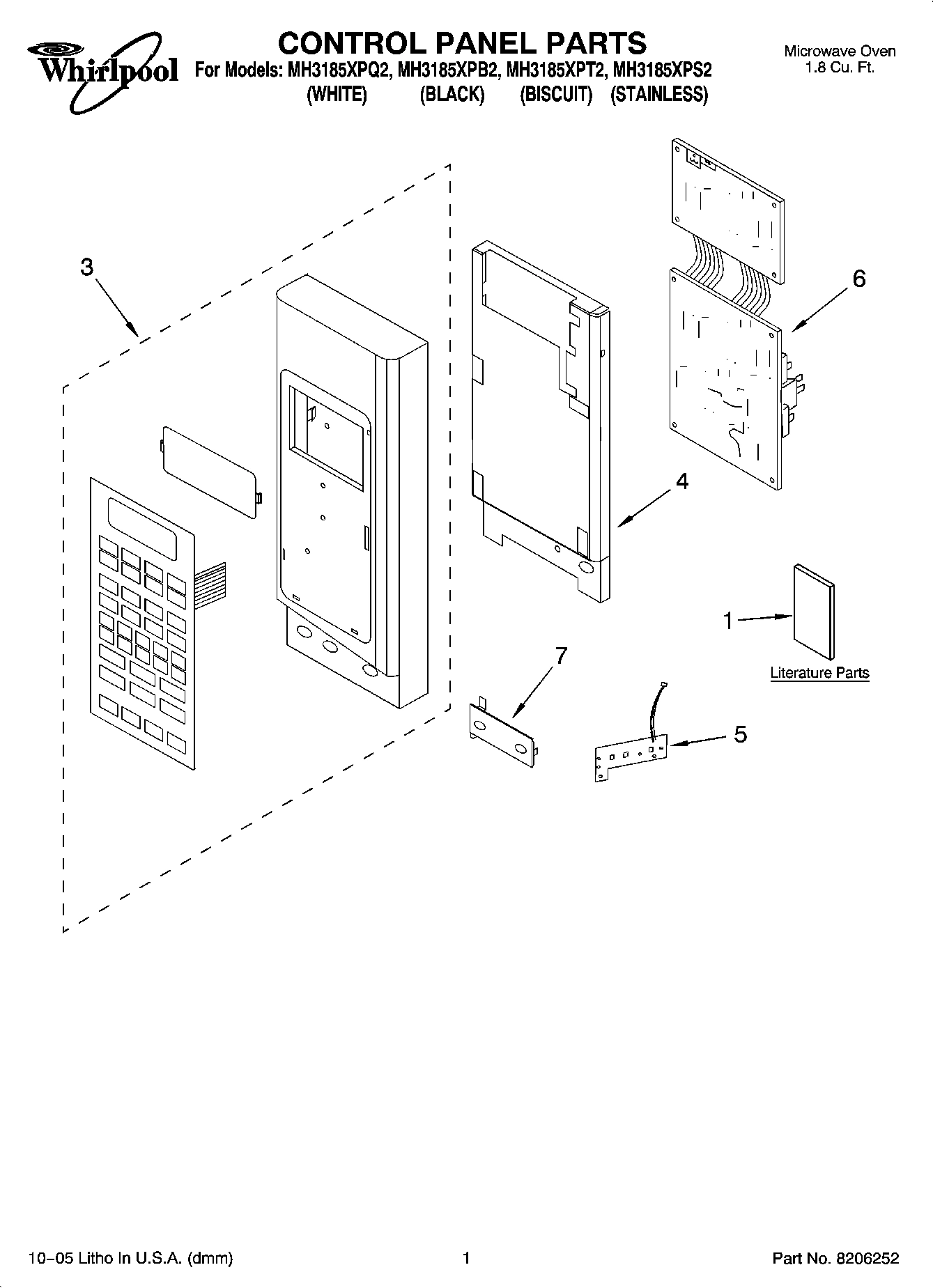

01 - CONTROL PANEL PARTS

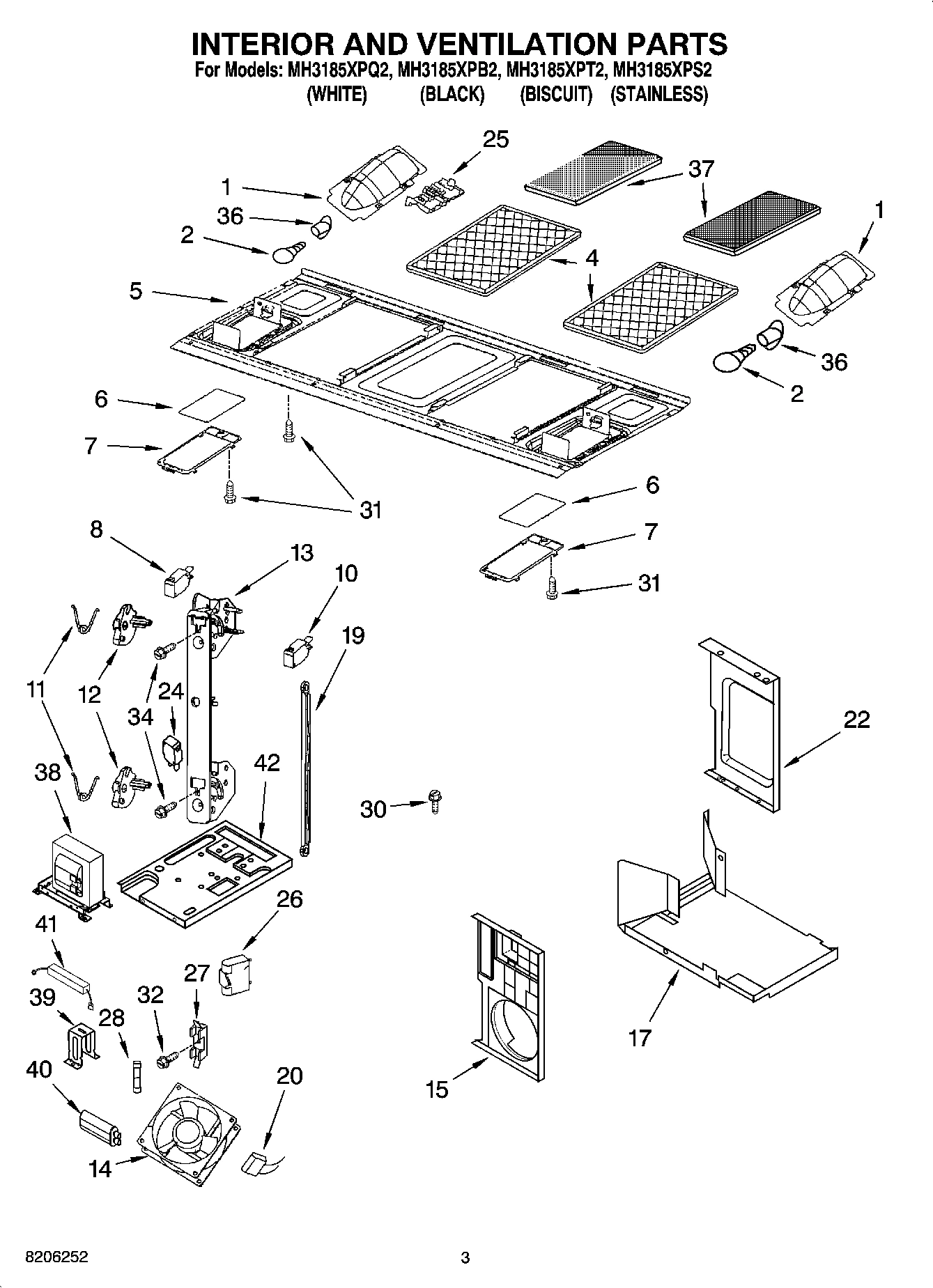

03 - INTERIOR AND VENTILATION PARTS

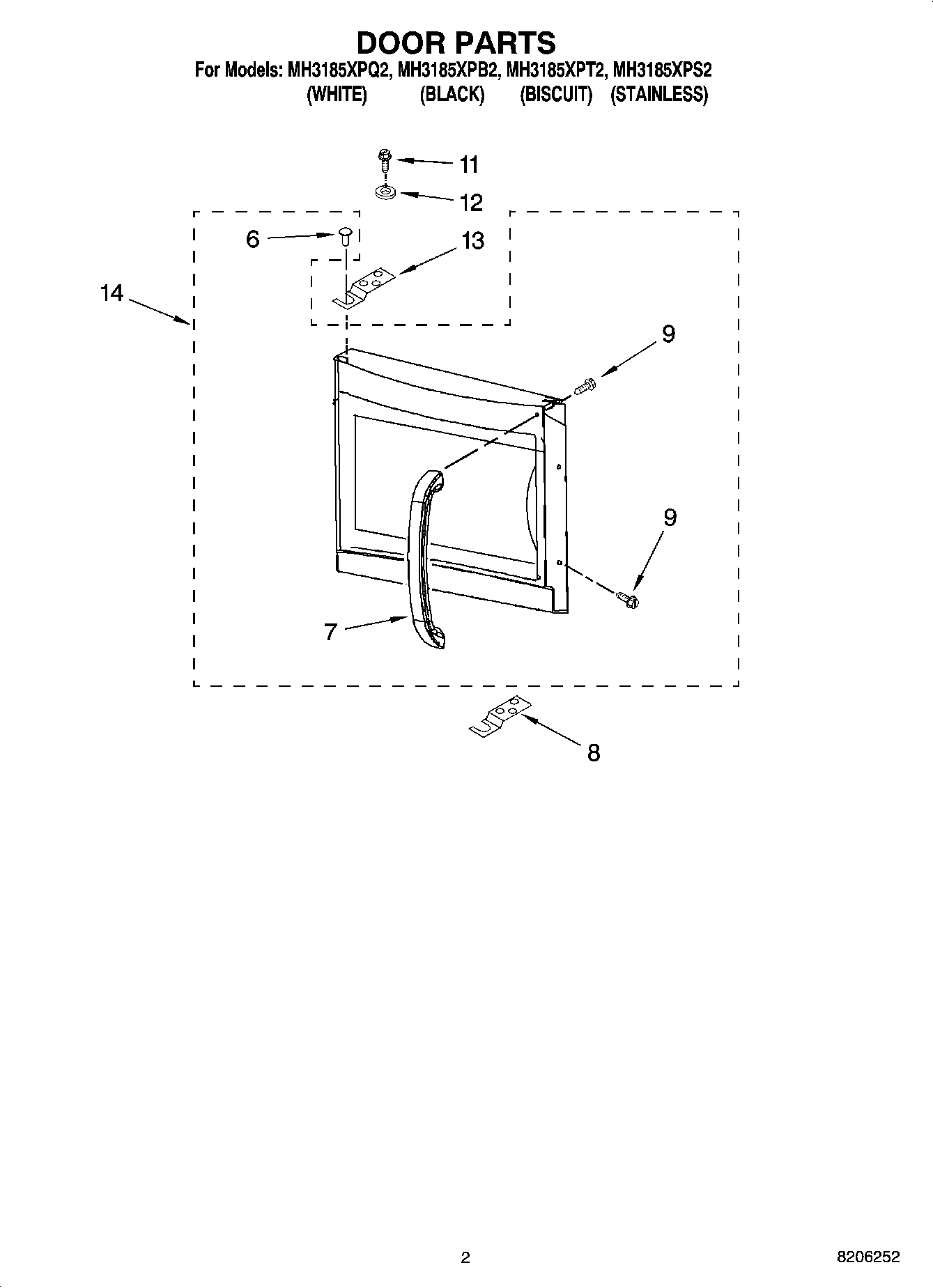

02 - DOOR PARTS

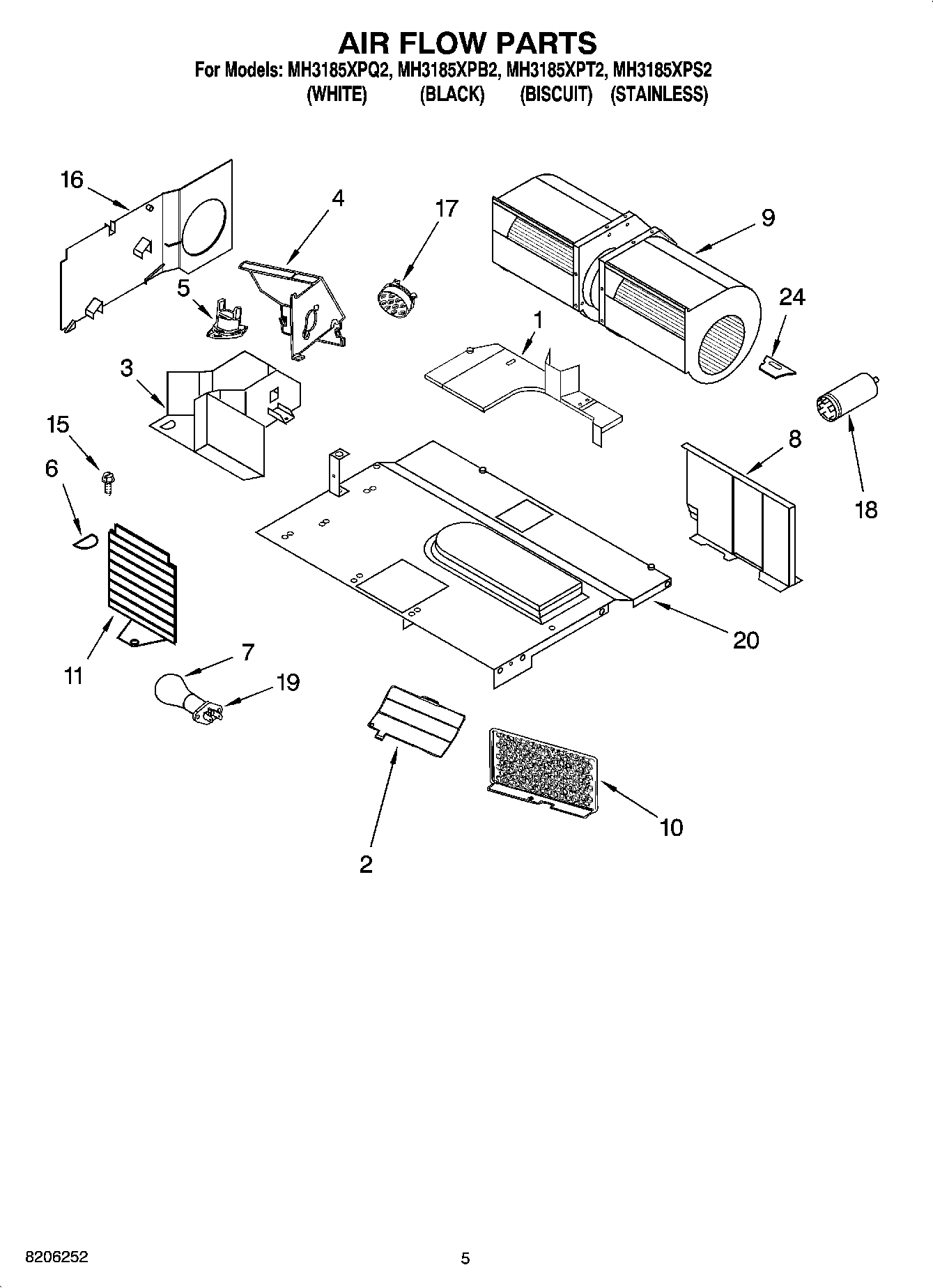

04 - AIR FLOW PARTS

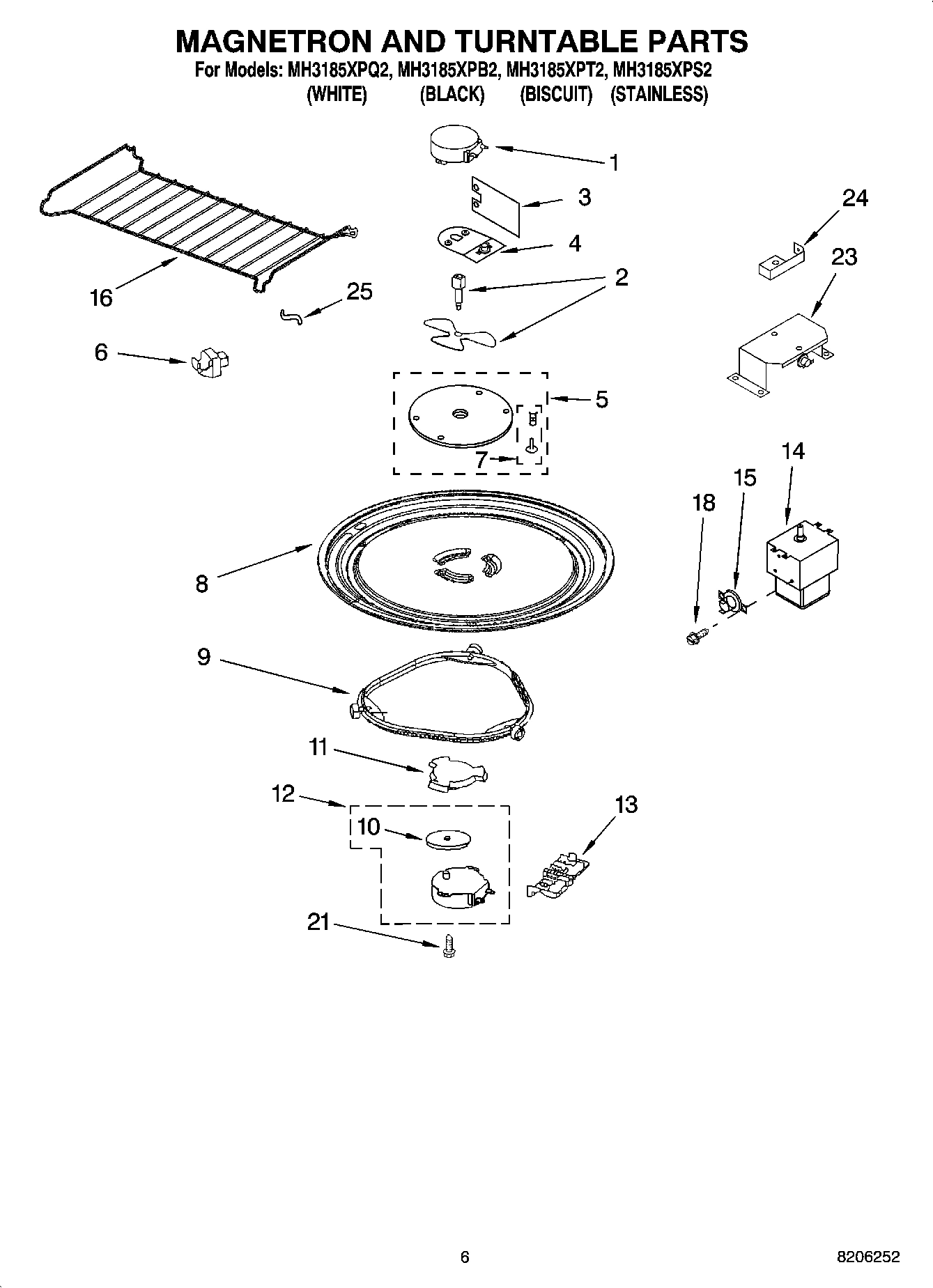

05 - MAGNETRON AND TURNTABLE PARTS

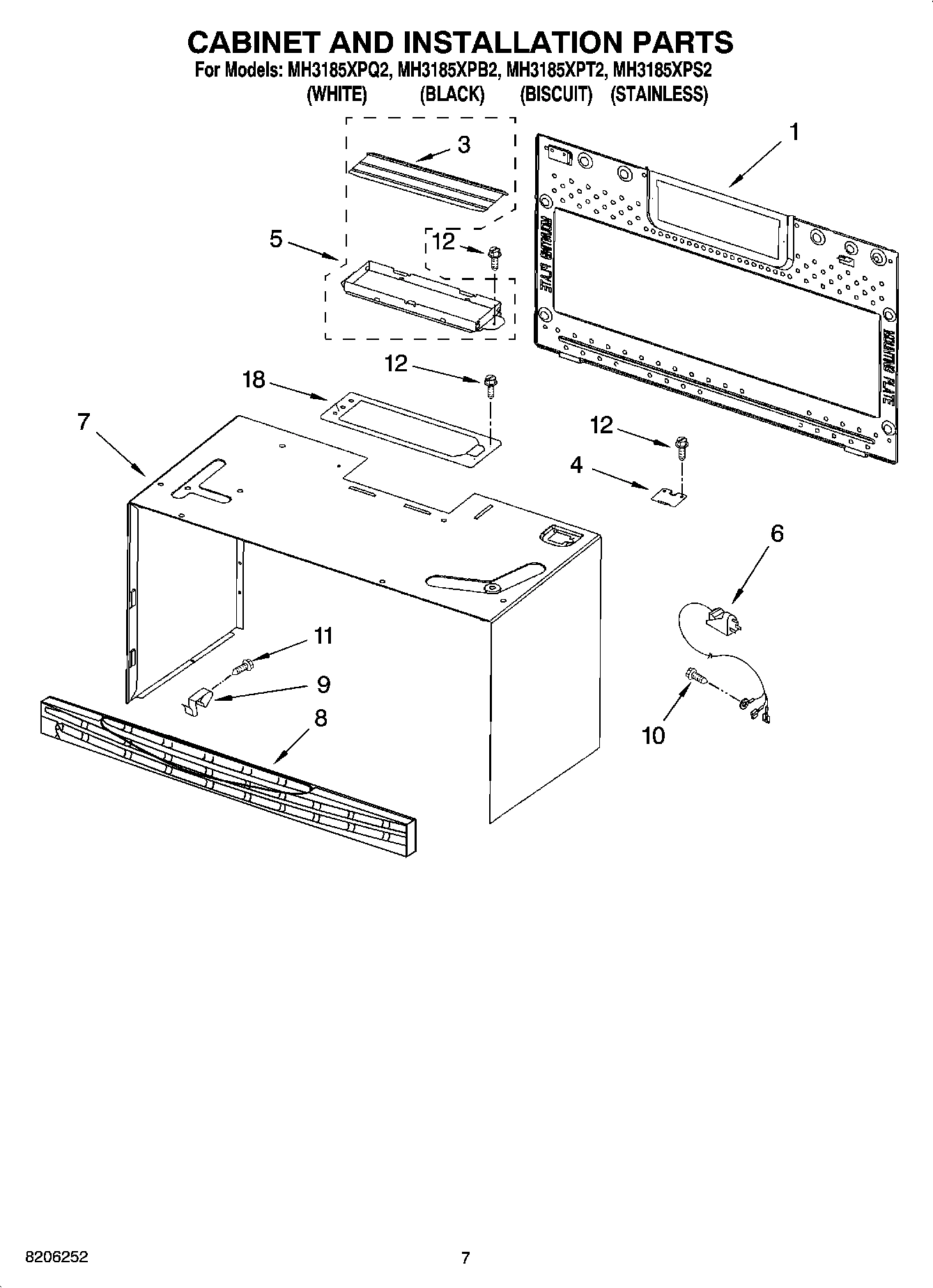

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool MH3185XPT2 Microwave Oven 1.8 Cu. Ft.
1
Deflector, Air WPL 8205350 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Plate, Mounting WPL 8206172 Contact Us For Availability
2
Cover, Lamp WPL 8205353 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
3
Duct, Air WPL 8205368 Contact Us For Availability
3
Shield, Nomex WPL 8205369 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184604 Contact Us For Availability
5
Thermostat WPL 8183703 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
7
Handle, Door (White) WPL 8205308 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8205309 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer (White) WPL 8205347 Contact Us For Availability
7
Case, Outer (Black) WPL 8205348 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8205349 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (White) WPL 8205245 Contact Us For Availability
8
Grille, Vent (Black) WPL 8205248 Contact Us For Availability
8
Lower Hinge WPL 8204678 Contact Us For Availability
8
Air Guide, Back WPL 8205354 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8205247 Contact Us For Availability
9
Motor, Fan Assy WPL 8184825 Contact Us For Availability
10
Shield WPL 8205355 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Shield WPL 8204790 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Upper Hinge WPL 8204679 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Complete Door (White) WPL 8205382 Contact Us For Availability
14
Complete Door (Stainless) WPL 8205383 Contact Us For Availability
14
Complete Door (Black) WPL 8205384 Contact Us For Availability
14
Complete Door (Biscuit) WPL 8205385 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8205364 Contact Us For Availability
15
Thermostat WPL 8184951 Contact Us For Availability
16
Air Guide (Right) WPL 8205352 Contact Us For Availability
16
Air Guide (Left) WPL 8205367 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
17
Diffuser, Housing WPL 8205357 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Filter WPL 8169561 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Template, Upper WPL 8184731 Contact Us For Availability
18
Plate, Damper WPL 8185090 Contact Us For Availability
18
H.V. Wire Assembly WPL 8205693 Contact Us For Availability
18
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous WPL ARI118104A Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
20
Base Plate, Air Guide WPL 8205351 Contact Us For Availability
22
Plate, Side WPL 8205356 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Socket, Motor Wire WPL 8185097 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
25
Cover, Terminal WPL 8184202 Contact Us For Availability
26
Motor, Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
38
Transformer, H.V. WPL 8205358 Contact Us For Availability
39
Bracket, Capacitor WPL 8205359 Contact Us For Availability
40
Capacitor, H.V. WPL 8205360 Contact Us For Availability
42
Chassis WPL 8205365 Contact Us For Availability
× ![]()
