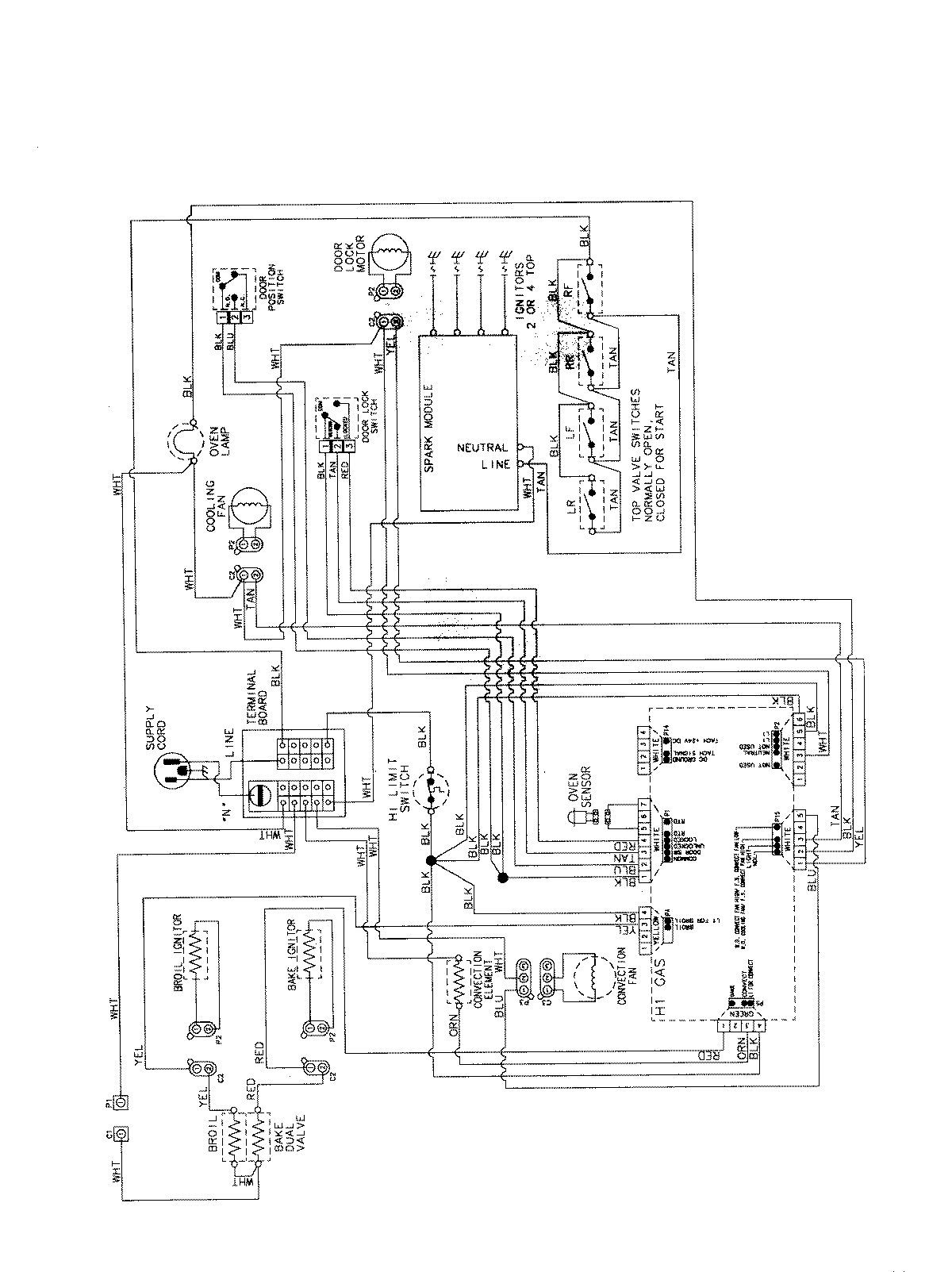

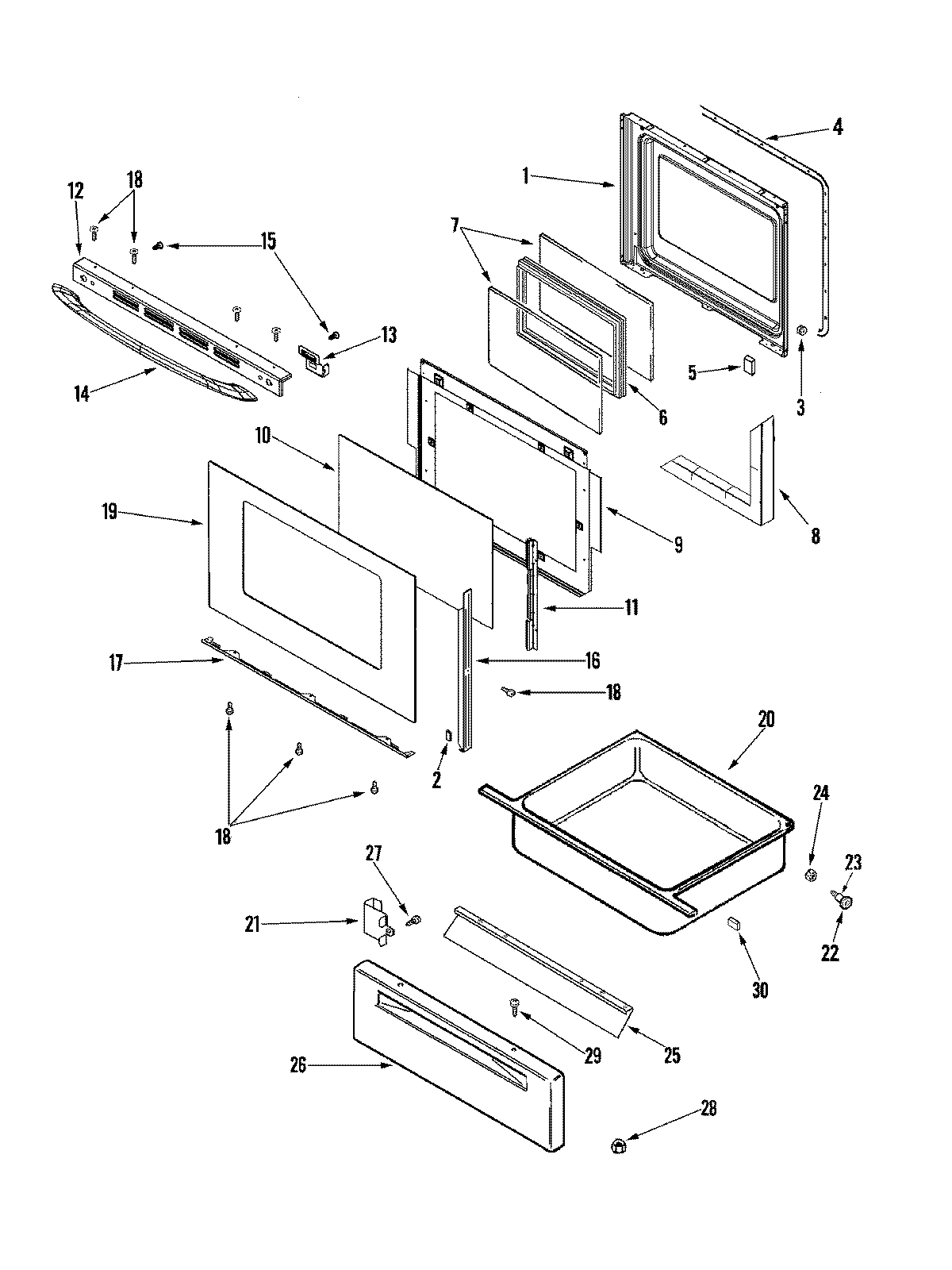

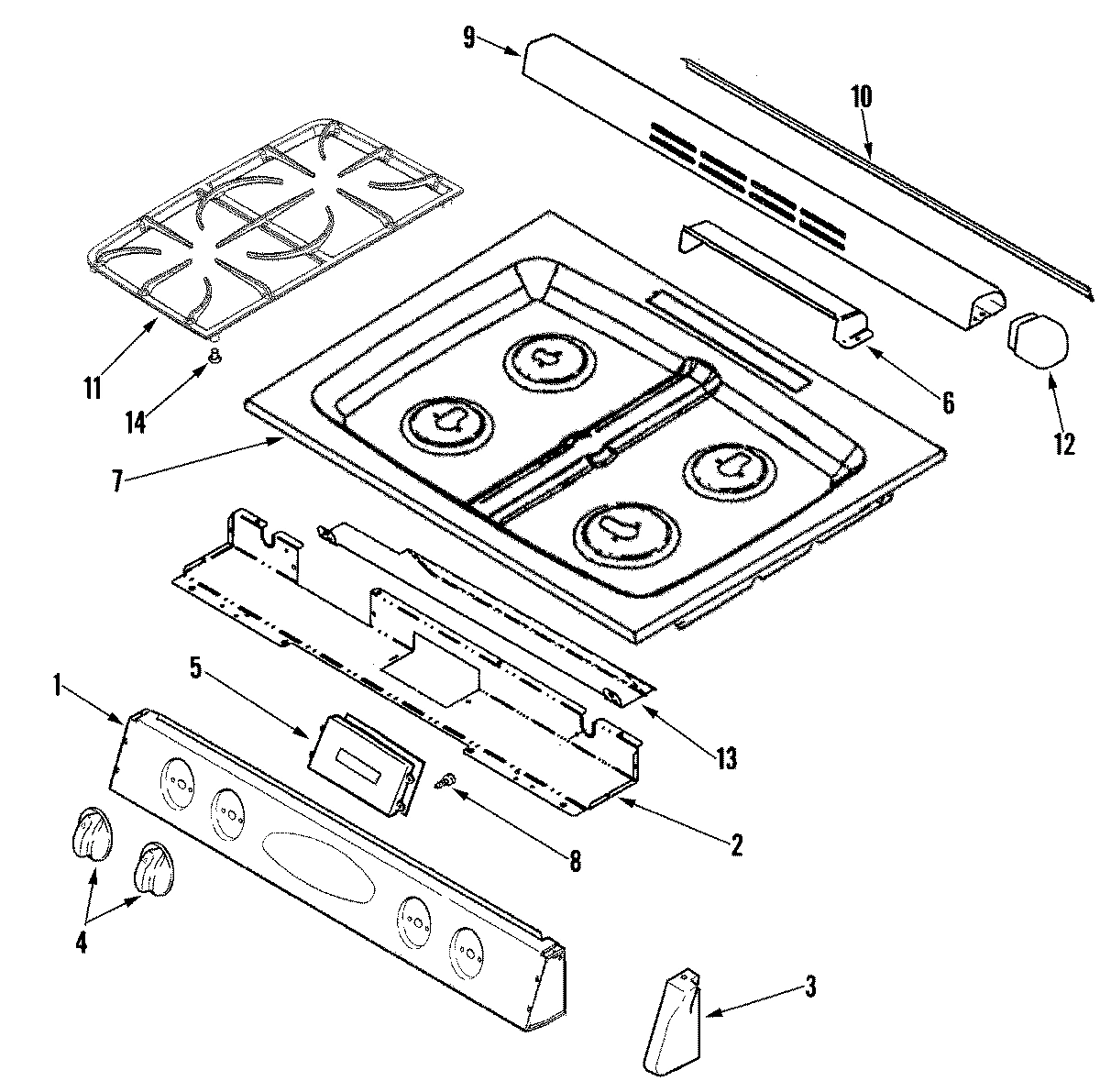

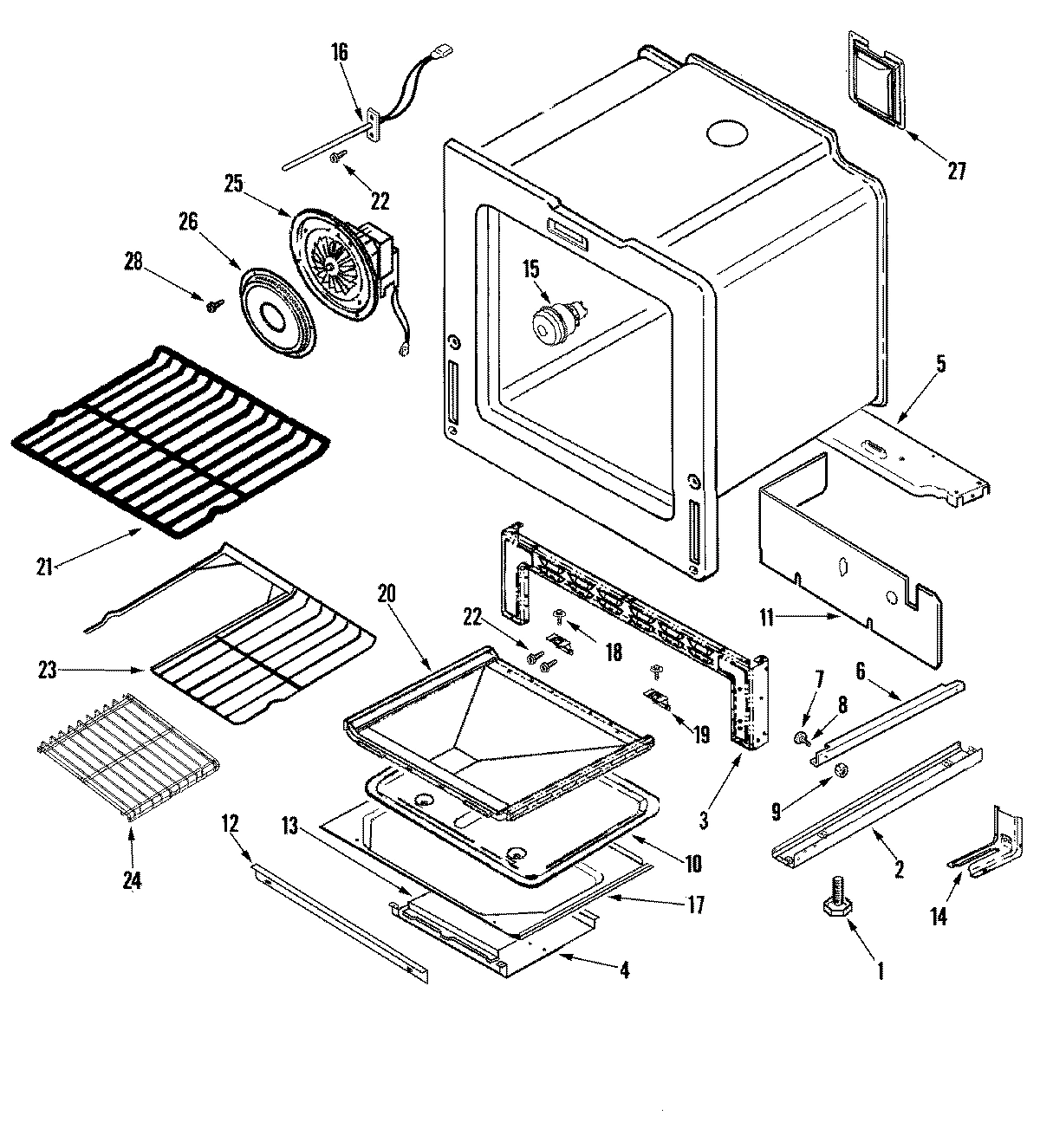

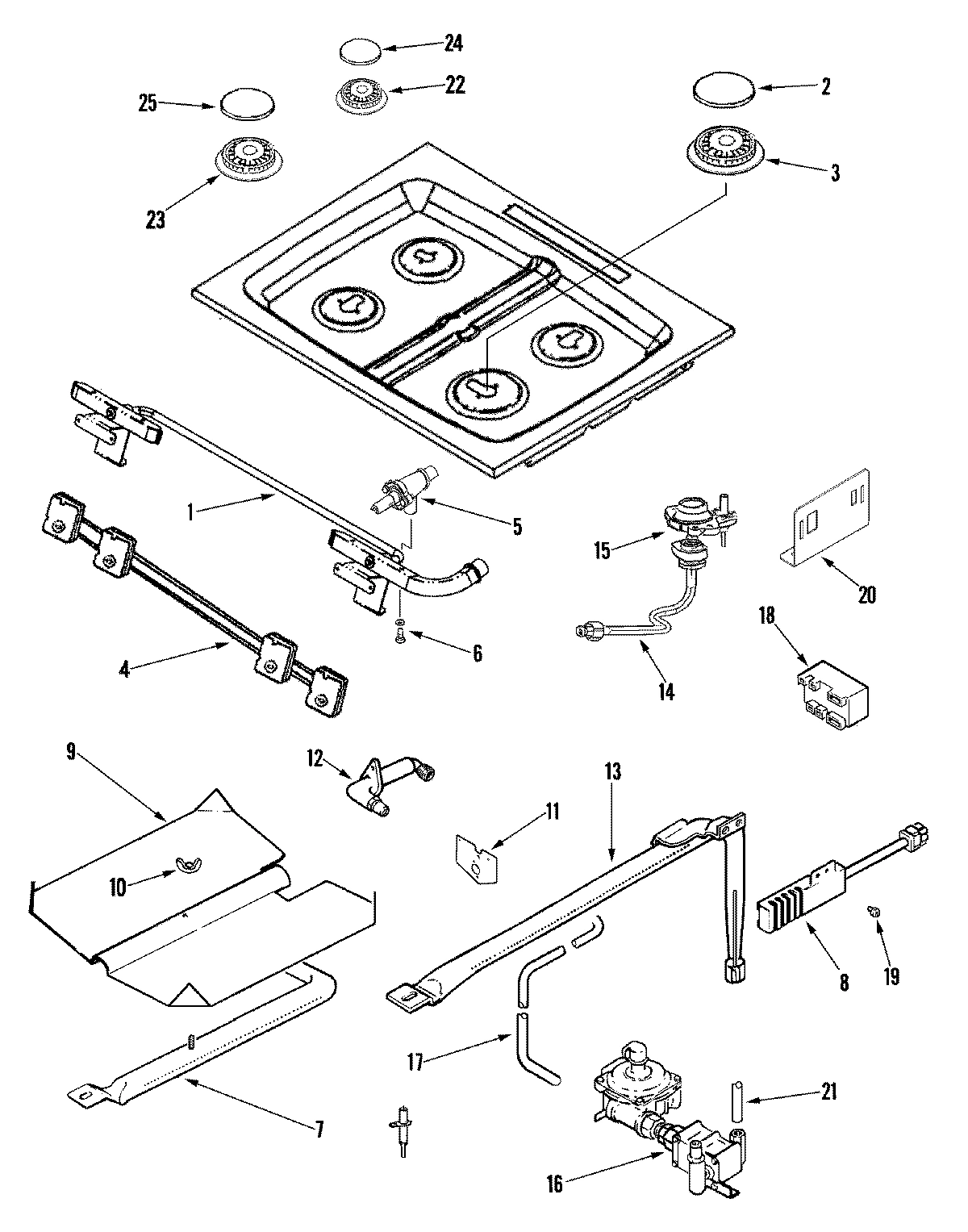

Model Maytag MGS5875BDW GAS RANGE – Common Parts &amp; Diagrams

1

MAY 74003642 MAY 74003642 Contact Us For Availability

1

MAY 74010965 MAY 74010965 Contact Us For Availability

1

MAY 8113P496-60 MAY 8113P496-60 Contact Us For Availability

1

MAY 8113P581-60 MAY 8113P581-60 Contact Us For Availability

1

MAY 8113P772-60 MAY 8113P772-60 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $75.64

2

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $7.62

2

WP74007420 Whirlpool Large Gray Burner Cap In Stock WPL WP74007420 $90.38

2

MAY 74010943 MAY 74010943 Contact Us For Availability

2

MAY 74011350 MAY 74011350 Contact Us For Availability

2

MAY 74011351 MAY 74011351 Contact Us For Availability

2

MAY 74011352 MAY 74011352 Contact Us For Availability

3

W10173467 Whirlpool Wire Harness Backorder WPL W10173467 $28.20

3

WPW10406878 Whirlpool Burner Base (16K) In Stock WPL WPW10406878 $68.92

3

NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability

3

PEDESTAL, FRONT MAY 74010882 Contact Us For Availability

4

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $87.99

4

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $101.99

4

MAY 74010915 MAY 74010915 Contact Us For Availability

4

MAY 74006591 MAY 74006591 Contact Us For Availability

4

HARNESS, SENSOR/LATCH MAY 74010849 Contact Us For Availability

5

12002270 Whirlpool Valve Kit and Screw 16K Backorder WPL 12002270 $194.74

5

MAY 74011053 MAY 74011053 Contact Us For Availability

5

MAY 74009451 MAY 74009451 Contact Us For Availability

5

MAY 74009452 MAY 74009452 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR MAY 74007129 Contact Us For Availability

5

MAY 12002708 MAY 12002708 Contact Us For Availability

6

FRAME, GLASS MAY 74003644 Contact Us For Availability

6

MAY 74009416 MAY 74009416 Contact Us For Availability

6

RUNNER, DRAWER MAY 74003565 Contact Us For Availability

6

MAY K71FILLW MAY K71FILLW Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $108.99

7

WP74008263 Whirlpool Door Switch Backorder WPL WP74008263 $105.82

7

MAY UXA1100AAW MAY UXA1100AAW Contact Us For Availability

7

MAY 74004076 MAY 74004076 Contact Us For Availability

8

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $40.99

8

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $4.82

8

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

8

MAY 74004438 MAY 74004438 Contact Us For Availability

8

INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability

8

NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE MAY W10124350 Contact Us For Availability

8

MAY 74011435 MAY 74011435 Contact Us For Availability

9

MAY 74009502 MAY 74009502 Contact Us For Availability

9

MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability

10

MAY 74004857 MAY 74004857 Contact Us For Availability

10

NUT, WING MAY 7103P030-60 Contact Us For Availability

10

PAN, BAKE BURNER MAY 74004465 Contact Us For Availability

GRATE, DOUBLE (GRY) MAY 74009121 Contact Us For Availability

MAY 74003650 MAY 74003650 Contact Us For Availability

MAY 74004307 MAY 74004307 Contact Us For Availability

COVER, VALVE/REGULATOR MAY 74005465 Contact Us For Availability

MAY 74004290 MAY 74004290 Contact Us For Availability

MAY 74004291 MAY 74004291 Contact Us For Availability

MAY 74009690 MAY 74009690 Contact Us For Availability

MAY 74010901 MAY 74010901 Contact Us For Availability

BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $14.02

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $14.02

MAY 74003960 MAY 74003960 Contact Us For Availability

SHIELD, CONTROL MAY 74010846 Contact Us For Availability

MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability

MAY 74006574 MAY 74006574 Contact Us For Availability

74010819 Whirlpool Latch Assembly In Stock WPL 74010819 $219.26

W10919249 Whirlpool Burner Grate Foot In Stock WPL W10919249 $5.99

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.99

WP74011768 Whirlpool Door Handle In Stock WPL WP74011768 $171.54

MAY M0275597 MAY M0275597 Contact Us For Availability

MAY 74011131 MAY 74011131 Contact Us For Availability

MAY 74011132 MAY 74011132 Contact Us For Availability

MAY 74011133 MAY 74011133 Contact Us For Availability

MAY 74011134 MAY 74011134 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP74006515 Whirlpool Washer Screw In Stock WPL WP74006515 $4.99

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $47.99

WPW10407678 Whirlpool Orifice Holder Backorder WPL WPW10407678 $82.83

WPW10407680 Whirlpool Orifice Holder Backorder WPL WPW10407680 $75.64

HOLDER, ORIFICE (9.2K) MAY 74010909 Contact Us For Availability

LAMP ASSEMBLY MAY 74010885 Contact Us For Availability

16

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $24.79

16

MAY 12002358 MAY 12002358 Contact Us For Availability

16

MAY W10130932 MAY W10130932 Contact Us For Availability

WP3807F708-71 Whirlpool Support In Stock WPL WP3807F708-71 $104.76

MAY 74004408 MAY 74004408 Contact Us For Availability

RETAINER, BOTTOM INSULATION MAY 74009480 Contact Us For Availability

INSULATION, OVEN BOTTOM MAY 74010986 Contact Us For Availability

18

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 $108.74

18

MODULE, SPARK (4+0) MAY 7431P064-60 Contact Us For Availability

18

Module, Spark (4+0) MAY 8215557 Contact Us For Availability

19

MAY 12002396 MAY 12002396 Contact Us For Availability

19

SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability

19

MAY 74010812 MAY 74010812 Contact Us For Availability

WP2205F054-19 Whirlpool Range Bottom Backorder WPL WP2205F054-19 $416.48

DRAWER, STORAGE MAY 74008333 Contact Us For Availability

Support, Spark Module MAY 3807F752-45 Contact Us For Availability

SUPPORT, SPARK MODULE MAY 74007020 Contact Us For Availability

21

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $54.99

21

MAY 74010896 MAY 74010896 Contact Us For Availability

21

MAY 74010944 MAY 74010944 Contact Us For Availability

22

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $7.99

22

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $19.98

SPRING, DOOR SWITCH WPL 74001629 No Longer Available

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $61.46

RACK, CREATE A SPACE HALF 30`` MAY 74009589 Contact Us For Availability

24

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $4.67

24

CAP, BURNER (SMR-GRY) MAY 74007422 Contact Us For Availability

24

INSERT, HALF RACK 30`` MAY 74009587 Contact Us For Availability

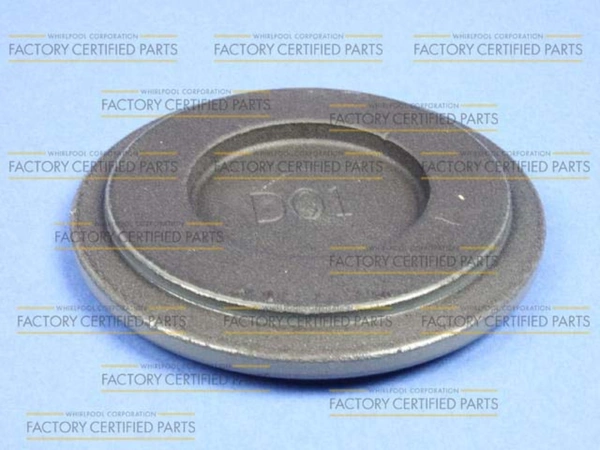

WP74007752 Whirlpool Burner Cap (Medium Gray) In Stock WPL WP74007752 $69.14

MAY 74001631 MAY 74001631 Contact Us For Availability

LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability

MAY 74010902 MAY 74010902 Contact Us For Availability

26

PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability

26

COVER, CONVECT FAN MAY 74008315 Contact Us For Availability

27

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

27

MAY 74010814 MAY 74010814 Contact Us For Availability

28

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $8.89

28

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

29

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

30

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

NI

MAY 15003735 MAY 15003735 Contact Us For Availability
