Model Whirlpool MES5775BCW20 ELECTRIC RANGE – Common Parts & Diagrams

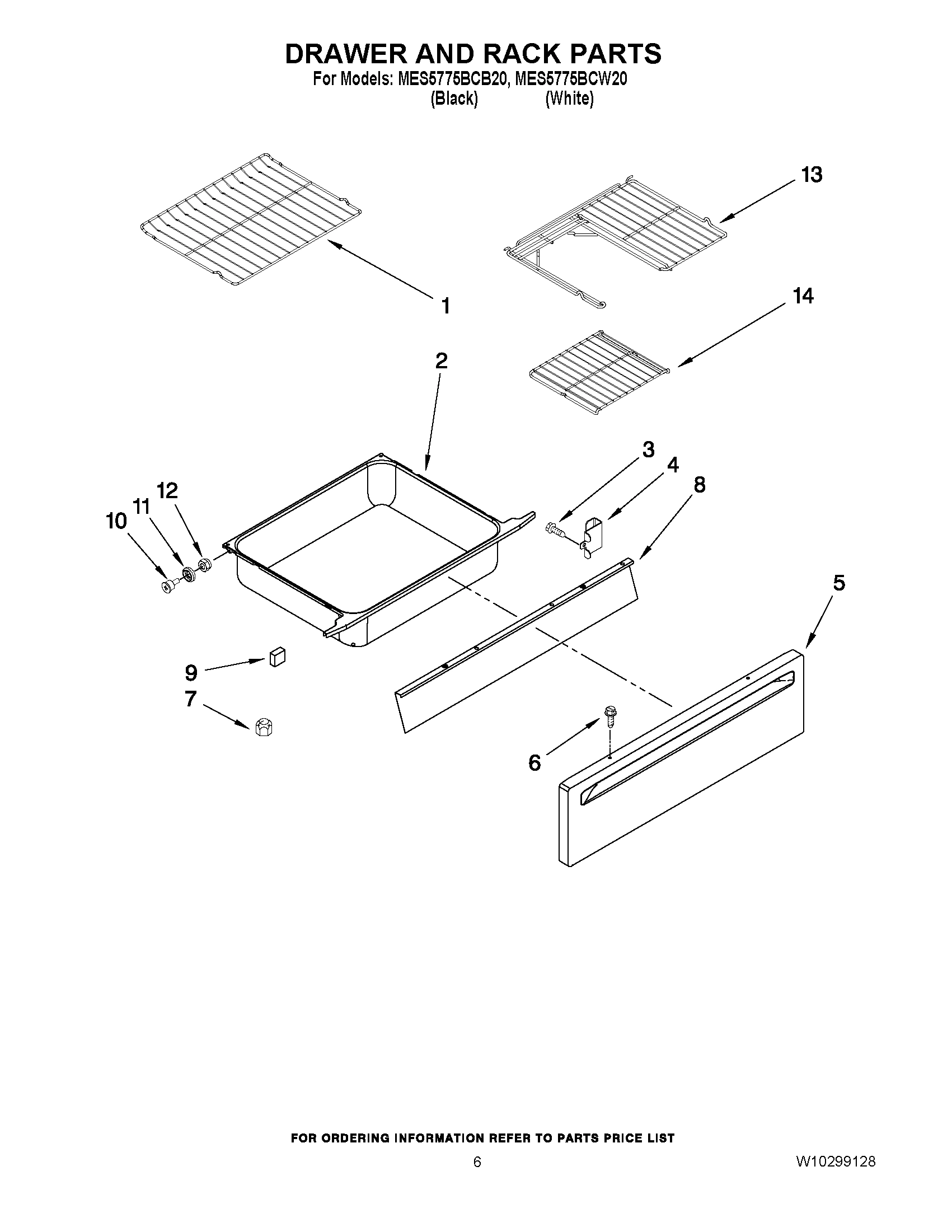

05 - DRAWER AND RACK PARTS

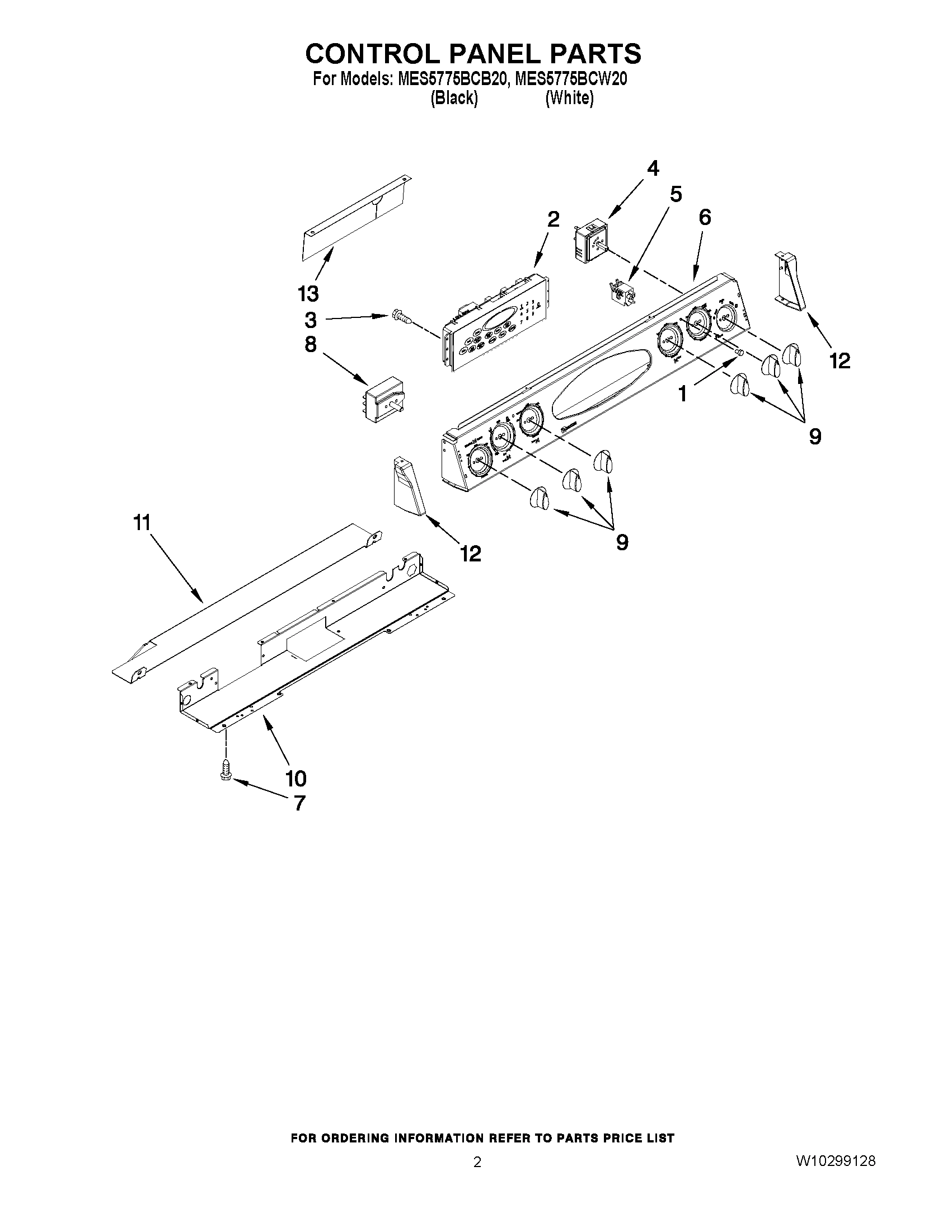

02 - CONTROL PANEL PARTS

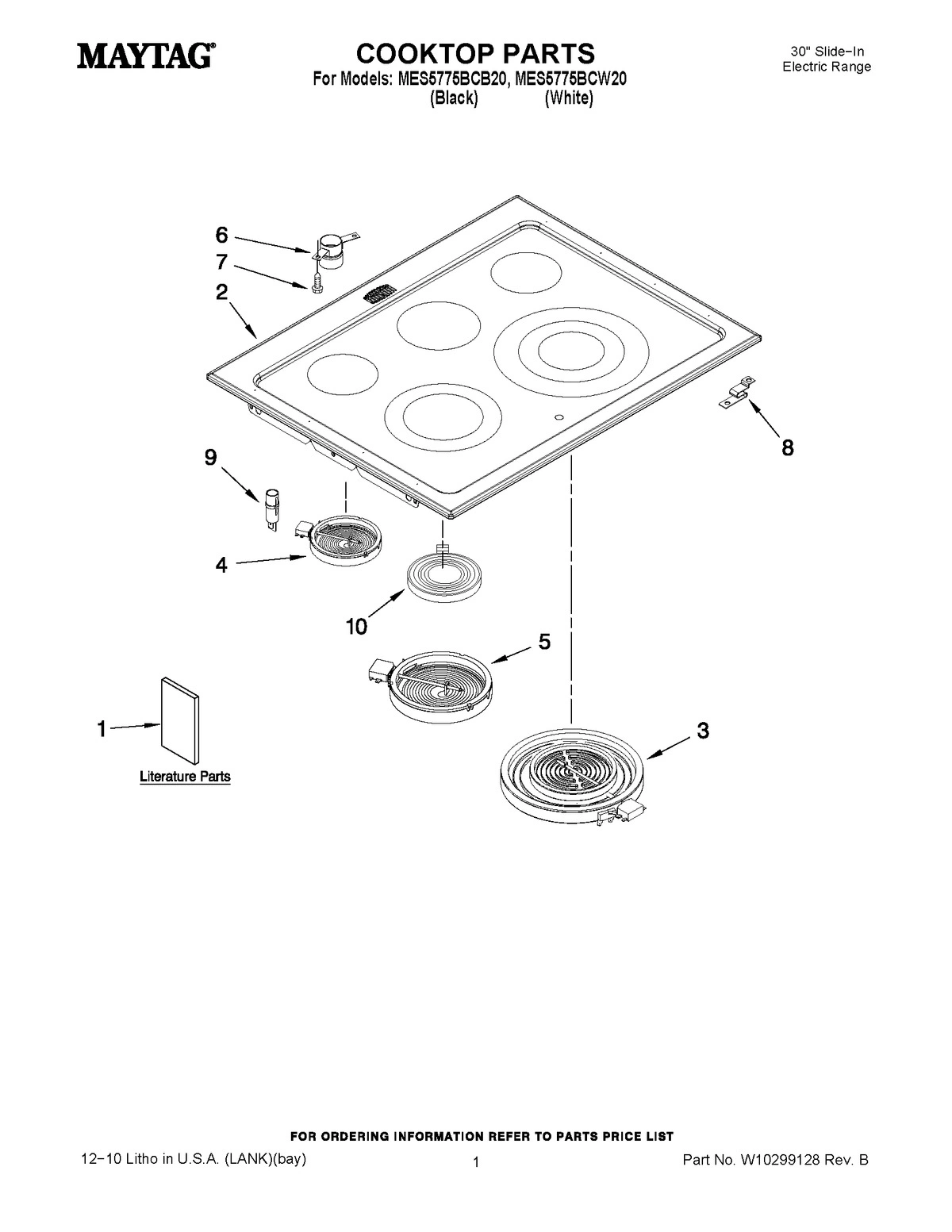

01 - COOKTOP PARTS

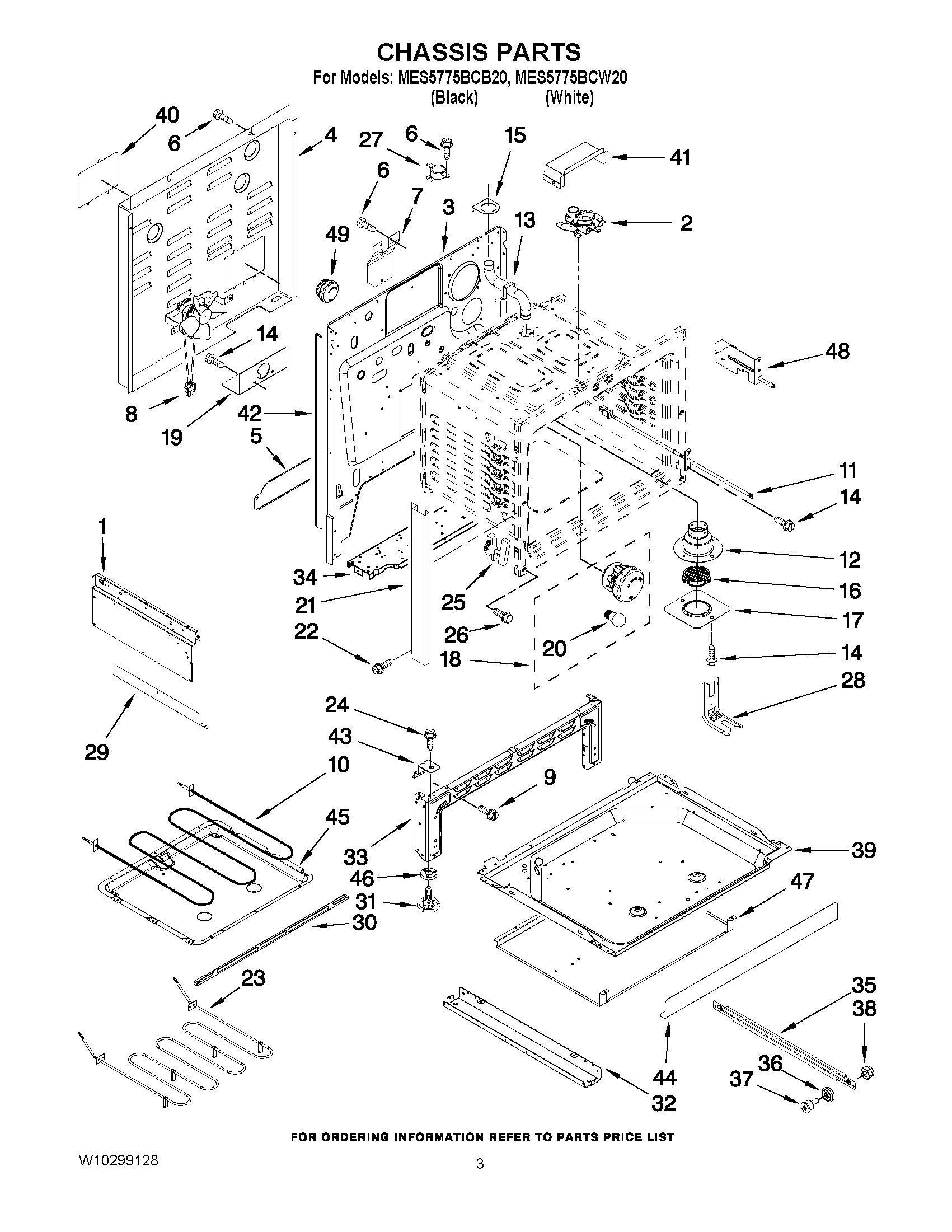

03 - CHASSIS PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

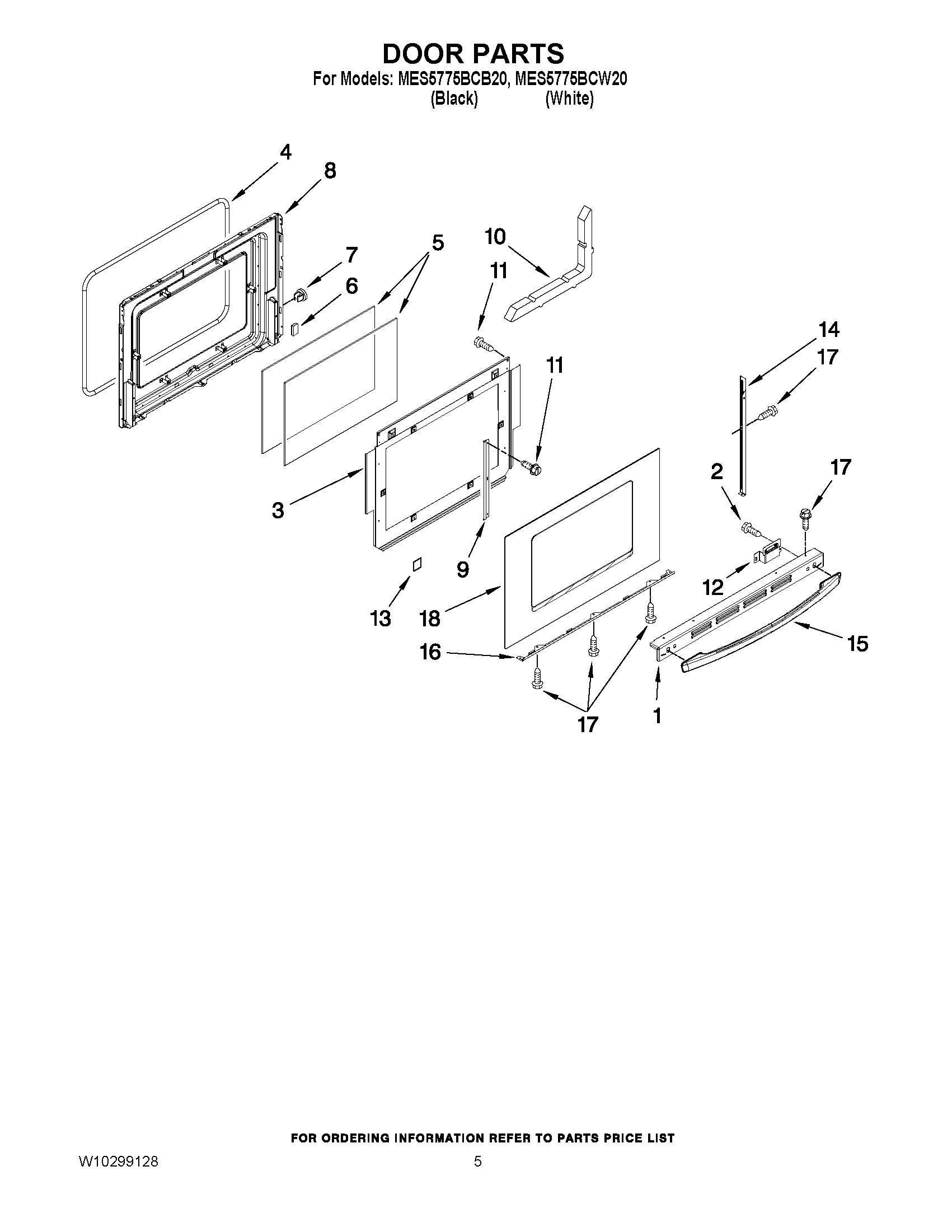

04 - DOOR PARTS
Common parts from model Whirlpool MES5775BCW20 ELECTRIC RANGE
1
Lens WPL 7730P01160 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P71660 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P77160 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) WPL 8119P16260 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) WPL 8119P16360 Contact Us For Availability
1
BROCHURE, TIPS SAFER COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFER COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
PANEL, SHIELD (LEFT) WPL 2618F20151 Contact Us For Availability
1
PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability
1
Trim, Door Top (Black) WPL 3608F14170 Contact Us For Availability
1
TRIM, DOOR TOP (WHITE) WPL 3608F14171 Contact Us For Availability
2
CONTROL W/OVERLAY (BLACK) WPL 5701M88160 Contact Us For Availability
2
CONTROL W/OVERLAY (WHITE) WPL 5701M88260 Contact Us For Availability
2
COOKTOP (BLACK) WPL 5706M53809 Contact Us For Availability
2
COOKTOP (WHITE) WPL 5706X55981 Contact Us For Availability
2
LATCH ASSEMBLY WPL 8002P09860 Contact Us For Availability
2
SCREW, HANDLE (2) WPL 7101P68160 Contact Us For Availability
3
SCREW WPL 7101P07760 Contact Us For Availability
3
ELEMENT (RF) WPL 7406P41060 Contact Us For Availability
3
MAIN, BACK WPL 3804F31351 Contact Us For Availability
3
BAFFLE, RETAINER WPL 3601F37351 Contact Us For Availability
4
SWITCH, INFINTE (LR) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINTE (RR) WPL 7403P87760 Contact Us For Availability
4
SWITCH, INFINTE (RF) WPL 7403P99260 Contact Us For Availability
4
SWITCH, INFINTE (LF) WPL 7450P01160 Contact Us For Availability
4
SWITCH, INFINTE (CENTER) WPL 7450P02460 Contact Us For Availability
4
COVER, MAIN WIRE WPL 4005F81051 Contact Us For Availability
5
Light, Indicator WPL 7407P13660 Contact Us For Availability
5
ELEMENT (LF) WPL 7406P36560 Contact Us For Availability
5
EXTENSION, BACK WPL 3826F06651 Contact Us For Availability
5
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
6
PANEL, CONTROL (BLACK) WPL 2614D13109 Contact Us For Availability
6
PANEL, CONTROL (WHITE) WPL 2614D13181 Contact Us For Availability
6
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
7
SCREW WPL W10179558 Contact Us For Availability
7
INSULATOR, CORD WPL 7003P10160 Contact Us For Availability
7
NUT, SNAP (4) WPL 7103P14160 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
8
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
8
FAN, COOLING WPL 7427P09460 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
9
KNOB (6) (BLACK) WPL 7737P23560 Contact Us For Availability
9
KNOB (6) (WHITE) WPL 7737P23860 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P19360 Contact Us For Availability
9
Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F72951 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
11
SHIELD, CONTROL WPL 3604F42151 Contact Us For Availability
11
SCREW WPL 7101P42660 Contact Us For Availability
11
Sensor, Oven WPL 7430P04260 Contact Us For Availability
12
TRIM, END CAP (WHITE, RIGHT) WPL 7726P33260 Contact Us For Availability
12
TRIM, END CAP (WHITE, LEFT) WPL 7726P33360 Contact Us For Availability
12
TRIM, END CAP (BLACK, RIGHT) WPL 7726P40060 Contact Us For Availability
12
TRIM, END CAP (BLACK, LEFT) WPL 7726P40160 Contact Us For Availability
12
TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
13
SHIELD, INSULATOR WPL 7003P15060 Contact Us For Availability
13
TUBE, VENT UPPER WPL W10233479 Contact Us For Availability
13
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
14
TRIM, DOOR SIDE (BLACK, RIGHT) WPL 3608F11670 Contact Us For Availability
14
TRIM, DOOR SIDE (WHITE, RIGHT) WPL 3608F11671 Contact Us For Availability
14
TRIM, DOOR SIDE (BLACK, LEFT) WPL 3608F11770 Contact Us For Availability
14
TRIM, DOOR SIDE (WHITE, LEFT) WPL 3608F11771 Contact Us For Availability
15
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
15
Handle, Door (Black) WPL 7701P51660 Contact Us For Availability
15
Handle, Door (White) WPL 7701P51760 Contact Us For Availability
16
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
16
TRIM, DOOR BOTTOM (BLACK) WPL 3807F70870 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) WPL 3807F70871 Contact Us For Availability
17
PLATE, SMOKE ELM. WPL 3605F35445 Contact Us For Availability
17
SCREW, TRIM WPL 7101P63360 Contact Us For Availability
18
LIGHT ASSEMBLY WPL 7407P18260 Contact Us For Availability
18
PANEL, OUTER DOOR (WHITE) WPL 7902P73660 Contact Us For Availability
18
PANEL, OUTER DOOR (BLACK) WPL 7902P79760 Contact Us For Availability
20
BULB-OVEN WPL 7407P10360 Contact Us For Availability
21
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
21
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
24
Screw WPL 7101P43460 Contact Us For Availability
25
HINGE (2) WPL 7106P14160 Contact Us For Availability
26
SCREW, HINGE (4) WPL 7101P33660 Contact Us For Availability
27
SWITCH, HI-LIMIT WPL 7450P03460 Contact Us For Availability
28
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
29
EXTENTION, SHIELD WPL 3826F06451 Contact Us For Availability
30
SUPPORT, ELEMENT WPL 3807F49445 Contact Us For Availability
31
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
32
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
33
PEDESTAL, FRONT WPL W10271711 Contact Us For Availability
34
SUPPORT WPL 3807F64051 Contact Us For Availability
35
RUNNER, DRAWER (2) WPL W10182835 Contact Us For Availability
36
ROLLER, DRAWER (2) WPL W10272883 Contact Us For Availability
37
SHAFT, ROLLER (2) WPL 7118P03260 Contact Us For Availability
38
NUT, LOCK (2) WPL 7103P19060 Contact Us For Availability
39
RETAINER, BOTTOM WPL 3804F23151 Contact Us For Availability
40
COVER, TERMINAL WPL 4005F61251 Contact Us For Availability
41
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
42
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
43
SUPPORT, OVEN BTM. WPL 3807F72745 Contact Us For Availability
44
COVER, FRONT WPL 4005F74945 Contact Us For Availability
45
PAN, BAKE WPL 3401F09245 Contact Us For Availability
46
NUT, LEVELING LEG WPL 7103P21260 Contact Us For Availability
47
SHIELD, WARM. DWR. WPL 3604F32645 Contact Us For Availability
48
SWTCH-LITE WPL 7450P10860 Contact Us For Availability
49
RELAY, AUXILARY WPL 7428P08260 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, HIDDEN BAKE COVER WPL 7002P44860 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P51960 Contact Us For Availability
NI
HARNESS, UNITY (RIGHT) WPL 5171P55560 Contact Us For Availability
NI
HARNESS, UNITY (LEFT) WPL 5171P56460 Contact Us For Availability
NI
HARNESS, TOP WPL 5171P84560 Contact Us For Availability
NI
CORD, PIGTAIL WPL W10221103 Contact Us For Availability
NI
HARNESS, SENSOR WPL W10348629 Contact Us For Availability
× ![]()
