Model Whirlpool MER5751BAB ELECTRIC RANGE – Common Parts &amp; Diagrams

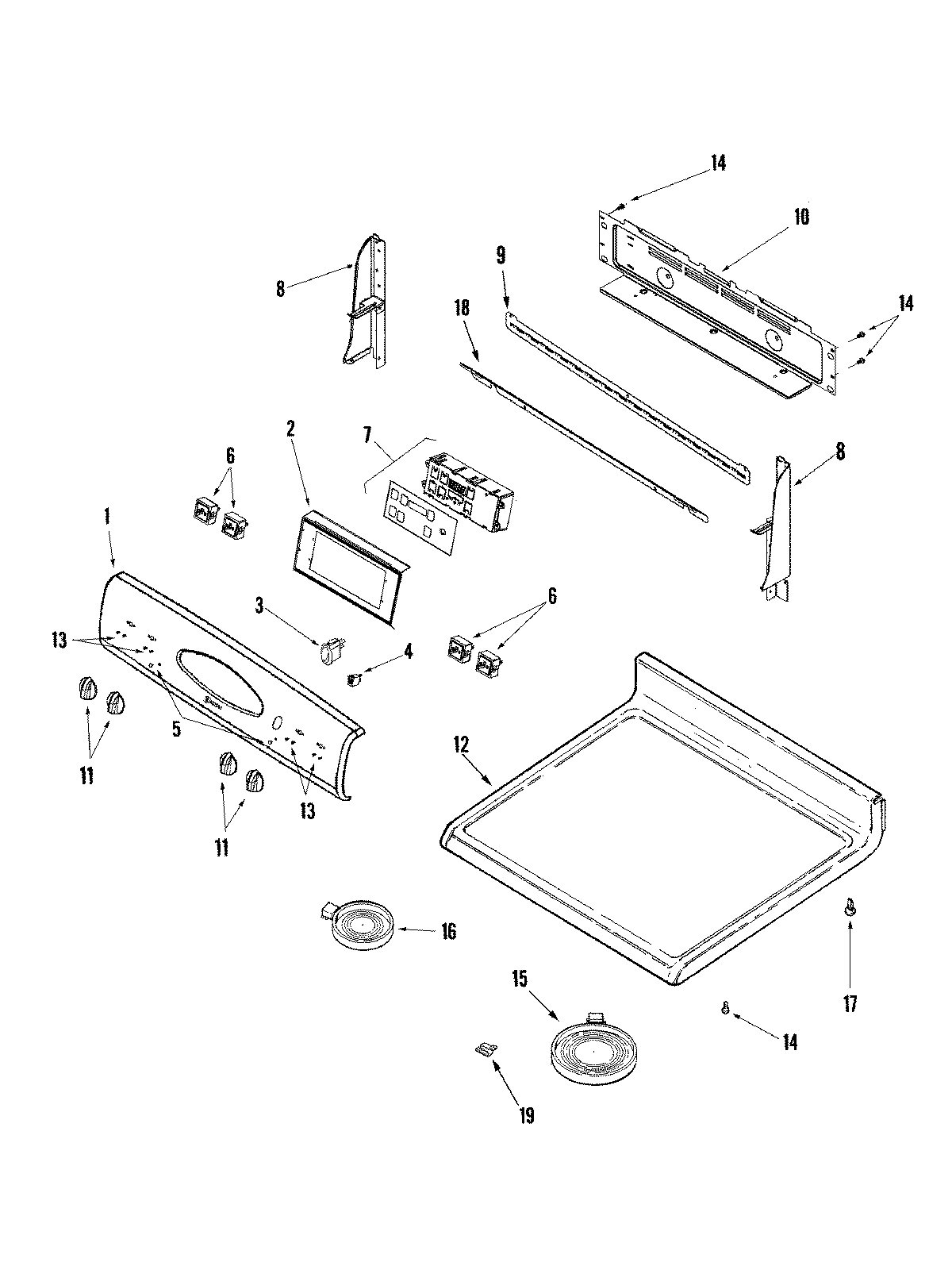

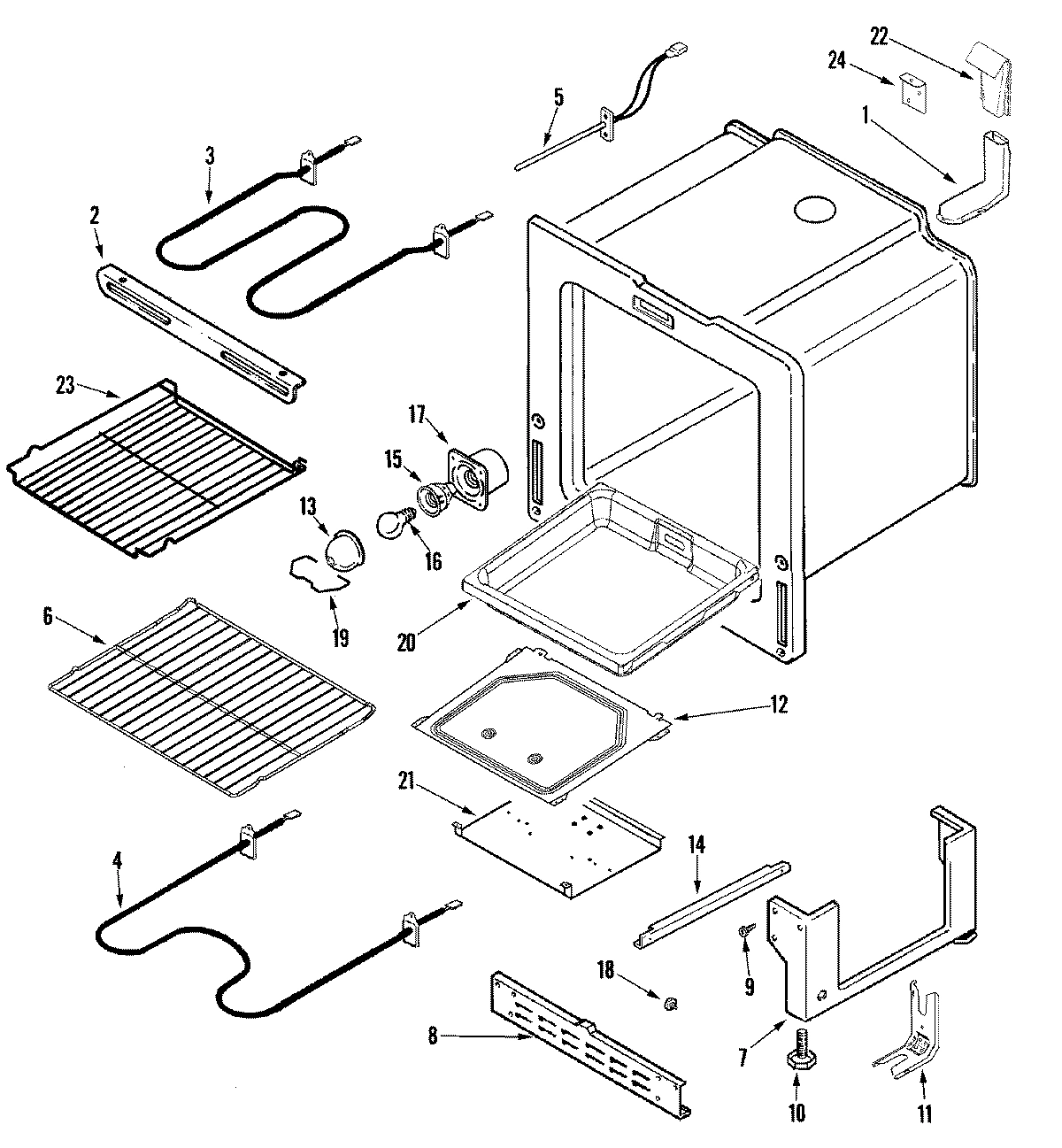

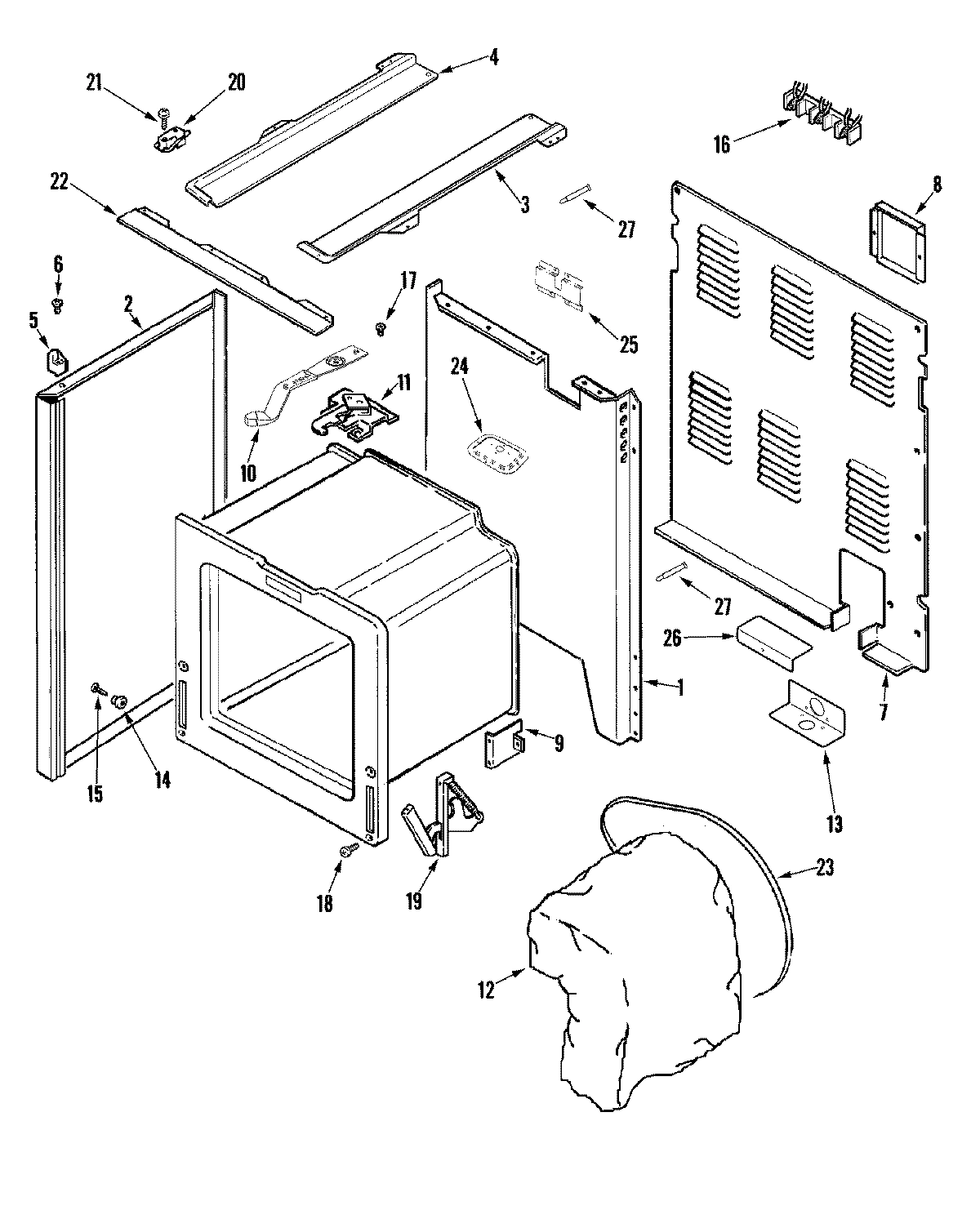

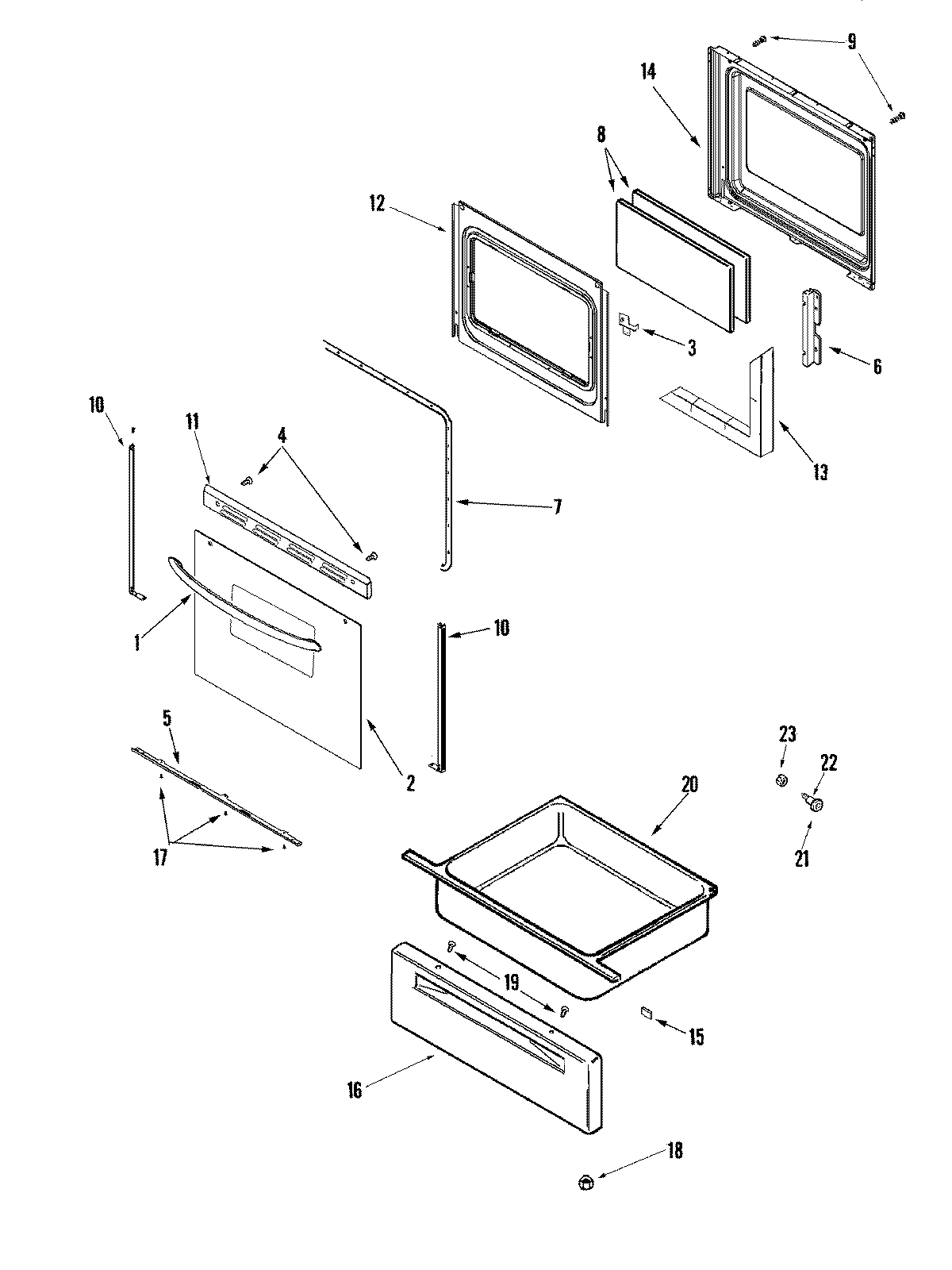

1

HARNESS, MAIN WPL 74009740 Contact Us For Availability

1

BACK, MAIN (ELEC) WPL 74010934 Contact Us For Availability

1

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

2

PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability

2

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

2

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

2

GLASS, DOOR (OUTER-BLK) WPL 74009711 Contact Us For Availability

2

HARNESS, DUAL INFINITE WPL 74009762 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

3

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $14.02

3

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $14.02

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

HARNESS, INFINITE (LT) WPL 74009741 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

4

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

4

WP7406P438-60 Whirlpool Bake Element In Stock WPL WP7406P438-60 $86.90

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability

4

HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

SUPPORT, GLASS (BLK) WPL 74009686 Contact Us For Availability

5

HARNESS, TOP WPL 74009739 Contact Us For Availability

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

6

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

6

RETAINER, GLASS WPL 74001844 Contact Us For Availability

6

MANUAL, USE & CARE WPL 8113P50660 Contact Us For Availability

6

MANUAL, USE & CARE WPL 8113P56560 Contact Us For Availability

6

Manual, Use & Care WPL 8113P73060 Contact Us For Availability

7

5701M760-60 Whirlpool Electronic Control Boar In Stock WPL 5701M760-60 $308.03

7

COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability

7

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

7

BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

8

SUPPORT, BACKGUARD (RT-BLK) WPL 74010201 Contact Us For Availability

8

SUPPORT, BACKGUARD (LT-BLK) WPL 74010202 Contact Us For Availability

8

COVER, ACCESS WPL 74010256 Contact Us For Availability

8

GLASS, INNER WPL 74003320 Contact Us For Availability

8

COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

9

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.61

9

SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

LEVER, LOCK (BLK) WPL 74010244 Contact Us For Availability

COVER, REAR WIRE WPL 74010935 Contact Us For Availability

TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

KNOB (BLK) WPL 74009187 Contact Us For Availability

SPACER, RUBBER (BLK-SQUARE) WPL 74010267 Contact Us For Availability

LATCH, MANUAL DOOR LOCK WPL 74009764 Contact Us For Availability

SCREW WPL 7101P35660 Contact Us For Availability

TRIM, DOOR TOP (BLK) WPL 74009689 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

INSULATION, BACK/BOTTOM WPL 74010942 Contact Us For Availability

TOP, MAIN ASY. (BLK) WPL 74011060 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability

BAFFLE, OVEN DOOR WPL 74009528 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

SCREW WPL 7101P30960 Contact Us For Availability

INSULATION, DOOR WPL 74001842 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

W10823715 Whirlpool Radiant Surface Element In Stock WPL W10823715 $138.93

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

PANEL, DRAWER (BLK) WPL 74009685 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

SHIELD, WIRE WPL 74009978 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

19

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

19

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

19

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

20

SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability

20

DRAWER, STORAGE WPL 74008337 Contact Us For Availability

20

BOTTOM, DUTCH OVEN WPL 74011042 Contact Us For Availability

21

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

21

SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

22

SCREEN, SMOKE ELIMINATOR WPL 74008597 Contact Us For Availability

22

EXTENSION, VENT (ELECT) WPL 74009987 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

23

RACK, OVEN (OFFSET) WPL 74008410 Contact Us For Availability

24

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

24

PLATE, VENT COVER WPL 74011044 Contact Us For Availability

24

BRACKET, VENT EXTENSION WPL 74009988 Contact Us For Availability

25

INSULATOR, HEAT SHIELD WPL 74004532 Contact Us For Availability

26

SHIELD, ELEMENT WPL 74011046 Contact Us For Availability

27

SCREW WPL 7101P33760 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003512 Contact Us For Availability
