Model Whirlpool MER5750BAW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

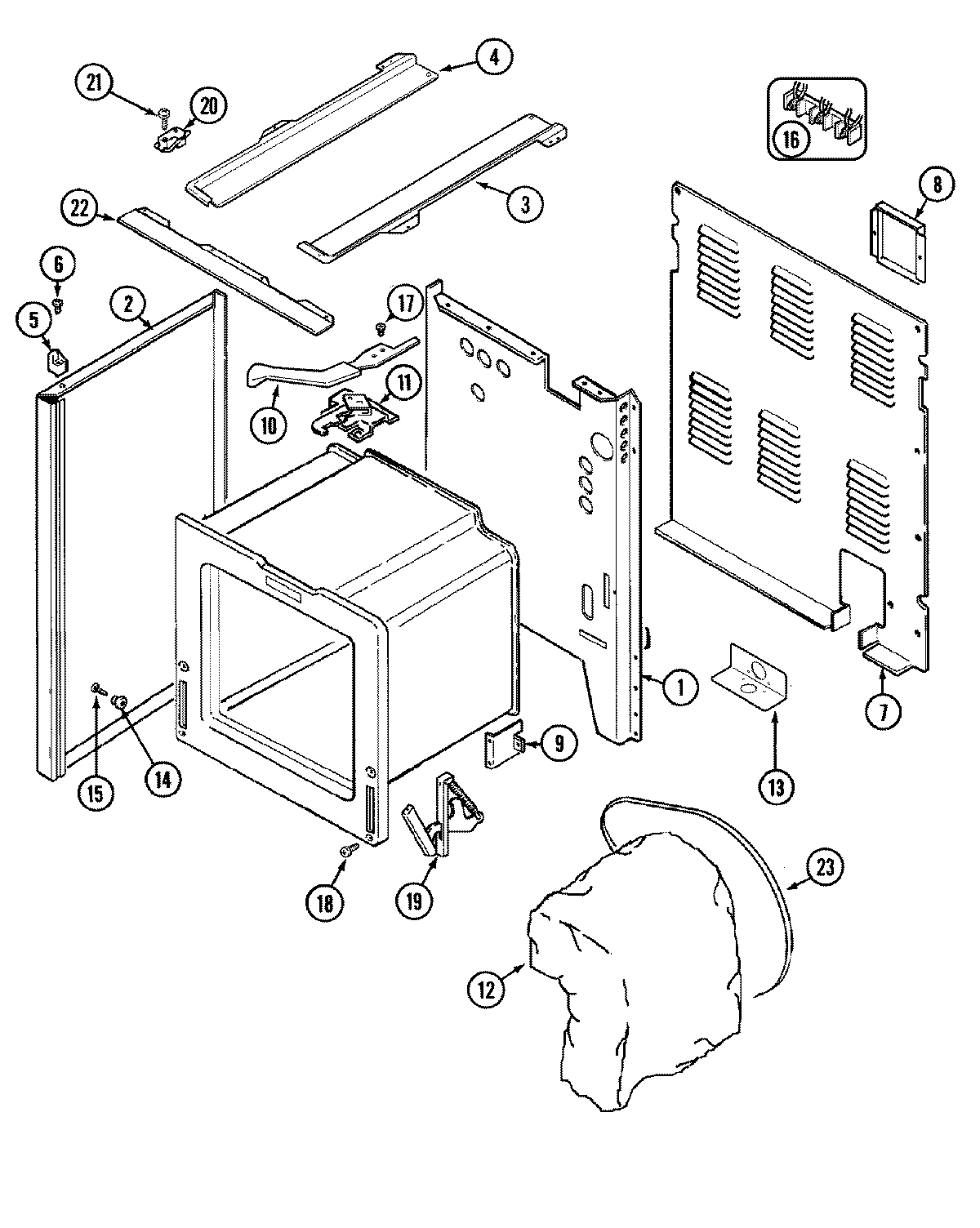

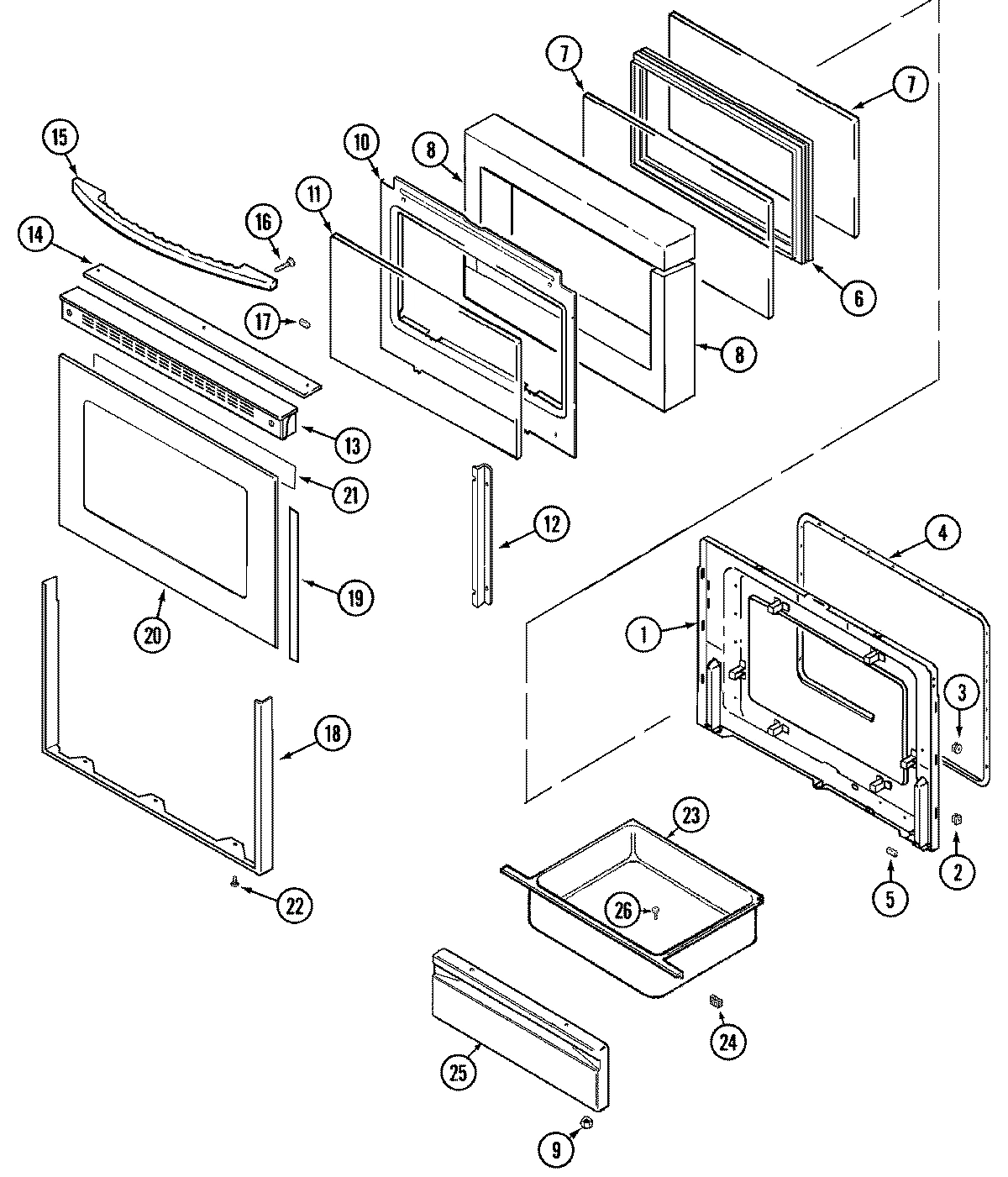

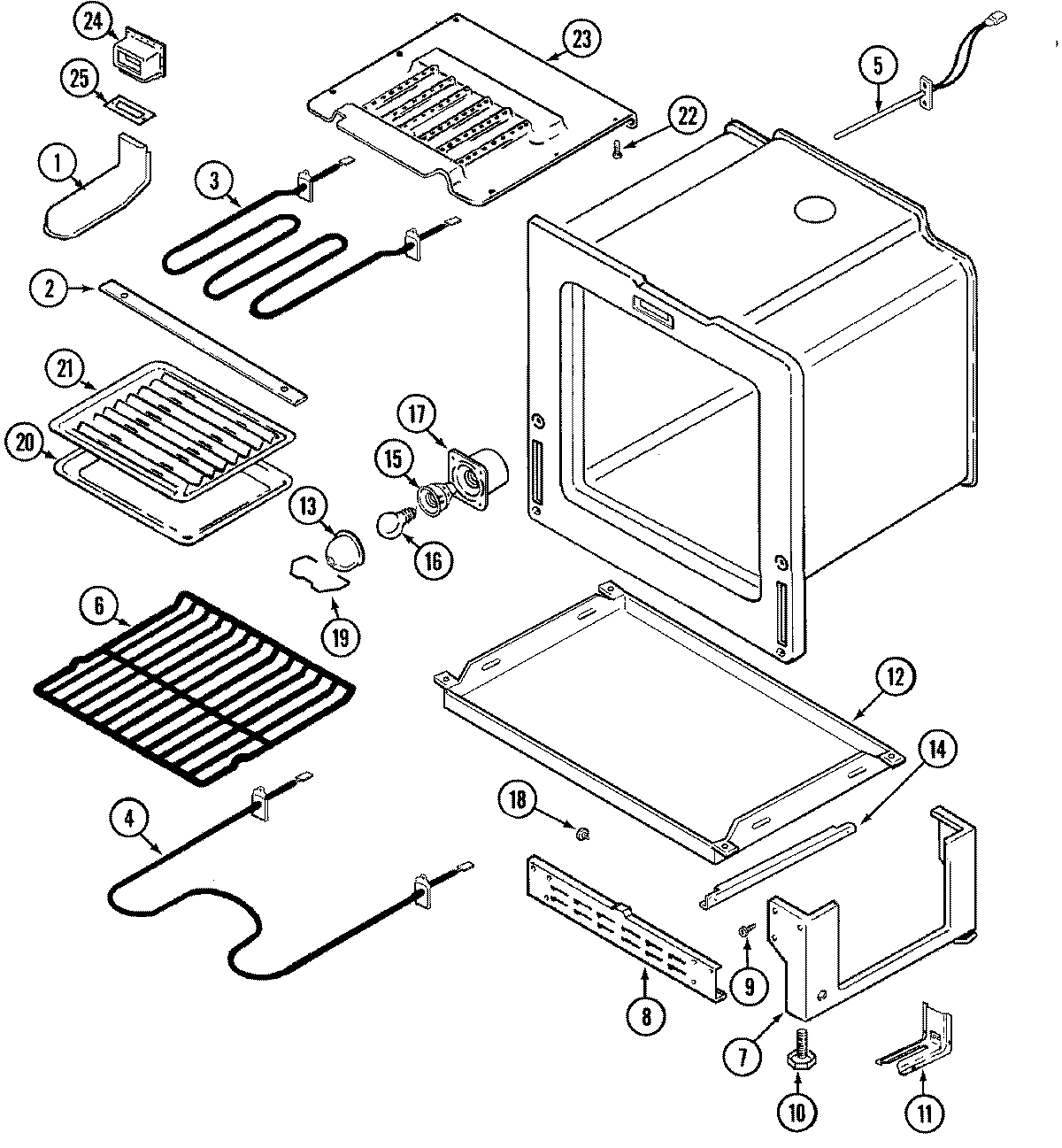

LINING, DOOR WPL 74003642 Contact Us For Availability

1

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

1

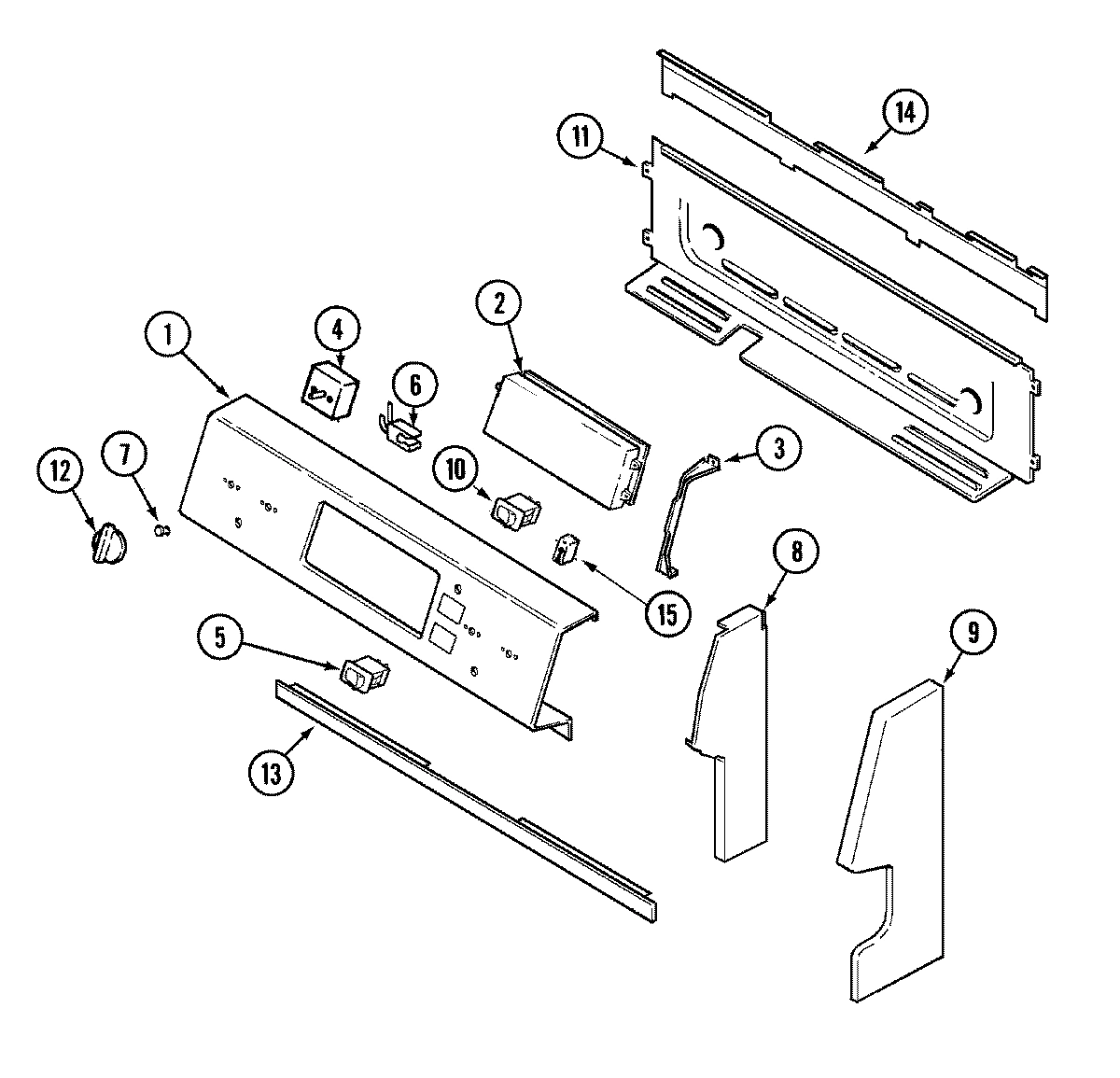

PANEL, CONTROL (WHT) WPL 74007173 Contact Us For Availability

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

2

NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

2

CLOCK W/OVERLAY (WHT) WPL 74006186 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $124.94

3

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003627 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability

4

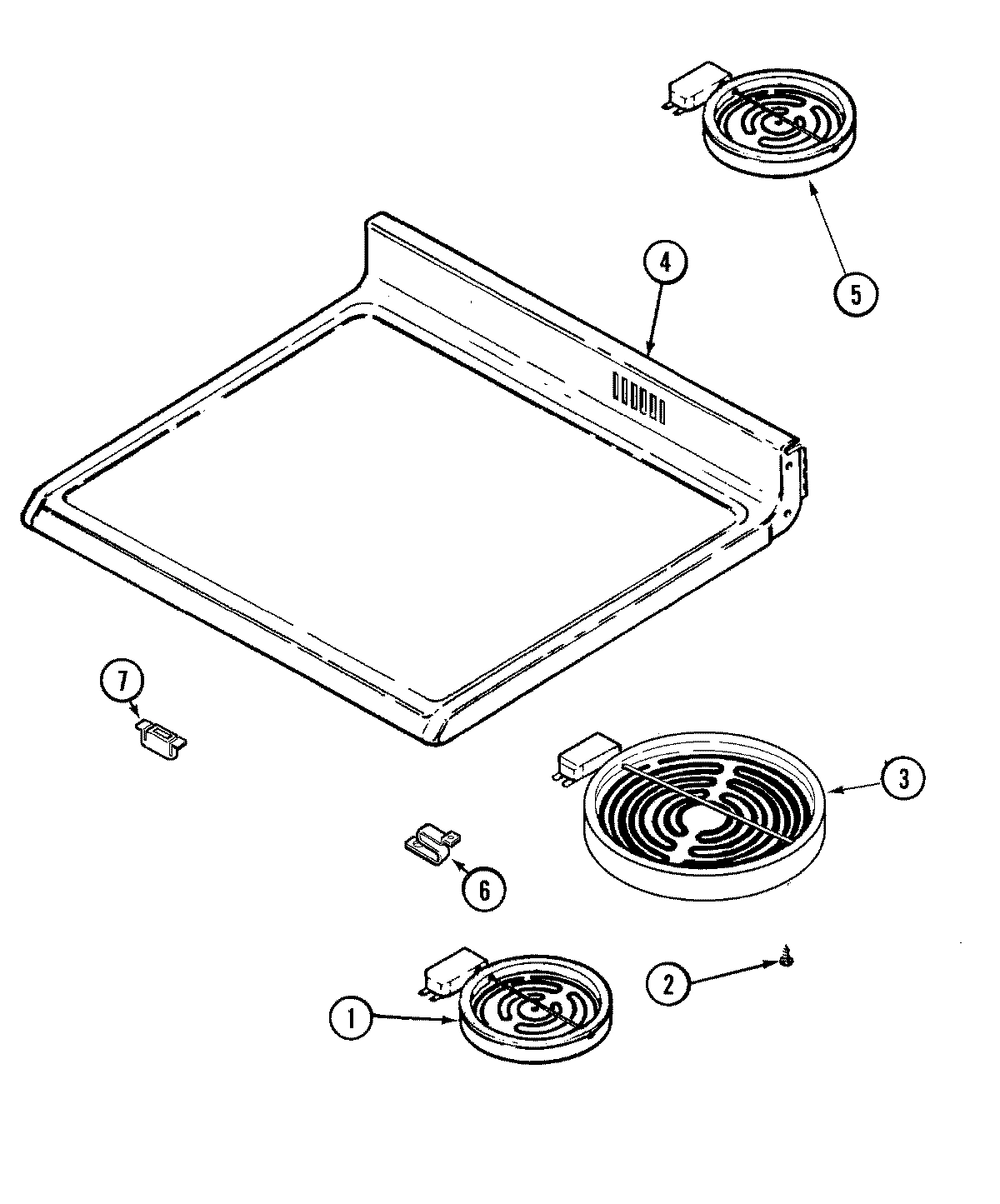

TOP, MAIN (WHT) WPL 74007178 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

5

WP8523700 Whirlpool Surface Element Backorder WPL WP8523700 $130.63

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

BRACKET, CONTROL PANEL (RT) WPL 74005392 Contact Us For Availability

8

BRACKET, CONTROL PANEL (LT) WPL 74005393 Contact Us For Availability

9

END CAP, CONTROL PNL (RT-WHT) WPL 74003607 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-WHT) WPL 74003608 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

NUT, LOCK WPL 7103P13960 Contact Us For Availability

9

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

9

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $61.72

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

DOOR LATCH KIT WPL 12001944 Contact Us For Availability

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74006342 Contact Us For Availability

GLASS, DOOR WPL 74003649 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

12

WP74003611 Whirlpool Range White Knob Backorder WPL WP74003611 $13.00

12

INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability

12

RETAINER, GLASS WPL 74003650 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

TRIM, DOOR TOP (WHT) WPL 74006401 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

SCREW (WHT) WPL 74001278 Contact Us For Availability

INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability

15

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

15

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

15

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability

HARNESS, BKGD TO TOP WPL 74007175 Contact Us For Availability

HARNESS, TOP WARMING ZONE WPL 74007176 Contact Us For Availability

HARNESS, BKGD TO WARM ZONE WPL 74007177 Contact Us For Availability

17

TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability

17

HOUSING, BULB WPL 74003388 Contact Us For Availability

17

MANUAL, USE & CARE WPL 74005907 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

SCREW WPL 7101P11260 Contact Us For Availability

FRAME, DOOR (WHT) WPL 74004325 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

INSULATOR, SWITCH WPL 74004031 Contact Us For Availability

SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability

GLASS, DOOR (WHT) WPL 74006404 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

21

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

23

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

23

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

24

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

24

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

25

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

25

GASKET, VENT WPL 74003285 Contact Us For Availability

26

SCREW WPL 7101P07260 Contact Us For Availability

NI

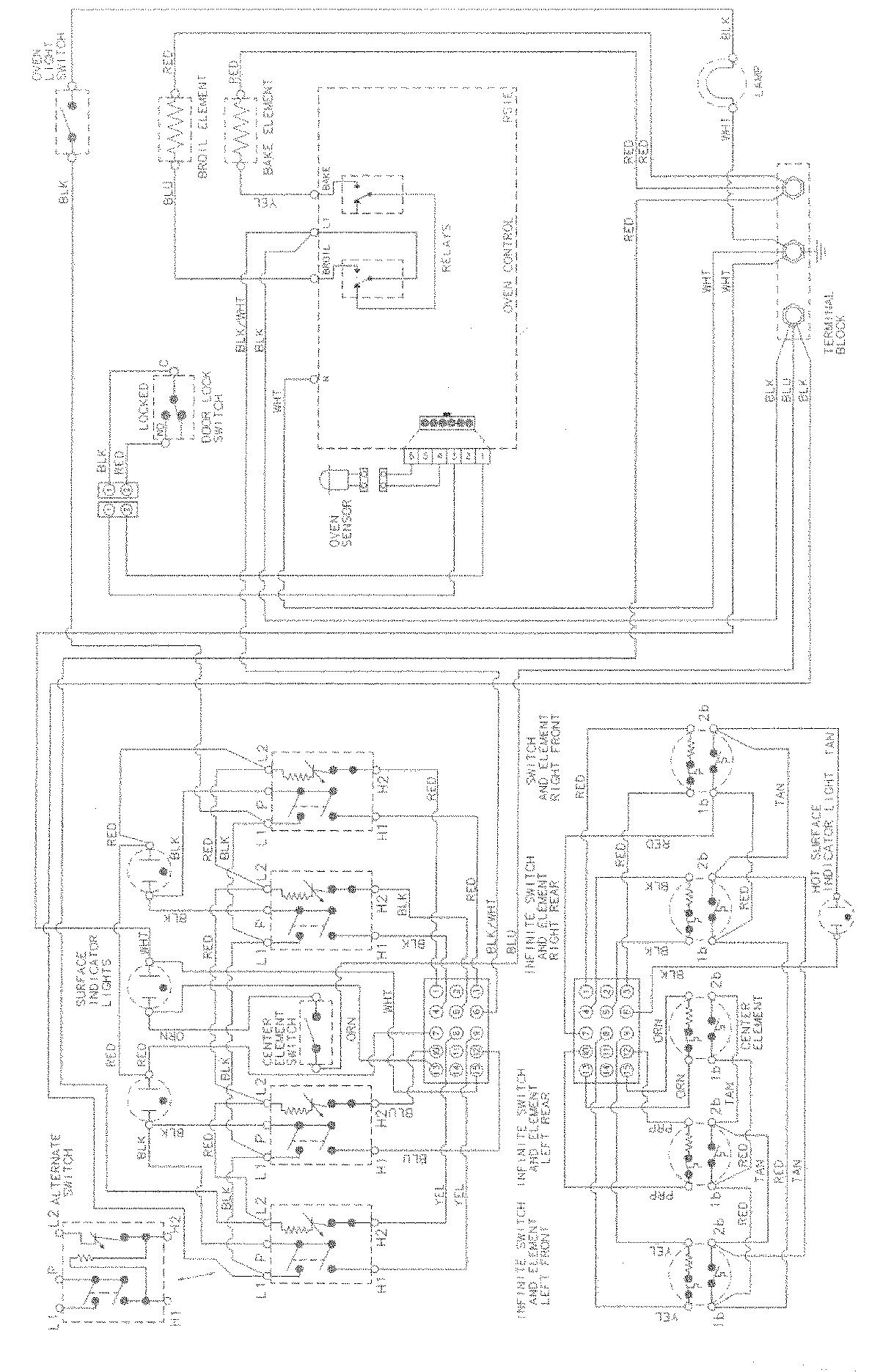

WIRING INFORMATION WPL 15002982 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003133 Contact Us For Availability
