Model Whirlpool MER5721BAF ELECTRIC RANGE – Common Parts & Diagrams

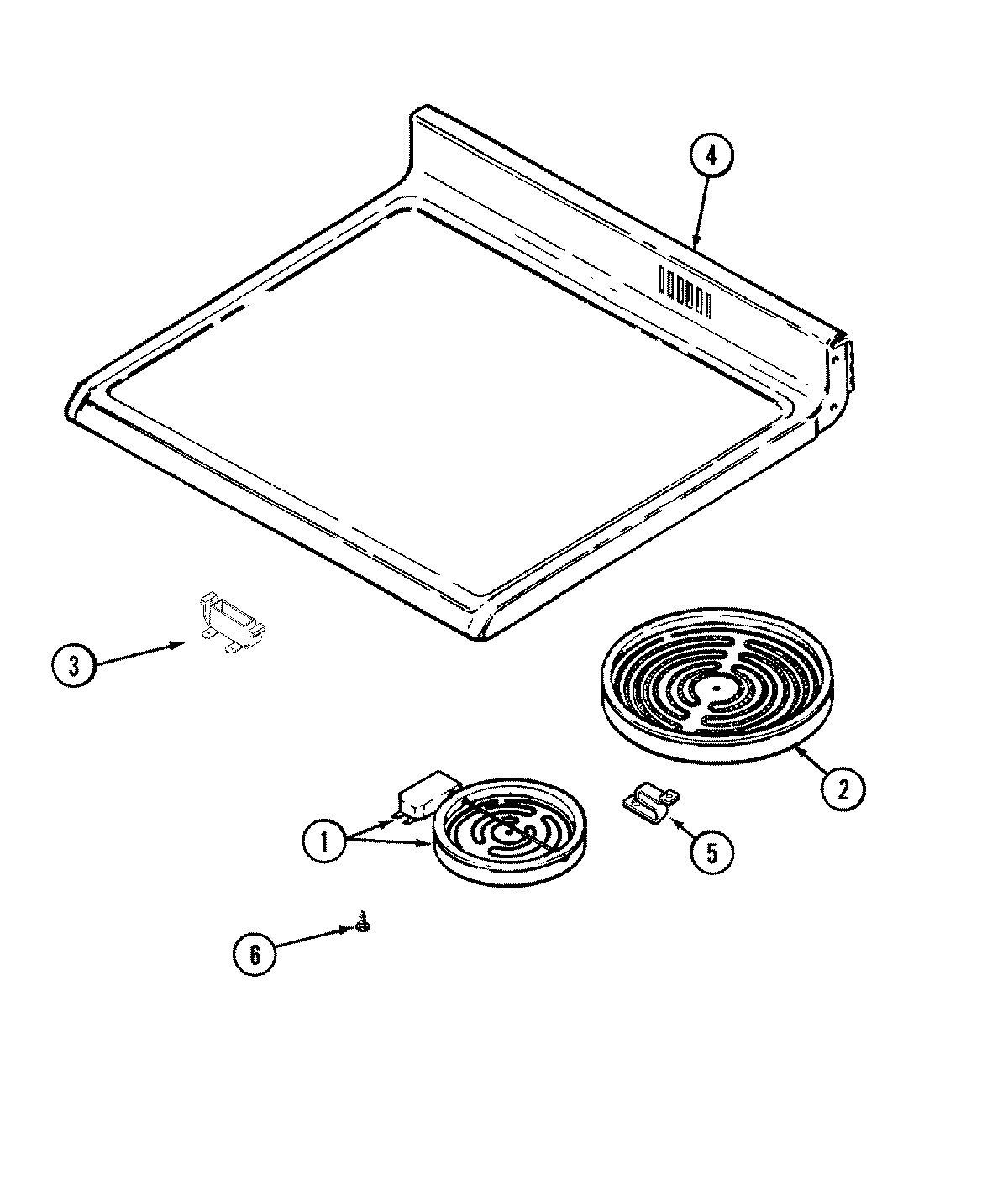

05 - TOP ASSEMBLY

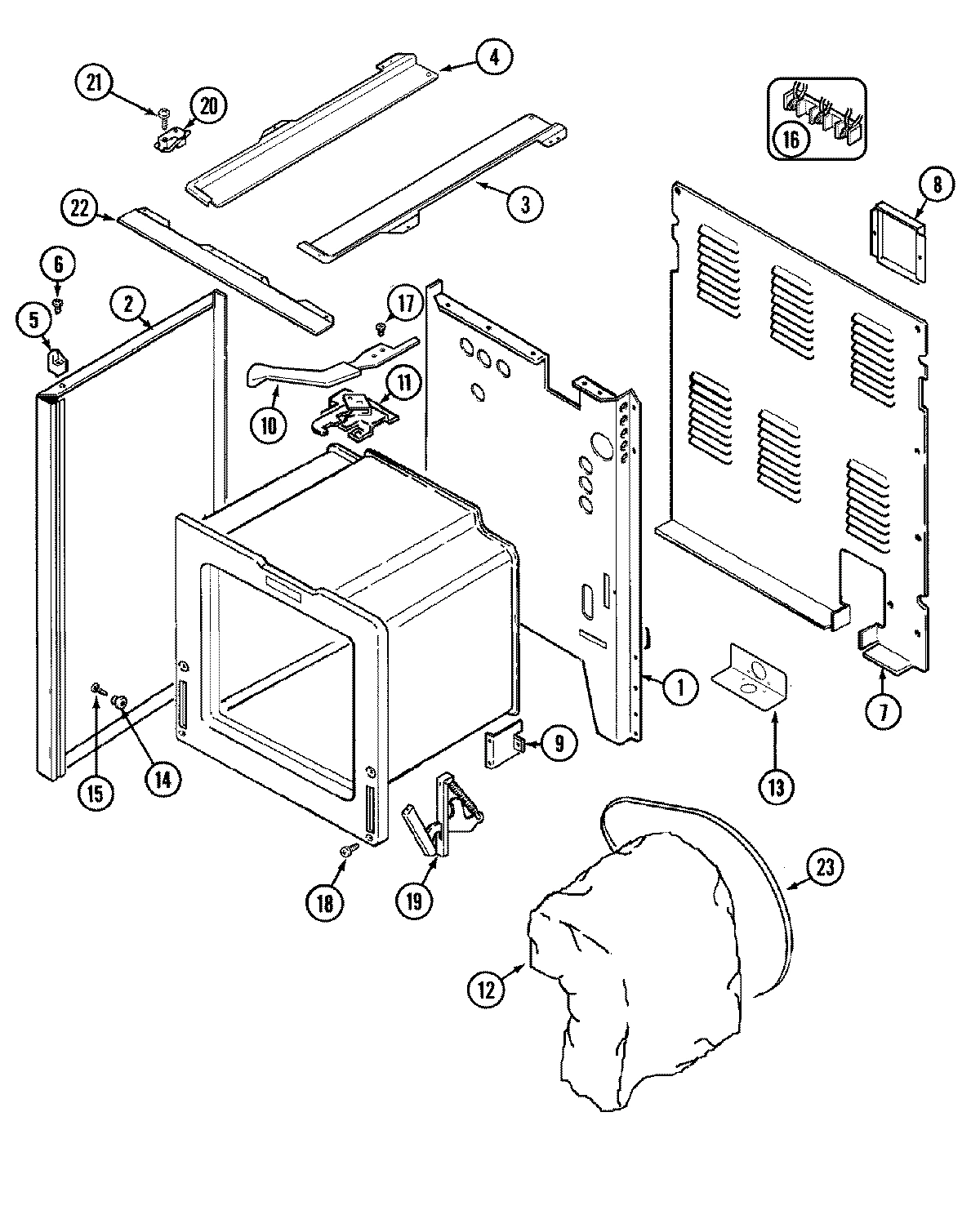

01 - BODY

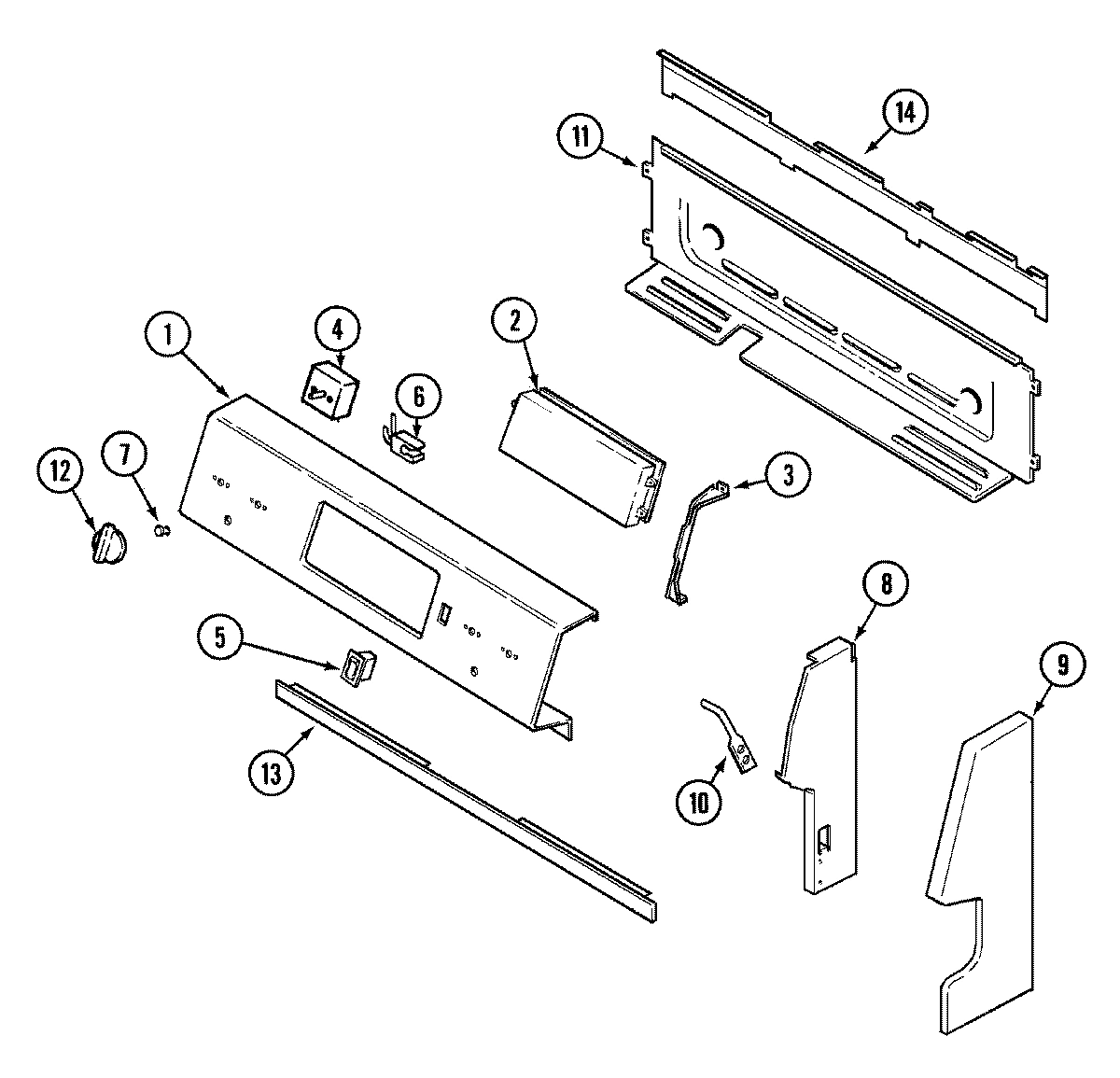

02 - CONTROL PANEL

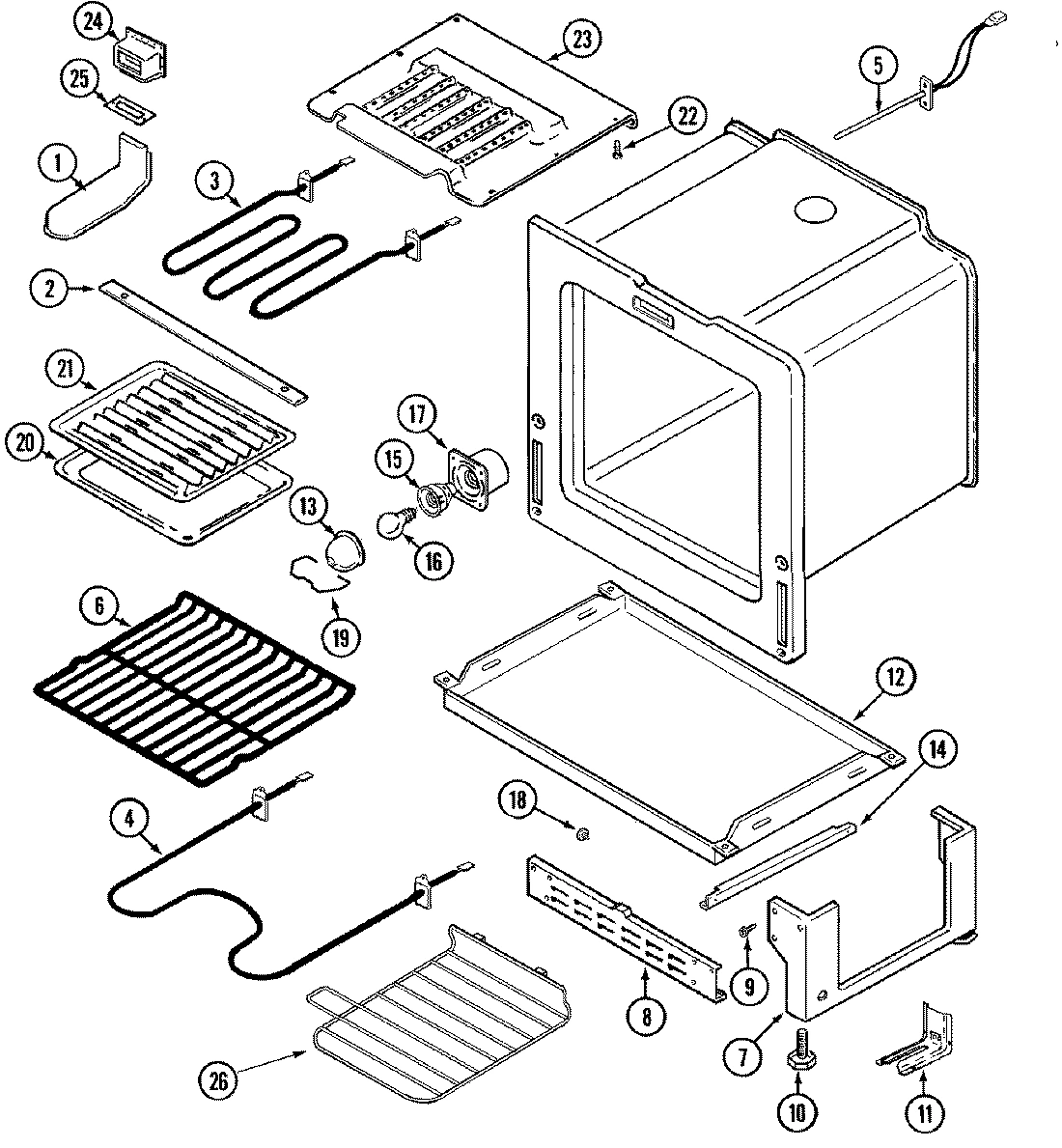

04 - OVEN/BASE
06 - WIRING INFORMATION

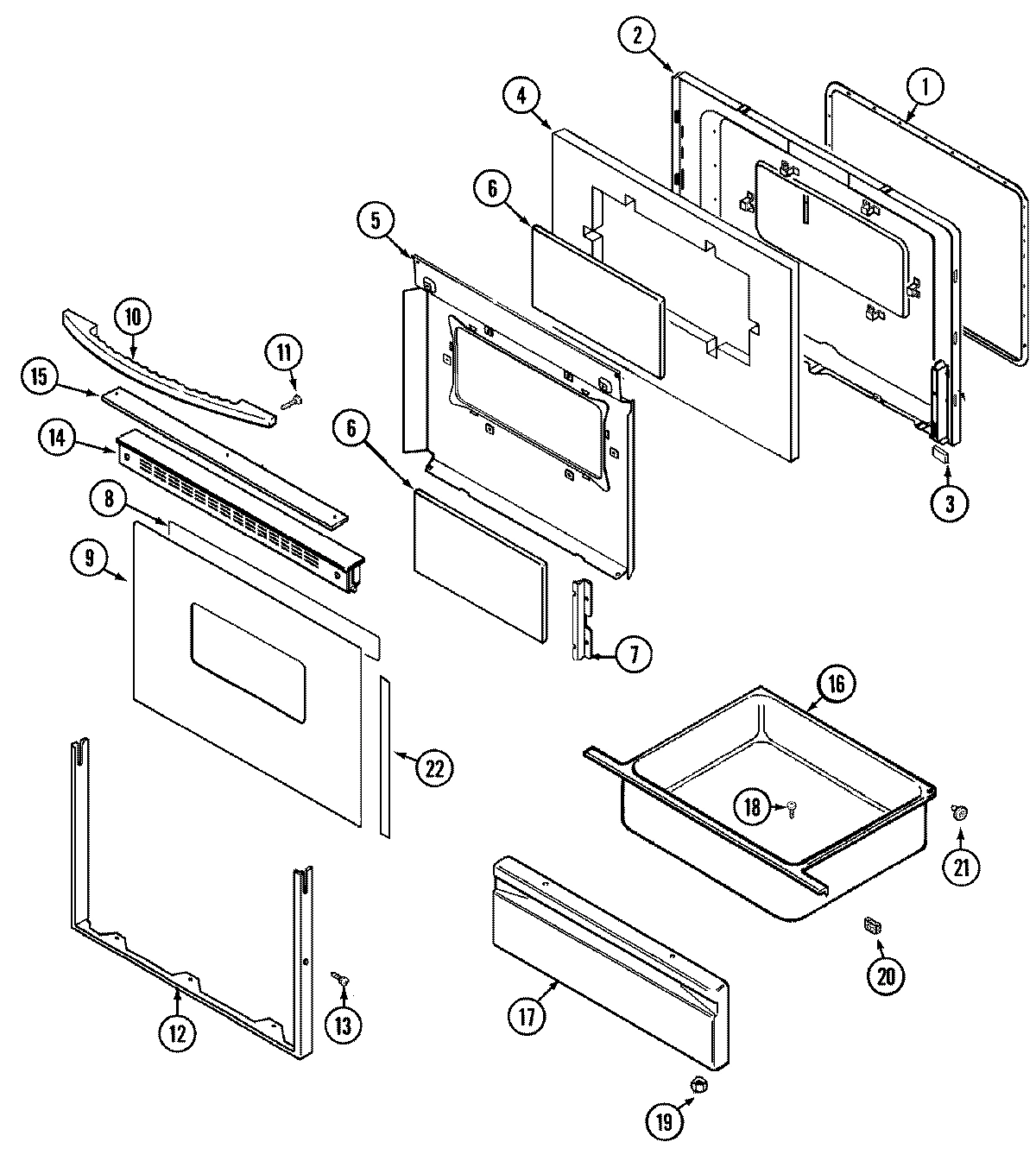

03 - DOOR/DRAWER
Common parts from model Whirlpool MER5721BAF ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 74006502 Contact Us For Availability
1
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
CLOCK W/OVERLAY (WHT) WPL 74006186 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
3
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
3
BRACKET, CLOCK WPL 74003627 Contact Us For Availability
4
TOP, MAIN (WHT) WPL 74006480 Contact Us For Availability
4
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
6
GLASS, INNER WPL 74003320 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
9
END CAP, CONTROL PNL (RT-WHT) WPL 74003607 Contact Us For Availability
9
END CAP, CONTROL PNL (LT-WHT) WPL 74003608 Contact Us For Availability
9
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
9
SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability
9
GLASS, OUTER DOOR (WHT) WPL 74006395 Contact Us For Availability
10
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
10
HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability
11
DOOR LATCH KIT WPL 12001944 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
11
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
11
LATCH, DOOR WPL 74003380 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
WASHER (1``) WPL 74001521 Contact Us For Availability
11
SCREW WPL 74006394 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability
12
FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability
13
SHIELD, SIGHT WPL 74003374 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
14
TRIM, TOP DOOR (WHT) WPL 74003864 Contact Us For Availability
15
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
15
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
15
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
15
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
15
HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability
15
HARNESS, ELEMENT WPL 74006496 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
16
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
MANUAL, USE & CARE WPL 74005907 Contact Us For Availability
16
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
17
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability
18
SCREW WPL 7101P11260 Contact Us For Availability
18
SCREW WPL 7101P07260 Contact Us For Availability
19
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
20
INSULATOR, SWITCH WPL 74003630 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
21
SCREW WPL 912012 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
21
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
22
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
22
TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability
23
STRAP, INSULATION WPL 74003385 Contact Us For Availability
23
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
24
EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability
25
GASKET, VENT WPL 74003285 Contact Us For Availability
26
RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002854 Contact Us For Availability
× ![]()
