Model Whirlpool MER5530AAT ELECTRIC RANGE – Common Parts &amp; Diagrams

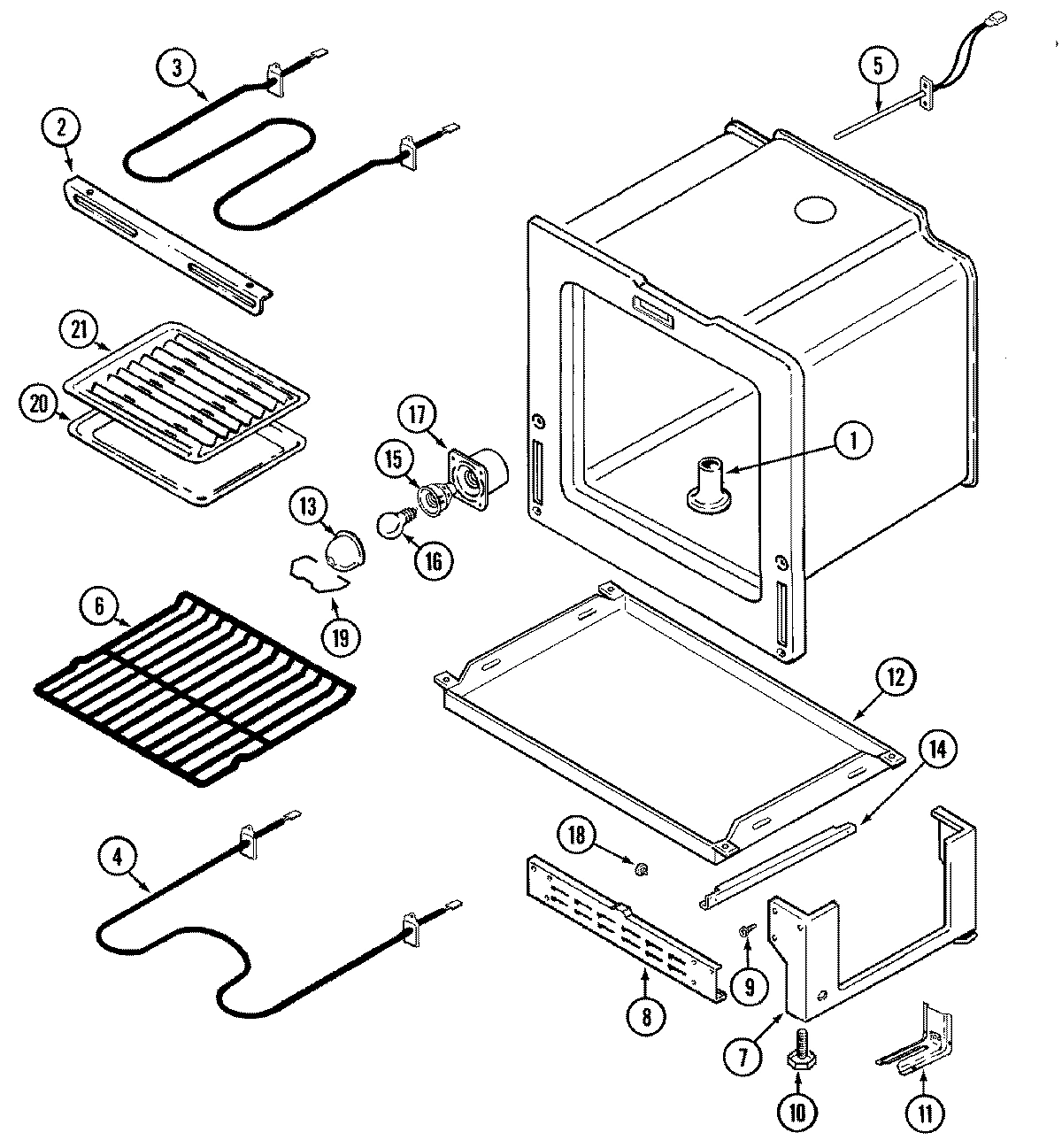

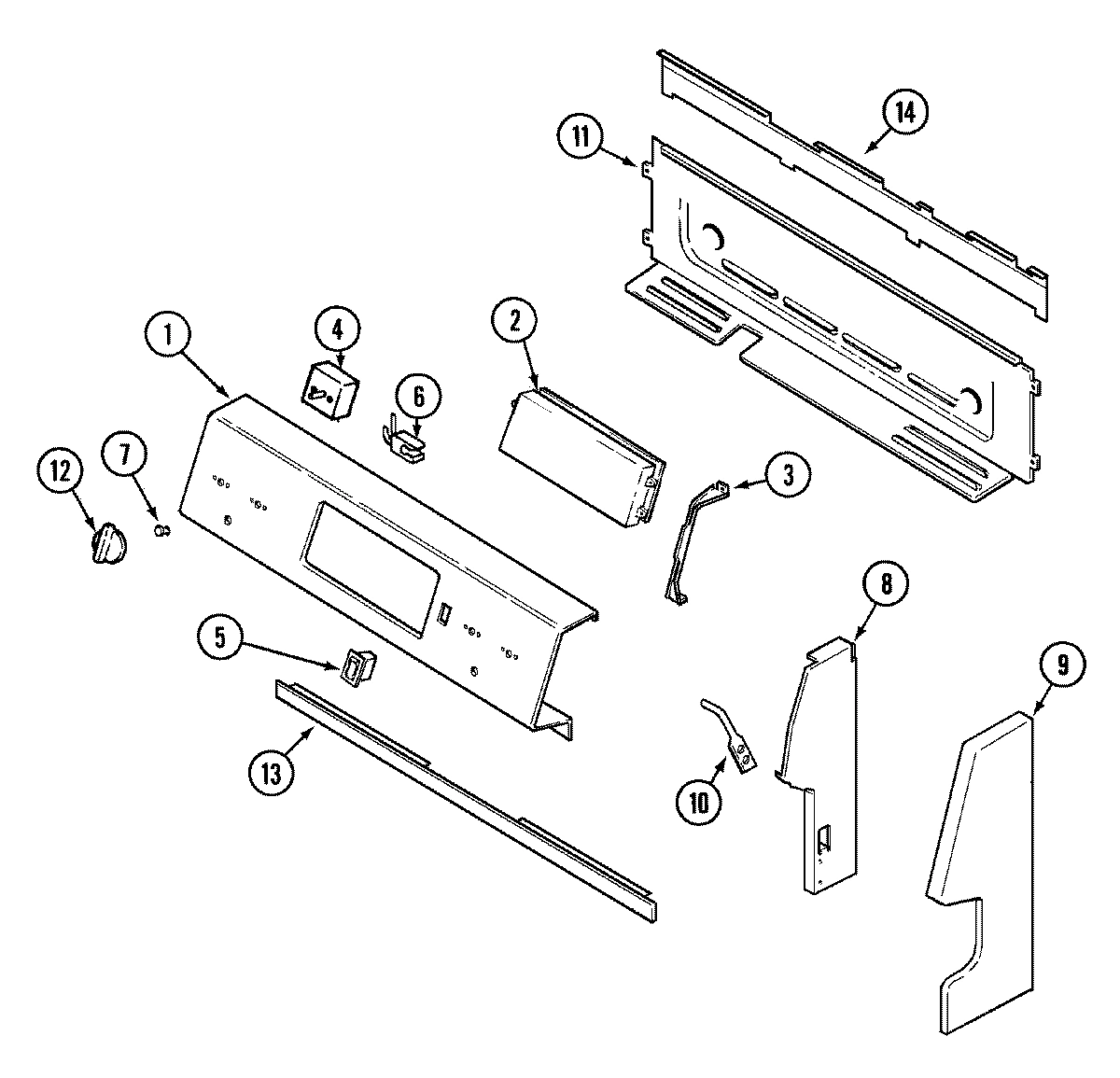

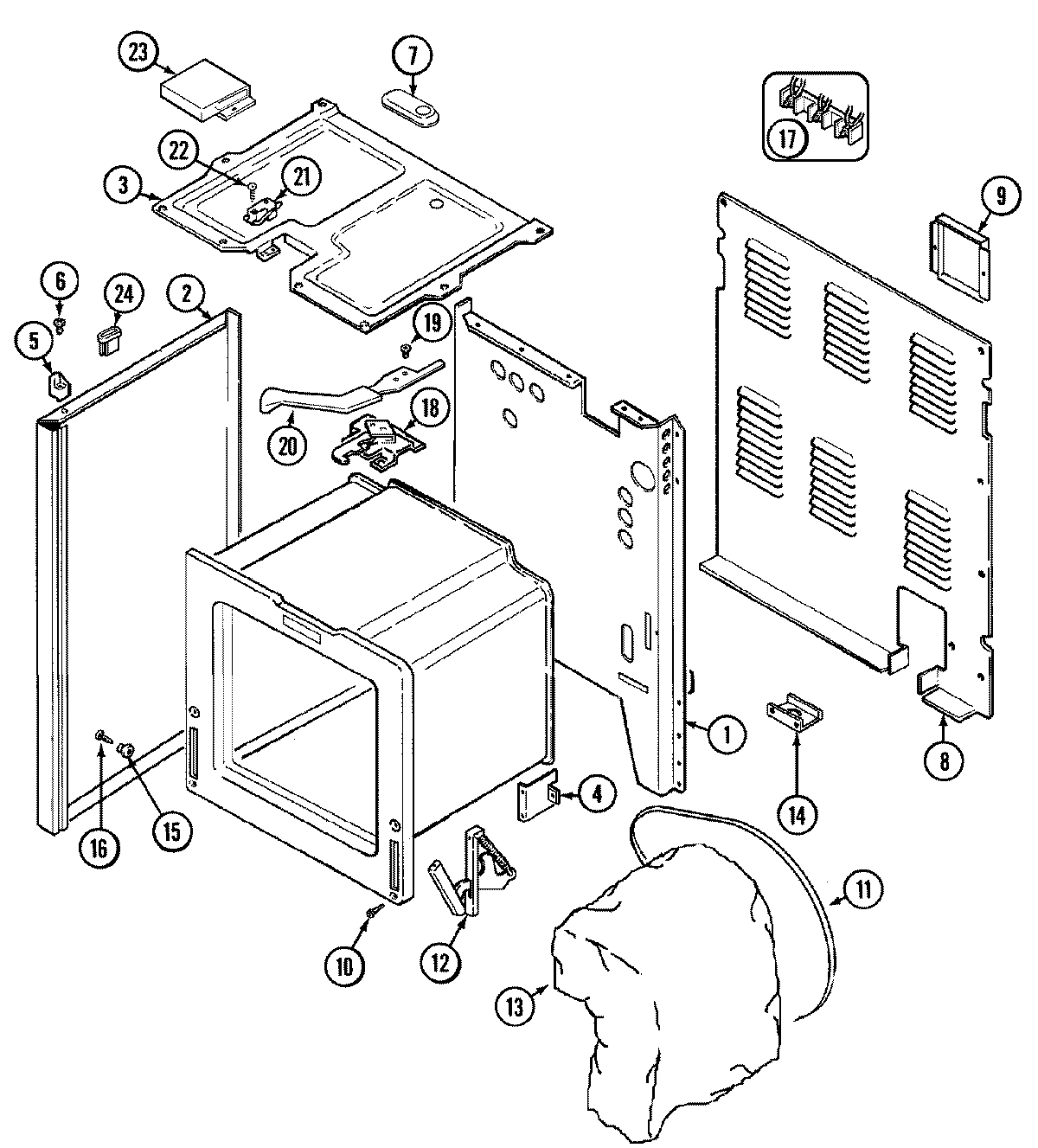

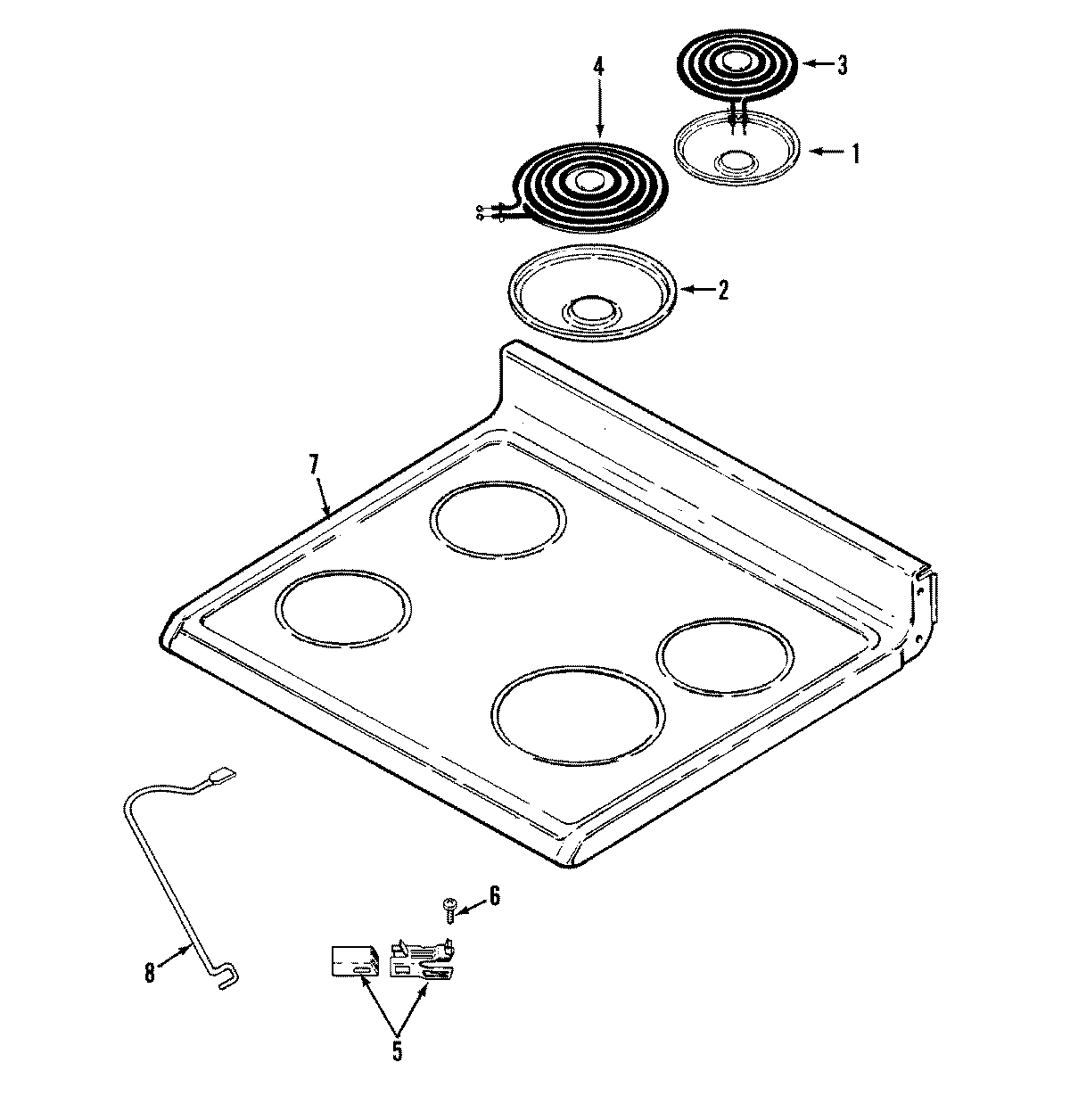

1

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

1

PANEL, CONTROL (BLK) WPL 74003624 Contact Us For Availability

1

TUBE, VENT WPL 74003469 Contact Us For Availability

1

BOWL, DRIP (6``W/HOLE-BLK) WPL 7725P04060 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

2

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $11.32

2

LINING, DOOR WPL 74003244 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability

2

CLOCK (BLK) WPL 74003625 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

3

WP12001559 Whirlpool Element Kit Backorder WPL WP12001559 $119.93

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003627 Contact Us For Availability

3

BOX, BURNER WPL 74003403 Contact Us For Availability

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $141.27

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

INSULATION, DOOR WPL 74001842 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

5

SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

GLASS, INNER WPL 74003320 Contact Us For Availability

6

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

7

RETAINER, GLASS WPL 74001844 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

TOP, MAIN (BSQ) WPL 74005063 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SUPPORT, TOP WPL 74001170 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

9

GLASS, DOOR (BLK) WPL 74002058 Contact Us For Availability

9

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

9

SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability

9

END CAP, CONTROL PNL (RT-BLK) WPL 74003605 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-BLK) WPL 74003606 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

HANDLE, DOOR (BLK) WPL 74003617 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

FRAME, DOOR (BLK) WPL 7706P30960 Contact Us For Availability

KNOB (BLK) WPL 74003612 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability

13

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

13

COVER, BULB WPL 74003389 Contact Us For Availability

13

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

TRIM, TOP (BLK) WPL 74002065 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74003614 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

MANUAL, USE & CARE WPL 74003628 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

SCREW WPL 7101P11560 Contact Us For Availability

20

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

20

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

20

LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

21

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

21

INSULATOR, SWITCH WPL 74003630 Contact Us For Availability

22

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

22

SCREW WPL 912012 Contact Us For Availability

23

COVER, DOOR LATCH WPL 74003479 Contact Us For Availability

24

BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability

NI

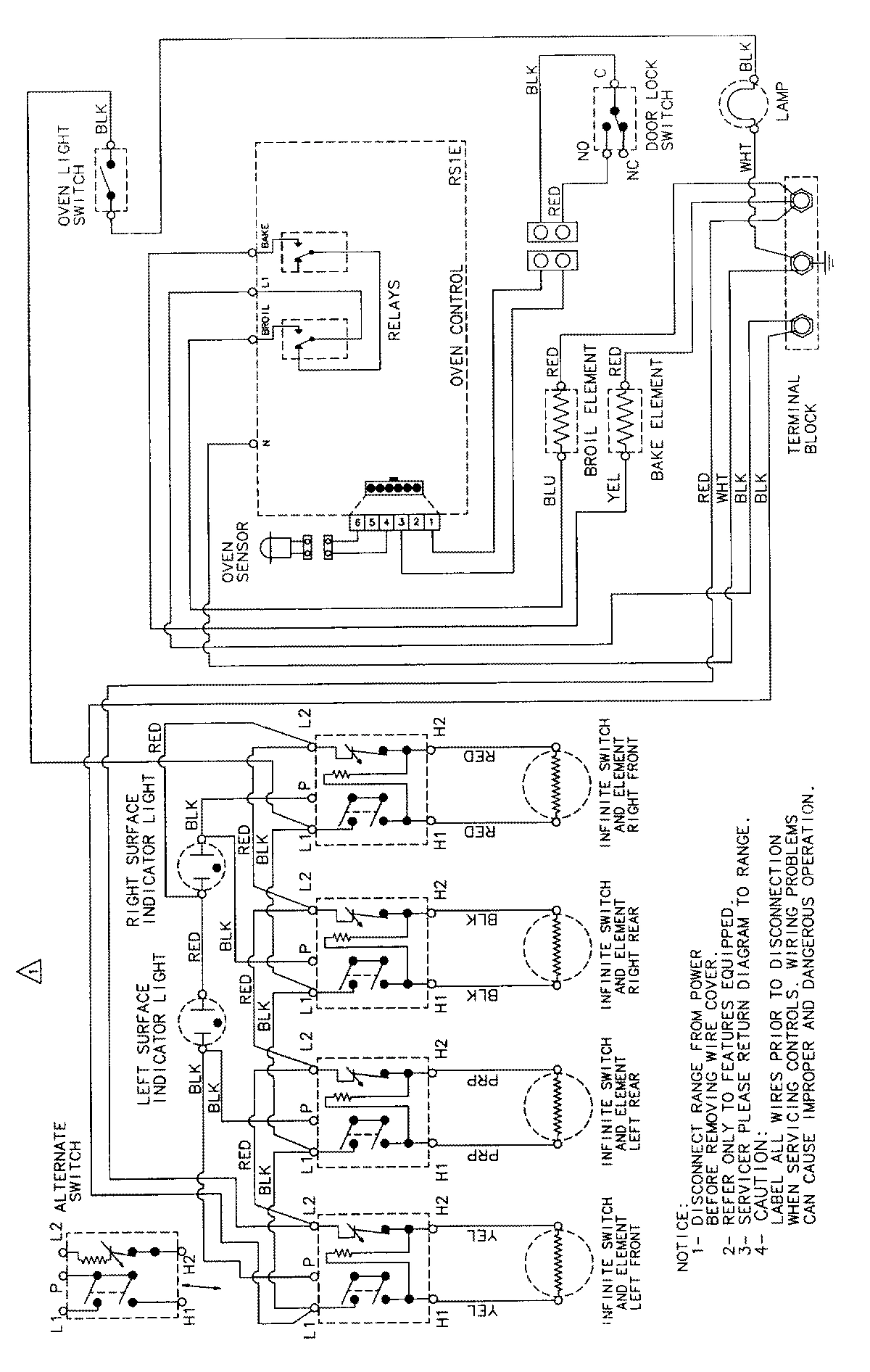

WIRING INFORMATION WPL 15002263 Contact Us For Availability
