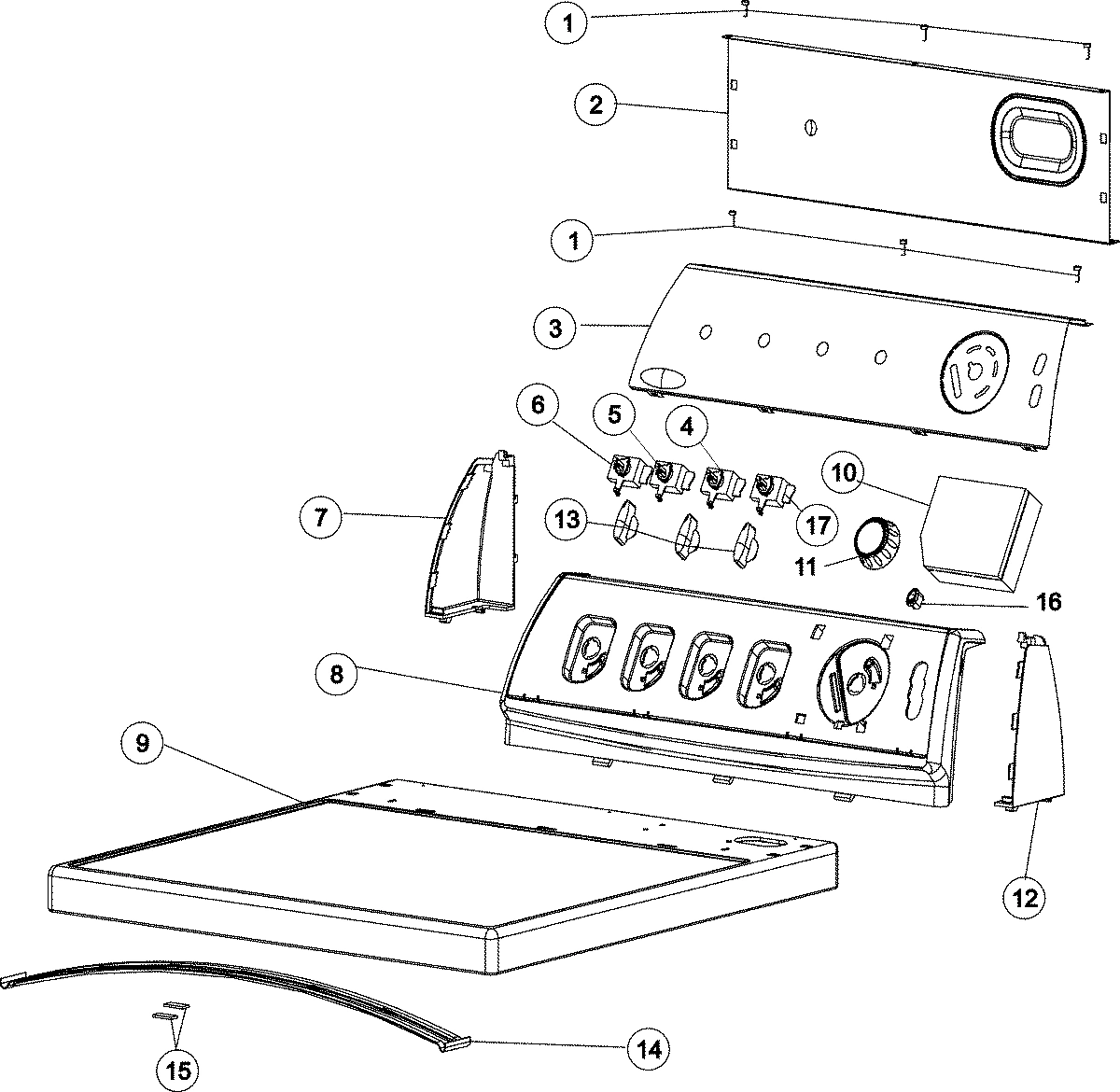

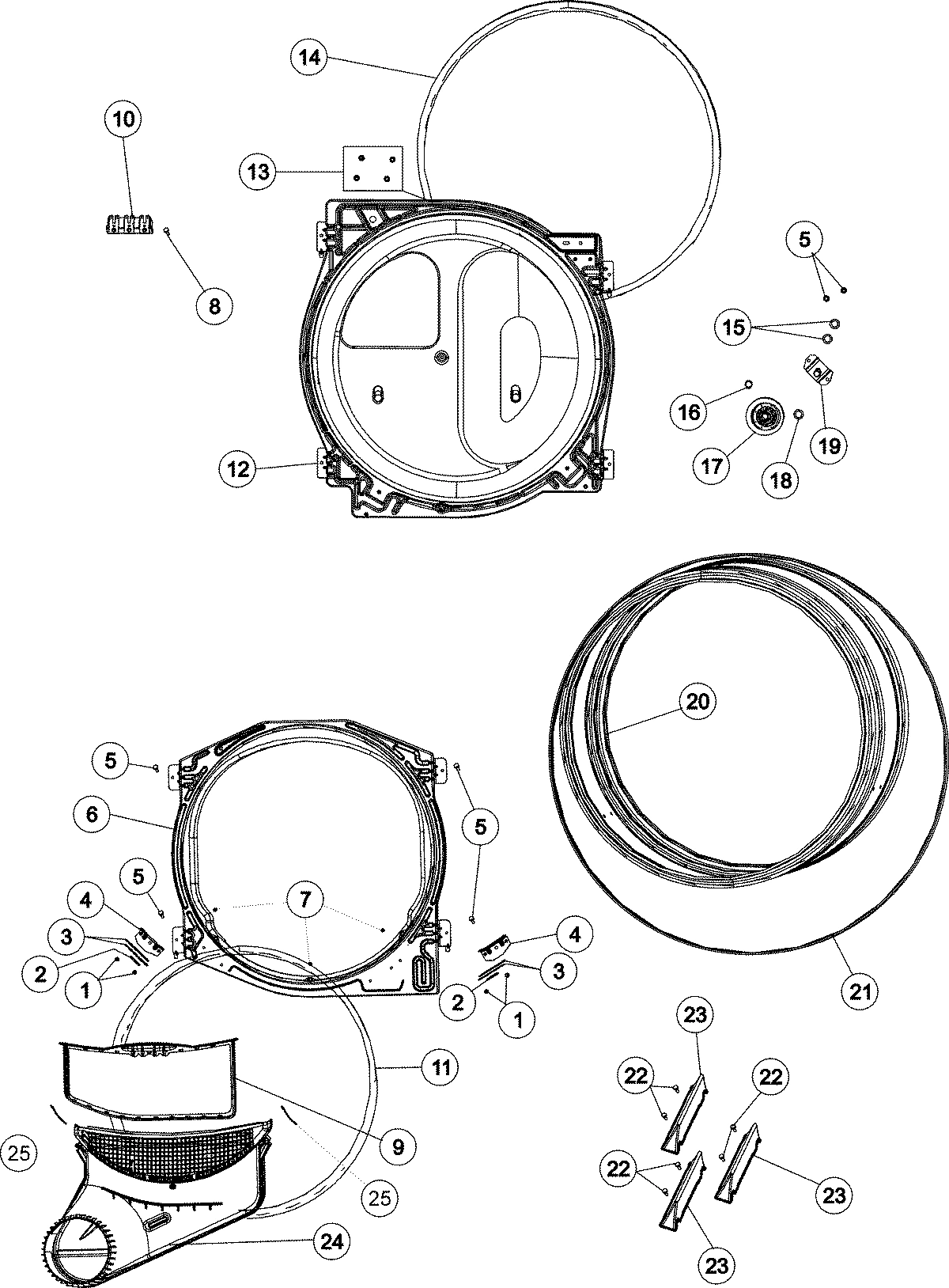

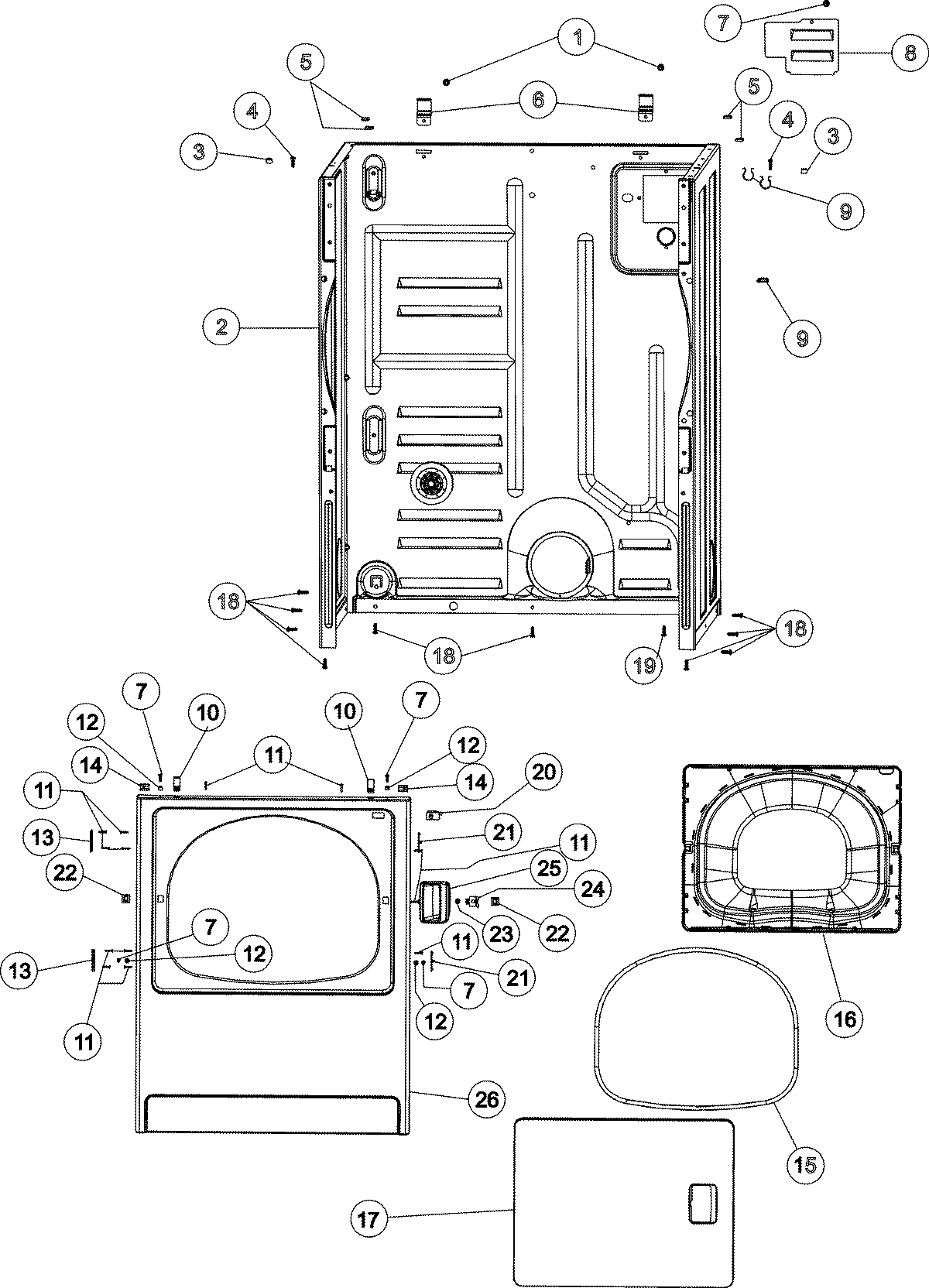

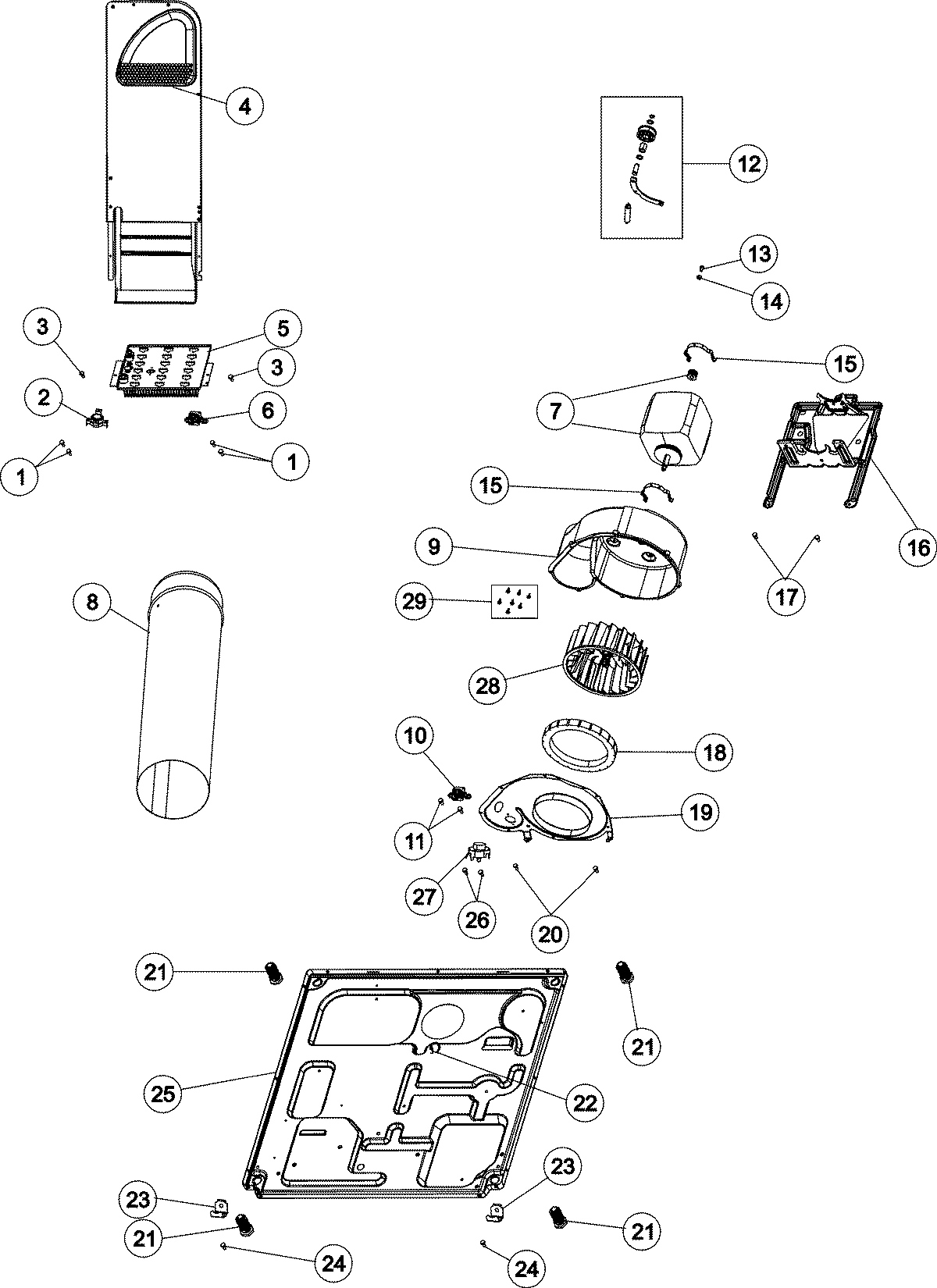

Model Whirlpool MDE5806AYK ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

1

HARNESS, WIRE-LOWER ELECTRIC WPL 37001157 Contact Us For Availability

2

PAD, FELT-COIN WPL 500121 Contact Us For Availability

2

SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability

2

CABINET - (BLUE) WPL 37001293 Contact Us For Availability

2

WIRE HARNESS - UPPER WPL 37001161 Contact Us For Availability

3

FACIA WPL 37001179 Contact Us For Availability

3

MANUAL, USE & CARE WPL 2202687 Contact Us For Availability

3

MANUAL, USE & CARE WPL 2206672 Contact Us For Availability

4

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

4

ENCODER, ROTARY 4 POSITION WPL 37001263 Contact Us For Availability

4

LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability

5

ENCODER, ROTARY 2 POSITION WPL 37001265 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

5

SOUNDFOIL WPL 37001147 Contact Us For Availability

6

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

6

HINGE, TOP WPL 500003 Contact Us For Availability

6

ENCODER, ROTARY 5 POSITION WPL 37001264 Contact Us For Availability

6

SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability

6

ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability

7

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

7

ENDCAP-LT - (BLUE) WPL 21002248 Contact Us For Availability

7

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (BLUE) WPL 21002249 Contact Us For Availability

8

PLATE, ACCESS COVER WPL 37001158 Contact Us For Availability

8

GROMMET, CORD WPL 33002053 Contact Us For Availability

8

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

9

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

9

CLIP, WIRE WPL 504034 Contact Us For Availability

9

TOP - (BLUE) WPL 37001294 Contact Us For Availability

W10756689 Whirlpool Electronic Control Board Backorder WPL W10756689 $226.27

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

BLOCK, TERMINAL ASSY WPL 37001160 Contact Us For Availability

11

WP528P3 Whirlpool Vent Kit Backorder WPL WP528P3 $83.99

11

KNOB ASSEMBLY - ROTARY ENCODER WPL 37001185 Contact Us For Availability

ENDCAP-RT - (BLUE) WPL 21002247 Contact Us For Availability

LOCATOR, PANEL WPL 505187 Contact Us For Availability

RACK,DRYING WPL Y504105 Contact Us For Availability

BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability

13

WP21002070 Whirlpool Selector Knob Backorder WPL WP21002070 $14.02

13

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

13

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

14

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

14

BRACE, TOP WPL 56486 Contact Us For Availability

14

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

15

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

15

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

15

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

MOUNT, MOTOR WPL 503613 Contact Us For Availability

SWITCH, ROCKER WPL 21002080 Contact Us For Availability

17

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

17

ENCODER, ROTARY 32 POSITION WPL 37001266 Contact Us For Availability

17

DOOR - (BLUE) WPL 37001295 Contact Us For Availability

18

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

18

SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability

18

WASHER, WAVE WPL Y504082 Contact Us For Availability

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

19

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

19

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

20

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

20

ASSEMBLY, CYLINDER (STAINLESS) WPL 37001162 Contact Us For Availability

21

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $15.99

21

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

21

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

22

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

22

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

23

BAFFLE, (WHT) WPL 37001125 Contact Us For Availability

23

CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability

23

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

24

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

24

AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability

DRYER BASE WPL 37001156 Contact Us For Availability

HANDLE - DOOR BLUE WPL 37001291 Contact Us For Availability

CLIP, RETAINING HARNESS WPL 40012001 Contact Us For Availability

SENSOR, MOISTURE WPL 503625 Contact Us For Availability

26

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

26

FRONT PANEL - (BLUE) WPL 37001296 Contact Us For Availability

27

WP31001590 Whirlpool Thermistor Backorder WPL WP31001590 $74.47

28

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

29

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

NI

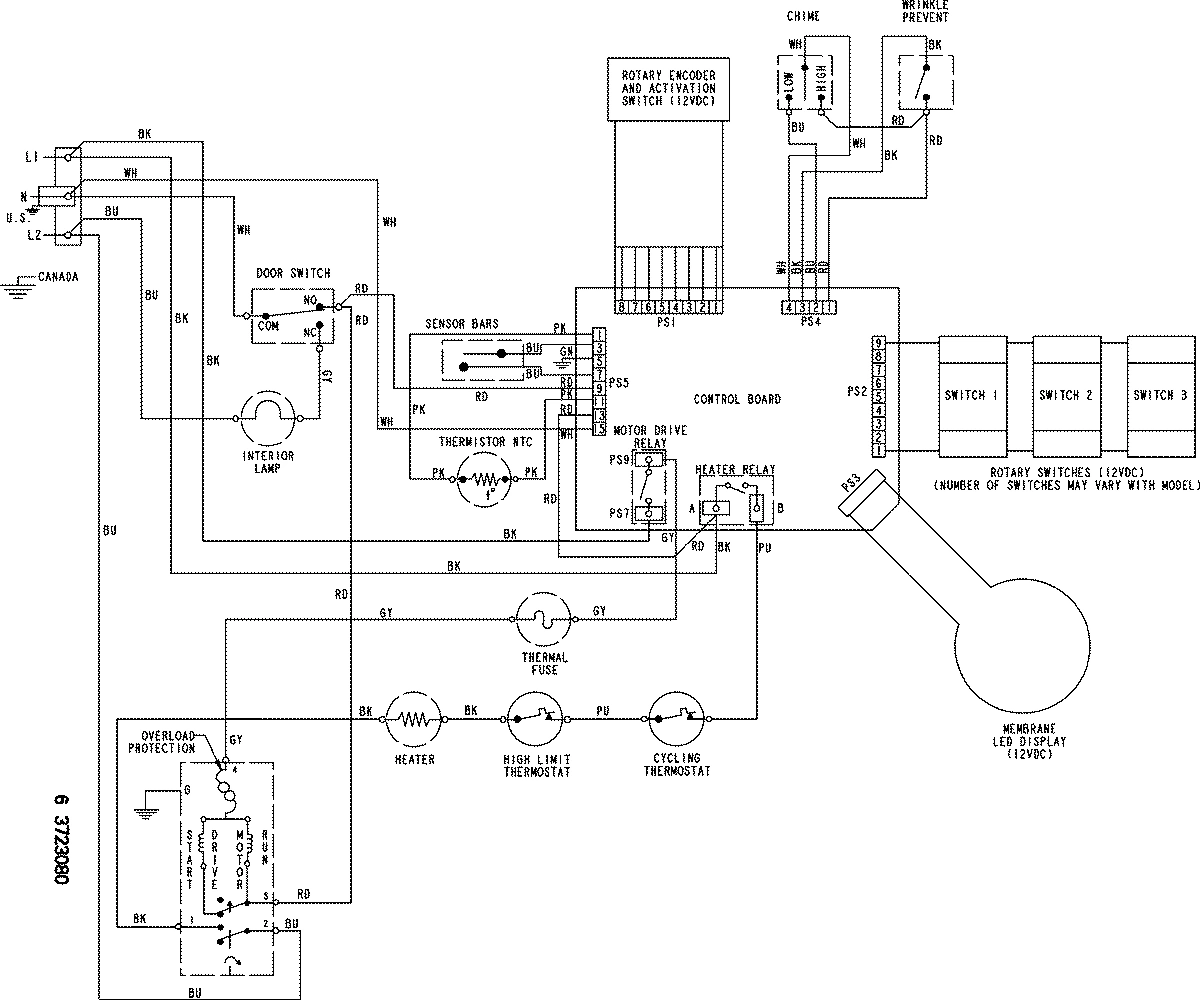

WIRING INFORMATION WPL 15003775 Contact Us For Availability
