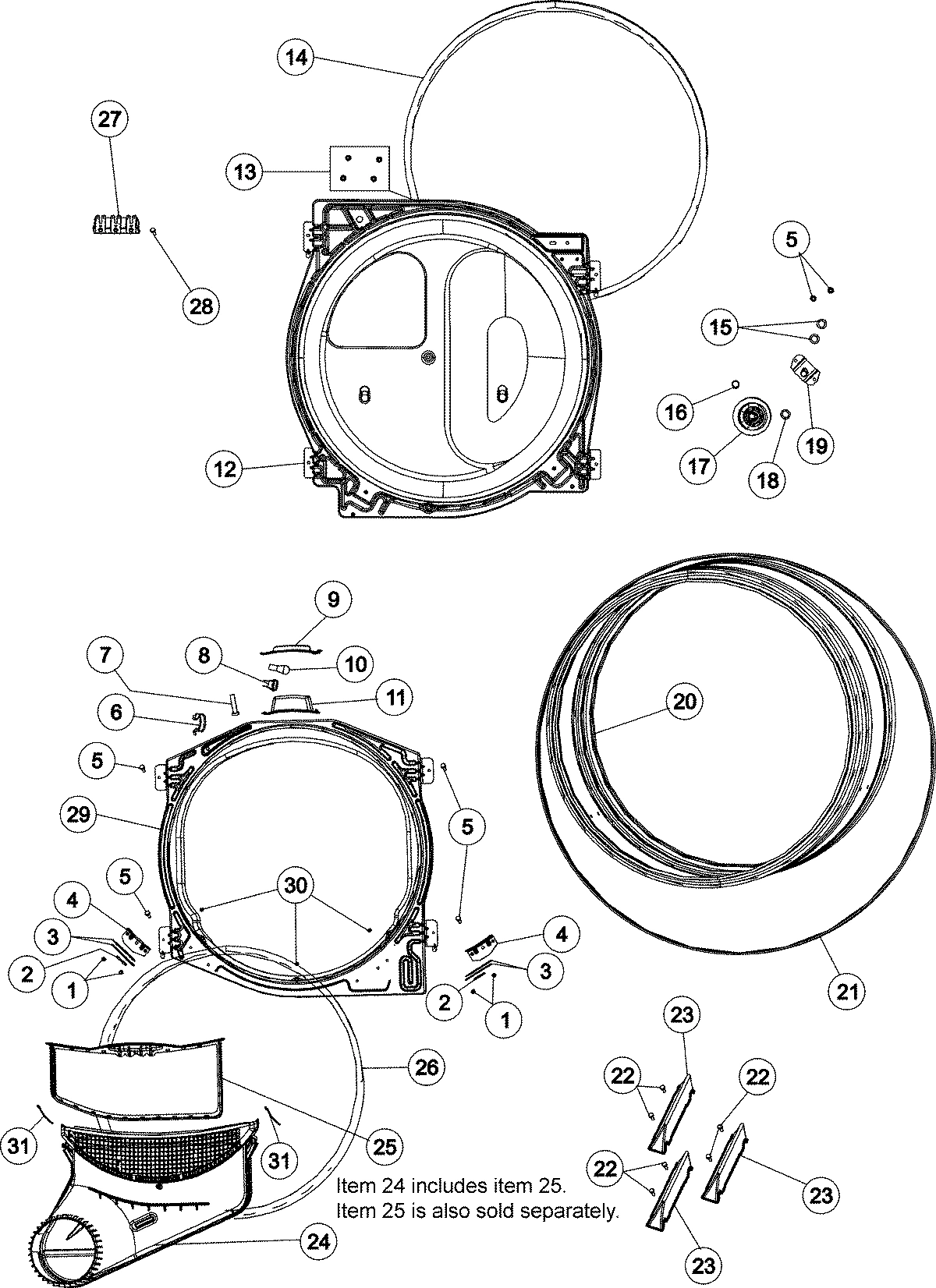

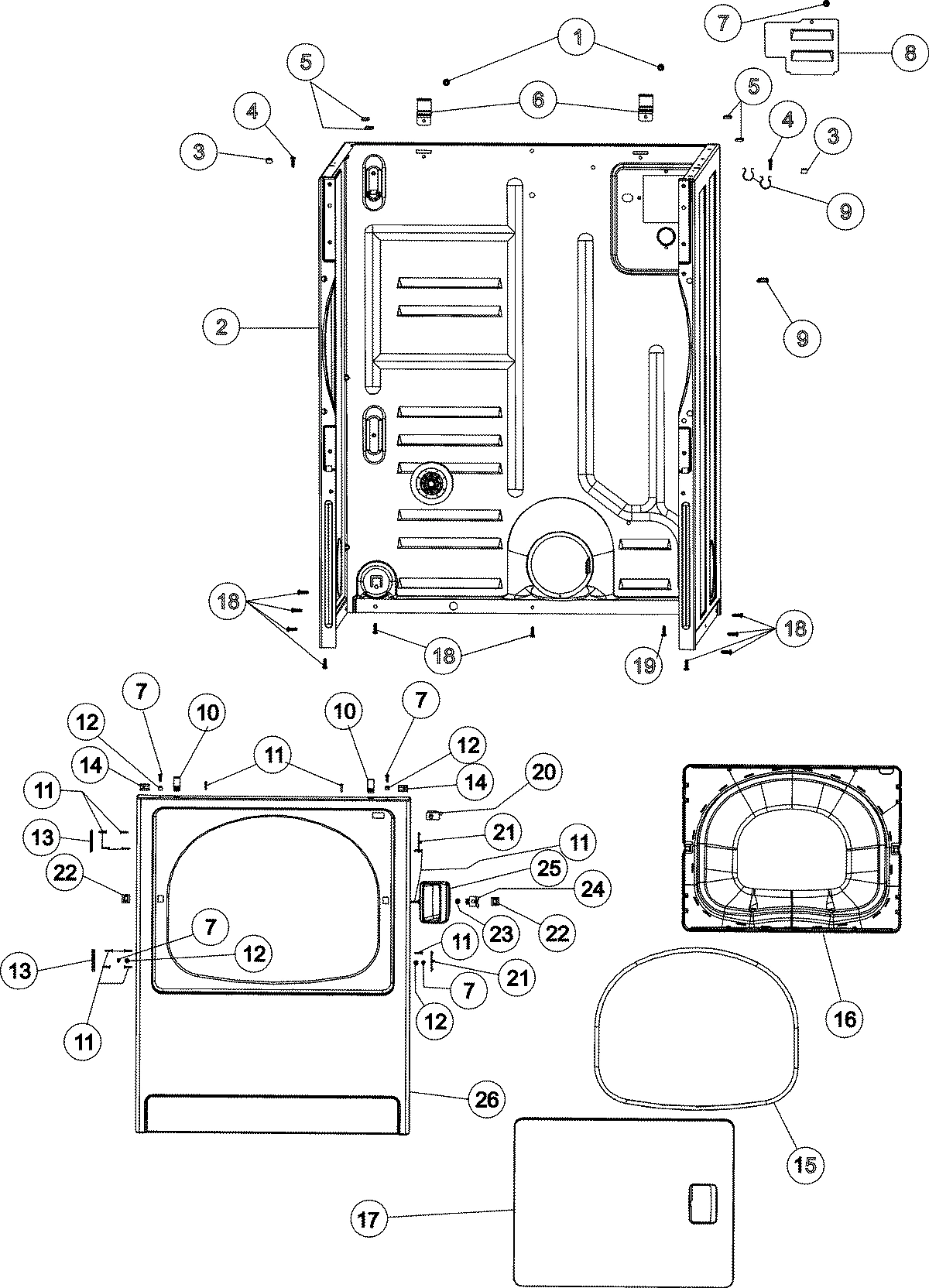

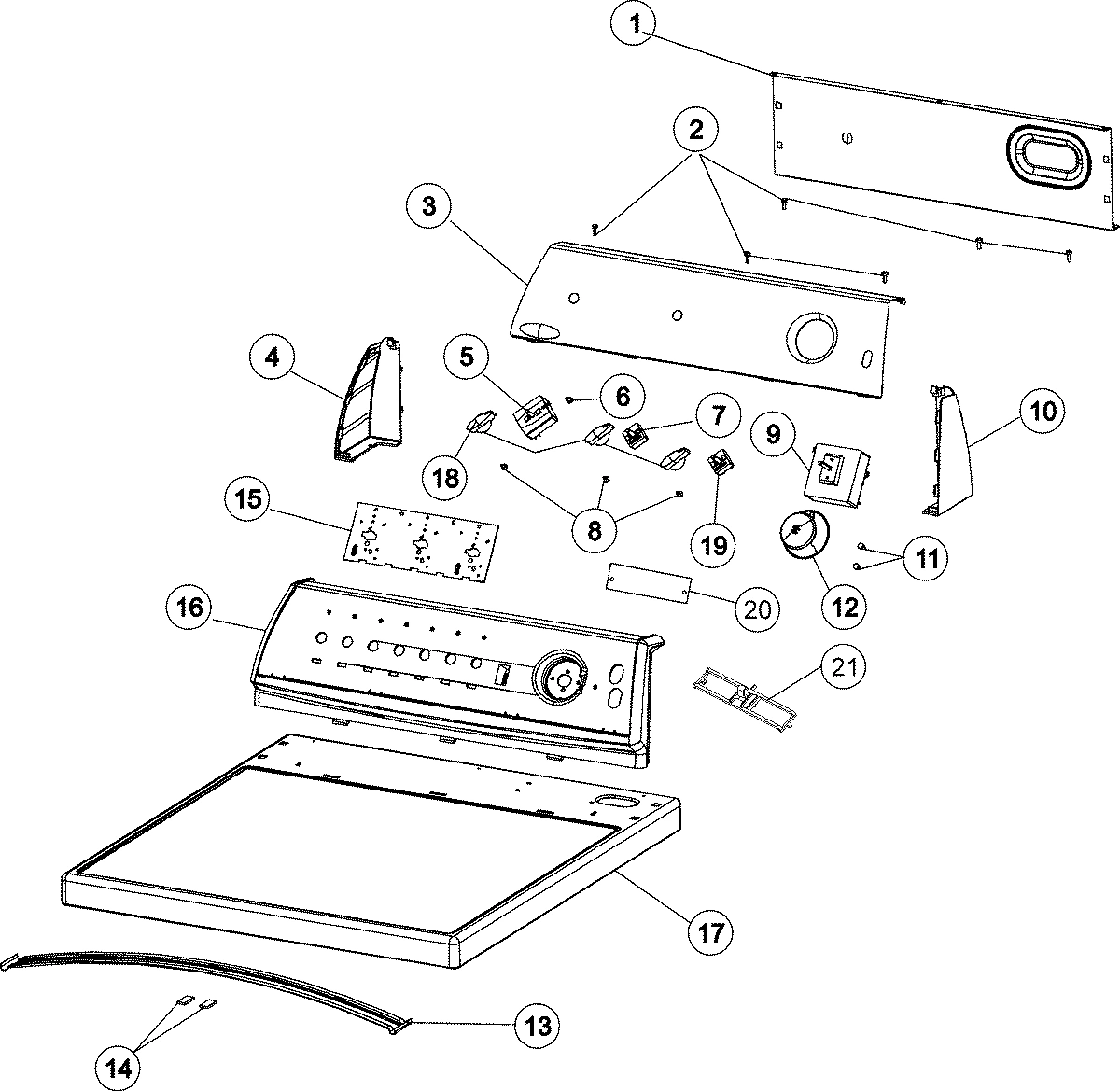

Model Whirlpool MDE508DAYK ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

1

HARNESS, WIRE WPL 37001163 Contact Us For Availability

1

HARNESS, WIRE WPL 37001245 Contact Us For Availability

1

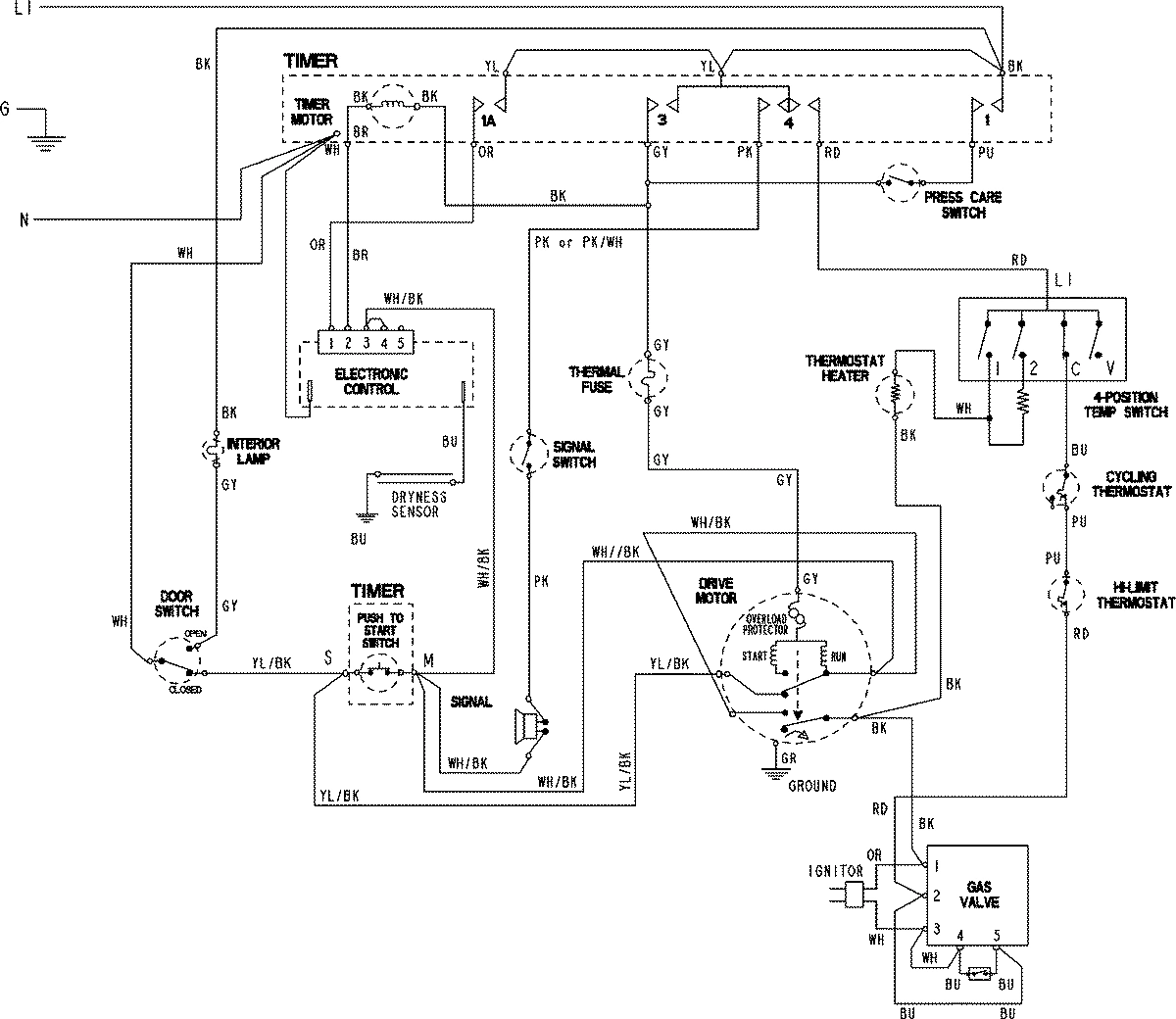

WIRING INFORMATION ELEC WPL 15003802 Contact Us For Availability

1

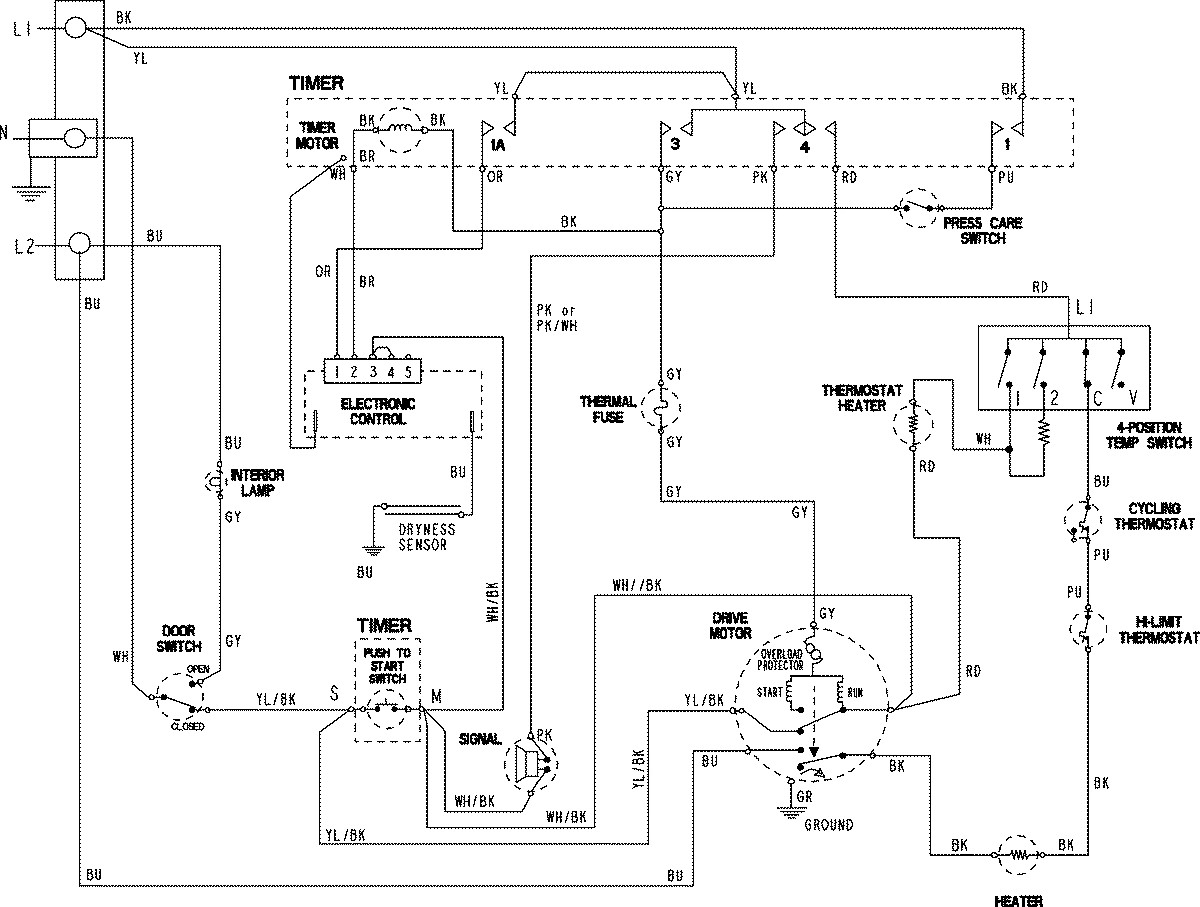

WIRING INFORMATION ELEC WPL 15003814 Contact Us For Availability

1

SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability

2

WP3400888 Whirlpool Compactor Screw Backorder WPL WP3400888 $4.82

2

SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability

2

CABINET - (BLUE) WPL 37001293 Contact Us For Availability

3

MANUAL, USE & CARE WPL 2202687 Contact Us For Availability

3

MANUAL, USE & CARE WPL 2206672 Contact Us For Availability

3

FACIA WPL 37001207 Contact Us For Availability

3

FACIA WPL 37001306 Contact Us For Availability

4

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

4

LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability

4

ASSEMBLY, WIRE WPL 2200011 Contact Us For Availability

4

ENDCAP-LT - (BLUE) WPL 21002248 Contact Us For Availability

5

SWITCH, TEMP - 4 POSITION WPL 37001165 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

6

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

6

HINGE, TOP WPL 500003 Contact Us For Availability

7

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

7

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

7

CORD, POWER (AS WRAP) WPL 33002494 Contact Us For Availability

7

BUZZER WPL 31001397 Contact Us For Availability

8

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

8

GROMMET, CORD WPL 33002053 Contact Us For Availability

8

HOLDER, LAMP WPL 504458 Contact Us For Availability

8

PLATE, ACCESS COVER WPL 37001158 Contact Us For Availability

9

CLIP, WIRE WPL 504034 Contact Us For Availability

9

TIMER - DRYER WPL 37001241 Contact Us For Availability

9

LENS, LIGHT WPL 40094301 Contact Us For Availability

10

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

10

ENDCAP-RT - (BLUE) WPL 21002247 Contact Us For Availability

10

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

11

WP528P3 Whirlpool Vent Kit Backorder WPL WP528P3 $83.99

11

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

11

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

RACK,DRYING WPL Y504105 Contact Us For Availability

KNOB/SKIRT, TIMER WPL 31001567 Contact Us For Availability

BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability

LOCATOR, PANEL WPL 505187 Contact Us For Availability

13

BRACE, TOP WPL 56486 Contact Us For Availability

13

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

14

PAD, FELT-COIN WPL 500121 Contact Us For Availability

14

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

MOUNT, MOTOR WPL 503613 Contact Us For Availability

FRAME, CONTROL PANEL, SUPPORT WPL 21001965 Contact Us For Availability

SUPPORT,CONTROL,CONSOLE (BLUE) WPL 21002246 Contact Us For Availability

17

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

17

TOP - (BLUE) WPL 37001294 Contact Us For Availability

17

DOOR - (BLUE) WPL 37001295 Contact Us For Availability

WP21002070 Whirlpool Selector Knob Backorder WPL WP21002070 $14.02

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability

WASHER, WAVE WPL Y504082 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

SWITCH, TWO POSITION ROTARY WPL 31001190 Contact Us For Availability

20

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

20

WP33001212 Whirlpool Electronic Control Board Backorder WPL WP33001212 $229.02

20

ASSEMBLY, CYLINDER (STAINLESS) WPL 37001162 Contact Us For Availability

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $15.99

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

BRACKET, CIRCUIT BOARD WPL 31001507 Contact Us For Availability

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

22

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

22

SIGNAL, END OF CYCLE (CHIME) WPL 33001848 Contact Us For Availability

22

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

23

BAFFLE, (WHT) WPL 37001125 Contact Us For Availability

23

CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability

23

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

24

AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability

24

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

25

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

25

DRYER BASE WPL 37001156 Contact Us For Availability

25

HANDLE - DOOR BLUE WPL 37001291 Contact Us For Availability

26

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

26

FRONT PANEL - (BLUE) WPL 37001296 Contact Us For Availability

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

WP37001136 Whirlpool Dryer Cycling Thermostat In Stock WPL WP37001136 $115.60

THERMOSTAT, BIAS-HEATED WPL 37001137 Contact Us For Availability

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

28

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

28

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

29

ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability

31

CLIP, RETAINING HARNESS WPL 40012001 Contact Us For Availability

31

SENSOR, MOISTURE WPL 503625 Contact Us For Availability
