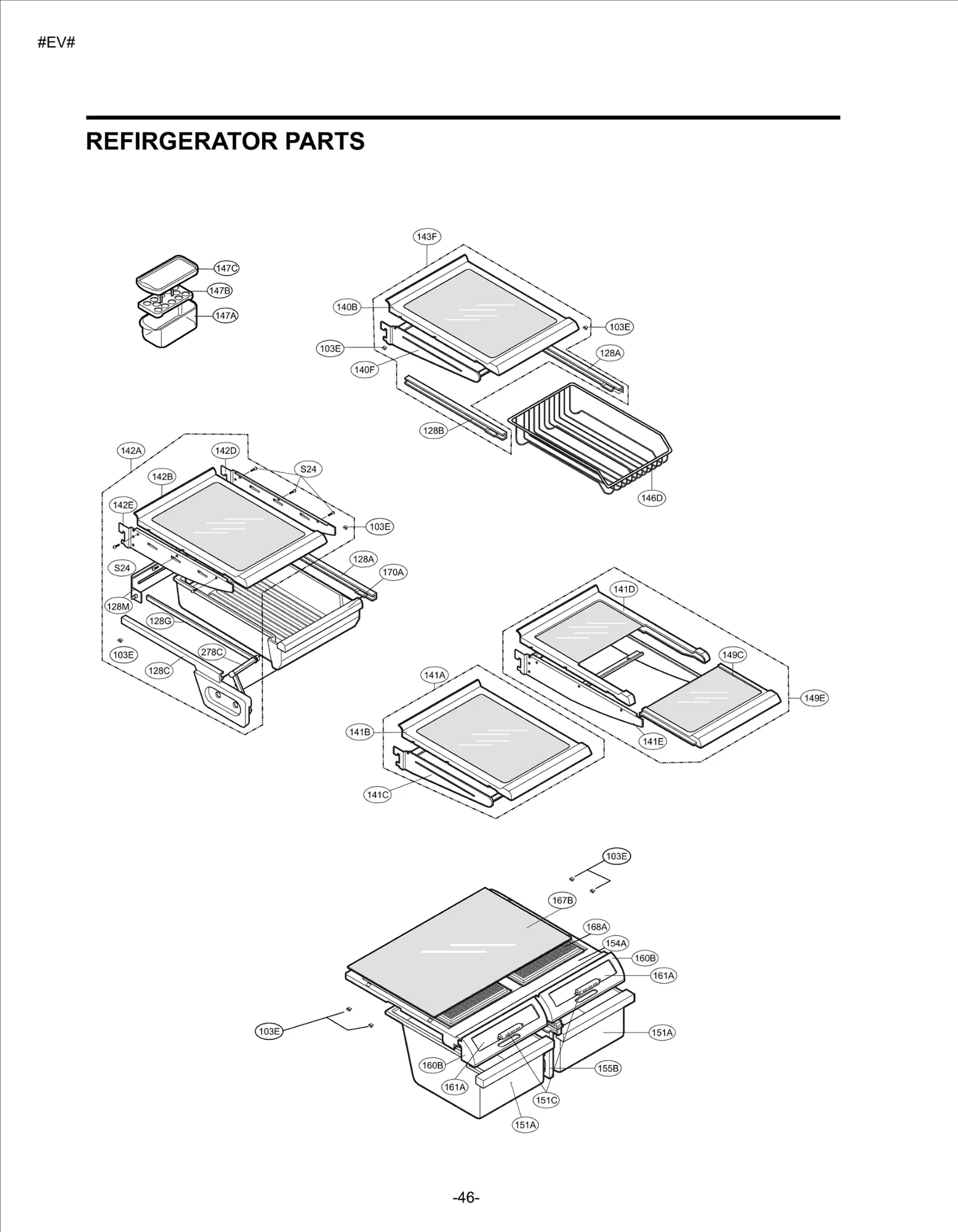

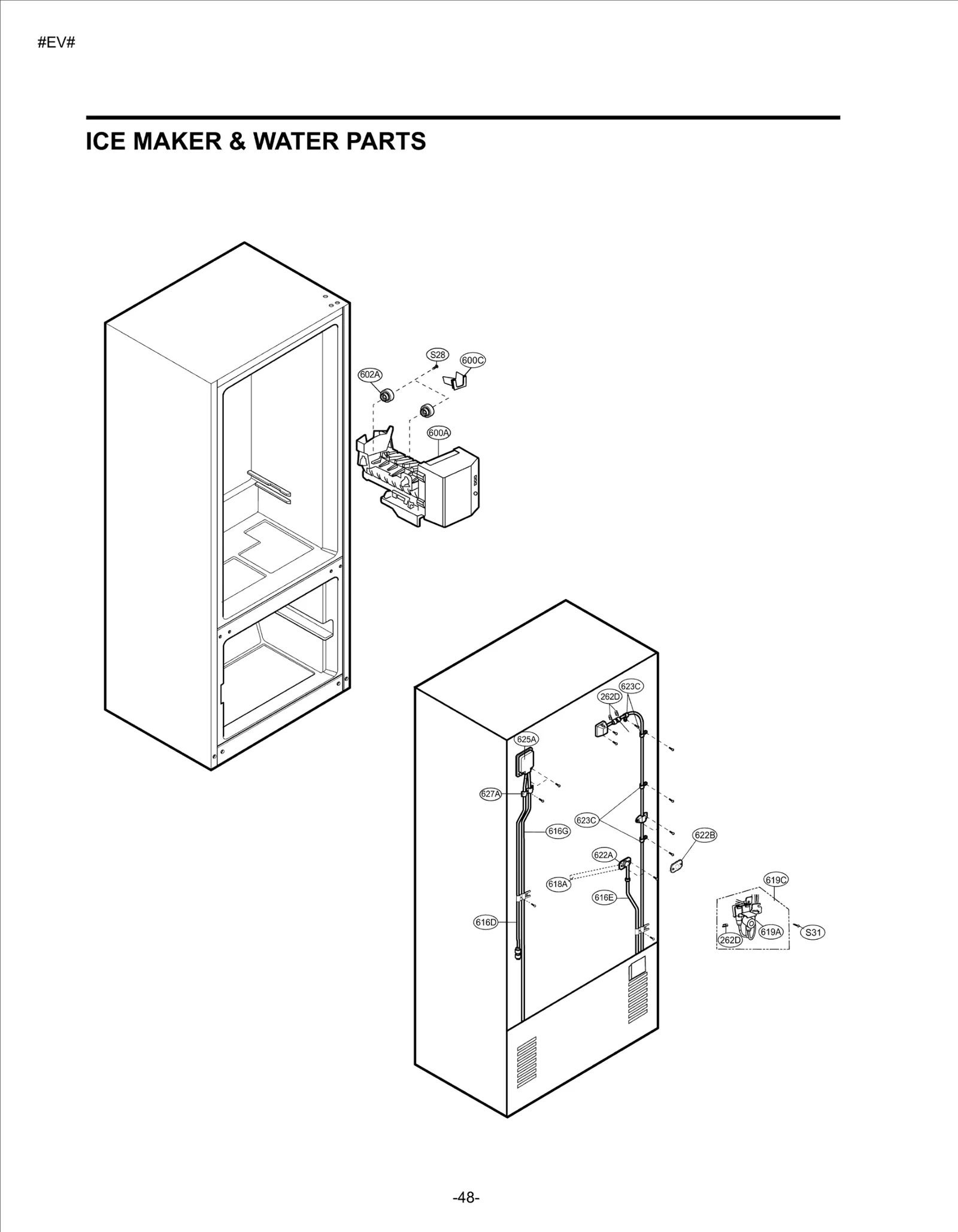

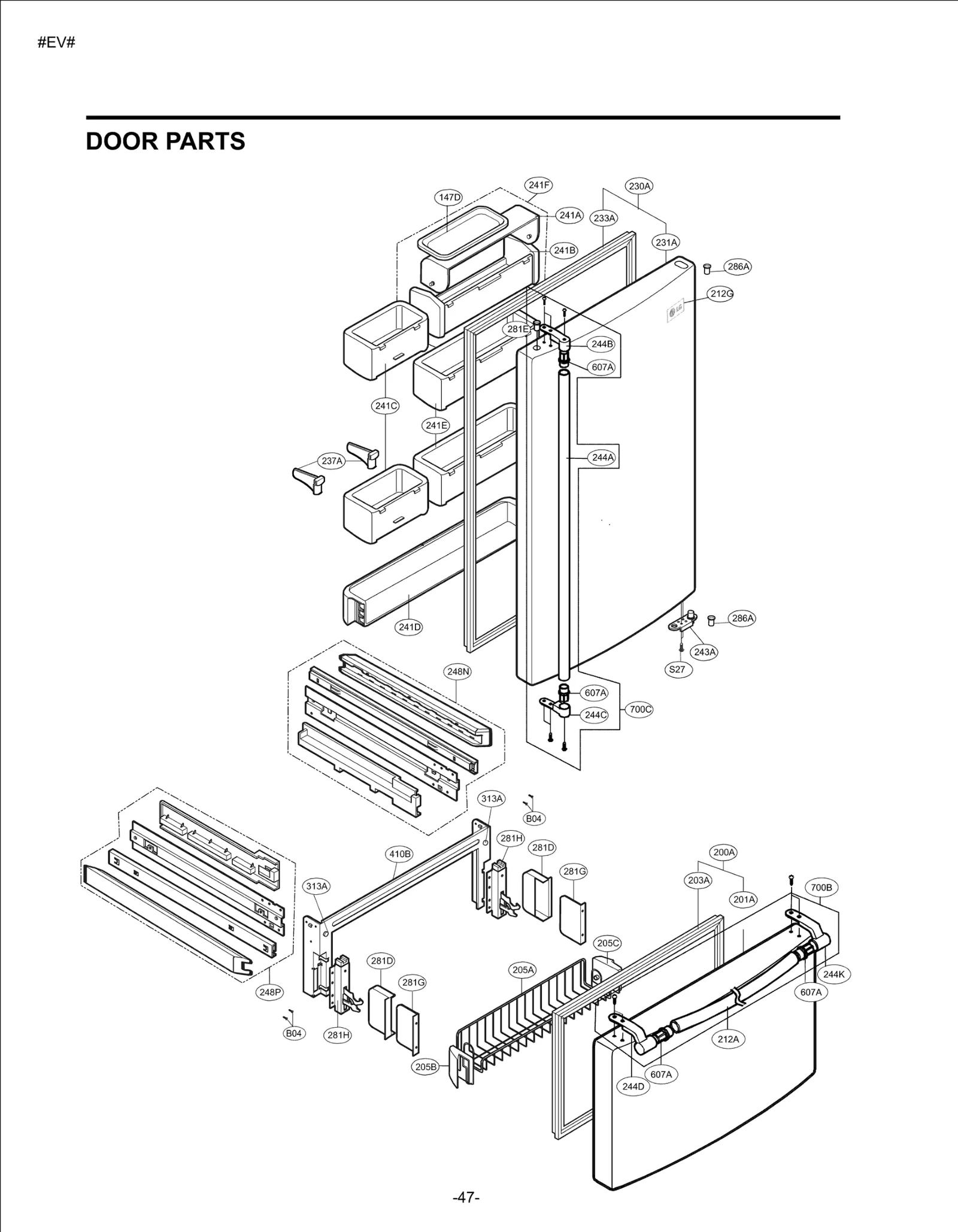

Model LG LRDC22731TT – Common Parts &amp; Diagrams

105A

5251JA3003D LG Drain Tube Assembly In Stock LGE 5251JA3003D $10.63

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $7.08

110D

KNOB,SHUTTER LGE 4940JL2001B Contact Us For Availability

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $221.89

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $26.61

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $26.61

128G

4520JJ2001A LG Refrigerator Link Backorder LGE 4520JJ2001A $11.24

128M

4974JJ2011A LG Refrigerator Air Guide Backorder LGE 4974JJ2011A $17.93

142B

SHELF ASSEMBLY,R LGE 5027JJ1006A Contact Us For Availability

142D

5026JJ2001L LG Shelf Net Backorder LGE 5026JJ2001L $65.22

142E

5026JJ2001M LG Net Shelf Backorder LGE 5026JJ2001M $65.22

143F

SHELF ASSEMBLY,R LGE 5027JJ1014D Contact Us For Availability

145G

GUIDE ASSEMBLY,RAIL LGE 4975JJ2005H Contact Us For Availability

146D

CAN,SERVER LGE 5044JJ1001A Contact Us For Availability

147A

BANK,DAIRY LGE 5074JJ1005A Contact Us For Availability

147B

3390JJ1014A LG Egg Tray Backorder LGE 3390JJ1014A $41.86

147C

COVER,BANK LGE 3550JJ1017A Contact Us For Availability

147D

TRAY,BUTTER LGE 3390JJ2003A Contact Us For Availability

149B

SHELF,F LGE 5026JL1001B Contact Us For Availability

149C

SHELF ASSEMBLY,R LGE 5027JJ2010B Contact Us For Availability

149E

SHELF ASSEMBLY,R LGE 5027JJ2009B Contact Us For Availability

151A

TRAY ASSEMBLY,VEGETABLE LGE 3391JJ1019E Contact Us For Availability

151C

4940JJ2003B LG Shutter Knob Backorder LGE 4940JJ2003B $7.08

3550JJ1033A LG Refrigerator Crisper Cover Gla Backorder LGE 3550JJ1033A $93.59

COVER,T/V LGE 3550JL1006C Contact Us For Availability

COVER,T/V LGE 3550JL2001J Contact Us For Availability

COVER,T/V LGE 3550JL2001K Contact Us For Availability

155B

SUPPORTER ASSEMBLY,COVER-T/V LGE 4981JJ2001A Contact Us For Availability

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $41.86

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $34.08

160B

COVER,T/V LGE 3550JL1006D Contact Us For Availability

160B

DECO,TRAY LGE 3806JL2005C Contact Us For Availability

160B

DECO,TRAY LGE 3806JL2005D Contact Us For Availability

161A

COVER,TRAY LGE 3550JJ2026A Contact Us For Availability

167B

GLASS,SHELF LGE 4890JL1002K Contact Us For Availability

168A

3550JJ1035A LG Magic Room Refrigerator Cover Backorder LGE 3550JJ1035A $84.03

3391JJ2004G LG Refrigerator Deli Drawer Snack Backorder LGE 3391JJ2004G $125.59

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $120.72

TRAY ASSEMBLY,MEAT LGE 3391JJ2004J Contact Us For Availability

TRAY ASSEMBLY,MEAT LGE 3391JJ2004K Contact Us For Availability

200A

DOOR ASSEMBLY,F LGE 3581JJ8018D Contact Us For Availability

201A

DOOR FOAM ASSEMBLY,F LGE 5433JJ0018W Contact Us For Availability

203A

ADX52752609 LG Door Gasket Assembly Backorder LGE ADX52752609 $39.96

205A

BASKET,DOOR LGE 5004JJ1042B Contact Us For Availability

205B

BASKET,TILT LGE 5004JJ2005B Contact Us For Availability

205C

BASKET,TILT LGE 5004JJ2005A Contact Us For Availability

212A

HANDLE,F LGE 3650JJ1017H Contact Us For Availability

212G

MFT62346501 LG Refrigerator Nameplate Backorder LGE MFT62346501 $34.86

212G

MFT62346510 LG Refrigerator Nameplate Backorder LGE MFT62346510 $26.61

212G

Name Plate LGE MFT61843003 Contact Us For Availability

230A

DOOR ASSEMBLY,R LGE 3581JJ8024D Contact Us For Availability

231A

DOOR FOAM ASSEMBLY,R LGE 5433JJ0019L Contact Us For Availability

233A

4987JJ1004F LG Door Gasket Assembly Backorder LGE 4987JJ1004F $43.19

234B

3806JL1004D LG Duct Decor Backorder LGE 3806JL1004D $20.63

234B

DECO,DUCT LGE 3806JL1004F Contact Us For Availability

234B

DECO,DUCT LGE 3806JL1004E Contact Us For Availability

237A

GUIDE,BOTTLE LGE 4974JJ2012A Contact Us For Availability

COVER,TRAY LGE 3550JL2003K Contact Us For Availability

COVER,TRAY LGE 3550JL2003G Contact Us For Availability

COVER,TRAY LGE 3550JL2003J Contact Us For Availability

COVER,TRAY LGE 3550JL2003H Contact Us For Availability

241B

5004JJ1021B LG Door Basket Backorder LGE 5004JJ1021B $88.89

241C

5005JJ2017A LG Refrigerator Door Basket Assem Backorder LGE 5005JJ2017A $93.59

241D

BASKET ASSEMBLY,DOOR LGE 5005JJ2020A Contact Us For Availability

241E

5005JJ2018A LG Refrigerator Door Shelf Basket Backorder LGE 5005JJ2018A $105.00

241F

Basket Assembly,Door LGE 5005JJ2010G Contact Us For Availability

243A

STOPPER,DOOR LGE 4620JJ3006C Contact Us For Availability

244A

HANDLE,R LGE 3650JJ2008E Contact Us For Availability

244B

HOLDER,HANDLE LGE 4930JJ2009A Contact Us For Availability

244C

HOLDER,HANDLE LGE 4930JJ2010A Contact Us For Availability

244D

HOLDER,HANDLE LGE 4930JJ2012A Contact Us For Availability

244K

HOLDER,HANDLE LGE 4930JJ2011A Contact Us For Availability

248N

RIGHT RAIL, (RAIL + CONNECTOR) LGE 5219JJ2002A Contact Us For Availability

248P

5219JJ2002B LG Slide Rail Assembly Backorder LGE 5219JJ2002B $224.90

262A

4930JA3093A LG Bracket Holder Backorder LGE 4930JA3093A $7.08

262D

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $16.85

278C

4510JJ2002A LG Shutter Lever Backorder LGE 4510JJ2002A $7.08

281B

HINGE ASSEMBLY,U LGE 4775JJ2003B Contact Us For Availability

281D

COVER,HINGE LGE 3550JJ2043A Contact Us For Availability

281E

CAP,HINGE LGE 5006JJ3014C Contact Us For Availability

281G

COVER,HINGE LGE 3550JJ2044A Contact Us For Availability

281H

Hinge Assembly,Lower LGE 4775JJ2011B Contact Us For Availability

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $7.78

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $444.54

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $146.31

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $26.61

309A

6750CR0004S LG Overload Protector Backorder LGE 6750CR0004S $109.26

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $11.24

313A

RUBBER,SEAT LGE 5040JJ3007A Contact Us For Availability

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

319A

3390JJ0003A LG Refrigerator Drip Tray Backorder LGE 3390JJ0003A $93.59

319C

4974JJ1009A LG Fan Guide Backorder LGE 4974JJ1009A $41.86

327A

5006JA3049A LG Drain Tube Cap Backorder LGE 5006JA3049A $7.08

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $20.63

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $20.63

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $46.04

404A

4681JB1029H LG Refrigerator Fan Motor Assembl In Stock LGE 4681JB1029H $92.65

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

409B

Lamp,Incandescent LGE 6912JK2002E Contact Us For Availability

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $65.53

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

410B

BRACKET ASSEMBLY,DOOR LGE 4811JJ2004B Contact Us For Availability

412D

6877JK2011D LG Harness Assembly Backorder LGE 6877JK2011D $64.95

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $111.87

419B

Pipe,Joint LGE 5200JJ3003E Contact Us For Availability

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $133.78

501F

Cover Assembly,PCB LGE 3551JJ1020D Contact Us For Availability

503C

6871JB2046B LG Display Power Control Board As Backorder LGE 6871JB2046B $277.16

600A

5989JA0002Y LG Refrigerator Ice Maker Assembl In Stock LGE 5989JA0002Y $269.53

600A

ICE MAKER ASSEMBLY,KIT LGE 5989JA0002N Contact Us For Availability

600C

MEA32865501 LG Tube Guide Backorder LGE MEA32865501 $16.85

602A

AEJ73579702 LG Refrigerator Bracket Holder As Backorder LGE AEJ73579702 $7.08

607A

4930JJ2013A LG Holder Bracket Backorder LGE 4930JJ2013A $11.24

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

611C

3550JL1008D LG Filter Cover Backorder LGE 3550JL1008D $111.87

611E

FILTER ASSEMBLY,HEAD LGE 5231JA2005A Contact Us For Availability

616D

Tube Assembly,Inject LGE AJR72929602 Contact Us For Availability

616E

5210JA3005W LG Refrigerator Plastic Water Lin Backorder LGE 5210JA3005W $11.24

616G

5210JA3005E LG Refrigerator PE Water Supply T In Stock LGE 5210JA3005E $15.02

618A

5210JJ3005B LG Refrigerator Ice Maker Injecti Backorder LGE 5210JJ3005B $41.86

619A

5220JA2009B LG Water Valve Backorder LGE 5220JA2009B $50.54

619C

VALVE ASSEMBLY,WATER LGE 5221JA2008H Contact Us For Availability

622A

5040JA2015A LG Refrigerator Rubber Injector S Backorder LGE 5040JA2015A $20.63

622B

BRACKET LGE 4810JA3036A Contact Us For Availability

623C

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $7.08

625A

COVER,TUBE LGE 3550JJ2034A Contact Us For Availability

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $7.08

627B

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $7.08

700B

HANDLE ASSEMBLY,F LGE 3651JJ0002B Contact Us For Availability

700C

HANDLE ASSEMBLY,R LGE 3651JJ1017F Contact Us For Availability

903A

COVER,LOWER LGE 3550JJ0006C Contact Us For Availability

903B

HOLDER,COVER LOWER LGE 4930JJ2021A No Longer Available

B01

1STZJA3004C LG Refrigerator Customized Screw Backorder LGE 1STZJA3004C $7.08

B04

SCREW,DRAWING LGE 1SZZJJ3011C Contact Us For Availability

GRS1

AEY73231701 LG Kit Assembly Backorder LGE AEY73231701 $125.59

S01

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $7.54

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $7.08

S28

1SZZJJ3005E LG Screw Customized Backorder LGE 1SZZJJ3005E $7.08

S31

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.53
