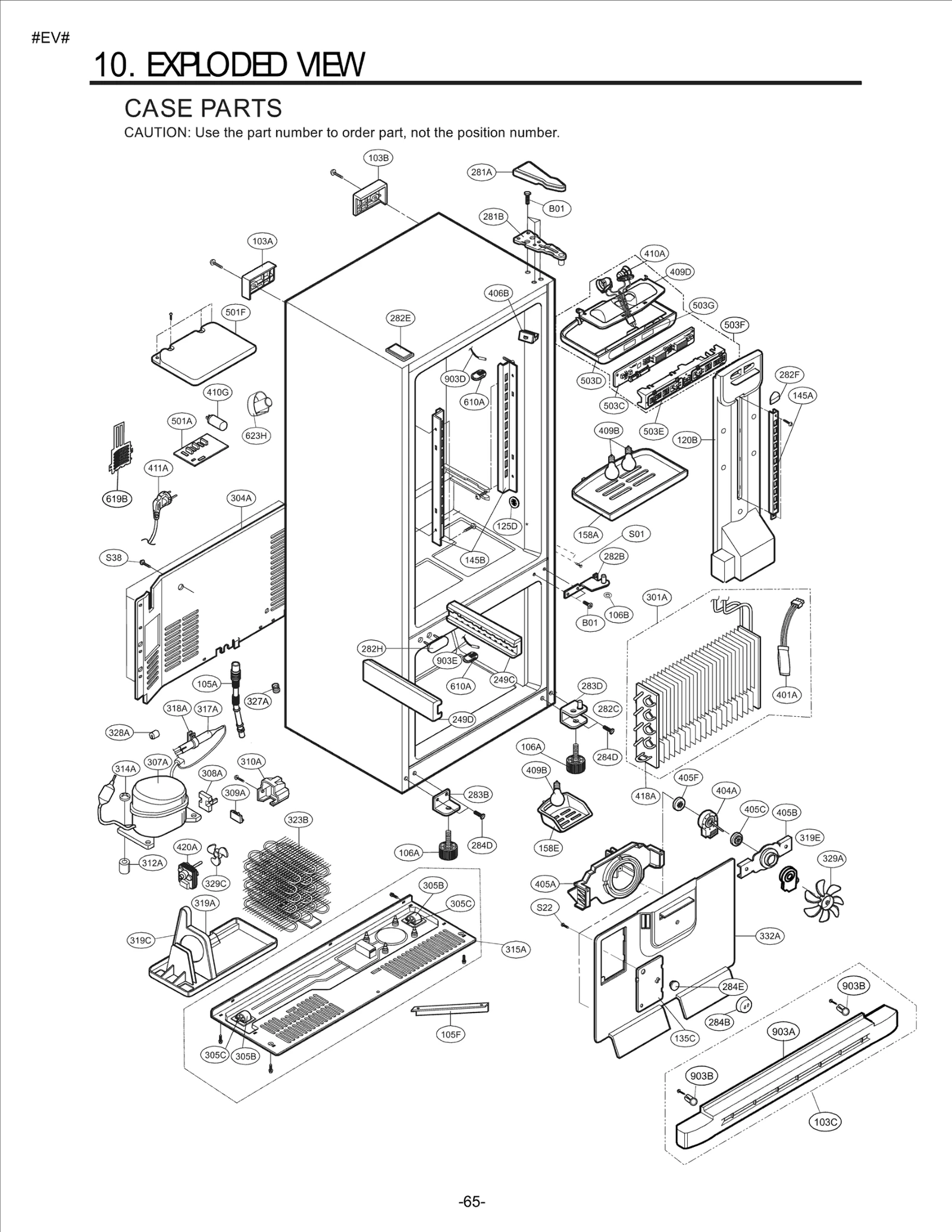

Model LG LRBN22514ST – Common Parts &amp; Diagrams

105A

5251JA3003B LG Drain Tube Assembly Backorder LGE 5251JA3003B $20.63

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $7.08

110D

KNOB,SHUTTER LGE 4940JL2001B Contact Us For Availability

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $221.89

125A

TRAY ASSEMBLY,ICE LGE 3391JJ1009B Contact Us For Availability

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $26.61

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $26.61

128C

4975JJ2003C LG RAIL Guide Assembly Backorder LGE 4975JJ2003C $49.89

131A

5075JJ1001A LG Refrigerator Ice Bank Assembly Backorder LGE 5075JJ1001A $125.59

131A

5075JJ1001B LG Ice Bucket Assembly Backorder LGE 5075JJ1001B $146.31

136B

TRAY,DRAWER LGE 3390JJ1034A Contact Us For Availability

136C

TRAY,DRAWER LGE 3390JJ1027A Contact Us For Availability

140B

SHELF ASSEMBLY,R LGE 5027JJ2007B Contact Us For Availability

140D

5026JJ2001G LG Net Shelf In Stock LGE 5026JJ2001G $65.22

140E

5026JJ2001H LG Shelf Net Backorder LGE 5026JJ2001H $56.70

142D

5026JJ2001L LG Shelf Net Backorder LGE 5026JJ2001L $65.22

142E

5026JJ2001M LG Net Shelf Backorder LGE 5026JJ2001M $65.22

143A

SHELF ASSEMBLY,R LGE 5027JJ1028B Contact Us For Availability

143B

SHELF ASSEMBLY,R LGE 5027JJ1015B Contact Us For Availability

143E

5027JJ1008B LG Shelf Backorder LGE 5027JJ1008B $164.96

143F

AHT72996103 LG Refrigerator Shelf Assembly Backorder LGE AHT72996103 $189.56

145D

GUIDE,RAIL LGE 4974JJ1012A Contact Us For Availability

145E

GUIDE,RAIL LGE 4974JJ1014A Contact Us For Availability

145F

GUIDE,RAIL LGE 4974JJ1013A Contact Us For Availability

145G

GUIDE ASSEMBLY,RAIL LGE 4975JJ2005B Contact Us For Availability

149B

SHELF,F LGE 5026JL1001B Contact Us For Availability

151A

3391JJ1020C LG Refrigerator Crisper Drawer Tr Backorder LGE 3391JJ1020C $189.56

151C

4940JJ2003B LG Shutter Knob Backorder LGE 4940JJ2003B $7.08

154A

COVER,T/V LGE 3550JL1006C Contact Us For Availability

154A

COVER,T/V LGE 3550JL2001J Contact Us For Availability

154A

COVER,T/V LGE 3550JL2001K Contact Us For Availability

155B

4981JJ2001B LG Tray Cover Assembly Supporter Backorder LGE 4981JJ2001B $20.78

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $41.86

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $34.08

160B

COVER,T/V LGE 3550JL1006D Contact Us For Availability

160B

DECO,TRAY LGE 3806JL2005D Contact Us For Availability

160B

DECO,TRAY LGE 3806JL2005C Contact Us For Availability

167B

Shelf,Glass LGE 4890JL1002N Contact Us For Availability

167B

GLASS,SHELF LGE 4890JL1002H Contact Us For Availability

3391JJ2004G LG Refrigerator Deli Drawer Snack Backorder LGE 3391JJ2004G $125.59

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $120.72

TRAY ASSEMBLY,MEAT LGE 3391JJ2004K Contact Us For Availability

TRAY ASSEMBLY,MEAT LGE 3391JJ2004J Contact Us For Availability

200A

DOOR ASSEMBLY,F LGE 3581JJ8020H Contact Us For Availability

201A

5433JJ0058G LG Door Foam Assembly Backorder LGE 5433JJ0058G $294.21

203A

4987JJ1004E LG Door Gasket Assembly Backorder LGE 4987JJ1004E $97.22

205D

5004JJ1040A LG Door Basket Backorder LGE 5004JJ1040A $36.58

212A

HANDLE,F LGE 3650JJ1041A Contact Us For Availability

MFT62346501 LG Refrigerator Nameplate Backorder LGE MFT62346501 $34.86

MFT62346510 LG Refrigerator Nameplate Backorder LGE MFT62346510 $26.61

Name Plate LGE 3846JD1007H Contact Us For Availability

Name Plate LGE MFT61843003 Contact Us For Availability

212J

Stopper,Handle LGE 4620JJ3007E Contact Us For Availability

230A

DOOR ASSEMBLY,R LGE 3581JJ8024H Contact Us For Availability

231A

5433JJ0019T LG Door Foam Assembly Backorder LGE 5433JJ0019T $446.07

233A

4987JJ1004F LG Door Gasket Assembly Backorder LGE 4987JJ1004F $43.19

234B

3806JL1004D LG Duct Decor Backorder LGE 3806JL1004D $20.63

234B

DECO,DUCT LGE 3806JL1004E Contact Us For Availability

234B

DECO,DUCT LGE 3806JL1004F Contact Us For Availability

COVER,TRAY LGE 3550JL2003H Contact Us For Availability

COVER,TRAY LGE 3550JL2003K Contact Us For Availability

COVER,TRAY LGE 3550JL2003G Contact Us For Availability

COVER,TRAY LGE 3550JL2003J Contact Us For Availability

241B

BASKET,DOOR LGE 5004JJ1021A Contact Us For Availability

241C

BASKET,DOOR LGE 5004JJ1031A Contact Us For Availability

241D

BASKET,DOOR LGE 5004JJ0001A Contact Us For Availability

241E

5004JJ1029A LG Refrigerator Door Basket Assem Backorder LGE 5004JJ1029A $102.25

243A

STOPPER,DOOR LGE 4620JJ3006C Contact Us For Availability

244A

HANDLE,R LGE 3650JJ1034E Contact Us For Availability

244B

HOLDER,HANDLE LGE 4930JJ2023A Contact Us For Availability

244C

HOLDER,HANDLE LGE 4930JJ2022A Contact Us For Availability

245A

HOLDER,HANDLE LGE 4930JJ2019B Contact Us For Availability

245B

part confirmed NLA by factory 1/17/14 NB LGE 4930JJ2020B Contact Us For Availability

248F

SUPPORTER,HOLDER LGE 4980JJ2005A Contact Us For Availability

249E

GUIDE,RAIL LGE 4974JJ1010A Contact Us For Availability

249G

GUIDE,RAIL LGE 4974JJ1011A Contact Us For Availability

281B

HINGE ASSEMBLY,U LGE 4775JJ2003B Contact Us For Availability

281E

CAP,HINGE LGE 5006JJ3014C Contact Us For Availability

282X

CAP,HANDLE LGE 5006JJ3010A Contact Us For Availability

283B

4775JJ2007C LG Lower Hinge Assembly Backorder LGE 4775JJ2007C $120.72

283F

Stopper,Door LGE MJB36873202 Contact Us For Availability

283F

STOPPER,DOOR LGE 4620JJ2007B Contact Us For Availability

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $7.78

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $444.54

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $146.31

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $26.61

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $11.24

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

319D

AEC72997402 LG Fan Guide Assembly Backorder LGE AEC72997402 $73.06

327A

5006JA3034A LG Refrigerator Drain Tube Cap Backorder LGE 5006JA3034A $6.14

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $7.08

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $20.63

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $20.63

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $46.04

404A

MOTOR(MECH),FAN LGE 4680JK1002B Contact Us For Availability

405B

4810JA3007A LG Motor Bracket Backorder LGE 4810JA3007A $7.08

405C

J756-00008B LG Refrigerator Damper Motor Supp Backorder LGE J756-00008B $7.08

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.75

409B

Lamp,Incandescent LGE 6912JK2002E Contact Us For Availability

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $65.53

410A

HARNESS LGE 6621JK2003B Contact Us For Availability

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

412D

6877JK2011D LG Harness Assembly Backorder LGE 6877JK2011D $64.95

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $111.87

419B

Pipe,Joint LGE 5200JJ3003E Contact Us For Availability

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $133.78

501A

6871JB1215J LG Refrigerator Main Printed Wiri Backorder LGE 6871JB1215J $249.61

503C

PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JB2047A Contact Us For Availability

503E

3550JJ2031A LG Display Cover Backorder LGE 3550JJ2031A $26.61

503F

Case Assembly,Display LGE ABQ33905312 Contact Us For Availability

503G

3806JL1049A LG Refrigerator Decorative Contro Backorder LGE 3806JL1049A $41.86

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

611C

COVER,FILTER LGE 3550JL1008B Contact Us For Availability

700B

HANDLE ASSEMBLY,F LGE 3651JJ2010N Contact Us For Availability

700C

HANDLE ASSEMBLY,R LGE 3651JJ2017A Contact Us For Availability

903A

COVER,LOWER LGE 3550JJ0006C Contact Us For Availability

903B

HOLDER,COVER LOWER LGE 4930JJ2021A No Longer Available

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $20.63

S01

1SZZJJ3010A LG Customized Screw Backorder LGE 1SZZJJ3010A $2.17

S03

SCREW,DRAWING LGE 1SZZJJ3018A Contact Us For Availability

S22

J471-00001J LG Customized Screw Backorder LGE J471-00001J $7.08

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $7.54

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $7.08

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08
