LG LRBC22544SB Parts List | Reliable Parts

103A

HANDLE,BACK LGE 3650JJ2003M Contact Us For Availability

View on Model

103B

HANDLE,BACK LGE 3650JJ2003L Contact Us For Availability

View on Model

103C

COVER ASSEMBLY,LOWER LGE 3551JJ1015F Contact Us For Availability

View on Model

103E

5218JJ3001A LG Refrigerator Slide Rail Backorder LGE 5218JJ3001A $7.08

View on Model

105A

5251JA3003B LG Drain Tube Assembly Backorder LGE 5251JA3003B $20.63

View on Model

105F

5070JJ3002A LG Lower Skirt Backorder LGE 5070JJ3002A $26.63

View on Model

106A

AFC73249602 LG Adjustable Leg Assembly Backorder LGE AFC73249602 $22.03

View on Model

106A

LEG ASSY,ADJUST LGE 4779JA2003A Contact Us For Availability

View on Model

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $7.08

View on Model

113C

SPRING,W LGE 4970JJ3004A Contact Us For Availability

View on Model

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $221.89

View on Model

120H

3550JJ3003A LG LED Cover Backorder LGE 3550JJ3003A $16.85

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $26.61

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $26.61

View on Model

131A

5075JJ1001B LG Ice Bucket Assembly Backorder LGE 5075JJ1001B $146.31

View on Model

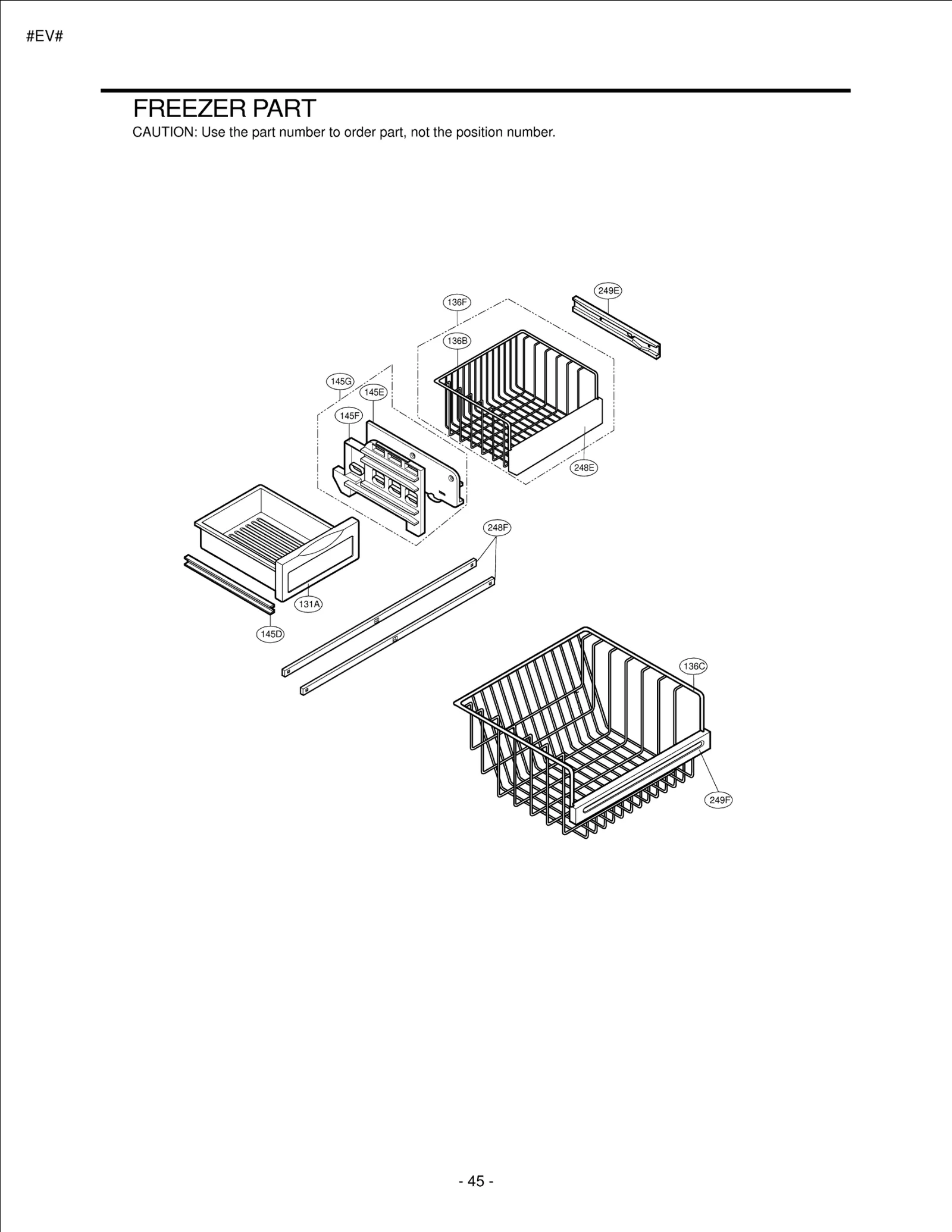

135C

3550JJ2030A LG Fan Grille Cover Backorder LGE 3550JJ2030A $16.85

View on Model

136B

TRAY,DRAWER LGE 3390JJ1034A Contact Us For Availability

View on Model

136C

TRAY,DRAWER LGE 3390JJ1027A Contact Us For Availability

View on Model

136F

TRAY ASSEMBLY,DRAWER LGE 3391JJ1013C Contact Us For Availability

View on Model

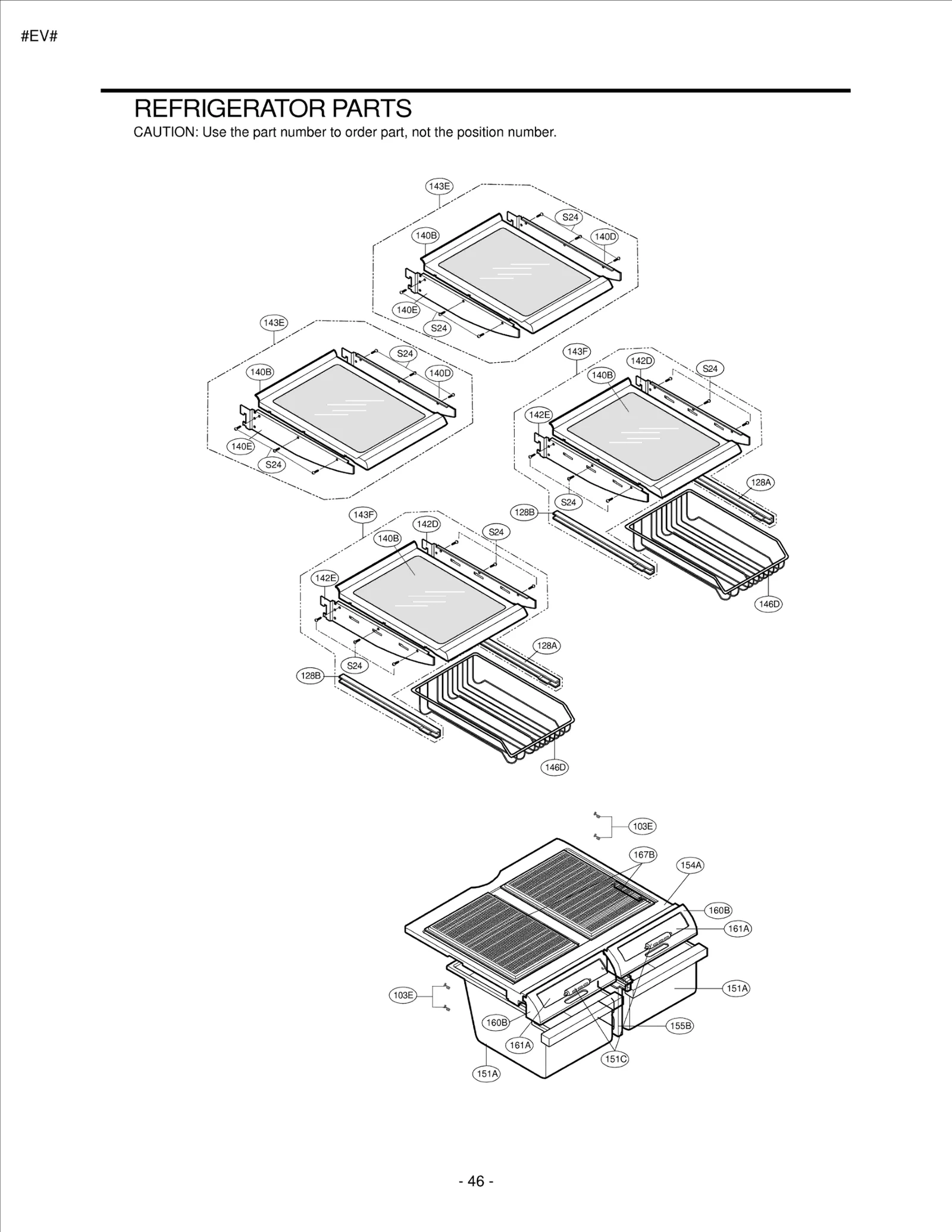

140B

SHELF ASSEMBLY,R LGE 5027JJ2007B Contact Us For Availability

View on Model

140D

5026JJ2001G LG Net Shelf In Stock LGE 5026JJ2001G $65.22

View on Model

140E

5026JJ2001H LG Shelf Net Backorder LGE 5026JJ2001H $56.70

View on Model

142D

5026JJ2001L LG Shelf Net Backorder LGE 5026JJ2001L $65.22

View on Model

142E

5026JJ2001M LG Net Shelf Backorder LGE 5026JJ2001M $65.22

View on Model

143E

5027JJ1008B LG Shelf Backorder LGE 5027JJ1008B $164.96

View on Model

143F

AHT72996103 LG Refrigerator Shelf Assembly Backorder LGE AHT72996103 $189.56

View on Model

145A

HOLDER,SHELF LGE 4930JJ2003A Contact Us For Availability

View on Model

145B

HOLDER,SHELF LGE 4930JJ2004A Contact Us For Availability

View on Model

145D

GUIDE,RAIL LGE 4974JJ1012A Contact Us For Availability

View on Model

145E

GUIDE,RAIL LGE 4974JJ1014A Contact Us For Availability

View on Model

145F

GUIDE,RAIL LGE 4974JJ1013A Contact Us For Availability

View on Model

146D

CAN,SERVER LGE 5044JJ1001A Contact Us For Availability

View on Model

151A

TRAY ASSEMBLY,VEGETABLE LGE 3391JJ1019E Contact Us For Availability

View on Model

151C

4940JJ2003B LG Shutter Knob Backorder LGE 4940JJ2003B $7.08

View on Model

154A

3550JJ1033A LG Refrigerator Crisper Cover Gla Backorder LGE 3550JJ1033A $93.59

View on Model

155B

SUPPORTER ASSEMBLY,COVER-T/V LGE 4981JJ2001A Contact Us For Availability

View on Model

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $41.86

View on Model

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $34.08

View on Model

158E

COVER,LAMP LGE 3550JJ1051A Contact Us For Availability

View on Model

160B

DECO,TRAY LGE 3806JL2005D Contact Us For Availability

View on Model

161A

COVER,TRAY LGE 3550JJ2026A Contact Us For Availability

View on Model

167B

GLASS,SHELF LGE 4890JL1002K Contact Us For Availability

View on Model

168A

3550JJ1035A LG Magic Room Refrigerator Cover Backorder LGE 3550JJ1035A $84.03

View on Model

170A

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $120.72

View on Model

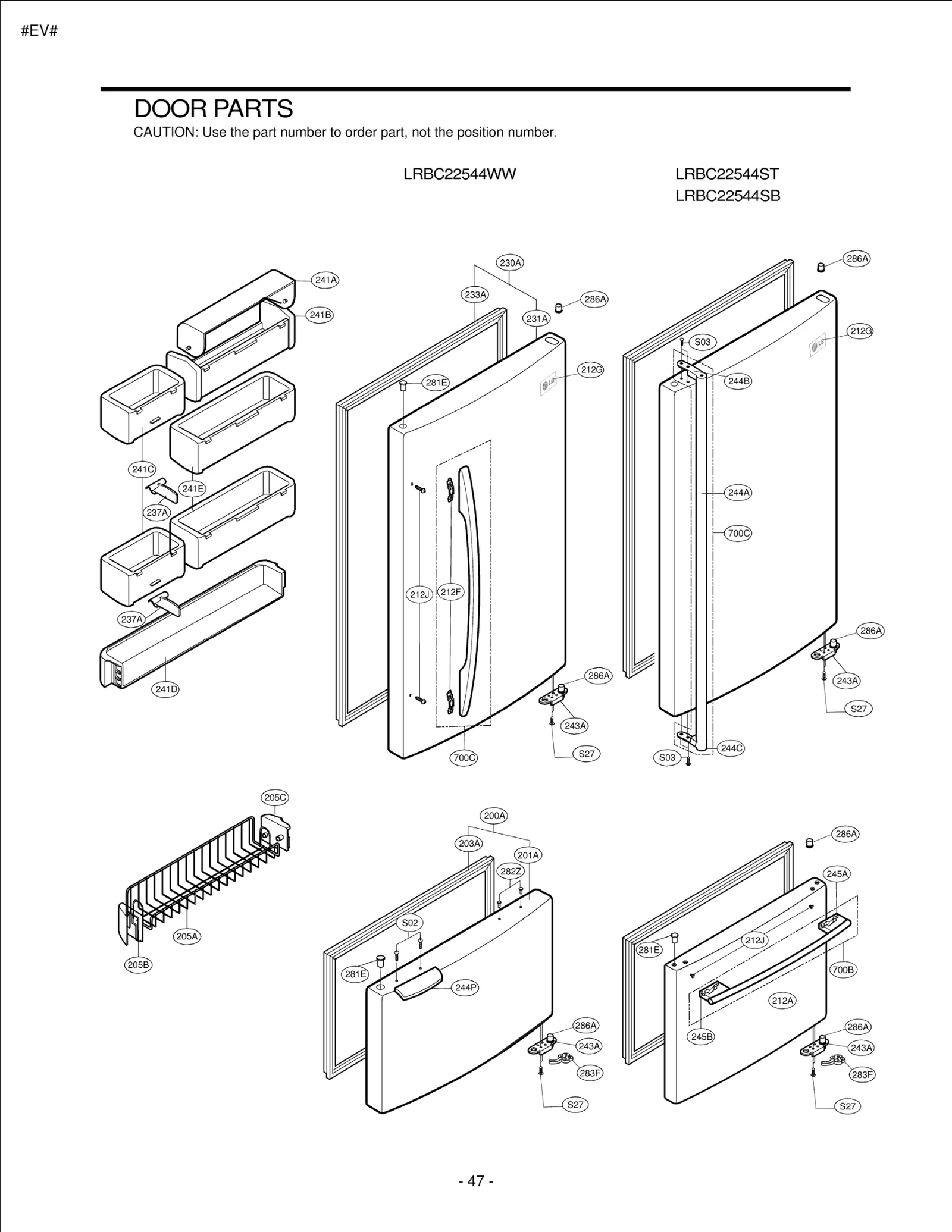

200A

DOOR ASSEMBLY,F LGE 3581JJ8020G Contact Us For Availability

View on Model

201A

DOOR FOAM ASSEMBLY,F LGE 5433JJ0058F Contact Us For Availability

View on Model

203A

4987JJ1004E LG Door Gasket Assembly Backorder LGE 4987JJ1004E $97.22

View on Model

205A

BASKET,DOOR LGE 5004JJ1042B Contact Us For Availability

View on Model

205B

BASKET,TILT LGE 5004JJ2005B Contact Us For Availability

View on Model

205C

BASKET,TILT LGE 5004JJ2005A Contact Us For Availability

View on Model

212A

HANDLE,F LGE 3650JJ1041C Contact Us For Availability

View on Model

212G

MFT62346501 LG Refrigerator Nameplate Backorder LGE MFT62346501 $34.86

View on Model

212G

MFT62346510 LG Refrigerator Nameplate Backorder LGE MFT62346510 $26.61

View on Model

212G

MFT62346511 LG Refrigerator Nameplate In Stock LGE MFT62346511 $36.30

View on Model

212G

Name Plate LGE MFT61843003 Contact Us For Availability

View on Model

212J

Stopper,Handle LGE 4620JJ3007E Contact Us For Availability

View on Model

230A

DOOR ASSEMBLY,R LGE 3581JJ8025M Contact Us For Availability

View on Model

231A

DOOR FOAM ASSEMBLY,R LGE 5433JJ0033H Contact Us For Availability

View on Model

233A

4987JJ1004F LG Door Gasket Assembly Backorder LGE 4987JJ1004F $43.19

View on Model

237A

GUIDE,BOTTLE LGE 4974JJ2012A Contact Us For Availability

View on Model

241A

COVER,TRAY LGE 3550JL2003H Contact Us For Availability

View on Model

241B

BASKET,DOOR LGE 5004JJ1021A Contact Us For Availability

View on Model

241C

5005JJ2017A LG Refrigerator Door Basket Assem Backorder LGE 5005JJ2017A $93.59

View on Model

241D

BASKET ASSEMBLY,DOOR LGE 5005JJ2020A Contact Us For Availability

View on Model

241E

5005JJ2018A LG Refrigerator Door Shelf Basket Backorder LGE 5005JJ2018A $105.00

View on Model

243A

STOPPER,DOOR LGE 4620JJ3006C Contact Us For Availability

View on Model

244A

HANDLE,R LGE 3650JJ1034Q Contact Us For Availability

View on Model

244B

HOLDER,HANDLE LGE 4930JJ2023C Contact Us For Availability

View on Model

244C

HOLDER,HANDLE LGE 4930JJ2022C Contact Us For Availability

View on Model

245A

HOLDER,HANDLE LGE 4930JJ2019C Contact Us For Availability

View on Model

245B

HOLDER,HANDLE LGE 4930JJ2020C Contact Us For Availability

View on Model

245G

GUIDE ASSEMBLY,RAIL LGE 4975JJ2005B Contact Us For Availability

View on Model

248E

DECO,TRAY LGE 3806JJ1018A Contact Us For Availability

View on Model

248F

SUPPORTER,HOLDER LGE 4980JJ2005A Contact Us For Availability

View on Model

249C

HOLDER,RAIL LGE 4930JJ1006A Contact Us For Availability

View on Model

249D

HOLDER,RAIL LGE 4930JJ1006B Contact Us For Availability

View on Model

249E

GUIDE,RAIL LGE 4974JJ1010A Contact Us For Availability

View on Model

249F

DECO,TRAY LGE 3806JJ2017A Contact Us For Availability

View on Model

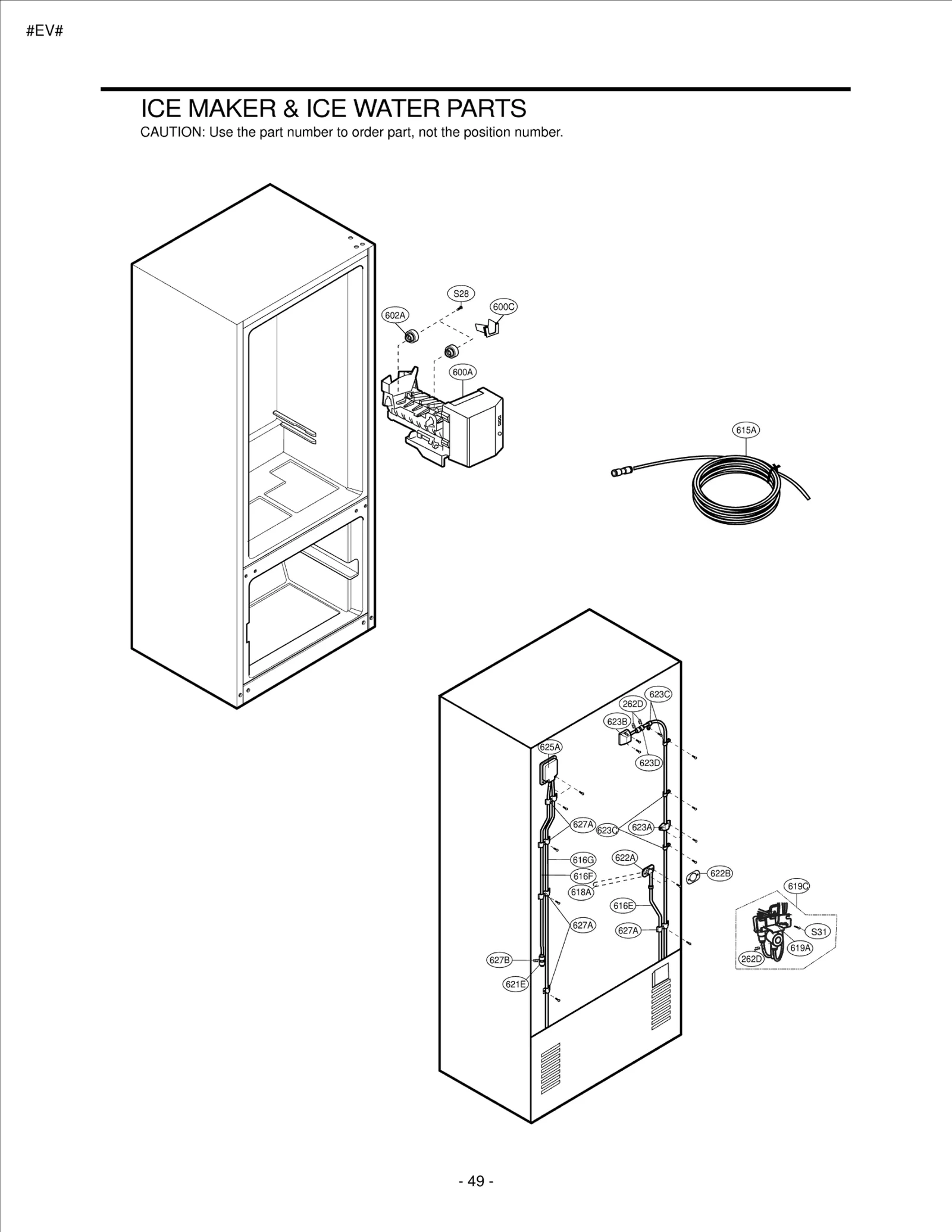

262D

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $16.85

View on Model

262D

4930JA3093A LG Bracket Holder Backorder LGE 4930JA3093A $7.08

View on Model

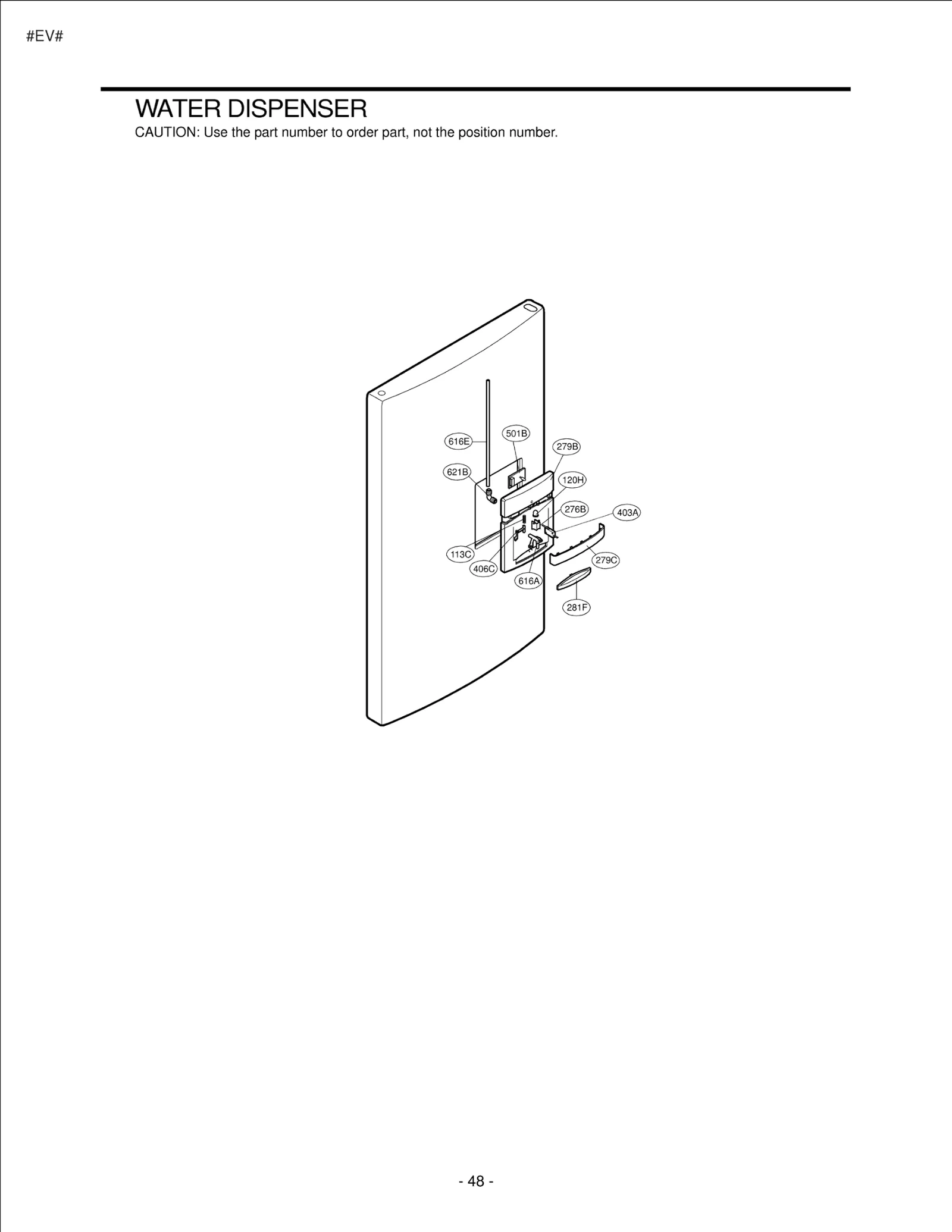

276B

BUTTON,LEVER LGE 5020JJ3001C Contact Us For Availability

View on Model

279B

COVER,DISPENSER LGE 3550JL1005C Contact Us For Availability

View on Model

279C

DECO,DISPENSER LGE 3806JJ2021C Contact Us For Availability

View on Model

281A

COVER,HINGE LGE 3550JJ1039C Contact Us For Availability

View on Model

281B

HINGE ASSEMBLY,U LGE 4775JJ2005A Contact Us For Availability

View on Model

281E

CAP,HINGE LGE 5006JJ3014C Contact Us For Availability

View on Model

281F

3806JJ2020C LG Drain Decor Backorder LGE 3806JJ2020C $84.03

View on Model

282B

HINGE ASSEMBLY,C LGE 4775JJ8002E Contact Us For Availability

View on Model

282C

PIN,DRAWING LGE 1PZZJJ3002F Contact Us For Availability

View on Model

282E

CAP,HINGE LGE 5006JJ2001F Contact Us For Availability

View on Model

282F

DECO,DUCT LGE 3806JL2006E Contact Us For Availability

View on Model

282H

CAP,HINGE LGE 5006JJ3004E Contact Us For Availability

View on Model

283B

4775JJ2007C LG Lower Hinge Assembly Backorder LGE 4775JJ2007C $120.72

View on Model

283B

Hinge Assembly,Lower LGE 4775JJ2007B Contact Us For Availability

View on Model

283D

HINGE (BRACKET ONLY) LGE 4774JJ2002A Contact Us For Availability

View on Model

283F

Stopper,Door LGE MJB36873202 Contact Us For Availability

View on Model

283F

STOPPER,DOOR LGE 4620JJ2007B Contact Us For Availability

View on Model

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $7.78

View on Model

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $444.54

View on Model

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $146.31

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

View on Model

307A

TCA35931726 LG Compressor Set Assembly In Stock LGE TCA35931726 $279.05

View on Model

307A

Compressor,Set Assembly LGE 2521CRA5715 Contact Us For Availability

View on Model

307A

COMPRESSOR,SET ASSEMBLY LGE 2521JJ8004A Contact Us For Availability

View on Model

308A

EBG32606502 LG Thermistor PTC Assembly Backorder LGE EBG32606502 $17.09

View on Model

308A

P.T.C LGE 6748JJ8002A Contact Us For Availability

View on Model

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $26.61

View on Model

309A

6750CR0004S LG Overload Protector Backorder LGE 6750CR0004S $109.26

View on Model

309A

O.L.P LGE 6750JJ8002A Contact Us For Availability

View on Model

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $11.24

View on Model

310A

COVER,P.T.C LGE 3550JJ8003A Contact Us For Availability

View on Model

310A

COVER,P.T.C LGE 3550JA2059A Contact Us For Availability

View on Model

312A

5040JA3031A LG Refrigerator Compressor Damper Backorder LGE 5040JA3031A $7.08

View on Model

314A

4620JA3009A LG Compressor Stopper Backorder LGE 4620JA3009A $7.08

View on Model

315A

COMP BASE ASSEMBLY,STD LGE 3103JJ1001J Contact Us For Availability

View on Model

317A

5851JJ2002F LG Dryer Assembly Backorder LGE 5851JJ2002F $39.98

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

View on Model

319A

3390JJ0003A LG Refrigerator Drip Tray Backorder LGE 3390JJ0003A $93.59

View on Model

319C

4974JJ1009A LG Fan Guide Backorder LGE 4974JJ1009A $41.86

View on Model

319D

AEC72997402 LG Fan Guide Assembly Backorder LGE AEC72997402 $73.06

View on Model

319E

4810JJ2005A LG Motor Bracket Backorder LGE 4810JJ2005A $7.08

View on Model

323B

CONDENSER ASSEMBLY,WIRE LGE 5403JJ1007A Contact Us For Availability

View on Model

323B

Condenser Assembly,Wire LGE ACG73746801 Contact Us For Availability

View on Model

327A

5006JA3034A LG Refrigerator Drain Tube Cap Backorder LGE 5006JA3034A $6.14

View on Model

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $7.08

View on Model

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $20.63

View on Model

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $20.63

View on Model

332A

GRILLE ASSEMBLY,FAN LGE 3531JJ1004A Contact Us For Availability

View on Model

332A

Grille Assembly,Fan LGE 3531JJ1004Q Contact Us For Availability

View on Model

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $46.04

View on Model

403A

6600JB3001B LG Switch Backorder LGE 6600JB3001B $6.47

View on Model

404A

4681JB1029H LG Refrigerator Fan Motor Assembl In Stock LGE 4681JB1029H $92.65

View on Model

405A

4811JJ2002A LG Motor Assembly Bracket Backorder LGE 4811JJ2002A $49.89

View on Model

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

View on Model

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

View on Model

405G

BRACKET ASSEMBLY,MOTOR LGE 4811JJ2002H Contact Us For Availability

View on Model

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.75

View on Model

406C

LEVER,DISPENSER LGE 4510JJ3001A Contact Us For Availability

View on Model

409B

LAMP,[INCANDESCENT] REVEAL LGE 6912JK2002C Contact Us For Availability

View on Model

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $65.53

View on Model

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

View on Model

410A

SOCKET ASSEMBLY,LAMP LGE 6621JK2002D Contact Us For Availability

View on Model

410G

CAPACITOR,DRAWING LGE 0CZZJB2003H Contact Us For Availability

View on Model

411A

EAD61445204 LG Refrigerator Power Cord Assemb Backorder LGE EAD61445204 $74.64

View on Model

412D

6877JK2011D LG Harness Assembly Backorder LGE 6877JK2011D $64.95

View on Model

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $111.87

View on Model

419B

Pipe,Joint LGE 5200JJ3003E Contact Us For Availability

View on Model

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $133.78

View on Model

501A

PCB Assembly,Main LGE 6871JB1213H Contact Us For Availability

View on Model

501B

PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JB3008A Contact Us For Availability

View on Model

501F

Cover Assembly,PCB LGE 3551JJ1020A Contact Us For Availability

View on Model

501F

COVER,PWB LGE 3550JJ1042B Contact Us For Availability

View on Model

503C

6871JB2046A LG Display PCB Assembly Backorder LGE 6871JB2046A $88.89

View on Model

503D

3110JJ1005A LG Display Case Backorder LGE 3110JJ1005A $74.64

View on Model

503E

3550JJ2032A LG Cover,Display Backorder LGE 3550JJ2032A $20.63

View on Model

503F

Case Assembly,Display LGE 3111JJ1001H Contact Us For Availability

View on Model

503G

DECO,CONTROL LGE 3806JL1039A Contact Us For Availability

View on Model

600A

5989JA0002Y LG Refrigerator Ice Maker Assembl In Stock LGE 5989JA0002Y $269.53

View on Model

600C

MEA32865501 LG Tube Guide Backorder LGE MEA32865501 $16.85

View on Model

602A

4931JA3005B LG Refrigerator Bracket Holder As Backorder LGE 4931JA3005B $7.08

View on Model

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

View on Model

611C

3550JL1008D LG Filter Cover Backorder LGE 3550JL1008D $111.87

View on Model

611D

Cover,Filter LGE 3550JJ2028B Contact Us For Availability

View on Model

611E

FILTER ASSEMBLY,HEAD LGE 5231JA2005A Contact Us For Availability

View on Model

615A

TANK ASSEMBLY,WATER LGE 4839JJ2002A Contact Us For Availability

View on Model

616A

TUBE,INJECT LGE 5210JJ2001A Contact Us For Availability

View on Model

616E

5210JA3005W LG Refrigerator Plastic Water Lin Backorder LGE 5210JA3005W $11.24

View on Model

616F

5210JA3004A LG Refrigerator Plastic Water Lin Backorder LGE 5210JA3004A $16.85

View on Model

616G

5210JA3005P LG Refrigerator Water Supply Tubi Backorder LGE 5210JA3005P $49.89

View on Model

618A

5210JJ3005B LG Refrigerator Ice Maker Injecti Backorder LGE 5210JJ3005B $41.86

View on Model

619A

5220JA2013A LG Water Valve Backorder LGE 5220JA2013A $29.70

View on Model

619B

3550JJ2024A LG Valve Cover Backorder LGE 3550JJ2024A $74.64

View on Model

619C

Valve Assembly,Water LGE 5221JA2011H Contact Us For Availability

View on Model

621B

4932JA3009A LG Refrigerator Elbow Tube Union Backorder LGE 4932JA3009A $16.85

View on Model

621E

4932JA3014A LG Refrigerator Water Line Tubing In Stock LGE 4932JA3014A $29.27

View on Model

622A

5040JA2015A LG Refrigerator Rubber Injector S Backorder LGE 5040JA2015A $20.63

View on Model

622B

BRACKET LGE 4810JA3036A Contact Us For Availability

View on Model

623A

CAP,COVER LGE 5006JJ2004A Contact Us For Availability

View on Model

623B

MBL67039201 LG Cap Cover Backorder LGE MBL67039201 $7.08

View on Model

623B

CAP,COVER LGE 5006JJ2003A Contact Us For Availability

View on Model

623C

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $7.08

View on Model

625A

COVER,TUBE LGE 3550JJ2034A Contact Us For Availability

View on Model

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $7.08

View on Model

627B

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $7.08

View on Model

700B

HANDLE ASSEMBLY,F LGE 3651JJ2010Q Contact Us For Availability

View on Model

700C

HANDLE ASSEMBLY,R LGE 3651JJ2017C Contact Us For Availability

View on Model

903A

COVER,LOWER LGE 3550JJ0006C Contact Us For Availability

View on Model

903B

HOLDER,COVER LOWER LGE 4930JJ2021A No Longer Available

View on Model

903D

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $29.27

View on Model

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $20.63

View on Model

B01

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $7.54

View on Model

S01

1SZZJJ3010A LG Customized Screw Backorder LGE 1SZZJJ3010A $2.17

View on Model

S03

SCREW,DRAWING LGE 1SZZJJ3018A Contact Us For Availability

View on Model

S22

J471-00001J LG Customized Screw Backorder LGE J471-00001J $7.08

View on Model

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $7.54

View on Model

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $7.08

View on Model

S28

1SZZJJ3005E LG Screw Customized Backorder LGE 1SZZJJ3005E $7.08

View on Model

S31

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.53

View on Model

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

View on Model

Model LG LRBC22544SB – Common Parts & Diagrams

Common parts from model LG LRBC22544SB

Search result for :

Help

Customer Service

Company

Model LG LRBC22544SB – Common Parts & Diagrams

Common parts from model LG LRBC22544SB

Search result for :

Be the First to Know

Help

Customer Service

Company
