Model Whirlpool LIT9753452 30" Set−In Electric Range Coil Burners – Common Parts & Diagrams

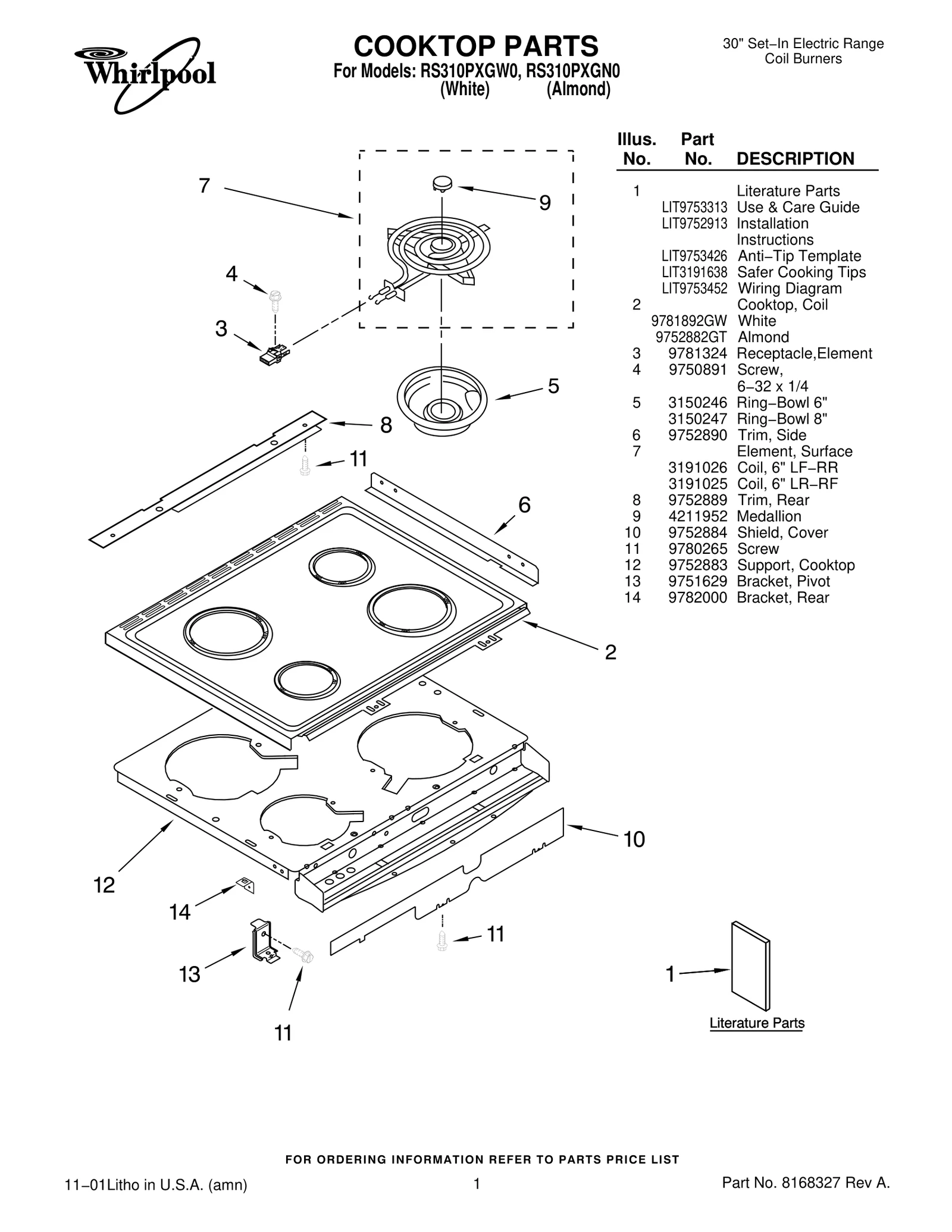

COOKTOP PARTS
COOKTOP PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN PARTS
OVEN PARTS
Common parts from model Whirlpool LIT9753452 30" Set−In Electric Range Coil Burners
1
Thermostat WPL 9752911 Contact Us For Availability
1
Gasket,DoorVent WPL 9781659 Contact Us For Availability
1
Vent Box, Oven WPL 9752868 Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
2
Element, Bake WPL 9750213 Contact Us For Availability
2
Console−Glass WPL 9752900CB Contact Us For Availability
2
Trim, Door−Left WPL 9782003PB Contact Us For Availability
2
Chassis, Front WPL 9750477GM Contact Us For Availability
3
Trim, Door−Right WPL 9782004PB Contact Us For Availability
3
Insulation, Wrap WPL 9754001 Contact Us For Availability
4
End Cap — Left WPL 9781889FB Contact Us For Availability
4
End Cap — Right WPL 9781888FB Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PB Contact Us For Availability
4
Insulation, Rear WPL 9754010 Contact Us For Availability
4
Light Socket 5 420104GM Grill, Broiler WPL 9750962 Contact Us For Availability
5
Glass, Door Front WPL 9781718PB Contact Us For Availability
5
Oven Liner WPL 9781294GM Contact Us For Availability
6
Panel, Control WPL 9752898PB Contact Us For Availability
6
Vent, Door WPL 9753498GB Contact Us For Availability
6
Gasket, Oven WPL 9750691 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Seal, Door WPL 9781490 Contact Us For Availability
7
Oven , Side Panel WPL 9781907PW Contact Us For Availability
7
Almond, L or R WPL 9781907PT Contact Us For Availability
8
Knobs, Control (5) WPL 9752405FB Contact Us For Availability
8
Handle, Door WPL 9752701PB Contact Us For Availability
9
Medallion WPL 4211952 Contact Us For Availability
9
Light, Indicator WPL 9780798 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Shield, Cover WPL 9752884 Contact Us For Availability
10
Hinge, Door R or L WPL 9782032 Contact Us For Availability
11
Burner Box WPL 9752919 Contact Us For Availability
12
Support, Cooktop WPL 9752883 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Screw WPL 9781509 Contact Us For Availability
13
Bracket, Pivot WPL 9751629 Contact Us For Availability
13
Switch, Oven Light WPL 9780683 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
14
Trim, Rear WPL 9752889 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Oven Control WPL 9781714 Contact Us For Availability
15
Glass, Pyro WPL 9781651 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Button, Timer (4) WPL 9781954FB Contact Us For Availability
17
Bracket,Timer (2) WPL 9753304 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
19
Liner, Door WPL 9781599GM Contact Us For Availability
19
Receiver, Hinge WPL 9782005 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Screw WPL 3400853 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Lens, Red WPL 9780799 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
24
Front, Drawer WPL 9782108PW Contact Us For Availability
24
Front, Drawer — Almond WPL 9782108PT Contact Us For Availability
25
Retainer, Glass WPL 9781613 Contact Us For Availability
25
Vent Tube WPL 9750391 Contact Us For Availability
28
Clip, (2) WPL 9752906 Contact Us For Availability
28
Spacer, Door WPL 9781502 Contact Us For Availability
31
Plug, Button WPL 9780578 Contact Us For Availability
33
Back, Chassis WPL 9751051 Contact Us For Availability
36
Box, Terminal WPL 9752344 Contact Us For Availability
37
Cover, Term. Box WPL 9752345 Contact Us For Availability
38
Screw WPL 98884 Contact Us For Availability
45
Strap, Ground WPL 3169573 Contact Us For Availability
45
Clip WPL 313660 Contact Us For Availability
47
Block, Balance WPL 9782330 Contact Us For Availability
48
Thermostat, Safety WPL 3189942 Contact Us For Availability
49
Screw WPL 9780271 Contact Us For Availability
50
Cover, back WPL 9751353 Contact Us For Availability
51
Screw WPL 423247 Contact Us For Availability
52
Screw WPL 9780272 Contact Us For Availability
× ![]()
