Model Whirlpool LIT4449066 Range – Common Parts & Diagrams

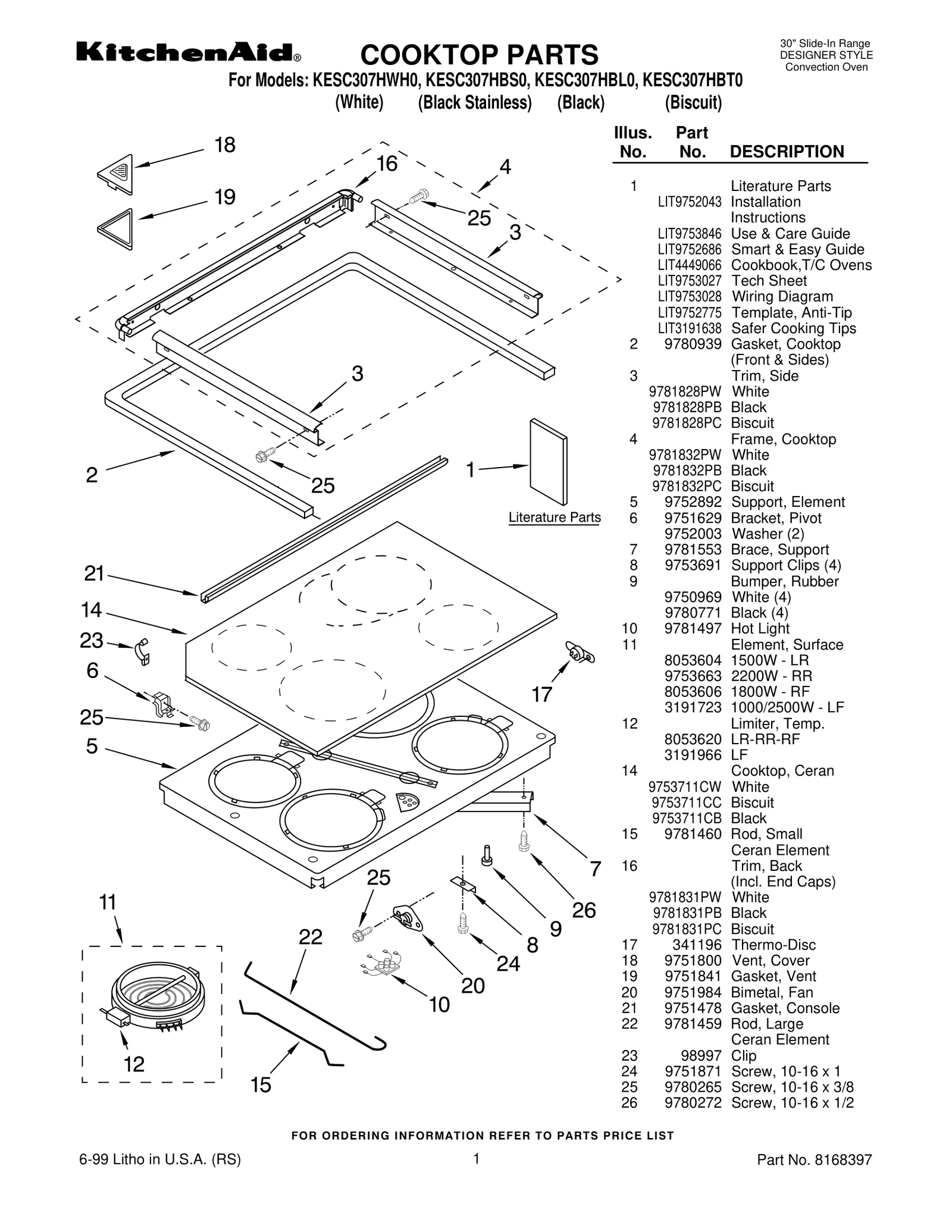

COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
DOOR AND DRAWER PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
OVEN CHASSIS PARTS
REAR CHASSIS PARTS
REAR CHASSIS PARTS
REAR CHASSIS PARTS
REAR CHASSIS PARTS
REAR CHASSIS PARTS
REAR CHASSIS PARTS
OVEN CHASSIS PARTS
HIDDEN BAKE PARTS
HIDDEN BAKE PARTS
HIDDEN BAKE PARTS
HIDDEN BAKE PARTS
HIDDEN BAKE PARTS
HIDDEN BAKE PARTS
HIDDEN BAKE PARTS
OVEN PARTS
REAR CHASSIS PARTS
HIDDEN BAKE PARTS
Common parts from model Whirlpool LIT4449066 Range
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Console, Glass — White WPL 9753896CW Contact Us For Availability
1
Console, Glass — Black WPL 9753896CB Contact Us For Availability
1
Console, Glass — Biscuit WPL 9753896CC Contact Us For Availability
1
Console, Glass — White WPL 9781969CW Contact Us For Availability
1
Console, Glass — Black WPL 9781969CB Contact Us For Availability
1
Console, Glass — Biscuit WPL 9781969CC Contact Us For Availability
1
Lamp Cover — White WPL 9753156PW Contact Us For Availability
1
Lamp Cover — Almond WPL 9753156PT Contact Us For Availability
1
Lamp Cover — Black WPL 9753156PB Contact Us For Availability
1
Lamp Cover — Biscuit WPL 9753156PC Contact Us For Availability
1
Gasket, Glass WPL 9781659 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Back panel,Chassis WPL 9751051 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
2
Gasket, Cooktop WPL 9754103 Contact Us For Availability
2
Timer, Electronic WPL 3191106 Contact Us For Availability
2
Timer, Electronic WPL 9781980 Contact Us For Availability
2
Trim, Door−Left — White WPL 9750631PW Contact Us For Availability
2
Trim, Door−Left — Black WPL 9750631PB Contact Us For Availability
2
Trim, Door−Left — Biscuit WPL 9750631PC Contact Us For Availability
2
Trim, Door−Left — White WPL 9782003PW Contact Us For Availability
2
Trim, Door−Left — Black WPL 9782003PB Contact Us For Availability
2
Trim, Door−Left — Biscuit WPL 9782003PC Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Trim, Door−Left — Almond WPL 9782003PT Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Pan, Hidden Bake WPL 9752228 Contact Us For Availability
2
Pan, Hidden Bake WPL 9782048 Contact Us For Availability
3
Rear Gasket WPL 9781614 Contact Us For Availability
3
Screw, (2) WPL 9780271 Contact Us For Availability
3
Trim, Door−Right — White WPL 9750632PW Contact Us For Availability
3
Trim, Door−Right — Black WPL 9750632PB Contact Us For Availability
3
Trim, Door−Right — Biscuit WPL 9750632PC Contact Us For Availability
3
Trim, Door−Right — Almond WPL 9782004PW Contact Us For Availability
3
Trim, Door−Right — Black WPL 9782004PB Contact Us For Availability
3
Trim, Door−Right — Biscuit WPL 9782004PC Contact Us For Availability
3
Insulation, Wrap WPL 9753739 Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Cover, Hidden Bake WPL 9752250 Contact Us For Availability
3
Cover, Pan WPL 9782049 Contact Us For Availability
3
Rear Panel WPL 9750150 Contact Us For Availability
4
Frame, Cooktop — White WPL 9781832PW Contact Us For Availability
4
Frame, Cooktop — Black WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop — White WPL 9750456PW Contact Us For Availability
4
Frame, Cooktop — Almond WPL 9750456PT Contact Us For Availability
4
Frame, Cooktop — Black WPL 9750456PB Contact Us For Availability
4
Frame, Cooktop — Biscuit WPL 9750456PC Contact Us For Availability
4
End Cap — White WPL 9751040FW Contact Us For Availability
4
End Cap — Black WPL 9751040FB Contact Us For Availability
4
End Cap — Biscuit WPL 9751040FC Contact Us For Availability
4
End Cap — White WPL 9751039FW Contact Us For Availability
4
End Cap — Black WPL 9751039FB Contact Us For Availability
4
End Cap — Biscuit WPL 9751039FC Contact Us For Availability
4
End Cap — White WPL 9750367FW Contact Us For Availability
4
End Cap — Almond WPL 9750367FT Contact Us For Availability
4
End Cap — Black WPL 9750367FG Contact Us For Availability
4
End Cap — Biscuit WPL 9750367FC Contact Us For Availability
4
End Cap — White WPL 9750366FW Contact Us For Availability
4
End Cap — Almond WPL 9750366FT Contact Us For Availability
4
End Cap — Black WPL 9750366FG Contact Us For Availability
4
End Cap — Biscuit WPL 9750366FC Contact Us For Availability
4
Trim, Door Bottom — White WPL 9781209PW Contact Us For Availability
4
Trim, Door Bottom — Black WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom — Biscuit WPL 9781209PC Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Trim, Door Bottom — Almond WPL 9781209PT Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
Insulation WPL 9751323 Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
5
Glass, Door — Black WPL 9781627PB Contact Us For Availability
5
For Models: KERC507HWH2, KERC507HAL2, KERC507 WPL N/S Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Support, Element WPL 9753674 Contact Us For Availability
5
Switch, Rocker — White WPL 9753692FW Contact Us For Availability
5
Switch, Rocker — Almond WPL 9753692FT Contact Us For Availability
5
Switch, Rocker — Black WPL 9753692FB Contact Us For Availability
5
Switch, Rocker — Biscuit WPL 9753692FC Contact Us For Availability
5
Glass, Door — White WPL 9781627PW Contact Us For Availability
5
Glass, Door — Black Stainless WPL 9753378 Contact Us For Availability
5
Glass, Door — Biscuit WPL 9781627PC Contact Us For Availability
5
Glass, Door — Black Stainless WPL 9754041 Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Glass, Door — Almond WPL 9781627PT Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Reatiner, Insulation WPL 9752735 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Back Splash — White WPL 9752337GW Contact Us For Availability
6
Back Splash — Almond WPL 9752337GT Contact Us For Availability
6
Back Splash — Black WPL 9752337GB Contact Us For Availability
6
Back Splash — Biscuit WPL 9752337GC Contact Us For Availability
6
Panel, Control — White WPL 9753726PW Contact Us For Availability
6
Panel, Control — Almond WPL 9753726PT Contact Us For Availability
6
Panel, Control — Black WPL 9753726PB Contact Us For Availability
6
Panel, Control — Biscuit WPL 9753726PC Contact Us For Availability
6
Panel, Control — Black Stainless WPL 9753726PS Contact Us For Availability
6
Vent, Door — White WPL 9753498GW Contact Us For Availability
6
Vent, Door — Black WPL 9753498GB Contact Us For Availability
6
Vent, Door — Biscuit WPL 9753498GC Contact Us For Availability
6
Seal, Door Vent Side WPL 9781490 Contact Us For Availability
6
Gasket Oven WPL 3191649 Contact Us For Availability
6
Vent, Door — Almond WPL 9753498GT Contact Us For Availability
6
Plate, Reflector WPL 9751641 Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
6
Oven Lock Assembly WPL 9752404 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Brace, Support WPL 9753675 Contact Us For Availability
7
Screw, 8−18 x 3/8 WPL 9780852 Contact Us For Availability
7
Oven, Side L or R — White WPL 9781907PW Contact Us For Availability
7
Oven, Side L or R — Black WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R — Biscuit WPL 9781907PC Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Oven, Side L or R — Almond WPL 9781907PT Contact Us For Availability
7
Shield WPL 9781025 Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Knobs, Control (4) — Almond WPL 9750372FT Contact Us For Availability
8
Handle, Door — White WPL 9780523PW Contact Us For Availability
8
Handle, Door — Black WPL 9780523PB Contact Us For Availability
8
Handle, Door — Biscuit WPL 9780523PC Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Handle, Door — Almond WPL 9780523PT Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
9
Switch, Rocker — White WPL 9753261FW Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
9
Screw, 10−32 x .31 WPL 422222 Contact Us For Availability
9
WPL 8618397 WPL 8618397 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
10
Hot Light WPL 9781935 Contact Us For Availability
10
Lock−Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
10
Wire Guard WPL 9780585 Contact Us For Availability
11
Element, Surface — 1800W − RF WPL 9753996 Contact Us For Availability
11
Light, Indicator WPL 9753422 Contact Us For Availability
11
Baffle, Glass WPL 9781592 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Block, Balance WPL 9753413 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
12
Starter Holder WPL 9750866 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
12
Switch, Interloc WPL 9751763 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
13
Receptacle, Light WPL 9752760 Contact Us For Availability
13
Shield Door WPL 9781586 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Screw, 4−40 x 1 WPL 9750887 Contact Us For Availability
13
Transformer, Light WPL 4451891 Contact Us For Availability
14
Cooktop, Ceran — White WPL 9753879CW Contact Us For Availability
14
Cooktop, Ceran — Black WPL 9753879CB Contact Us For Availability
14
Cooktop, Ceran — White WPL 9753710CW Contact Us For Availability
14
Cooktop, Ceran — Almond WPL 9753710CT Contact Us For Availability
14
Cooktop, Ceran — Black WPL 9753710CB Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer, Tubing WPL 3179672 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Oven Control Assembly — White WPL 9753667CW Contact Us For Availability
15
Oven Control Assembly — Almond WPL 9753667CT Contact Us For Availability
15
Oven Control Assembly — Black WPL 9753667CB Contact Us For Availability
15
Oven Control Assembly — Biscuit WPL 9753667CC Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Trim, Back — Biscuit WPL 9781831PC Contact Us For Availability
16
Trim, Side Frame — White WPL 9781828PW Contact Us For Availability
16
Trim, Side Frame — Black WPL 9781828PB Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Ballast, Lamp WPL 3191044 Contact Us For Availability
17
Thermo−Disc WPL 341196 Contact Us For Availability
17
Probe 18 420104GM Grill, Broiler 19 420101GM WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Vent, Cover WPL 9751800 Contact Us For Availability
18
Cover, Vent — White WPL 9753040CW Contact Us For Availability
18
Cover, Vent — Almond WPL 9753040CT Contact Us For Availability
18
Cover, Vent — Black WPL 9753040CB Contact Us For Availability
18
Cover, Vent — Biscuit WPL 9753040CC Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
18
Clip WPL 313660 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
19
Hinge, Base L or R WPL 9750149 Contact Us For Availability
19
Hinge, Door L or R WPL 9782005 Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
19
Screw, 10−16 x 1 WPL 98884 Contact Us For Availability
20
Clip, Mounting WPL 3149190 Contact Us For Availability
20
Trim, Rear Frame — White WPL 9781831PW Contact Us For Availability
20
Trim, Rear Frame — Black WPL 9781831PB Contact Us For Availability
20
White, Almond, Black & Biscuit Models WPL 9780583 Contact Us For Availability
20
Drawer & Roller — Black Stainless WPL 9750257 Contact Us For Availability
20
Support Rail, Pan WPL 9751904 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
20
Ground Strap WPL 3169573 Contact Us For Availability
20
Screw WPL 423247 Contact Us For Availability
21
Switch, Infinite — 1800W − RF WPL 9751363 Contact Us For Availability
21
Switch, Infinite — 2200W − RR WPL 9751362 Contact Us For Availability
21
Switch, Infinite — 1500W − LR WPL 9751364 Contact Us For Availability
21
Screw, 10−16 x 1 WPL 9751871 Contact Us For Availability
21
Screw, 10−16 x 1/2 WPL 9780272 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Screw, 8−18 x 1 WPL 9751808 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting — Single Element WPL 422617 Contact Us For Availability
22
Nut, Mounting — Dual Element WPL 9751711 Contact Us For Availability
22
Starter, Lamp WPL 9781118 Contact Us For Availability
22
Hinge, Cktp.−Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.−Right WPL 9750416 Contact Us For Availability
22
Single Position Device WPL 9752462 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
23
Retainer,Door WPL 9750676 Contact Us For Availability
23
Screw, 8−32 x 3/8 WPL 9780269 Contact Us For Availability
24
Front, Drawer — White WPL 9750168PW Contact Us For Availability
24
Front, Drawer — Black WPL 9750168PB Contact Us For Availability
24
Front, Drawer — Biscuit WPL 9750168PC Contact Us For Availability
24
Front, Drawer — Black Stainless WPL 9750569PB Contact Us For Availability
24
Front, Drawer — Almond WPL 9750168PT Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Screw, 8−32 x 3/8 WPL 9781509 Contact Us For Availability
26
Screw, 10−16 X 3/4 WPL 423248 Contact Us For Availability
26
Insulation, Control WPL 9754008 Contact Us For Availability
26
Steam Deflector WPL 9781771 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
27
Screw, 10−16 x 1/2 WPL 3149333 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Switch, Door−Light WPL 9781581 Contact Us For Availability
28
Spring, Warm Zone 30" ELECTRONIC RANGE FREEST WPL 9753677 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Vent Gasket WPL 9750767 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
Screw, 8−18 x 3/8 WPL 9780275 Contact Us For Availability
31
Trim, Glass Top WPL 9750614PB Contact Us For Availability
32
Cushion, Insert WPL 9753329 Contact Us For Availability
33
Insert, Stainless WPL 9753293 Contact Us For Availability
34
Trim, Glass Bottom WPL 9750613PB Contact Us For Availability
36
Panel, Drawer WPL 9754062 Contact Us For Availability
38
Stainless WPL 9782109PB Contact Us For Availability
× ![]()
Login and Registration Form
