Model Whirlpool LIT3189269 Electric Built−In Cooktop – Common Parts & Diagrams

Common parts from model Whirlpool LIT3189269 Electric Built−In Cooktop

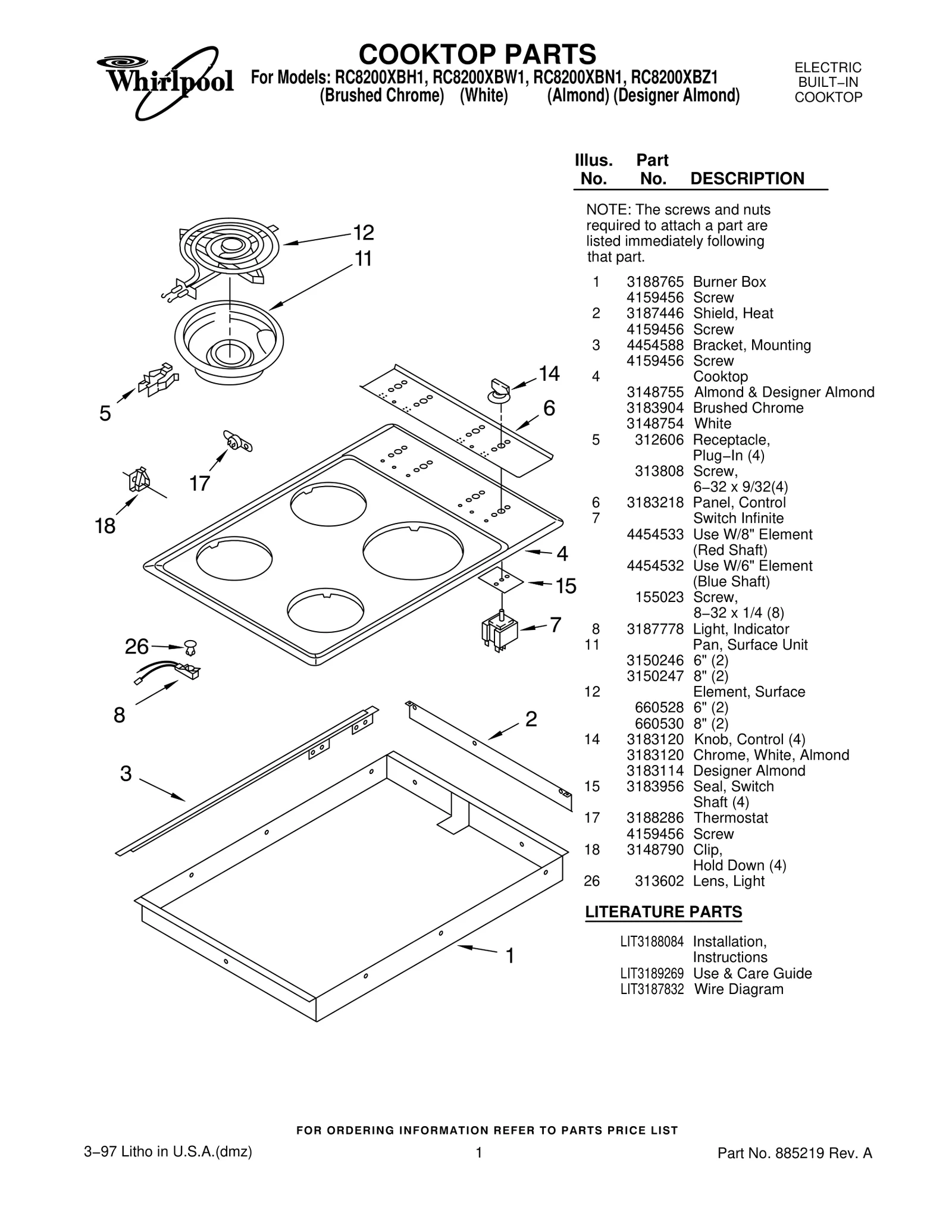

COOKTOP PARTS

Print

• This Diagram
• All Diagrams

1

Burner Box WPL 4454829 Contact Us For Availability

View on Model

2

Shield, Heat WPL 4454837 Contact Us For Availability

View on Model

3

Bracket, Mounting WPL 4454836 Contact Us For Availability

View on Model

4

Cooktop — Almond & Designer Almond WPL 3148755 Contact Us For Availability

View on Model

4

Cooktop — Brushed Chrome WPL 3183904 Contact Us For Availability

View on Model

4

Cooktop — White WPL 3148754 Contact Us For Availability

View on Model

5

WP4332752 Whirlpool Clip Backorder WPL WP4332752 View Details $4.82

View on Model

5

Screw (4) WPL 313806 Contact Us For Availability

View on Model

6

Panel, Control WPL 3183218 Contact Us For Availability

View on Model

7

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $4.70

View on Model

7

Switch Infinite — Use W/8" Element WPL 4454533 Contact Us For Availability

View on Model

7

Switch Infinite — Use W/6" Element WPL 4454532 Contact Us For Availability

View on Model

8

Light, Indicator WPL 3187778 Contact Us For Availability

View on Model

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 View Details $13.57

View on Model

11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $12.35

View on Model

11

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $9.49

View on Model

12

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 View Details $28.25

View on Model

12

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 View Details $32.33

View on Model

14

Chrome, White, Almond WPL 3183120 Contact Us For Availability

View on Model

14

Designer Almond WPL 3183114 Contact Us For Availability

View on Model

15

3183956 Whirlpool Oven Seal Switch In Stock WPL 3183956 View Details $34.06

View on Model

17

WP3188286 Whirlpool Thermostat Backorder WPL WP3188286 View Details $48.52

View on Model

17

Screw WPL 4159456 Contact Us For Availability

View on Model

18

814103 Whirlpool Clip In Stock WPL 814103 View Details $5.96

View on Model

19

Cover, Conduit WPL 3191115 Contact Us For Availability

View on Model

19

Screw WPL 4159372 Contact Us For Availability

View on Model

26

Lens, Light LIT4454652 Installation, Instruct WPL 313602 Contact Us For Availability

View on Model

×
