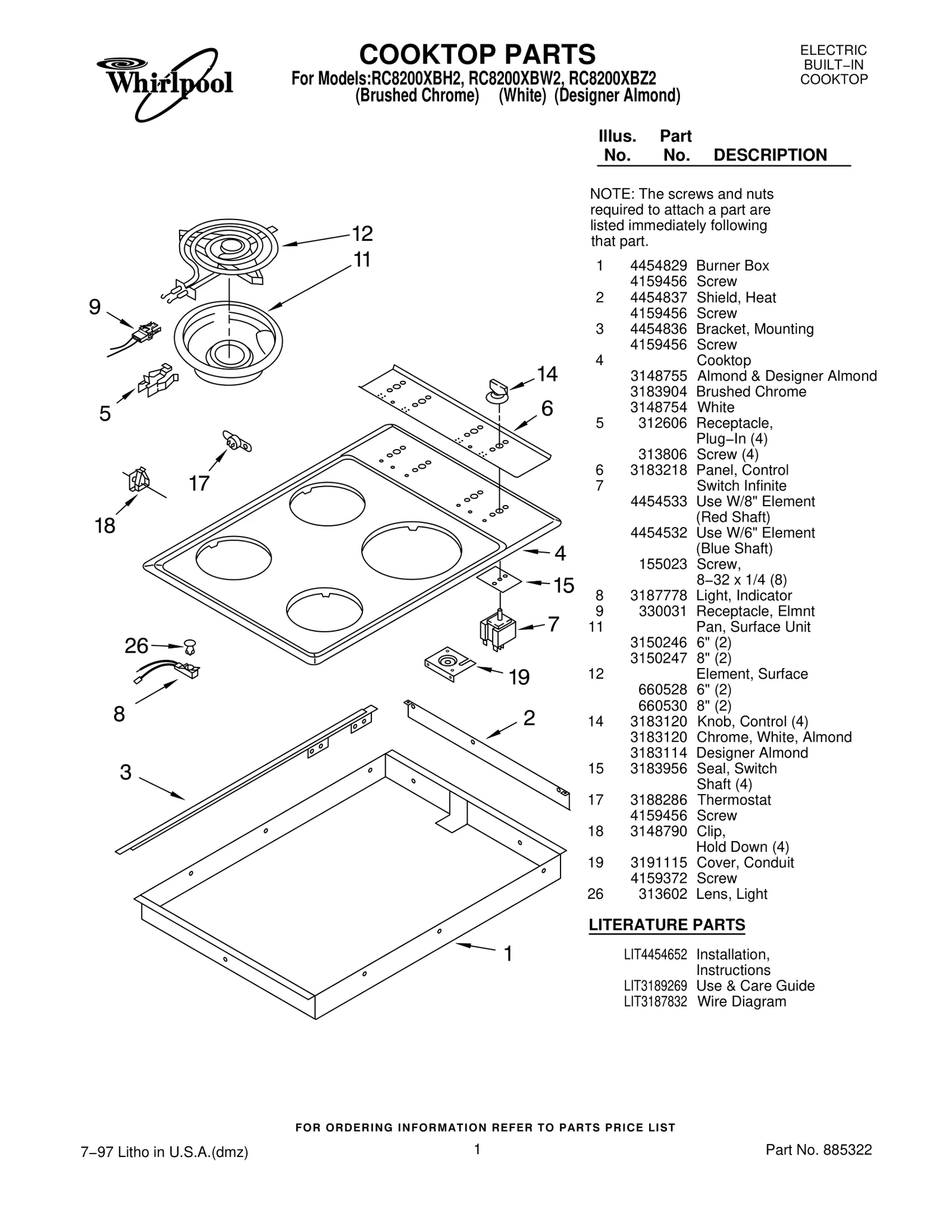

Model Whirlpool LIT3187832 Electric Built−In Cooktop – Common Parts & Diagrams

1
Burner Box
Burner Box WPL 4454829 Contact Us For Availability
View on Model
1

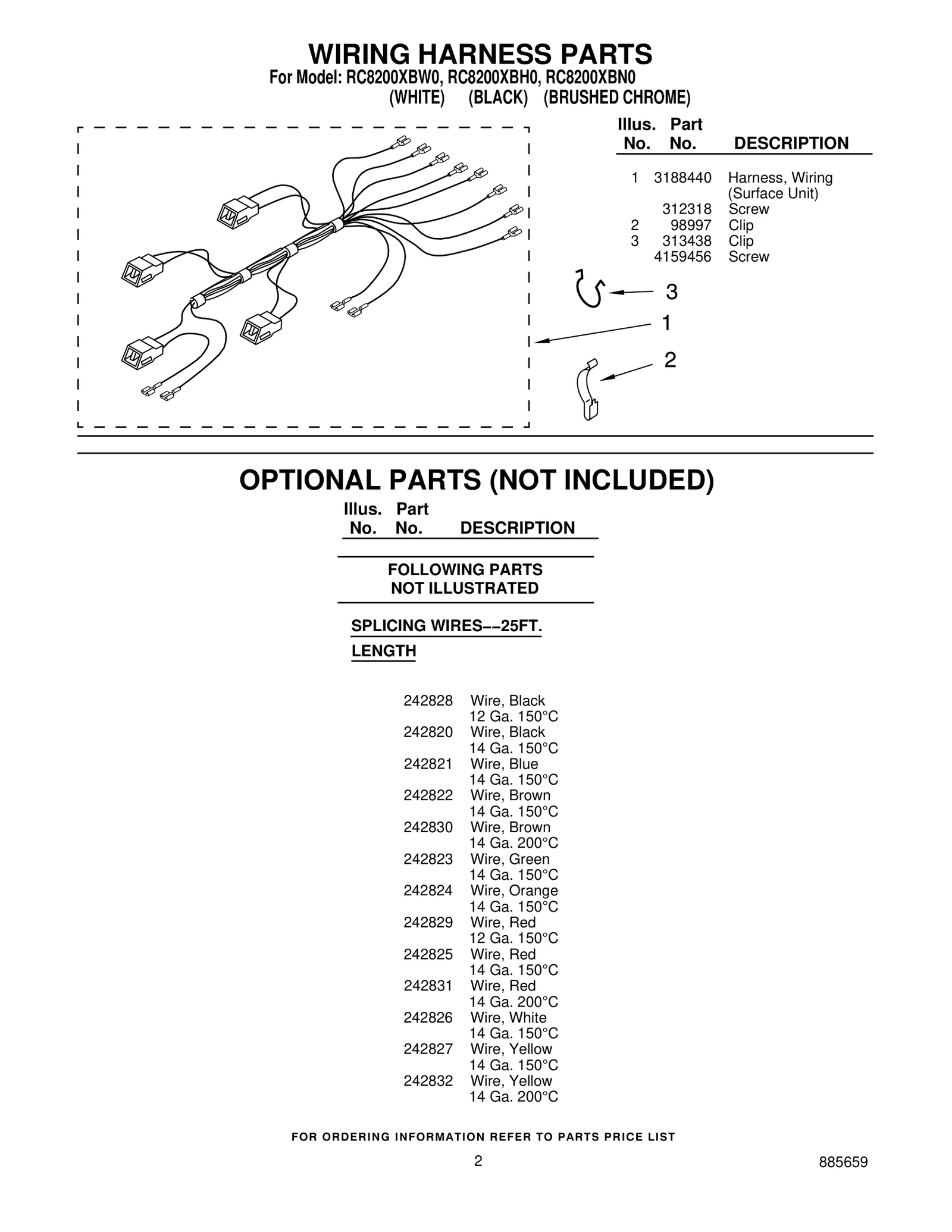

Harness, Wiring
Harness, Wiring WPL 3188440 Contact Us For Availability
View on Model
1
Screw
Screw WPL 312318 Contact Us For Availability
View on Model
2
Shield, Heat
Shield, Heat WPL 4454837 Contact Us For Availability
View on Model
3

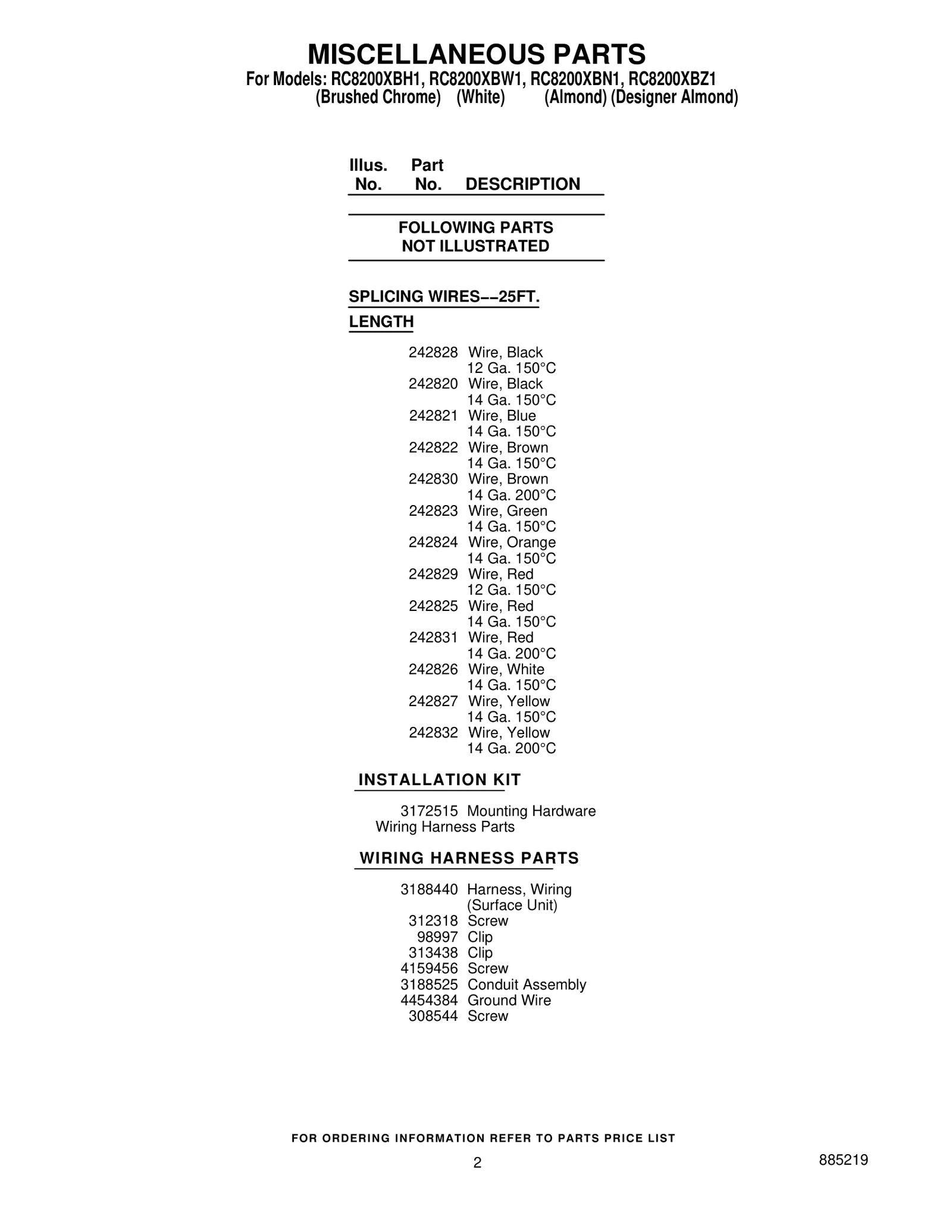

Screw NOT ILLUSTRATED SPLICING WIRES−−25F
Screw NOT ILLUSTRATED SPLICING WIRES−−25F WPL 4159456 Contact Us For Availability
View on Model
3
Bracket, Mounting
Bracket, Mounting WPL 4454836 Contact Us For Availability
View on Model
3
Wire, Black 12 Ga. 150 C
Wire, Black 12 Ga. 150 C WPL 242828 Contact Us For Availability
View on Model
3
Wire, Black 14 Ga. 150 C
Wire, Black 14 Ga. 150 C WPL 242820 Contact Us For Availability
View on Model
3
Wire, Blue 14 Ga. 150 C
Wire, Blue 14 Ga. 150 C WPL 242821 Contact Us For Availability
View on Model
3
Wire, Brown 14 Ga. 150 C
Wire, Brown 14 Ga. 150 C WPL 242822 Contact Us For Availability
View on Model
3
Wire, Brown 14 Ga. 200 C
Wire, Brown 14 Ga. 200 C WPL 242830 Contact Us For Availability
View on Model
3
Wire, Green 14 Ga. 150 C
Wire, Green 14 Ga. 150 C WPL 242823 Contact Us For Availability
View on Model
3
Wire, Orange 14 Ga. 150 C
Wire, Orange 14 Ga. 150 C WPL 242824 Contact Us For Availability
View on Model
3
Wire, Red 12 Ga. 150 C
Wire, Red 12 Ga. 150 C WPL 242829 Contact Us For Availability
View on Model
3
Wire, Red 14 Ga. 150 C
Wire, Red 14 Ga. 150 C WPL 242825 Contact Us For Availability
View on Model
3
Wire, Red 14 Ga. 200 C
Wire, Red 14 Ga. 200 C WPL 242831 Contact Us For Availability
View on Model
3
Wire, White 14 Ga. 150 C
Wire, White 14 Ga. 150 C WPL 242826 Contact Us For Availability
View on Model
3
Wire, Yellow 14 Ga. 150 C
Wire, Yellow 14 Ga. 150 C WPL 242827 Contact Us For Availability
View on Model
3
Wire, Yellow 14 Ga. 200 C
Wire, Yellow 14 Ga. 200 C WPL 242832 Contact Us For Availability
View on Model
4
Cooktop — Almond & Designer Almond
Cooktop — Almond & Designer Almond WPL 3148755 Contact Us For Availability
View on Model
4
Cooktop — Brushed Chrome
Cooktop — Brushed Chrome WPL 3183904 Contact Us For Availability
View on Model
4
Cooktop — White
Cooktop — White WPL 3148754 Contact Us For Availability
View on Model
5
Screw (4)
Screw (4) WPL 313806 Contact Us For Availability
View on Model
6
Panel, Control
Panel, Control WPL 3183218 Contact Us For Availability
View on Model
7
Switch Infinite — Use W/8" Element
Switch Infinite — Use W/8" Element WPL 4454533 Contact Us For Availability
View on Model
7
Switch Infinite — Use W/6" Element
Switch Infinite — Use W/6" Element WPL 4454532 Contact Us For Availability
View on Model
8
Light, Indicator
Light, Indicator WPL 3187778 Contact Us For Availability
View on Model
14
Chrome, White, Almond
Chrome, White, Almond WPL 3183120 Contact Us For Availability
View on Model
14
Designer Almond
Designer Almond WPL 3183114 Contact Us For Availability
View on Model
19
Cover, Conduit
Cover, Conduit WPL 3191115 Contact Us For Availability
View on Model
19
Screw
Screw WPL 4159372 Contact Us For Availability
View on Model
26
Lens, Light LIT4454652 Installation, Instruct
Lens, Light LIT4454652 Installation, Instruct WPL 313602 Contact Us For Availability
View on Model
