Model LGUS2642LM1 – Common Parts & Diagrams

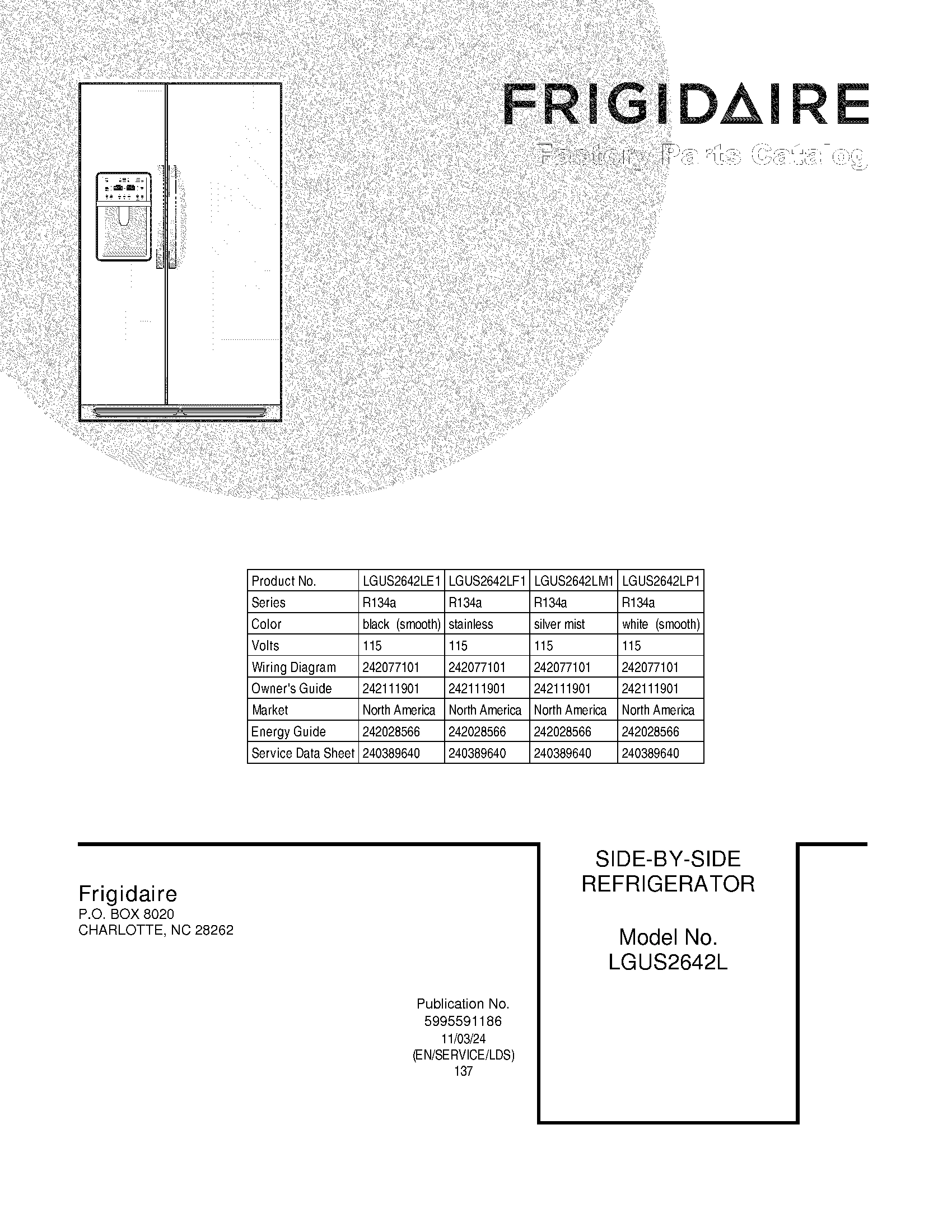

01 - COVER

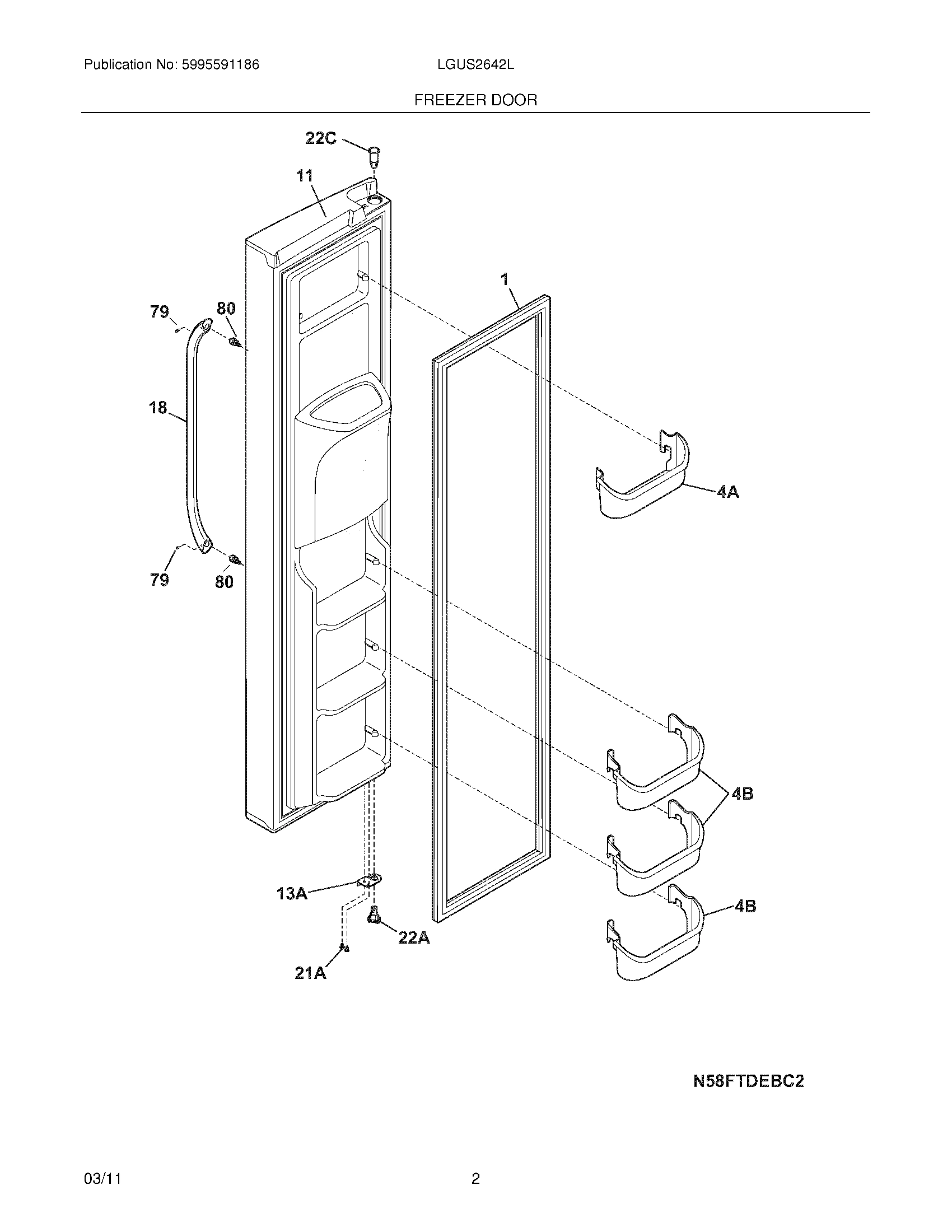

03 - FREEZER DOOR

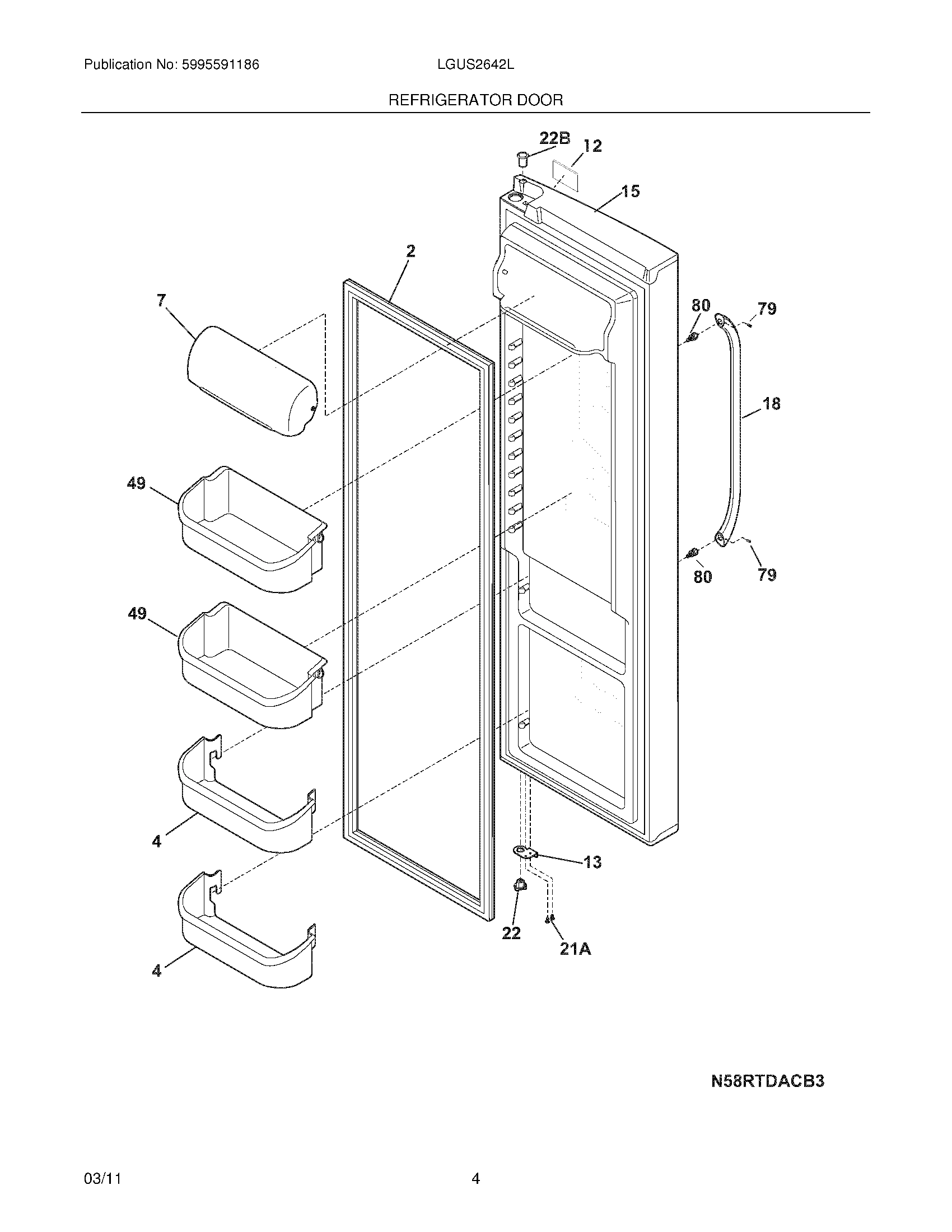

05 - REFRIGERATOR DOOR

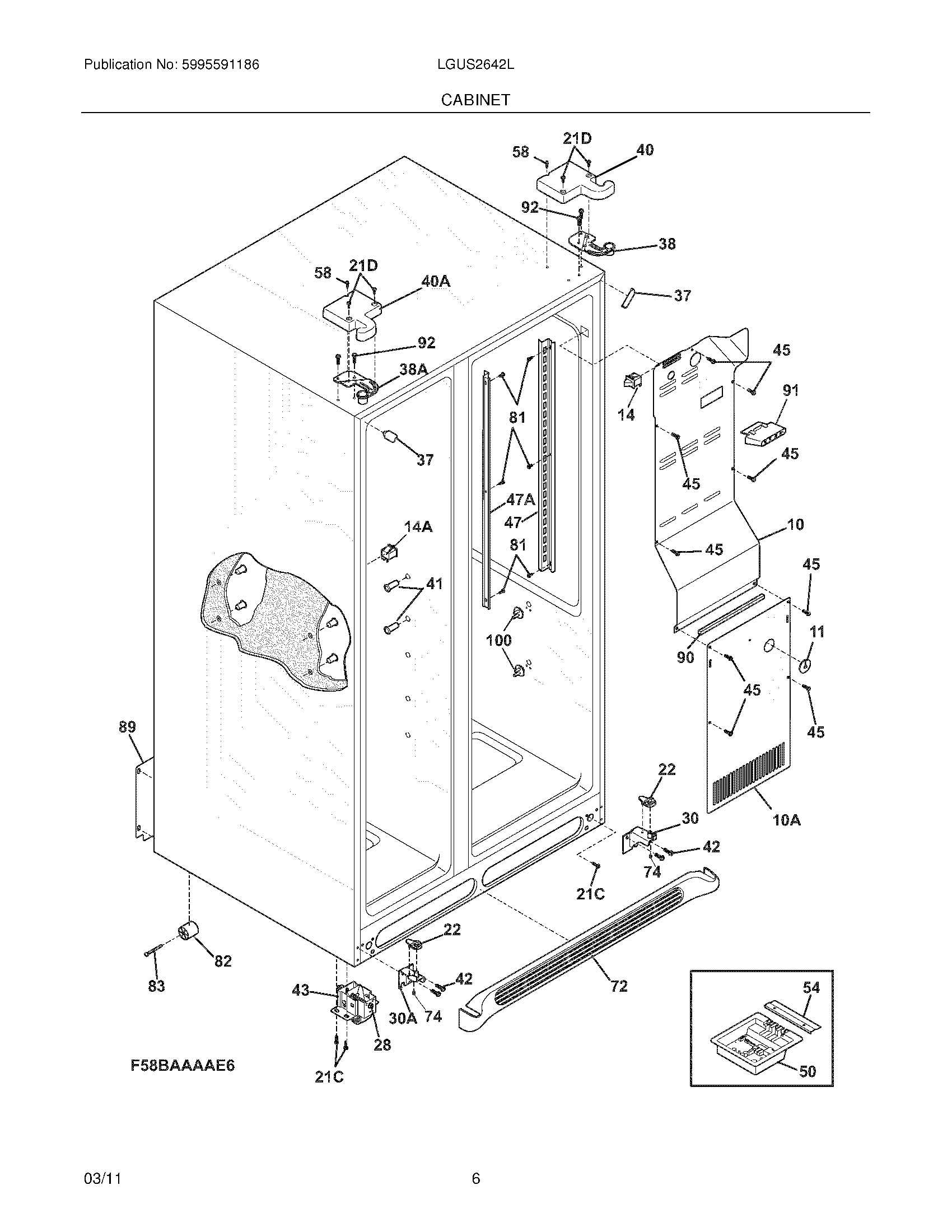

07 - CABINET

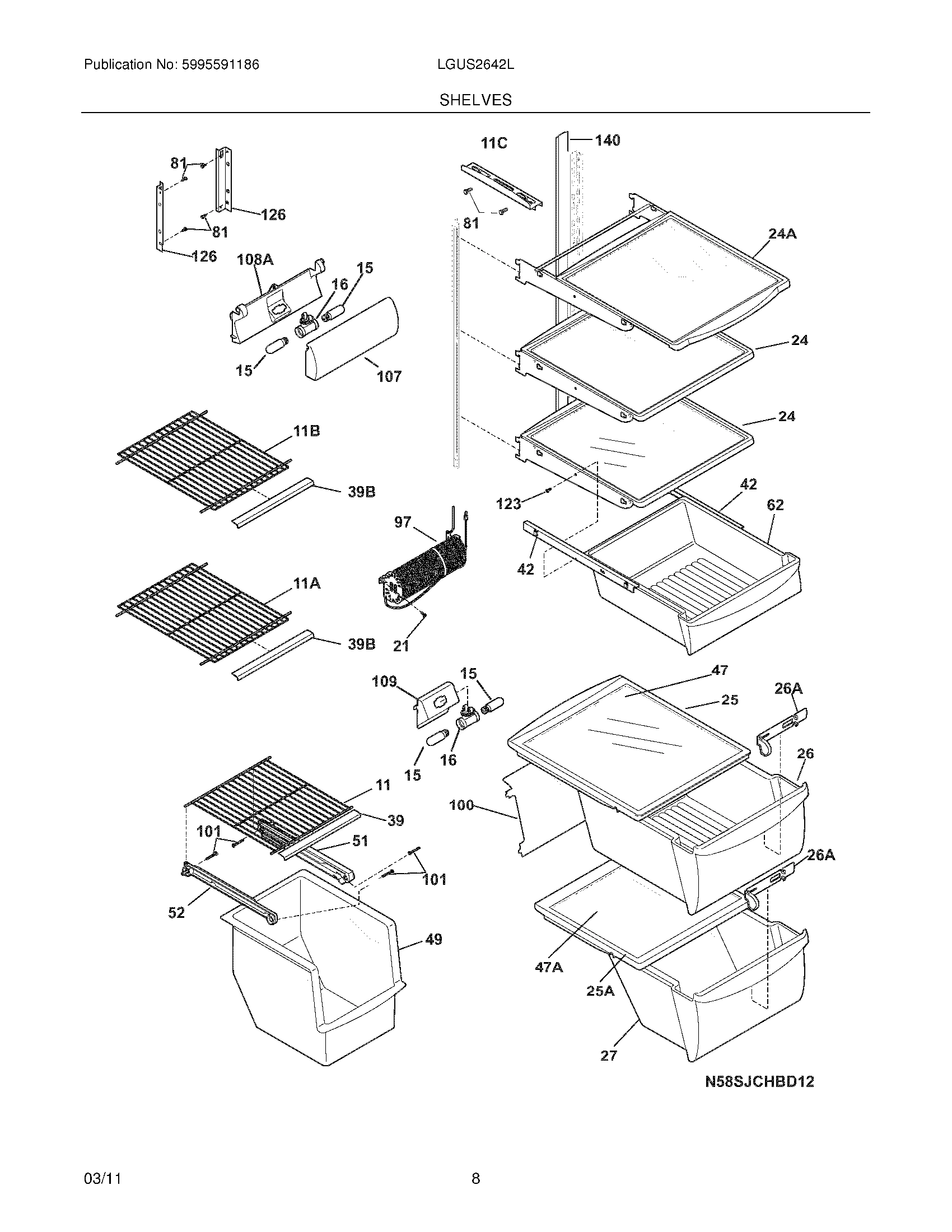

09 - SHELVES
11 - CONTROLS

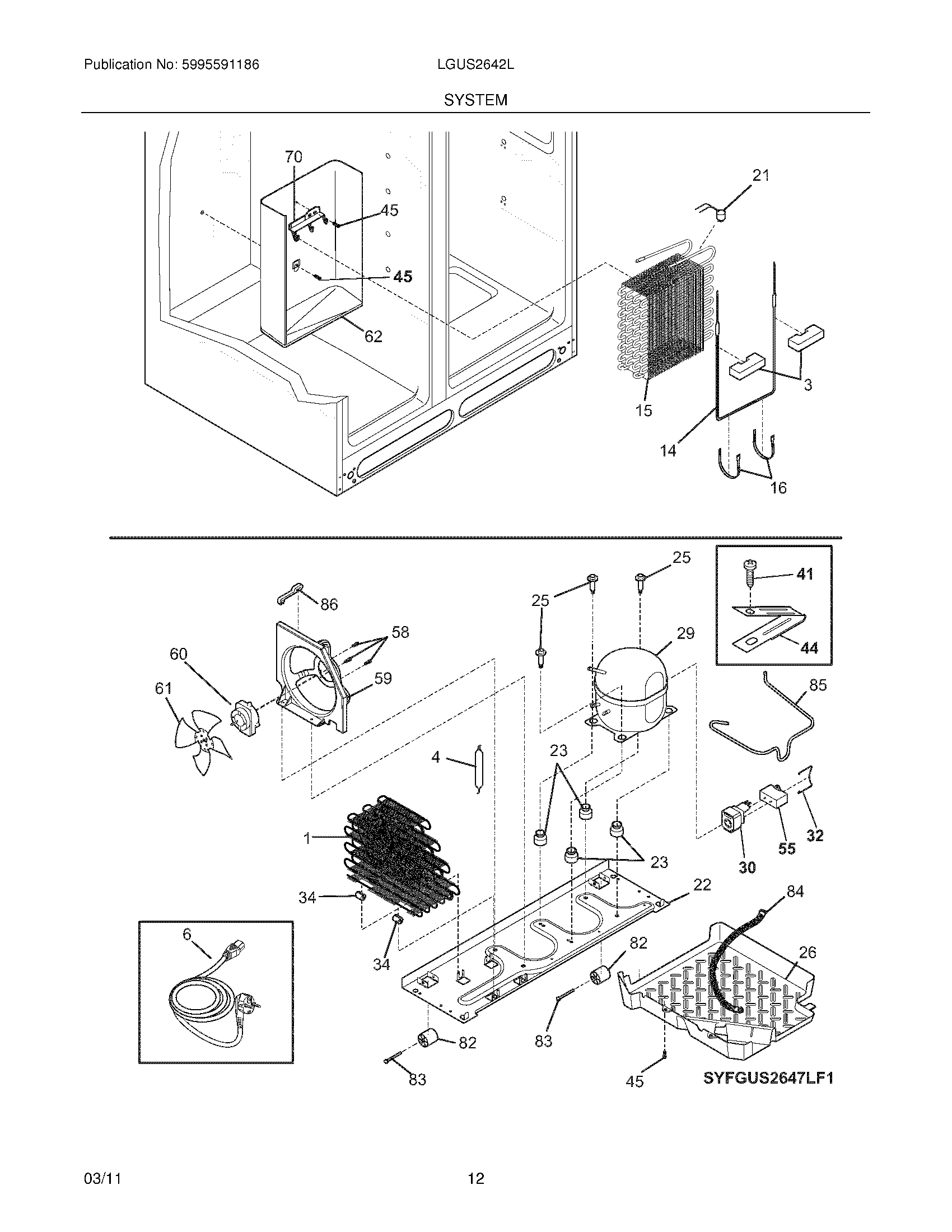

13 - SYSTEM

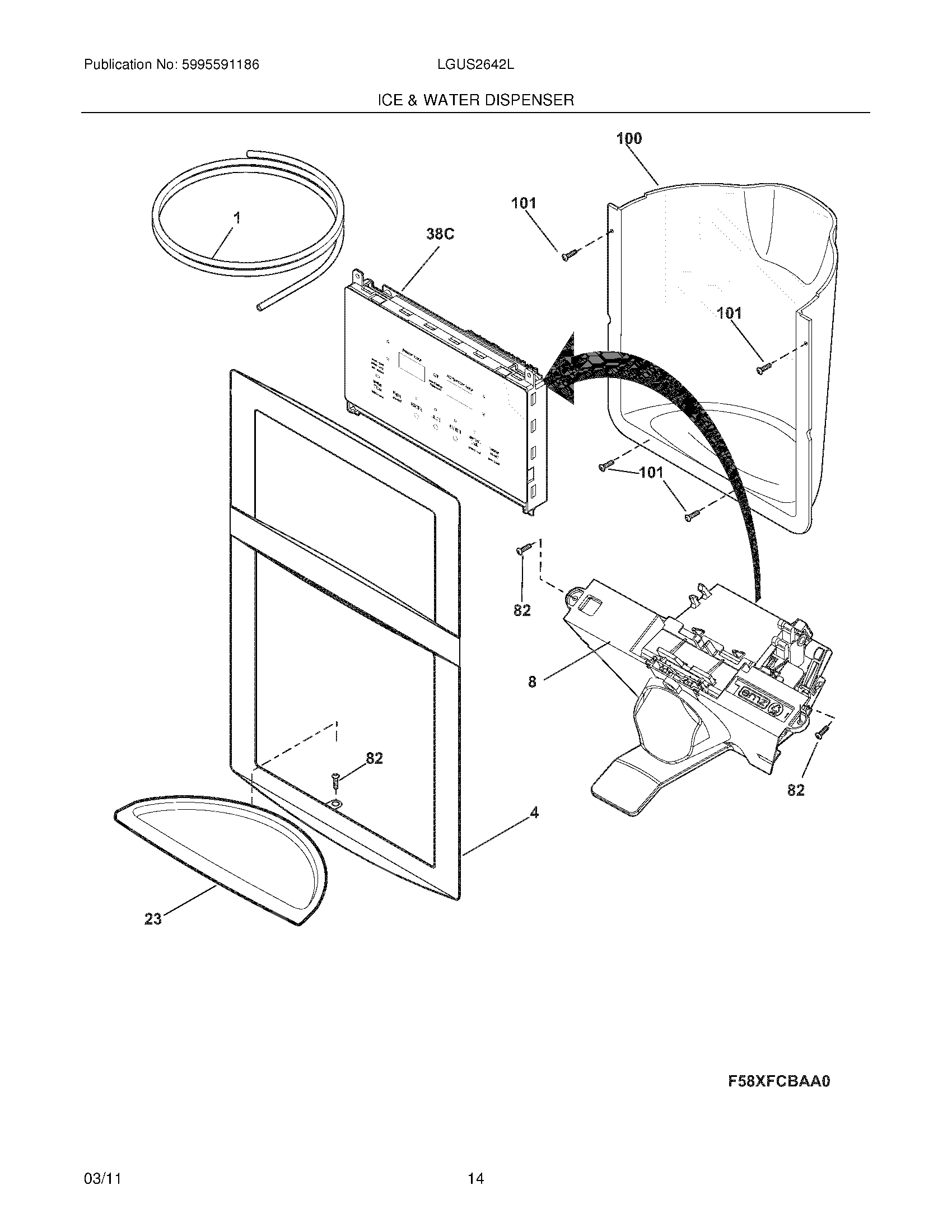

15 - ICE & WATER DISPENSER

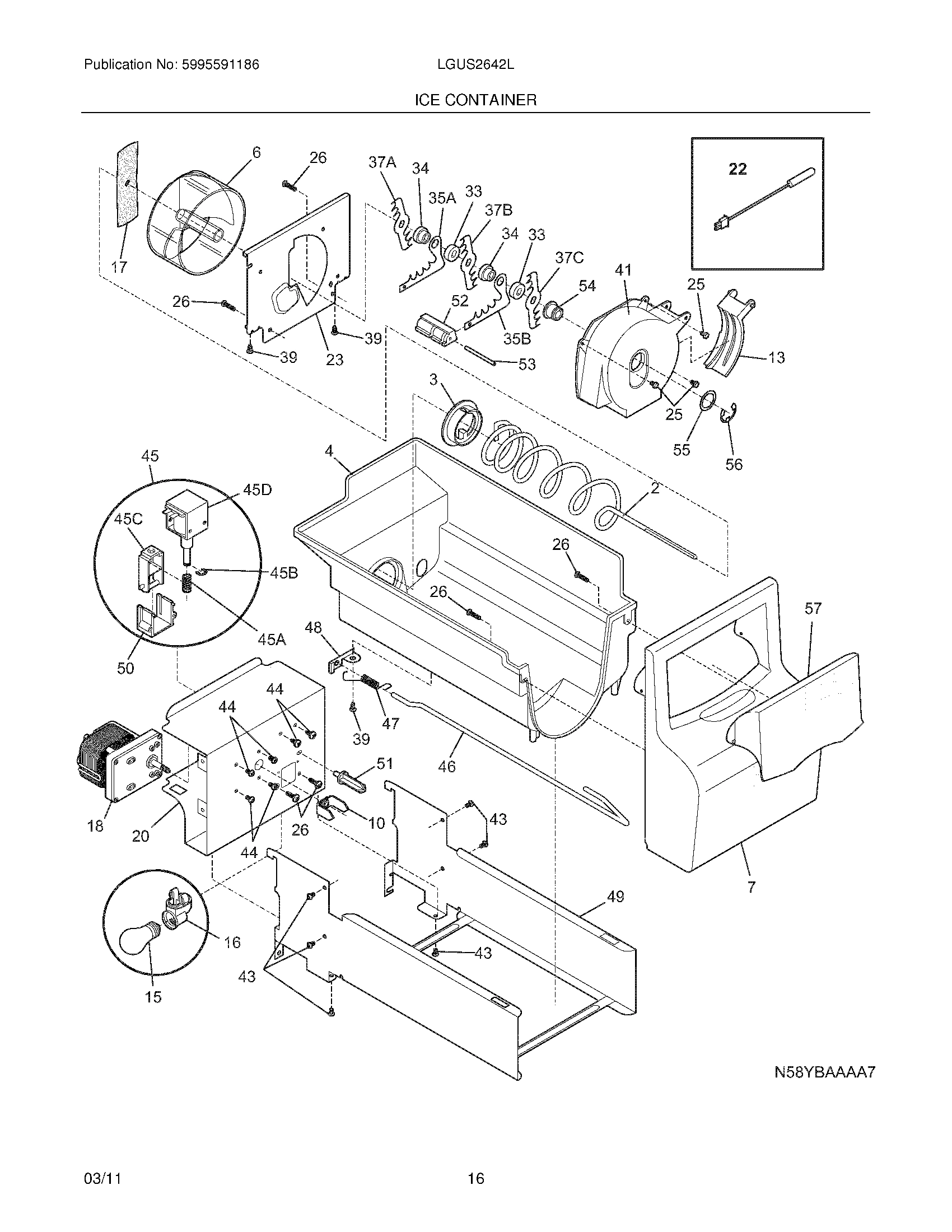

17 - ICE CONTAINER
19 - ICE MAKER

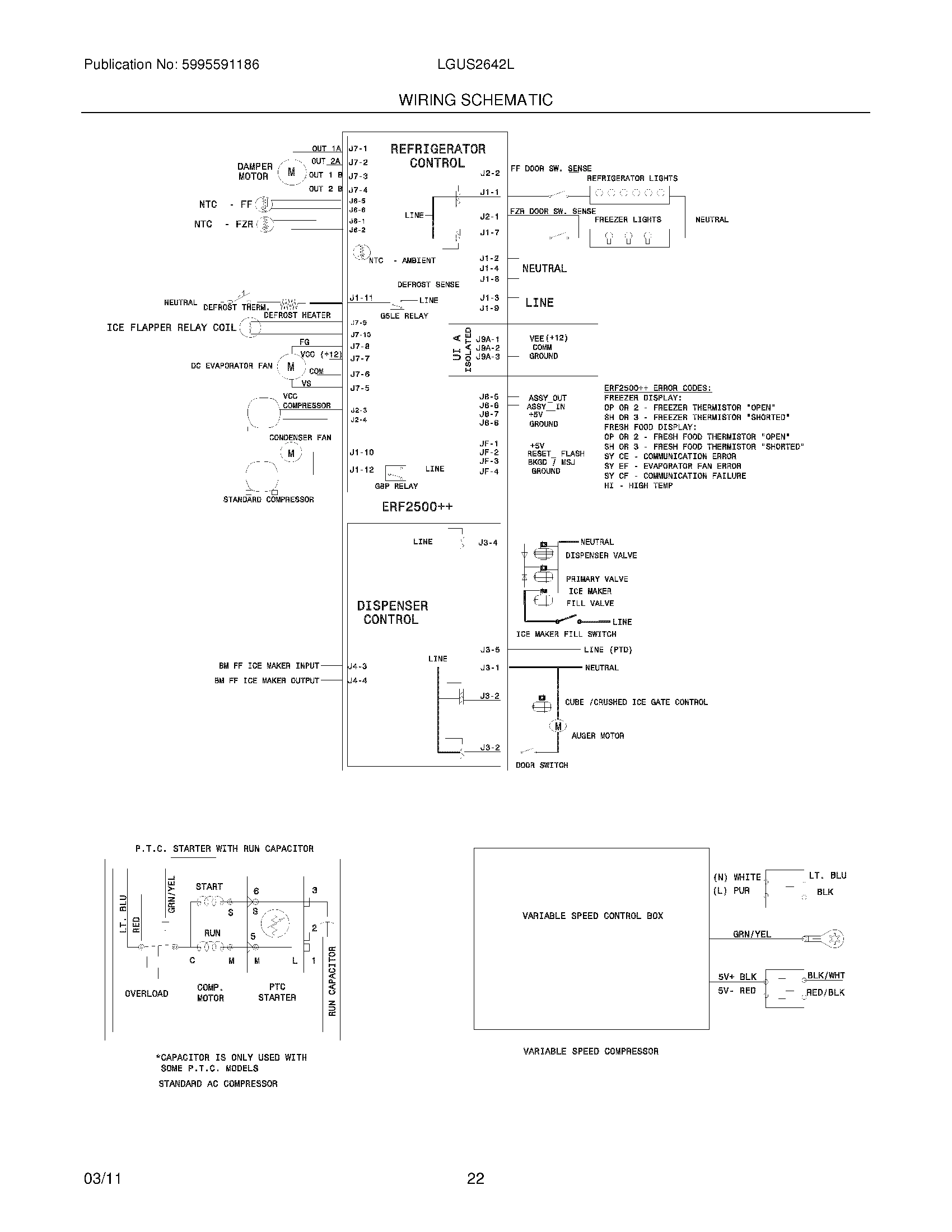

22 - WIRING SCHEMATIC

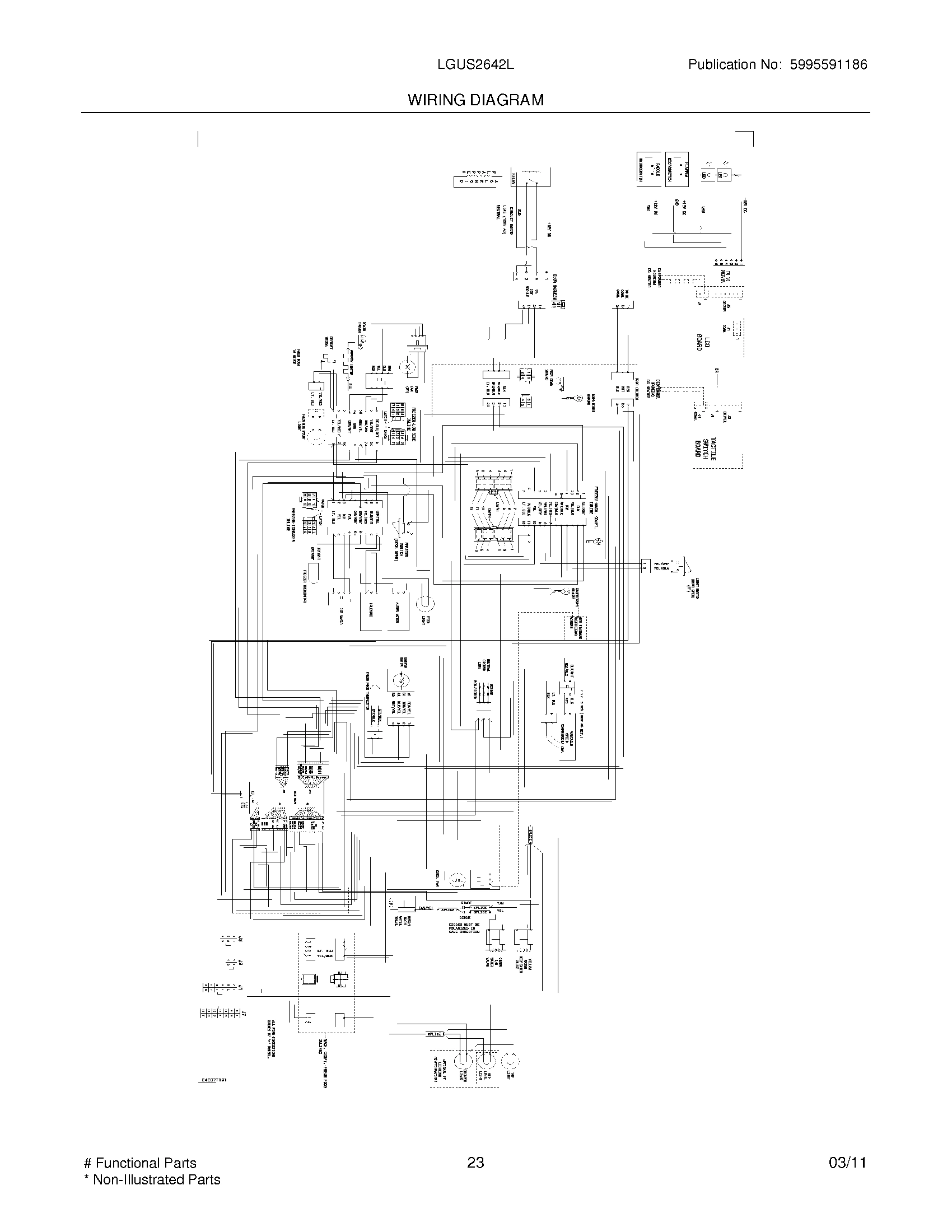

23 - WIRING DIAGRAM
