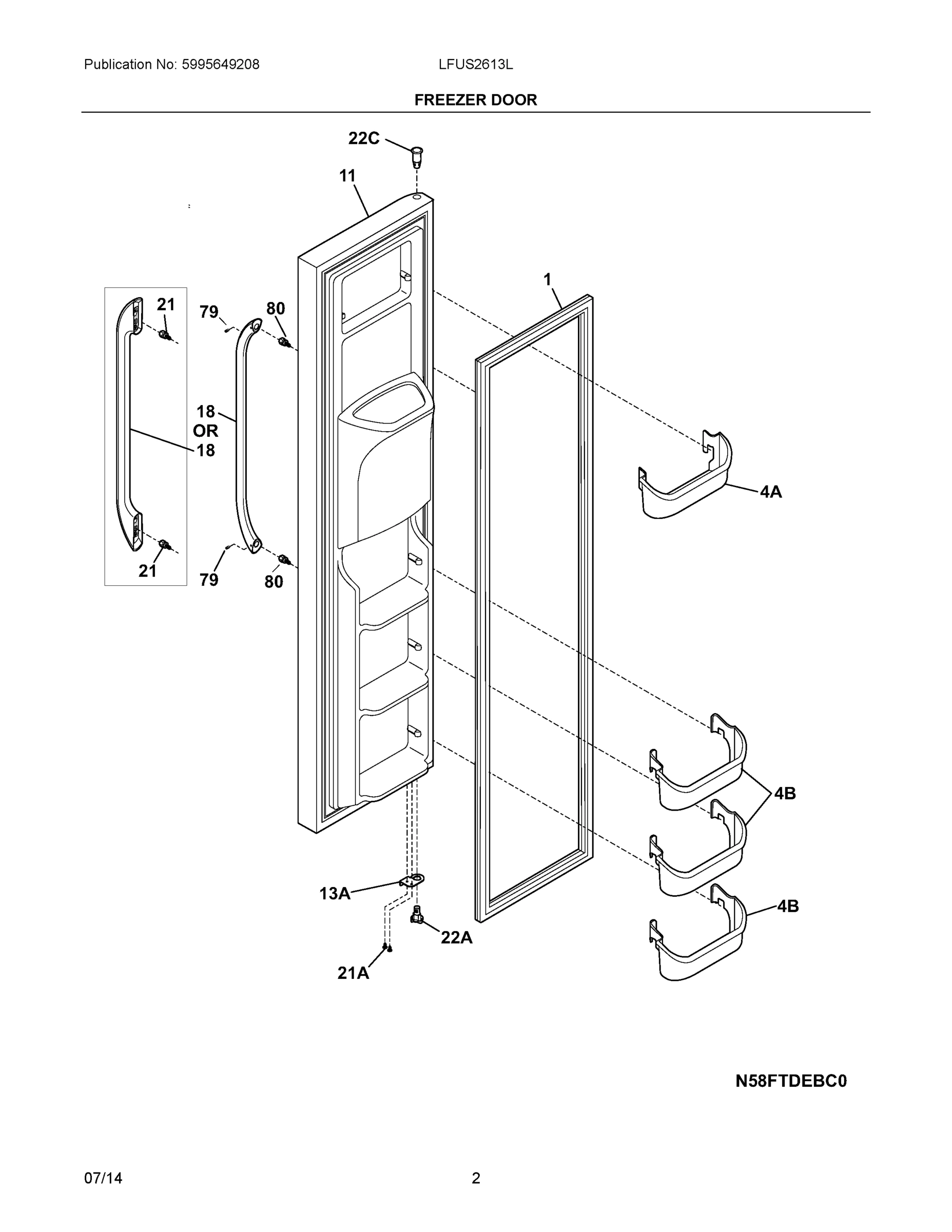

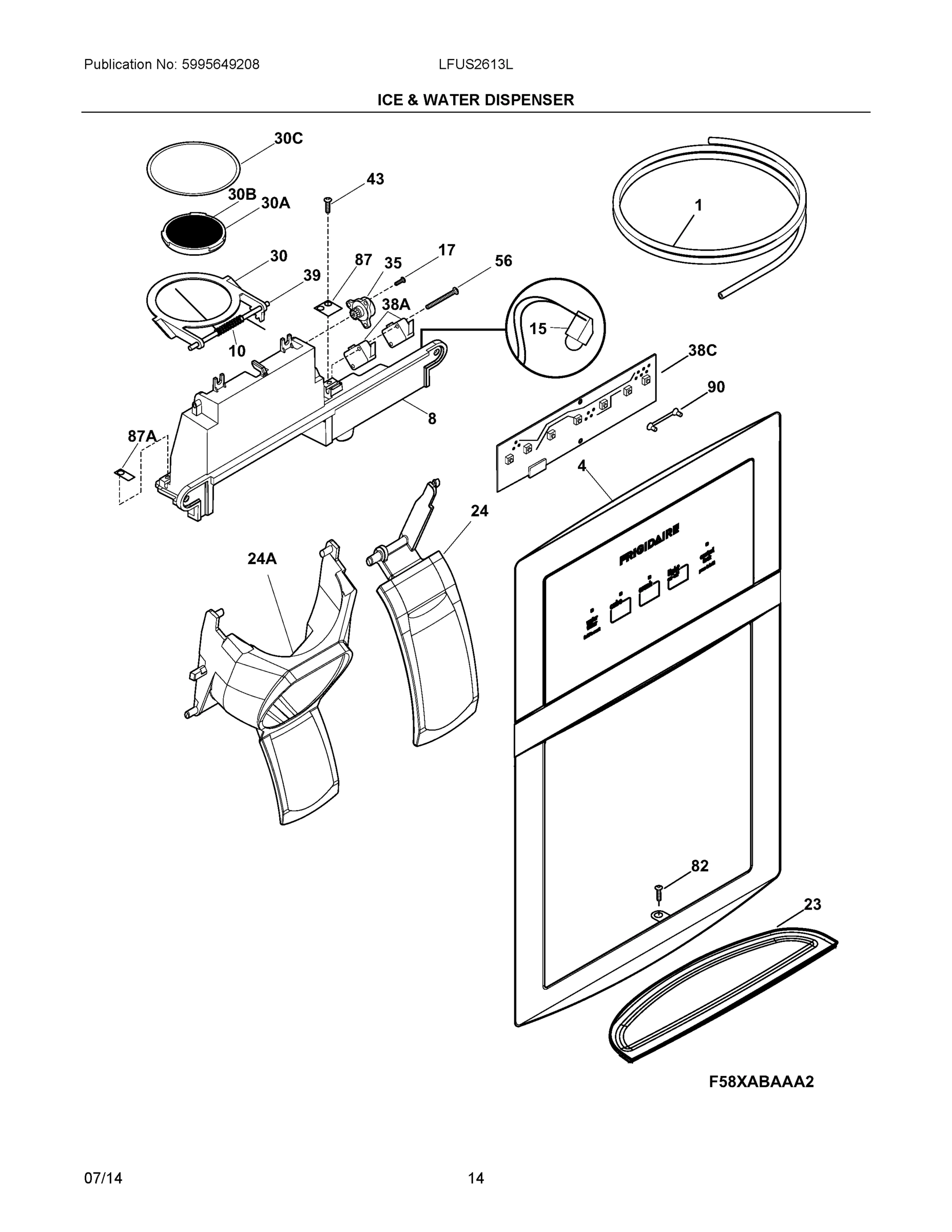

Model Electrolux LFUS2613LP2 REFRIGERATOR – Common Parts &amp; Diagrams

1

241786014 Frigidaire Freezer Door Gasket In Stock WCI 241786014 $69.87

2

241716101 Frigidaire Refrigerator Ice Auger In Stock WCI 241716101 $84.29

2

241786001 Frigidaire Door Gasket Backorder WCI 241786001 $165.71

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $32.71

4

240323002 Frigidaire Bottom Clear Door Bin In Stock WCI 240323002 $55.92

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $82.64

4A

240334201 Frigidaire Refrigerator Upper Freez In Stock WCI 240334201 $52.71

4B

240351601 Frigidaire Freezer Door Bin In Stock WCI 240351601 $39.94

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $44.94

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $40.48

6

HARNESS-WIRING, MACHINE COMPT, W/DIODES WCI 241586801 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C Backorder WCI 241734201 $48.25

7

WCI 240326203 WCI 240326203 Contact Us For Availability

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

8

WCI 242083401 WCI 242083401 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $13.86

10

240435912 Frigidaire Refrigerator Air Duct Co Backorder WCI 240435912 $101.50

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $16.62

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $46.00

10A

241719711 Frigidaire Refrigerator Evaporator Backorder WCI 241719711 $85.40

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $33.28

11

SHELF, FLIP UP, WIRE WCI 241657602 Contact Us For Availability

11A

241657502 Frigidaire Refrigerator Shelf In Stock WCI 241657502 $62.12

11B

241657504 Frigidaire Refrigerator Shelf In Stock WCI 241657504 $64.91

12

5304456664 Frigidaire Refrigerator Wiring Har Backorder WCI 5304456664 $98.14

13

241942603 Frigidaire Refrigerator Black Door Backorder WCI 241942603 $14.19

13

242077705 Frigidaire Refrigerator Fan Motor In Stock WCI 242077705 $105.37

13

5304456665 Frigidaire Refrigerator Thermostat In Stock WCI 5304456665 $98.14

13A

241942604 Frigidaire Refrigerator Black Door Backorder WCI 241942604 $16.05

14

240505801 Frigidaire Light Switch Backorder WCI 240505801 $52.14

14

242044113 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044113 $80.96

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $19.49

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $14.94

15

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $436.59

15

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $67.67

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $50.24

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.81

17

241679801 Frigidaire Screw Backorder WCI 241679801 $11.09

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $12.72

18

242059101 Frigidaire Refrigerator Door Handle Backorder WCI 242059101 $92.08

18

WCI 242059103 WCI 242059103 Contact Us For Availability

20

241734902 Frigidaire Refrigerator Cover Backorder WCI 241734902 $124.79

21

241608401 Frigidaire Refrigerator Thermistor Backorder WCI 241608401 $60.99

21

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $10.53

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $20.06

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $6.09

21A

241608501 Frigidaire Refrigerator Freezer The Backorder WCI 241608501 $39.37

21D

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $10.79

22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.67

22

241917801 Frigidaire Refrigerator Closer Plat In Stock WCI 241917801 $5.52

22

241990301 Frigidaire Hinge Bearing In Stock WCI 241990301 $5.52

22A

241990302 Frigidaire Freezer Hinge Bearing Backorder WCI 241990302 $5.52

22B

241760403 Frigidaire Refrigerator Bearing Backorder WCI 241760403 $14.97

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $14.94

23

218513300 Frigidaire Refrigerator Compressor Backorder WCI 218513300 $33.26

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $117.03

23

241947001 Frigidaire Refrigerator Drip Tray Backorder WCI 241947001 $15.51

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $52.12

24

ACTUATOR-WATER, WHITE WCI 242083601 Contact Us For Availability

24A

ACTUATOR-ICE, WHITE WCI 242083501 Contact Us For Availability

25

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $10.50

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $76.55

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

25A

240350903 Frigidaire Refrigerator Crisper Pan In Stock WCI 240350903 $72.11

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $5.52

26

240351061 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351061 $83.99

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $62.12

26A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $54.34

27

240351207 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351207 $143.13

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $38.83

30

WCI 242106501 WCI 242106501 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $39.37

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $43.75

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $29.95

31

WCI 5304477606 WCI 5304477606 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $6.61

34

240405201 Frigidaire Refrigerator Grommet In Stock WCI 240405201 $13.71

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $6.09

35

241689301 Frigidaire Refrigerator Rotary Damp Backorder WCI 241689301 $51.55

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $12.72

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $13.29

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $16.07

37B

241684108 Frigidaire Washer Poly V-Belt Backorder WCI 241684108 $16.07

37C

241684109 Frigidaire Ice Crusher Blade Backorder WCI 241684109 $16.07

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $51.57

38A

241761302 Frigidaire Refrigerator Upper Hinge Backorder WCI 241761302 $50.46

38AA

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $6.09

38C

242053503 Frigidaire Refrigerator Control Boa In Stock WCI 242053503 $195.13

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $33.82

40

241946711 Frigidaire Refrigerator Upper Hinge Backorder WCI 241946711 $23.84

40A

241946712 Frigidaire Refrigerator Upper Hinge Backorder WCI 241946712 $26.60

41

241550801 Frigidaire Refrigerator Shelf Mount Backorder WCI 241550801 $46.57

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $11.07

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $18.27

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.96

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $54.88

45C

241676101 Frigidaire Refrigerator Solenoid-Ac Backorder WCI 241676101 $50.46

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $34.37

47

240350649 Frigidaire Refrigerator Glass Inser In Stock WCI 240350649 $97.60

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $11.09

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $90.42

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $83.77

49

240356402 Frigidaire Refrigerator Gallon Door In Stock WCI 240356402 $83.75

49

240564401 Frigidaire Refrigerator Sliding Bas In Stock WCI 240564401 $130.08

49

241734501 Frigidaire Refrigerator Rail Backorder WCI 241734501 $144.76

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $62.67

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $47.70

51

WCI 241676301 WCI 241676301 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger Backorder WCI 240343102 $51.03

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $22.19

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $14.94

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $15.51

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $38.83

55

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $29.75

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $10.50

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $14.97

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $37.72

58

241548003 Frigidaire Refrigerator Screw In Stock WCI 241548003 $2.20

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $35.48

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $9.96

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $16.05

72

240324409 Frigidaire Refrigerator Grille Kick Backorder WCI 240324409 $46.57

74

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.86

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $35.90

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $47.70

85A

241856909 Frigidaire Refrigerator Connector T Backorder WCI 241856909 $120.35

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $15.51

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $15.51

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $54.36

90

241732703 Frigidaire Refrigerator Light Pipe Backorder WCI 241732703 $24.95

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $54.90

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $4.21

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $10.00

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.87

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $37.17

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $33.82

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $51.81

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $76.55

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $19.40

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $10.35

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $22.73

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.76

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $48.79

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $144.03

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $150.92

5303321319 Frigidaire Refrigerator White Touc Backorder WCI 5303321319 $11.30

5303918327 Frigidaire Refrigerator Heat Excha In Stock WCI 5303918327 $216.33

HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

218976419 Frigidaire Refrigerator Tube Backorder WCI 218976419 $17.75

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $23.27

240349801 Frigidaire Refrigerator Clip Backorder WCI 240349801 $14.99

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $34.37

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $6.61

241522901 Frigidaire Refrigerator Electrical Backorder WCI 241522901 $85.99

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $13.29

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $9.44

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $6.77

5304521761 Frigidaire Refrigerator Harness Backorder WCI 5304521761 $46.57

218976420 Frigidaire Refrigerator Tube Backorder WCI 218976420 $34.91

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

241595202 Frigidaire Refrigerator Clip Backorder WCI 241595202 $13.29

HARNESS-WIRING, CONTROL BOX WCI 241737801 Contact Us For Availability

NIC

218976429 Frigidaire Refrigerator Tube Backorder WCI 218976429 $31.63

NIC

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $12.28

NID

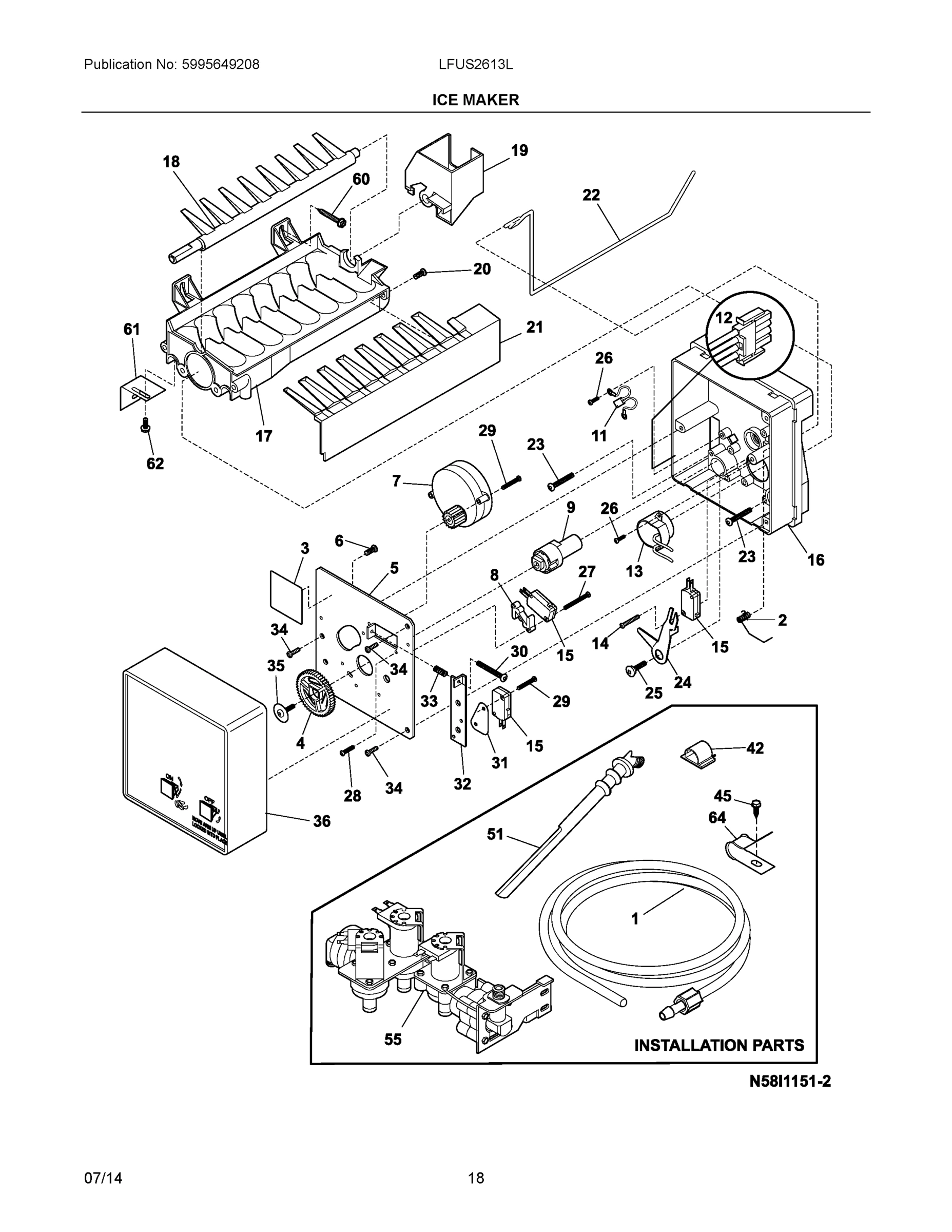

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $27.17

NIE

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $16.07
