Model LFUS2613LM1 – Common Parts & Diagrams
01 - COVER

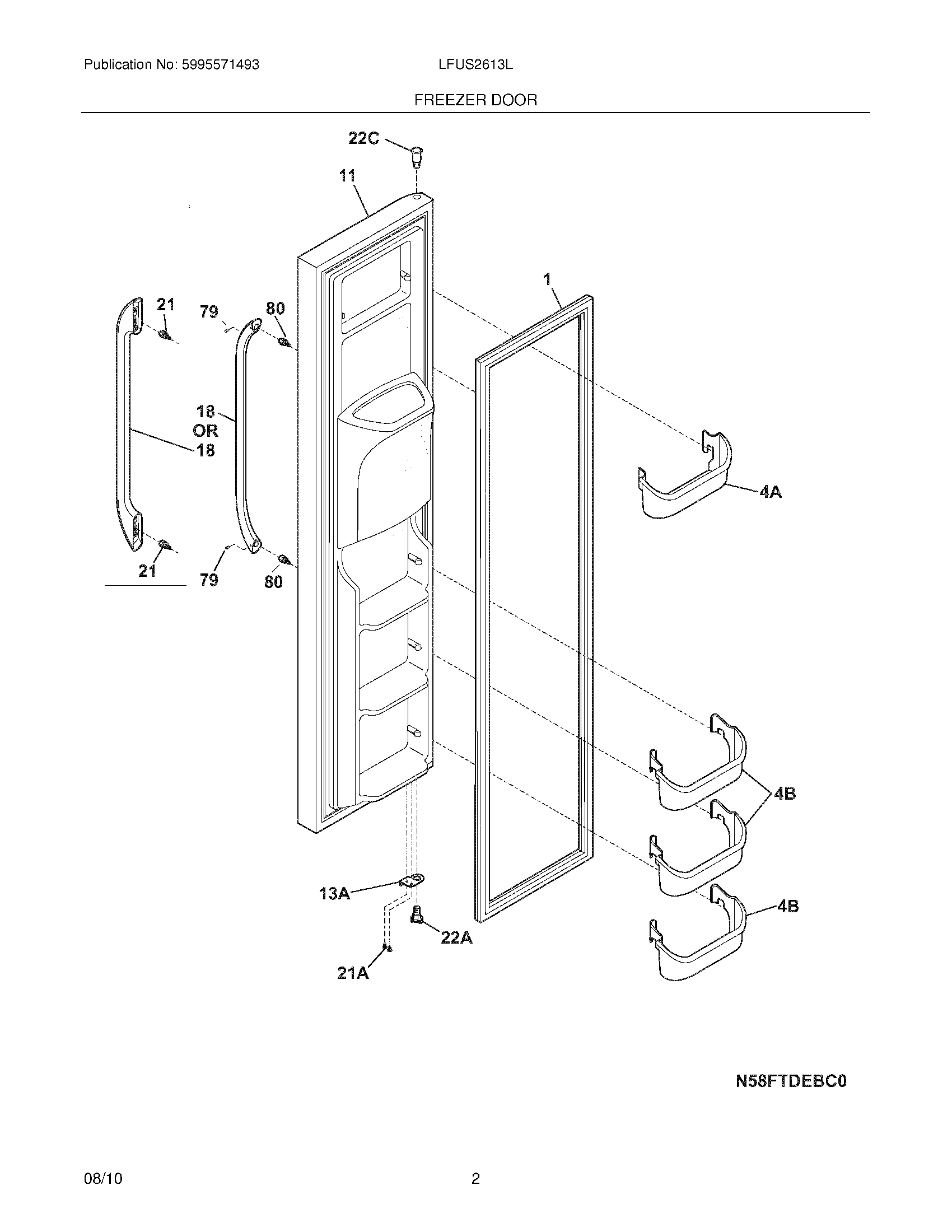

03 - FREEZER DOOR

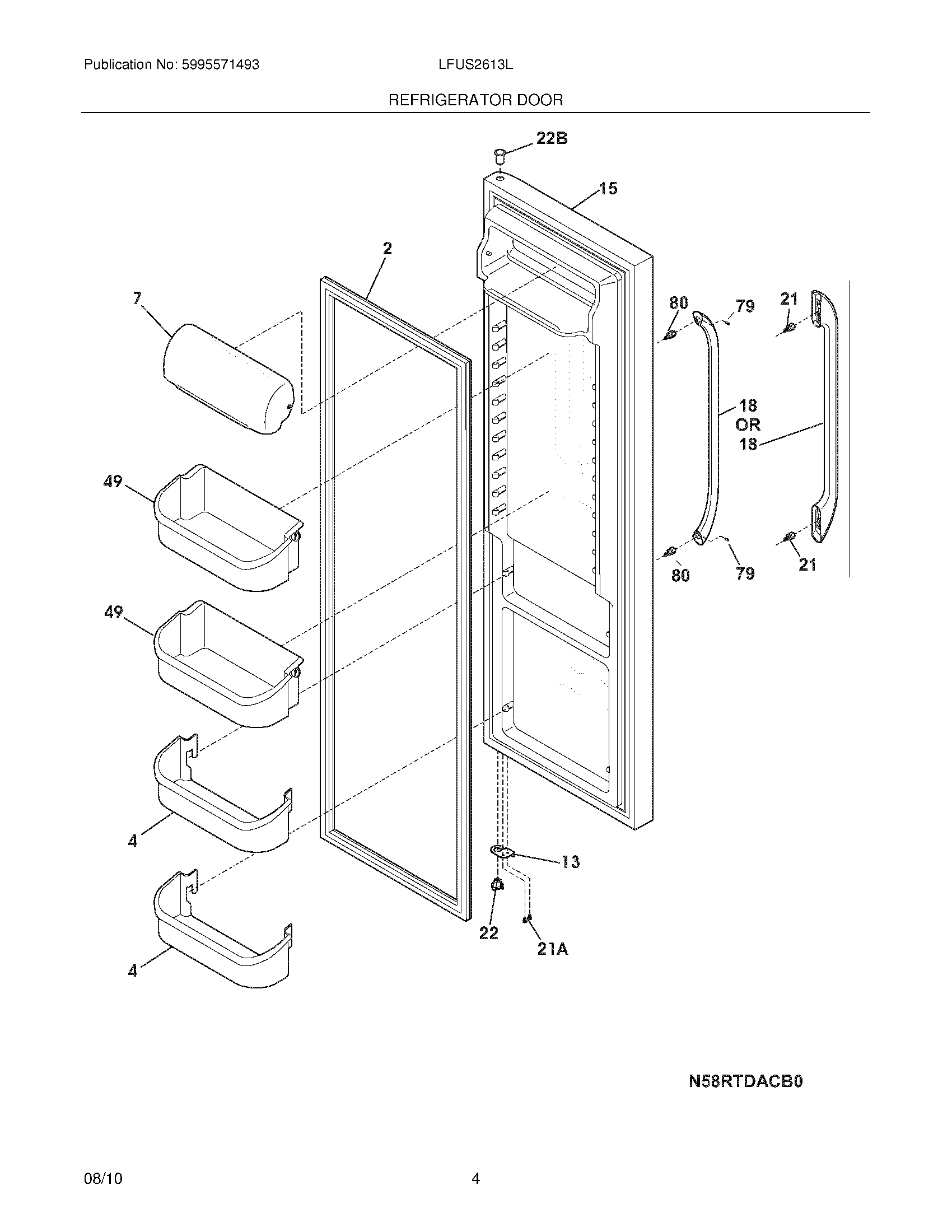

05 - REFRIGERATOR DOOR

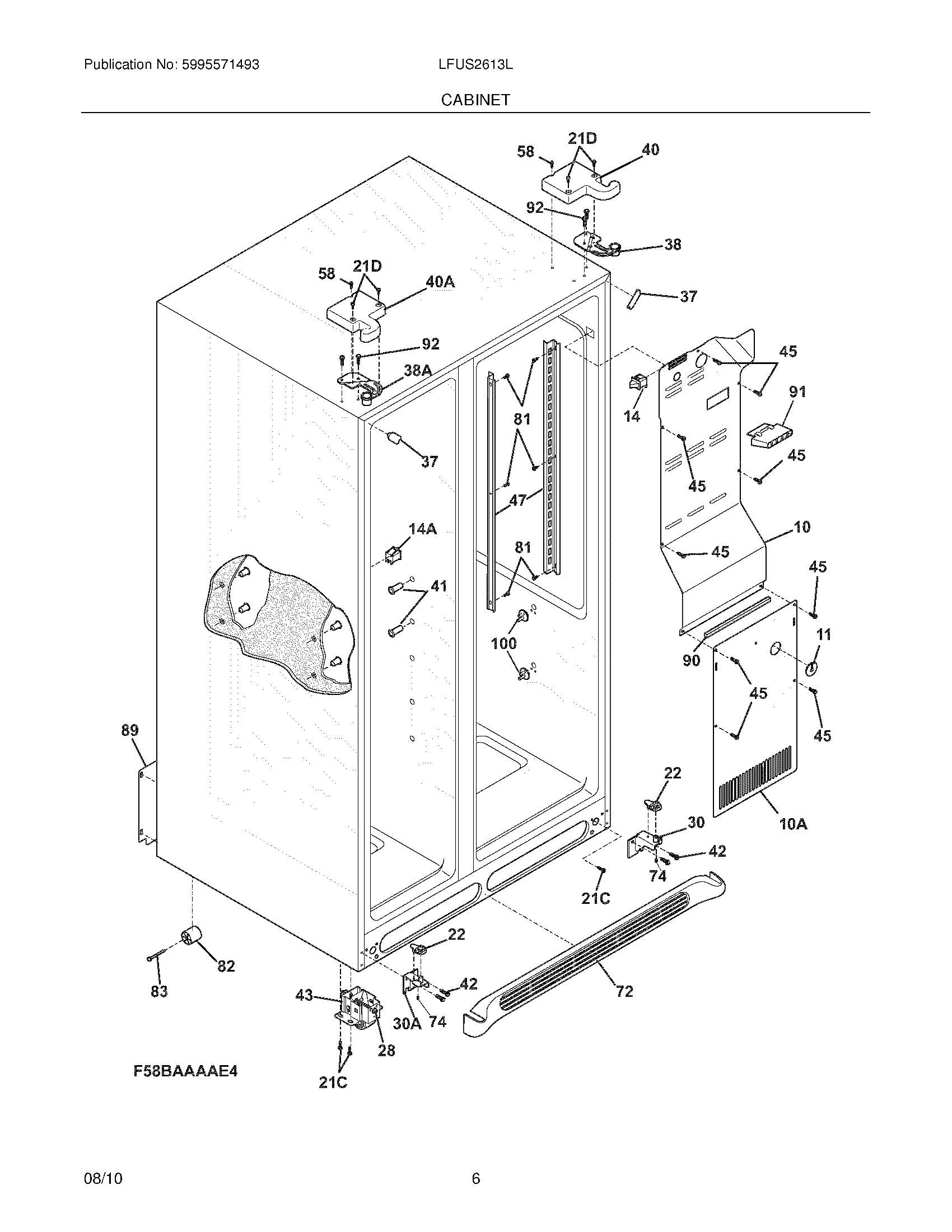

07 - CABINET
09 - SHELVES
11 - CONTROLS

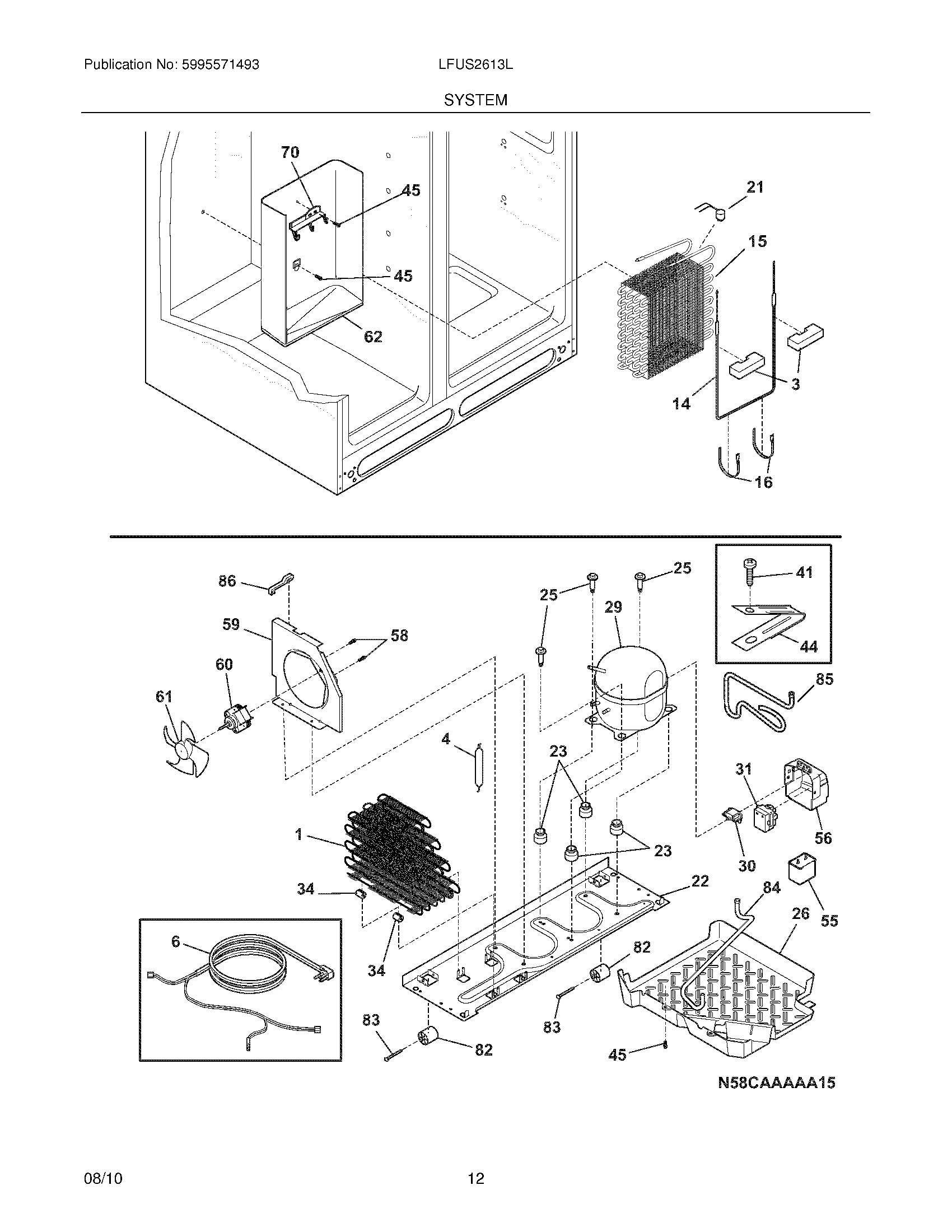

13 - SYSTEM

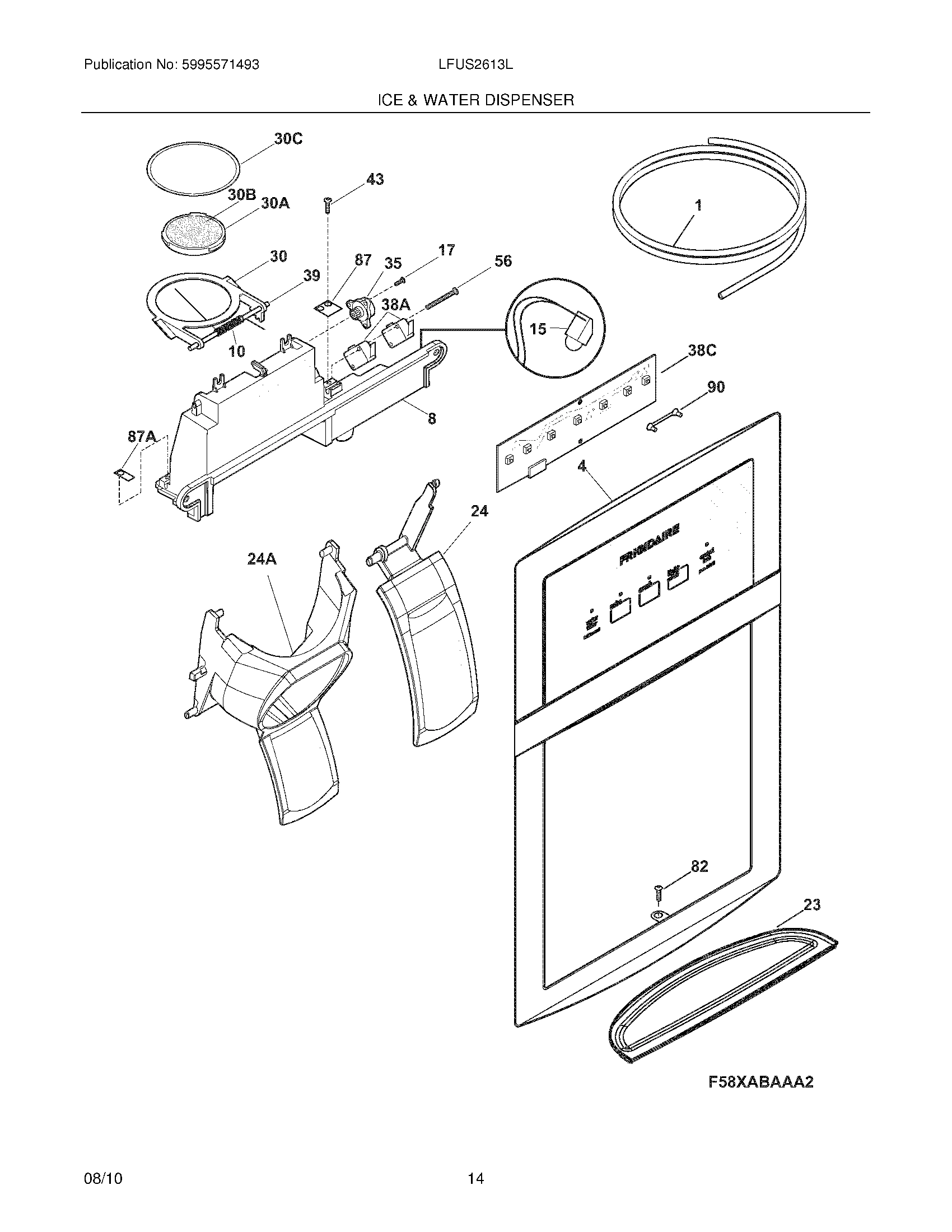

15 - ICE & WATER DISPENSER

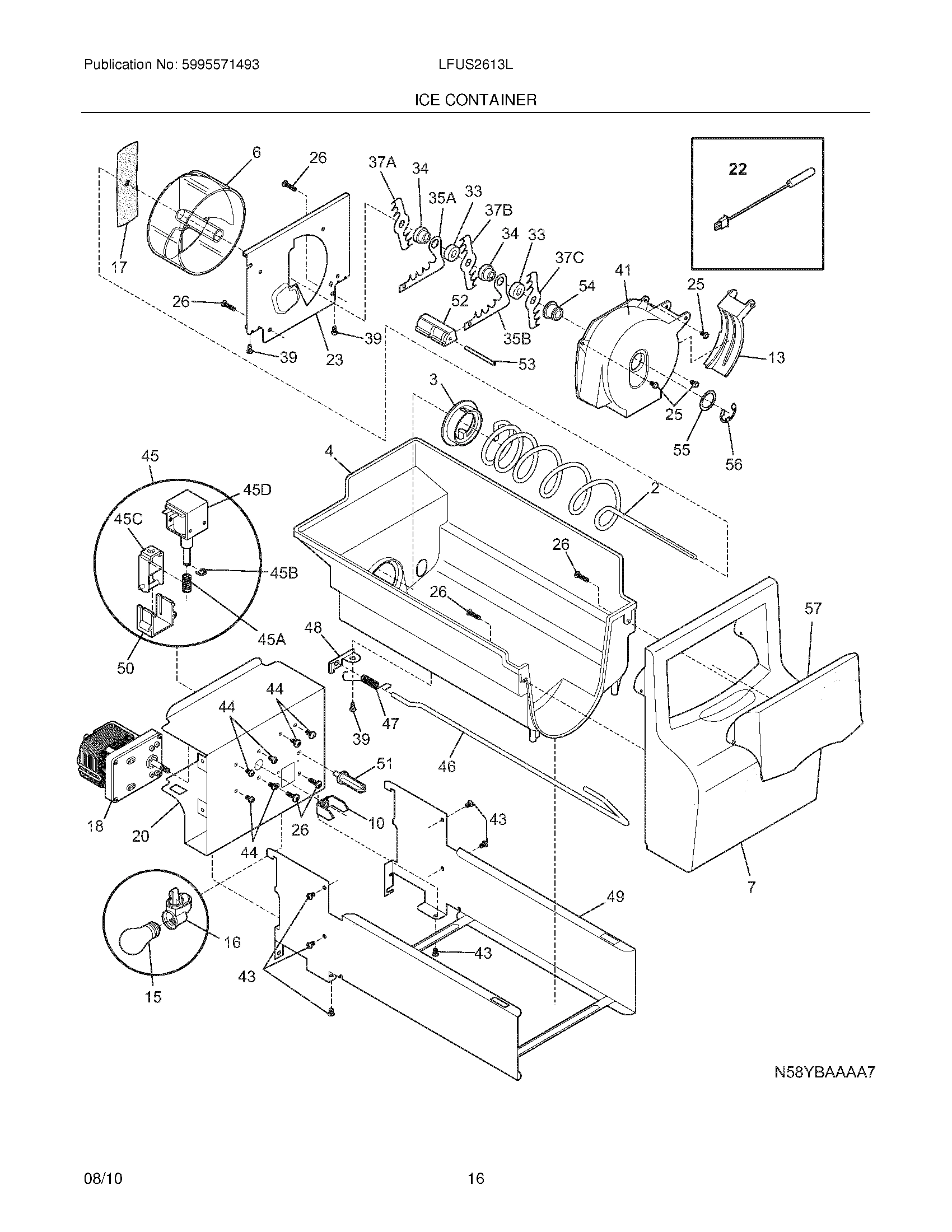

17 - ICE CONTAINER
19 - ICE MAKER
22 - WIRING SCHEMATIC
23 - WIRING DIAGRAM
