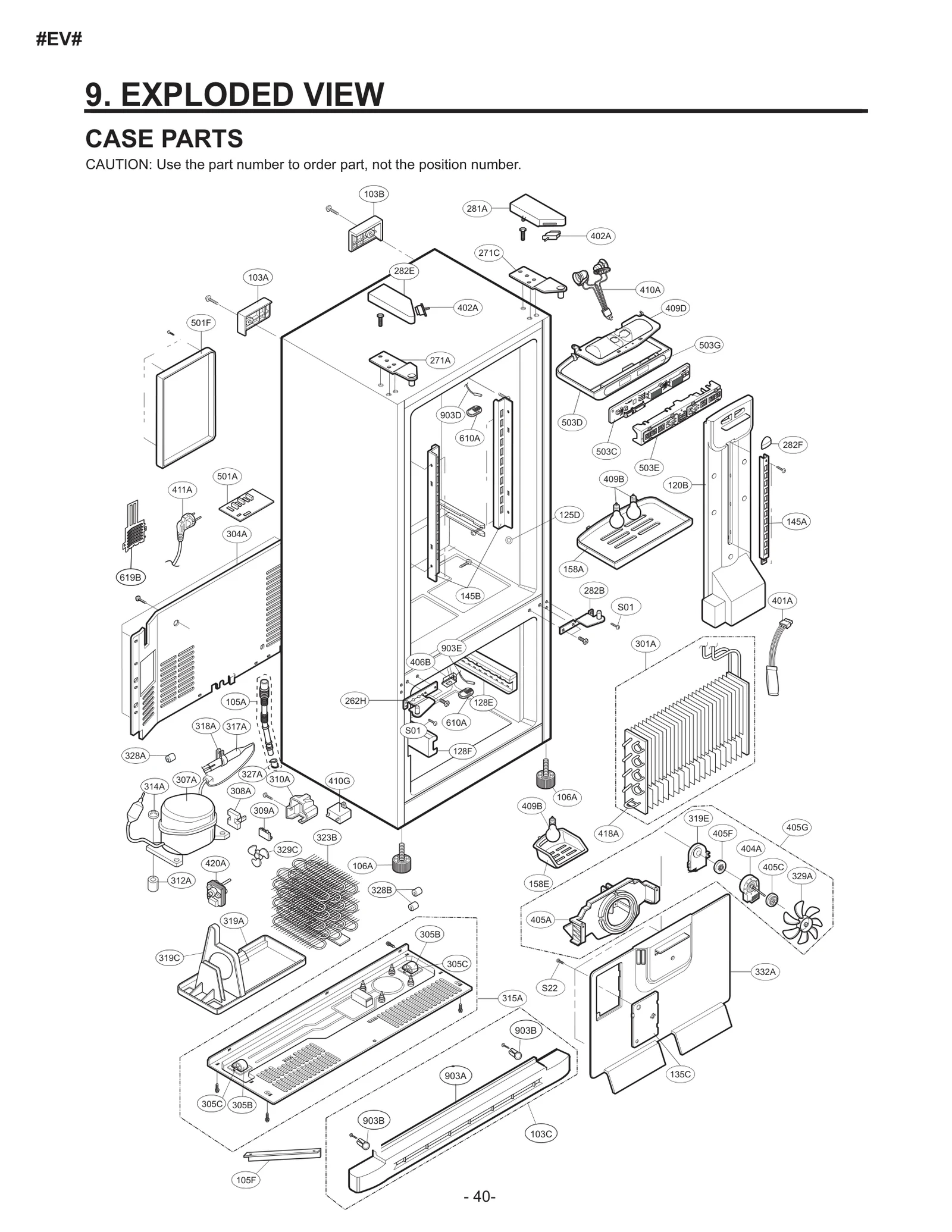

Model LG LFC22740ST – Common Parts &amp; Diagrams

104E

HOLDER ASSEMBLY,GASKET LGE 4931JJ3002A Contact Us For Availability

105A

5251JA3003B LG Drain Tube Assembly Backorder LGE 5251JA3003B $20.63

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $7.08

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $221.89

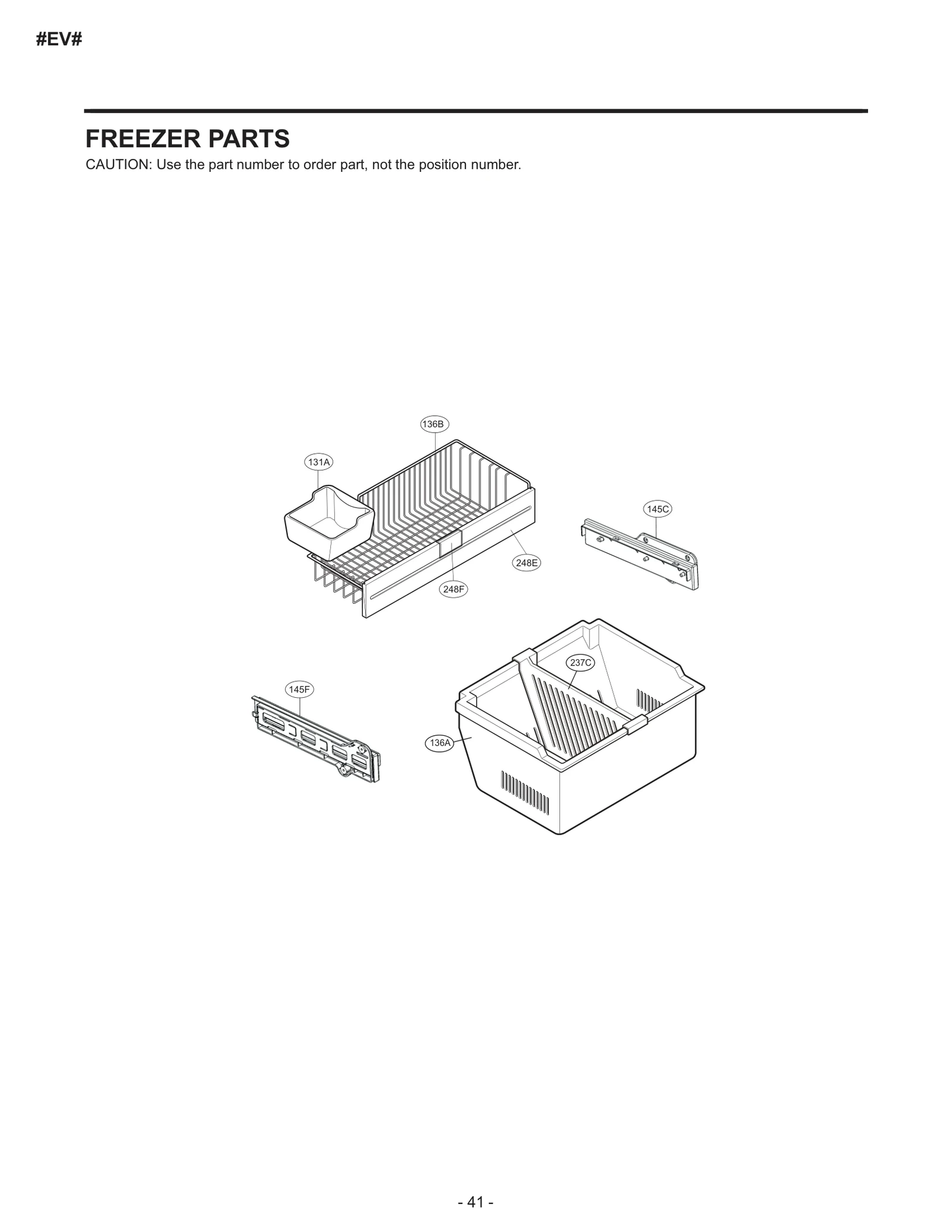

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $26.61

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $26.61

131A

5074JJ1055A LG Refrigerator Freezer Ice Bucke Backorder LGE 5074JJ1055A $111.87

136A

TRAY ASSEMBLY,DRAWER LGE 3391JJ1011B Contact Us For Availability

136B

Tray,Drawer LGE 3390JJ1090B Contact Us For Availability

145C

GUIDE ASSEMBLY,RAIL--RIGHT LGE 4975JJ2028C Contact Us For Availability

145F

GUIDE ASSEMBLY,RAIL---LEFT SIDE LGE 4975JJ2028D Contact Us For Availability

151A

3391JJ1020C LG Refrigerator Crisper Drawer Tr Backorder LGE 3391JJ1020C $189.56

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $41.86

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $34.08

167B

Shelf,Glass LGE 4890JL1002N Contact Us For Availability

170A

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $120.72

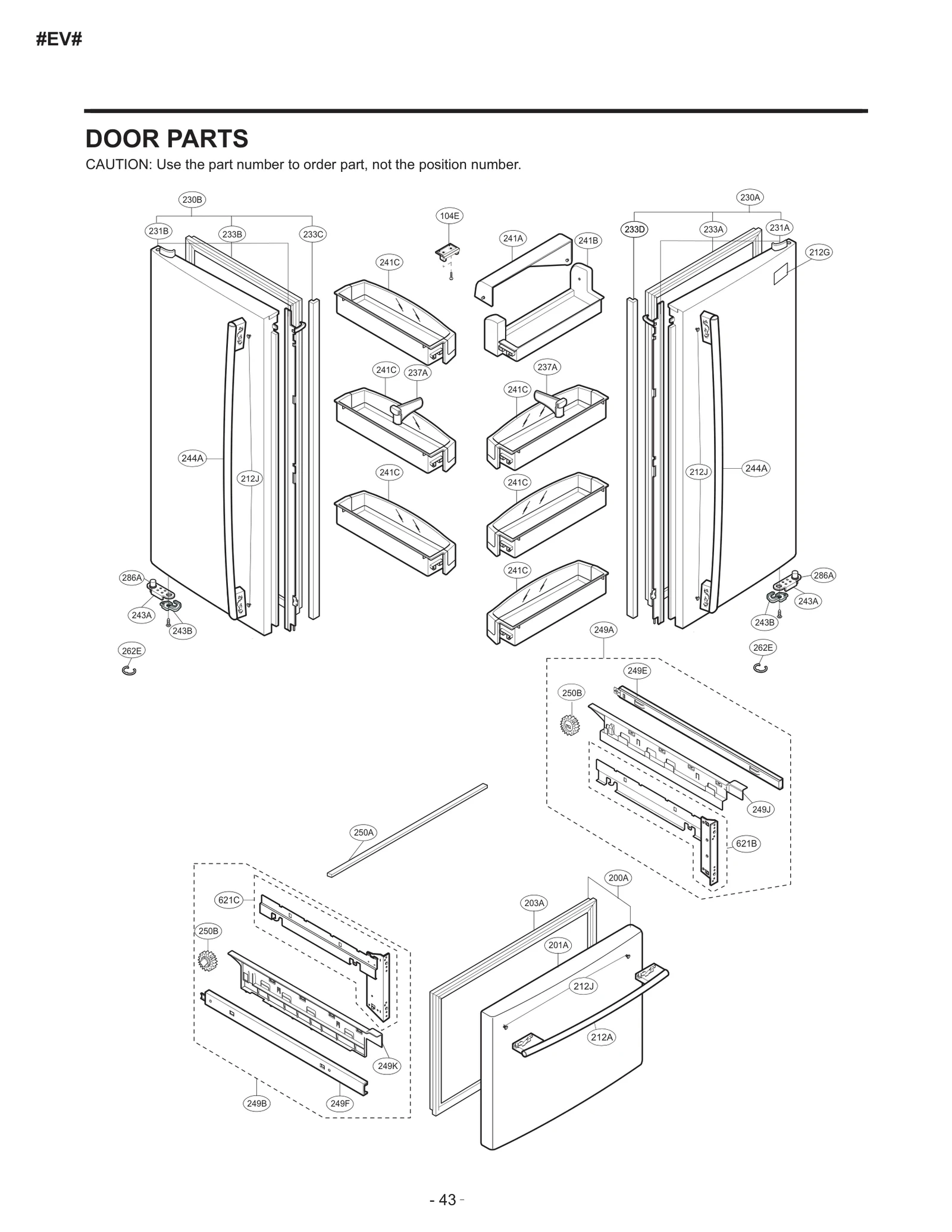

233C

3551JJ2034B LG Front Assembly Cover Backorder LGE 3551JJ2034B $65.22

233D

COVER ASSEMBLY,FRONT LGE 3551JJ2034A Contact Us For Availability

Holder,Gasket (LEFT) LGE 4930JJ2028B Contact Us For Availability

Holder,Gasket LGE 4930JJ2028D Contact Us For Availability

Holder,Gasket LGE 4930JJ2028F Contact Us For Availability

Holder,Gasket LGE 4930JJ2028H Contact Us For Availability

Holder,Gasket (RIGHT) LGE 4930JJ2028A Contact Us For Availability

Holder,Gasket LGE 4930JJ2028E Contact Us For Availability

Holder,Gasket LGE 4930JJ2028G Contact Us For Availability

Holder,Gasket LGE 4930JJ2028C Contact Us For Availability

233G

4430JJ2005B LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005B $16.85

233H

4430JJ2005A LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005A $16.85

241C

BASKET ASSEMBLY,DOOR LGE 5005JJ2022A No Longer Available

243A

STOPPER,DOOR LGE 4620JJ3006C Contact Us For Availability

243B

4620JJ2009A LG Refrigerator Door Stopper In Stock LGE 4620JJ2009A $7.78

243B

MJB63029901 LG Refrigerator Door Hinge Stoppe In Stock LGE MJB63029901 $7.08

249E

5218JA1010E LG Refrigerator Right Side Drawer In Stock LGE 5218JA1010E $138.03

249F

5218JA1010F LG Refrigerator Left Side Drawer In Stock LGE 5218JA1010F $178.30

249J

COVER,CONNECTOR LGE 3550JJ1111A Contact Us For Availability

249K

COVER,CONNECTOR LGE 3550JJ1111B Contact Us For Availability

250A

4270JJ3001A LG Refrigerator Bar Backorder LGE 4270JJ3001A $26.61

250B

4403JJ3001A LG Refrigerator Drawer Glide Gear Backorder LGE 4403JJ3001A $20.63

262D

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $16.85

262E

4350JA3005B LG Refrigerator Snap Retaining Ri In Stock LGE 4350JA3005B $7.78

271A

HINGE ASSEMBLY,U LGE 4775JJ2018B Contact Us For Availability

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $7.78

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $444.54

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $146.31

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $26.61

309A

6750CR0004S LG Overload Protector Backorder LGE 6750CR0004S $109.26

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $11.24

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

319D

AEC72997402 LG Fan Guide Assembly Backorder LGE AEC72997402 $73.06

327A

5006JA3034A LG Refrigerator Drain Tube Cap Backorder LGE 5006JA3034A $6.14

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $7.08

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $20.63

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $20.63

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $46.04

402A

6600JB3007E LG Refrigerator Push Button Switc In Stock LGE 6600JB3007E $20.63

404A

4681JB1029H LG Refrigerator Fan Motor Assembl In Stock LGE 4681JB1029H $92.65

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

405G

BRACKET ASSEMBLY,MOTOR LGE 4811JJ2002H Contact Us For Availability

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.75

409B

LAMP,[INCANDESCENT] LGE 6912JB2004M Contact Us For Availability

409B

Lamp,Incandescent LGE 6912JK2002E Contact Us For Availability

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $65.53

410A

HARNESS LGE 6621JK2003B Contact Us For Availability

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

412D

6877JK2011D LG Harness Assembly Backorder LGE 6877JK2011D $64.95

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $111.87

419B

Pipe,Joint LGE 5200JJ3003E Contact Us For Availability

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $133.78

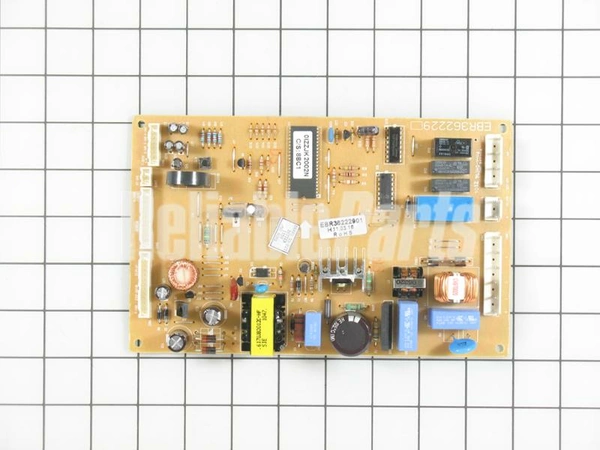

501A

EBR36222901 LG Refrigerator PCB Backorder LGE EBR36222901 $391.18

503C

PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JB2047A Contact Us For Availability

503E

3550JJ2031A LG Display Cover Backorder LGE 3550JJ2031A $26.61

503F

Case Assembly,Display LGE ABQ33905312 Contact Us For Availability

503G

3806JL1049A LG Refrigerator Decorative Contro Backorder LGE 3806JL1049A $41.86

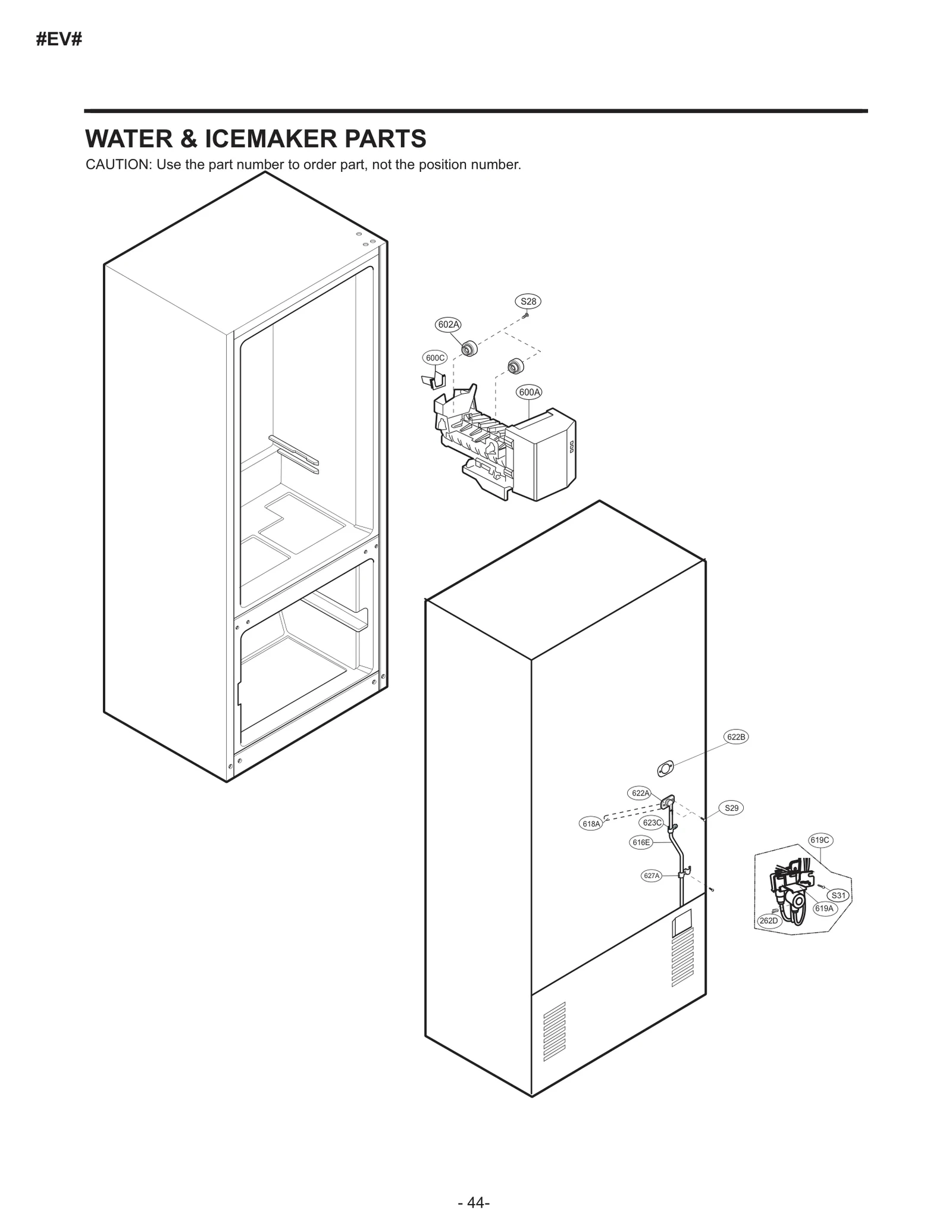

600C

MEA32865501 LG Tube Guide Backorder LGE MEA32865501 $16.85

602A

4931JA3005B LG Refrigerator Bracket Holder As Backorder LGE 4931JA3005B $7.08

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

616E

5210JA3005W LG Refrigerator Plastic Water Lin Backorder LGE 5210JA3005W $11.24

618A

5210JJ3005B LG Refrigerator Ice Maker Injecti Backorder LGE 5210JJ3005B $41.86

619C

5220JA2009D LG Refrigerator Water Inlet Fill Backorder LGE 5220JA2009D $93.59

622A

5040JA2015A LG Refrigerator Rubber Injector S Backorder LGE 5040JA2015A $20.63

622B

BRACKET LGE 4810JA3036A Contact Us For Availability

623C

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $7.08

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $7.08

903A

COVER,LOWER LGE 3550JJ0006C Contact Us For Availability

903B

HOLDER,COVER LOWER LGE 4930JJ2021A No Longer Available

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $7.54

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $7.08

S28

1SZZJJ3005E LG Screw Customized Backorder LGE 1SZZJJ3005E $7.08

S31

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.53

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08
