Model Whirlpool LCR5232HQ2 COMPACT AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

1

WP326018423 Whirlpool Dispenser Assembly Backorder WPL WP326018423 $76.85

1

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

1

Literature Parts (Installation Instructions) WPL LIT3935937 Contact Us For Availability

1

Literature Parts (Use & Care Guide Energy Gui WPL LIT3967363 Contact Us For Availability

1

Literature Parts (French) WPL LIT3967587 Contact Us For Availability

1

Literature Parts (English) WPL LIT3969058 Contact Us For Availability

1

Literature Parts (Wiring Diagram & Tech Sheet WPL LIT3970085 Contact Us For Availability

1

Harns/Power-Cord (Includes Clip) WPL 3970377 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

Filter WPL 3428391 Contact Us For Availability

2

Bracket-Valve WPL 3935155 Contact Us For Availability

2

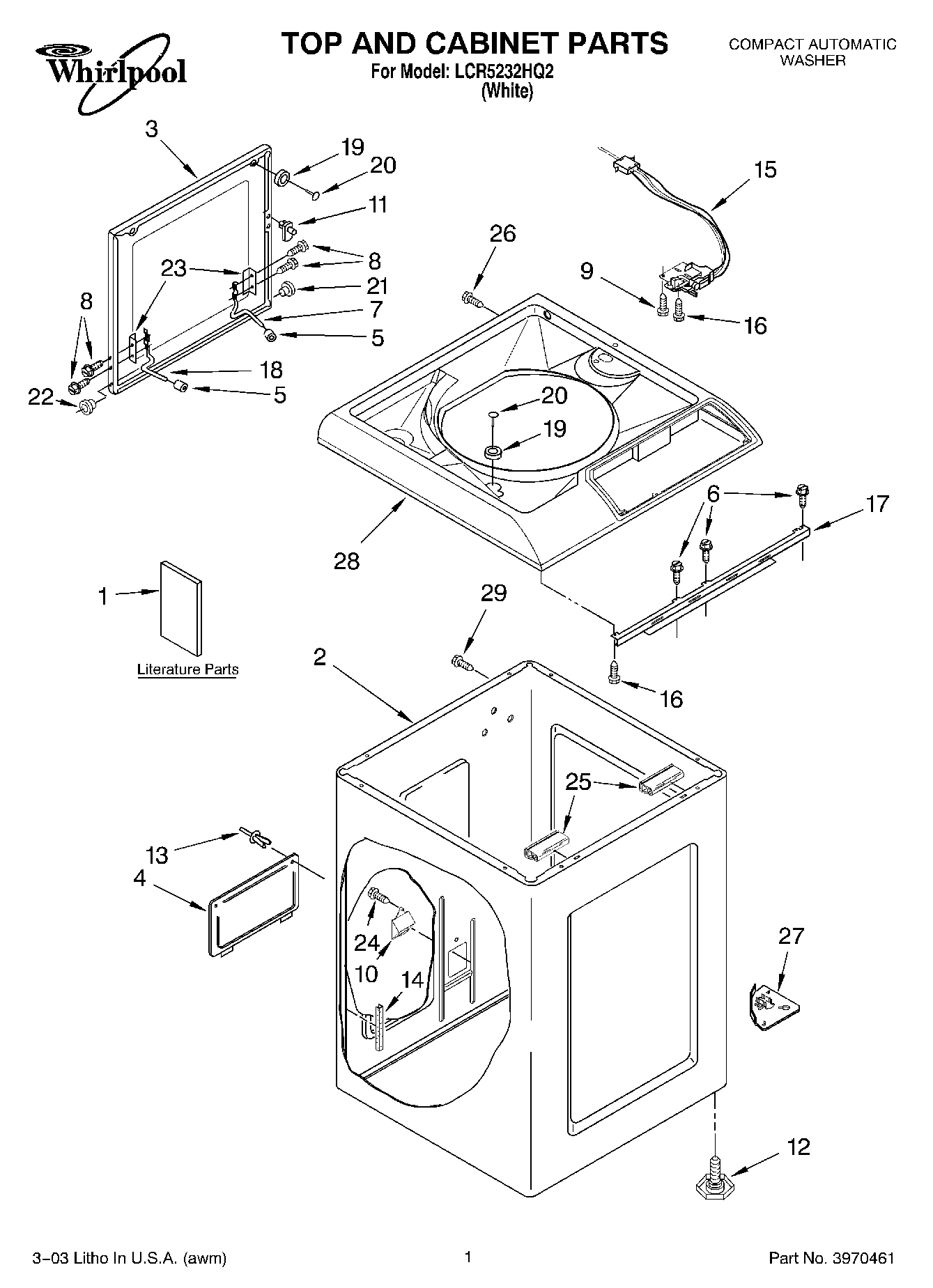

Cabinet WPL 3967826 Contact Us For Availability

2

Kit, (Power Cord Only) WPL 3966718 Contact Us For Availability

3

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $4.82

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3967051 Whirlpool Strap In Stock WPL WP3967051 $4.82

3

WP3969019 Whirlpool Vacuum Break Backorder WPL WP3969019 $3.65

3

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

3

Extension, Start-Pause WPL 3935357 Contact Us For Availability

3

Lid WPL 3935590 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

4

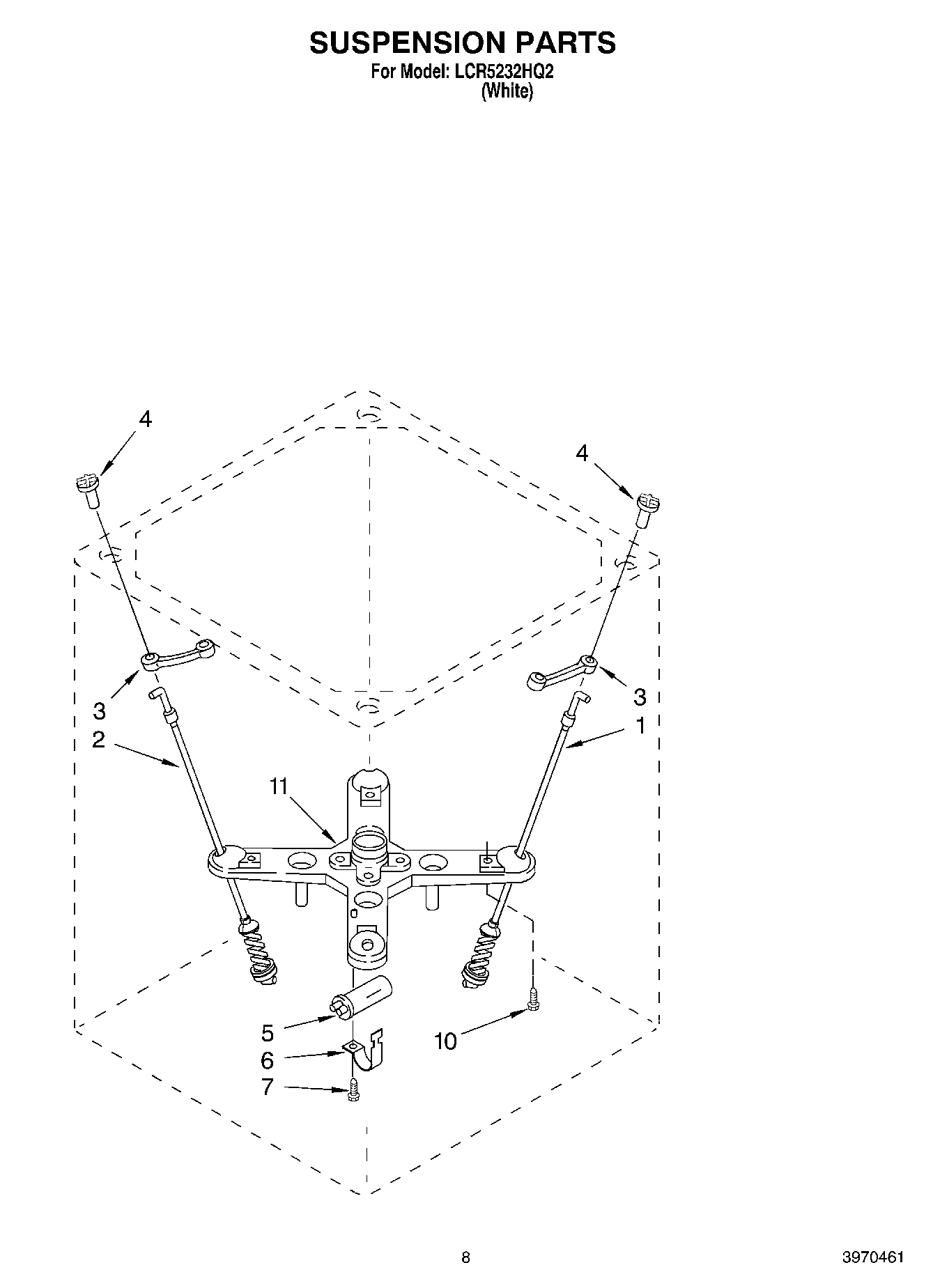

Ball, Upper Suspension (4) WPL 3968380 Contact Us For Availability

4

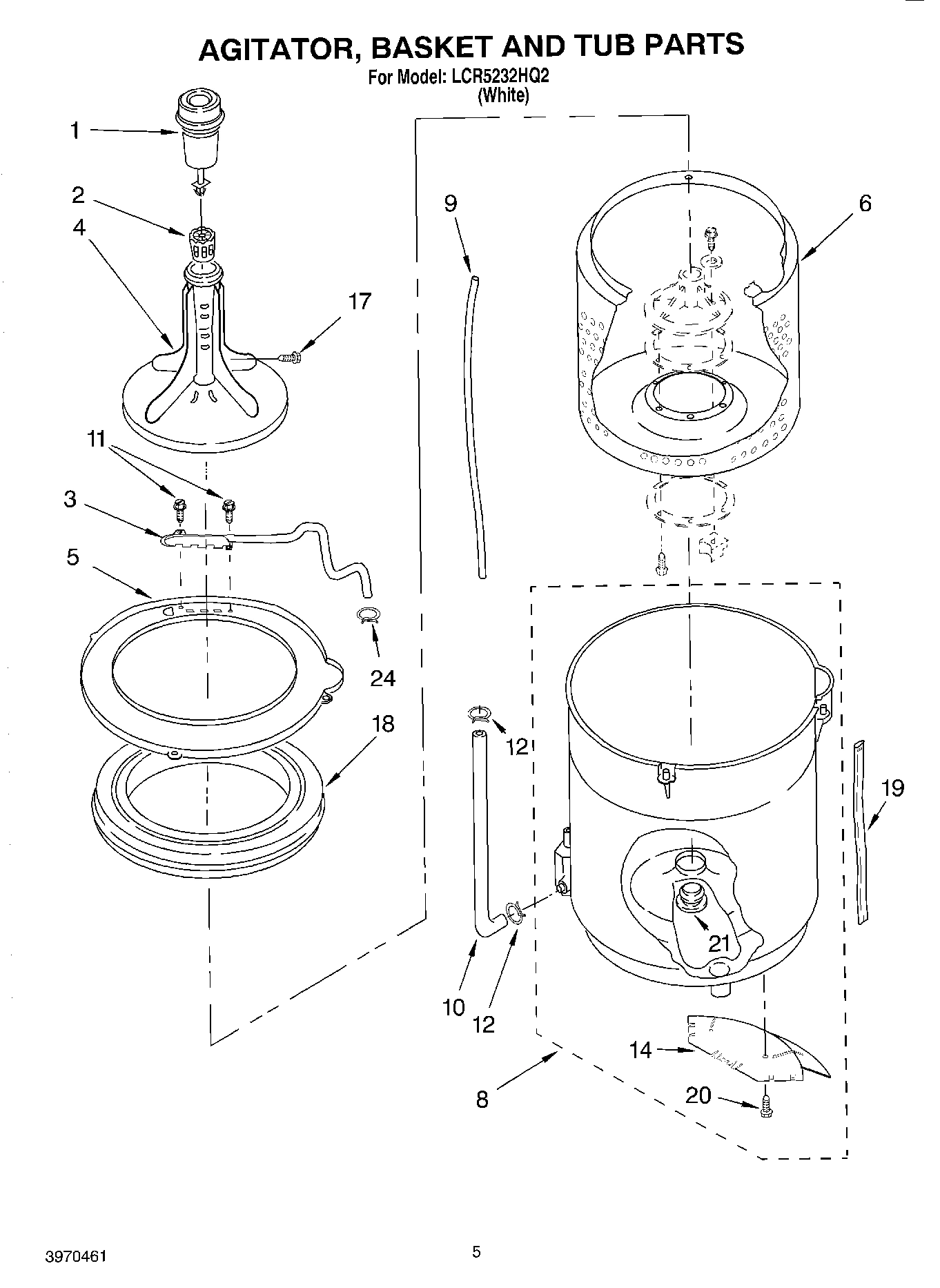

Agitator WPL 3428392 Contact Us For Availability

4

Panel-Cabinet Access WPL 3430058 Contact Us For Availability

5

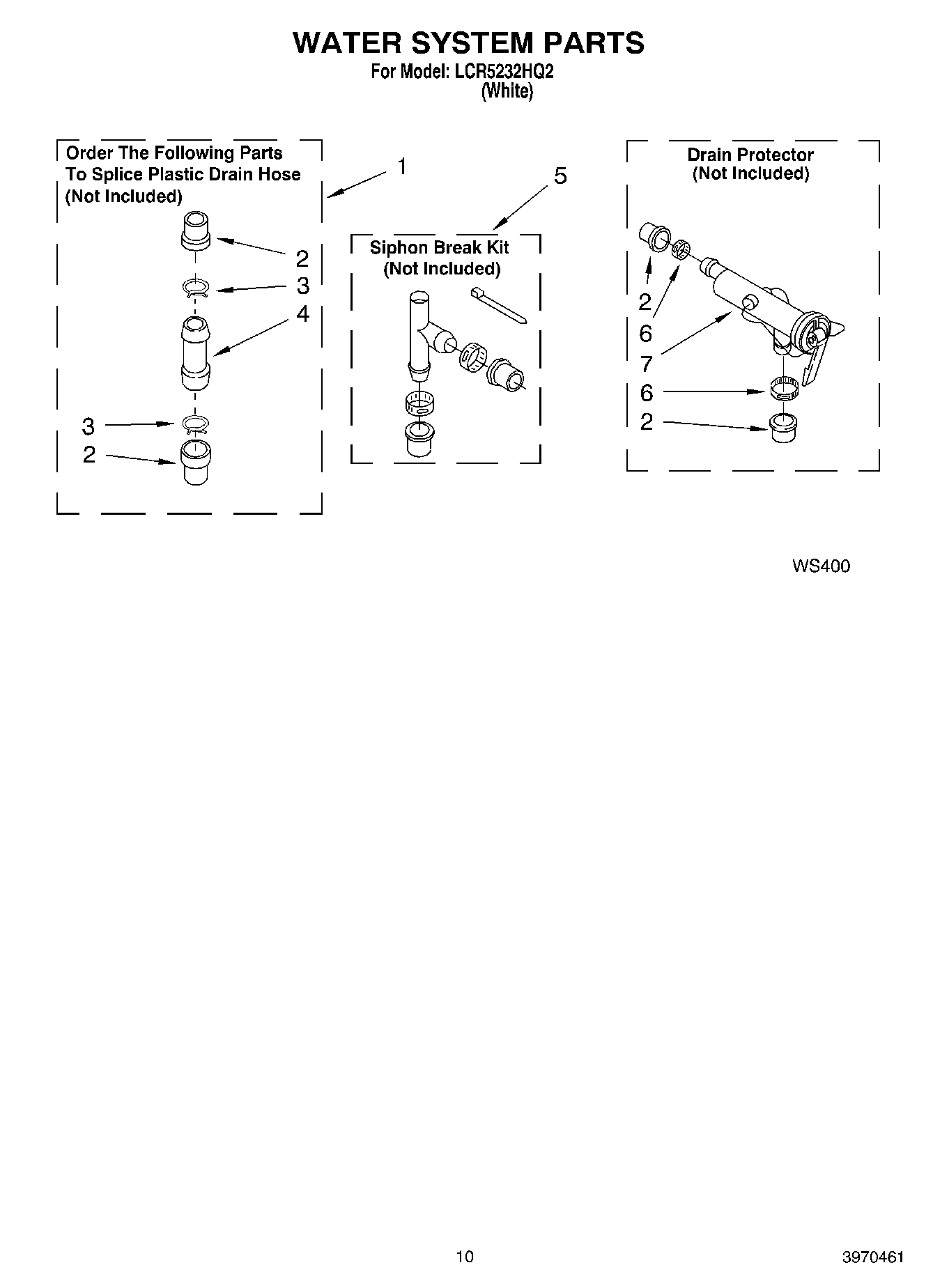

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

5

Capacitor WPL 3429938 Contact Us For Availability

5

Tub Ring WPL 3968262 Contact Us For Availability

5

Clip, Harness WPL 3935875 Contact Us For Availability

6

285677 Whirlpool Convection Kit Backorder WPL 285677 $125.82

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

49971 Whirlpool Compact Washer Stand, White Backorder WPL 49971 $271.45

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Basket WPL 3428186 Contact Us For Availability

6

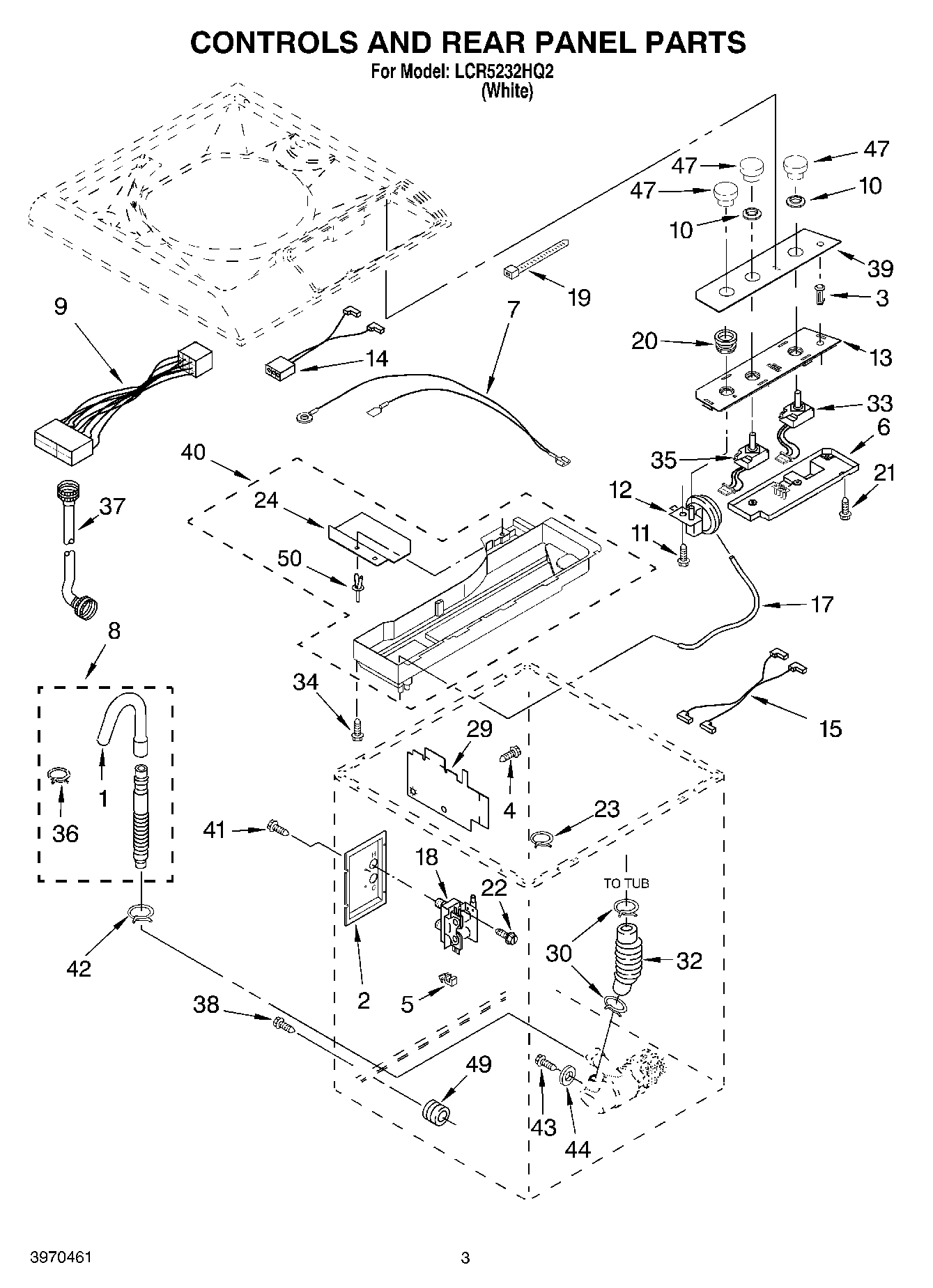

Timer/Control Board WPL 3970435 Contact Us For Availability

6

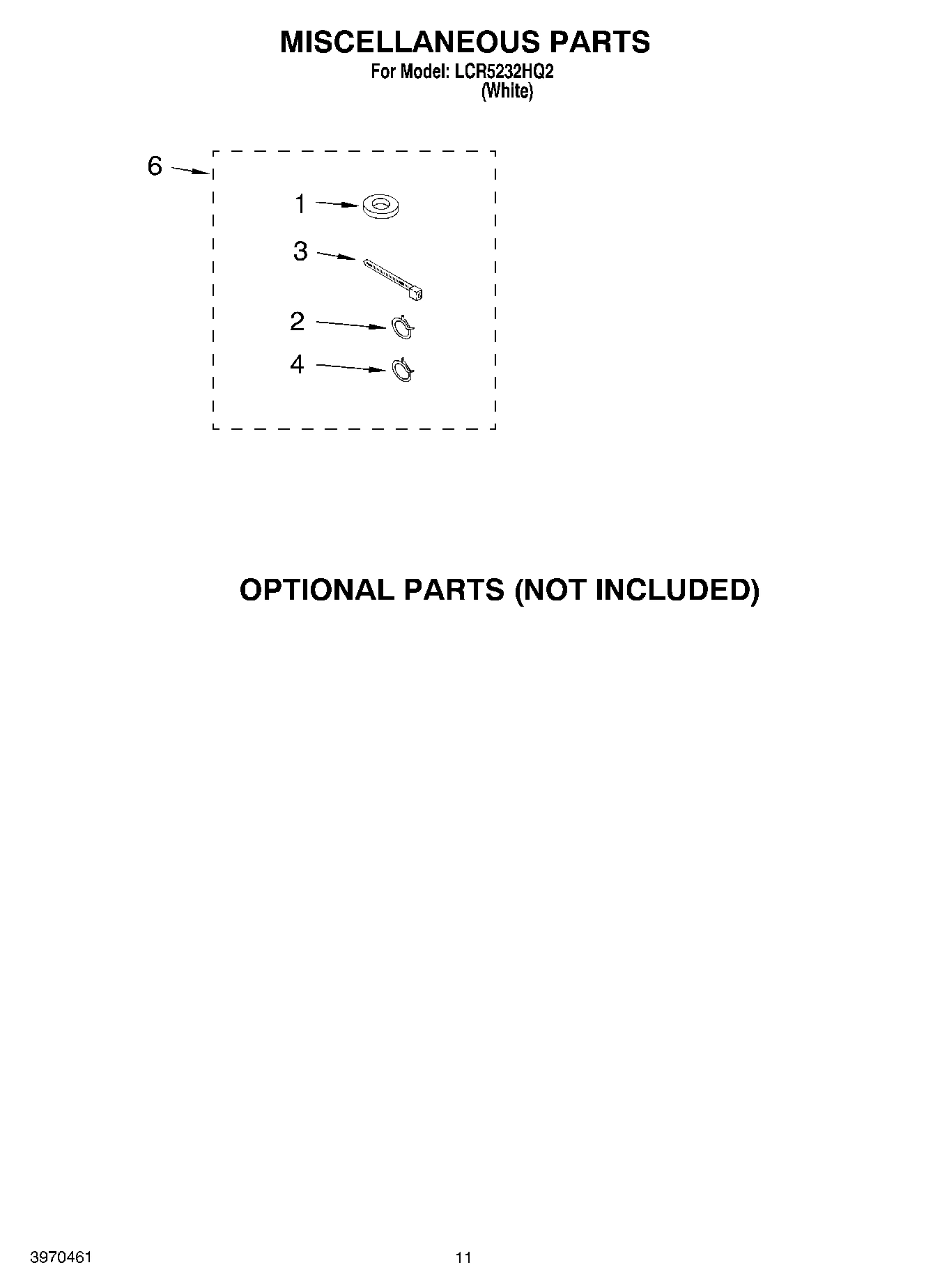

Miscellaneous Parts Bag Miscellaneous parts m WPL 3428855 Contact Us For Availability

6

Stationary To Portable WPL 3935674 Contact Us For Availability

6

COUPLING WPL ARI156734A Contact Us For Availability

6

CONVERSION KIT WPL ARI156735A Contact Us For Availability

6

DRYER STACK STAND WPL ARI156736A Contact Us For Availability

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Screw, Bracket WPL 3934040 Contact Us For Availability

7

Jumper-Wire WPL 3935929 Contact Us For Availability

7

Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

8

Tub & Inlet Asm WPL 3968473 Contact Us For Availability

9

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

9

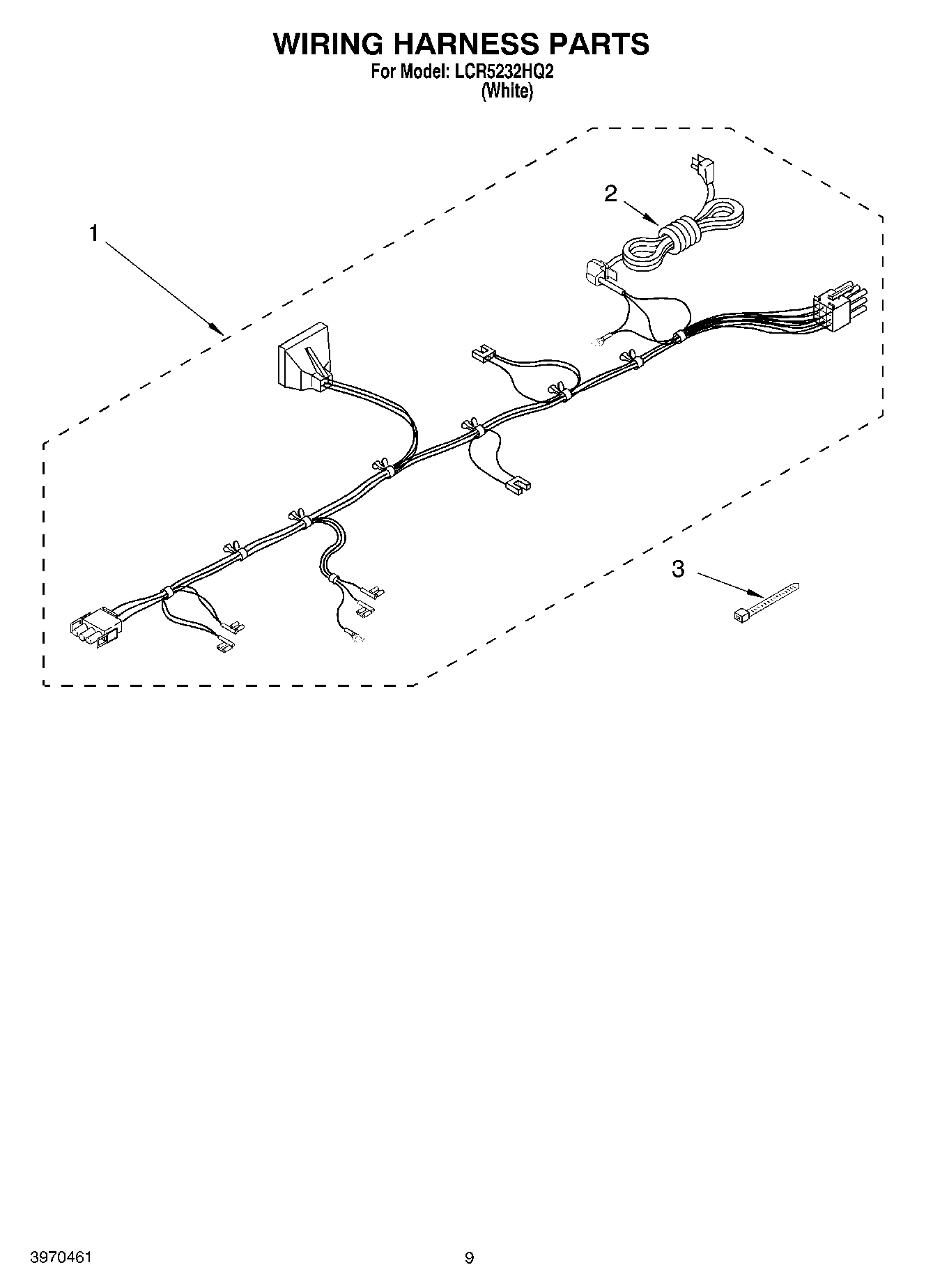

Harness, Control Board WPL 3970202 Contact Us For Availability

9

Screw WPL 3935634 Contact Us For Availability

Screw (4) WPL 3428033 Contact Us For Availability

Hose, Bleach WPL 3430339 Contact Us For Availability

Seal WPL 3935353 Contact Us For Availability

Cover, Pump WPL 3428525 Contact Us For Availability

11

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $4.82

11

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

11

Support, Tub (Includes Bearing) WPL 3966528 Contact Us For Availability

12

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

12

Switch, Water Level WPL 3966790 Contact Us For Availability

12

Foot (4) WPL 3429895 Contact Us For Availability

13

Bracket, Control (Must Order No. 3 And No. 3 WPL 3967605 Contact Us For Availability

13

Rivet, Plastic (2) WPL 3429823 Contact Us For Availability

14

Shield, Tub/Motor WPL 3428814 Contact Us For Availability

14

Harness, Lid Switch WPL 3970203 Contact Us For Availability

14

Protector, Edge WPL 3429705 Contact Us For Availability

15

285935 Whirlpool Lid Switch Backorder WPL 285935 $76.20

15

Harness, Pressure Switch WPL 3970204 Contact Us For Availability

16

Screw, Lid Switch WPL 3935602 Contact Us For Availability

17

W11700520 Whirlpool Screw Backorder WPL W11700520 $8.89

17

Hose, Pressure Switch WPL 3969225 Contact Us For Availability

17

Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability

Drive Belt WPL 3934700 Contact Us For Availability

Balance Ring WPL 3934565 Contact Us For Availability

Valve, Water Mixing WPL 3360396 Contact Us For Availability

Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability

19

Hose, Tub Overflow WPL 3966238 Contact Us For Availability

19

Bumper WPL 3935442 Contact Us For Availability

20

Seal, Pressure Switch WPL 3935354 Contact Us For Availability

20

Rivet WPL 3430186 Contact Us For Availability

21

Screw, Control Board (5) WPL 3934036 Contact Us For Availability

21

Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability

22

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

22

Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability

23

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

23

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $19.79

23

Clamp, Hose (2) WPL 3968185 Contact Us For Availability

24

Shield, Harness WPL 3935672 Contact Us For Availability

24

Screw WPL 3400038 Contact Us For Availability

25

Extrude-Top WPL 3935201 Contact Us For Availability

26

Screw (4) WPL 3429189 Contact Us For Availability

27

Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability

27

Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability

28

Top WPL 3968521 Contact Us For Availability

29

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

29

Shield, Water Valve WPL 3935995 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

32

Hose, Pump To Tub WPL 3429900 Contact Us For Availability

33

Switch, Cycle Selection WPL 3966207 Contact Us For Availability

35

Switch, Water Temperature WPL 3966209 Contact Us For Availability

37

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

39

Panel, Console WPL 3935526 Contact Us For Availability

40

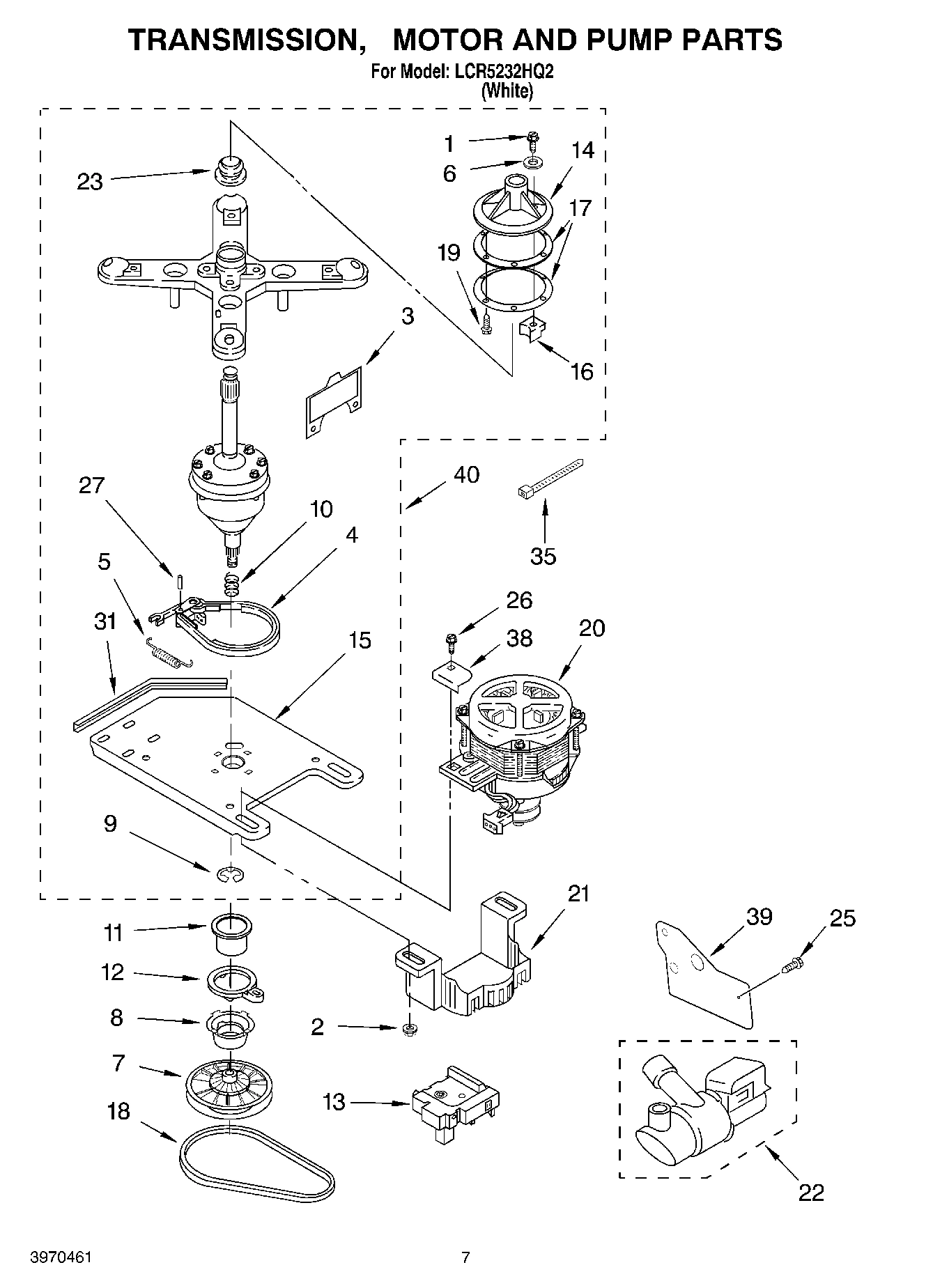

Transmission Kit WPL 3966743 Contact Us For Availability

40

Top, Shield Asm WPL 3970443 Contact Us For Availability

41

Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability

42

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $37.84

49

Grommet, Pump (3) WPL 3428526 Contact Us For Availability
