Model Whirlpool KUIS18PNJW5 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

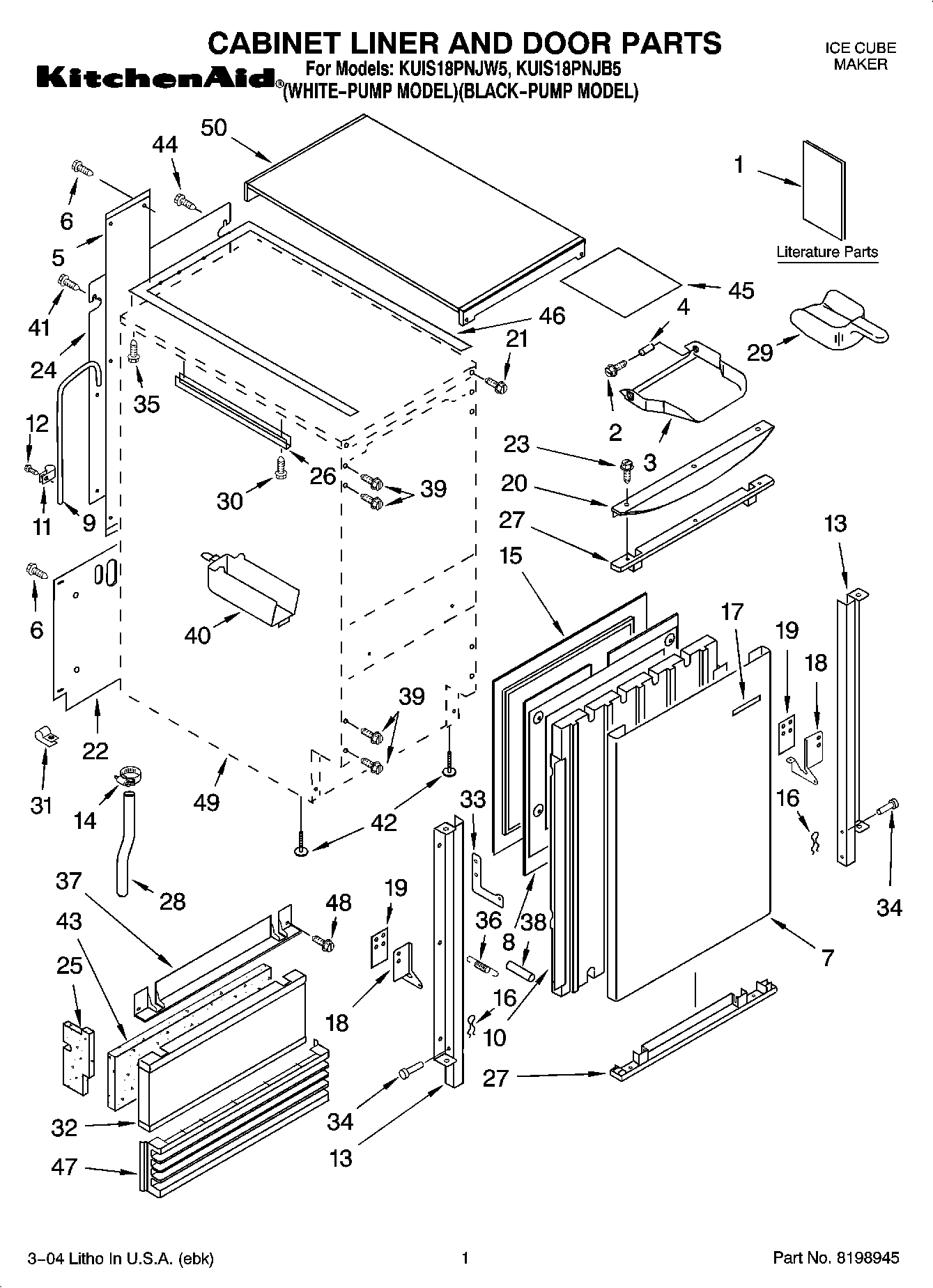

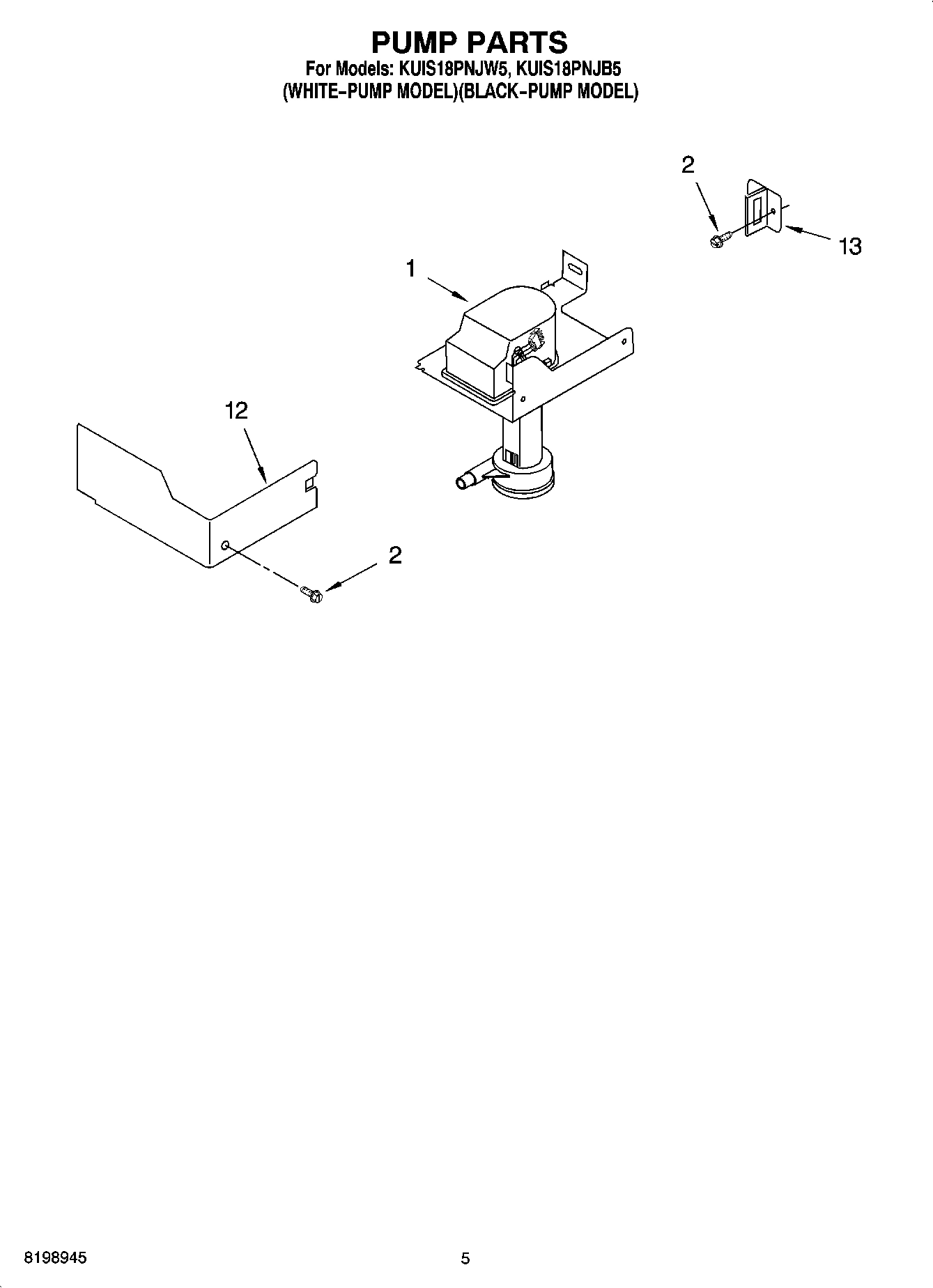

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $249.53

1

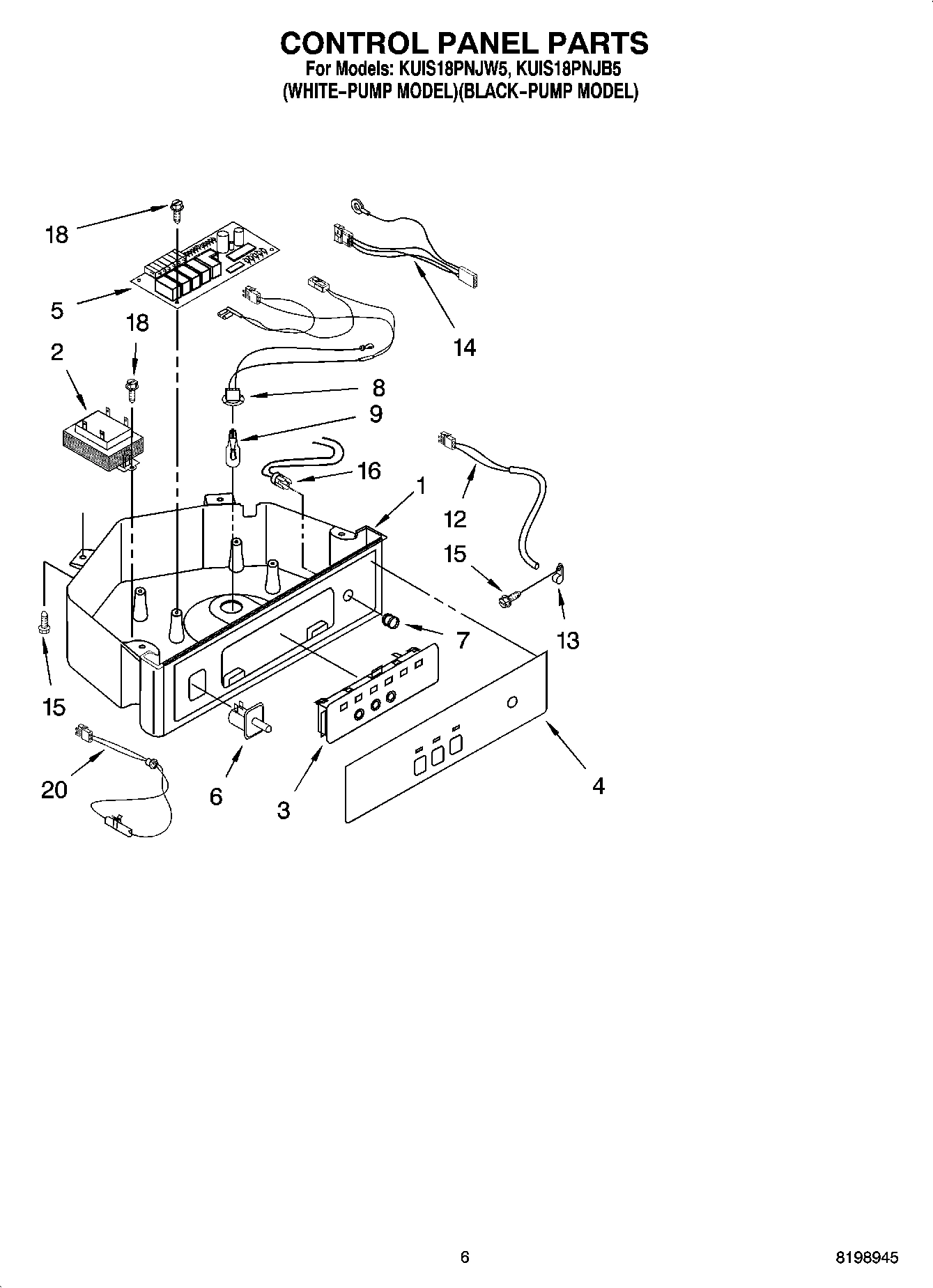

Box, Control WPL 2185738 Contact Us For Availability

2

Transformer WPL 2185657 Contact Us For Availability

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER 4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $6.97

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $49.99

4

Overlay WPL 2208317W Contact Us For Availability

5

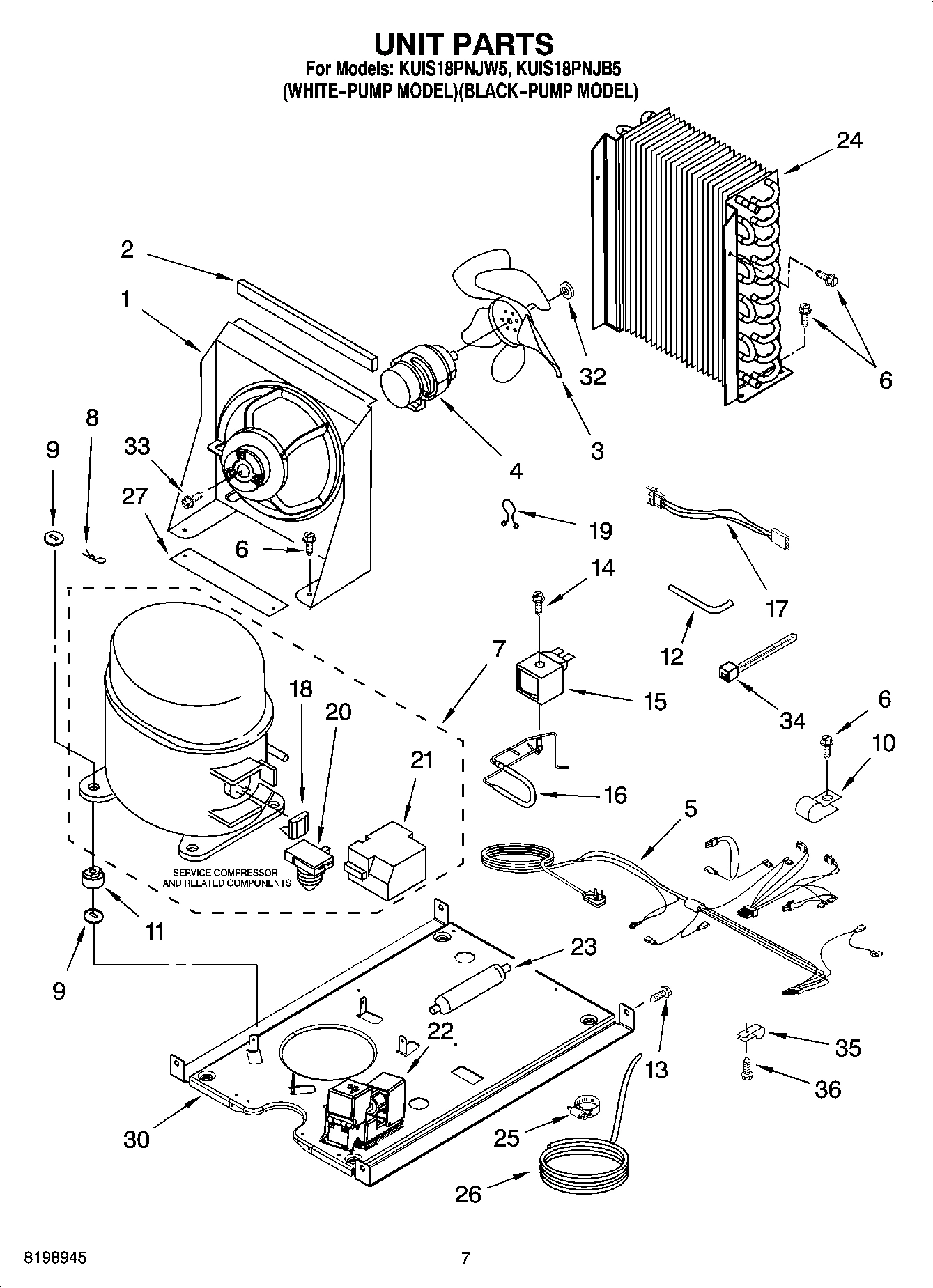

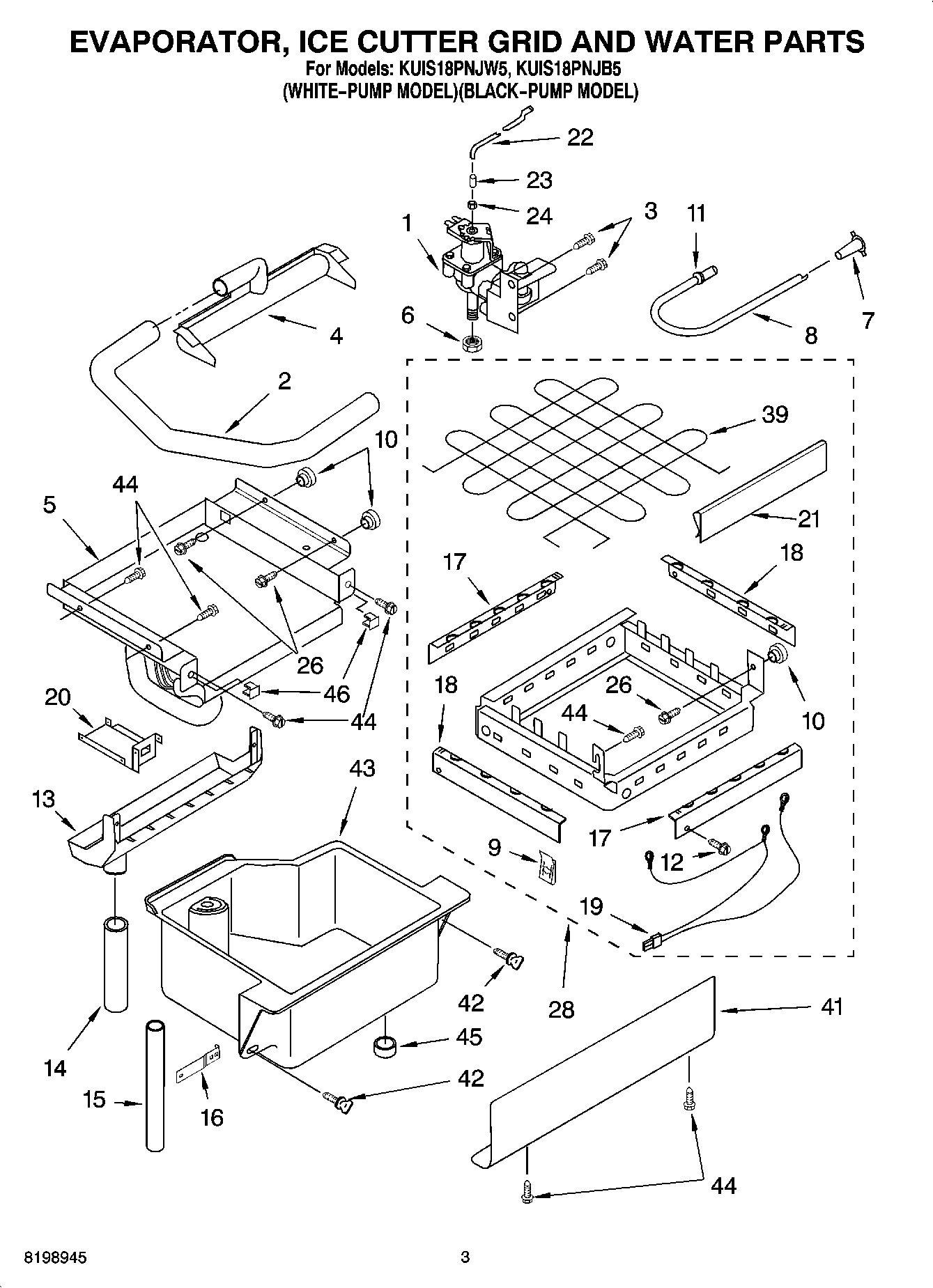

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $468.58

5

P.C. Board WPL 6100499 Contact Us For Availability

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

7

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

7

Lens, LED WPL 2185694 Contact Us For Availability

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.85

8

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

8

Wiring Harness Grid/ Light WPL 2185692 Contact Us For Availability

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $8.39

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.85

9

Bulb WPL 745362 Contact Us For Availability

10

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $6.88

11

Fastener, Pushnut WPL 2208539 Contact Us For Availability

12

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $61.51

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $84.86

13

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $55.55

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $117.74

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $71.89

14

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

14

Wiring Harness, Main to Pump, WPL 2185703 Contact Us For Availability

15

W11624959 Whirlpool Refrigerator Door Gasket Backorder WPL W11624959 $144.39

15

WP2313890 Whirlpool Overflow Hose Backorder WPL WP2313890 $50.03

15

Coil, Solenoid WPL 759112 Contact Us For Availability

16

Support, Reservoir Bracket WPL 2217378 Contact Us For Availability

16

LED Assembly WPL 2187256 Contact Us For Availability

17

Bracket, Front and Rear WPL 2185615 Contact Us For Availability

2208426 Whirlpool Refrigerator Hinge Backorder WPL 2208426 $81.25

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $17.09

WP2217223 Whirlpool Refrigerator Overload Rel Backorder WPL WP2217223 $89.94

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $4.82

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $89.54

2208427 Whirlpool Refrigerator Support Backorder WPL 2208427 $69.59

WP2217224 Whirlpool Refrigerator Start Relay In Stock WPL WP2217224 $65.99

Handle, Door (Black) WPL 2208440B Contact Us For Availability

Thermister, Ice Control WPL 2217289 Contact Us For Availability

21

Guide, Ice Grid WPL 2217310 Contact Us For Availability

22

Tube WPL 2208533 Contact Us For Availability

23

WP487627 Whirlpool Refrigerator Sleeve Backorder WPL WP487627 $7.19

24

WP245183 Whirlpool Nut Backorder WPL WP245183 $4.82

25

2217225 Whirlpool Refrigerator Foam Pad Backorder WPL 2217225 $60.94

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $10.19

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $4.82

27

2208350W Whirlpool Endcap Backorder WPL 2208350W $62.97

27

W11413461 Whirlpool Refrigerator Endcap Backorder WPL W11413461 $39.54

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

28

Tube, Drain WPL 2208459 Contact Us For Availability

29

W11420408 Whirlpool Refrigerator Ice Scoop In Stock WPL W11420408 $10.46

31

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

32

2208382B Whirlpool Refrigerator Grill Panel Backorder WPL 2208382B $154.40

32

2208382W Whirlpool Refrigerator IM Panel Backorder WPL 2208382W $131.99

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

33

2208487 Whirlpool Bracket Backorder WPL 2208487 $53.56

34

Pin, Hinge WPL 2208417 Contact Us For Availability

35

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $16.99

35

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

36

Spring WPL 2208480 Contact Us For Availability

37

2208383B Whirlpool Refrigerator Endcap Backorder WPL 2208383B $74.16

37

2208383W Whirlpool Refrigerator End Cap Backorder WPL 2208383W $70.58

38

Dampener, Spring WPL 2208529 Contact Us For Availability

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $40.99

39

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

40

Holder, Scoop WPL 2208449 Contact Us For Availability

41

2208365 Whirlpool Refrigerator Panel Backorder WPL 2208365 $73.20

42

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $57.34

42

Thumbscrew WPL 8281228 Contact Us For Availability

43

2208384 Whirlpool Refrigerator Insulation Backorder WPL 2208384 $106.34

43

Reservoir, Water WPL 8201653 Contact Us For Availability

44

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $4.82

44

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

45

2185690 Whirlpool Shield Assembly Backorder WPL 2185690 $9.71

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $19.99

46

2217296 Whirlpool Refrigerator Top Gasket Backorder WPL 2217296 $98.37

46

WP3400909 Whirlpool Refrigerator Nut In Stock WPL WP3400909 $4.82

47

2217206W Whirlpool Refrigerator Grille Backorder WPL 2217206W $54.71

47

WP2217206B Whirlpool Refrigerator Grille Backorder WPL WP2217206B $71.16

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

49

Cabinet & Liner (Not Serviced) WPL ARI117050A Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W11179302 Whirlpool Ice Machine Cleaner In Stock WPL W11179302 $15.99

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $44.99

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

WPL 978029 WPL 978029 Contact Us For Availability

WPL 2929701B WPL 2929701B Contact Us For Availability

WPL 2929701W WPL 2929701W Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
