Model Whirlpool KUDB23HY2 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Wood Top Kit WPL 4162841 Contact Us For Availability

Insulation Kit (Kit Includes Tub, Kickboard, WPL 4171179 Contact Us For Availability

Adjustable Kickboard Kit WPL 4171476 Contact Us For Availability

White (R.H.) WPL 4171632 Contact Us For Availability

Almond (R.H.) WPL 4171633 Contact Us For Availability

White (L.H WPL 4171634 Contact Us For Availability

WPL 4171635 WPL 4171635 Contact Us For Availability

WPL 4171641 WPL 4171641 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 9741358 WPL 9741358 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT9741252 WPL LIT9741252 Contact Us For Availability

WPL LIT9741514 WPL LIT9741514 Contact Us For Availability

WPL LIT9741526 WPL LIT9741526 Contact Us For Availability

WPL LIT9741780 WPL LIT9741780 Contact Us For Availability

1

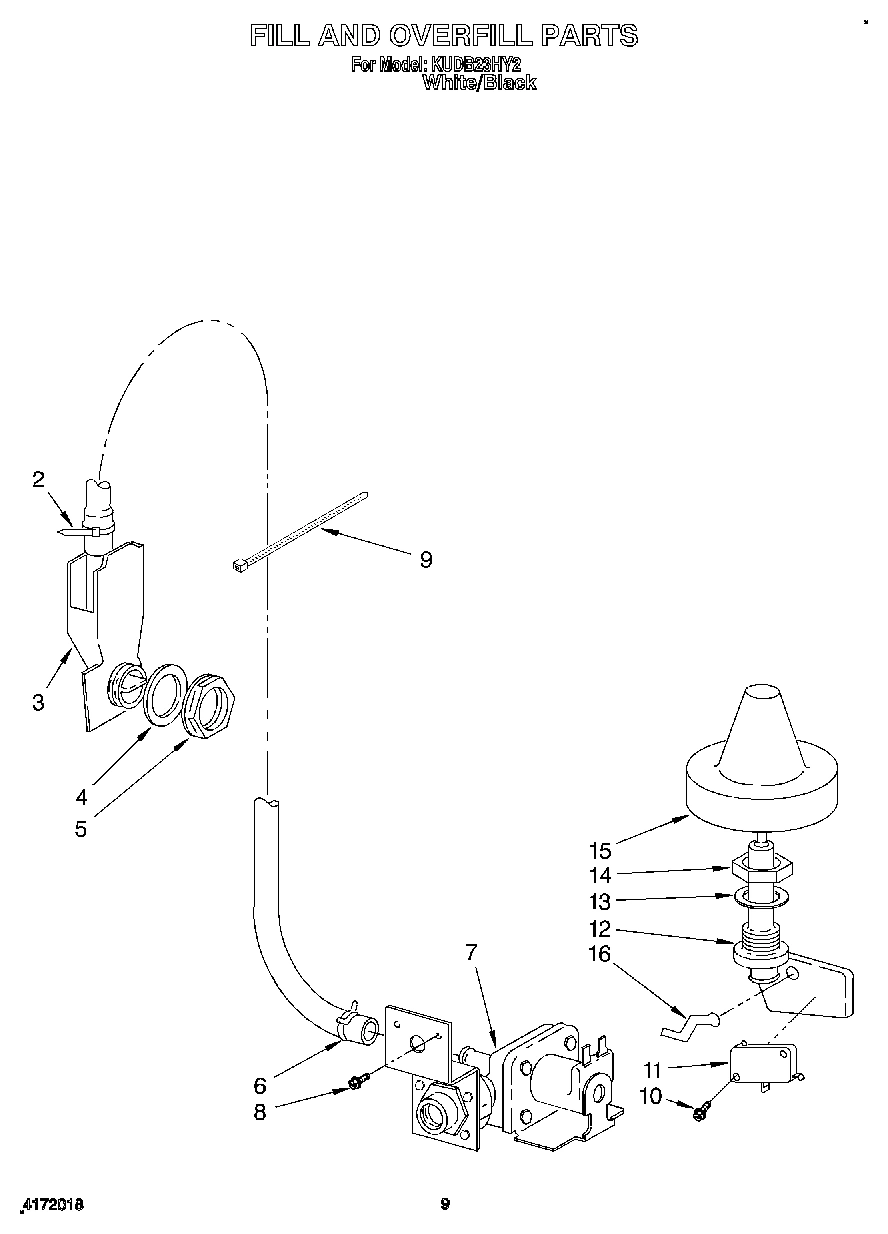

Inlet Base Assy. (Also Order Item 30) See Not WPL 675704 Contact Us For Availability

1

Limiter Ground Terminal WPL 9740978 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Tube & Connector Assembly WPL 9740307 Contact Us For Availability

1

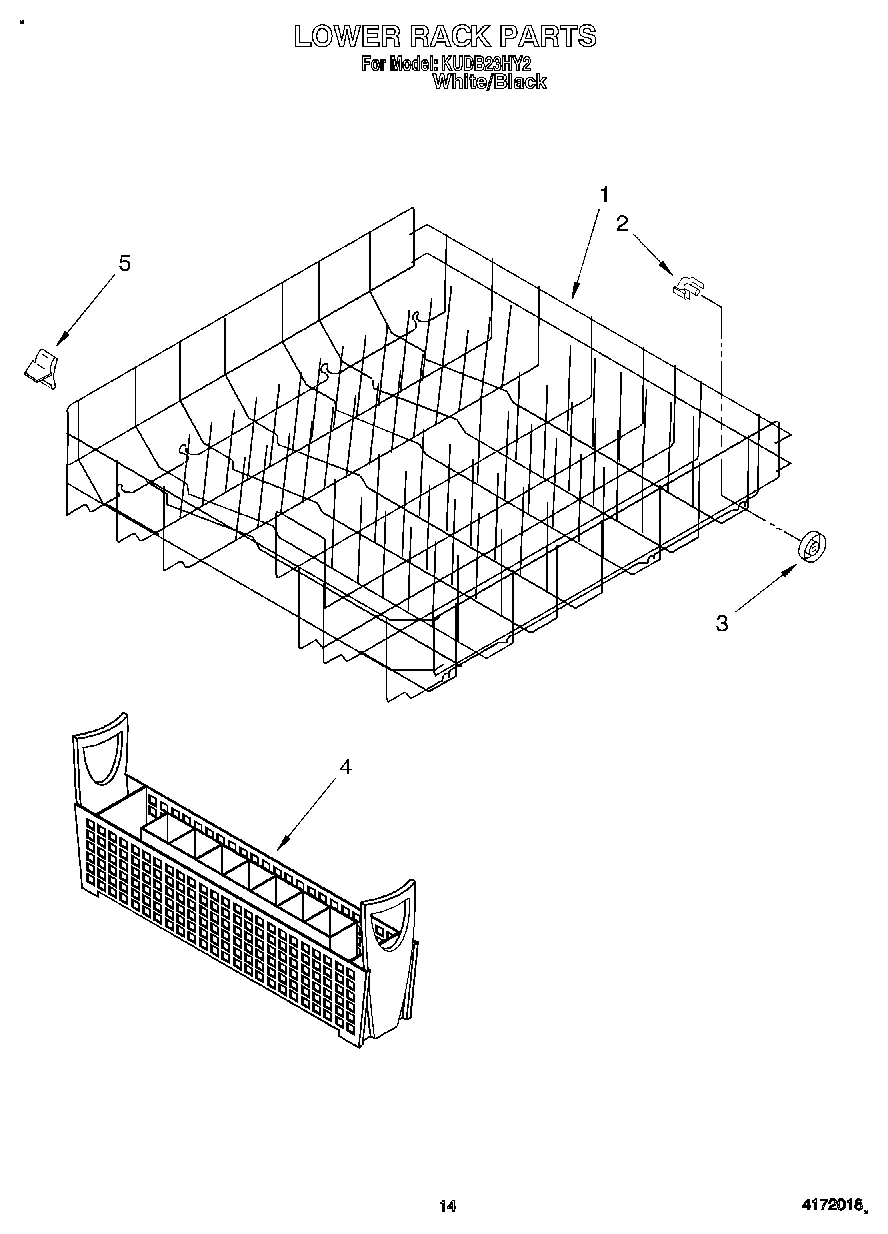

Lower Rack Assembly (Includes Items 2, 3 & 5) WPL 4171638 Contact Us For Availability

1

Insulator, Latch WPL 4171130 Contact Us For Availability

1

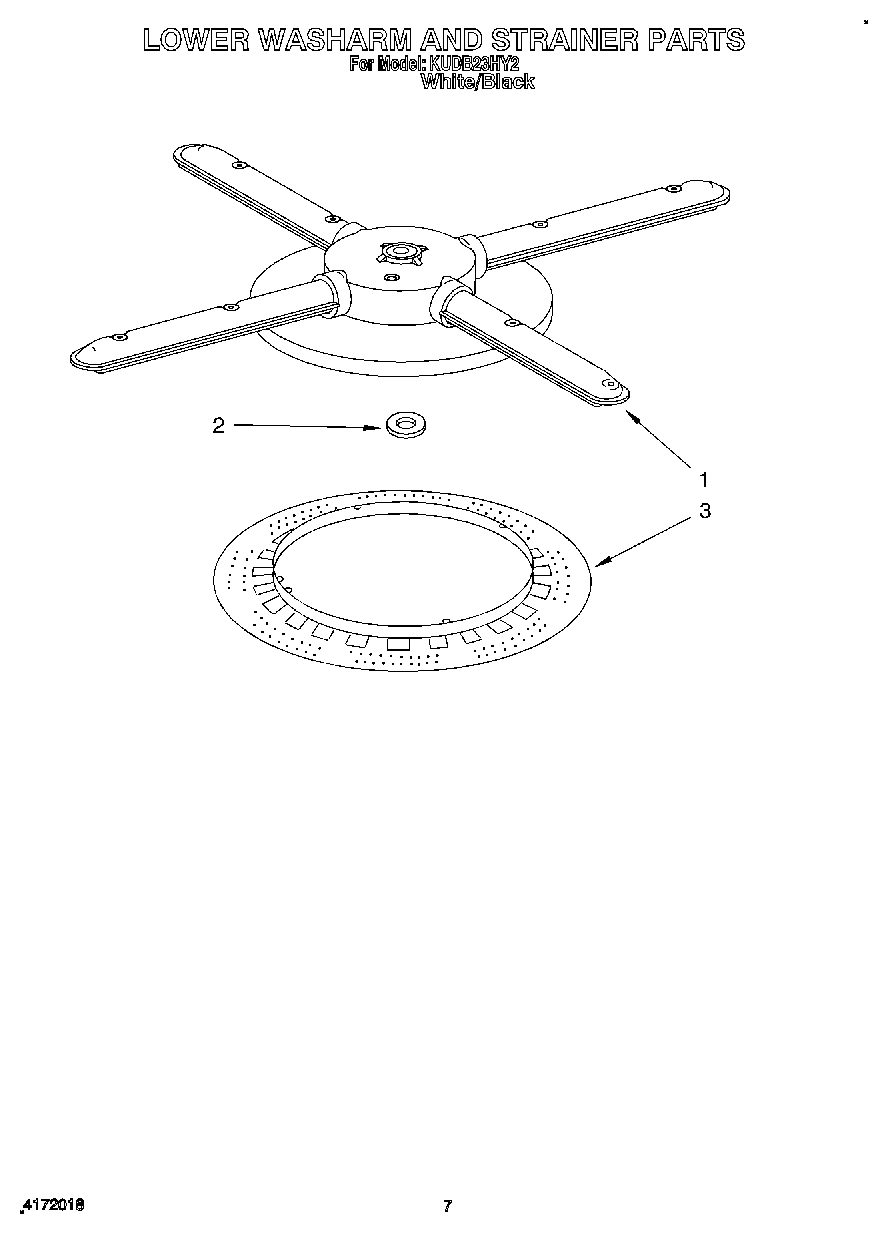

Wash Arm Assembly WPL 9740787 Contact Us For Availability

1

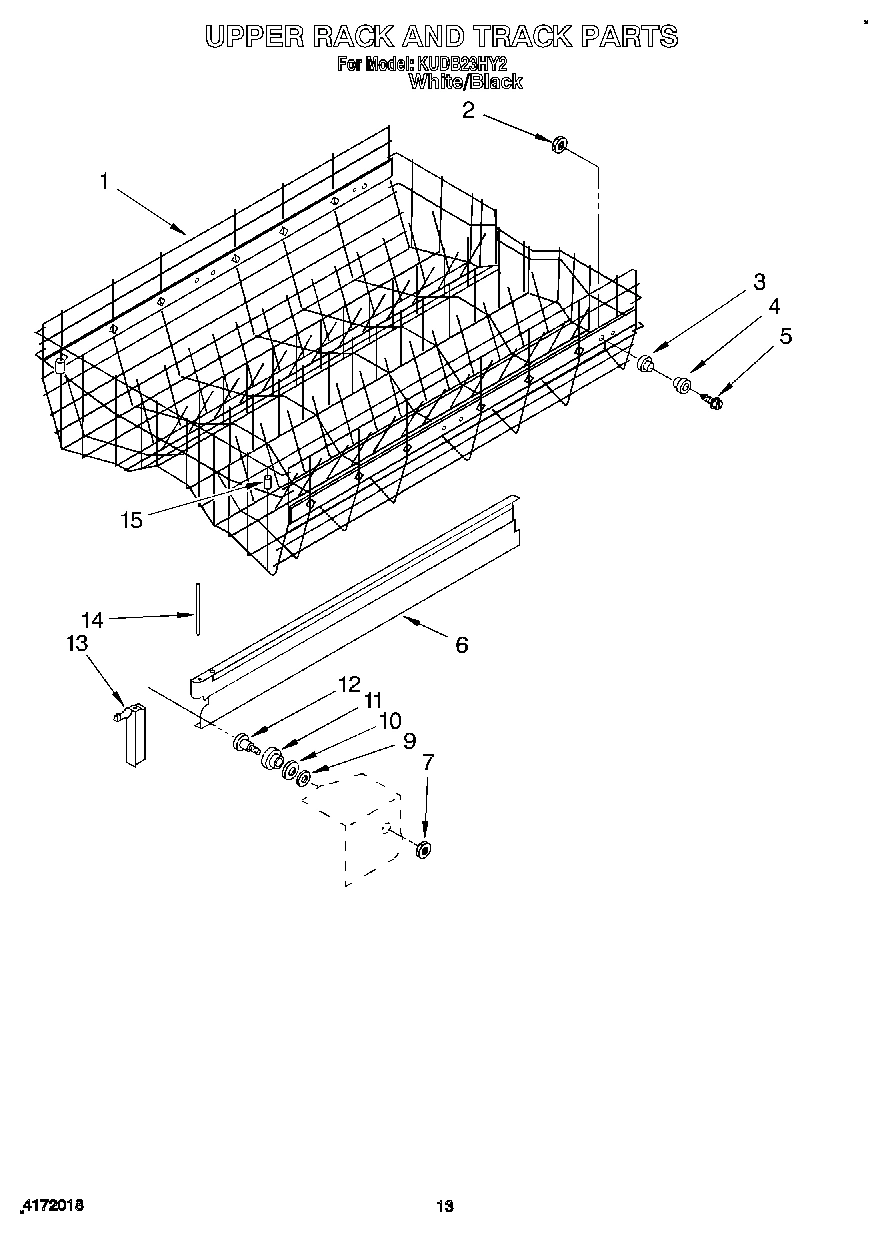

Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4171570 Contact Us For Availability

1

Screw, 6-32 X 7/8 WPL 4159436 Contact Us For Availability

2

Axle, Lower Rack (8) WPL 4162321 Contact Us For Availability

2

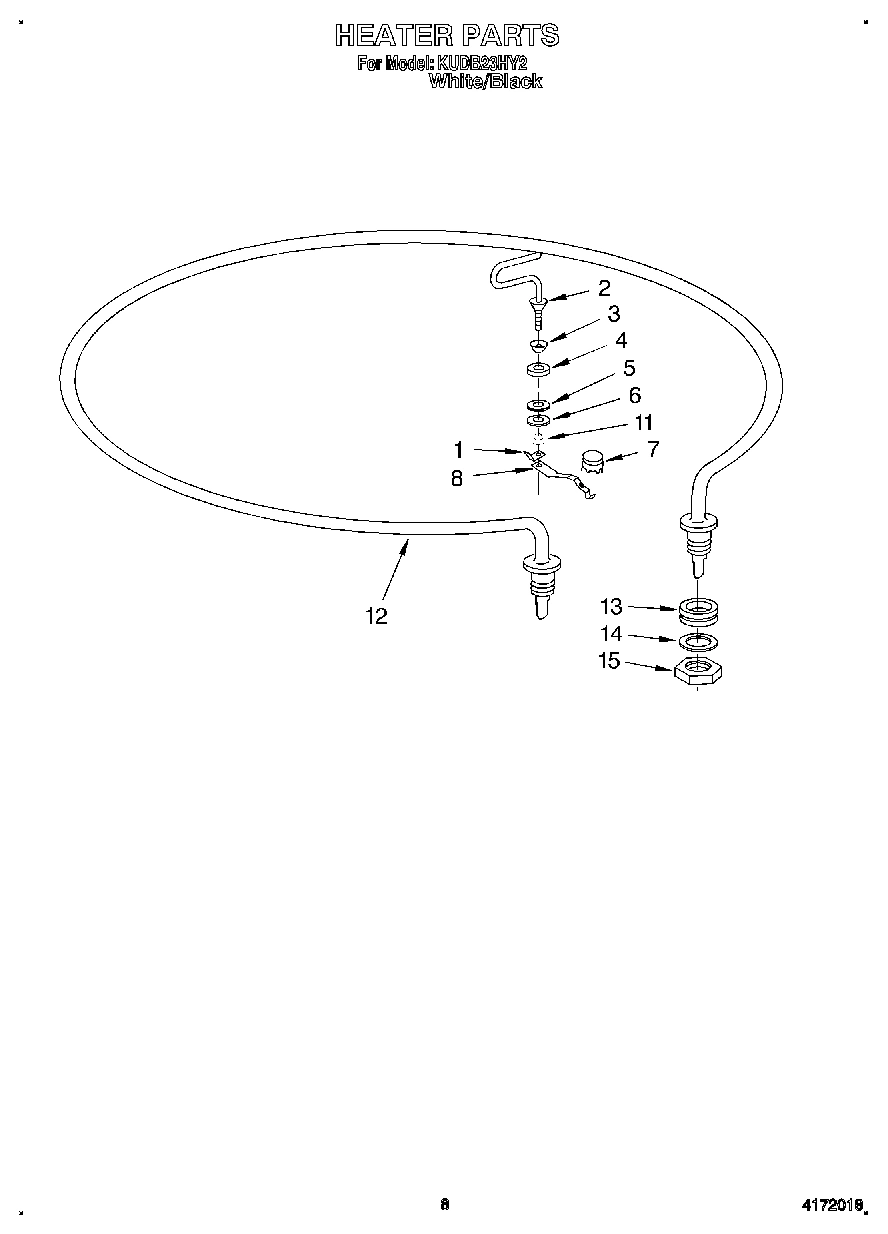

Hook, Heater Element WPL 4163549 Contact Us For Availability

2

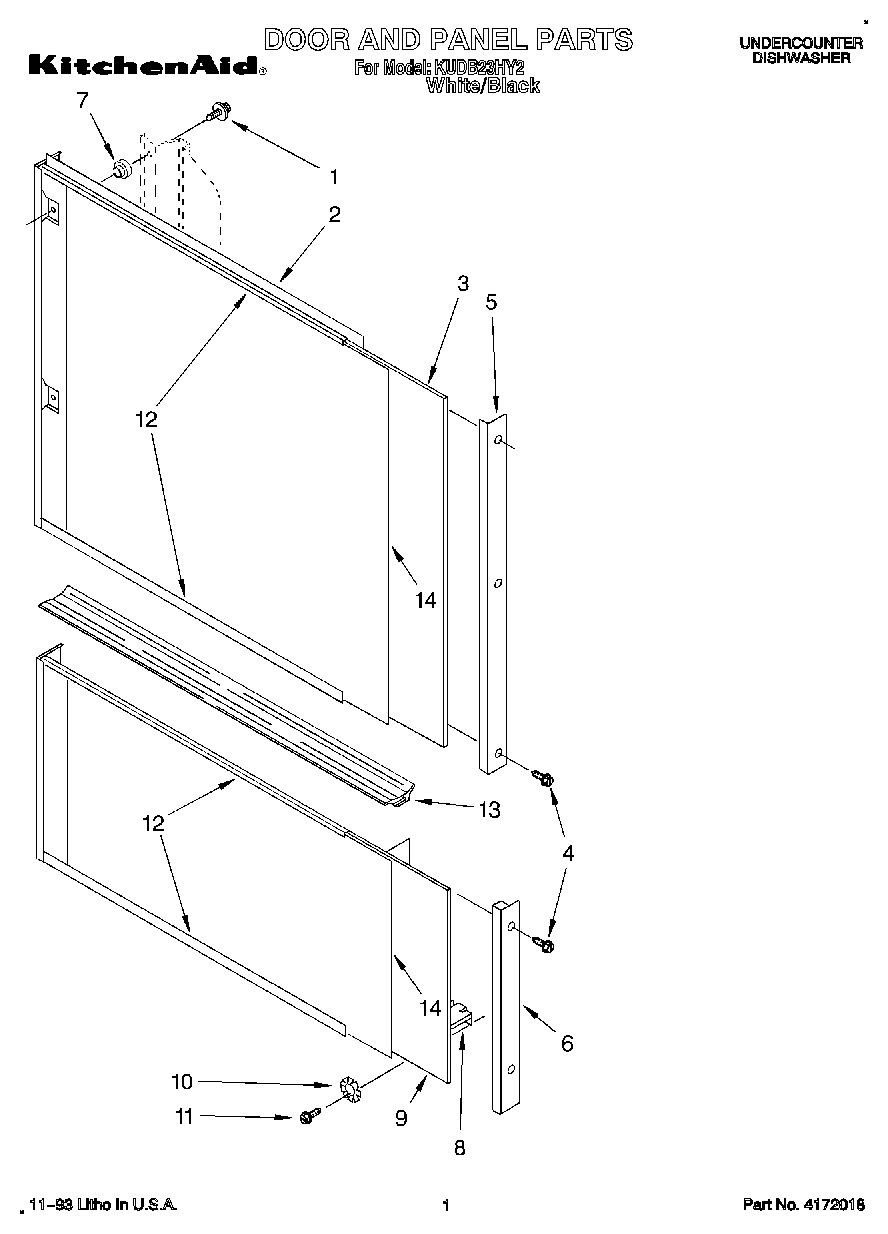

Upper Mounting Panel Assembly (Includes Upper WPL 4171622 Contact Us For Availability

2

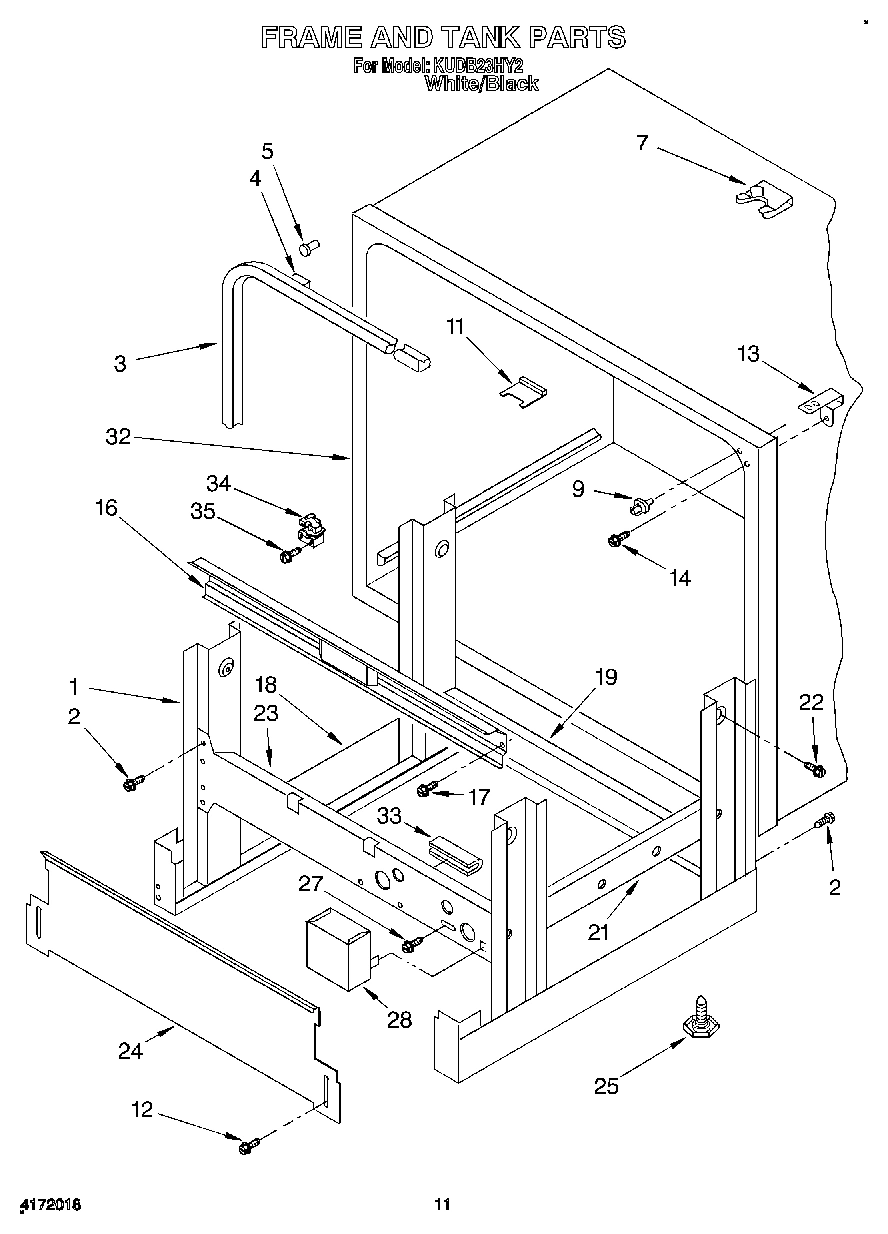

Connector, Vertical Conduit WPL 9740763 Contact Us For Availability

2

Washer WPL 4159513 Contact Us For Availability

2

Anchor, Cancel Spring WPL 4171120 Contact Us For Availability

2

Washer, Wash Arm Seat WPL 4162892 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

2

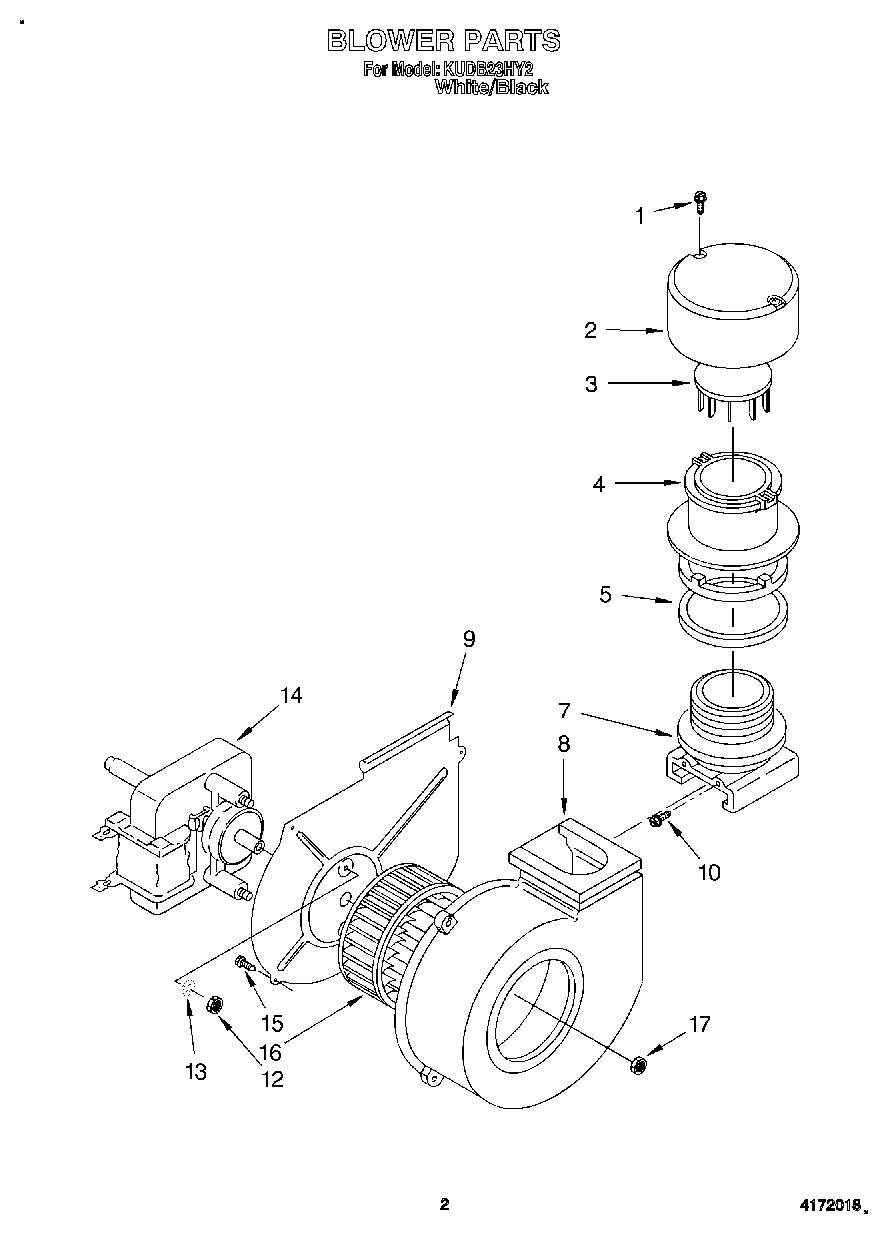

Cap, Air Inlet WPL 4162482 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $3.46

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.22

3

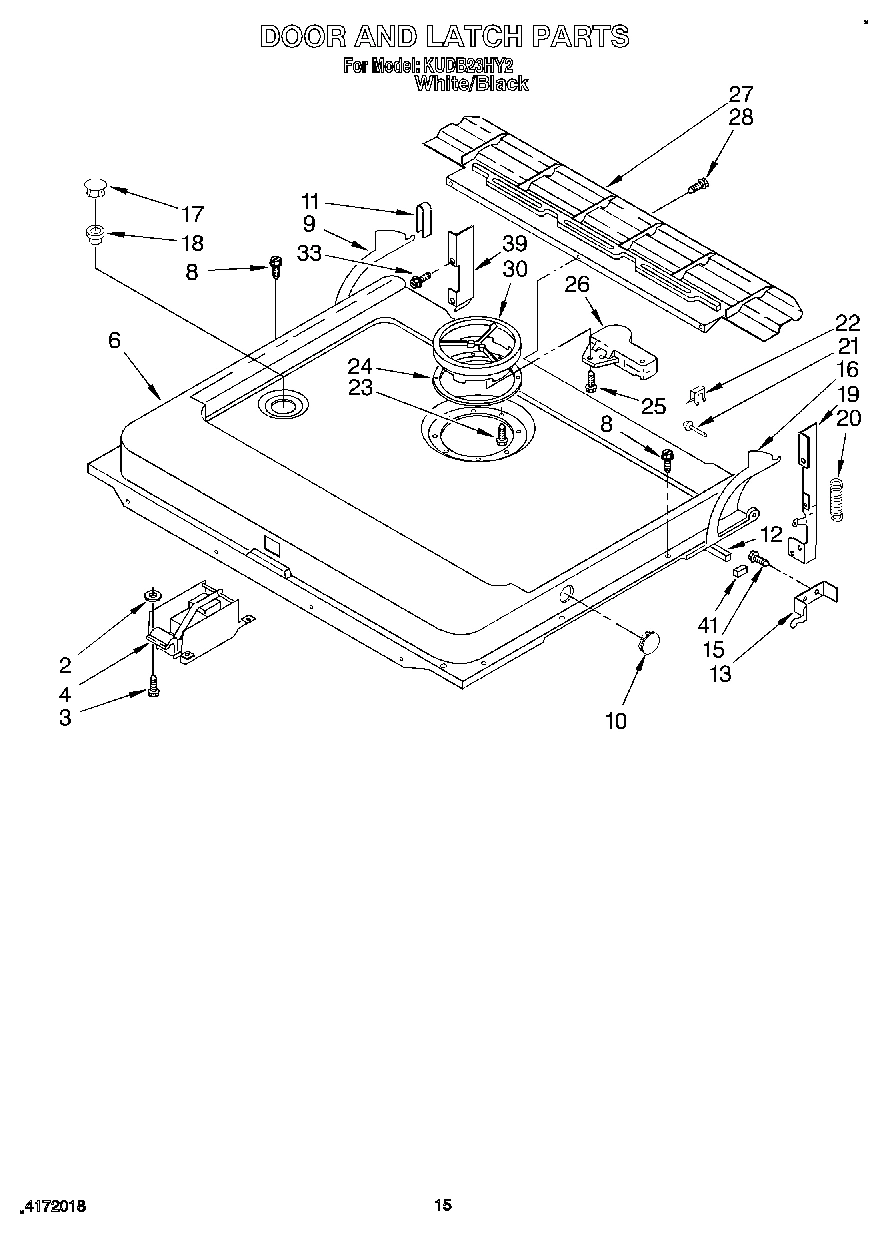

Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Strainer (Coarse) WPL 9741049 Contact Us For Availability

3

Washer WPL 4159477 Contact Us For Availability

3

Filler (Upper Panel) WPL 4162733 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Screw, 10-16 X 3/8 WPL 3369139 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 9741418 Contact Us For Availability

3

Damper, Air Inlet WPL 4162485 Contact Us For Availability

4

8519598 Whirlpool Silverware Basket Backorder WPL 8519598 $42.81

4

Roller, Upper Rack Track (4) WPL 4161607 Contact Us For Availability

4

Washer, Sealing WPL 4160051 Contact Us For Availability

4

Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Latch Mechanism Assembly WPL 9741590 Contact Us For Availability

4

Rivet WPL 4159169 Contact Us For Availability

4

Tube, Air Inlet WPL 4162483 Contact Us For Availability

5

Bumper, Lower Rack (2) WPL 4171555 Contact Us For Availability

5

Washer WPL 4159567 Contact Us For Availability

5

Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability

5

Retainer, Manifold WPL 4171540 Contact Us For Availability

5

Spring, Switch Cancel WPL 4163257 Contact Us For Availability

5

Screw, 10-16 X 1 WPL 4159426 Contact Us For Availability

5

Seal, Air Inlet WPL 4162481 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

6

Washer WPL 4159583 Contact Us For Availability

6

Side Trim (Lower Panel) WPL 4171624 Contact Us For Availability

6

Manifold, Upper Arm WPL 4171541 Contact Us For Availability

6

Inner Door Assembly WPL 4162508 Contact Us For Availability

6

Bracket, Program Switch WPL 4163256 Contact Us For Availability

6

Track, Rack WPL 4162442 Contact Us For Availability

7

Thermostat WPL 9741196 Contact Us For Availability

7

Nut, Lock WPL 718829 Contact Us For Availability

7

Grommet, Panel WPL 4162735 Contact Us For Availability

7

Support, Blower WPL 9740989 Contact Us For Availability

8

Bracket, Thermostat WPL 4163552 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 4171623 Contact Us For Availability

8

Washer WPL 4171240 Contact Us For Availability

8

Screw & Washer Assembly WPL 9740922 Contact Us For Availability

8

Switch, Program WPL 9741518 Contact Us For Availability

8

Housing, Blower WPL 4162487 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Box, Separator Collector (Also Order Item 30) WPL 9740676 Contact Us For Availability

9

Filler (Lower Panel) WPL 4162734 Contact Us For Availability

9

Seal, Moisture WPL 9741700 Contact Us For Availability

9

Washer WPL 9741062 Contact Us For Availability

9

Plate, Motor Mounting WPL 9740961 Contact Us For Availability

Screw, 8-18 (4) WPL 9741258 Contact Us For Availability

Lock Washer WPL 4159494 Contact Us For Availability

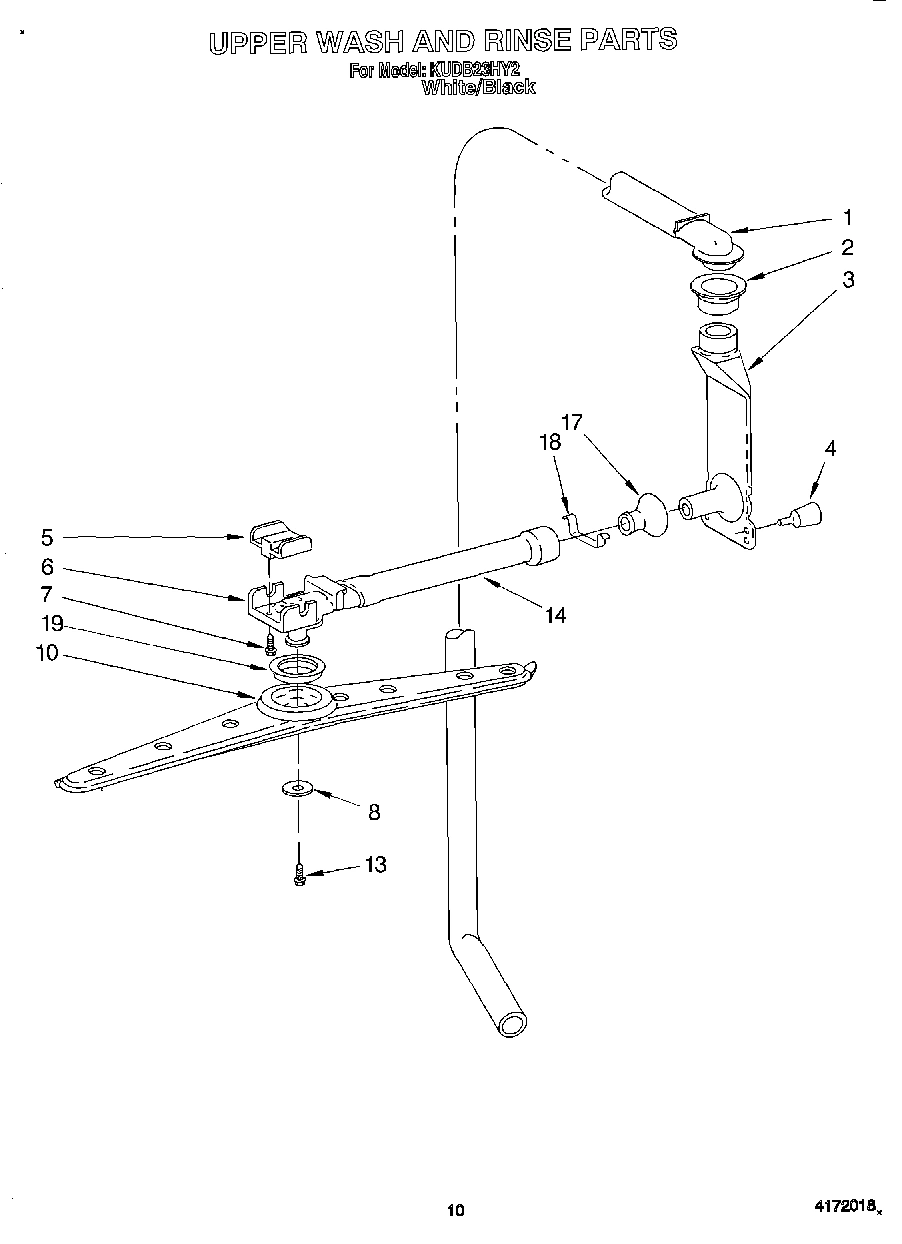

Wash/Rinse Arm Assembly WPL 9740877 Contact Us For Availability

Plug Button WPL 9740847 Contact Us For Availability

Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability

Washer, Cup WPL 718817 Contact Us For Availability

Screw, No.8-18 WPL 9740973 Contact Us For Availability

11

Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability

11

Screw WPL 4159421 Contact Us For Availability

11

Roller, Rack Track WPL 9741323 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $5.76

Element, Heater WPL 9740416 Contact Us For Availability

Trim, Panel (Upper & Lower) WPL 4171625 Contact Us For Availability

Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability

Screw. Track Roller WPL 9740964 Contact Us For Availability

Nut, 6-32 Hex WPL 4159071 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $16.06

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $4.05

Bumper, Rack Track WPL 4171547 Contact Us For Availability

Grommet, Heater Element WPL 4162521 Contact Us For Availability

Channel, Evaporation WPL 9740868 Contact Us For Availability

Screw WPL 4161737 Contact Us For Availability

Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability

Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

Lockwasher WPL 4159491 Contact Us For Availability

W11596033 Whirlpool Microwave Screw Backorder WPL W11596033 $9.88

Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability

Panel Insert Kits (Stainless Steel) WPL 4169400 Contact Us For Availability

Outlet, Pump (Includes Item 13) WPL 9740683 Contact Us For Availability

Washer, Heater Element WPL 4163554 Contact Us For Availability

Panel Insert Kits (White/Black OPTIONAL KITS) WPL 4162833 Contact Us For Availability

Panel Insert Kits (Almond/Harvest Gold) WPL 4162834 Contact Us For Availability

Panel Insert Kits (Fresh Avocado/ Coffee) WPL 4162835 Contact Us For Availability

Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability

Panel Insert Kits (Platinum/Toast) WPL 4169402 Contact Us For Availability

Panel Insert Kits (Sand/Onyx Black) WPL 4169403 Contact Us For Availability

Panel Insert Kits (Silver/Onyx Black) WPL 4169404 Contact Us For Availability

Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability

Panel Insert Kits (Almond/Black) WPL 4171534 Contact Us For Availability

Stud, Bumper Retaining WPL 4160423 Contact Us For Availability

Motor, Blower WPL 9740267 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $33.82

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

Nut, Heater Element WPL 718537 Contact Us For Availability

Screw & Washer Assembly WPL 4163263 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

Screw, 6 X 1/2 WPL 4171131 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $30.06

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Blower Wheel Assembly (Includes Item 17) WPL 4162499 Contact Us For Availability

4171566 Whirlpool Dishwasher Receiver Backorder WPL 4171566 $19.18

Hole Plug WPL 4162018 Contact Us For Availability

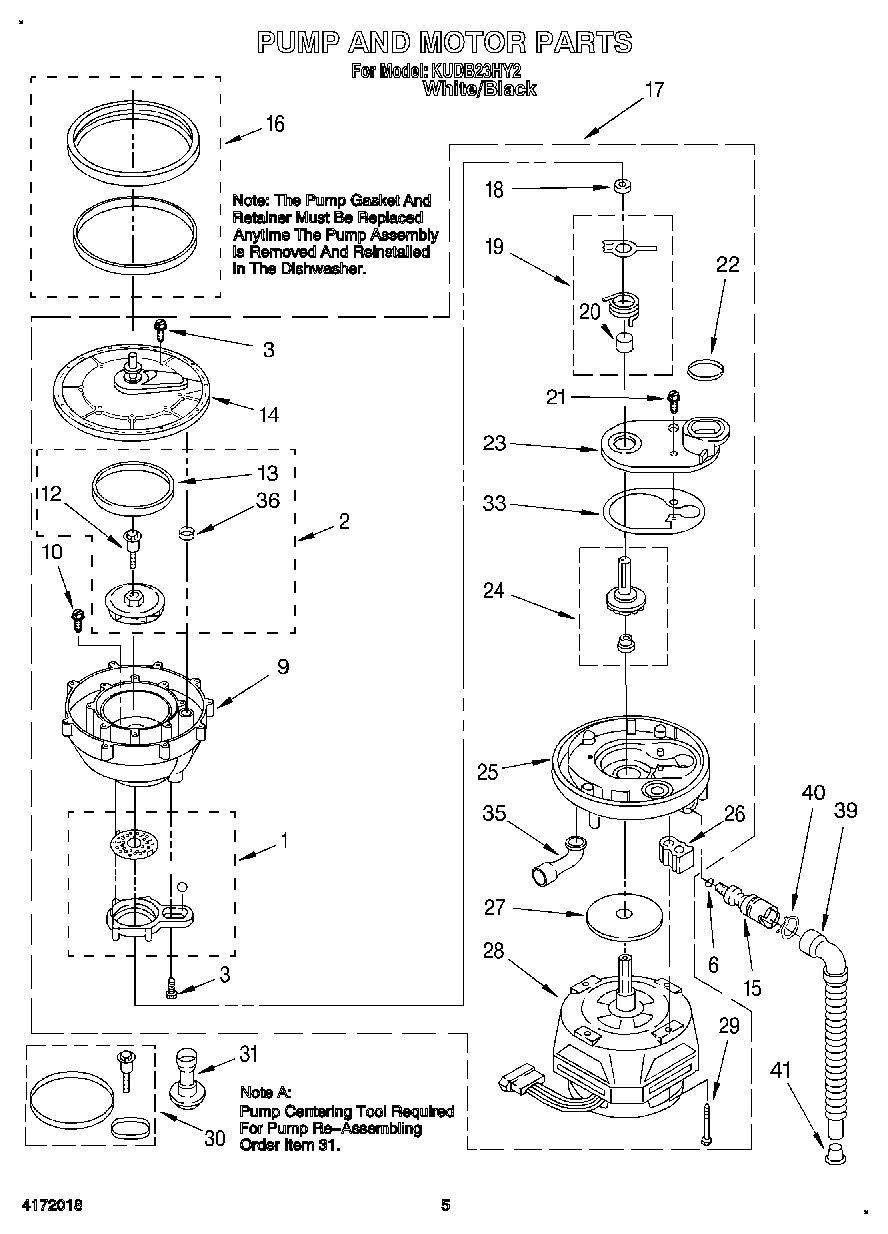

Pump & Motor Assembly (Includes Item 16) WPL 9740665 Contact Us For Availability

Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability

Nut WPL 9740265 Contact Us For Availability

Bushing, Grind WPL 302707 Contact Us For Availability

Support, Receiver WPL 4171565 Contact Us For Availability

Gasket, Hole Plug WPL 4162019 Contact Us For Availability

End Cap (R.H.) WPL 4171340 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $98.77

19

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

19

Spacer, Upper Rack WPL 4163187 Contact Us For Availability

20

WP4171237 Whirlpool Dishwasher Spring Backorder WPL WP4171237 $14.07

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

21

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $9.14

21

Pin, Hinge WPL 4161563 Contact Us For Availability

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

22

Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability

23

Cover, Drain (Includes Item 33) (Also Order I WPL 302723 Contact Us For Availability

23

Screw, No.8-18 WPL 9740851 Contact Us For Availability

24

WP4171447 Whirlpool Dishwasher Seal Backorder WPL WP4171447 $7.84

25

Base, Pump (Includes Items 24 & 33) (Also Ord WPL 9740671 Contact Us For Availability

25

Screw, 8-18 x 1/2 WPL 9741365 Contact Us For Availability

25

Clip, Grounding (Front Panel) WPL 9741779 Contact Us For Availability

26

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $5.47

26

WP9741678 Whirlpool Dishwasher Bi-Metal Backorder WPL WP9741678 $58.43

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $13.23

27

Baffle, Lower WPL 4161295 Contact Us For Availability

27

Button, Program Switch (2) WPL 4163240 Contact Us For Availability

28

Motor (Includes Items 24 & 27) (Also Order It WPL 3369330 Contact Us For Availability

28

Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability

29

Screw (4) WPL 3369331 Contact Us For Availability

29

Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability

30

Pump Seal Kit (Includes Items 12, 13, 22 & 36 WPL 675703 Contact Us For Availability

30

Detergent Dispenser & Gasket Assembly (115 V. WPL 9740170 Contact Us For Availability

30

Trim, Handle WPL 4163255 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Screw, 8-32 x 1/2 WPL 4172012 Contact Us For Availability

32

Handle, Latch WPL 4163243 Contact Us For Availability

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.19

Protector, Edge WPL 4171215 Contact Us For Availability

Screw And Washer (4) WPL 9741419 Contact Us For Availability

Screw, 10-32 x 5/8 WPL 9741328 Contact Us For Availability

34

Relay, Start WPL 304658 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

Connector, Overhead WPL 4161605 Contact Us For Availability

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

Wiring Harness (Main) WPL 9741536 Contact Us For Availability

36

WP9740678 Whirlpool Dishwasher Ring Seal Backorder WPL WP9740678 $15.33

38

Knob, Timer WPL 4171337 Contact Us For Availability

39

Tube, Drain WPL 9741366 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

39

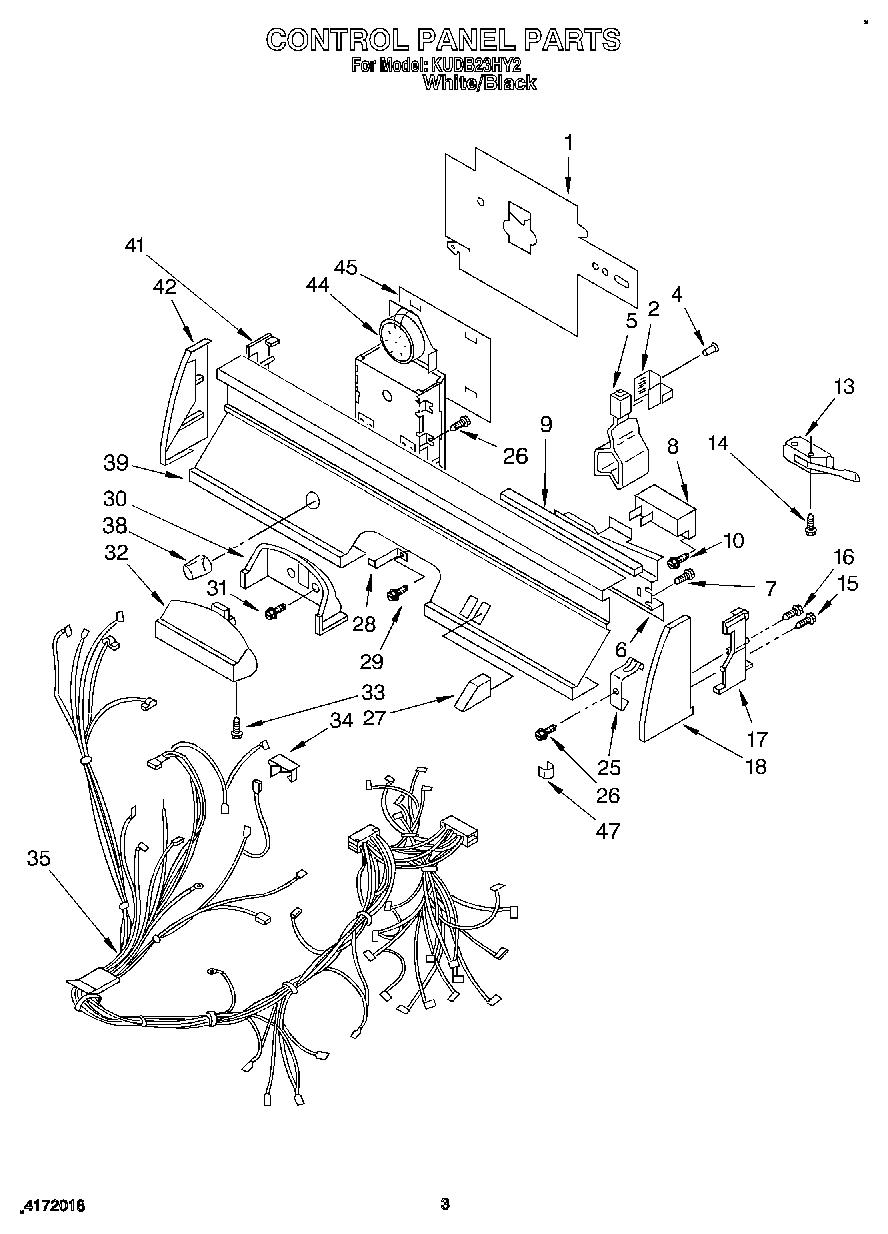

Control Panel WPL 9741701 Contact Us For Availability

40

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

41

Cap, Drain WPL 9741415 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability

41

Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability

42

End Cap (L.H.) WPL 4171341 Contact Us For Availability

44

Timer Assembly WPL 9741559 Contact Us For Availability

45

Barrier, Timer WPL 9741378 Contact Us For Availability

47

Clip, Endcap (2) WPL 4171127 Contact Us For Availability
