Model Alliance KU035S Dryer – Common Parts & Diagrams

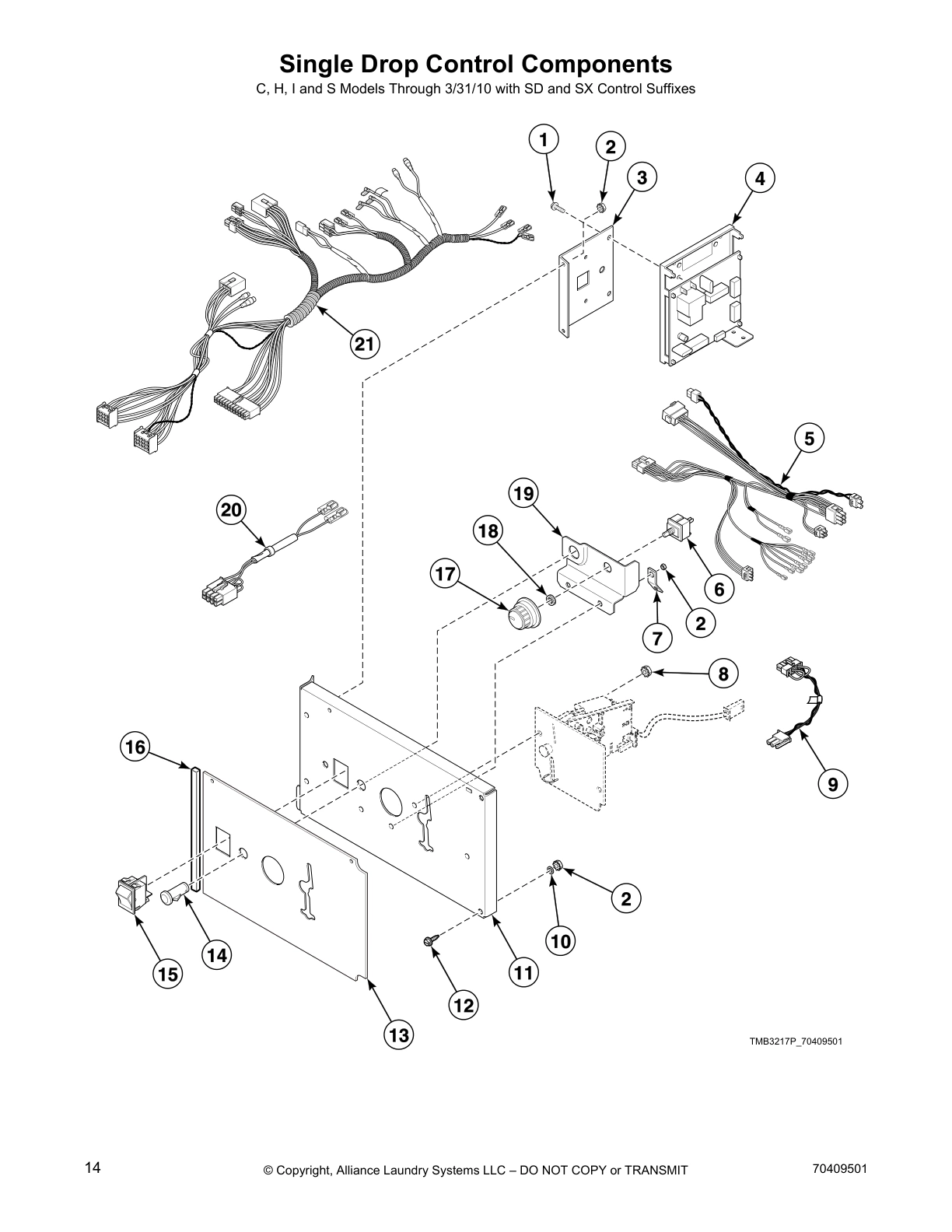

Single Drop Control Components
Dual Digital Timer Control Components
DX4 Control Components
DMP Control
OPL Microprocessor Controls
Coin Drop Components for MDC Models
Coin Drop Components for MDC Models - Wire Harnesses
BY and BZ Control Option for MDC Models
Coin Drops
Coin Drop Kits
Coin Drop Components for NetMaster Models
Card Reader Components for NetMaster Models
Network Board for NetMaster Models
Coin Drop Components for Quantum Control
Card Reader Components for Quantum Control
Network Board
Coin Drop Components for Galaxy 600 Control
Card Reader Components for Galaxy 600 Control
UniLinc Control
LED OPL Control
Door Assemblies
Door Components
Hinge Components
Front Panel Assemblies
False Fronts
Cabinet Front Components
Emergency Stop Button for CE Models
Lower Cabinet Components
Cylinder and Trunnion Assembly
Cylinder Components
Cabinet Components
Fire Suppression System Components
Fire Suppression System Control Box
Drive Motor Components for Nonreversing Models
Drive Motor Components for Reversing Models
Blower Components
Moisture Sensing Components
Rotation Sensor
Airflow Switch
Gas Burner Housing and Secondary Stove Limit
Gas Valve Assembly - Non-CE and Non-Australian Gas Models
Gas Valve and Piping - CE and Australian Gas Models
Electric Heater Components
Steam Heater Components
Control Tray Harnesses for Gas Models
Control Tray for Non-CE and Non-Australian Gas Models
Control Tray Components for CE and Australian Gas Models
(Drawing 1 of 2)
Control Tray Components for CE and Australian Gas Models
(Drawing 2 of 2)
Control Tray Harnesses for Steam Models
Control Tray for Non-CE Steam Models
Control Tray for CE Steam Models
Control Tray Harnesses for Electric Models
Control Tray for Electric Models
Accessory Box Harnesses for Electric Models
Accessory Box for Non-CE Electric Models
Accessory Box for CE Electric Models
Common parts from model Alliance KU035S Dryer
SPQ 70211502 SPQ 70211502 Contact Us For Availability
SPQ 70013901 SPQ 70013901 Contact Us For Availability
SPQ 70211501 SPQ 70211501 Contact Us For Availability
SPQ 70337801P SPQ 70337801P Contact Us For Availability
SPQ CK101 SPQ CK101 Contact Us For Availability
SPQ CK099 SPQ CK099 Contact Us For Availability
SPQ CK118 SPQ CK118 Contact Us For Availability
SPQ CK116 SPQ CK116 Contact Us For Availability
Emergency Stop Label SPQ 44012901 Contact Us For Availability
SPQ 70257102 SPQ 70257102 Contact Us For Availability
SPQ 297P4 SPQ 297P4 Contact Us For Availability
SPQ 286P4 SPQ 286P4 Contact Us For Availability
SPQ 70284203 SPQ 70284203 Contact Us For Availability
SPQ 70321701 SPQ 70321701 Contact Us For Availability
SPQ 70351021P SPQ 70351021P Contact Us For Availability
Jumper Harness Assembly SPQ 70464901 Contact Us For Availability
SPQ 70465301 SPQ 70465301 Contact Us For Availability
Network Capacitor Harness Assembly SPQ 70469301 Contact Us For Availability
Motor Contactor Harness SPQ 70440501 Contact Us For Availability
SPQ 44143401P SPQ 44143401P Contact Us For Availability
SPQ 70120901 SPQ 70120901 Contact Us For Availability
SPQ 70471901 SPQ 70471901 Contact Us For Availability
SPQ M413508 SPQ M413508 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ 70469201 SPQ 70469201 Contact Us For Availability
1
Belt SPQ 70276201P Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Overlay SPQ 70462901 Contact Us For Availability
1
Door Assembly SPQ 70408901 Contact Us For Availability
1
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
1
False Front Assembly SPQ 70024002P Contact Us For Availability
1
Contact Switch SPQ F8069501 Contact Us For Availability
1
Kickplate SPQ 70117603 Contact Us For Availability
1
Cylinder Assembly SPQ 70372603P Contact Us For Availability
1
Union Tee SPQ 70427901 Contact Us For Availability
1
Lower Rear Panel SPQ 70290201 Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Clevis Pin SPQ 70389201 Contact Us For Availability
1
Junction Box Harness SPQ 70315801 Contact Us For Availability
2
Fan Motor Harness Assembly SPQ M400034 Contact Us For Availability
2
Control Plate and Studs Asse SPQ 70467801 Contact Us For Availability
2
Nut SPQ 70069901 Contact Us For Availability
2
Door Hinge SPQ 70115903B Contact Us For Availability
2
Label SPQ 70537101 Contact Us For Availability
2
Nut SPQ 70399401 Contact Us For Availability
2
Contact Block Switch SPQ F200233401P Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70070102 Contact Us For Availability
2
Idler Wheel Assembly SPQ 70440101 Contact Us For Availability
2
Idler Wheel Assembly SPQ 70465801 Contact Us For Availability
2
Spray Nozzle Hose SPQ 70427701 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
Pop Rivet SPQ 70369501 Contact Us For Availability
2
Control Tray Harness SPQ 70464701 Contact Us For Availability
2
Fuse SPQ 70313602 Contact Us For Availability
3
Front Panel Seal SPQ 70173401P Contact Us For Availability
3
Control Plate Assembly SPQ 70175807 Contact Us For Availability
3
Control Plate Assembly SPQ 70497201 Contact Us For Availability
3
Screw SPQ 70441301 Contact Us For Availability
3
Panel Locator SPQ 44130201 Contact Us For Availability
3
Contact Block SPQ 44018701 Contact Us For Availability
3
Gasket SPQ 70407201 Contact Us For Availability
3
Trunnion and Seal Kit SPQ 70433001 Contact Us For Availability
3
Tube Assembly SPQ 70427601 Contact Us For Availability
3
Control Box Top SPQ 44065401 Contact Us For Availability
3
SPQ 70062401 SPQ 70062401 Contact Us For Availability
3
Motor Capacitor SPQ 70259901 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
Network Capacitor Assembly SPQ M413863 Contact Us For Availability
3
Power Harness SPQ 70445501 Contact Us For Availability
3
Control Tray SPQ 44155601P Contact Us For Availability
4
Nut SPQ 70440901 Contact Us For Availability
4
Warning Label SPQ 70534301 Contact Us For Availability
4
Emergency Stop Harness SPQ 70364106P Contact Us For Availability
4
Rear Lint Panel SPQ 70176704 Contact Us For Availability
4
Control Harness SPQ 70426501P Contact Us For Availability
4
SPQ 70459001P SPQ 70459001P Contact Us For Availability
4
Drive Access Cover SPQ 70209501 Contact Us For Availability
4
Moisture Sensor Harness Assembly SPQ 70448902 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Steam Filter Holder SPQ 70389301 Contact Us For Availability
4
Power Harness SPQ 70439001 Contact Us For Availability
4
Steam Configuration Harness SPQ 70322401P Contact Us For Availability
5
SPQ 70406701 SPQ 70406701 Contact Us For Availability
5
Nut SPQ 70564803 Contact Us For Availability
5
Handle Bar SPQ 70399502B Contact Us For Availability
5
Hinge Cam Kit SPQ M4773P3 Contact Us For Availability
5
Shadow Box Clip SPQ 70296401 Contact Us For Availability
5
Roller Catch Wheel SPQ 70176702P Contact Us For Availability
5
Support Bearing SPQ 70066003 Contact Us For Availability
5
Thermistor Plate SPQ 70424201 Contact Us For Availability
5
Control Box Housing SPQ 44065101 Contact Us For Availability
5
Bolt SPQ 70334701 Contact Us For Availability
5
SPQ 70464201 SPQ 70464201 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
Steam Valve Harness Bracket SPQ 70369301 Contact Us For Availability
5
Motor Contactor Harness SPQ 70438901 Contact Us For Availability
6
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
6
Screw SPQ 70407301 Contact Us For Availability
6
Thermistor SPQ 70424401 Contact Us For Availability
6
Motor Capacitor SPQ M411307 Contact Us For Availability
6
Stove Limit Bypass Harness SPQ 70369401 Contact Us For Availability
6
Reversing Contactor Harness SPQ 70347701P Contact Us For Availability
6
SPQ 70306901 SPQ 70306901 Contact Us For Availability
7
Door Glass SPQ M400784P Contact Us For Availability
7
SPQ 70413301 SPQ 70413301 Contact Us For Availability
7
Door Hinge Lug Assembly SPQ 44035002 Contact Us For Availability
7
SPQ 70289101P SPQ 70289101P Contact Us For Availability
7
Rear Cylinder Channel SPQ 70257201 Contact Us For Availability
7
Control SPQ D501523 Contact Us For Availability
7
Screw SPQ 23222 Contact Us For Availability
7
SPQ 70467001 SPQ 70467001 Contact Us For Availability
7
Key SPQ 70392701P Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
Steam Coil SPQ 70316601 Contact Us For Availability
7
Network Capacitor Assembly SPQ 70316101P Contact Us For Availability
8
Drywall Screw Magnet Kit SPQ 70013701P Contact Us For Availability
8
Control Panel Harness SPQ 70315501P Contact Us For Availability
8
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
8
Pin SPQ 70071401 Contact Us For Availability
8
SPQ 70249901 SPQ 70249901 Contact Us For Availability
8
Control Box Cover SPQ 44063801P Contact Us For Availability
8
SPQ 70338101P SPQ 70338101P Contact Us For Availability
8
SPQ 44239501 SPQ 44239501 Contact Us For Availability
8
SPQ 70015601 SPQ 70015601 Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Filter SPQ 70369101P Contact Us For Availability
8
Reversing Control Board Harness SPQ 70469701 Contact Us For Availability
8
SPQ M413862 SPQ M413862 Contact Us For Availability
8
SPQ 70342501P SPQ 70342501P Contact Us For Availability
9
SPQ D512218P SPQ D512218P Contact Us For Availability
9
Adhesive SPQ 70506402 Contact Us For Availability
9
SPQ 70324602 SPQ 70324602 Contact Us For Availability
9
Pop Rivet SPQ 70412601 Contact Us For Availability
9
SPQ 70132301 SPQ 70132301 Contact Us For Availability
9
Tumbler Dolly Kit SPQ 70063201 Contact Us For Availability
9
SPQ 70427801 SPQ 70427801 Contact Us For Availability
9
SPQ 44065201 SPQ 44065201 Contact Us For Availability
9
SPQ 70338001P SPQ 70338001P Contact Us For Availability
9
Valve Rebuild Kit SPQ 70429401 Contact Us For Availability
9
SPQ M412187P SPQ M412187P Contact Us For Availability
10
Valve Kit SPQ F8521701 Contact Us For Availability
10
Washer SPQ M400991 Contact Us For Availability
10
Mounting Plate SPQ 70208801 Contact Us For Availability
10
Control Panel Harness SPQ 70462902 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
10
Coin Vault Trim SPQ 70117502 Contact Us For Availability
10
Roller Catch Spacer SPQ 70030201 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70435203 Contact Us For Availability
10
Lint Panel Switch Bracket SPQ 70277301 Contact Us For Availability
10
Elbow SPQ 70428101 Contact Us For Availability
10
Drive Access Cover SPQ 70202501 Contact Us For Availability
10
Drive Motor Plate SPQ 44261401 Contact Us For Availability
10
Blower Motor SPQ 70342601P Contact Us For Availability
11
Slot Card Plate Assembly SPQ 44089501 Contact Us For Availability
11
Bypass Harness SPQ 44240301 Contact Us For Availability
11
Screw SPQ 70072801 Contact Us For Availability
11
Screw SPQ 70391101 Contact Us For Availability
11
Nozzle Bracket SPQ 70428601 Contact Us For Availability
11
Support Rod SPQ 70464401 Contact Us For Availability
11
Blower Motor Kit SPQ 70337701P Contact Us For Availability
11
Steam Valve SPQ F8322903 Contact Us For Availability
11
Reversing Control Assembly SPQ 70469901 Contact Us For Availability
12
Blower Motor Kit SPQ 70337601P Contact Us For Availability
12
Main Harness SPQ 70364103 Contact Us For Availability
12
Coin Cover Overlay SPQ 70246301 Contact Us For Availability
12
Card Reader Overlay SPQ 70334301 Contact Us For Availability
12
Roller Catch Arm SPQ 70030301 Contact Us For Availability
12
End Cap SPQ 70070101 Contact Us For Availability
12
Screw SPQ 70566401 Contact Us For Availability
12
Motor Bracket SPQ 70464101 Contact Us For Availability
12
Steam Solenoid SPQ F8322902 Contact Us For Availability
12
Din Rail SPQ M402917 Contact Us For Availability
12
Bracket SPQ 70472601 Contact Us For Availability
13
Foam Gasket SPQ 70414101 Contact Us For Availability
13
Door Ring Assembly SPQ 70543901 Contact Us For Availability
13
Lock Shim SPQ 70342401 Contact Us For Availability
13
Switch Assembly SPQ 70413401 Contact Us For Availability
13
Hose Fitting SPQ 44069101 Contact Us For Availability
13
Motor Mount Bracket SPQ 70127301 Contact Us For Availability
13
Bolt SPQ 70467501 Contact Us For Availability
13
Solenoid Valve DIN Connector SPQ 70351011P Contact Us For Availability
13
Screw SPQ F8206901 Contact Us For Availability
14
Blower Motor SPQ 70337501P Contact Us For Availability
14
Key SPQ 70155602 Contact Us For Availability
14
Door Ring SPQ 70505707B Contact Us For Availability
14
Pop Rivet SPQ 70126401 Contact Us For Availability
14
Center Pan SPQ 70252201 Contact Us For Availability
14
Washer SPQ M405535 Contact Us For Availability
14
Harness Assembly SPQ 70370301P Contact Us For Availability
14
Transformer SPQ M414229P Contact Us For Availability
15
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
15
Screw SPQ M400661 Contact Us For Availability
15
Panel Locator SPQ 70126301 Contact Us For Availability
15
Lint Screen Clip SPQ 70054501 Contact Us For Availability
15
Motor Channel SPQ M4853P3 Contact Us For Availability
15
Spacer SPQ 70471701 Contact Us For Availability
15
Steam Stove Limit Bypass Harne SPQ M412997 Contact Us For Availability
15
Interlock Contactor SPQ M414228P Contact Us For Availability
16
Pop Rivet SPQ 44166601 Contact Us For Availability
16
Hose SPQ 44073304 Contact Us For Availability
16
Idler Bracket SPQ 70261701 Contact Us For Availability
16
Compression Spring SPQ 70467601 Contact Us For Availability
16
Blower Motor Mounting Plate SPQ 70349601 Contact Us For Availability
16
Steam Valve Wiring Cover SPQ 70389901 Contact Us For Availability
16
Contactor SPQ 44074401 Contact Us For Availability
17
Nut SPQ 44104601 Contact Us For Availability
17
Lint Screen SPQ 70325601 Contact Us For Availability
17
Door Latch SPQ M401223 Contact Us For Availability
17
Nut SPQ F431025 Contact Us For Availability
17
Screw SPQ 70126101 Contact Us For Availability
17
Fuse Bracket SPQ F330186P Contact Us For Availability
18
Switch Hole Plug SPQ 44057801W Contact Us For Availability
18
Sheet Metal Edge Gasket SPQ 70015711 Contact Us For Availability
18
Cylinder Motor Harness Assembly SPQ 70443301 Contact Us For Availability
19
Access Panel Trim SPQ 44057801Q Contact Us For Availability
19
Nut SPQ M400022 Contact Us For Availability
19
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
19
Control Box Base SPQ 44065301 Contact Us For Availability
19
Drum Idler Spring SPQ 70270301 Contact Us For Availability
19
Terminal Block Shield SPQ M411072 Contact Us For Availability
20
Nameplate Overlay SPQ 44088801 Contact Us For Availability
20
Cylinder Idler Arm SPQ 70439701 Contact Us For Availability
20
Roller Seal SPQ 70443601 Contact Us For Availability
20
Sensor Harness SPQ 70426601P Contact Us For Availability
20
Idler Spacer SPQ F8368701 Contact Us For Availability
20
Damper and Hinge Exhaust Assembly SPQ 70440201 Contact Us For Availability
20
Fuse Holder Cap SPQ 70313601 Contact Us For Availability
21
Coin Chute Assembly SPQ 70155601 Contact Us For Availability
21
Fuse Holder Cap SPQ 430642 Contact Us For Availability
21
Double Ended Stud SPQ 70401101 Contact Us For Availability
21
Roller Shaft SPQ 70249501 Contact Us For Availability
21
Idler Holder SPQ 70050401P Contact Us For Availability
21
Fuse Holder SPQ 70329401P Contact Us For Availability
22
Washer SPQ 70261401 Contact Us For Availability
22
Motor Conduit Mounting Bracket SPQ 70401001 Contact Us For Availability
22
Snap Bushing SPQ 70178701 Contact Us For Availability
22
Motor Pulley SPQ 70464601 Contact Us For Availability
22
Thermistor SPQ 70401301 Contact Us For Availability
22
Fuse Holder SPQ 70333001 Contact Us For Availability
23
Bracket SPQ 44065901 Contact Us For Availability
23
Drive Motor SPQ 70045301 Contact Us For Availability
23
Belt Access Cover SPQ 70464501 Contact Us For Availability
23
Limit Thermostat SPQ 70439801 Contact Us For Availability
24
Pushbutton Switch SPQ 44144401 Contact Us For Availability
24
Drive Motor Kit SPQ 70265901 Contact Us For Availability
24
Drive Motor SPQ 70466601 Contact Us For Availability
24
Gasket SPQ 70401201 Contact Us For Availability
24
Terminal Block SPQ 70329501 Contact Us For Availability
25
Motor Plate Cover SPQ 70457401 Contact Us For Availability
25
Insulator SPQ 70406501 Contact Us For Availability
26
Mounting Switch Base SPQ 70406601 Contact Us For Availability
26
Drive Motor SPQ 430648 Contact Us For Availability
26
Shaft Collar SPQ 70466001 Contact Us For Availability
26
Wire Clip SPQ M413544P Contact Us For Availability
27
Center Partition SPQ 70015712 Contact Us For Availability
28
Screw SPQ 70427402 Contact Us For Availability
29
Leveling Leg SPQ 70427401 Contact Us For Availability
30
Hole Plug SPQ 70252501 Contact Us For Availability
NI
SPQ 70448701 SPQ 70448701 Contact Us For Availability
NI
SPQ 70211401 SPQ 70211401 Contact Us For Availability
NI
SPQ 70355001 SPQ 70355001 Contact Us For Availability
NI
SPQ 70144101 SPQ 70144101 Contact Us For Availability
NI
SPQ 70471601 SPQ 70471601 Contact Us For Availability
NI
SPQ 70294117 SPQ 70294117 Contact Us For Availability
NI
SPQ 70294103P SPQ 70294103P Contact Us For Availability
NI
SPQ 38472 SPQ 38472 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
SPQ CK103 SPQ CK103 Contact Us For Availability
NI
SPQ 70364104P SPQ 70364104P Contact Us For Availability
NI
SPQ 44186101 SPQ 44186101 Contact Us For Availability
NI
SPQ 70437104P SPQ 70437104P Contact Us For Availability
NI
Washer SPQ 70409301 Contact Us For Availability
NI
SPQ 70021102P SPQ 70021102P Contact Us For Availability
NI
SPQ 70180101 SPQ 70180101 Contact Us For Availability
NI
Emergency Stop Contact Harness SPQ 70364105P Contact Us For Availability
NI
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
NI
Pushbutton SPQ 44018801 Contact Us For Availability
NI
SPQ 70297601 SPQ 70297601 Contact Us For Availability
NI
SPQ 70411301 SPQ 70411301 Contact Us For Availability
NI
SPQ 70257101 SPQ 70257101 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 215P4P SPQ 215P4P Contact Us For Availability
NI
SPQ 370P4P SPQ 370P4P Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70337901P SPQ 70337901P Contact Us For Availability
NI
SPQ M410296 SPQ M410296 Contact Us For Availability
NI
SPQ 70284201 SPQ 70284201 Contact Us For Availability
NI
SPQ 70196301 SPQ 70196301 Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
Steam Valve Rebuild Kit SPQ F8379502 Contact Us For Availability
NI
SPQ 70351012 SPQ 70351012 Contact Us For Availability
NI
SPQ M413510 SPQ M413510 Contact Us For Availability
NI
SPQ M413878 SPQ M413878 Contact Us For Availability
NI
SPQ 70342101 SPQ 70342101 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ 70465001 Contact Us For Availability
NI
SPQ M413504 SPQ M413504 Contact Us For Availability
NI
Network Capacitor Harness Assembly SPQ 70320201 Contact Us For Availability
NI
SPQ 44142601P SPQ 44142601P Contact Us For Availability
NI
SPQ 70366201 SPQ 70366201 Contact Us For Availability
NI
SPQ M412366 SPQ M412366 Contact Us For Availability
NI
SPQ M413930P SPQ M413930P Contact Us For Availability
× ![]()
