Model Whirlpool KTRS25KWWH01 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1117921 WPL LIT1117921 Contact Us For Availability

WPL LIT1125570 WPL LIT1125570 Contact Us For Availability

WPL LIT2149934 WPL LIT2149934 Contact Us For Availability

WPL LIT4316135 WPL LIT4316135 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

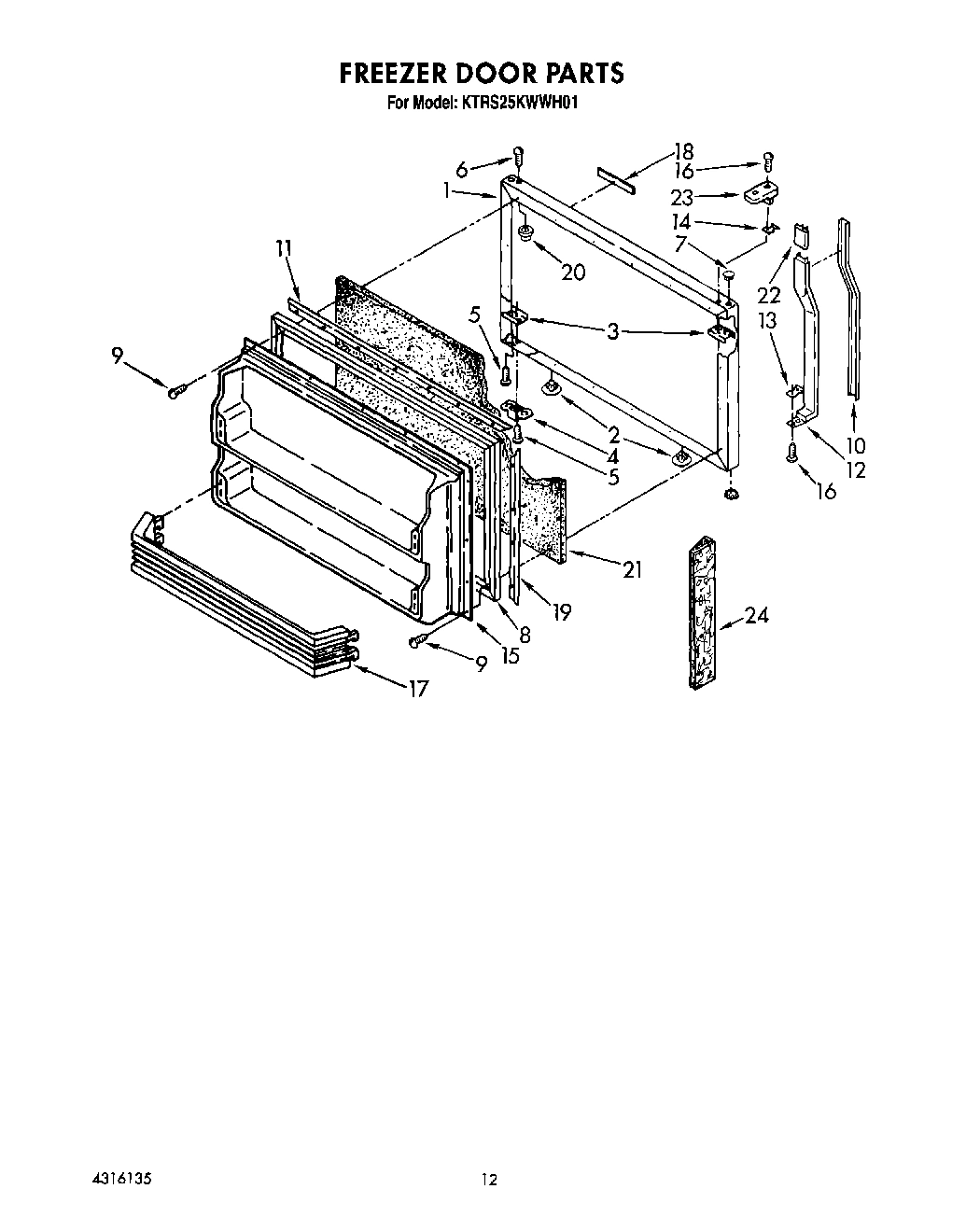

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1114585 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1114588 Contact Us For Availability

1

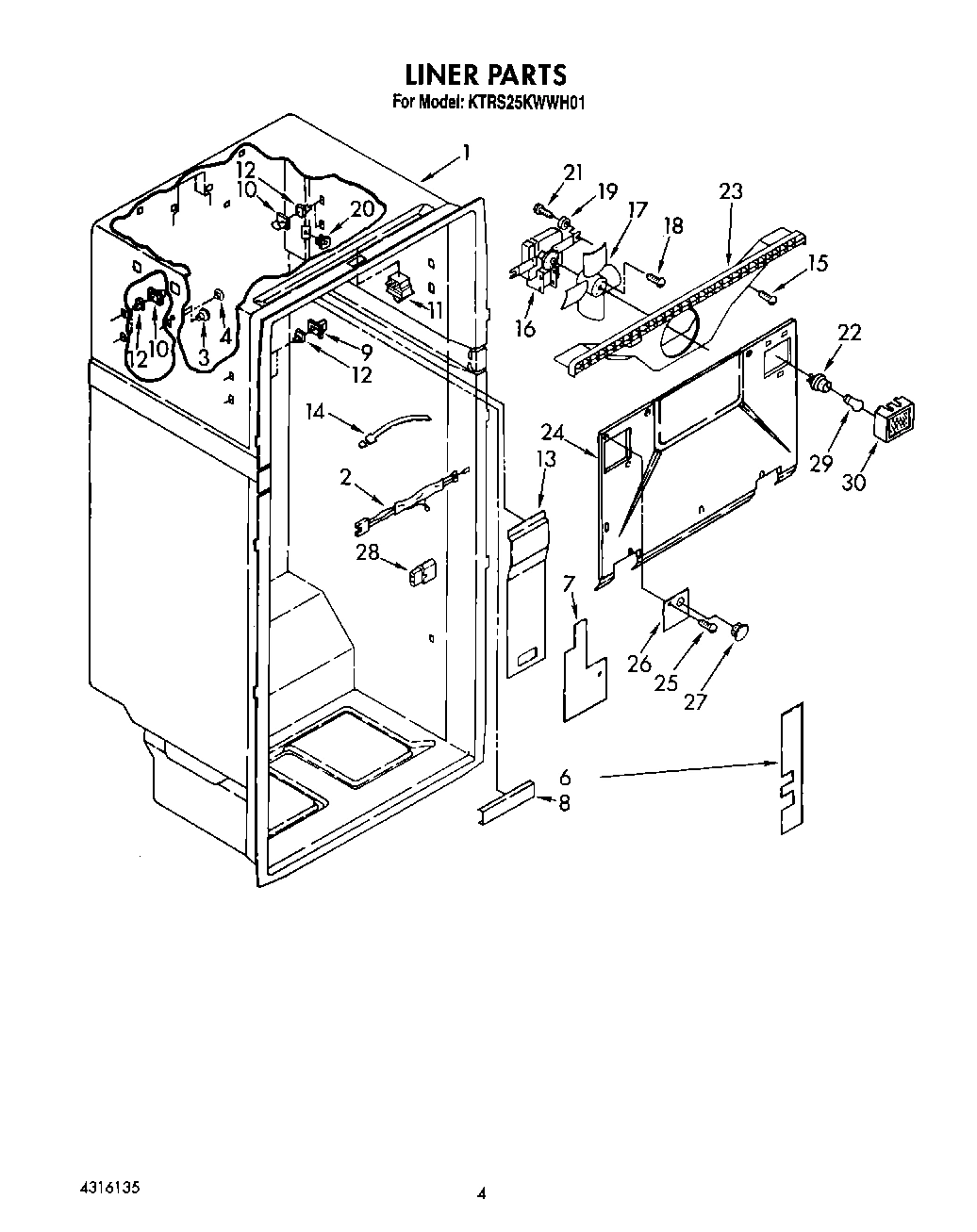

Liner (Not A Serviceable Part) WPL ARI112932A Contact Us For Availability

1

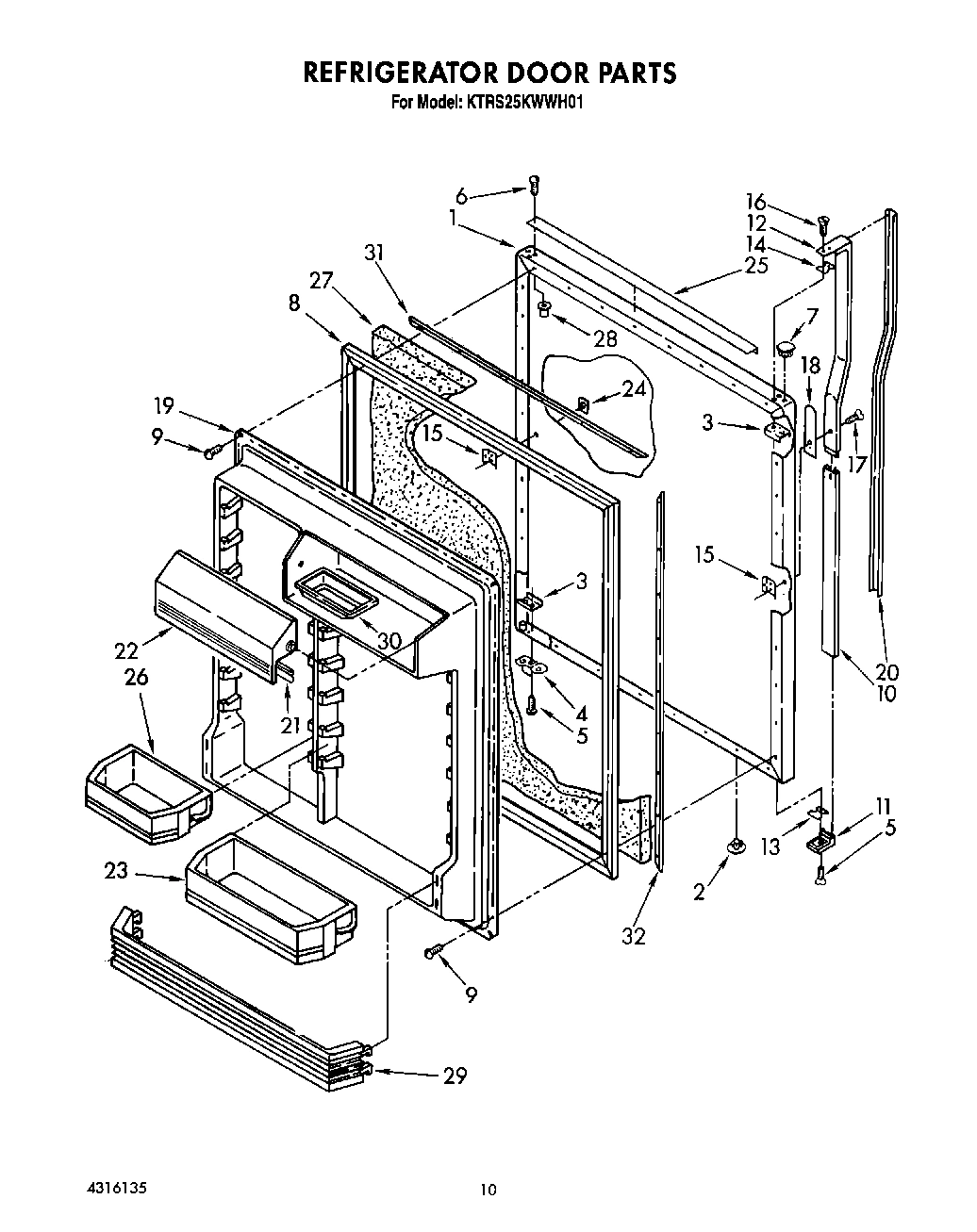

Panel, Refrigerator Door (White) WPL 1114573 Contact Us For Availability

1

Panel, Refrigerator Door (Almond (Also Order WPL 1114576 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI112931A Contact Us For Availability

1

Bottom, Compartment Separator WPL 1125871 Contact Us For Availability

1

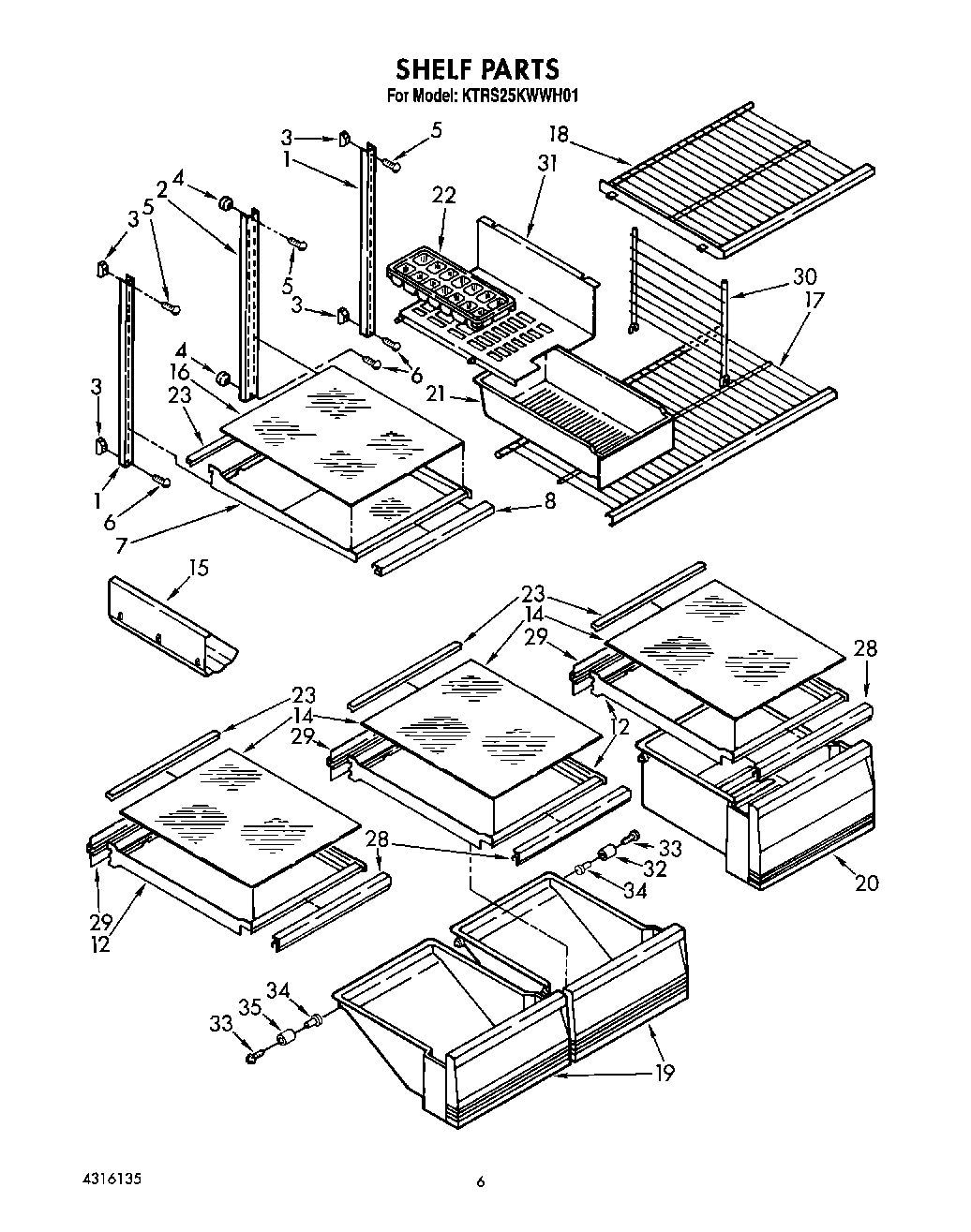

Shelf, Ladder (2) WPL 1118102 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 1125510 Contact Us For Availability

2

Shelf Ladder, Center WPL 1118101 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

3

Grommet (4) WPL 1110779 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Roller, Rear (2) WPL 2147324 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

Electrical Shield WPL 2151616 Contact Us For Availability

6

Switch, Toggle WPL 1125964 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Electrical Shield WPL 1121011 Contact Us For Availability

7

Sealing Gasket WPL 1114548 Contact Us For Availability

7

Shelf, Cantilever (3) WPL 1125748 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

8

Door Gasket, Magnetic WPL 1125922 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125923 Contact Us For Availability

8

Gasket (Front) WPL 1125784 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

Stud (3) WPL 946356 Contact Us For Availability

9

Control, Front Cover WPL 1117939 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $24.52

Insert, Handle (White) WPL 1125791 Contact Us For Availability

Insert, Handle (Almond) WPL 1125792 Contact Us For Availability

Retainer, Insert WPL 1107209 Contact Us For Availability

Heater, Mullion WPL 1114550 Contact Us For Availability

Thermostat Assembly WPL 1125768 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

End Cap, Handle WPL 1107236 Contact Us For Availability

Clip, Center Rail (4) WPL 2149060 Contact Us For Availability

Handle WPL 1107230 Contact Us For Availability

Support, Stud (6) WPL 946355 Contact Us For Availability

Spacer (2) WPL 2149077 Contact Us For Availability

Light Pipe (R.S.) WPL 1125511 Contact Us For Availability

Pan Shelf, (3) Cantilever WPL 1125777 Contact Us For Availability

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

Cover, Air Duct WPL 1114557 Contact Us For Availability

Shim, End Cap WPL 1107229 Contact Us For Availability

Center Rail (White) WPL 1114538 Contact Us For Availability

Center Rail (Almond) WPL 1114541 Contact Us For Availability

Spacer, Handle WPL 1107192 Contact Us For Availability

Shim WPL 1125789 Contact Us For Availability

Strap, Mtg. WPL 1123230 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Light Pipe (L.S.) WPL 1125512 Contact Us For Availability

Glass, Shelf WPL 1125779 Contact Us For Availability

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

Interior Door Panel WPL 1125739 Contact Us For Availability

Connecting Rod, Short WPL 1125515 Contact Us For Availability

Wine Rack (Egg) WPL 1126137 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

Rod, Connecting WPL 1126158 Contact Us For Availability

Glass, Shelf WPL 1125749 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Hinge, Top WPL 1123514 Contact Us For Availability

Air Diffuser Assembly WPL 1123221 Contact Us For Availability

Shelf, Freezer WPL 1125745 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Nameplate WPL 1125818 Contact Us For Availability

Spacer, Handle WPL 1107650 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Shelf, Freezer WPL 1125746 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

Retainer, Gasket WPL 1121120 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Interior Door Panel WPL 1125742 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Pan, Crisper WPL 1117909 Contact Us For Availability

Grommet (2) WPL 848445 Contact Us For Availability

Insert, Handle (White) WPL 1125689 Contact Us For Availability

Insert, Handle (Almond) WPL 1125690 Contact Us For Availability

Screw WPL 489179 Contact Us For Availability

Pivot Arm WPL 1125581 Contact Us For Availability

Pan, Meat WPL 1125932 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $40.99

Screw WPL 489168 Contact Us For Availability

Gasket, Utility Door WPL 1125695 Contact Us For Availability

Hinge, Center WPL 2151685 Contact Us For Availability

Ground Wire WPL 1114482 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

Retainer, Insert WPL 1125790 Contact Us For Availability

Socket, Light WPL 1123354 Contact Us For Availability

Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability

Shim, Hinge Center WPL 2151687 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

Wiring Assembly, Control Box WPL 1126132 Contact Us For Availability

End Cap WPL 1125788 Contact Us For Availability

Scroll, Fan WPL 1114593 Contact Us For Availability

Shelf Bin (Wide) WPL 1125555 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Gasket, Bottom Separator WPL 1116698 Contact Us For Availability

Retainer, Shelf WPL 1125754 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $5.99

Dike-Door WPL 1125577 Contact Us For Availability

Evaporator Cover WPL 1123399 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

25

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

25

Trim, Door WPL 1128972 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

Shelf Bin (3) WPL 1125744 Contact Us For Availability

Hinge Butt, Bottom WPL 2148563 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Hole Plug WPL 1103725 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1114561 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability

Slide, Thermostat WPL 1125513 Contact Us For Availability

Gasket (Front) WPL 1125813 Contact Us For Availability

Shelf Bin, Fixed WPL 1125743 Contact Us For Availability

Shim, Bottom WPL 836196 Contact Us For Availability

Slide, Air Control WPL 1125578 Contact Us For Availability

Gasket, Rear WPL 1125816 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

Light Lens WPL 981365 Contact Us For Availability

Butter, Tray WPL 1125936 Contact Us For Availability

Window, Air Control WPL 1125579 Contact Us For Availability

Divider WPL 1125542 Contact Us For Availability

Retainer, Gasket WPL 1121119 Contact Us For Availability

Spacer WPL 1129868 Contact Us For Availability

Window, Thermostat WPL 1125580 Contact Us For Availability

Shelf, Ice Tray WPL 1125543 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

Retainer, Gasket WPL 1123245 Contact Us For Availability

Trimless Glass Kit (Black) WPL 4211276 Contact Us For Availability

Trimless Glass Kit (White) WPL 4211280 Contact Us For Availability

Trimless Glass Kit (Almond Handle Insert) WPL 4211284 Contact Us For Availability

Trimless Glass Kit (White (R.H.)) WPL 4318314 Contact Us For Availability

Trimless Glass Kit (Almond (R.H.)) WPL 4318315 Contact Us For Availability

Trimless Glass Kit (Trim Kit Panel For Trim K WPL 4318317 Contact Us For Availability

Trimless Glass Kit (Black (R.H.)) WPL 4318318 Contact Us For Availability

Trimless Glass Kit (Blac WPL 4318322 Contact Us For Availability

WPL 4318323 WPL 4318323 Contact Us For Availability

WPL 4318415 WPL 4318415 Contact Us For Availability

WPL 4318433 WPL 4318433 Contact Us For Availability

WPL 4318434 WPL 4318434 Contact Us For Availability

WPL 4318435 WPL 4318435 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Roller, R.S. WPL 1125530 Contact Us For Availability

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Separator,(Rear) Compartment (Top) WPL 1114562 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Eyelet, Roller WPL 1112308 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Grille (White) WPL 1125714 Contact Us For Availability

Grille (Almond) WPL 1125716 Contact Us For Availability

Drain Pan WPL 1114597 Contact Us For Availability

Roller L.S. WPL 1112303 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

37

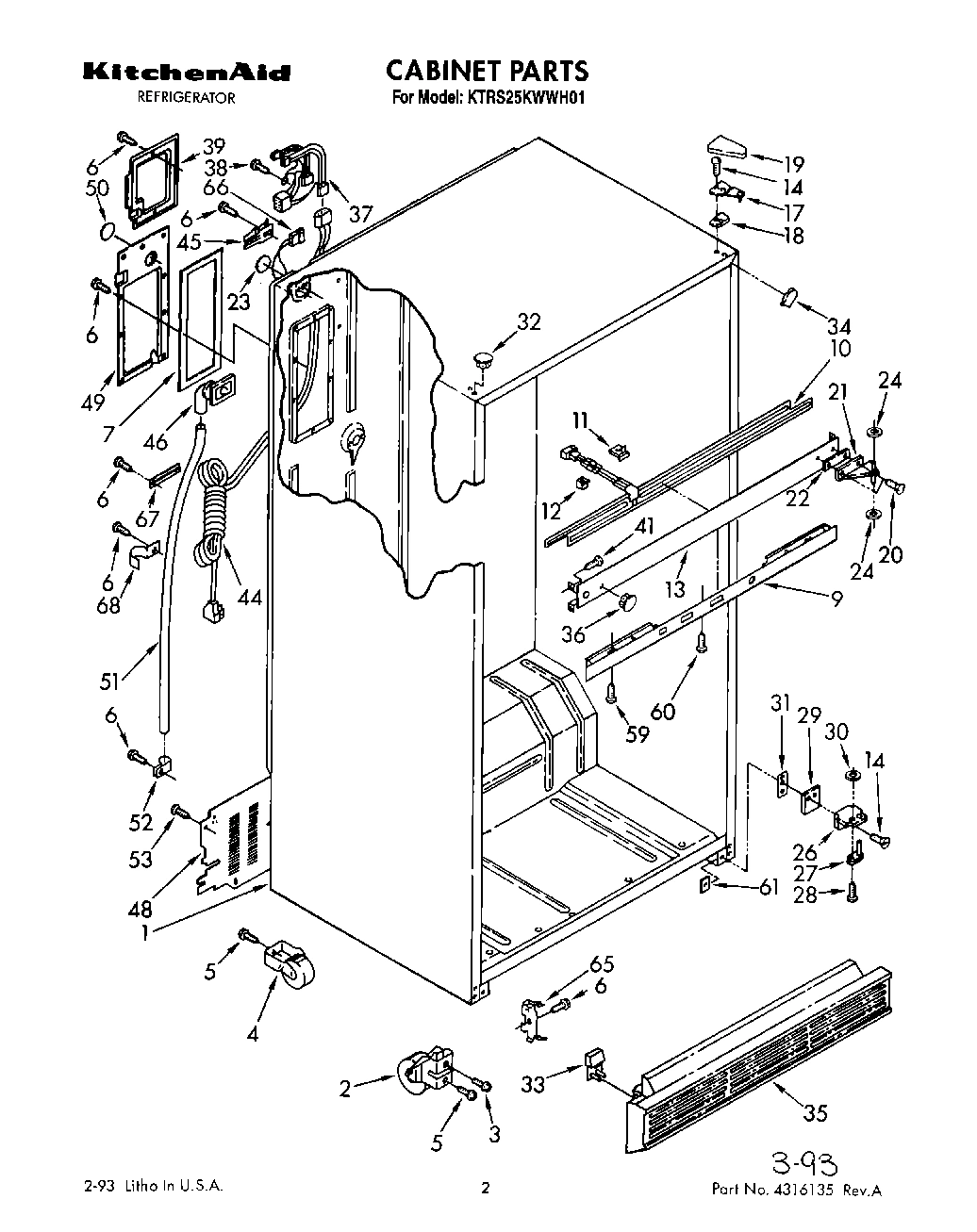

Cabinet, Wiring Assembly WPL 2149634 Contact Us For Availability

37

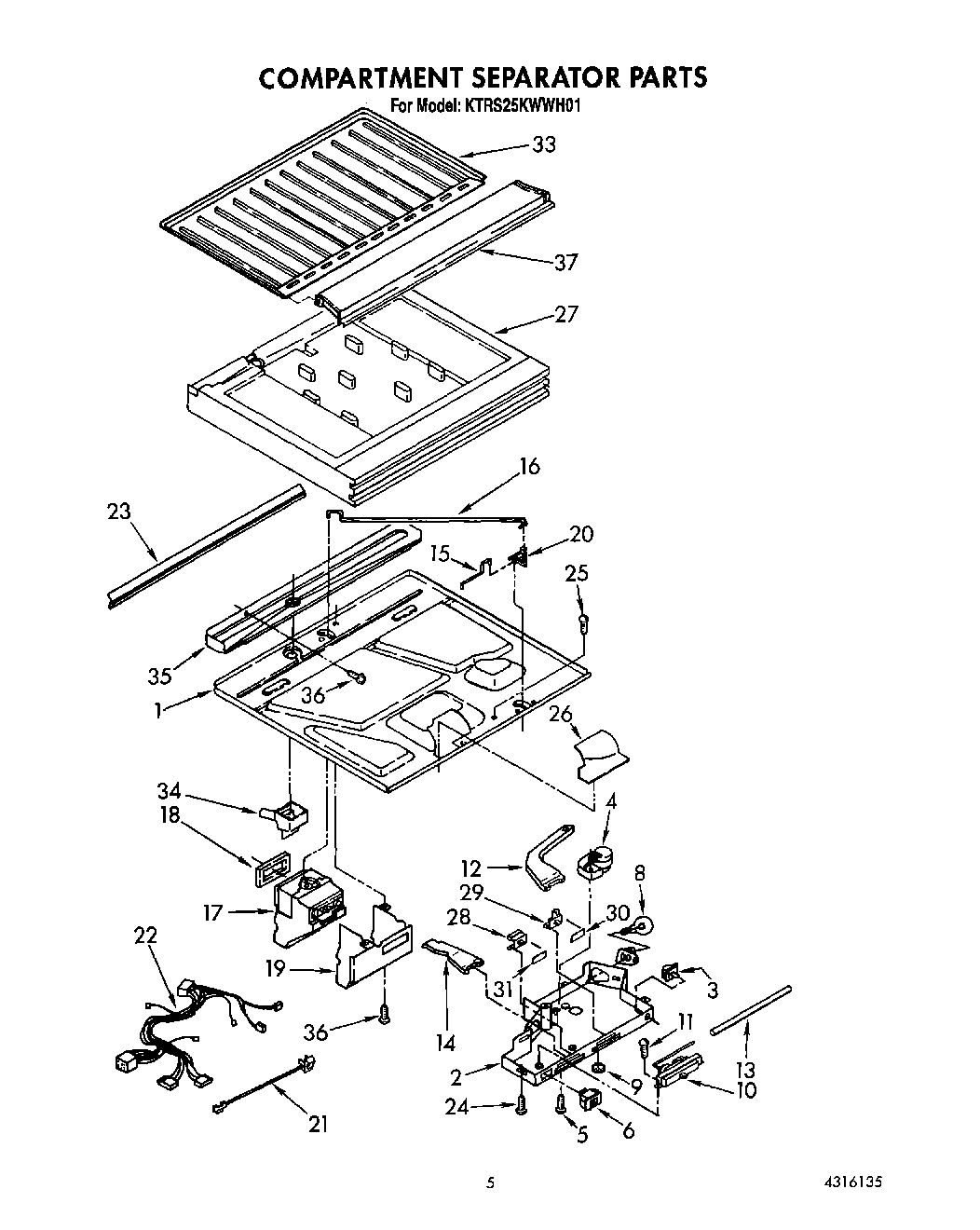

Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability

39

Cover, Wiring WPL 1105606 Contact Us For Availability

41

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

44

Cord, Service WPL 937360 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

46

Fitting, Drain WPL 937062 Contact Us For Availability

48

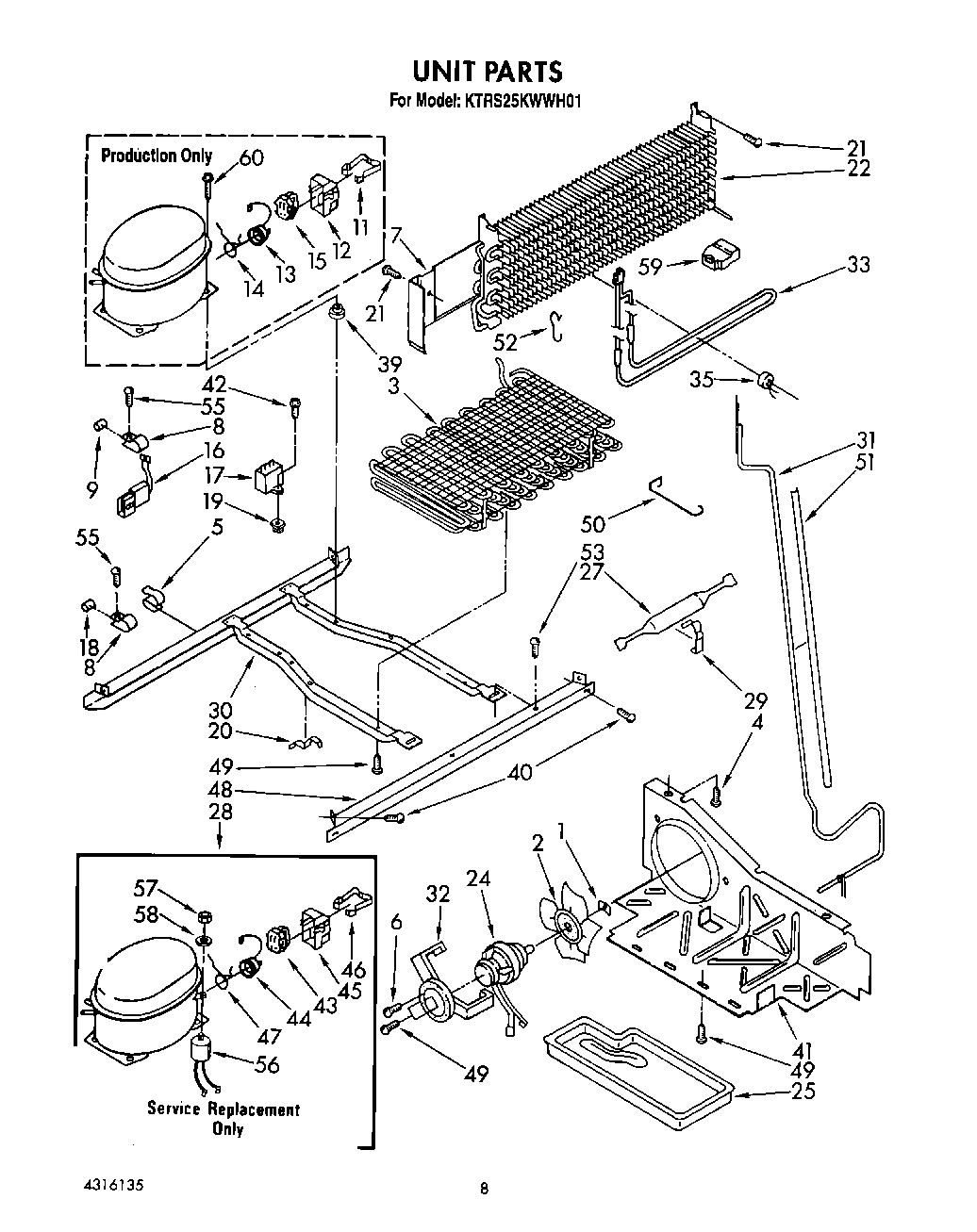

Cover, Unit WPL 2147323 Contact Us For Availability

49

Cover, Plug WPL 1105527 Contact Us For Availability

50

Hole Seal WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $78.15

52

Clamp WPL 836077 Contact Us For Availability

53

NLA:SCREW Backorder WPL WPW10141645 $4.82

57

Nut WPL 489142 Contact Us For Availability

58

Washer WPL 489143 Contact Us For Availability

59

Support Evap. WPL 842436 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

66

Housing Plug WPL 2149732 Contact Us For Availability

68

Tube Clamp WPL 1105607 Contact Us For Availability
