Whirlpool KSM500OB0 Parts List

NI

JACKET-WTR Out of Stock WPL 4162154 $133.27

View on Model

NI

W11200218 Whirlpool Grease In Stock WPL W11200218 $80.94

View on Model

NI

WPW10714130 Whirlpool Mixer Bowl Out of Stock WPL WPW10714130 $88.04

View on Model

1

W10121193 Whirlpool Housing Out of Stock WPL W10121193 $100.58

View on Model

1

HOUSING Out of Stock WPL W11672793 $107.33

View on Model

2

W11048596 Whirlpool Hub Chrome Cap In Stock WPL W11048596 $8.78

View on Model

2

W11312468 Whirlpool SHELD POUR In Stock WPL W11312468 $28.47

View on Model

3

W10802050 Whirlpool Mixer Bowl Out of Stock WPL W10802050 $88.04

View on Model

3

WP9709194 Whirlpool Thumb Screw Black In Stock WPL WP9709194 $18.53

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.45

View on Model

4

240286-18 Whirlpool Planetary Out of Stock WPL 240286-18 $45.54

View on Model

4

W10121190 Whirlpool Planetary Out of Stock WPL W10121190 $45.54

View on Model

4

W11084831 Whirlpool Planetary Out of Stock WPL W11084831 $26.48

View on Model

4

W11199173 Whirlpool Planetary Out of Stock WPL W11199173 $31.09

View on Model

4

WP240185 Whirlpool Bowl Retaining Pin In Stock WPL WP240185 $4.28

View on Model

4

WP240286-1 Whirlpool Planetary Out of Stock WPL WP240286-1 $23.91

View on Model

4

WP3183680 Whirlpool Spring Out of Stock WPL WP3183680 $4.28

View on Model

5

240253-14 Whirlpool Cover Out of Stock WPL 240253-14 $47.97

View on Model

5

240253-16 Whirlpool Cover Out of Stock WPL 240253-16 $44.06

View on Model

5

WP240253-1 Whirlpool Cover Out of Stock WPL WP240253-1 $20.86

View on Model

5

WP3182857 Whirlpool Spring In Stock WPL WP3182857 $4.28

View on Model

6

W11133634 Whirlpool ARMATURE Out of Stock WPL W11133634 $74.90

View on Model

6

WPW10112253 Whirlpool Gear In Stock WPL WPW10112253 $12.43

View on Model

7

W11082541 Whirlpool Bearing In Stock WPL W11082541 $13.00

View on Model

8

WP16998 Whirlpool Stud Drive Out of Stock WPL WP16998 $4.28

View on Model

8

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $4.28

View on Model

9

WP240210-2 Whirlpool Gear-Worm In Stock WPL WP240210-2 $10.26

View on Model

9

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $18.35

View on Model

9

WP9708649 Whirlpool Foot Out of Stock WPL WP9708649 $4.28

View on Model

10

W11192794 Whirlpool Gear-HUB In Stock WPL W11192794 $37.02

View on Model

10

WP240775-1 Whirlpool Endcap Seal In Stock WPL WP240775-1 $4.28

View on Model

11

WPW10131078 Whirlpool Nut Out of Stock WPL WPW10131078 $4.28

View on Model

12

240169 Whirlpool Bracket Out of Stock WPL 240169 $28.16

View on Model

12

WP240026 Whirlpool Shaft Control Out of Stock WPL WP240026 $7.98

View on Model

14

W11170663 Whirlpool Washer Out of Stock WPL W11170663 $4.28

View on Model

14

WP9705443 Whirlpool Pin Groove Out of Stock WPL WP9705443 $4.28

View on Model

15

8533907 Whirlpool Dishwasher Nut Out of Stock WPL 8533907 $25.99

View on Model

15

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $14.59

View on Model

16

SCREW Out of Stock WPL 3182904 $28.30

View on Model

16

WP67500-55 Whirlpool O-Ring Out of Stock WPL WP67500-55 $4.28

View on Model

17

W10870869 Whirlpool Field Assembly Out of Stock WPL W10870869 $59.00

View on Model

18

W10807813 Whirlpool Mixer Beater In Stock WPL W10807813 $19.24

View on Model

19

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $6.13

View on Model

19

WPW10674621 Whirlpool Dough Hook In Stock WPL WPW10674621 $49.13

View on Model

20

WP243368 Whirlpool Shaft Agitator Out of Stock WPL WP243368 $15.28

View on Model

20

WPW10731415 Whirlpool Stand Mixer Wire Whip In Stock WPL WPW10731415 $28.07

View on Model

21

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $22.71

View on Model

21

WP241764 Whirlpool Mixer Bowl Lift Arm In Stock WPL WP241764 $7.18

View on Model

21

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $3.19

View on Model

22

WP3179908 Whirlpool Brush Holder Out of Stock WPL WP3179908 $4.28

View on Model

23

INSERT Out of Stock WPL W11656718 $5.02

View on Model

23

WP9703442 Whirlpool Pin Roll Out of Stock WPL WP9703442 $4.28

View on Model

24

WP116286 Whirlpool Cap-Spring Out of Stock WPL WP116286 $4.28

View on Model

25

WP116287 Whirlpool Cap-Spring Out of Stock WPL WP116287 $4.28

View on Model

26

3184213 Whirlpool Cap-Brush Out of Stock WPL 3184213 $27.33

View on Model

26

W10861883 Whirlpool Screw Out of Stock WPL W10861883 $4.28

View on Model

26

Whirlpool Stand Mixer Brush Holder Cap,Black Out of Stock WPL WP3184212 $4.28

View on Model

27

WP240309-2 Whirlpool Stand Mixer Worm Drive P In Stock WPL WP240309-2 $19.52

View on Model

28

4160474 Whirlpool Shaft Control Out of Stock WPL 4160474 $27.82

View on Model

28

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $11.29

View on Model

29

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $13.57

View on Model

30

WP3400025 Whirlpool Screw Out of Stock WPL WP3400025 $4.28

View on Model

30

WPW10325124 Whirlpool Board PHAS In Stock WPL WPW10325124 $15.28

View on Model

31

W11396625 Whirlpool Power Cord In Stock WPL W11396625 $14.48

View on Model

31

W11545825 Whirlpool Power Cord In Stock WPL W11545825 $12.08

View on Model

32

W11133645 Whirlpool Pinon Gear In Stock WPL W11133645 $4.56

View on Model

33

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $4.28

View on Model

34

WP240285 Whirlpool Drip Ring In Stock WPL WP240285 $7.87

View on Model

36

W11340106 Whirlpool Gear Out of Stock WPL W11340106 $17.56

View on Model

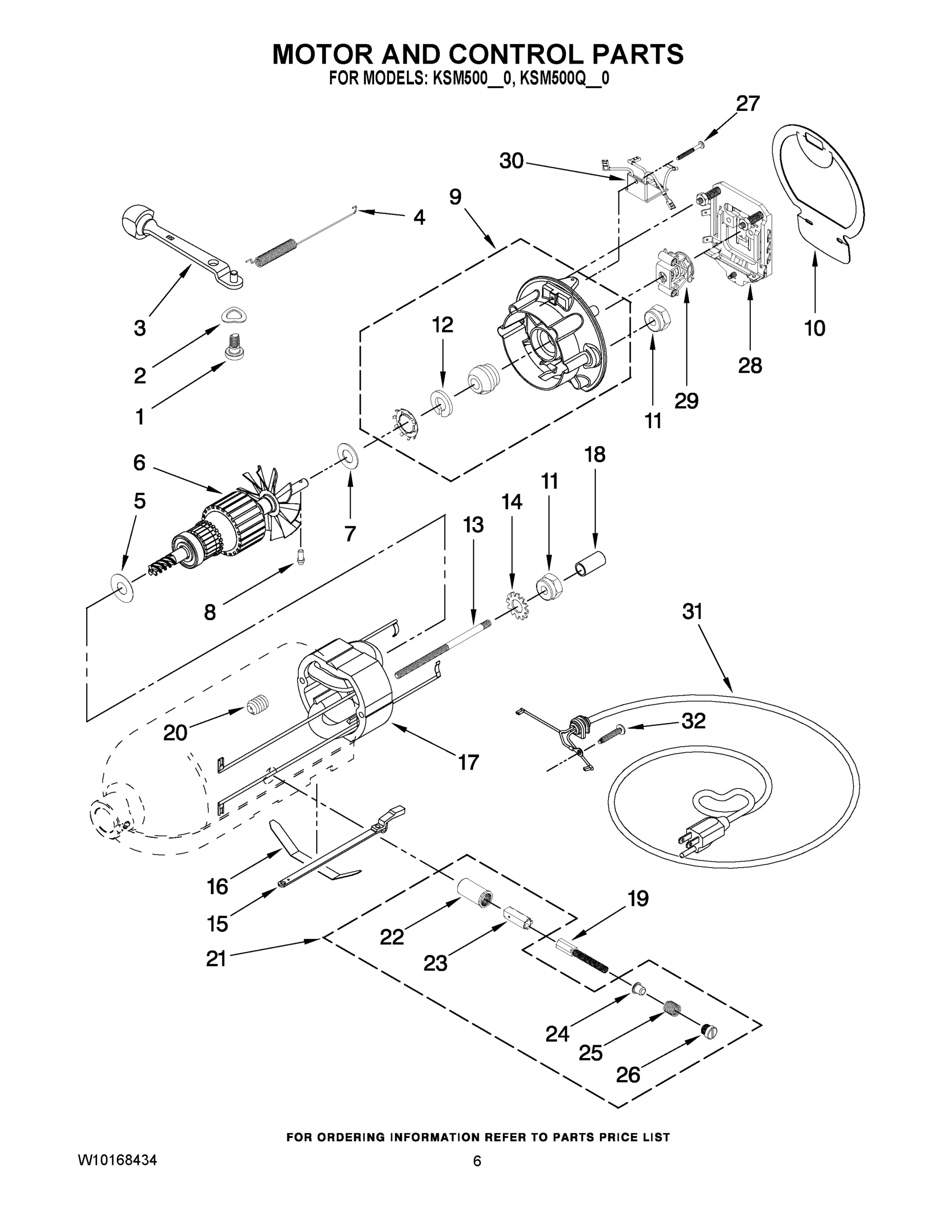

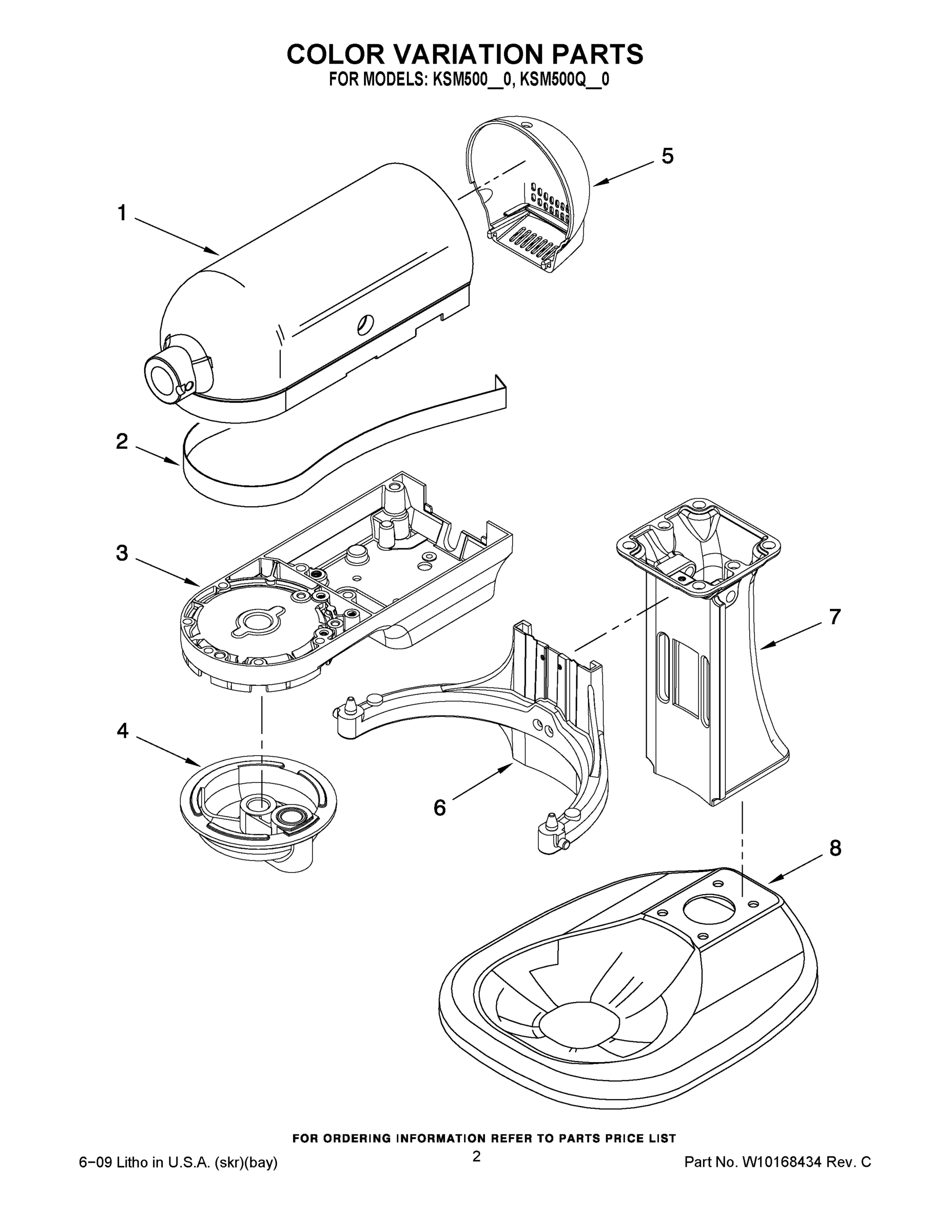

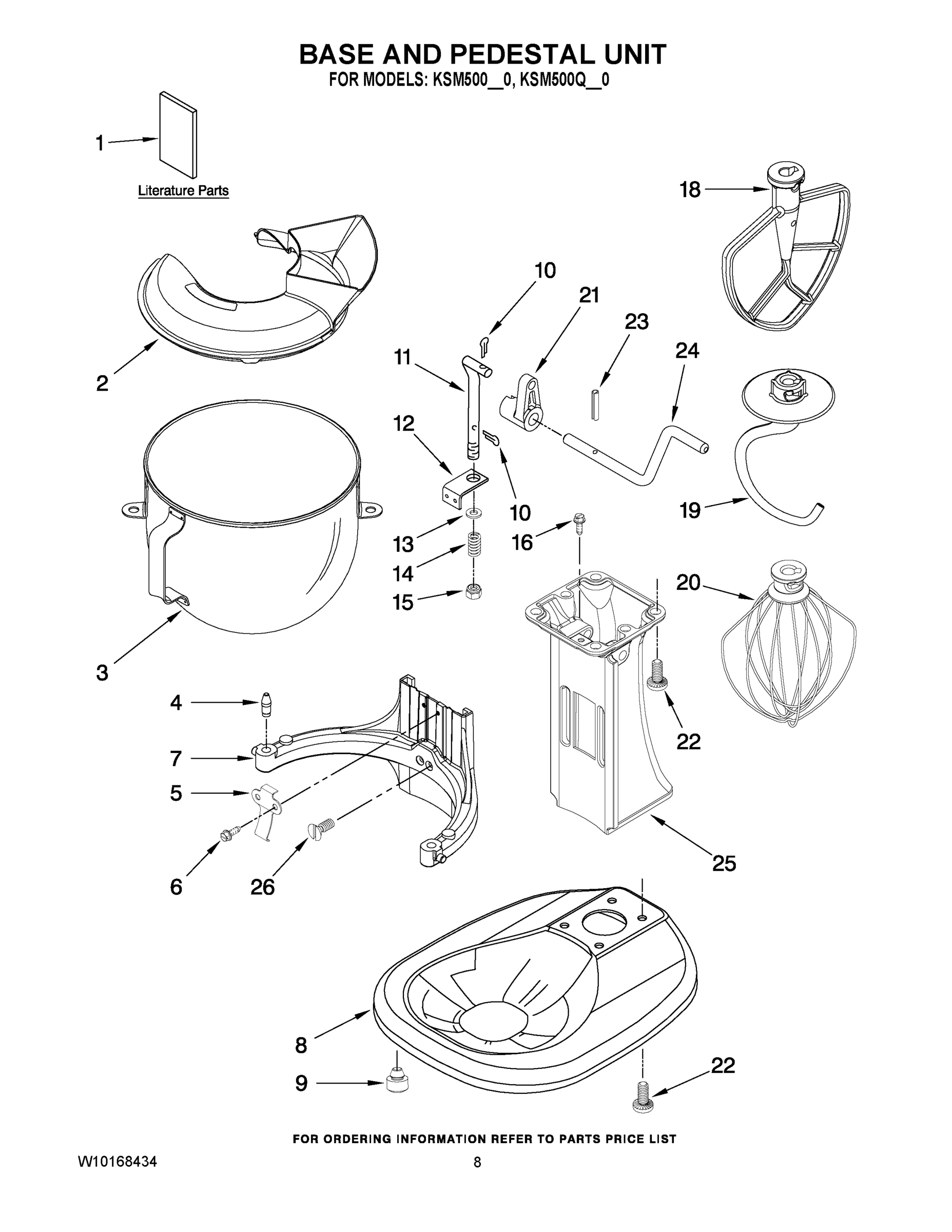

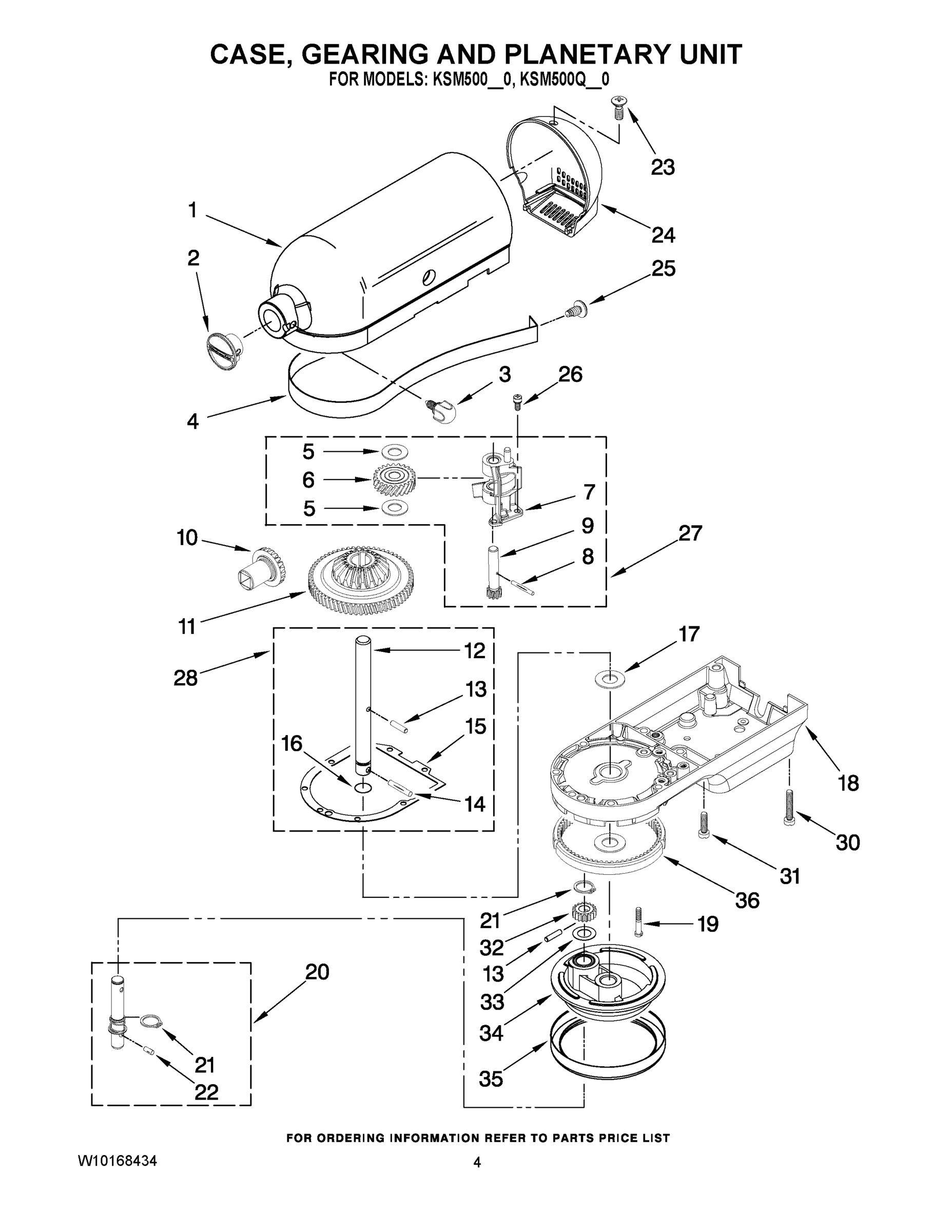

Model KSM500OB0 – Common Parts & Diagrams

Common parts from model KSM500OB0
