KSM154GBQMY0

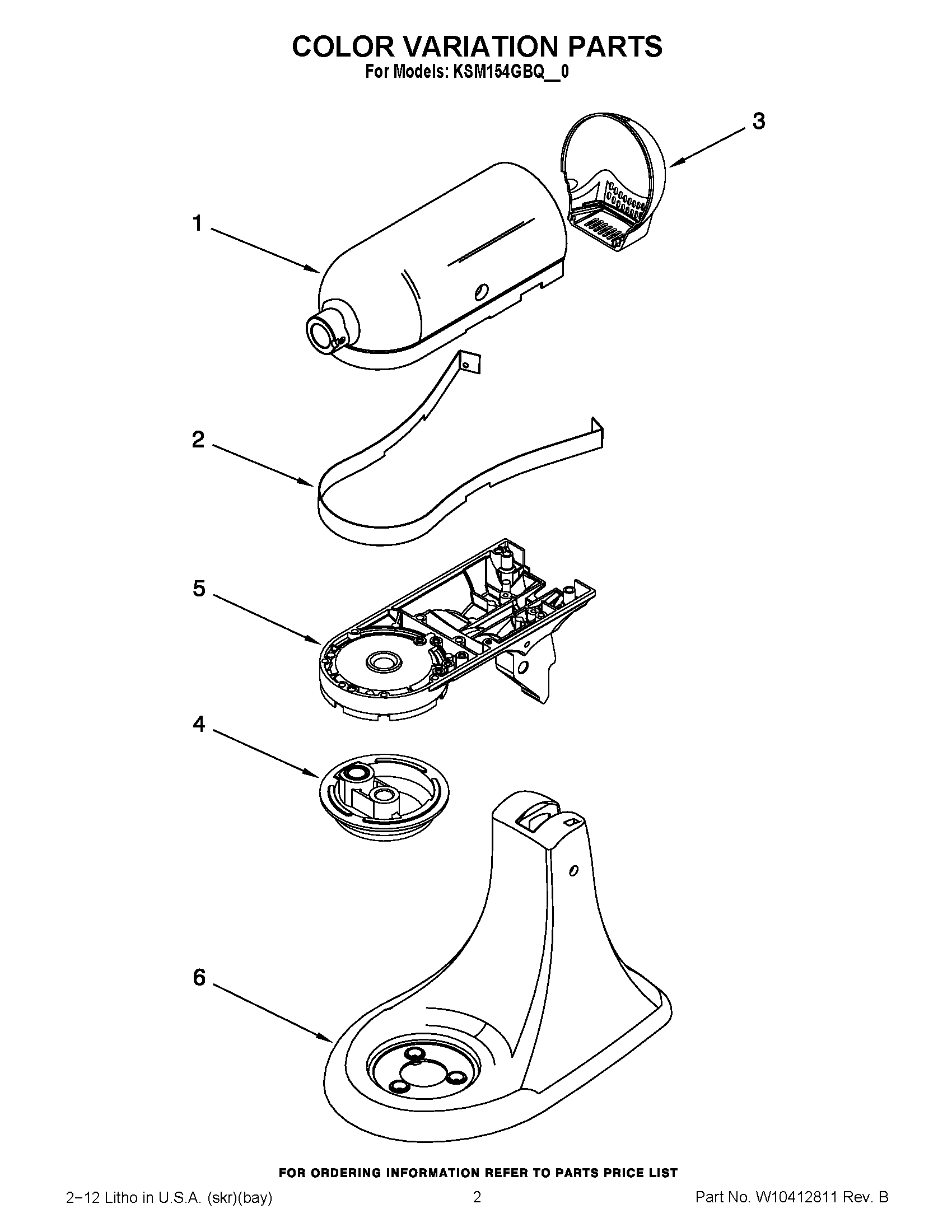

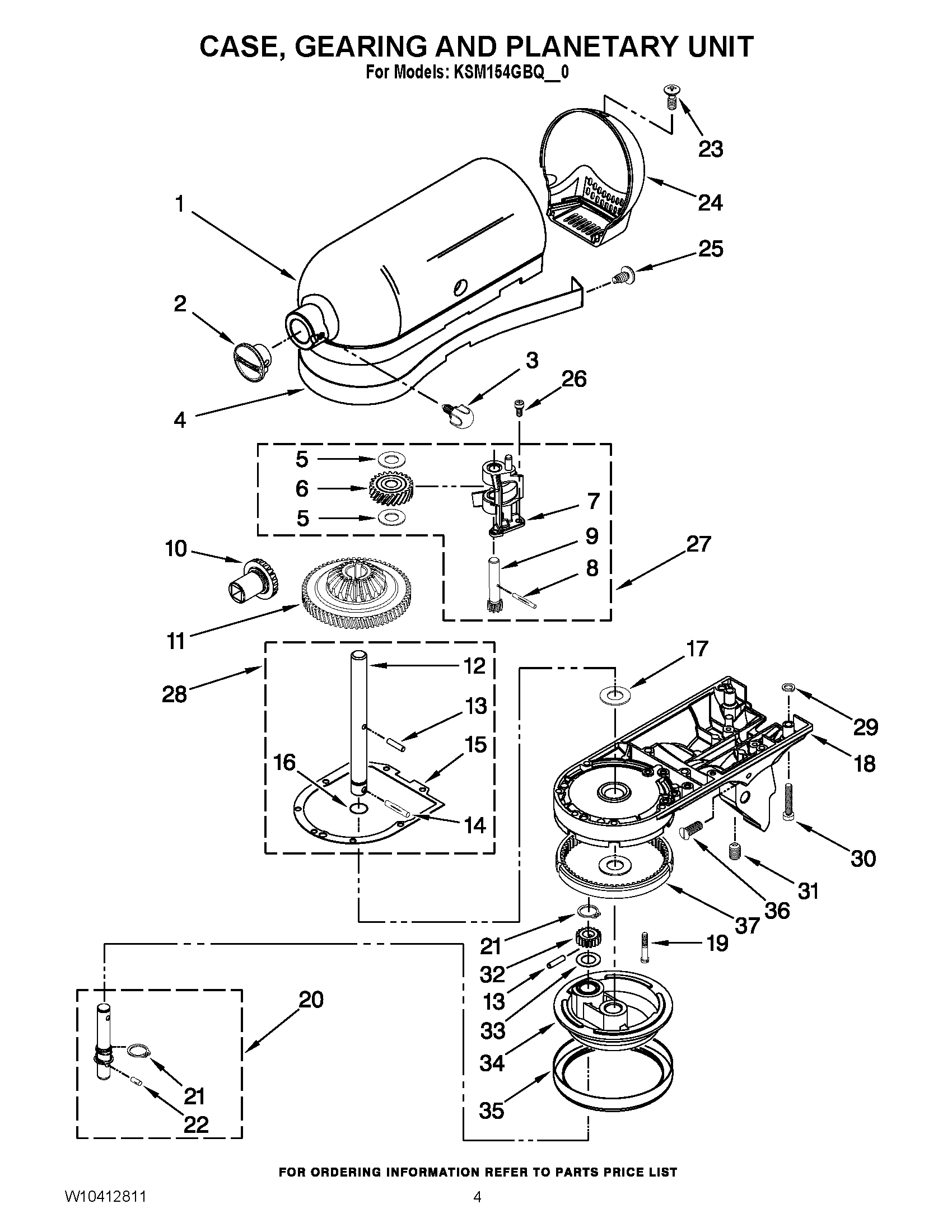

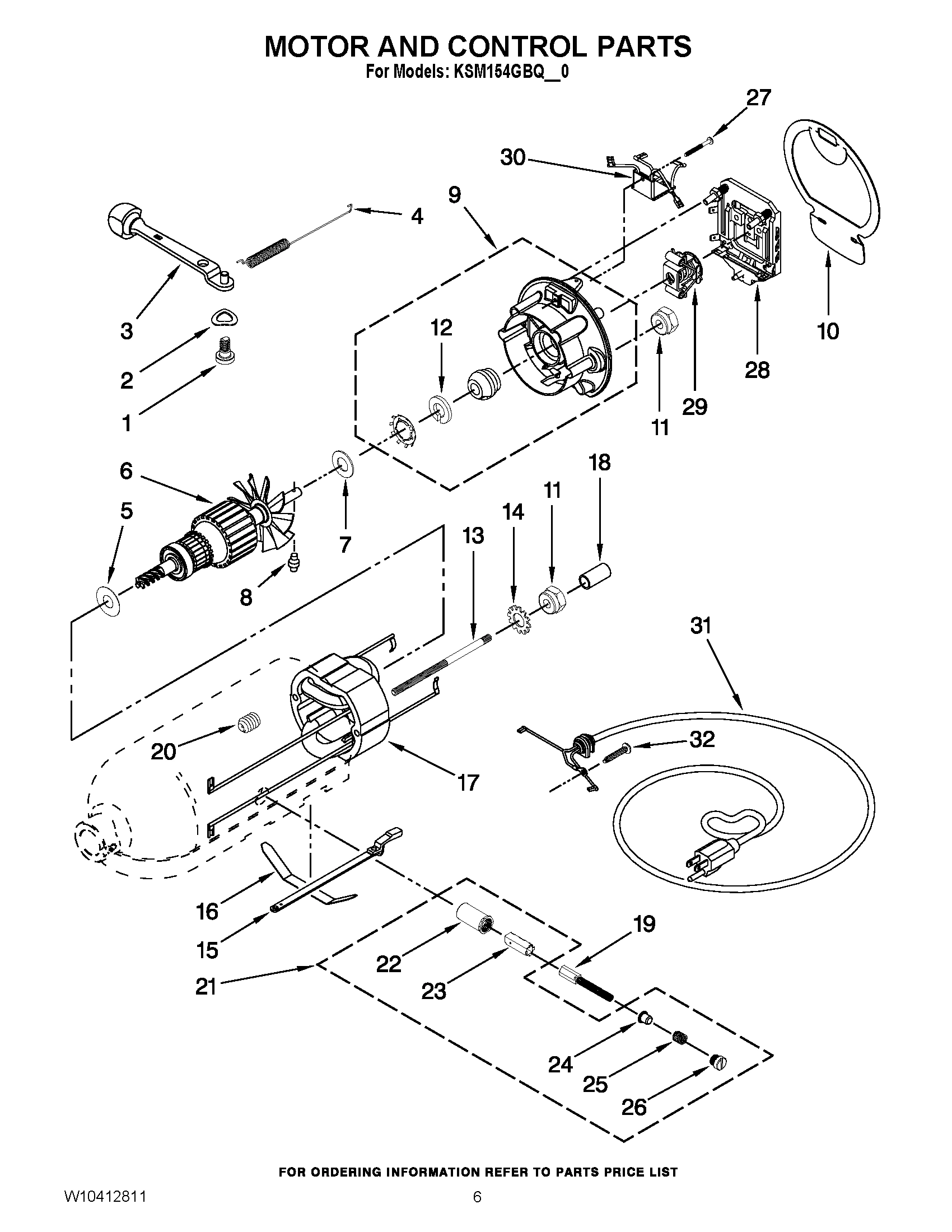

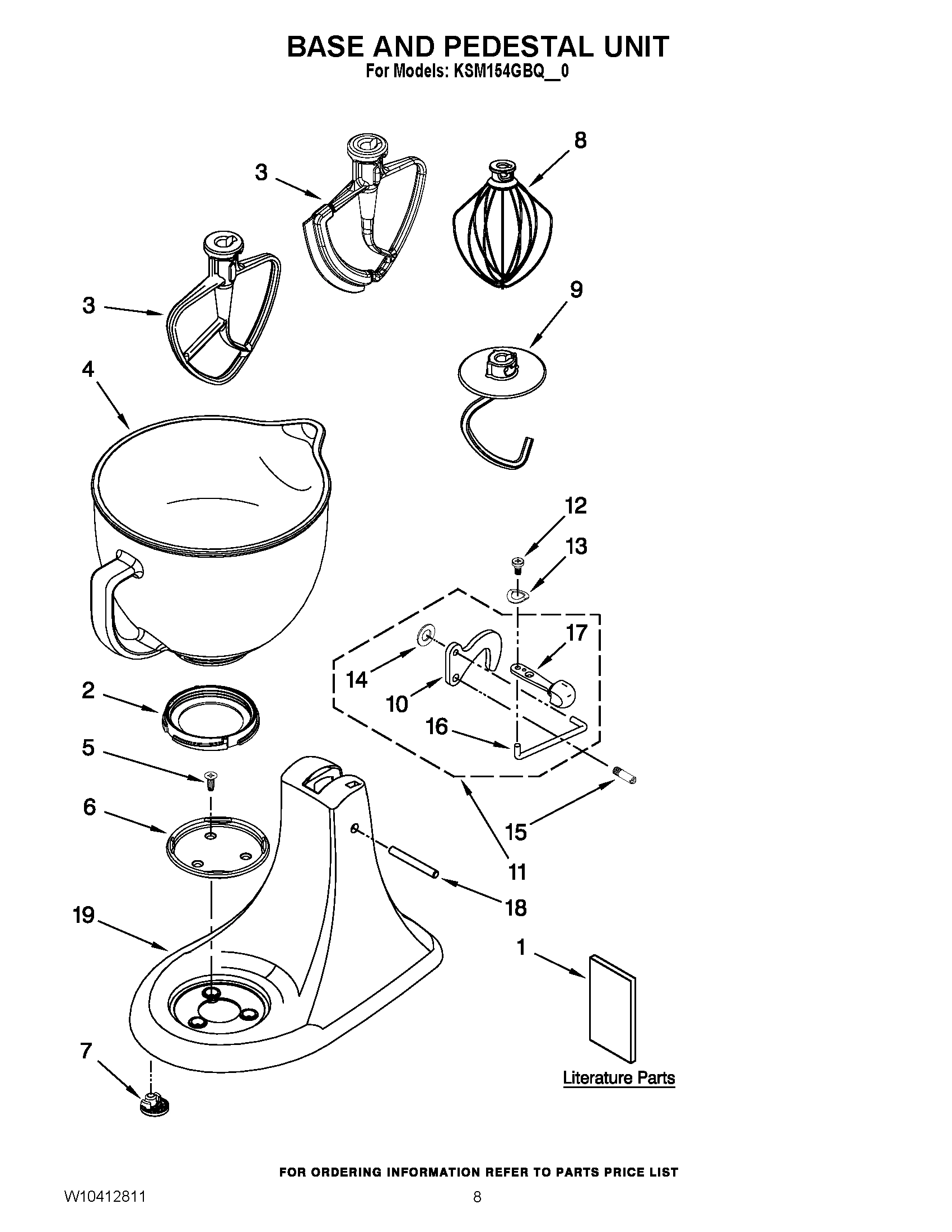

Model KSM154GBQMY0 – Common Parts & Diagrams

Common parts from model KSM154GBQMY0

W11200218 Whirlpool Grease

W11200218 Whirlpool Grease In Stock WPL W11200218 $80.94

W10121193 Whirlpool Housing

W10121193 Whirlpool Housing Out of Stock WPL W10121193 $100.58

HOUSING

HOUSING Out of Stock WPL W11672793 $107.33

W11048596 Whirlpool Hub Chrome Cap

W11048596 Whirlpool Hub Chrome Cap In Stock WPL W11048596 $8.78

240253-14 Whirlpool Cover

240253-14 Whirlpool Cover Out of Stock WPL 240253-14 $47.97

240253-16 Whirlpool Cover

240253-16 Whirlpool Cover Out of Stock WPL 240253-16 $44.06

WP240253-1 Whirlpool Cover

WP240253-1 Whirlpool Cover Out of Stock WPL WP240253-1 $20.86

WP9709194 Whirlpool Thumb Screw Black

WP9709194 Whirlpool Thumb Screw Black In Stock WPL WP9709194 $18.53

WP9709276 Whirlpool Speed Control Lever

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.69

240286-18 Whirlpool Planetary

240286-18 Whirlpool Planetary Out of Stock WPL 240286-18 $45.54

W10121190 Whirlpool Planetary

W10121190 Whirlpool Planetary Out of Stock WPL W10121190 $45.54

W11084831 Whirlpool Planetary

W11084831 Whirlpool Planetary Out of Stock WPL W11084831 $26.48

W11199173 Whirlpool Planetary

W11199173 Whirlpool Planetary Out of Stock WPL W11199173 $31.09

WP240286-1 Whirlpool Planetary

WP240286-1 Whirlpool Planetary Out of Stock WPL WP240286-1 $23.91

WP3183680 Whirlpool Spring

WP3183680 Whirlpool Spring Out of Stock WPL WP3183680 $4.28

240350-62 Whirlpool Gearcase

240350-62 Whirlpool Gearcase Out of Stock WPL 240350-62 $64.41

W10861717 Whirlpool Gearcase

W10861717 Whirlpool Gearcase Out of Stock WPL W10861717 $111.81

W11133634 Whirlpool ARMATURE

W11133634 Whirlpool ARMATURE Out of Stock WPL W11133634 $74.90

WPW10112253 Whirlpool Gear

WPW10112253 Whirlpool Gear In Stock WPL WPW10112253 $12.43

WPW10191926 Whirlpool Screw Cap

WPW10191926 Whirlpool Screw Cap In Stock WPL WPW10191926 $15.96

W11082541 Whirlpool Bearing

W11082541 Whirlpool Bearing In Stock WPL W11082541 $13.00

WP9709707 Whirlpool Foot

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $4.28

WP16998 Whirlpool Stud Drive

WP16998 Whirlpool Stud Drive Out of Stock WPL WP16998 $4.28

WP9704329 Whirlpool Wire Whip

WP9704329 Whirlpool Wire Whip In Stock WPL WP9704329 $26.36

WP9705444 Whirlpool Pin Groove

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $4.28

Whirlpool Stand Mixer Dough Hook

Whirlpool Stand Mixer Dough Hook Out of Stock WPL W11316221 $35.08

WP240210-2 Whirlpool Gear-Worm

WP240210-2 Whirlpool Gear-Worm In Stock WPL WP240210-2 $10.26

WP3180526 Whirlpool Bearing Bracket

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $18.35

W11192794 Whirlpool Gear-HUB

W11192794 Whirlpool Gear-HUB In Stock WPL W11192794 $37.02

WP240775-1 Whirlpool Endcap Seal

WP240775-1 Whirlpool Endcap Seal In Stock WPL WP240775-1 $4.28

WPW10131078 Whirlpool Nut

WPW10131078 Whirlpool Nut Out of Stock WPL WPW10131078 $4.28

W11170663 Whirlpool Washer

W11170663 Whirlpool Washer Out of Stock WPL W11170663 $4.28

WP9705443 Whirlpool Pin Groove

WP9705443 Whirlpool Pin Groove Out of Stock WPL WP9705443 $4.28

WP4162324 Whirlpool Case Gasket

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $14.59

WP67500-55 Whirlpool O-Ring

WP67500-55 Whirlpool O-Ring Out of Stock WPL WP67500-55 $4.28

W10870869 Whirlpool Field Assembly

W10870869 Whirlpool Field Assembly Out of Stock WPL W10870869 $59.00

WP9709280 Whirlpool Latch Lever

WP9709280 Whirlpool Latch Lever Out of Stock WPL WP9709280 $4.28

WP16910 Whirlpool Dowel Pin

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $4.28

WPW10380496 Whirlpool Stand Mixer Motor Brush

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $6.13

4162546 Whirlpool Brush Holder

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $22.71

WP9703438 Whirlpool Snap Retaining Ring

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $3.19

INSERT

INSERT Out of Stock WPL W11656718 $5.02

WP116287 Whirlpool Cap-Spring

WP116287 Whirlpool Cap-Spring Out of Stock WPL WP116287 $4.28

Whirlpool Stand Mixer Brush Holder Cap,Black

Whirlpool Stand Mixer Brush Holder Cap,Black Out of Stock WPL WP3184212 $4.28

WP240309-2 Whirlpool Stand Mixer Worm Drive P

WP240309-2 Whirlpool Stand Mixer Worm Drive P In Stock WPL WP240309-2 $25.14

4160474 Whirlpool Shaft Control

4160474 Whirlpool Shaft Control Out of Stock WPL 4160474 $27.82

WPW10119326 Whirlpool Speed Control

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $12.09

WPW10330804 Whirlpool Speed Governor

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $13.57

WP3400025 Whirlpool Screw

WP3400025 Whirlpool Screw Out of Stock WPL WP3400025 $4.28

WPW10325124 Whirlpool Board PHAS

WPW10325124 Whirlpool Board PHAS In Stock WPL WPW10325124 $15.28

W11396625 Whirlpool Power Cord

W11396625 Whirlpool Power Cord In Stock WPL W11396625 $14.48

WP3400203 Whirlpool Screw

WP3400203 Whirlpool Screw Out of Stock WPL WP3400203 $4.28

W11133645 Whirlpool Pinon Gear

W11133645 Whirlpool Pinon Gear In Stock WPL W11133645 $4.56

WP9706090 Whirlpool Washer

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $4.28

WP240285 Whirlpool Drip Ring

WP240285 Whirlpool Drip Ring In Stock WPL WP240285 $7.87
